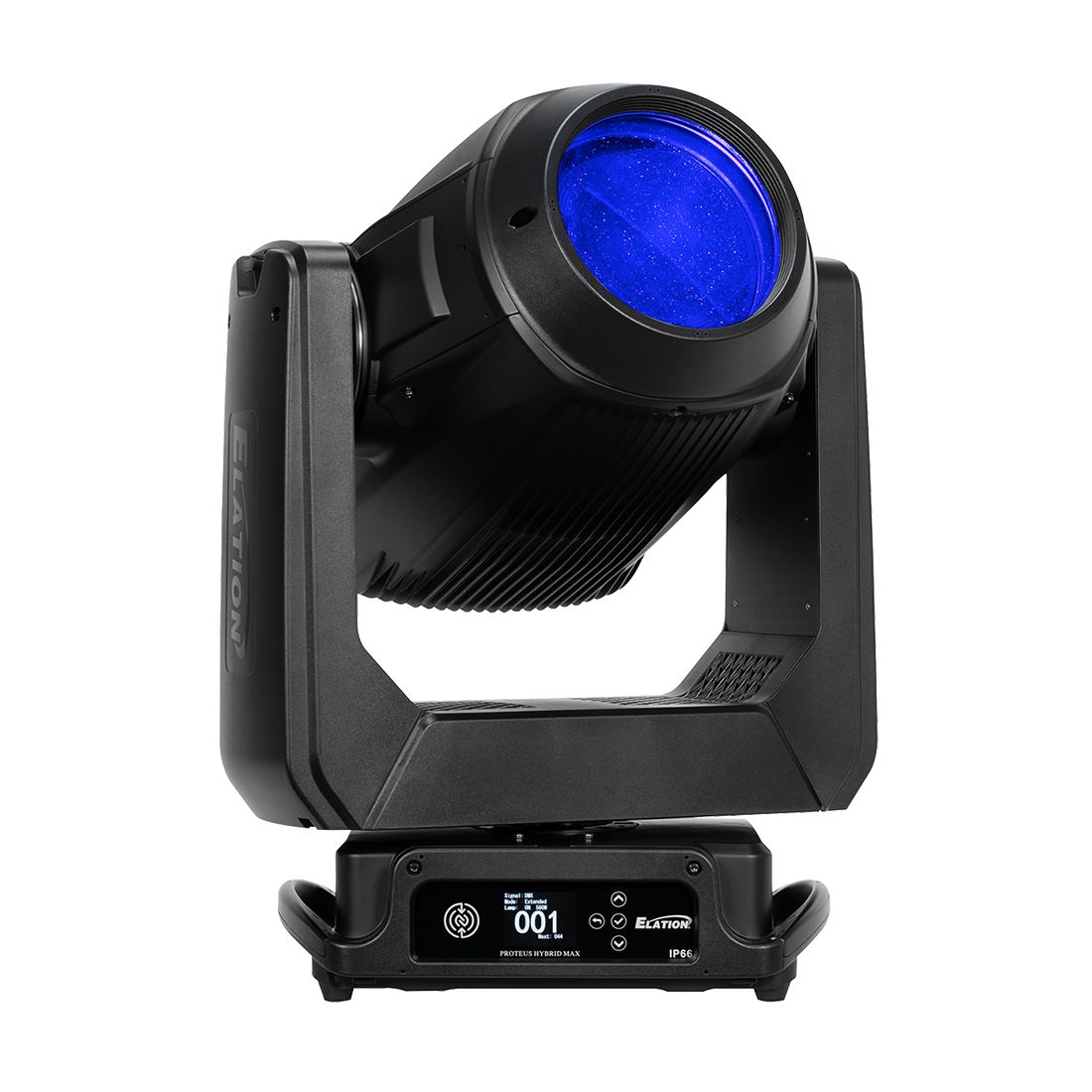

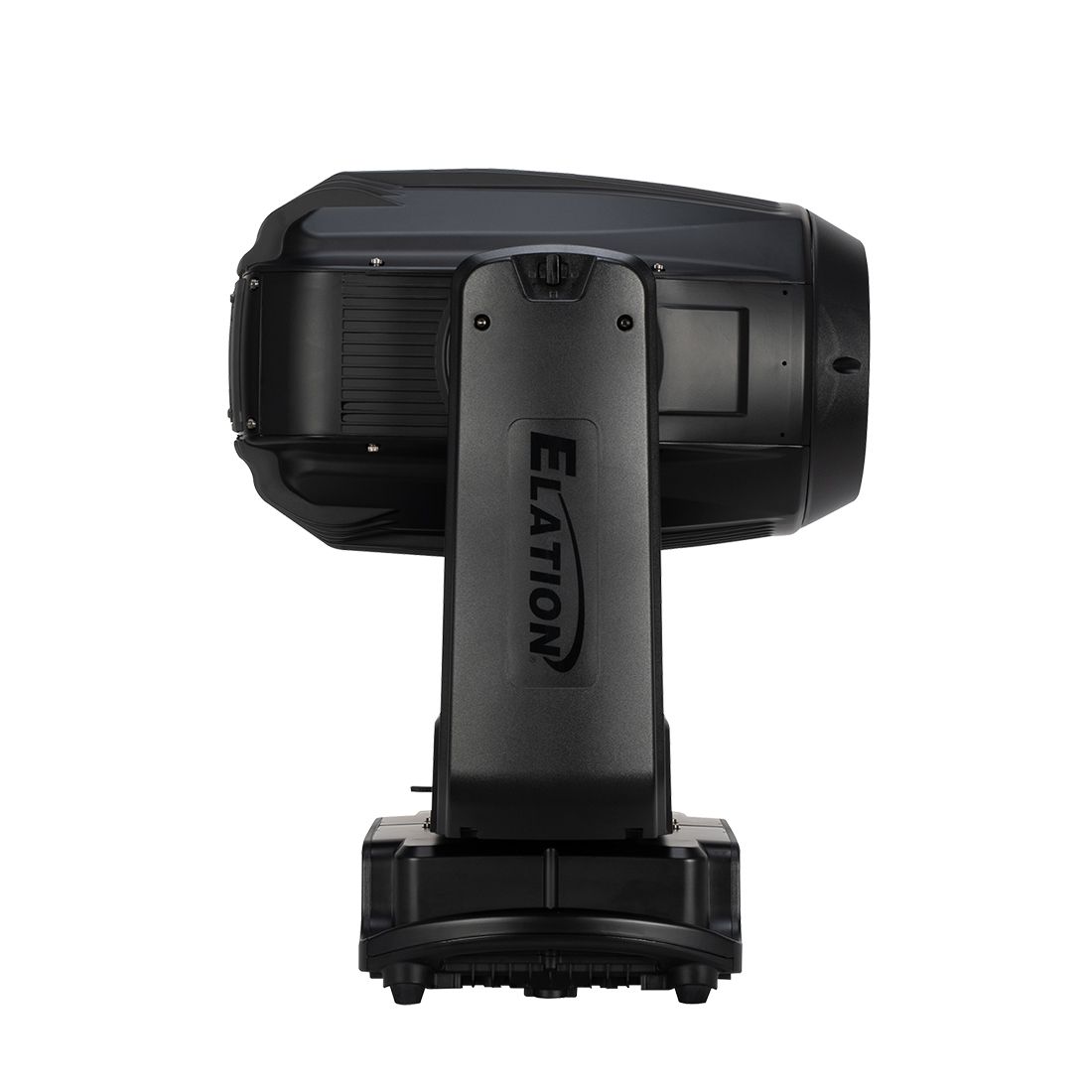

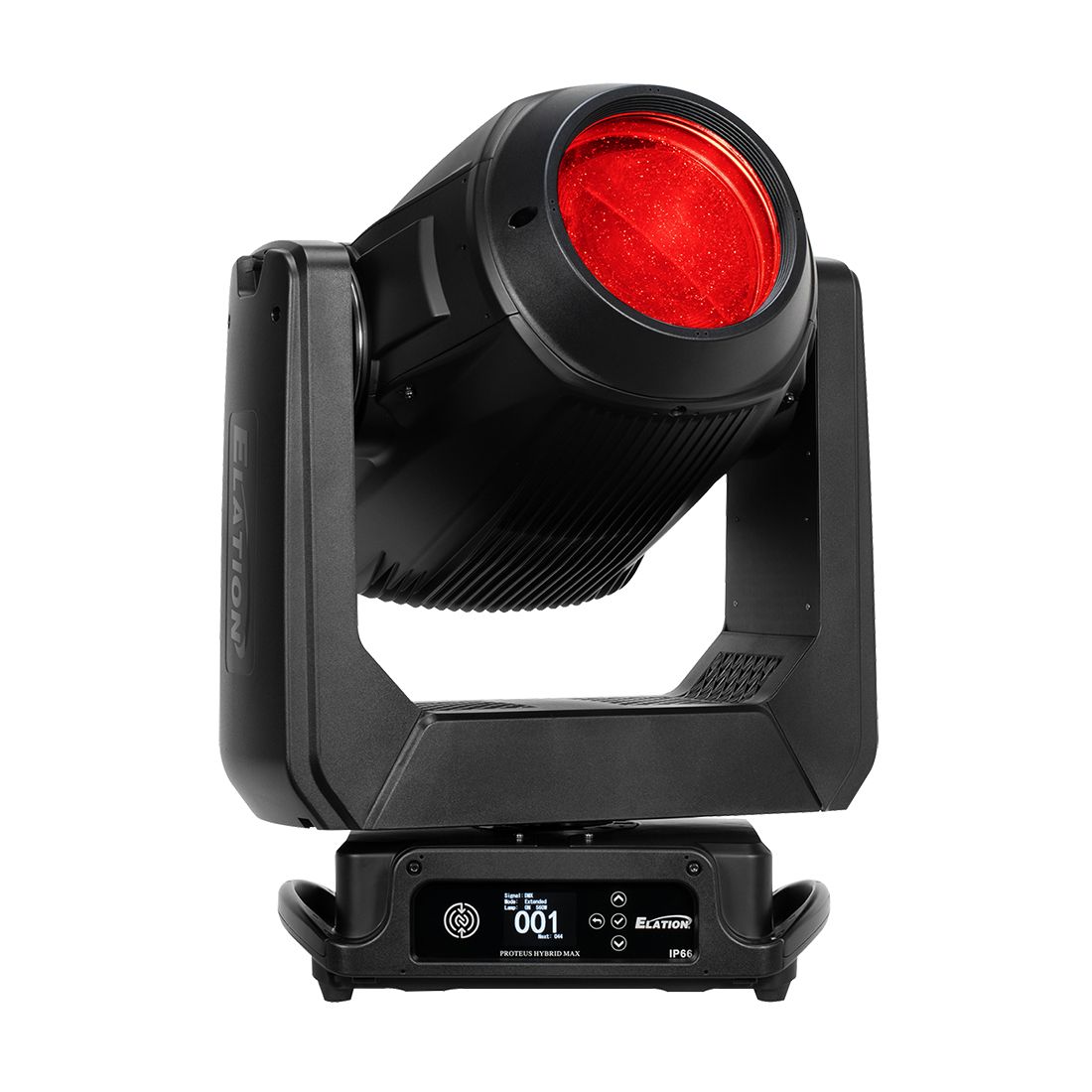

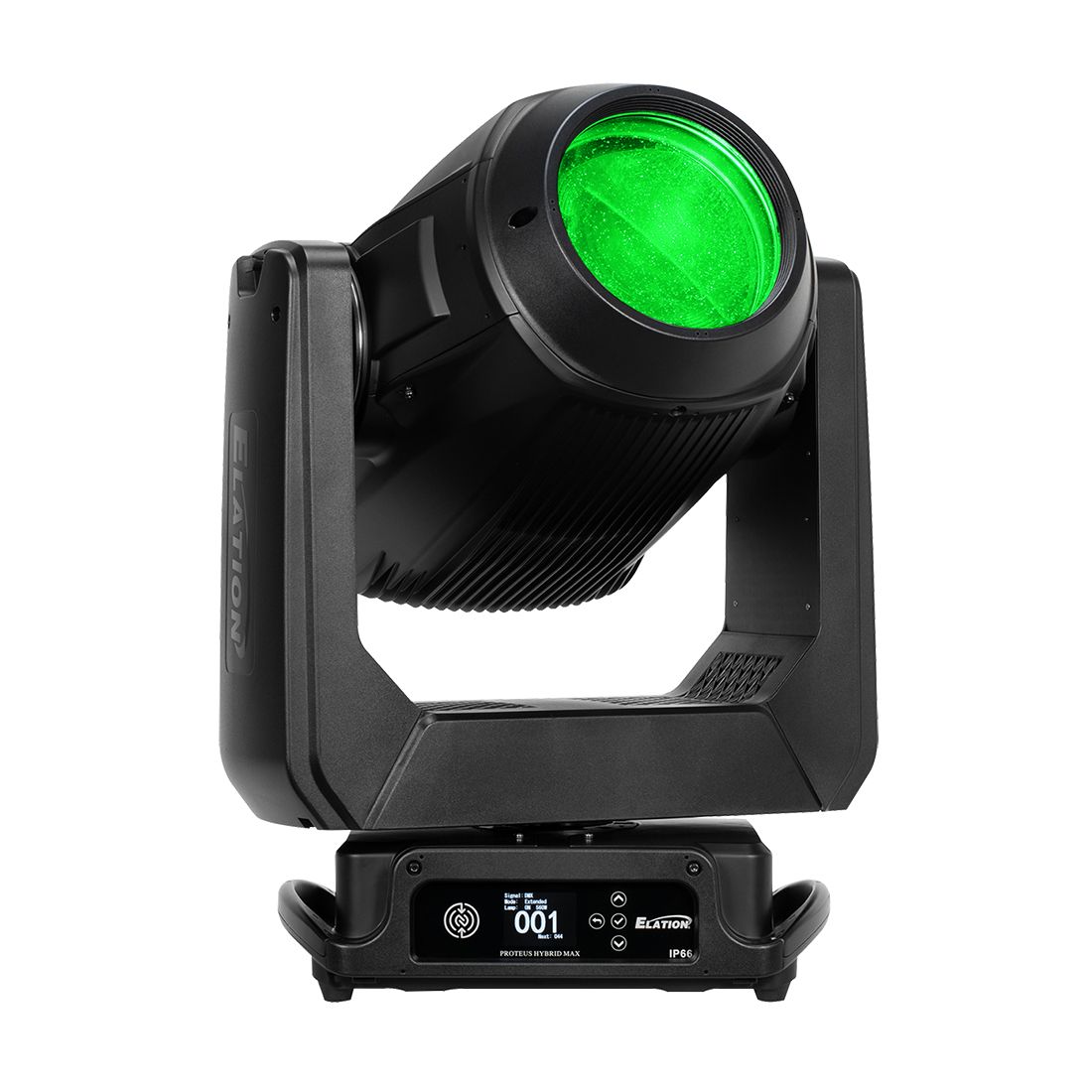

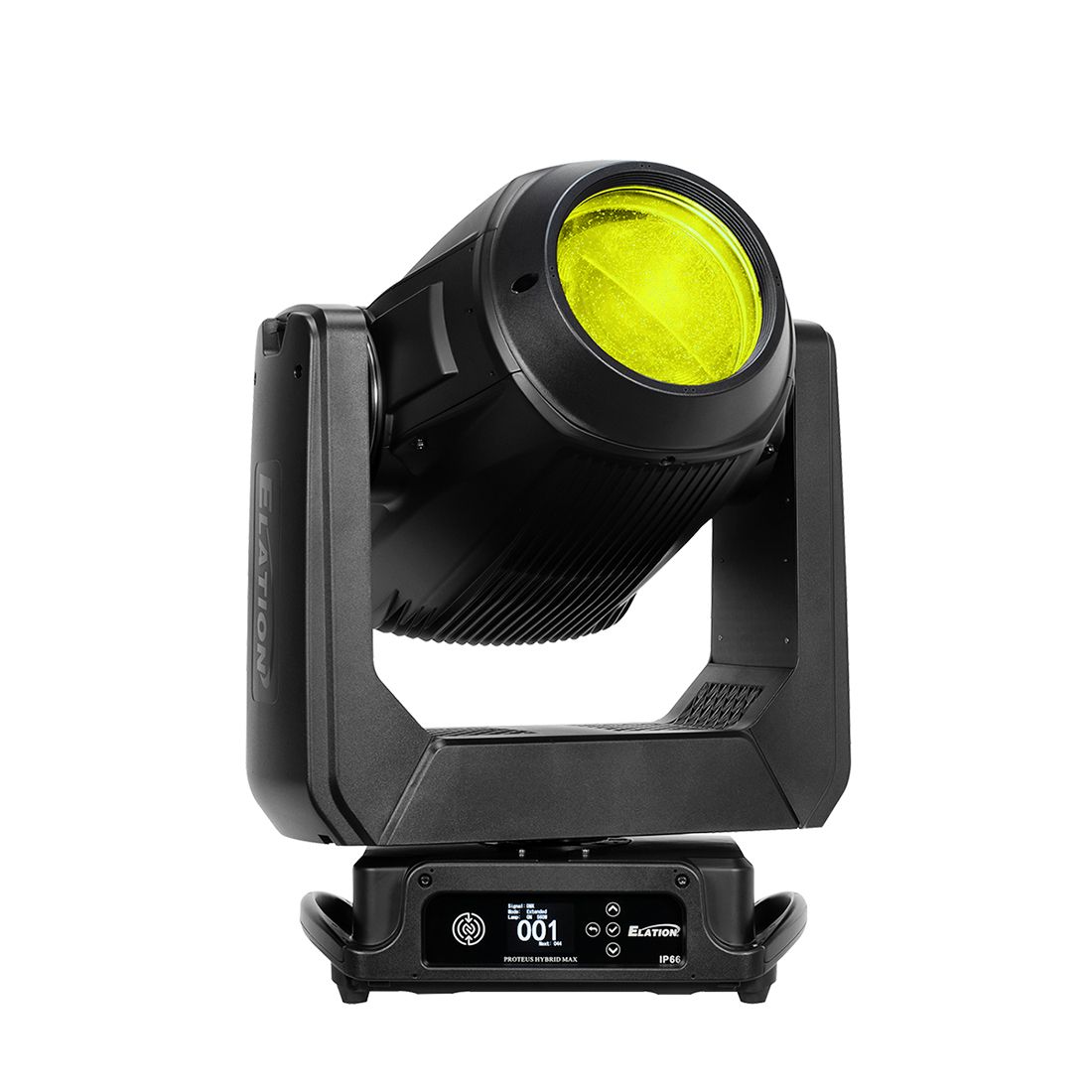

PROTEUS HYBRID MAX

The PROTEUS HYBRID MAX™ combines high output and long lamp life in a feature packed compact IP66 Hybrid fixture. PROTEUS HYBRID MAX is the Extreme Output Hybrid featuring the innovative Philips MSD Platinum FLEX 500 lamp.


Rated at 550W and up to 4,000 hours smart lamp life the HYBRID MAX includes CMY and variable CTO plus a full complement of projection and effects options.
Four prisms on two planes, dual frosts plus dual gobo wheel and three tracks of animation patterns round out the comprehensive FX package in a compact and lightweight housing. For extra impact the fixture features a fast continuous pan rotation.
Delivering 22,000 lumens from its large 170mm front aperture, the PROTEUS HYBRID MAX has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.

The PROTEUS HYBRID MAX™ includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large format Xenon fixtures the PROTEUS HYBRID MAX™ operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP66 rated. The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.

Technical Data

FEATURES

Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology 550W plus Smart Hibernation with up to 4,000 Hour Lamp Life
Full CMY Color Mixing System, Variable CTO, Color Wheel
Creative FX Package: 8 Rotating and 16 Static Gobos, Dual and Single-Track Animation, Iris, 4x Prism on Dual Planes, 2x Frost
Ultra-Fast Zoom
360˚ Endless Pan Motion
IP66 rating protects from water and dirt
Sky Motion System for powerful searchlight and skytracker animations

SOURCE

Philips MSD Platinum 500 Flex 550W Lamp
Variable Lamp Power
Automated Lamp Hibernation with Instant Recovery
Up to 4,000 Hour Lamp Life*

*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

22,000+ Lumen Total Fixture Output
Zoom Range 1.8˚ - 45°

EFFECTS

Beam, Spot and Wash Modes
Motorized Zoom
Dual Frost Filter for Light Frost/ Full Wash
4 Prisms on Dual Planes
Iris
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 250°

COLOR

Full CMY Color Mixing System
Variable CTO
16 Position Color Wheel

GOBOS

2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
16 Static-Stamped Metal Gobos plus Animation Track
Dual Track Animation Wheel

CONTROL / CONNECTIONS

2 DMX Channel Modes (32, 43)
(4) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
IP66 5pin DMX In/Out
IP66 RJ45 Ethernet In/Out
IP66 Locking Power Cable In

SIZE / WEIGHT

Length: 462mm (18.2")
Width: 477mm (18.8")
Vertical Height: 677mm (26.65")
Weight: 36 kg (79.4 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
800W Max Power Consumption
-20°C to 45°C (-4°F to 113°F)

FIRMWARE UPDATES

Current firmware can be found here (login required)

FIXTURE LIBRARIES

ONYX
GDTF
GRANDMA2

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
 C.T.O. C.T.O.
Color Wheel
Cyan Cyan
 Green Green
 Light Green Light Green
 Red Red
 Deep Red Deep Red
 Blue Blue
 Orange Orange
 UV UV
 Yellow Yellow
 Magenta Magenta
 C.T.O. C.T.O.
 CTB CTB
 Half Minus Green H. M. G.
 Pink Pink
 Purple Purple
 Dark Amber Dark Amber
Gobo Wheel 1
Gobo 19
 Gobo 21
 Gobo 24
 Gobo 33
 Gobo 64
 Gobo 78
 Gobo 79
 Gobo 99
Gobo Wheel 2
Gobo 2
 Gobo 10
 Gobo 12
 Gobo 38
 Gobo 39
 Gobo 40
 Gobo 45
 Gobo 53
 Gobo 54
 Gobo 68
 Gobo 69
 Gobo 70
 Gobo 72
 Gobo 73
 Gobo 98
 Gobo 116
 Gobo 123
Animation Wheel

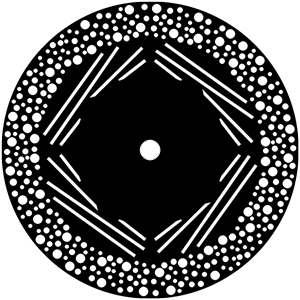

Animation Wheel 8

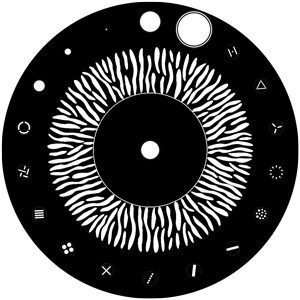

 Animation Wheel 9
Prisms
Prism 3
 Prism 6
 Prism 7
 Prism 8
