Proteus Odeon

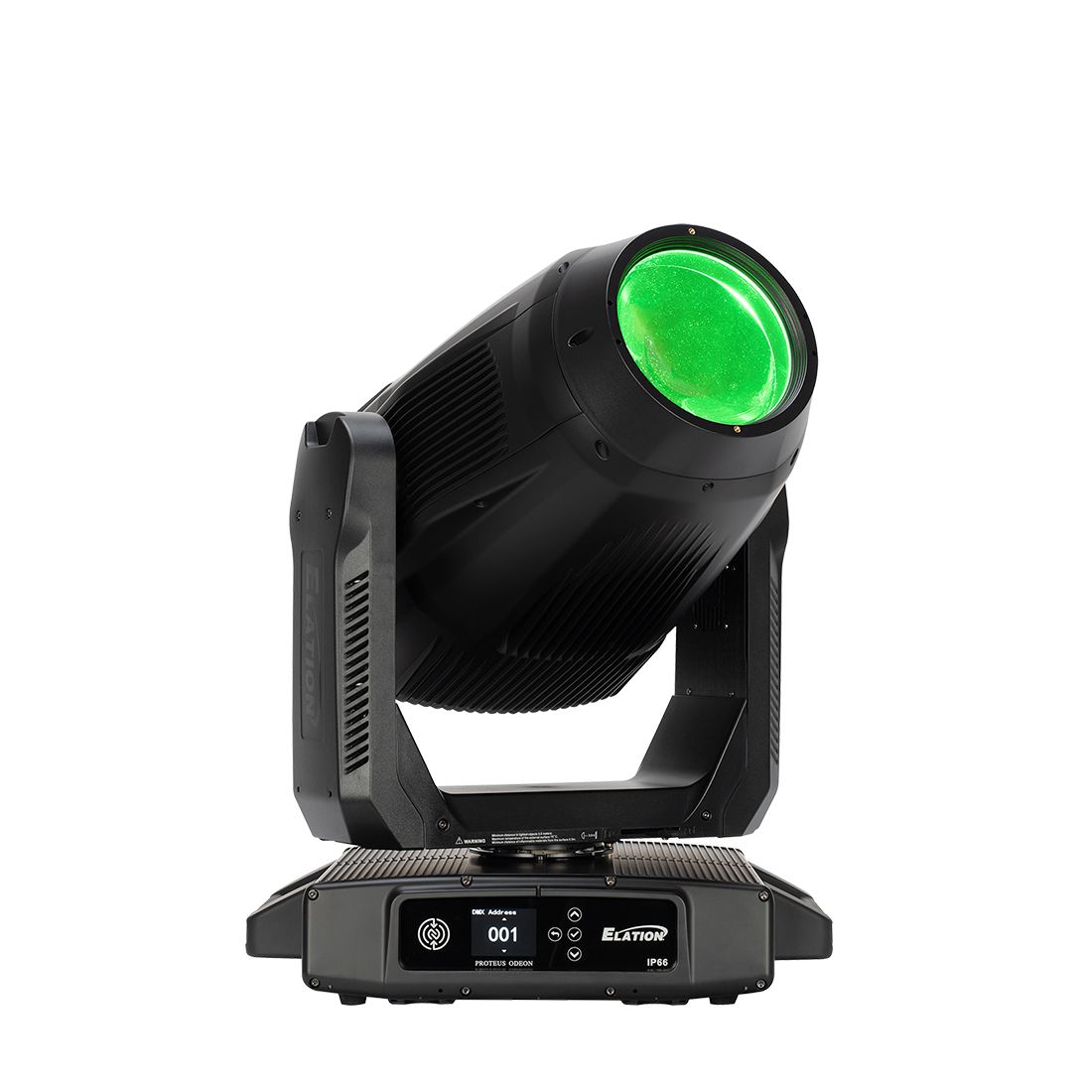

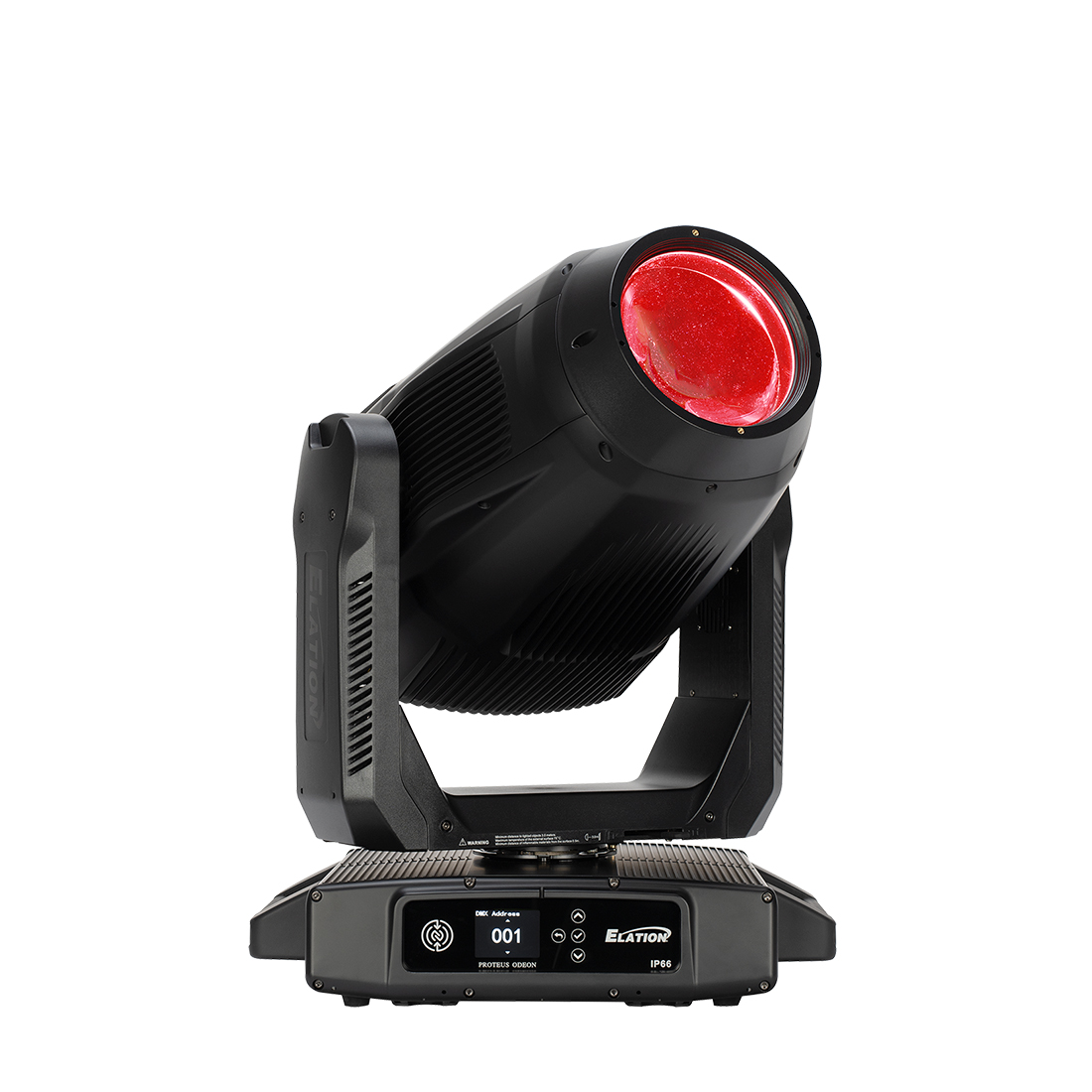

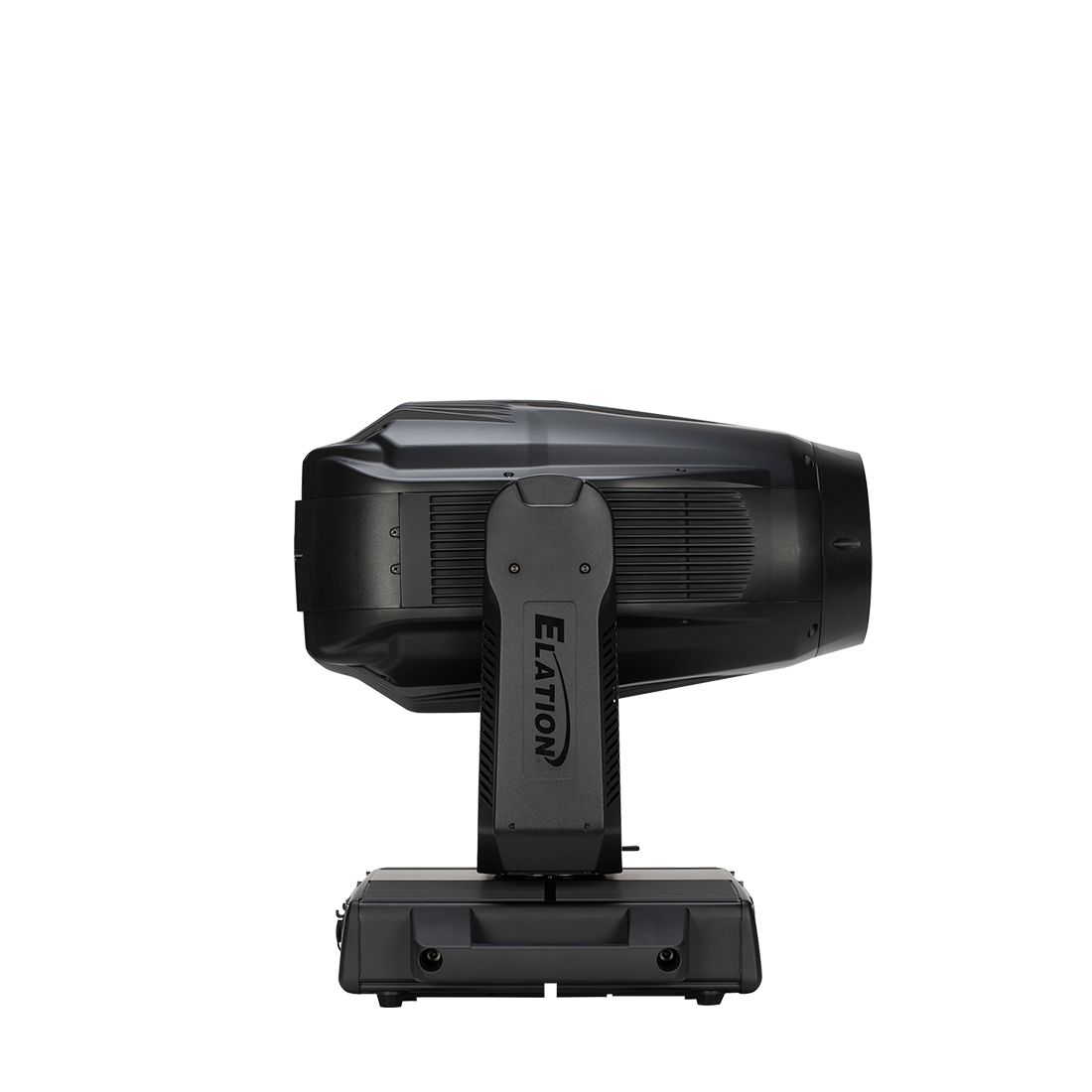

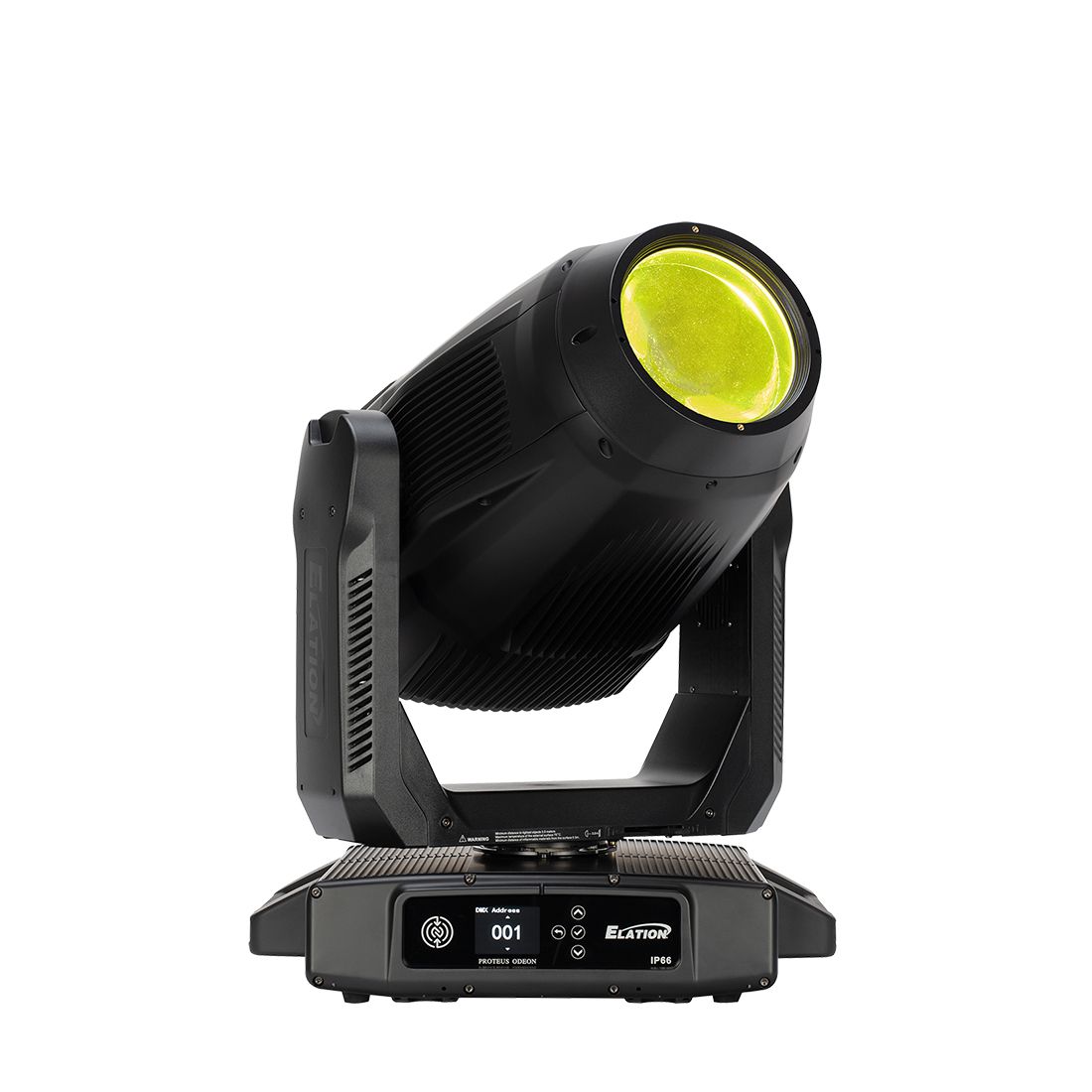

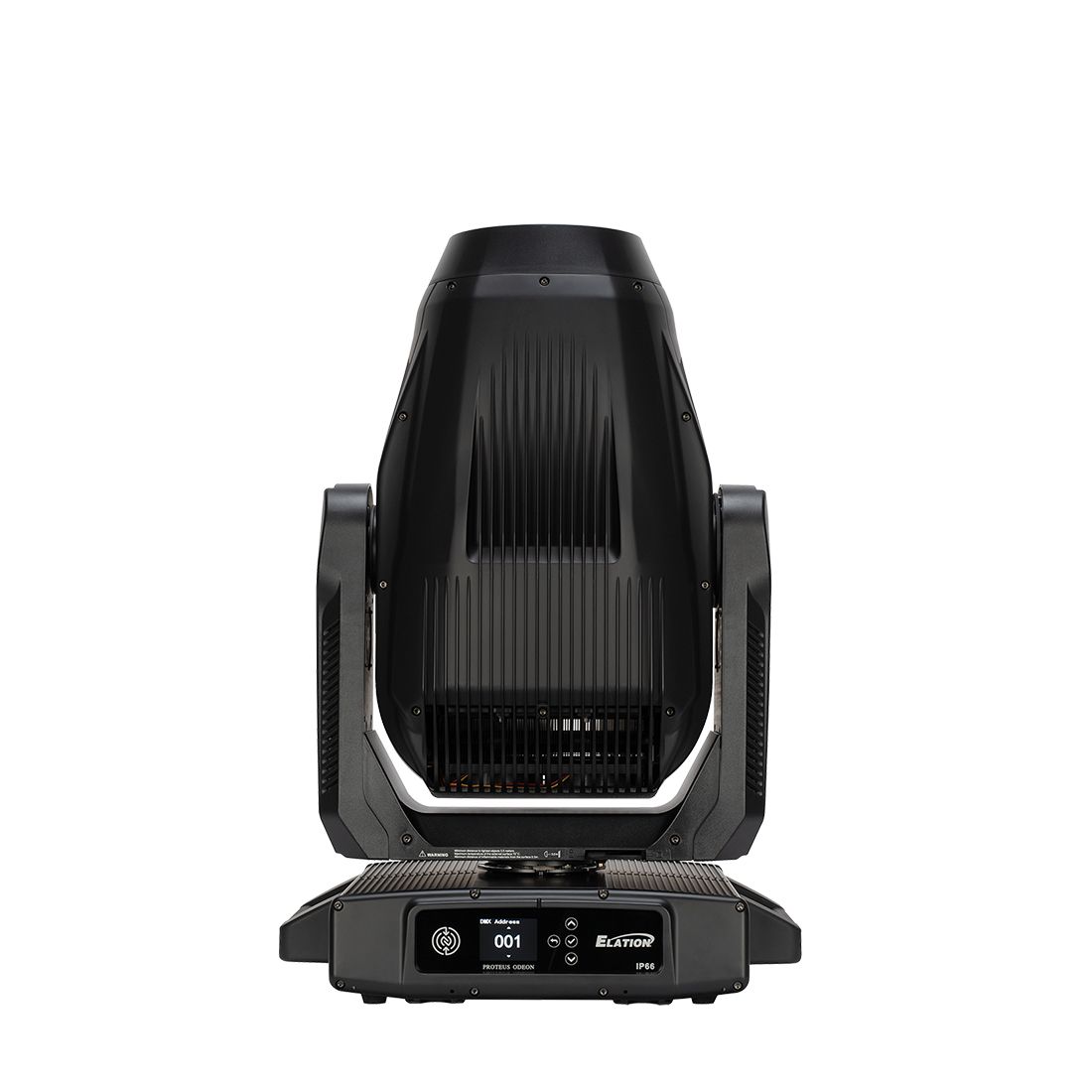

The PROTEUS ODEON™ is a powerful yet compact IP66-rated LED profile fixture offering outstanding projection and beam qualities in any environment.
Providing up to 32000 lumens output from its custom-designed Variable CRI LED engine, the PROTEUS ODEON is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors.
The TruTone variable CRI allows selecting the best blend of light output and color accuracy, depending on the requirement of the show or scene. It is seamlessly adjustable from CRI 70 to CRI 93.
PROTEUS ODEON provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.
With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS ODEON has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications.
The PROTEUS ODEON ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

Technical Data

FEATURES

IP66 Outdoor Rated
High Efficiency 850W 6,500K Variable CRI White LED Engine
TruTone remote CRI Adjustment up to CRI 93
Up to 32000 Total Lumen Fixture Output
Flat Field Engine for precise projection at long distances
CMY Color Mixing and Variable CTO
5-Position Color Wheel with UV Filter
Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 50°
FIL (Foam In Lay) Polyurethane Foam Packaging Included

SOURCE

High Efficiency 850W 6,500K Variable CRI White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

32000 Total Lumen Fixture Output @ CRI 80
TruTone variable CRI up to CRI 93
Zoom Range 5.5° - 50°
Beam Angle 4.9° - 48.9°
Field Angle 5.7° - 53°

EFFECTS

Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°

COLOR

CMY Color Mixing
Linear CTO Color Correction
5 Dichroic Colors including UV Filter

GOBOS

3 Gobo Wheels
6 Rotating Gobos (Wheel #1)
7 Rotating Gobos (Wheel #2)
7 Static Gobos (Wheel #3)

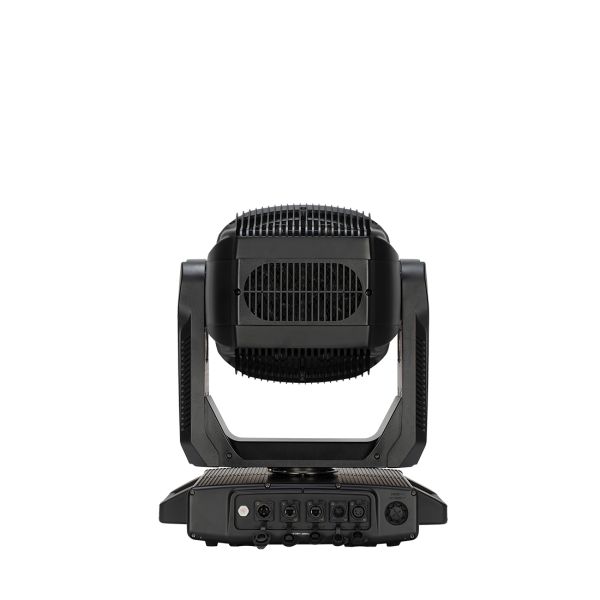

CONTROL / CONNECTIONS

4 DMX Channel Modes
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)

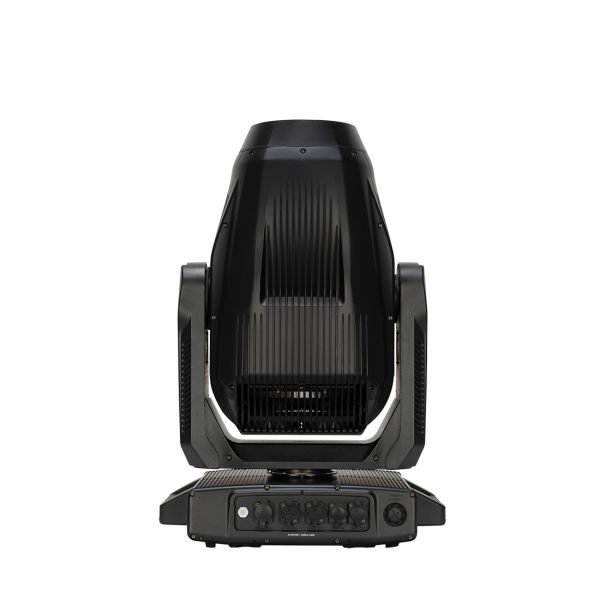

IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 467.66mm (18.41")
Width: 370mm (14.57")
Vertical Height: 692mm (27.2")
Weight: 43.4 kg (97.7 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
1000W Max Power Consumption
-20°C to 45°C (-4°F to 113°F)
BTU/hr (+/- 10%) 3239.5

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
C.T.O.
C.T.O.
Color Wheel
Green
Green
Red
Red
Blue
Blue
Orange
Orange
High CRI
High CRI
Gobo Wheel 1
Gobo 17
Gobo 22
Gobo 32
Gobo 57
Gobo 66
Gobo 78
Gobo Wheel 2
Gobo 19
Gobo 30
Gobo 33
Gobo 34
Gobo 55
Gobo 63
Gobo 158
Gobo Wheel 3
Gobo 20
Gobo 23
Gobo 24
Gobo 25
Gobo 26
Gobo 28
Gobo 114
Animation Wheel
Animation Wheel 7
Prisms
Prism 2
Prism 3
Framing
Endless Rotation
