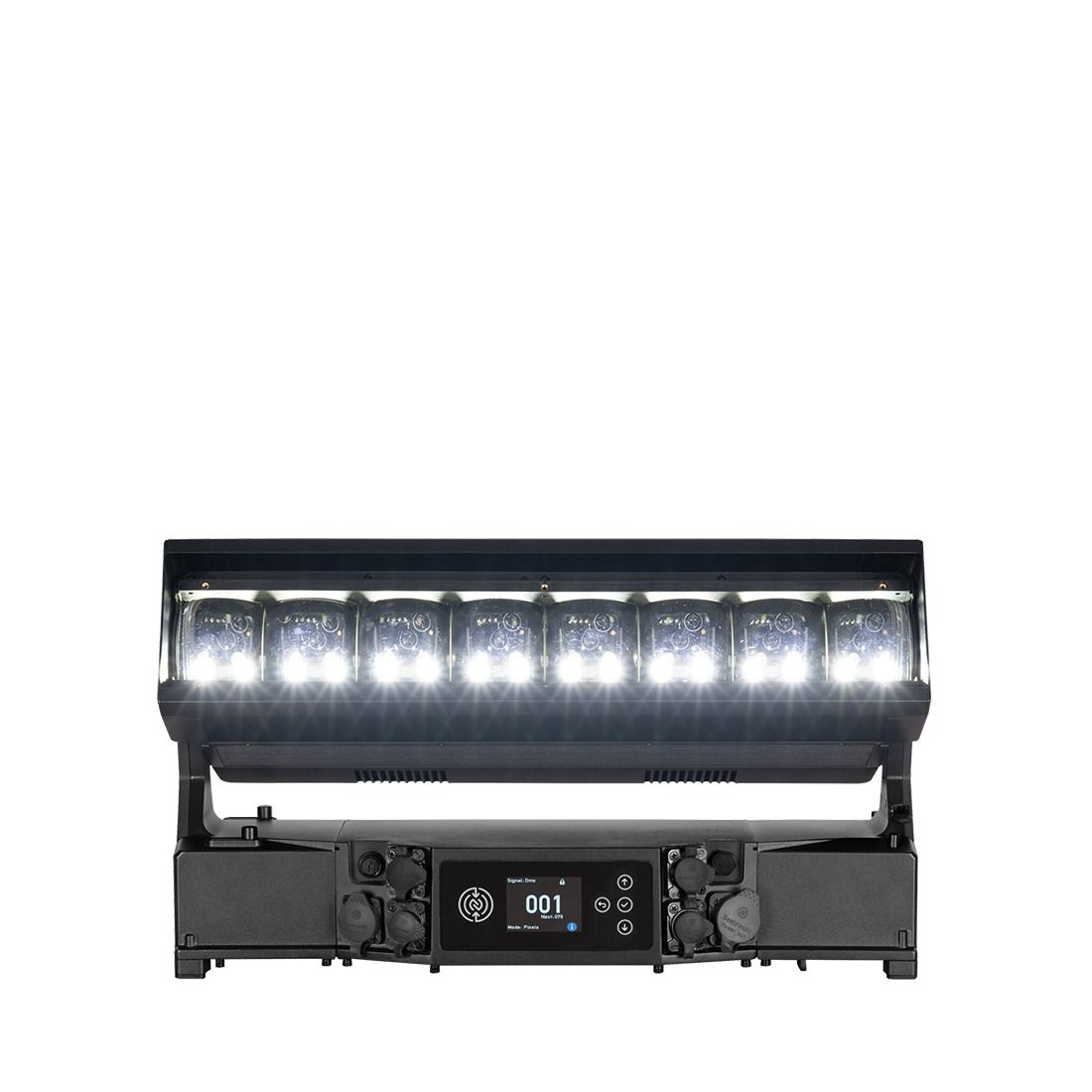

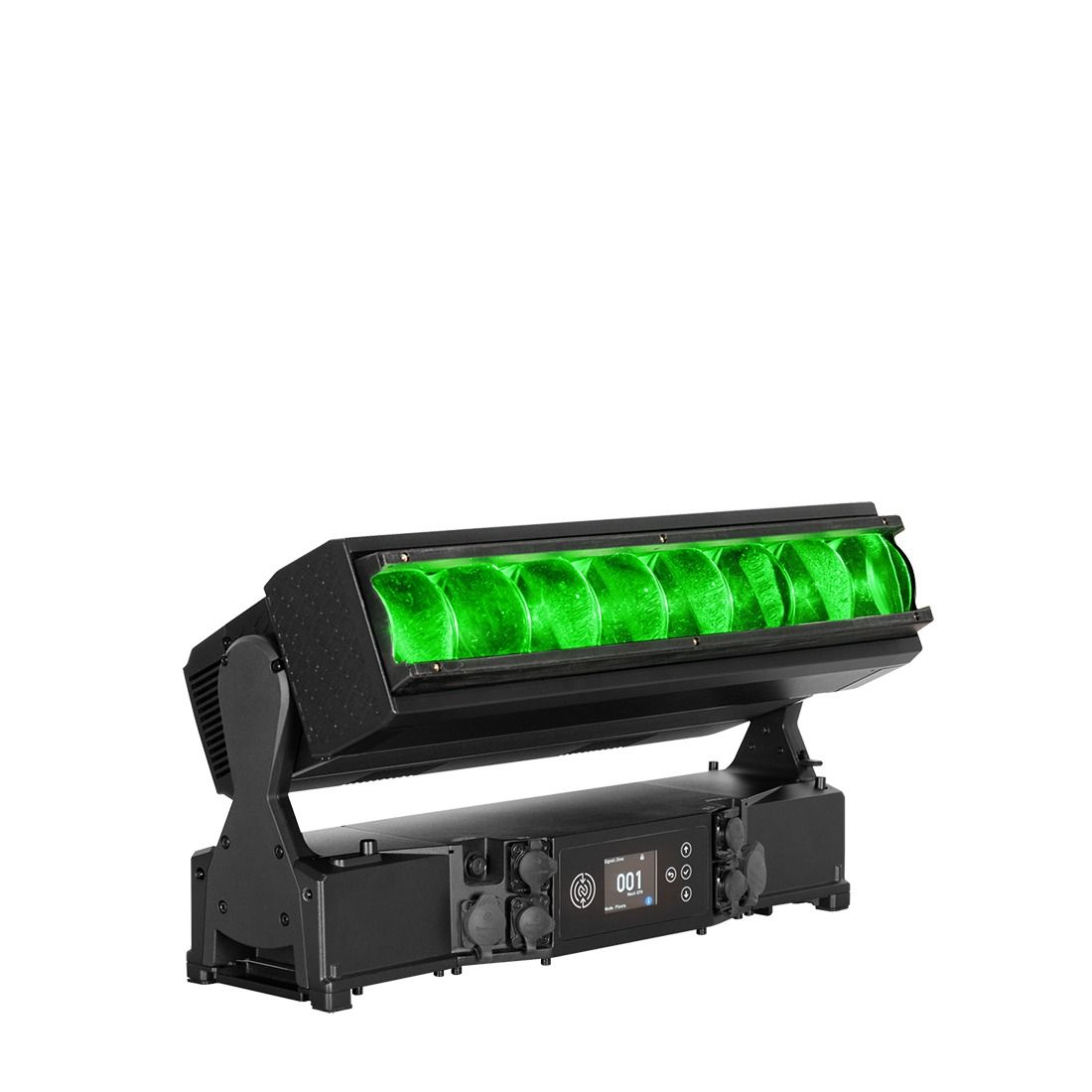

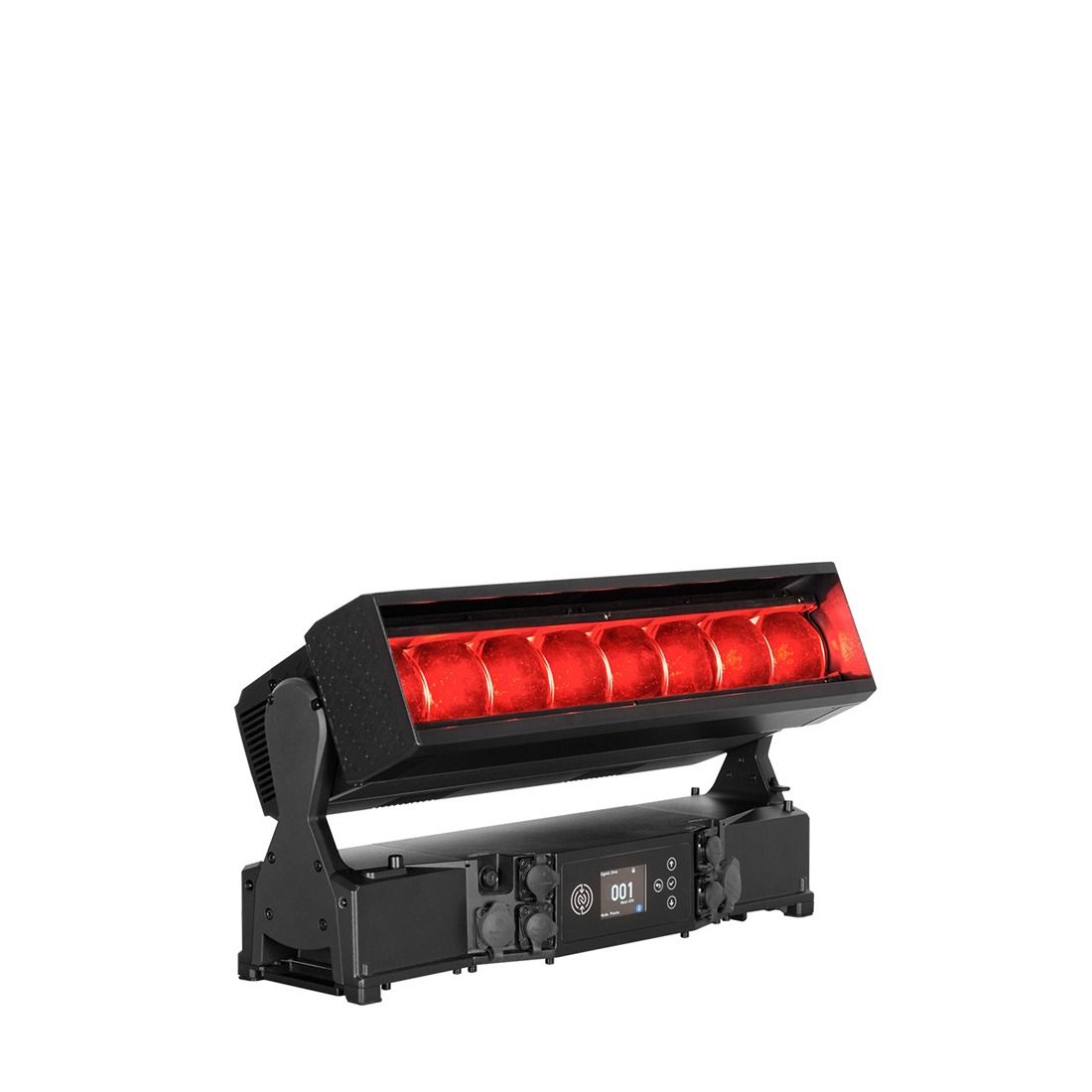

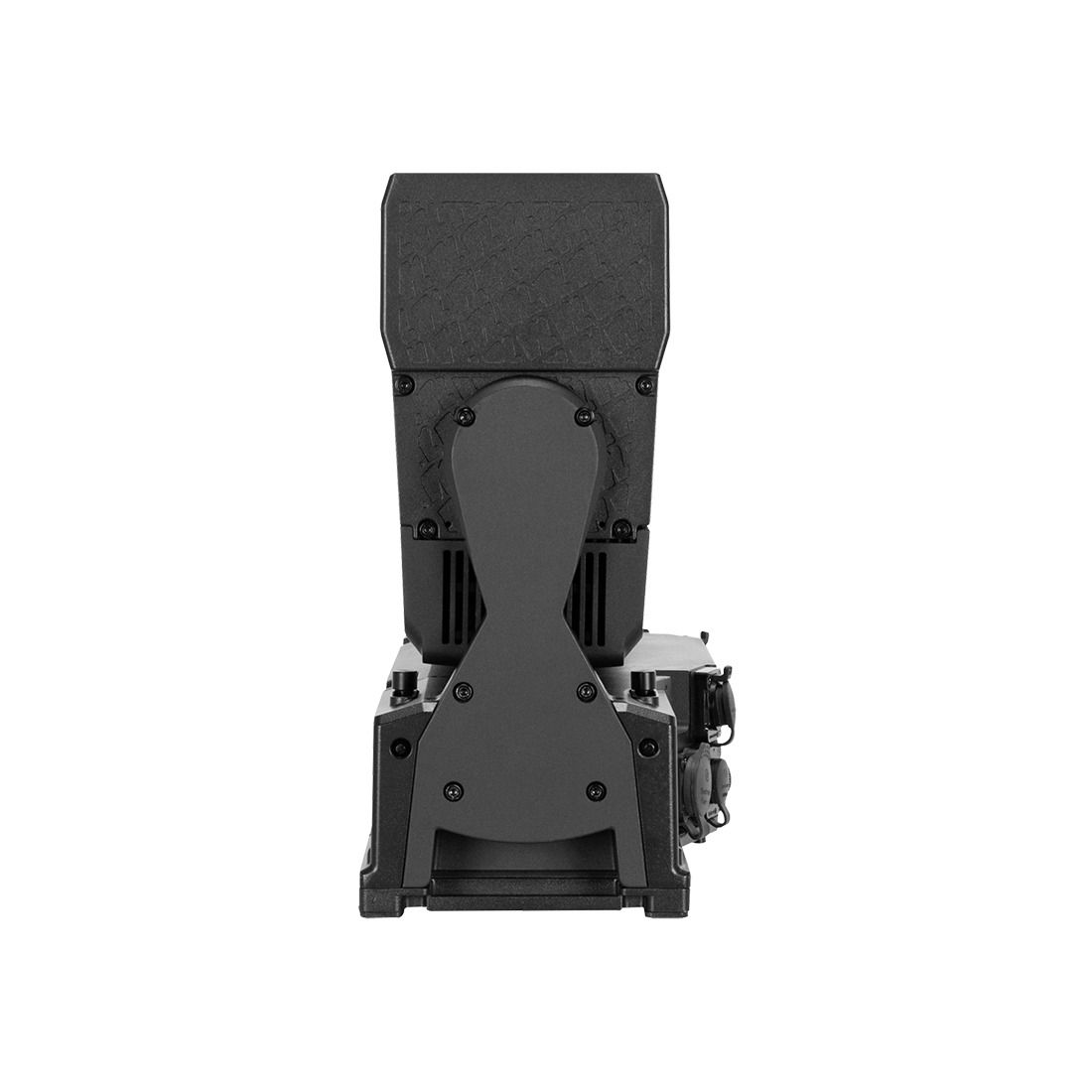

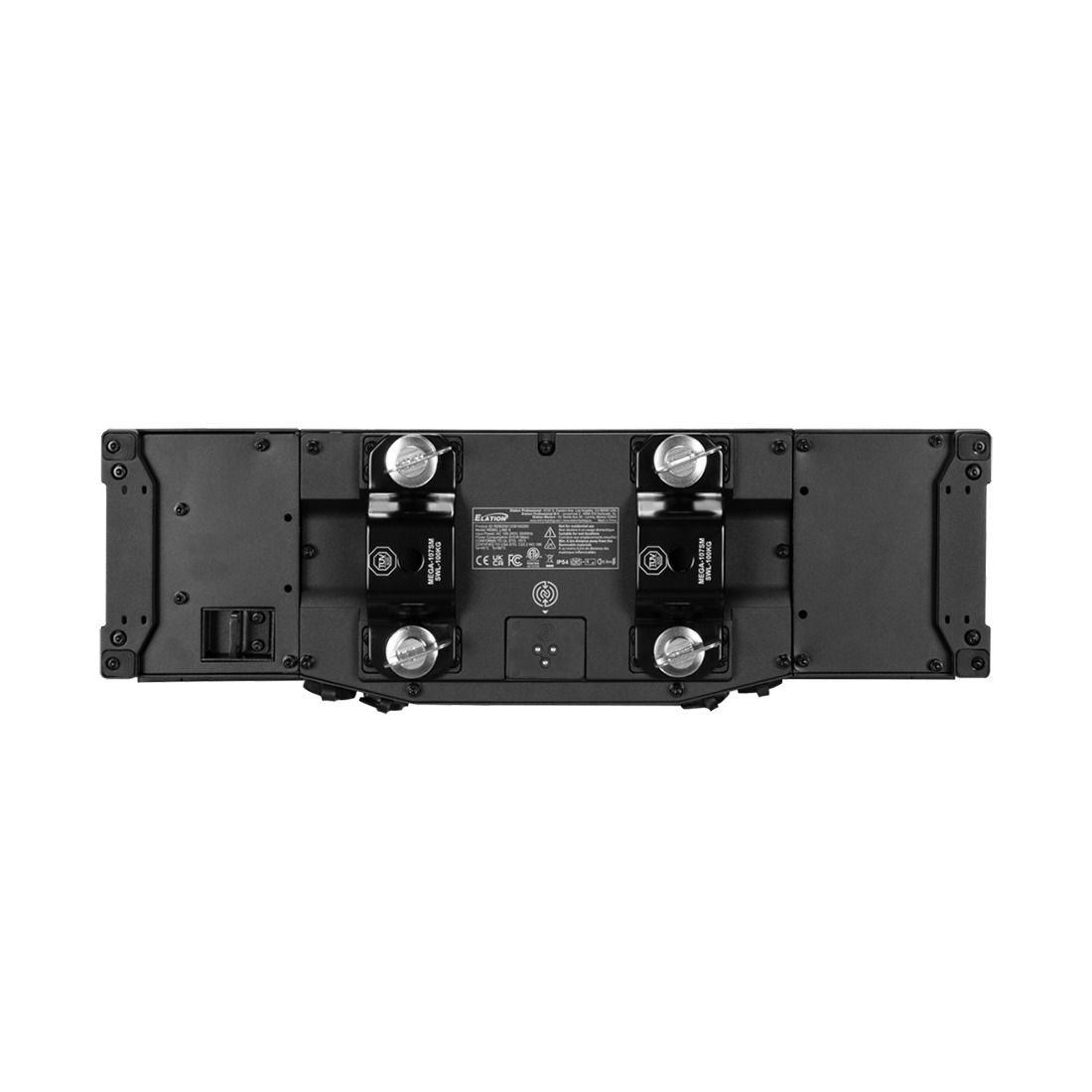

REBEL LINE 8

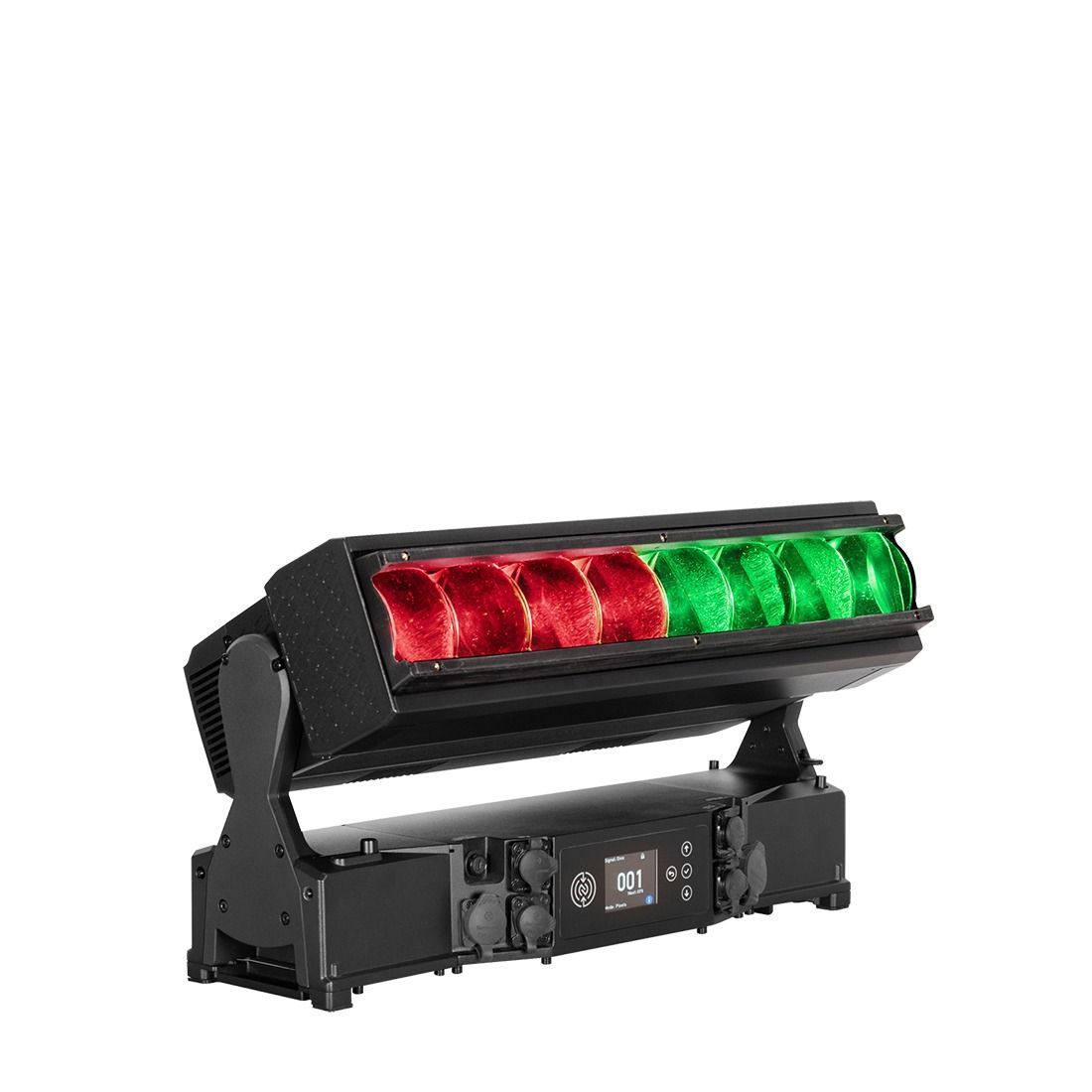

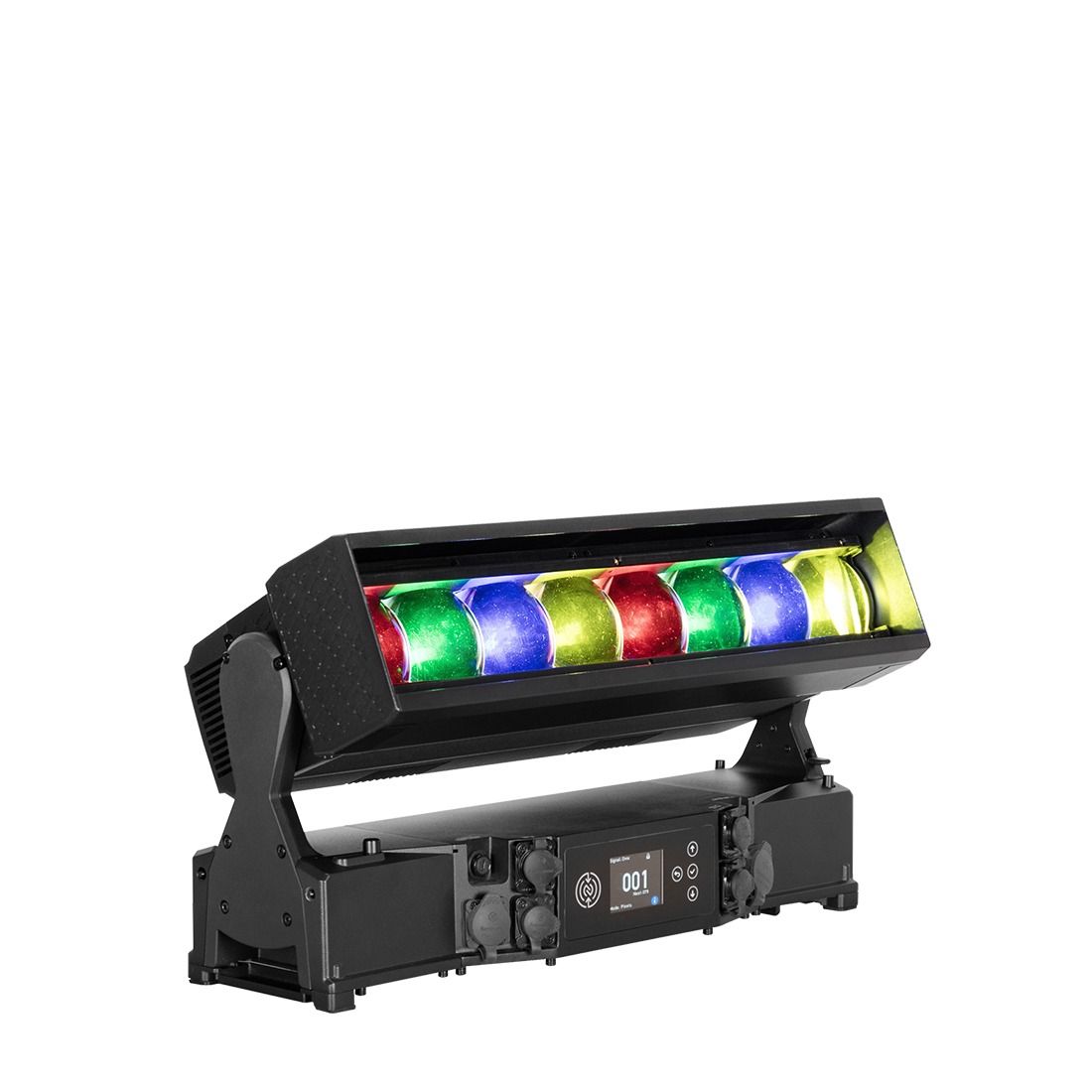

The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP55 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548 lumens of relentless, full-spectrum brilliance.

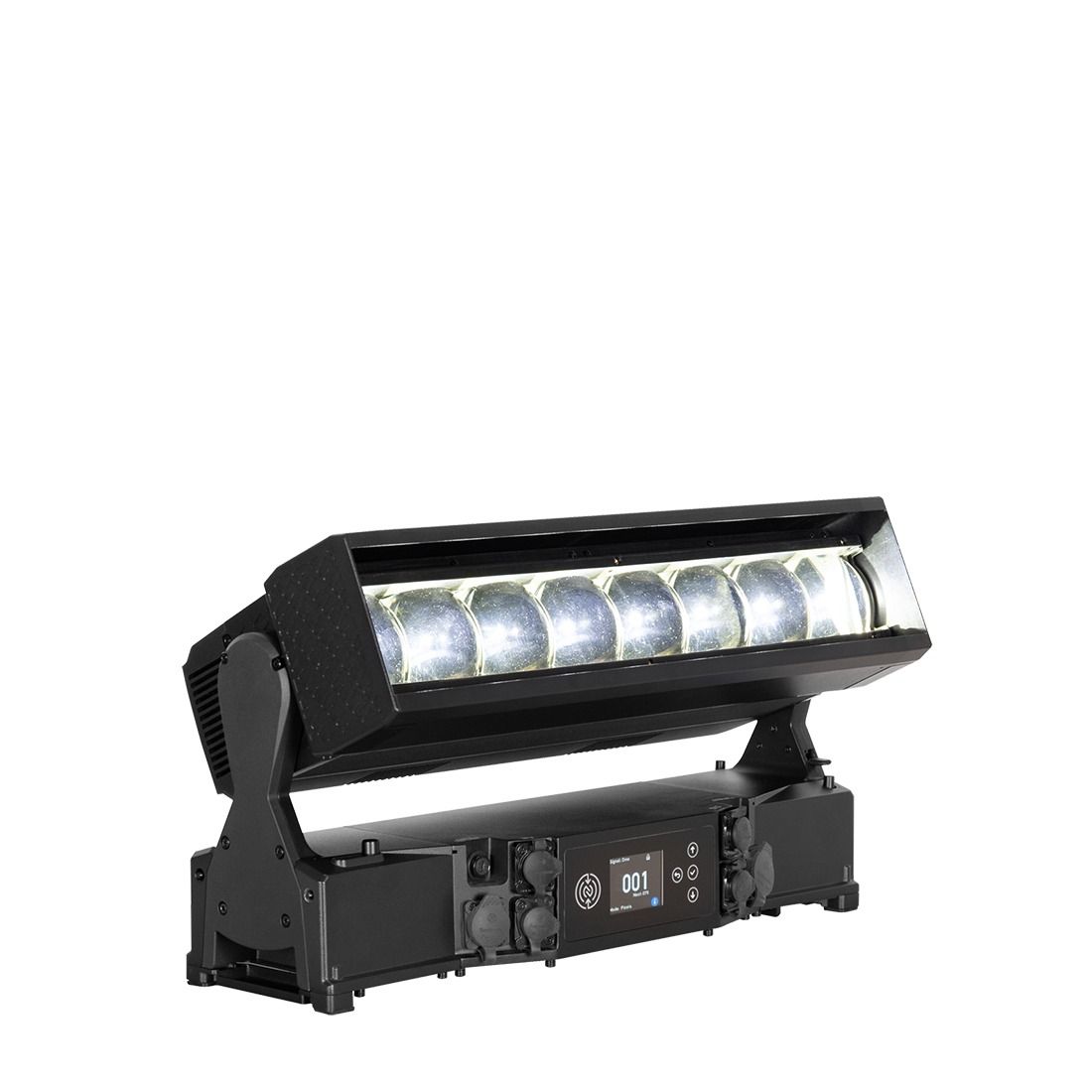

A seamless linear lens system and rapid 210° tilt movement create bold, continuous beams that transform effortlessly from razor-sharp aerials to a smooth, enveloping wash. The integrated Sparkle Beam FX adds refined texture, while the SparkX cool-white crossing beams cut through the scene with crisp, unmistakable definition.

A built-in magnetic alignment system allows the REBEL LINE 8 to snap together with other LINE fixtures, forming flawless beam lines and high-impact pixel effects that read as one continuous visual element across any stage. Paired with its rugged IP55 construction and compact, tour-ready form, the REBEL LINE 8 is built for environments demanding bold intensity, sweeping kinetic motion, and advanced pixel artistry for any stage.



Technical Data

FEATURES

(8) 60W RGBL LEDs with Pixel Control
(16) 5W CW SparkX LEDs with Pixel Control
11,548 Total Fixture Lumen Output (Sphere)
4° - 35° Beam Angle
Fast and precise 210° Tilt Rotation
IP55 Tilt FX Fixture

SOURCE

(8) 60W RGBL LEDs
(16) 5W CW SparkX LED Pixels
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
Integrating Sphere
All LED: 11,548 Lumens
RGBL LED: 7,128 Lumens
CW LED: 4,752 Lumens
CRI 82
Zoom Range 4° - 35°

EFFECTS

Motorized Zoom
Full Pixel LED Control
SparkX LED Beam Effect
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Tilt Angle: 210°

COLOR

RGBL LED Array
CW SparkX LED Array
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

3 DMX Channel Modes (22/30/70 channels)
DMX Adjustable Refresh Rate (900 -25000 Hz)

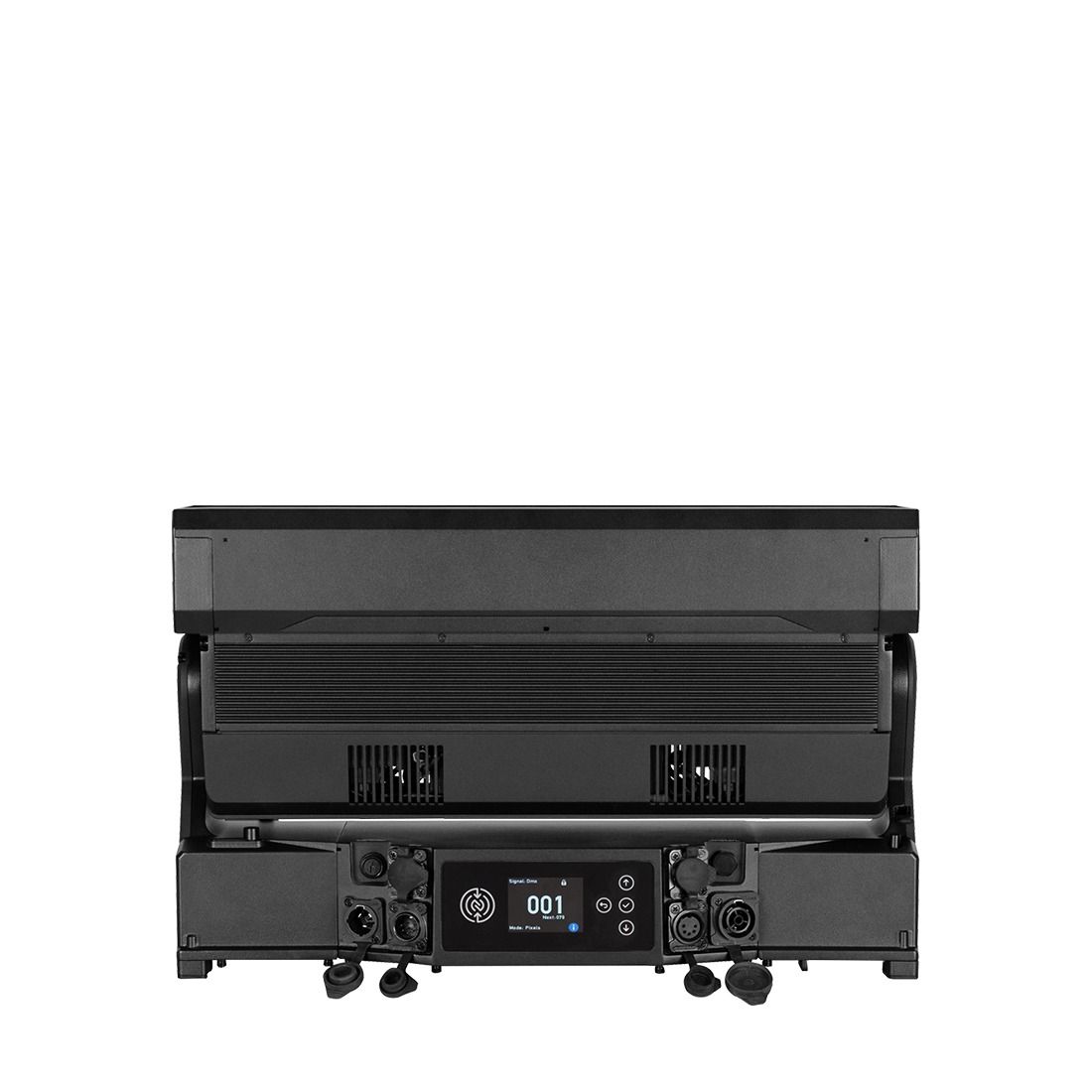

4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
NFC Configuration
DMX, RDM, Art-NET, sACN Protocol Support
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 502mm (19.8 in)
Width: 164mm (6.5 in)
Height (head up): 336mm (13.2 in)
Height (head 90 degree): 254mm (10 in)
Weight: 13.3kg (29.3 lbs)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
810W Max Power Consumption
Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
BTU/hr (+/- 10%) 2762.1

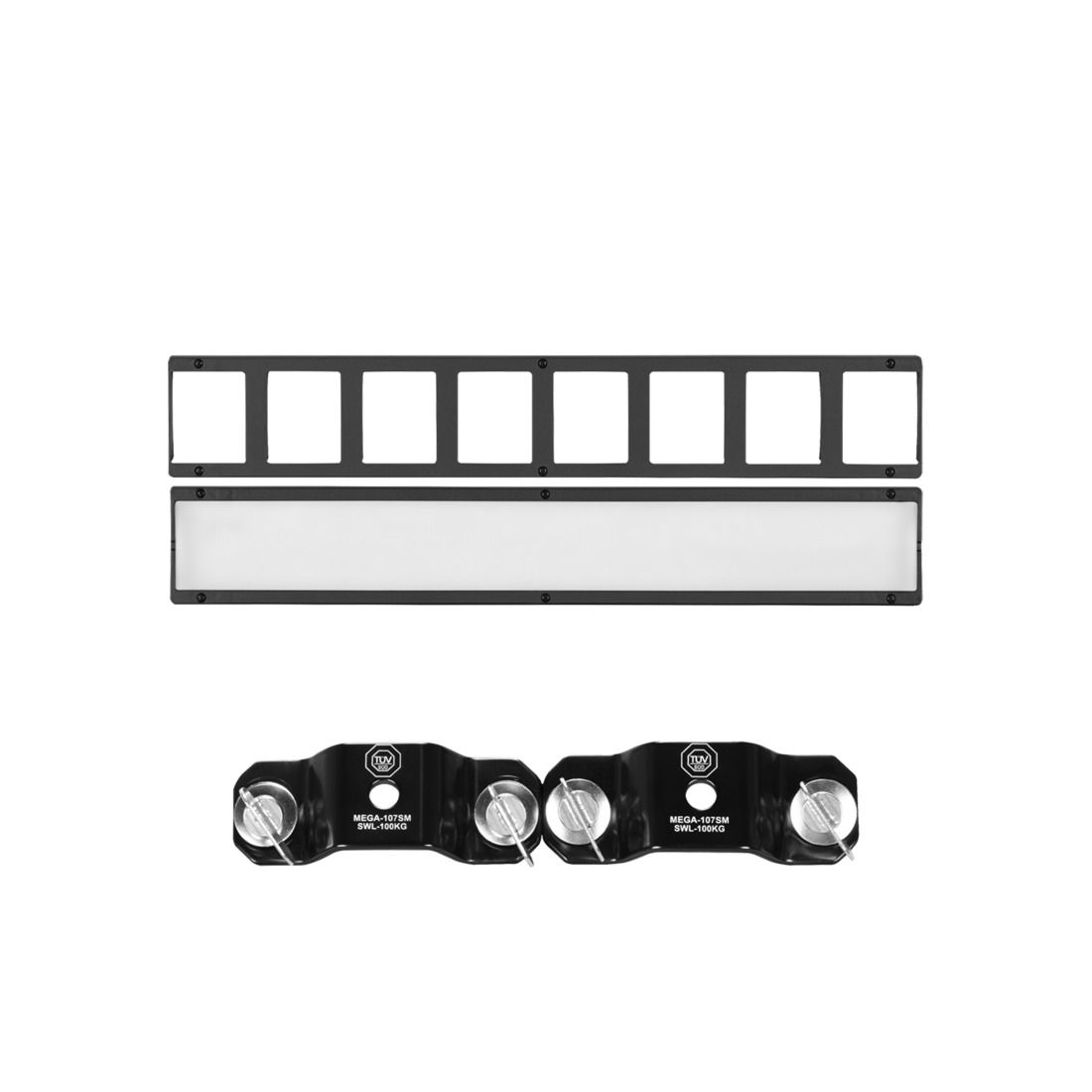

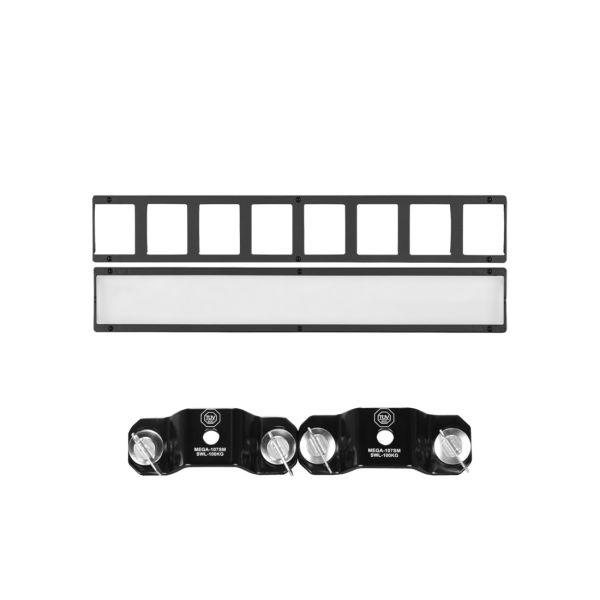

INCLUDED ITEMS

9900032448 Omega Brackets (x2)
Blank Name Plate
Front Louver/Grid
Diffusion Filter
IP65 Locking Power Cable

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
