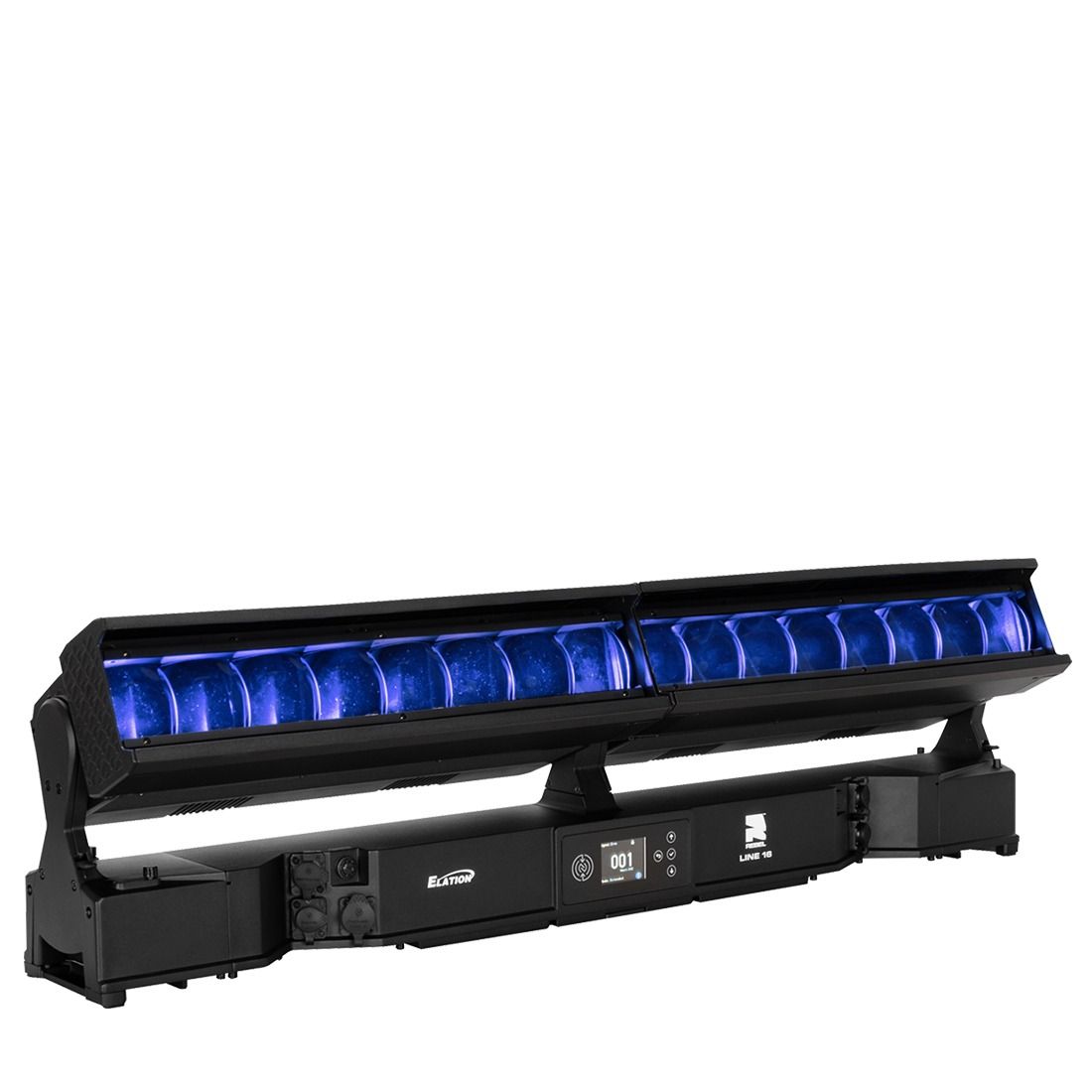

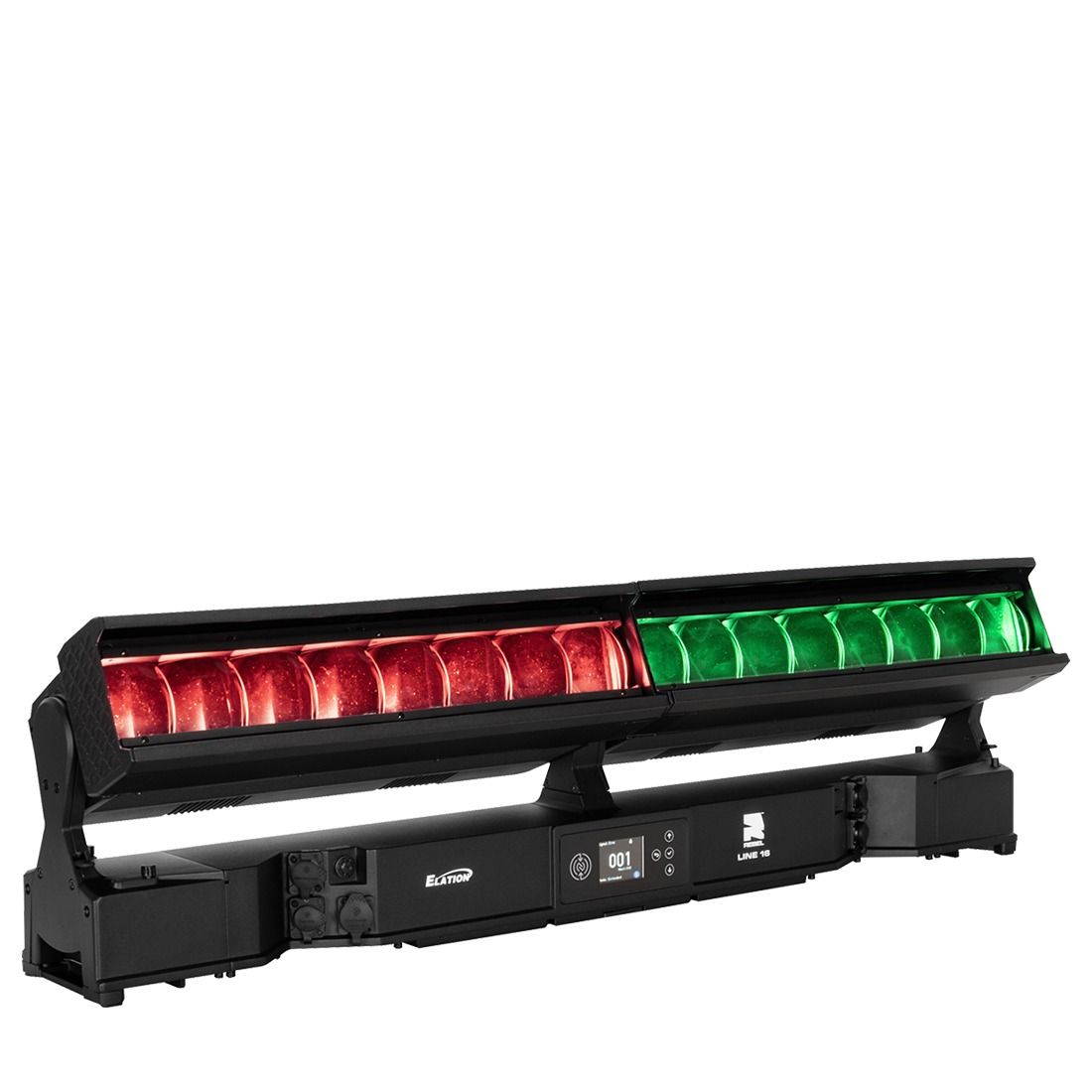

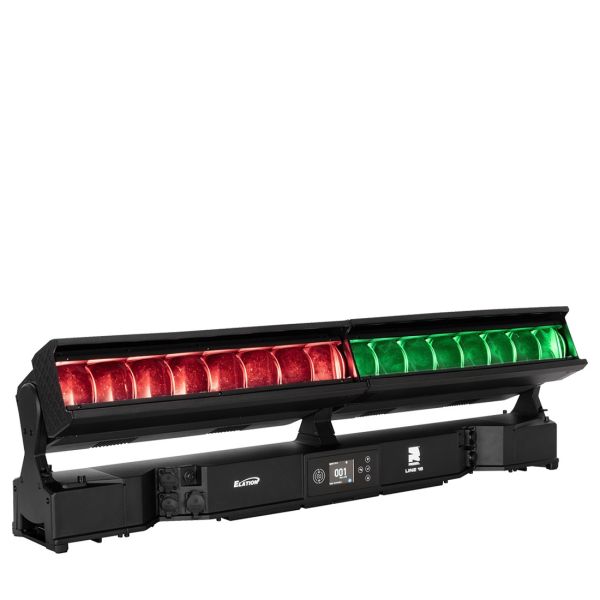

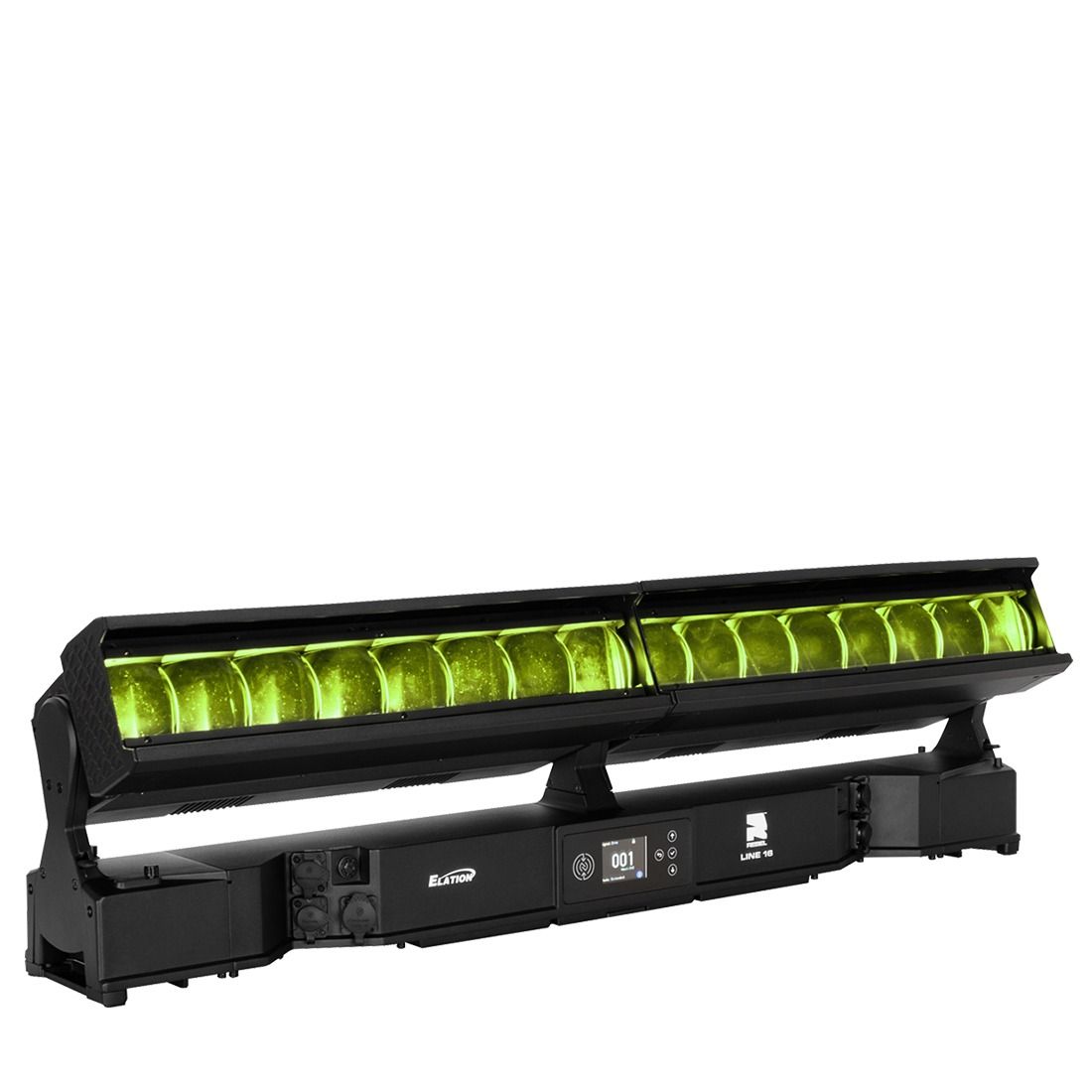

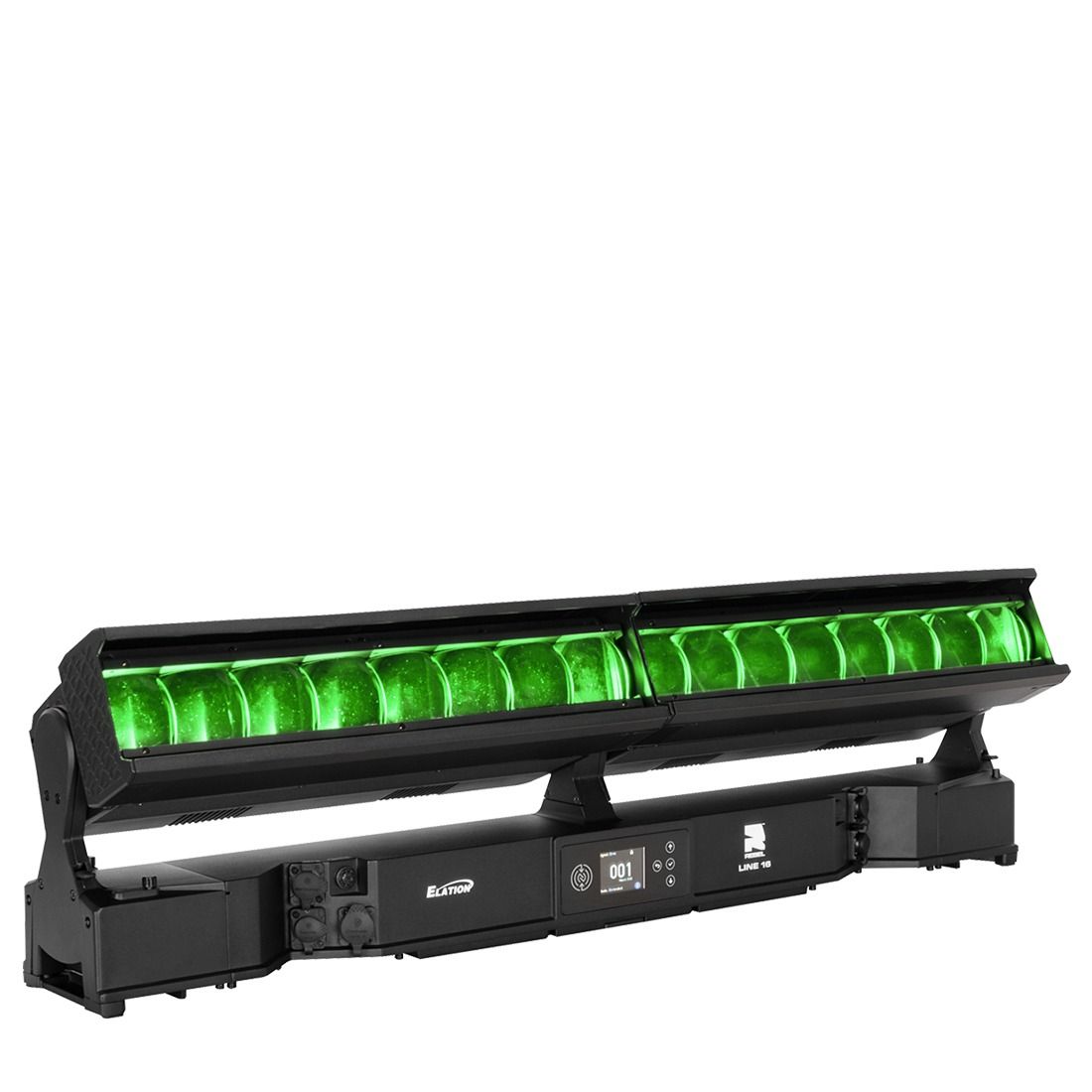

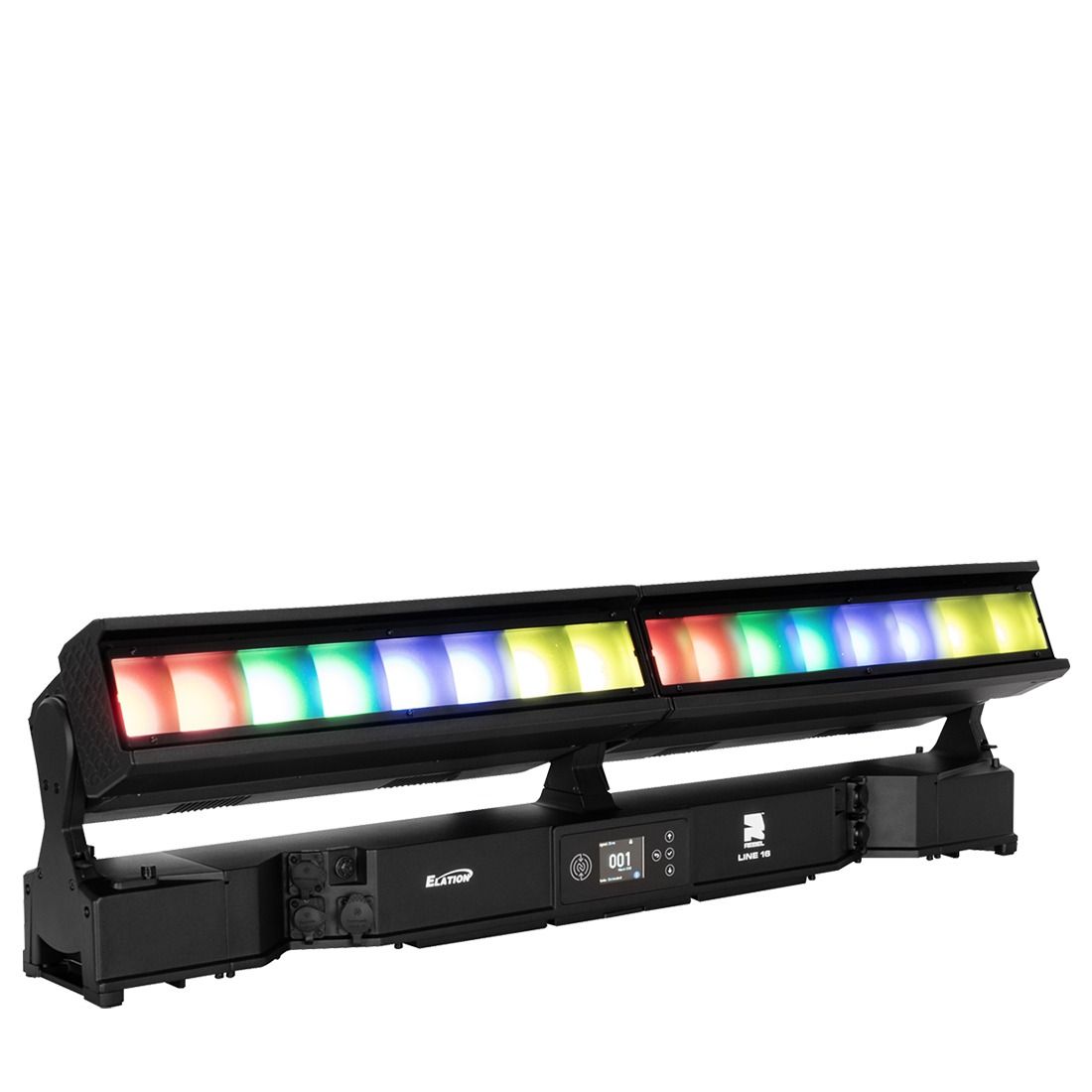

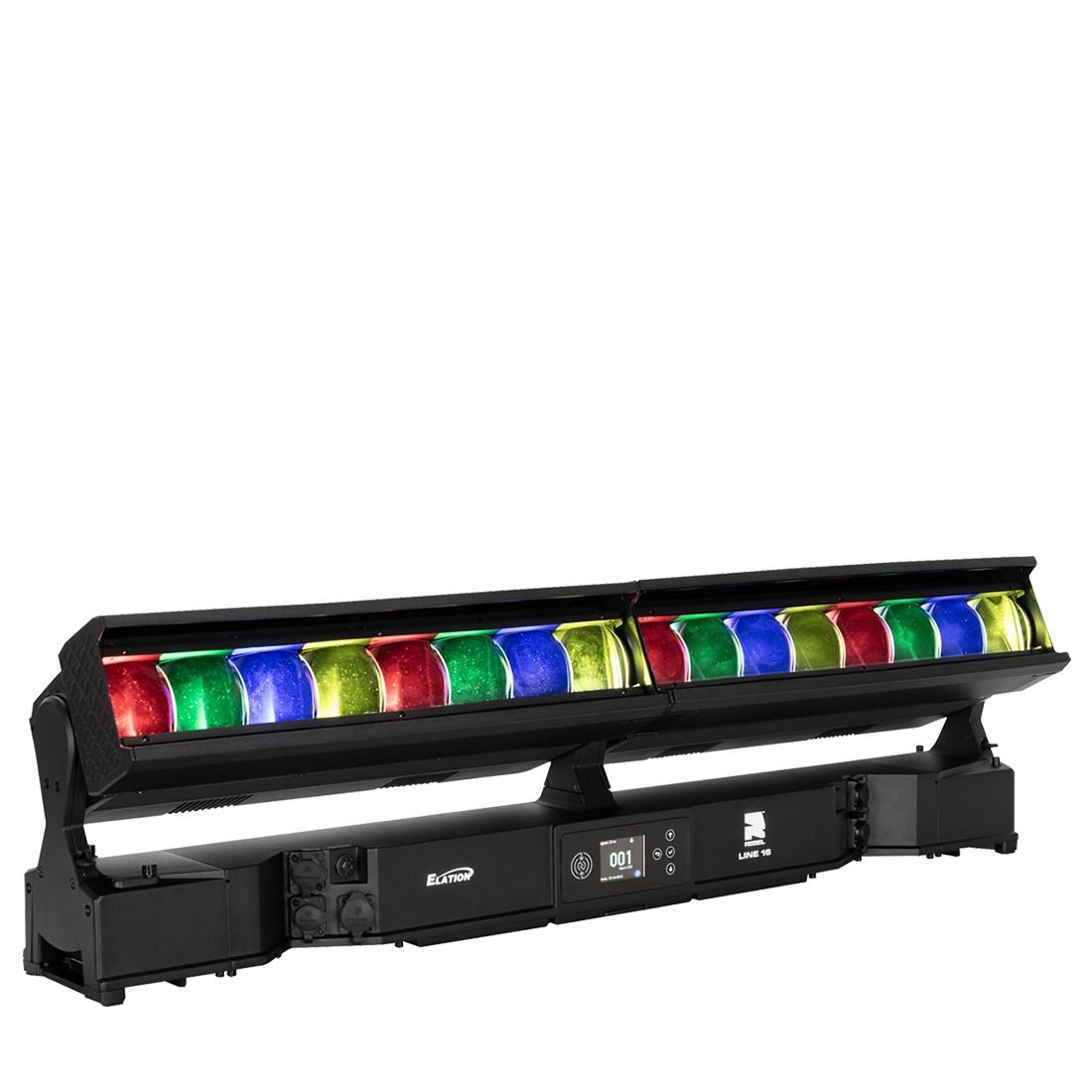

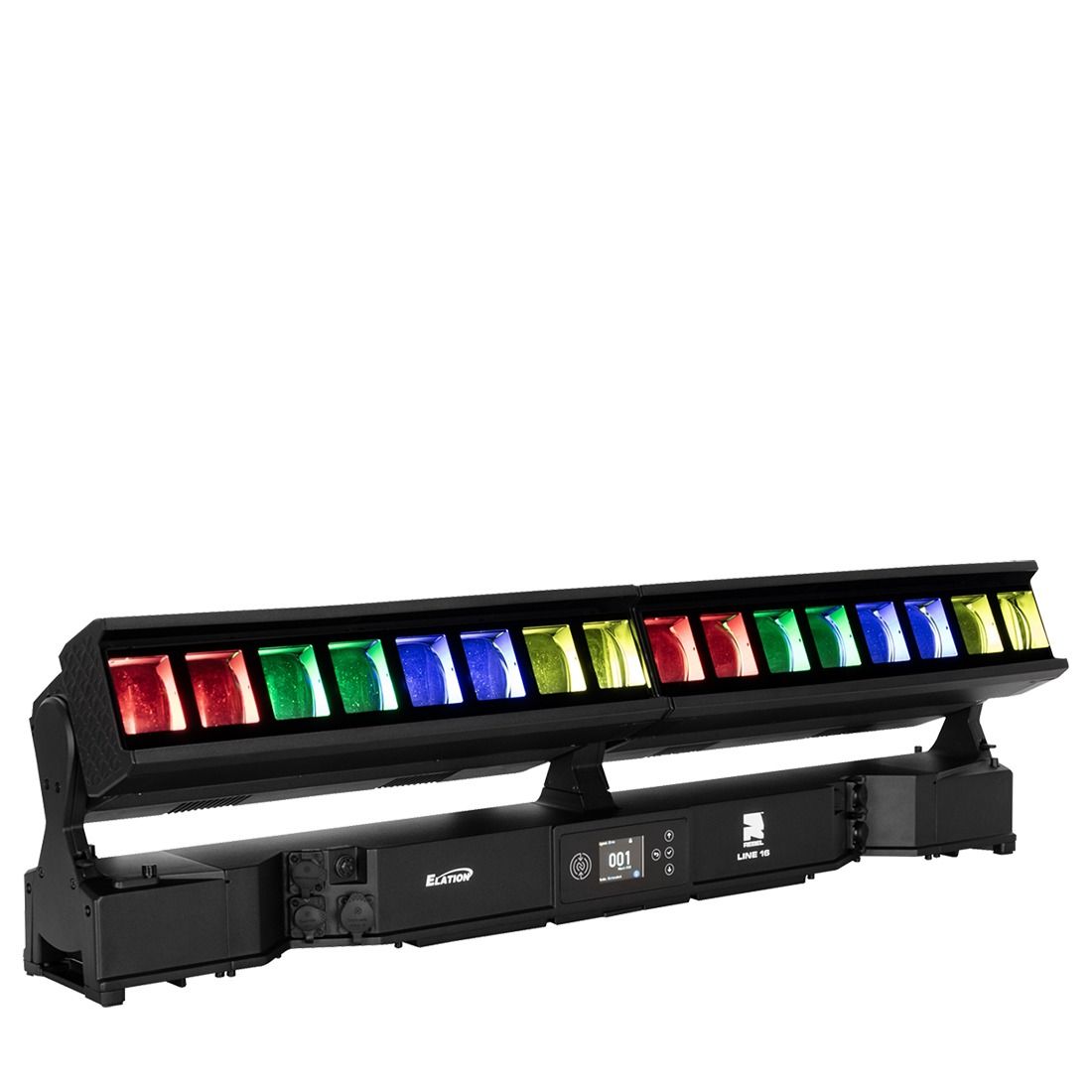

REBEL LINE 16

The REBEL LINE 16 amplifies the force of the Rebel Series with a commanding 16-cell format—delivering massive output, precision optics, and a rich, full-spectrum palette inside a rugged IP55 chassis. Sixteen high-intensity 60W RGBL engines and thirty-two CW SparkX pixels surge together to unleash 25,355 lumens of relentless color and cool-white punch for designers who push their rigs harder.

A seamless linear lensing system and fast 210° tilt movement drive dynamic, fluid looks—ranging from razor-sharp sub-4° beams that cut through the air to immersive 35°+ washes that fill a stage with ease. With integrated SparkX, the REBEL LINE 16 adds dimensional texture and atmospheric detail, its cool-white crossing beams carving crisp, unmistakable lines through the haze.

A built-in magnetic alignment system allows the REBEL LINE 16 to lock effortlessly with other LINE fixtures—including the LINE 8—forming continuous beams and high-resolution pixel arrays at any scale. With its tour-ready build and expansive pixel density, the REBEL LINE 16 is engineered for productions that demand bold intensity, sweeping kinetic motion, and advanced pixel artistry built to command the biggest stages.

Technical Data

FEATURES

(16) 60W RGBL LEDs with Pixel Control
(32) 5W CW SparkX LEDs with Pixel Control
25,355 Total Fixture Lumen Output (Sphere)
4° - 35° Beam Angle
Fast and precise 210° Tilt Rotation
IP55 Tilt FX Fixture

SOURCE

(16) 60W RGBL LEDs
(32) 5W CW SparkX LED Pixels
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
Integrating Sphere
All LED: 25,355 Lumens
RGBL LED: 13,865 Lumens
CW LED: 11,546 Lumens
CRI 82
Zoom Range 4° - 35°

EFFECTS

Motorized Zoom
Full Pixel LED Control
SparkX LED Beam Effect
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Tilt Angle: 210°

COLOR

RGBL LED Array
CW SparkX LED Array
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

6 DMX Channel Modes (24, 31, 122, 2x 22, 2x 30 & 2x 70 channels)
DMX Adjustable Refresh Rate (900 -25000 Hz)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
NFC Configuration
DMX, RDM, Art-NET, sACN Protocol Support
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 1004mm (39.5 in)
Width: 140mm (5.5 in)
Height (head up): 336mm (13.2 in)
Height (head 90 degree): 254mm (10 in)
Weight: 23.3kg (51.4 lbs)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
1690W Max Power Consumption
Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
BTU/hr (+/- 10%) 5,762.9

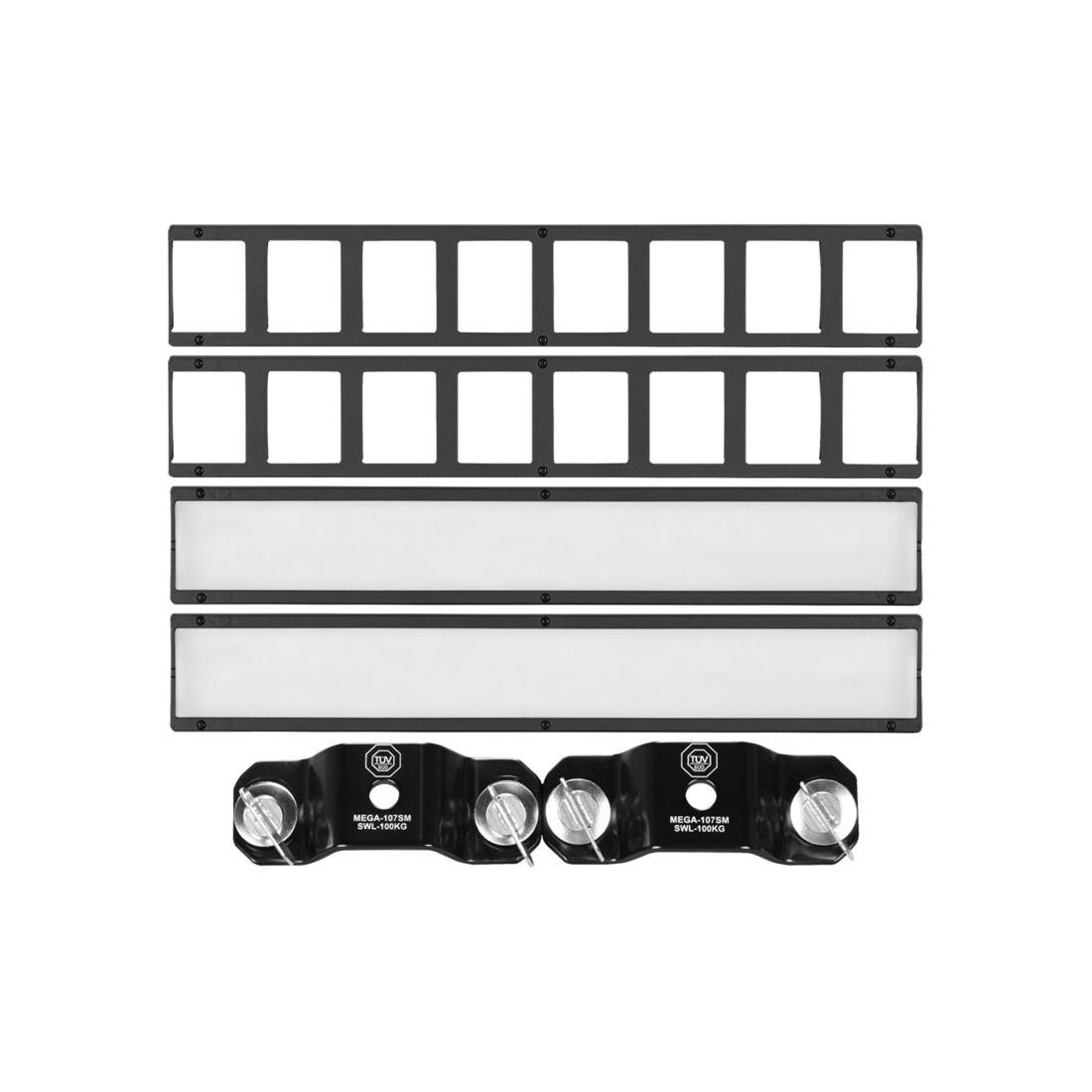

INCLUDED ITEMS

9900032448 Omega Brackets (x2)
Blank Name Plate
Front Louver/Grid (x2)
Diffusion Filter (x2)
IP65 Locking Power Cable

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

Related Products

Rebel Profile

Rebel Profile

Rebel Wash 4

Rebel Wash 4

Rebel Wash 12

Rebel Wash 12

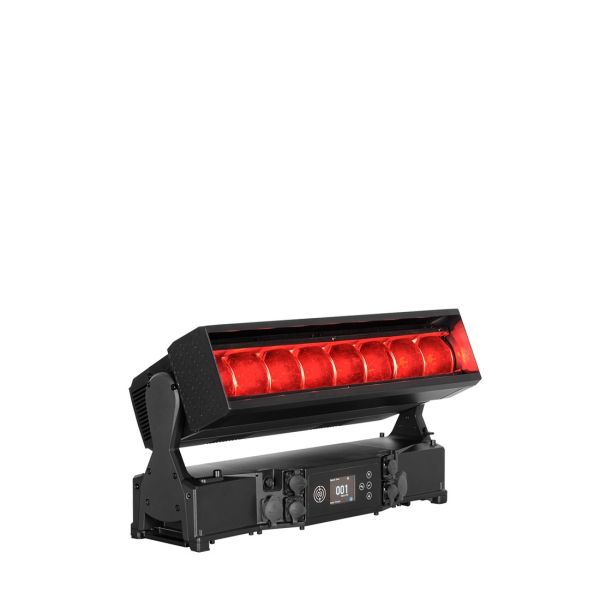

REBEL LINE 8

REBEL LINE 8

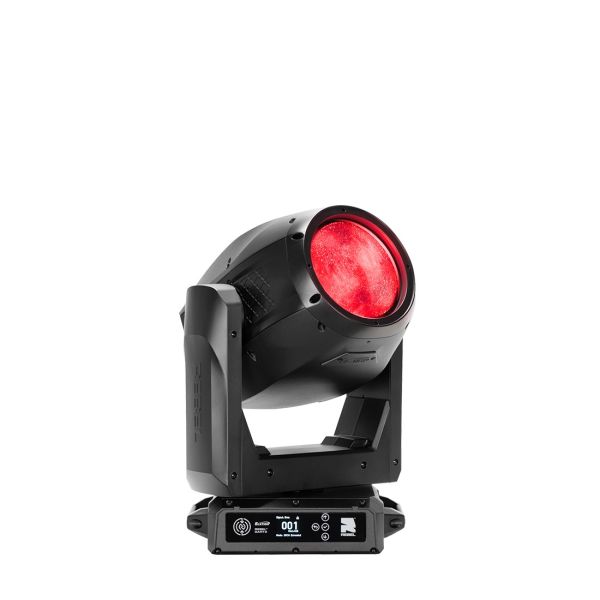

REBEL DARTZ
