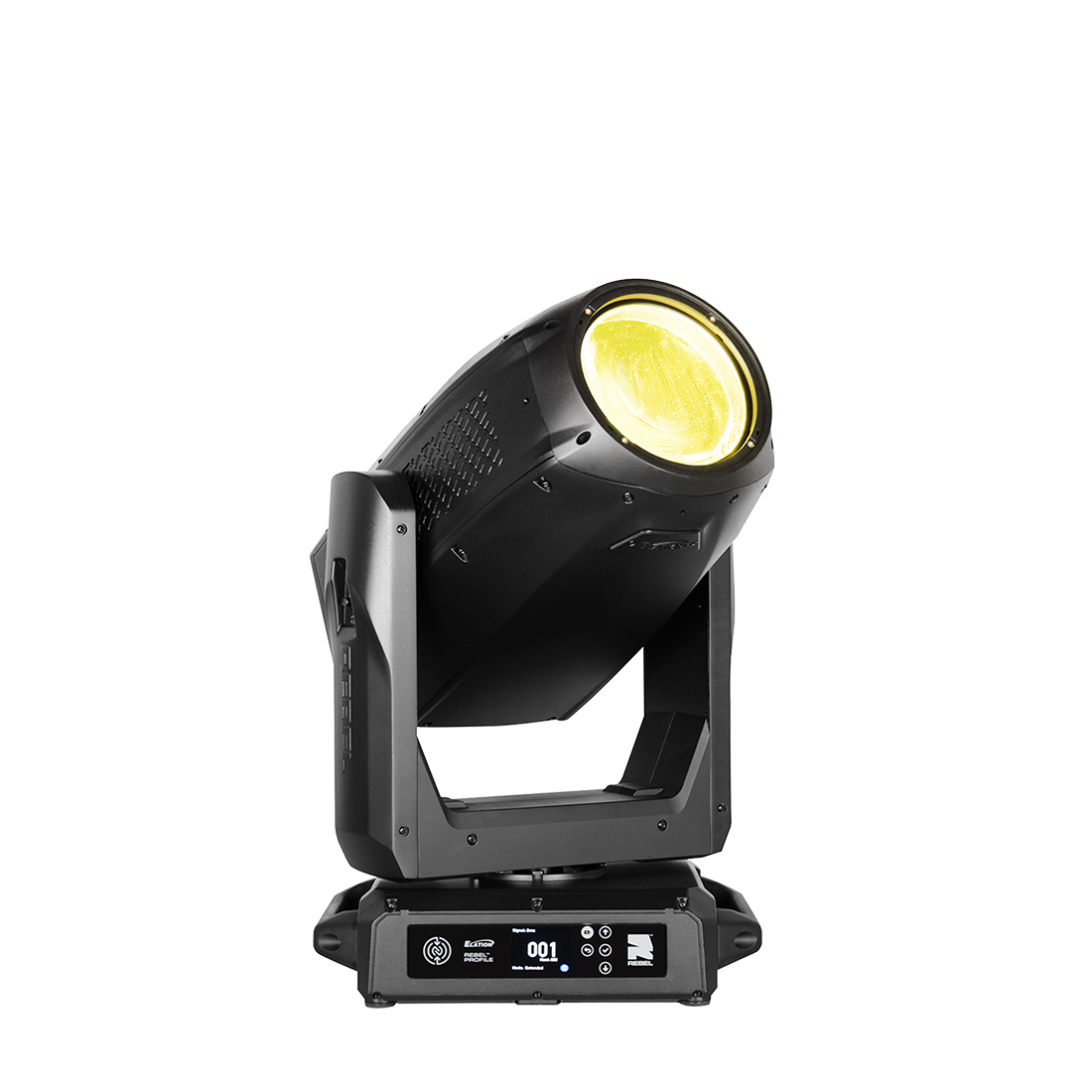

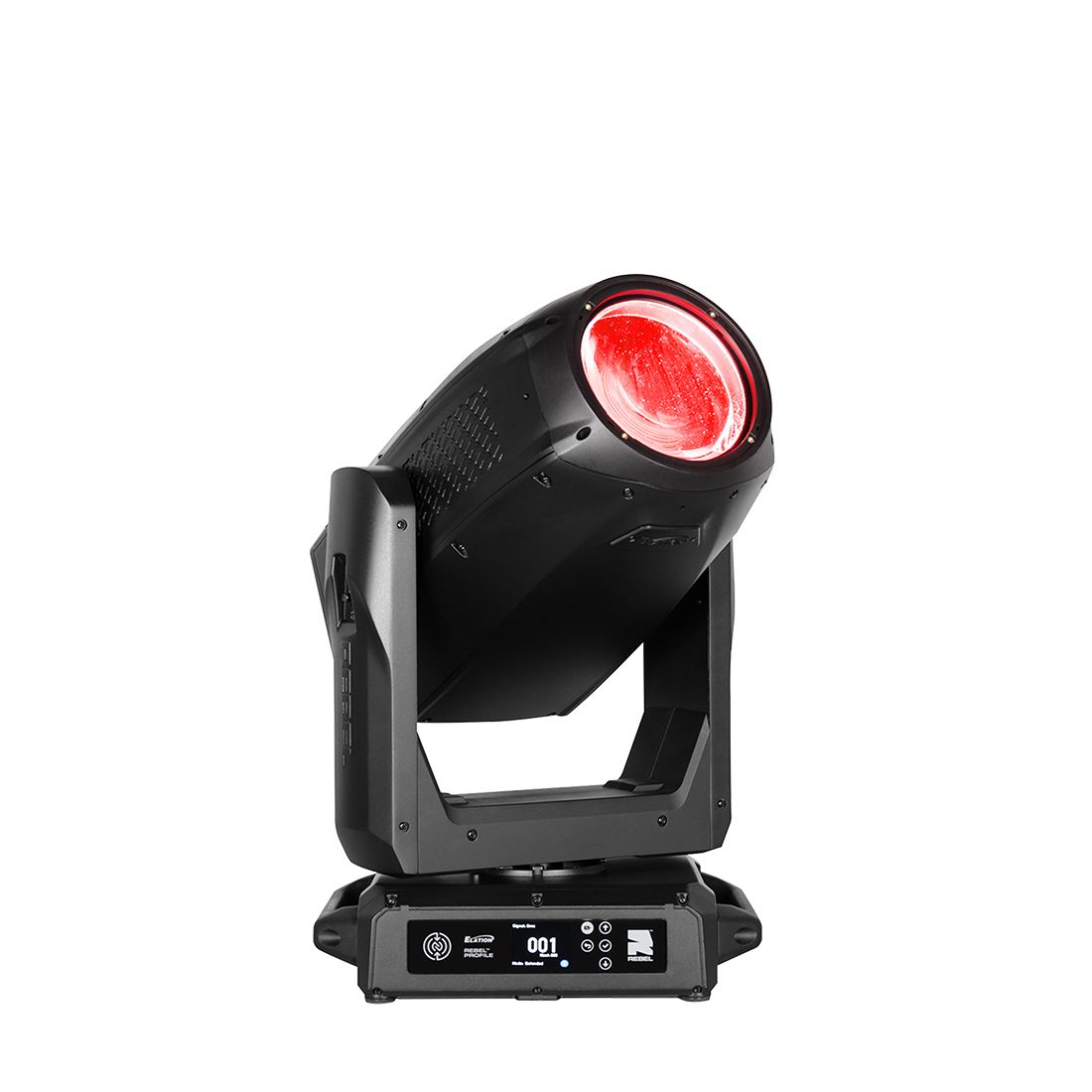

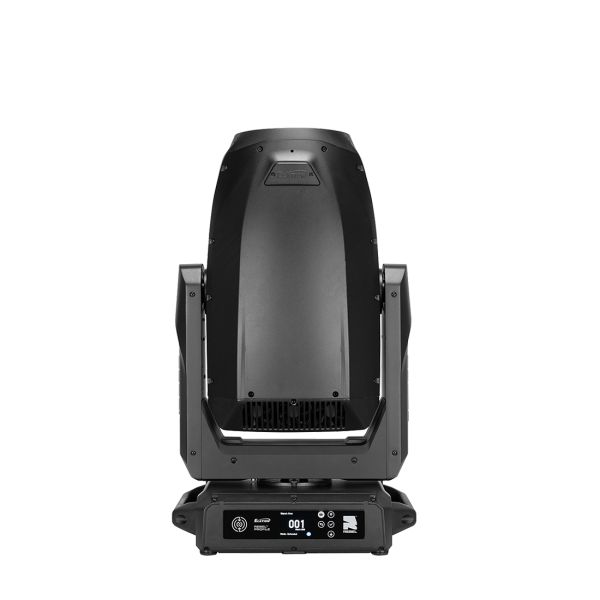

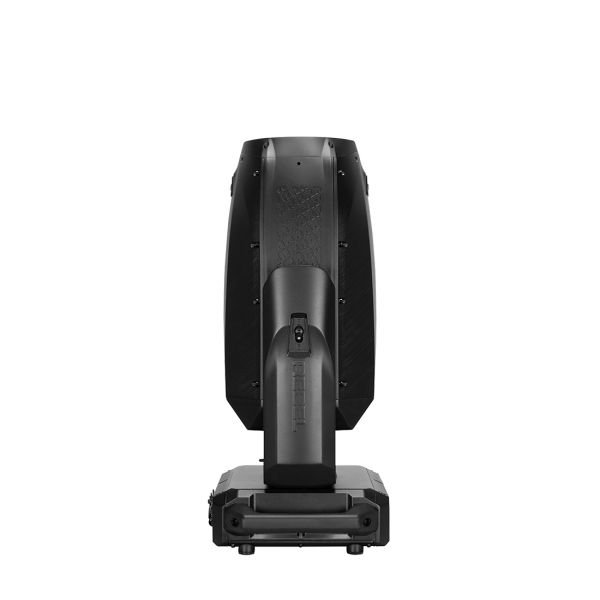

REBEL PROFILE

The REBEL PROFILE™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 600W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects.

A full-featured graphics suite includes 15 glass gobos, a complete animation wheel, dual prisms, dual frost, and a high-speed iris.
The indexable framing system ensures precise control with blackout shutter cuts, while a zoom range of 3.5° to 51° enhances its flexibility.

Technical Data

FEATURES

IP65 for temporary outdoor applications
Peak field 600W 6,500K White LED Engine
Up to 22000 Total Lumens Fixture Output
CMY Color Mixing and Variable CTO
7-Position Color Wheel with dual High CRI Filters
Comprehensive Visual FX System featuring Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 3.5° to 51°


SOURCE

600W 6,500K Bright White Peak Field LED Engine
20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

22000 Total Lumen Fixture Output
CRI 70+ (80 or 90 with HCRI Filter)
2:1 Hotspot Ratio
Zoom Range 3.5° - 51°
Beam Angle
Field Angle


EFFECTS

Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-60° Framing Module Index
Full 360° Bi-Directional Animation Wheel
4-Facet Round and 6 Facet Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°
Tilt Angle: 270°
Continuous 360° Pan Rotation


COLOR

CMY Color Mixing
Linear CTO Color Correction (2,400K)
7 Dichroic Colors, including CRI 80 and CRI 90 filters


GOBOS

2 Gobo Wheels
7 Rotating Glass Gobos
8 Static Glass Gobos


CONTROL / CONNECTIONS


2 DMX Channel Modes
DMX, RDM, Art-Net, sACN Protocol Support
(5) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
Aria x2 Wireless Device Management
NFC Configuration

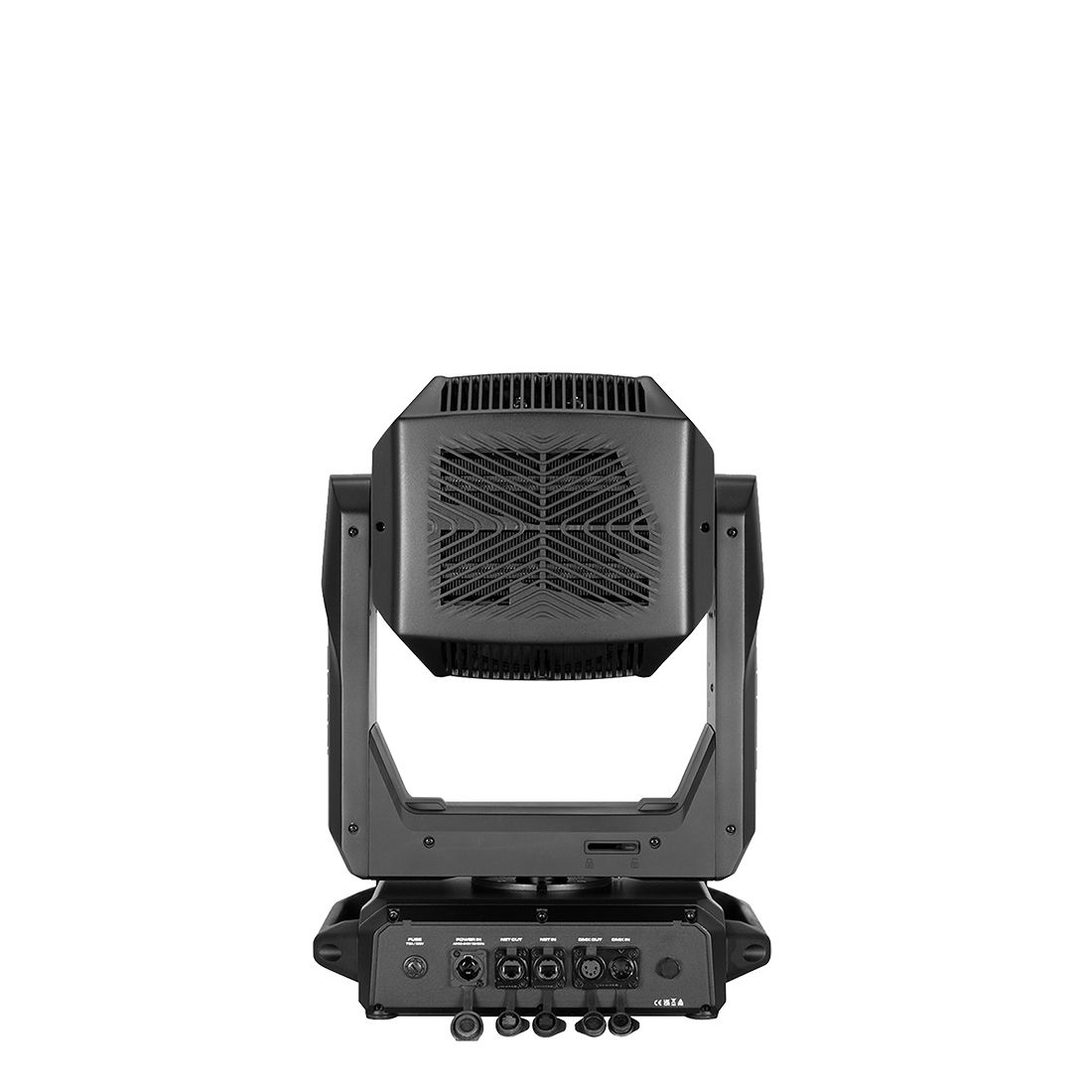

IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In


SIZE / WEIGHT


Length: 398 mm (15.65 in)
Width: 281 mm (11.06 in)
Height: 666 mm (26.2 in)
Weight: 29.9 kg (66 lbs.)
Center-to-Center Spacing: 589mm (23.2in)


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
Max Power Consumption 950W
-4° to 113°F (-20°C to 45°C)
3509 BTU/hr (+/- 10%)


INCLUDED ITEMS

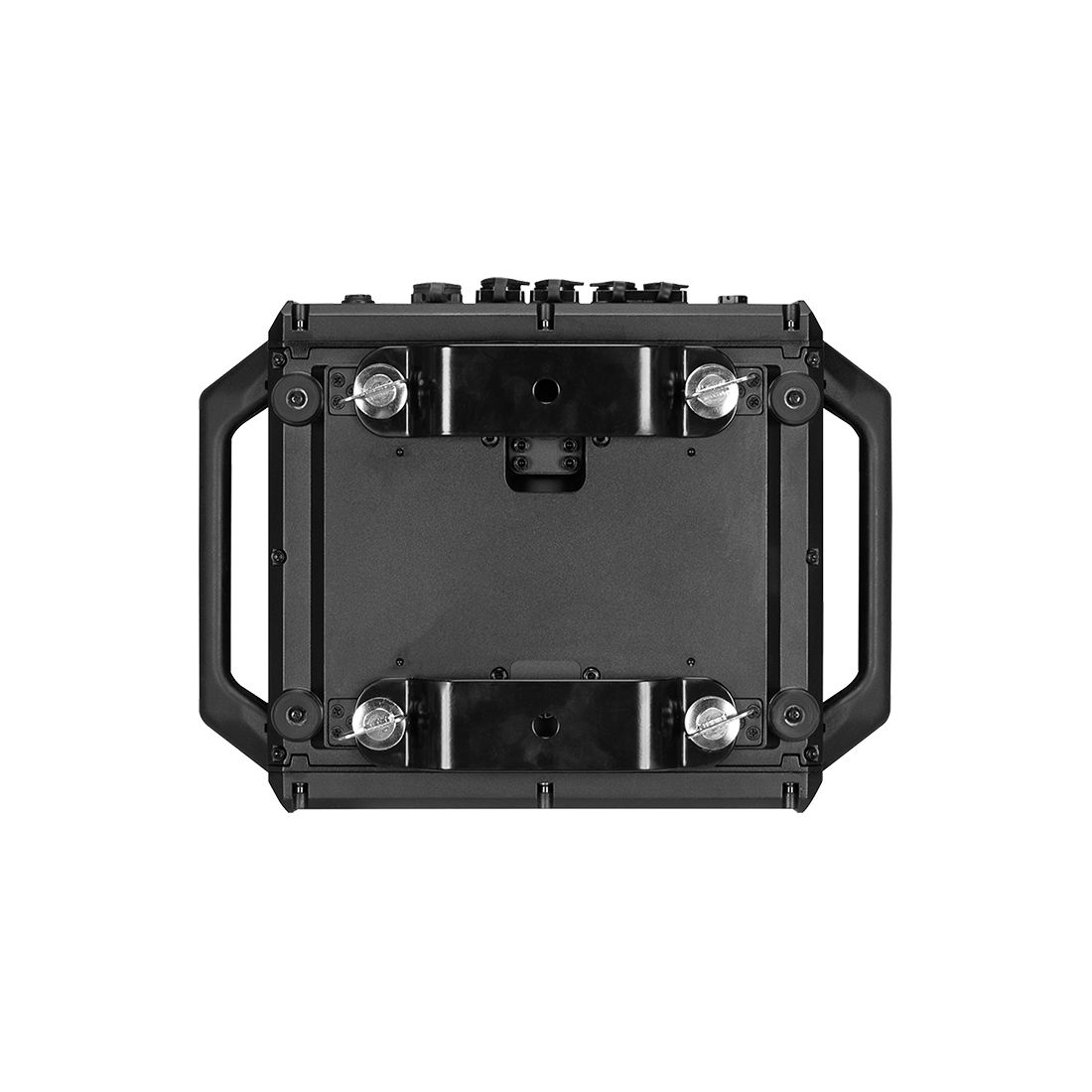

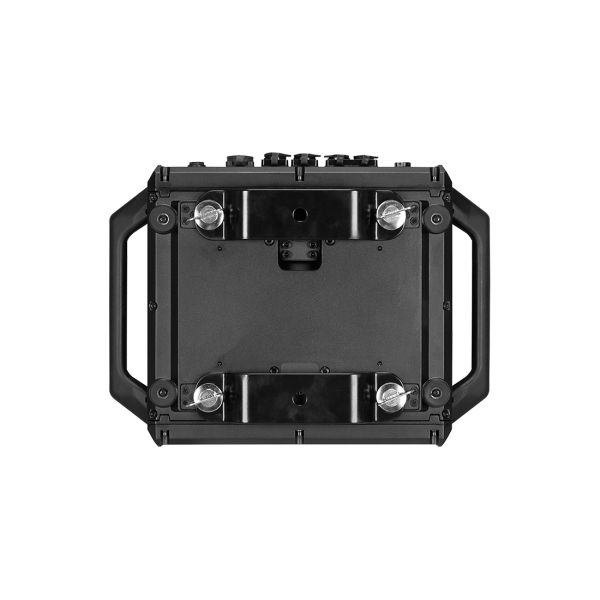

9900026732 Omega Brackets (x2)
IP65 Rated Locking Power Cable


FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
C.T.O.
C.T.O.
Color Wheel
Green
Green
Red
Red
Blue
Blue
High CRI 80
High CRI 80
High CRI 90
High CRI 90
Yellow
Yellow
Quad Color
Quad Color
Gobo Wheel 1
Gobo 17
Gobo 22
Gobo 33
Gobo 34
Gobo 64
Gobo 66
Gobo 195
Gobo Wheel 2
Gobo 23
Gobo 26
Gobo 27
Gobo 28
Gobo 57
Gobo 114
Gobo 173

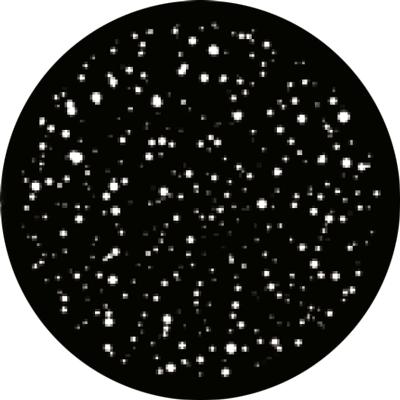

Gobo 190
Animation Wheel
Animation Wheel 1
Prisms
Prism 2
Prism 6
Framing
Endless Rotation
