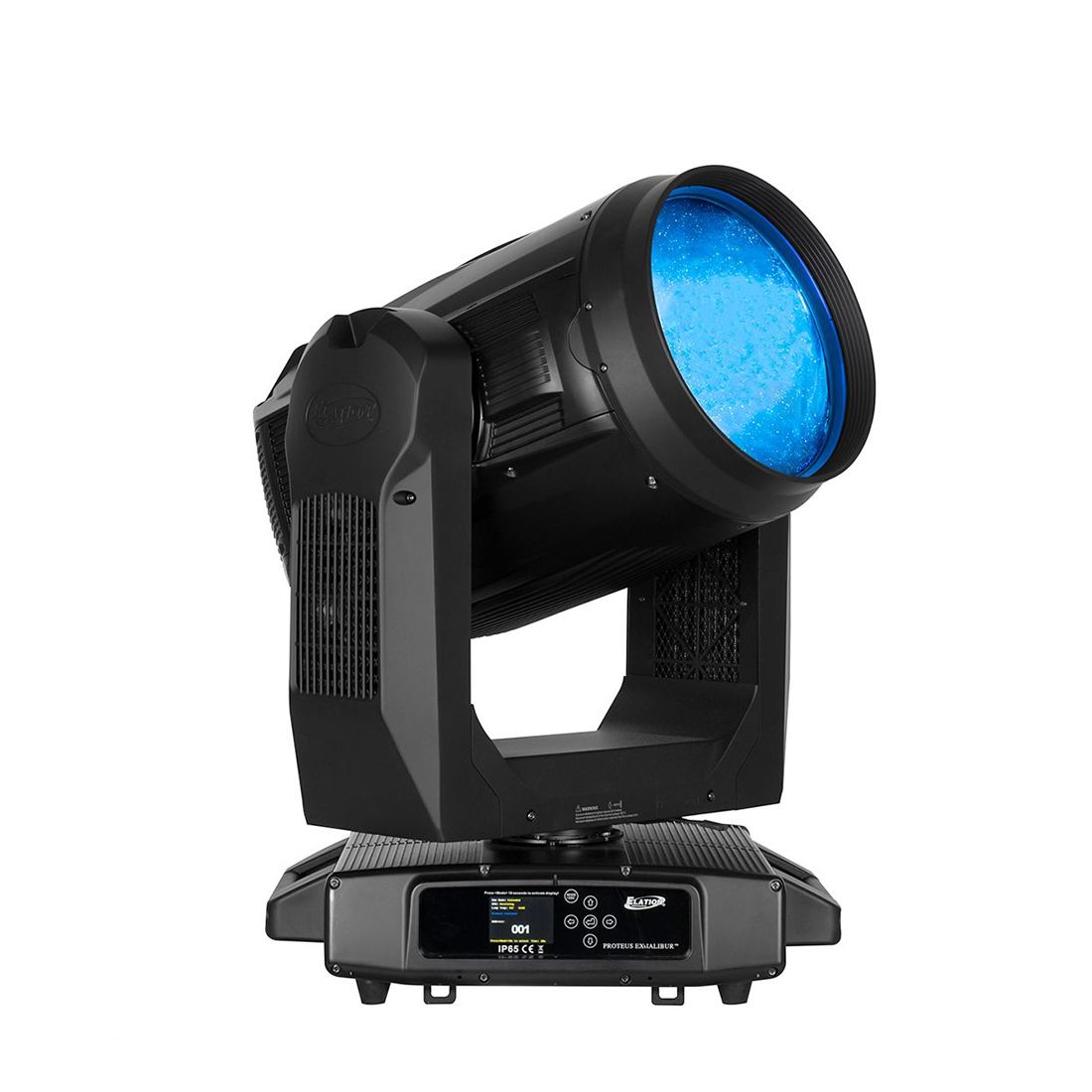

Proteus Excalibur

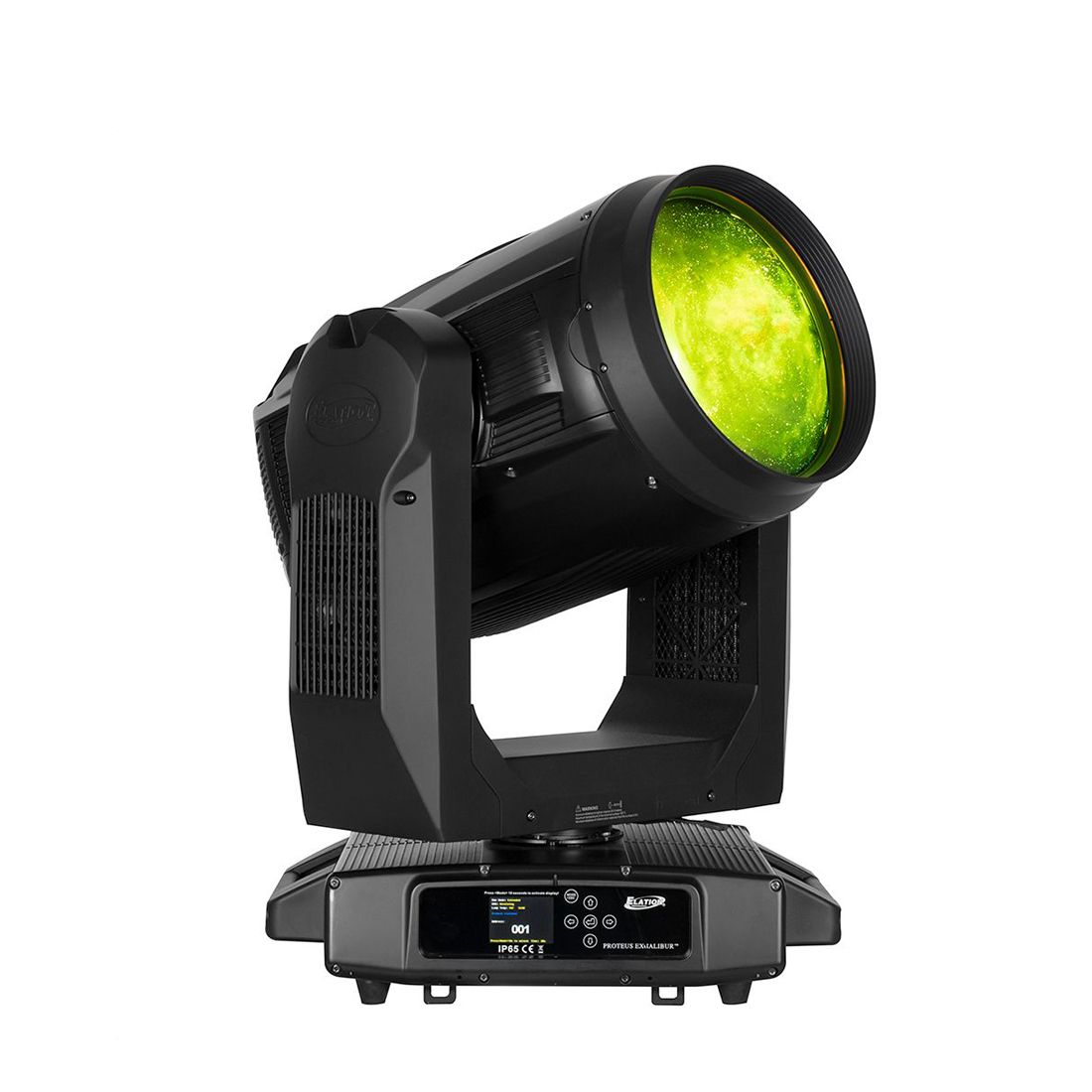

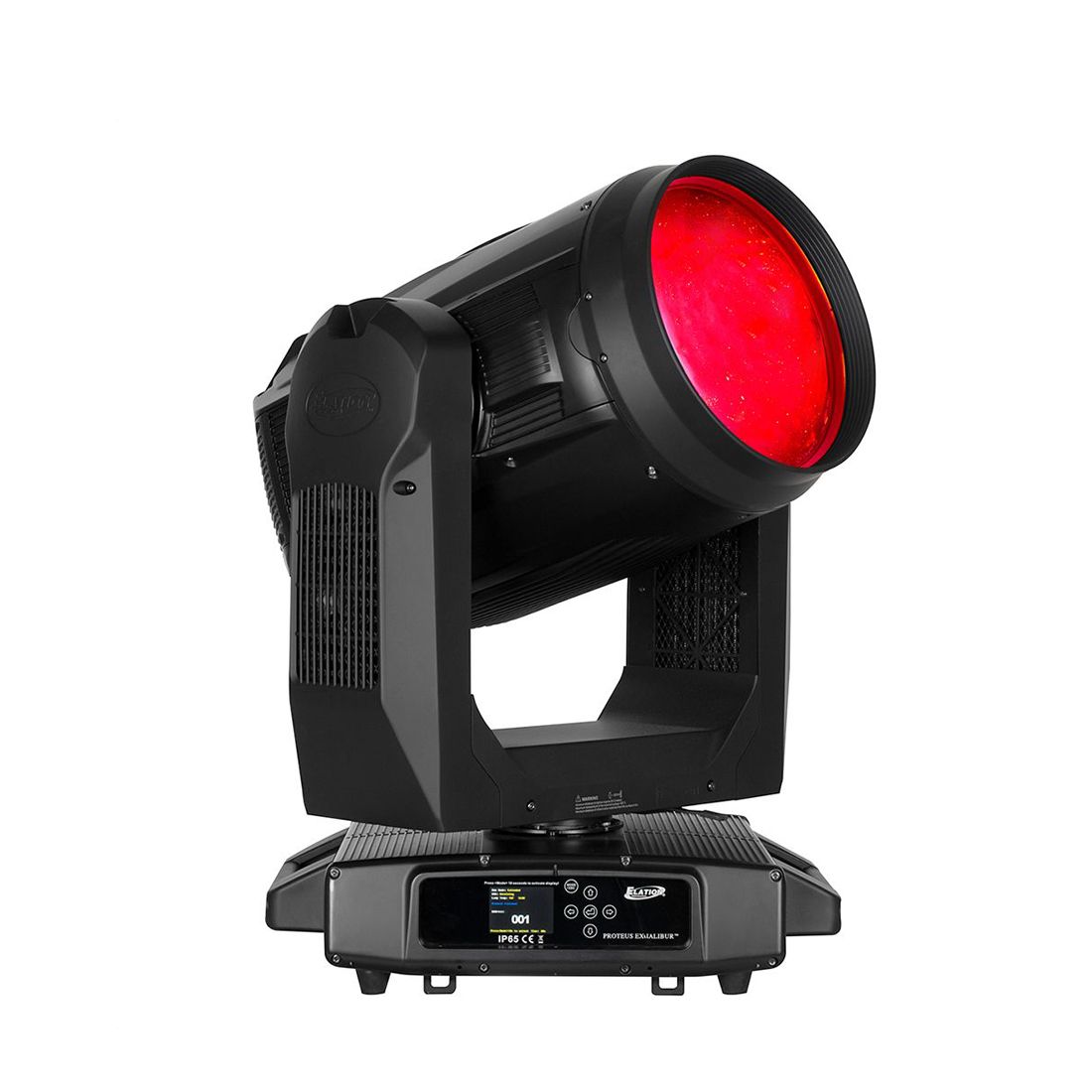

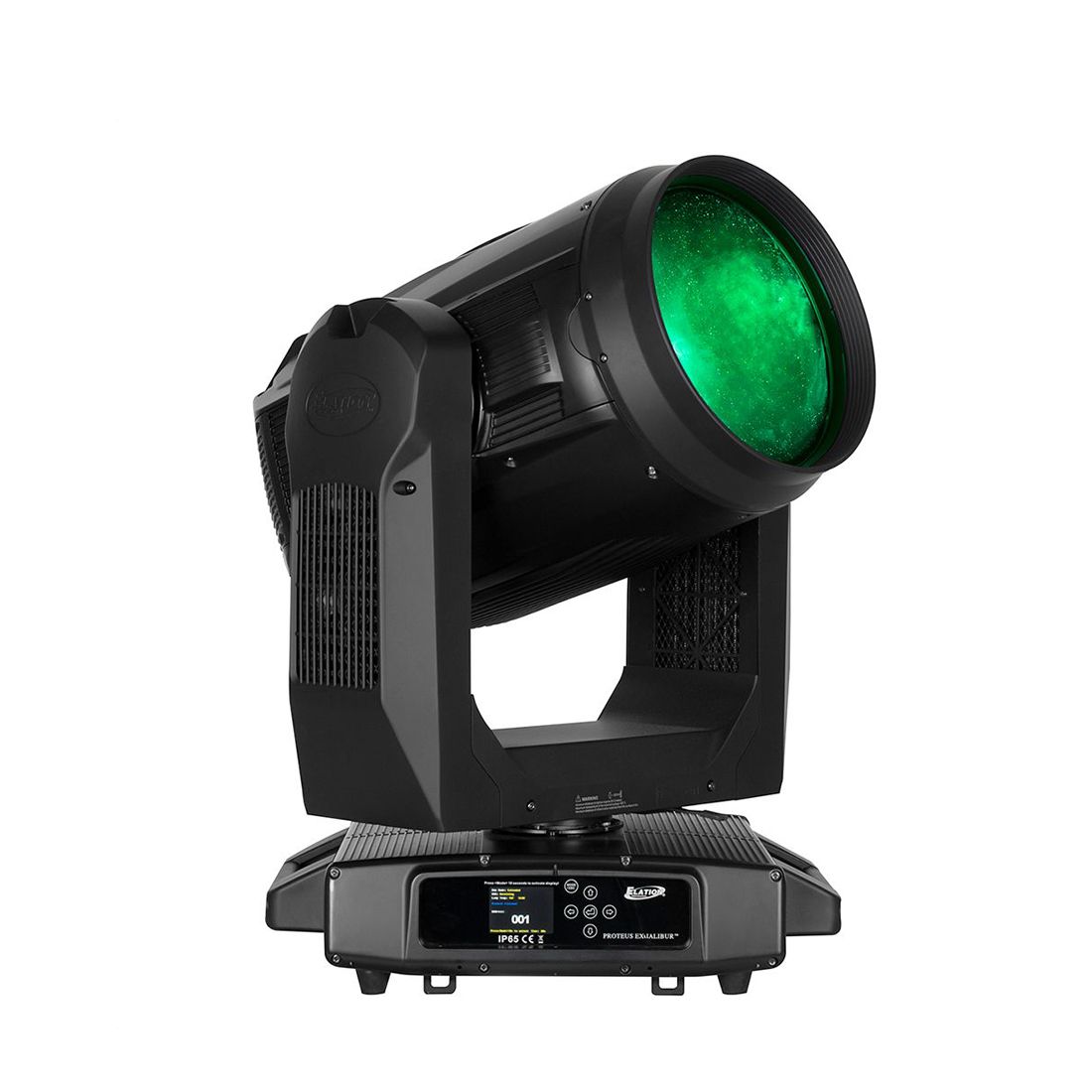

The PROTEUS EXCALIBUR is the newest member in the industry leading Proteus range of IP65 automated fixtures from Elation Professional. Excalibur is the brightest IP65 fully featured beam fixture ever created with incredible light output from a surprisingly compact fixture body. Rivaling existing Xenon searchlights or skytrackers, the extremely narrow 0.8° Beam ensures the fixture cuts effortlessly through the sky and is visible at great distances. The intense beam of the PROTEUS EXCALIBUR projects from the ultra-wide 260mm front Lens as a massive column of light that stuns the audience.

A wide array of gobos and prism overlays allow animating the sky, and with its incredible light intensity all CMY colors remain strong and vibrant even when fully saturated. Beam control is provided through a precise internal focus lens, providing crisp projection without optical errors. Dual variable frosts allow to soften the beam when required. A remote-controlled Expander lens allows widening the beam to approximately 3.5 degrees. The fixture is ideally suited for theme parks, cruise ships, outdoor special events, large scale shows and concerts, and any situation where a massive beam or very powerful prism and flower effects are required. With its compact size and low power consumption the PROTEUS EXCALIBUR can be utilized in almost any application.


The PROTEUS EXCALIBUR includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large 2000 or 4000W Xenon fixtures the PROTEUS EXCALIBUR operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP65 rated.
The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.

Technical Data

FEATURES

Powerful 0.8° Beam Angle
3.5° Beam Expander
CMY Color Mix
Dual overlapping prisms
Ultra-wide 260mm / 10" Front Lens
IP65 rating protects from water and dirt
4,000h Long Life 550W Lamp
Sky Motion System for powerful searchlight and skytracker animations


SOURCE

Philips MSD Platinum 500 Flex 550W Lamp
Variable Lamp Power
Automated Lamp Hibernation with Instant Recovery
Up to 4,000 Hour Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

0.8° Beam Angle
1.6° Field Angle
3.5° Beam Expander Lens
20,000 Total Lumen Output
7,000K CRI 77+
335,000 LUX @ 15m
7,500 LUX @ 100m


EFFECTS

Beam Expander
Focus
Dual Rotating Prisms and Prism Macros
Dual Frost Filter Hybrid Wash Effect
High Speed Mechanical Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 250°


COLOR

14 Dichroic Colors Including CTO and UV
Full CMY Color Mixing


GOBOS

8 Interchangeable Rotating / Indexing Glass Gobos
17 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS


Single DMX Mode (26ch.)
Sky Motion Standalone mode for searchlight and skytracker animations
16-bit Pan, Tilt, and Dimming Control
Motorized Focus
DMX, RDM, Art-NET, and sACN Protocol Support

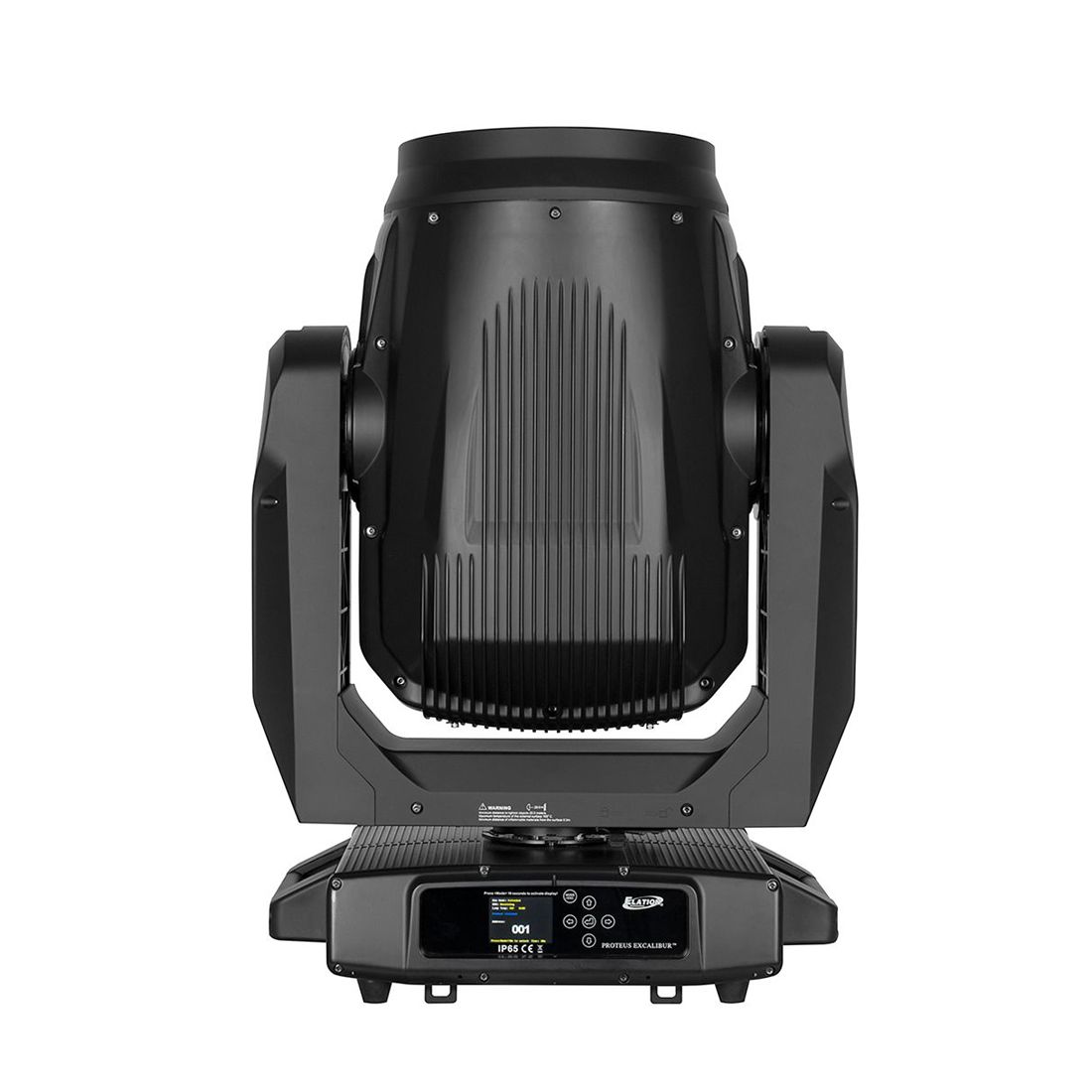

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)

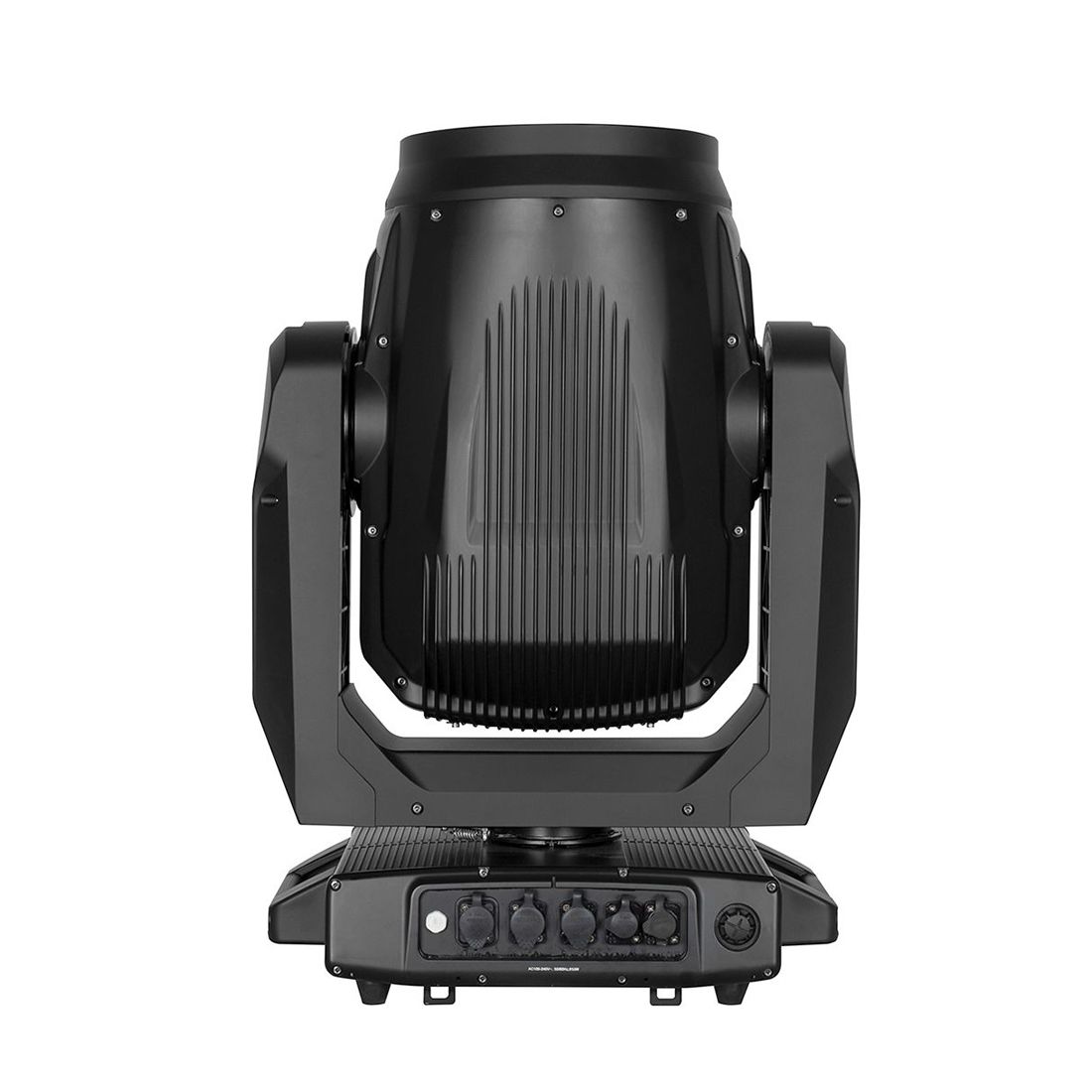

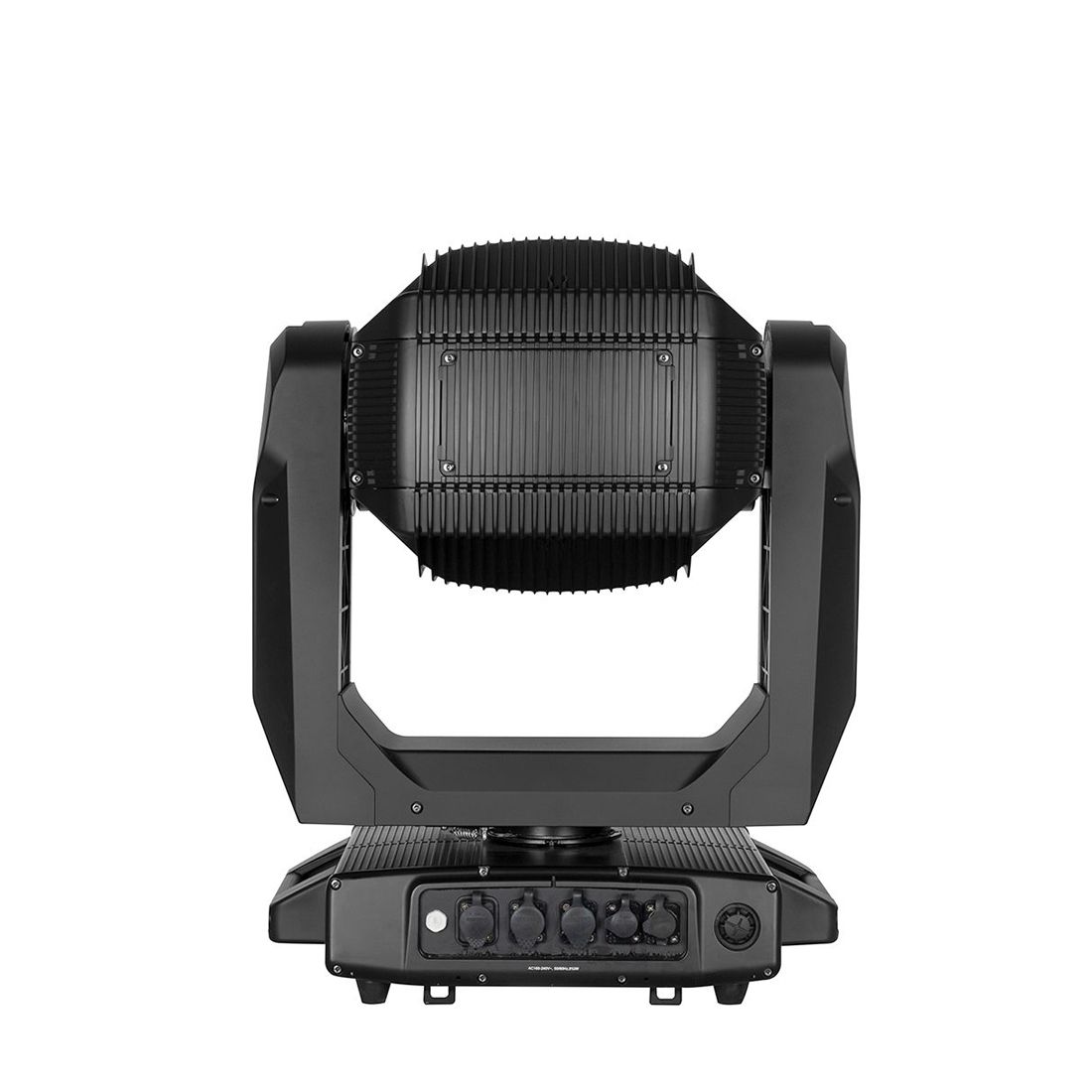

IP65 5pin DMX In/Out
IP65 RJ45 ethernet In/Out
Locking IP65 Power In


SIZE / WEIGHT


Length: 493mm (19.4 in)
Width: 383mm (15.1 in)
Vertical Height: 697mm (27.4 in)
Weight: 49kg (108lbs)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
800W Max Power Consumption
-10°C to 45°C (14°F to 113°F)


FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
Color Wheel
Cyan Cyan
 Green Green
 Red Red
 Blue Blue
 Orange Orange
 UV UV
 Yellow Yellow
 Magenta Magenta
 C.T.O. C.T.O.
 CTB CTB
 Pink Pink
 Purple Purple
 Deep Red Deep Red
 Kelly Green Kelly Green
 Dark Amber Dark Amber
Gobo Wheel 1
Gobo 2
 Gobo 18
 Gobo 31
 Gobo 53
 Gobo 71
 Gobo 89
 Gobo 119
 Gobo 120
Gobo Wheel 2
Gobo 10
 Gobo 38
 Gobo 39
 Gobo 40
 Gobo 56
 Gobo 62
 Gobo 69
 Gobo 70
 Gobo 71
 Gobo 72
 Gobo 73
 Gobo 107
 Gobo 111
 Gobo 115
 Gobo 116
 Gobo 117
 Gobo 118
Prisms
Prism 3
 Prism 7
