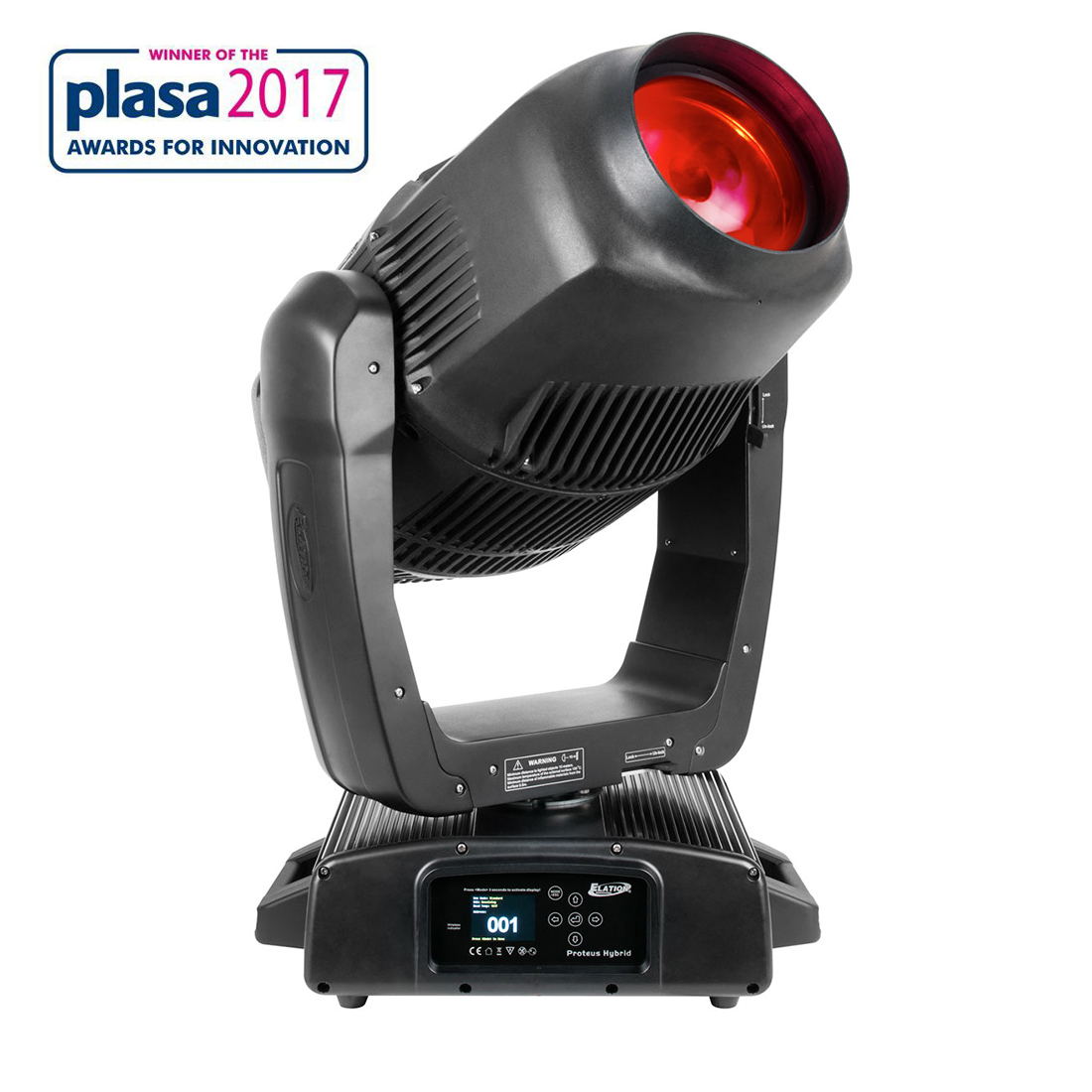

Proteus HybridOutlet

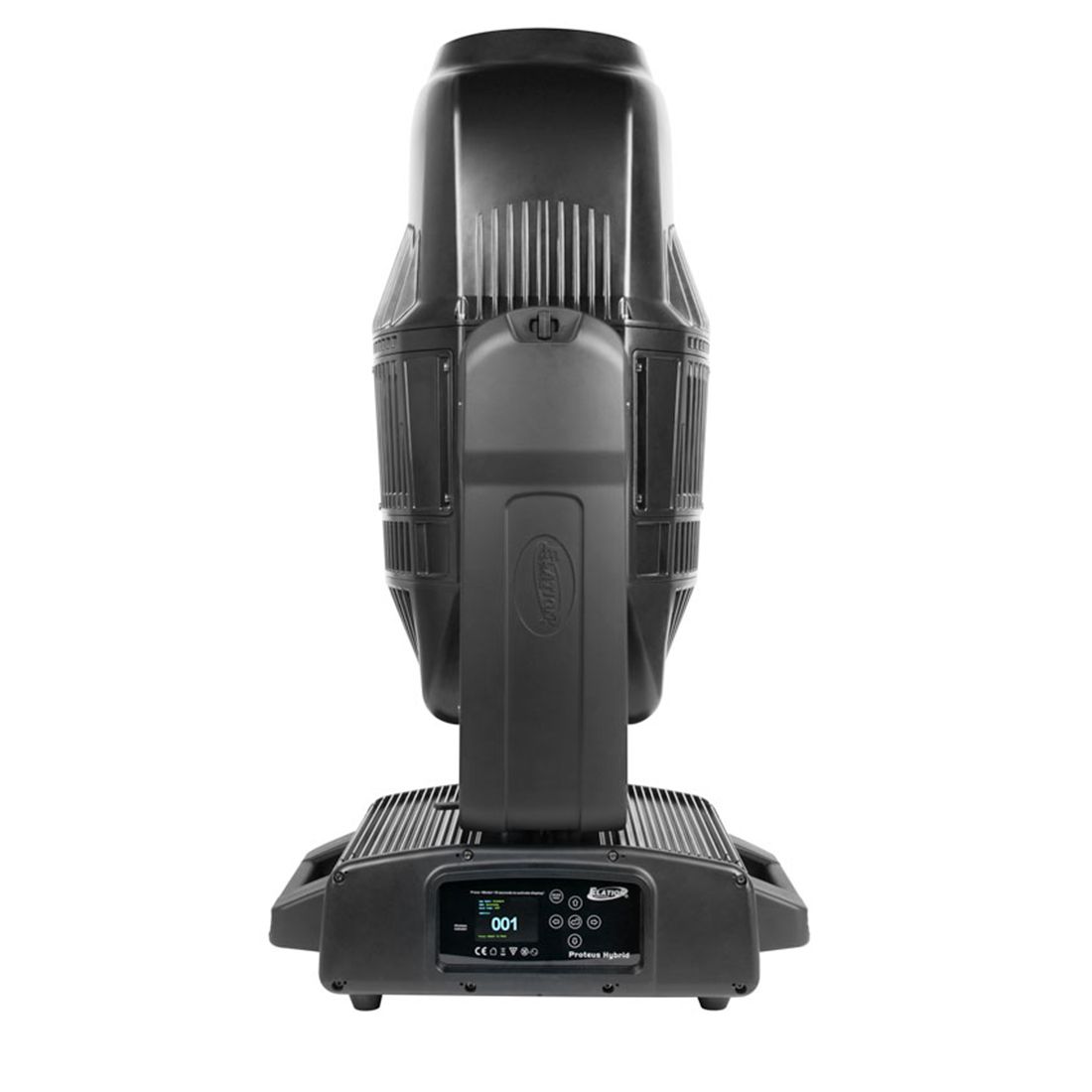

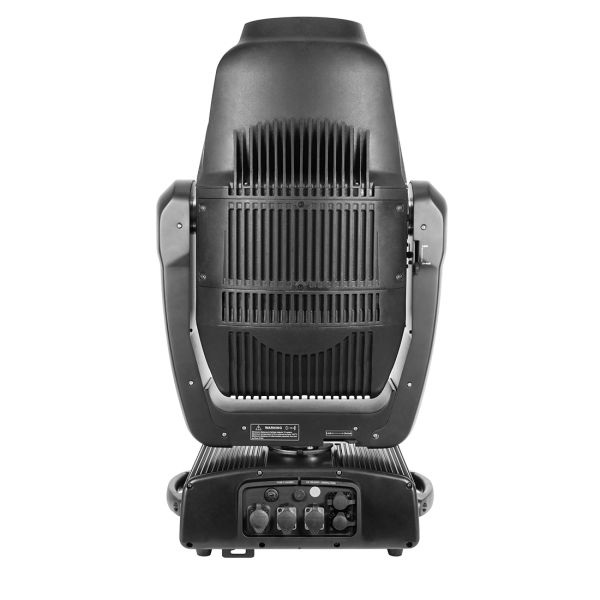

470W Discharge IP65 Beam/Spot/Wash Hybrid Fixture
Code 1237000162
Code
1237000162
FEATURES
IP65 Rated 3-in-1 Hybrid Beam, Spot, Wash LuminairePhilips™ MSD 21R 470W 80CRI 8,000K Lamp and Advanced Optics

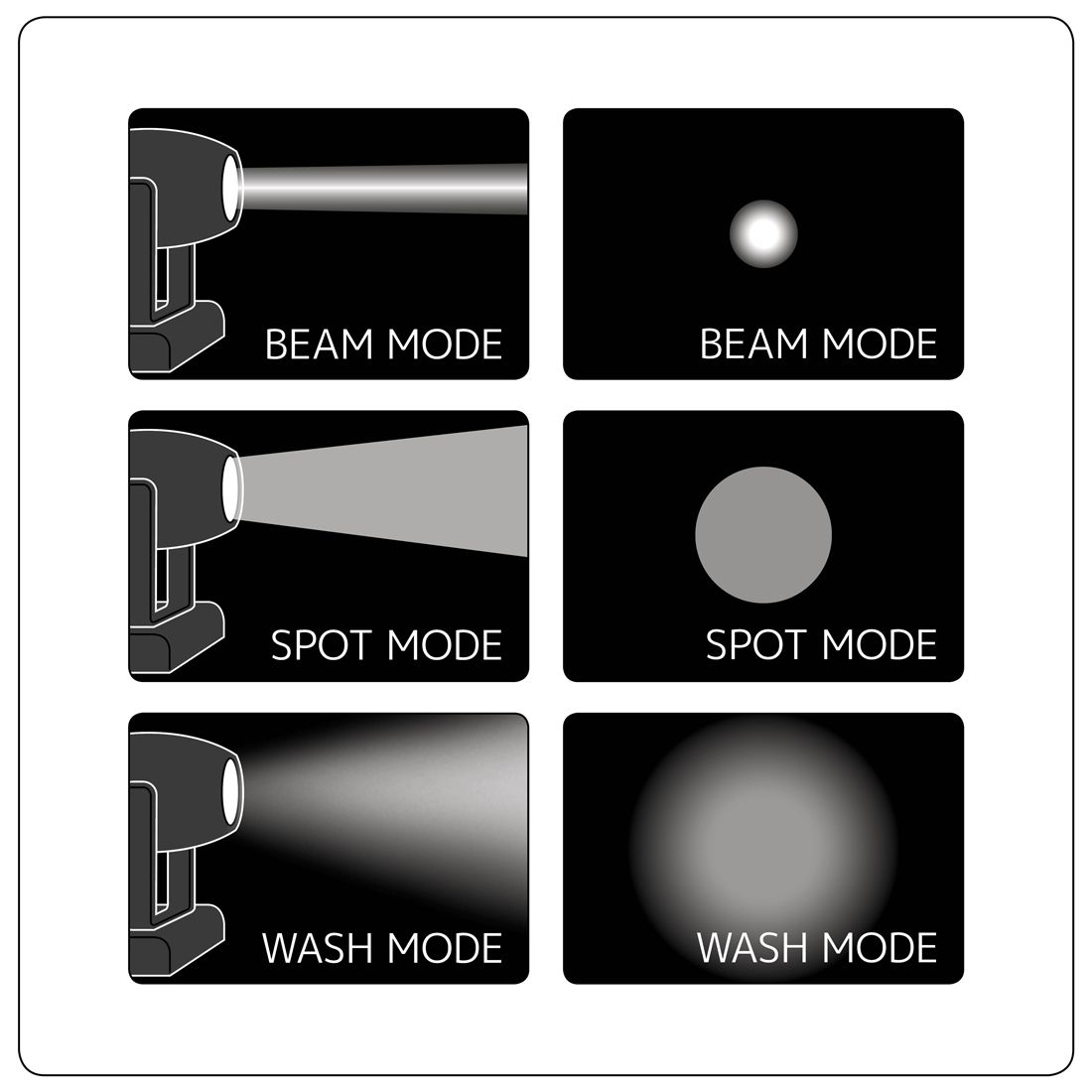

Motorized Zoom, Beam and Spot Modes
Advanced Internal Thermal Cooling System
Full CMY Color Mixing and Linear CTO Color Correction
14 Dichroic Colors Including CTB, CTO, and UV
8 Rotating Interchangeable and 14 Static-Stamped Metal Gobos
Full 360° Bi-Directional Animation Wheel
Rotating 8-Facet circular and 4-facet Linear Prisms and Frost Filter
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver
SOURCE
Philips MSD 21R 470W 8,000K Lamp1,000 Hour Average Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
80CRI | >14,000 Lumens13,375 LUX 1,243 FC @ 15m (49.2’) (3.0° Spot)
233,000 LUX 21,646 FC @ 15m (49.2’) (2.0° Beam)
11,500 LUX 1,068 FC @ 15m (16.4’) (4.0° Wash)
Zoom Range
Beam 2.1° - 21.5°
Spot: 2.8° - 28.6°
Wash: 4° - 31.2°
EFFECTS
Full 360° Bi-Directional Animation WheelRotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 265°
COLOR
14 Dichroic Colors Including CTB, CTO, and UVFull CMY Color Mixing and Linear CTO Color Correction
GOBOS
8 Interchangeable Rotating / Indexing Glass14 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 26 / 37)6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver

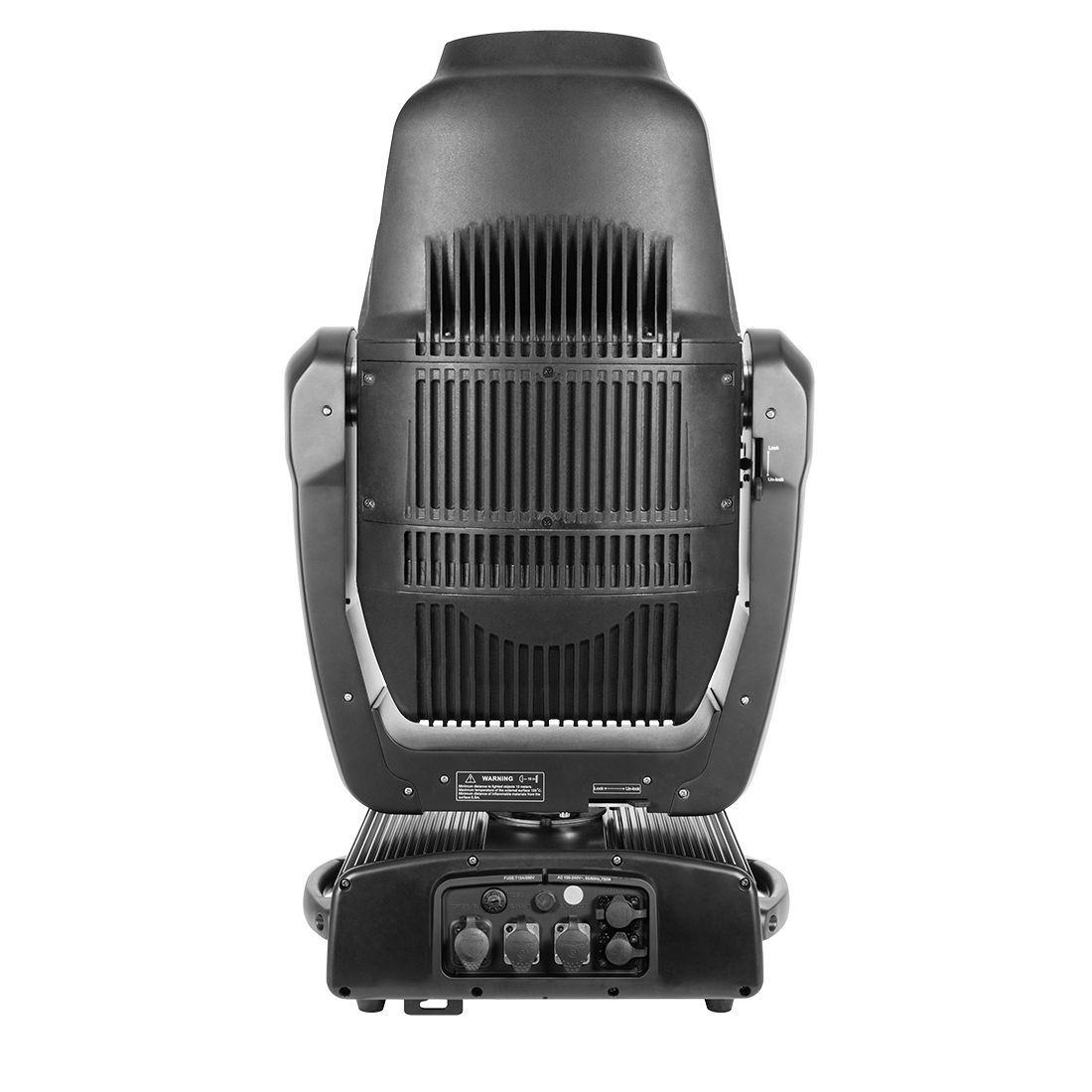

IP65 5pin DMX In/Out
IP65 RJ45 ethernet In/Out
IP65 locking power cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 465mm (18.45")Width: 571mm (22.5")
Vertical Height: 805mm (37.1")
Weight: 38 kg (84.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz700W Max Power Consumption
-20°C to 45°C (-4°F to 113°F)
FIRMWARE UPDATES
Current firmware can be found here (login required)
Specifications and documentation subject to change without notice
COLORS AND GOBOS
Color Flags
Cyan
Magenta
Yellow
C.T.O.
Color Wheel
Green
Lime Green
Red
Blue
Orange
UV
Yellow
Magenta
C.T.O.
Aqua
CTB
H. M. G.
Purple
Light Yellow
Gobo Wheel 1
Gobo Wheel 2
Prisms
