E-Loader III Softw.Update Box f. Elation

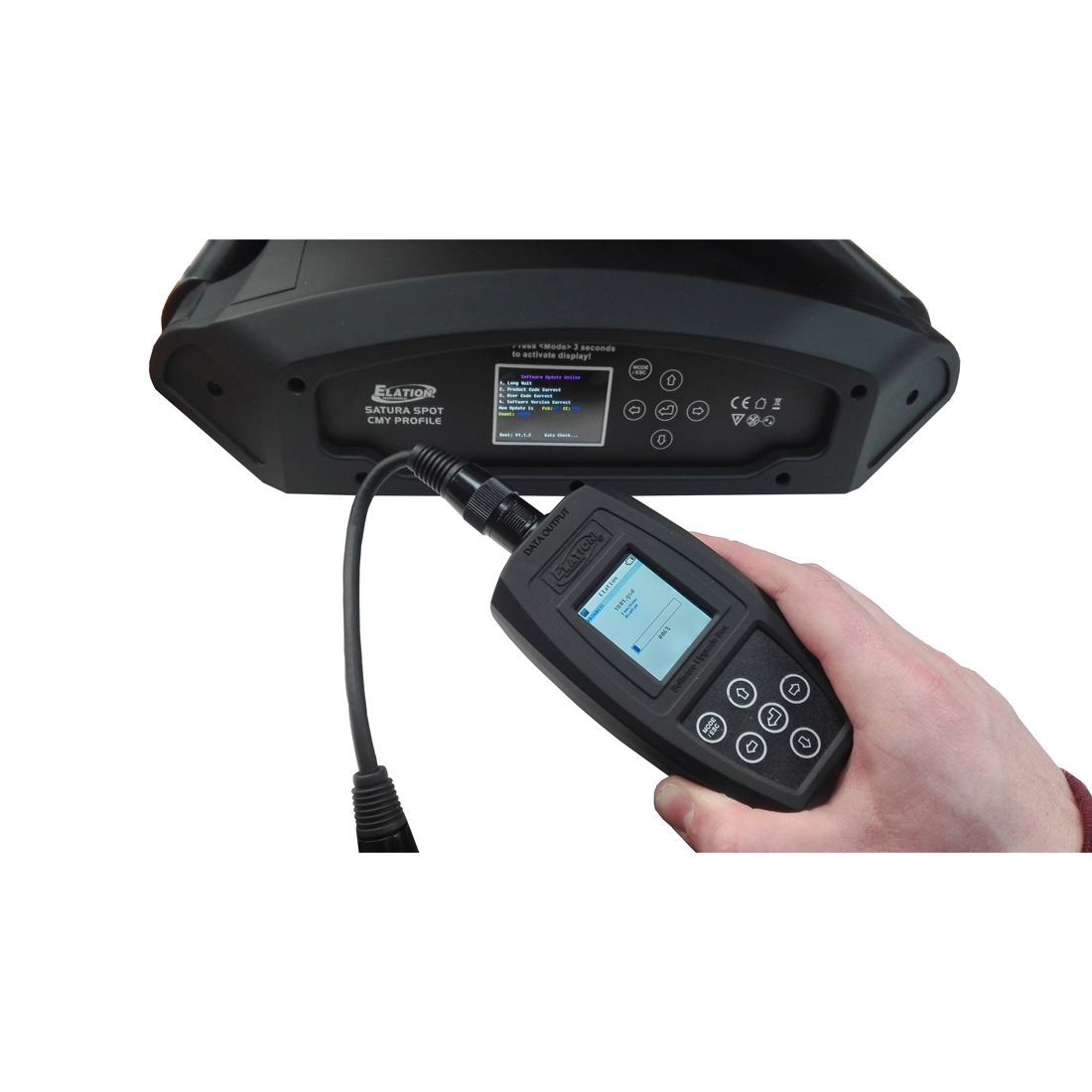

The E-LOADER III™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the E-LOADER III™ to the fixture using the included 3pin DMX cable. Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader.

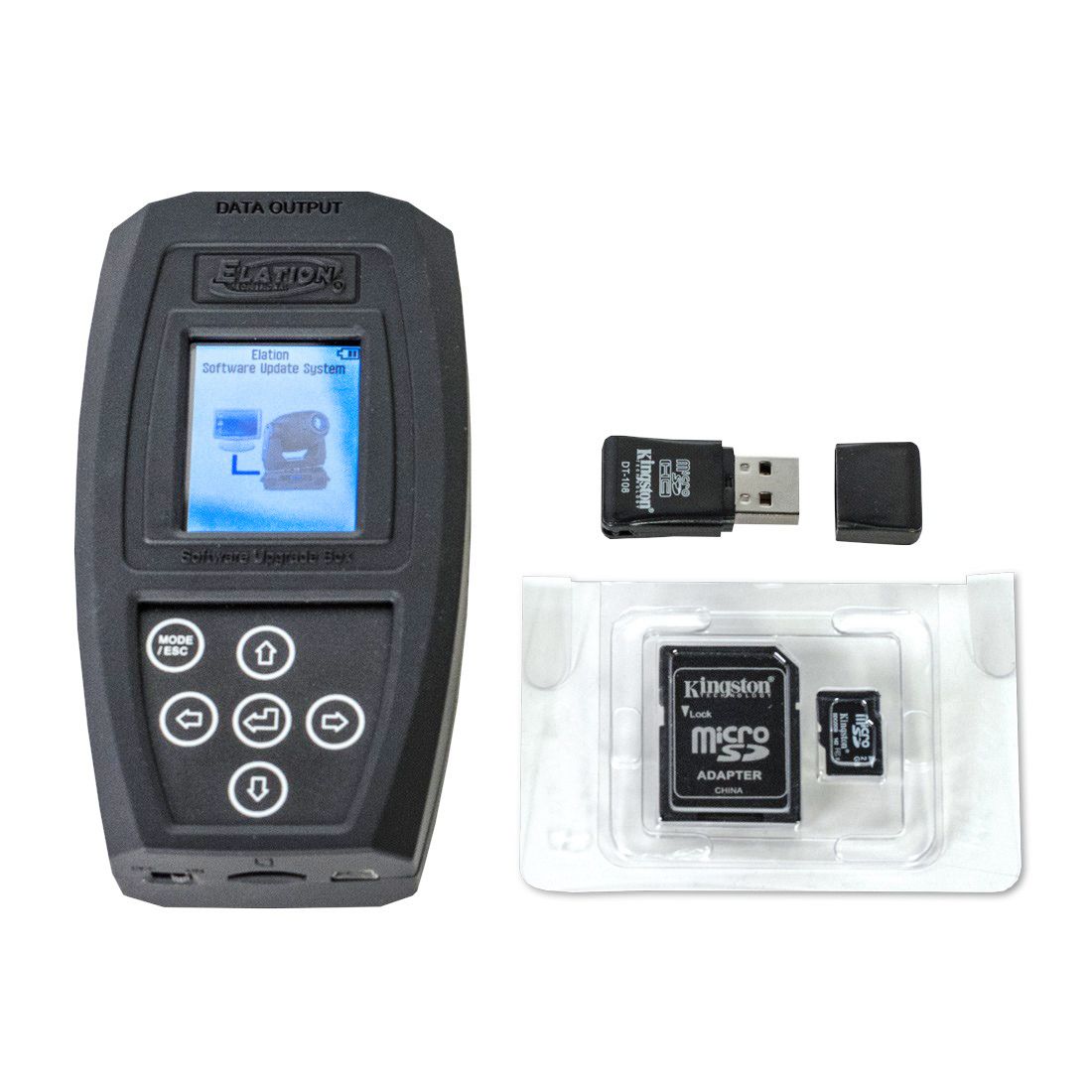

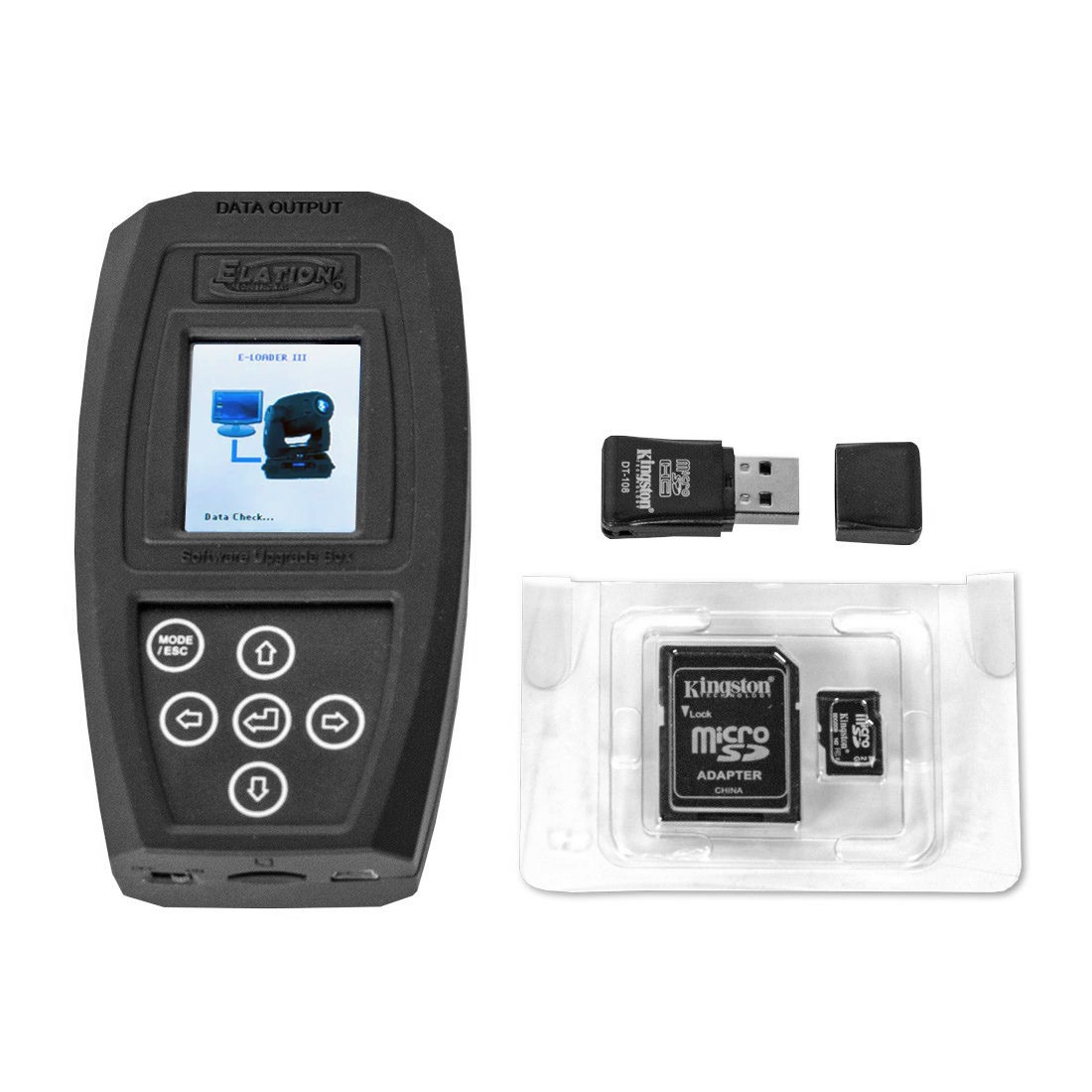

E-LOADER III™ features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, 3pin DMX cable, USB cable, USB AC adapter, USB to MICRO SD card adapter, and a blank MICRO SD card.



Technical Data

CONTROL / CONNECTIONS

6 Button Touch Control Panel
LCD Menu Display
3pin DMX Out
MICRO SD Card Slot
Mini USB Input
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 5.0” (126.7mm)
Width: 2.6” (66.9mm)
Vertical Height: 1.2” (30mm)
Weight: 0.3 lbs. (0.13 kg)

ELECTRICAL

5VDC (Internal Battery)

INCLUDED ITEMS

3pin DMX Cable
USB Cable
USB AC Adapter
MICRO SD Card
USB to MICRO SD Card Adapter



Specifications and documentation subject to change without notice
