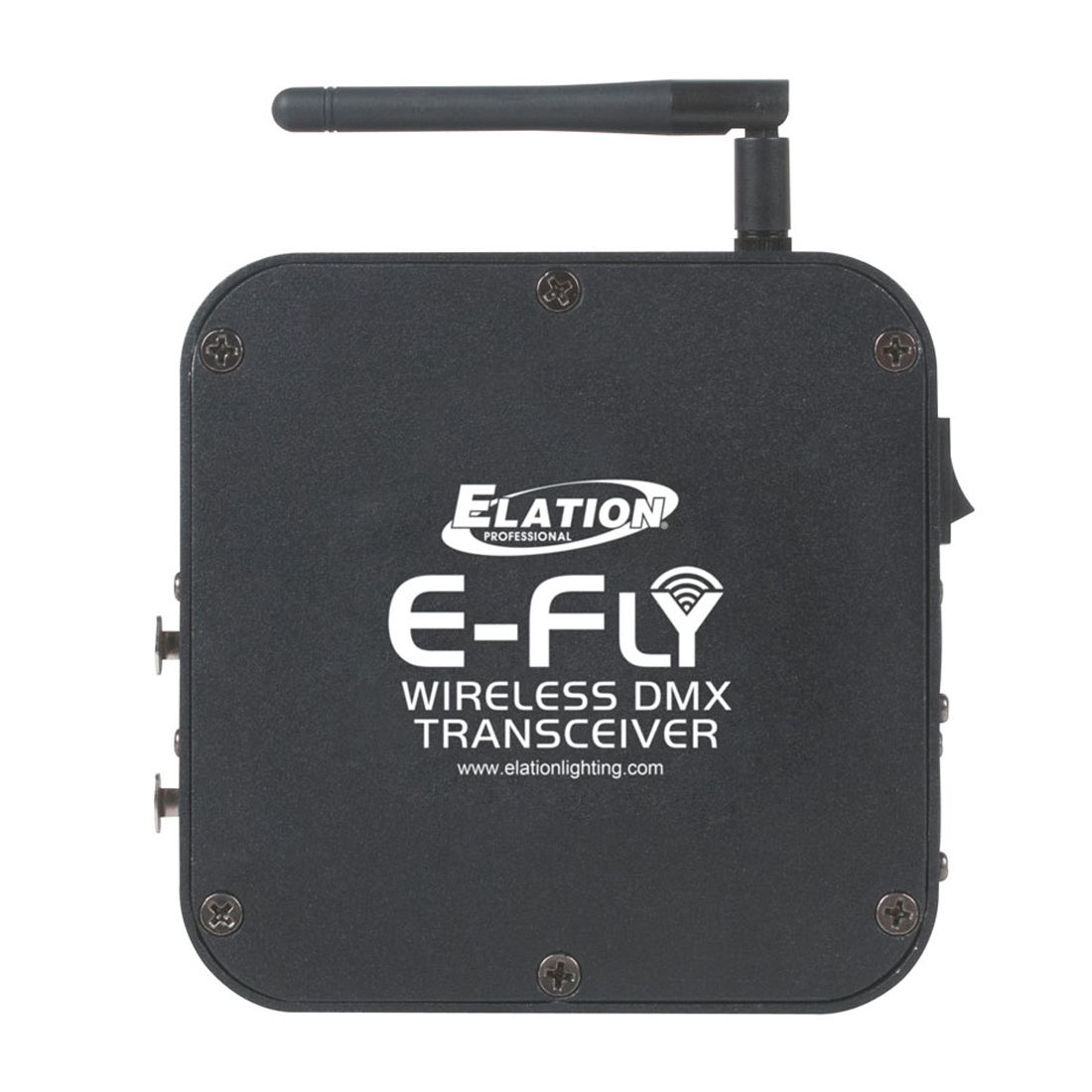

E-Fly Transceiver

The E-FLY™ Transceiver is a long range wireless DMX Transceiver (Transmitter/Receiver in one) that is compatible with other E-FLY™ products and includes a rechargeable battery, which provides a solution for remote applications where access to power is a challenge. Connected to a DMX Controller, the E-FLY™ Transceiver will provide a constant and reliable wireless DMX signal up to 2,500 feet (762m) to other Elation E-FLY™ products. The 2.4 GHz wireless frequency will coexist in busy RF environments alongside technologies like Bluetooth and Wi-Fi.

Technical Data

FEATURES

Wireless DMX Transceiver (Transmitter/Receiver-in-1)
Rechargeable Battery Life - Up to 20-25 Hours from a 4 Hour Charge

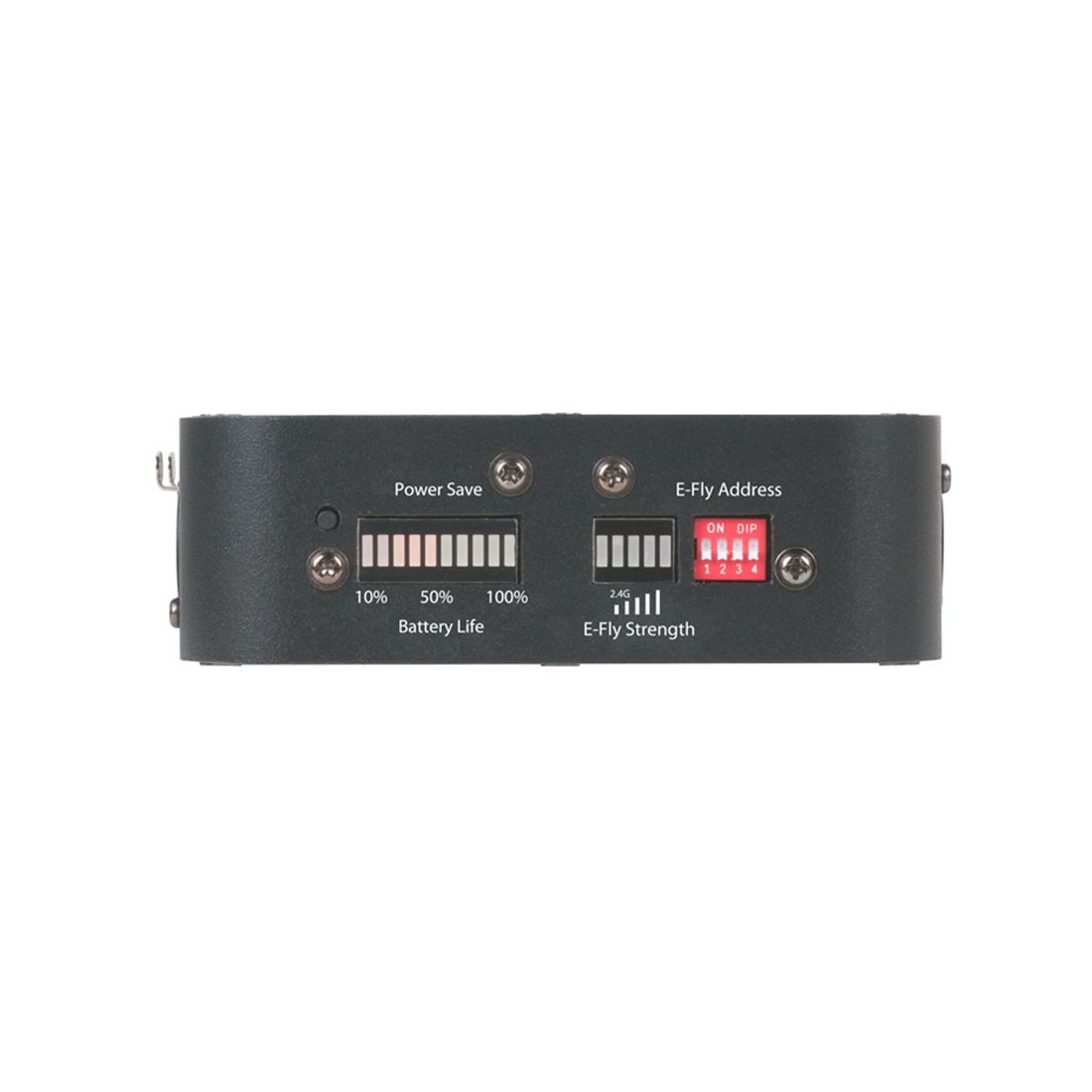

Battery Life and Signal Strength Indicator Display
Wireless Range Up to 2,500 ft. (762m) Open Line of Sight
Transmit to Multiple Receivers on Same Radio Channel
Supports Up to (15) DMX-512 Universes
15 Radio Channels (1 DMX universe per channel)
Auto Paring Feature

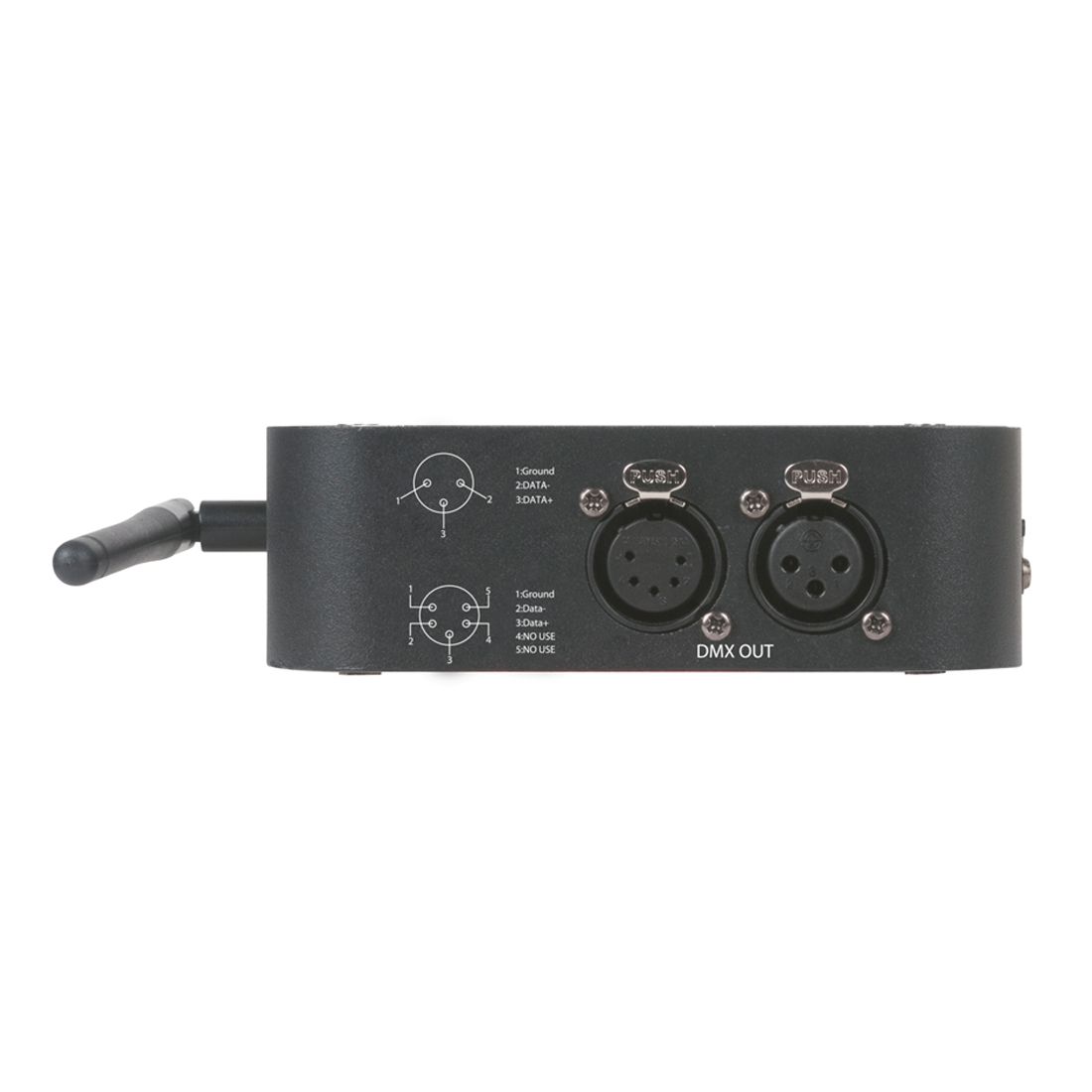

Locking 3pin & 5pin XLR DMX In/Out
Wireless Frequency: 2.4 GHz ISM

CONTROL / CONNECTIONS

Battery Switch
Power Save Button

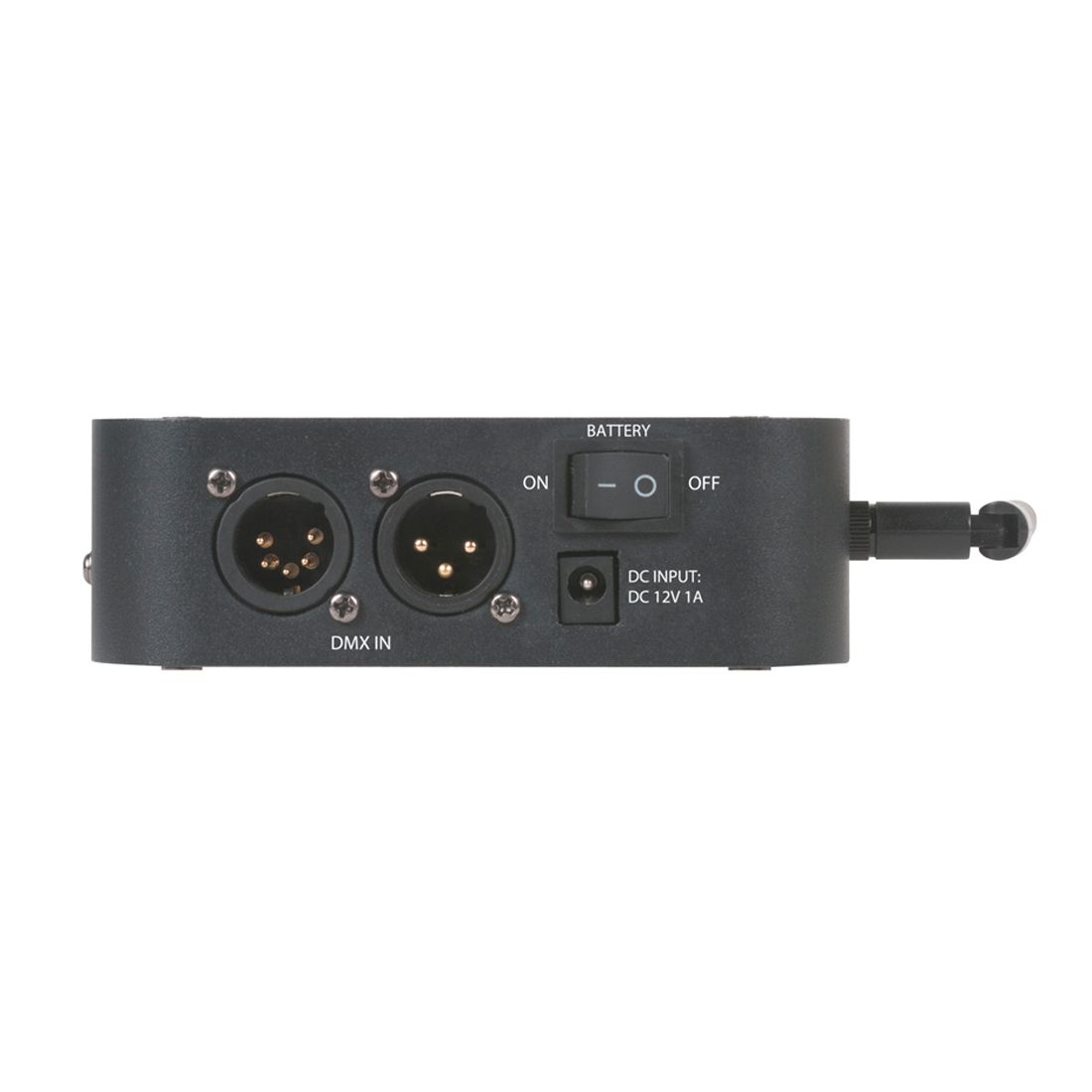

Locking 3pin and 5pin XLR DMX In/Out
12VDC Power Supply Input

SIZE / WEIGHT

Length: 6.0” (152.7mm)
Width: 5.3” (134.4mm)
Vertical Height: 1.6” (62mm)
Weight: 1.3 lbs. (0.6kg)

ELECTRICAL / THERMAL

12VDC, 1A (AC or DC powered)

INCLUDED ITEMS

Back Panel Magnet for Easy Metal Surface Mounting

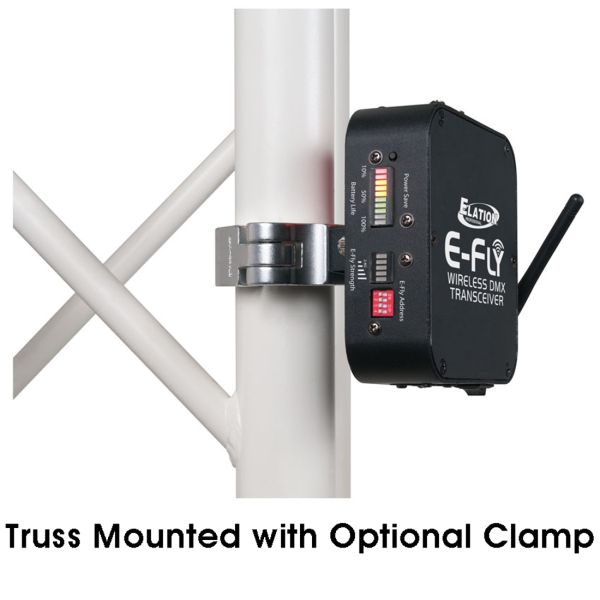

Mini Omega Bracket for Clamp/Truss Mounting (Clamp not included)
12VDC Power Supply

Specifications and documentation subject to change without notice
