IP Tester

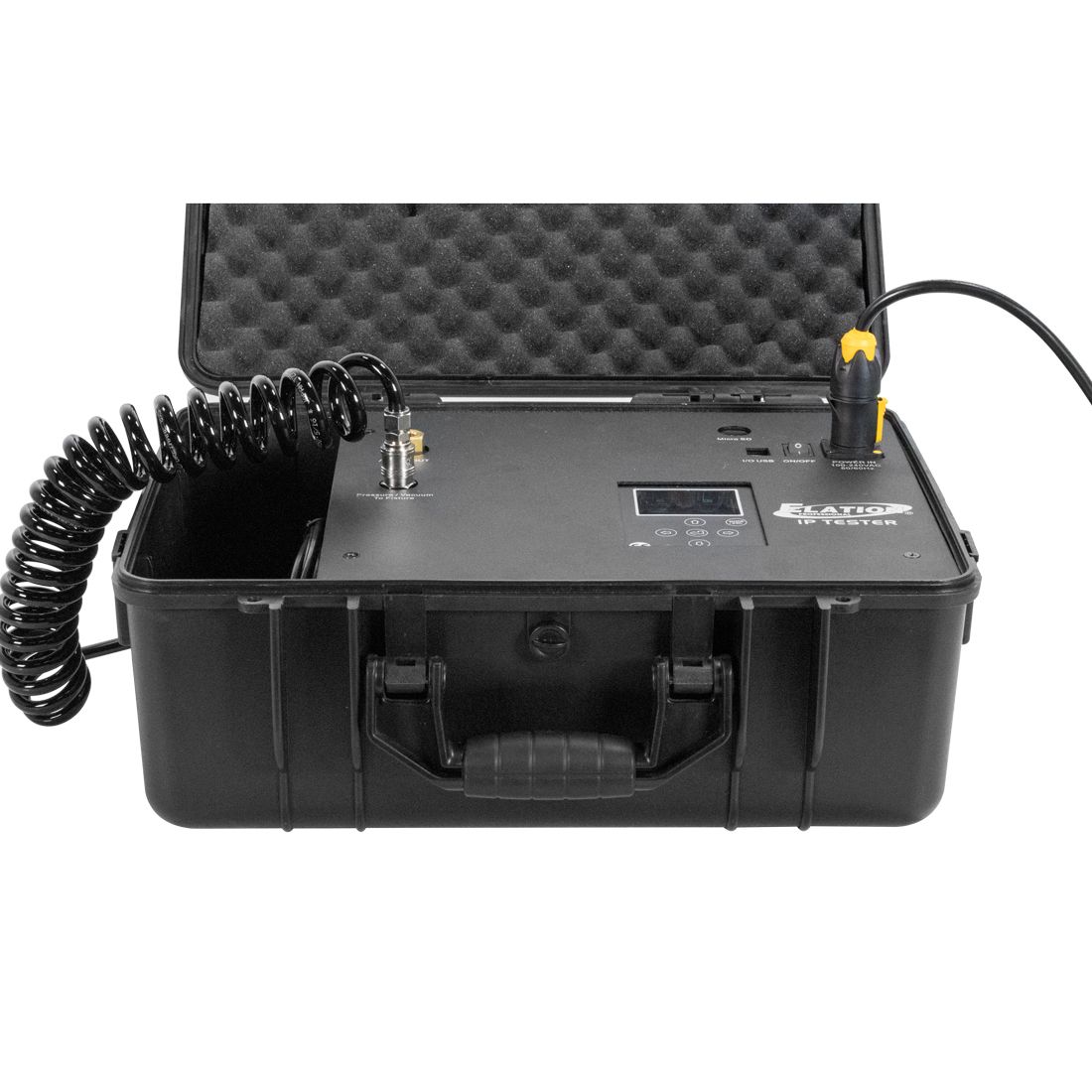

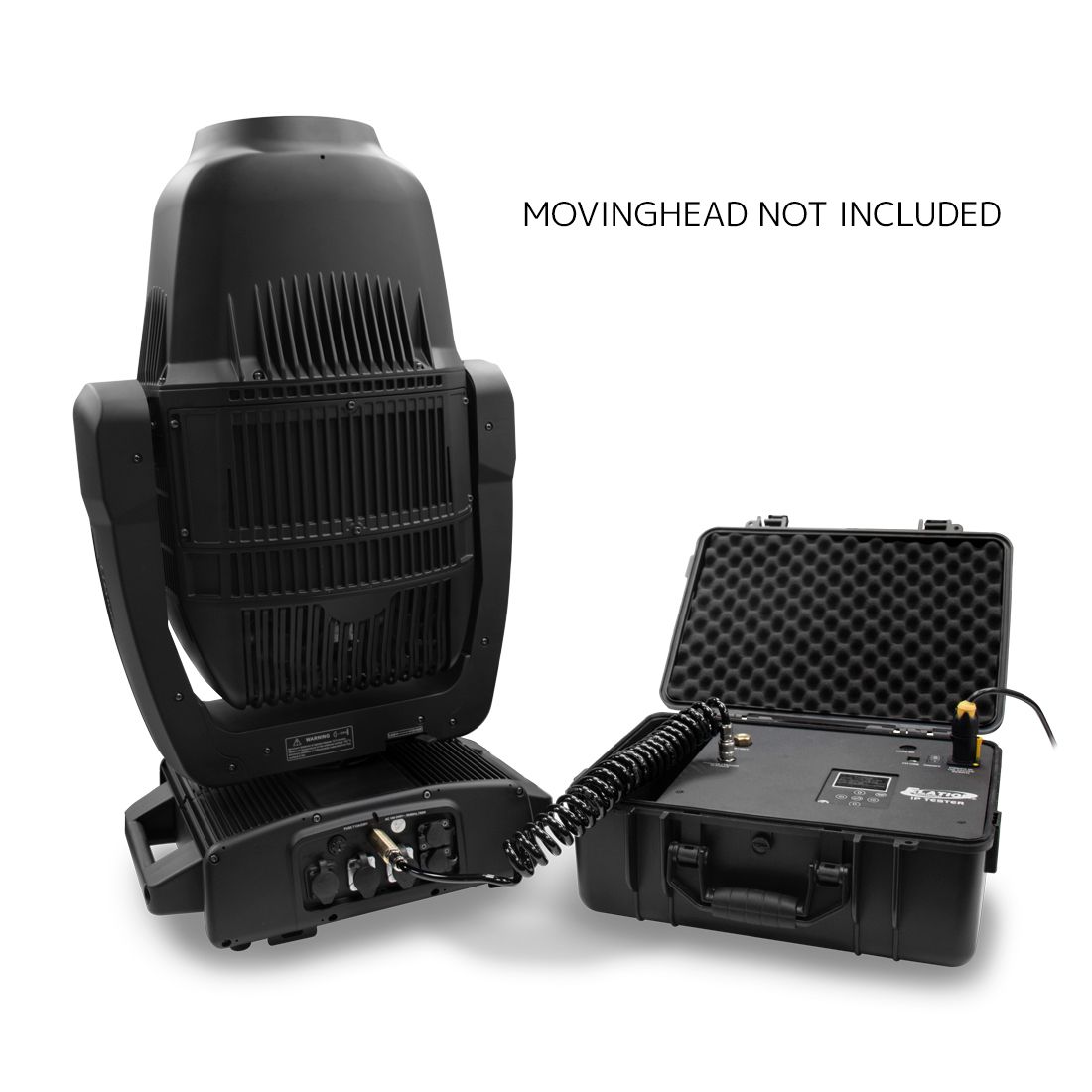

The IP TESTER is a unique mobile service tool developed by Elation to test the integrity of any compatible IP-rated lighting fixture such as Elation’s PROTEUS series fixtures, after being opened for lamp and gobo replacement or repair. Unlike other IP fixture test devices currently available in the market, Elation’s IP TESTER has been designed to test for both Vacuum and Pressure leaks.

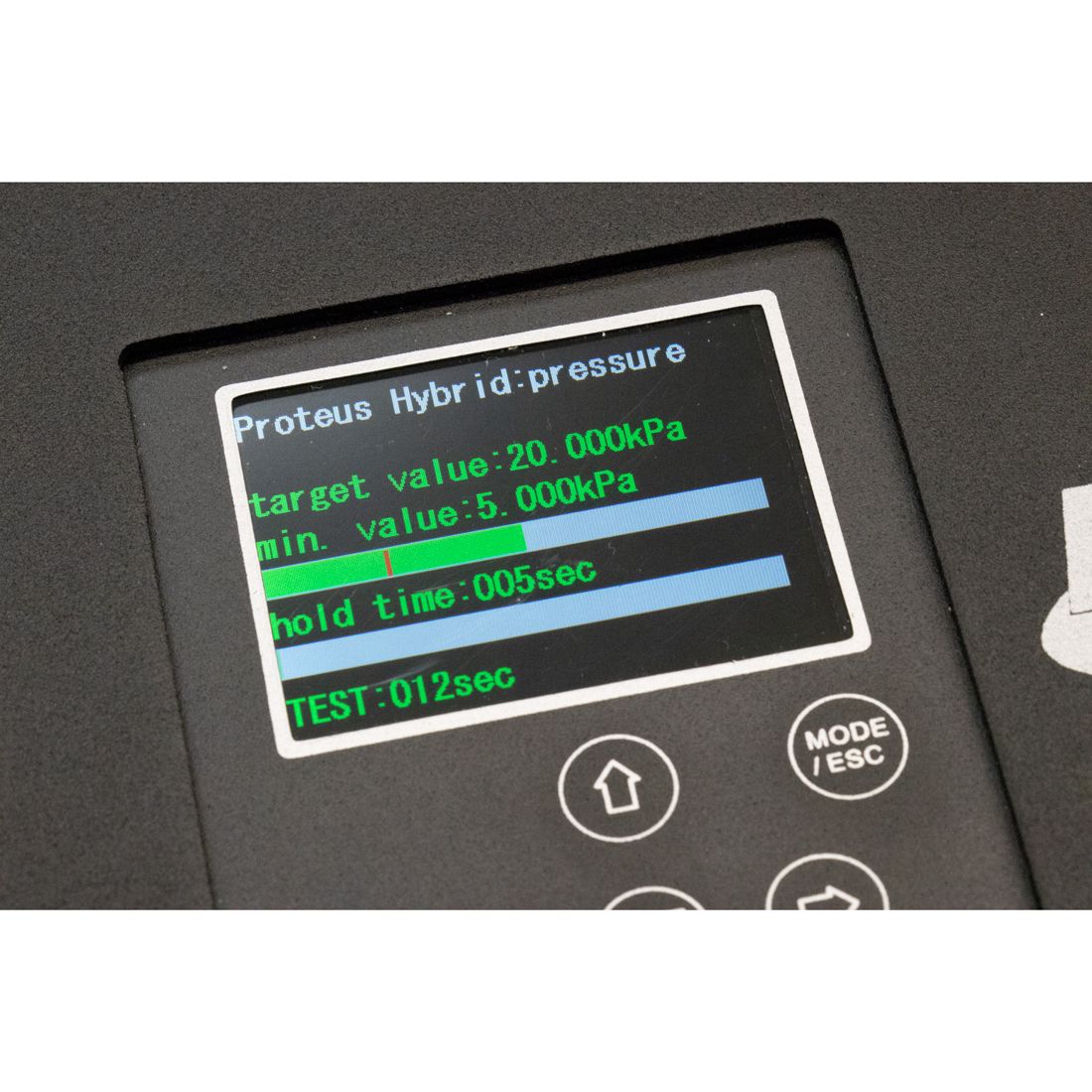

Features include an easy to carry rugged flight case, an easy to navigate 6-button LCD control menu display, testing progress bars to indicate remaining test time, preloaded Elation IP-rated lighting fixture model test presets, manual test setup for any compatible non-Elation models, fixture serial number input to keep track of fixtures tested, Micro SD card slot to store test reports, and a USB connection for PC software control.


The IP TESTER includes a 3-5 ft (0.9-1.5m) coiled air hose with quick-connect fitting, threaded M12 brass nozzle with push-to-connect fitting, 2 M12 x 1.5 nylon bolts, 6ft (1.8m) USB cable, 5ft (1.5m) IP65 Locking power cable, a Micro SD Card, and an easy to carry rugged case.


Please contact Elation Service for more information.

Technical Data

FEATURES

Mobile IP Fixture Vacuum and Pressure Tester
Developed by ELATION PROFESSIONAL
Compatible with any IP Fixture like Elation’s PROTEUS Series
Preloaded Elation IP Rated Lighting Fixture Test Presets
Manual and Auto Testing Modes

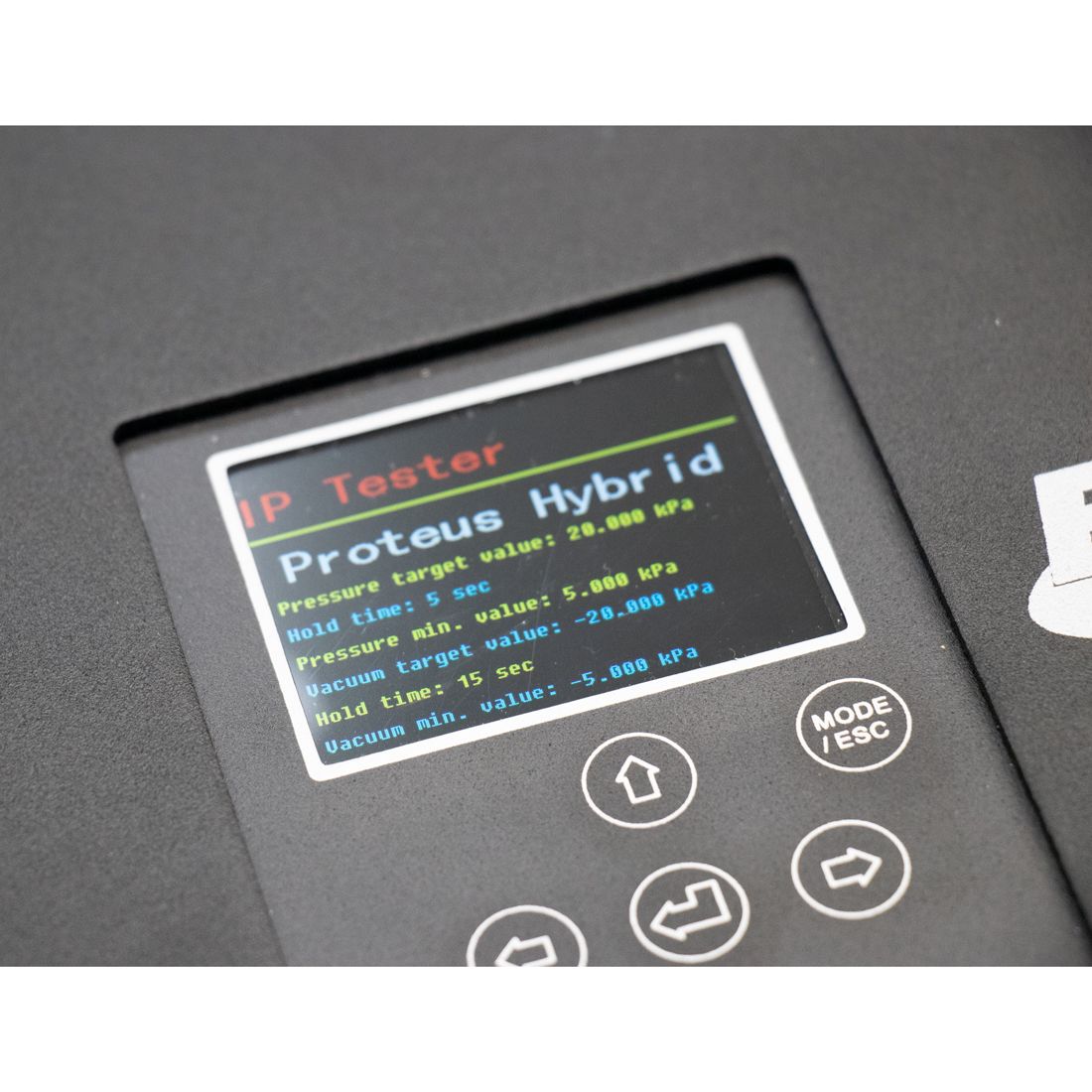

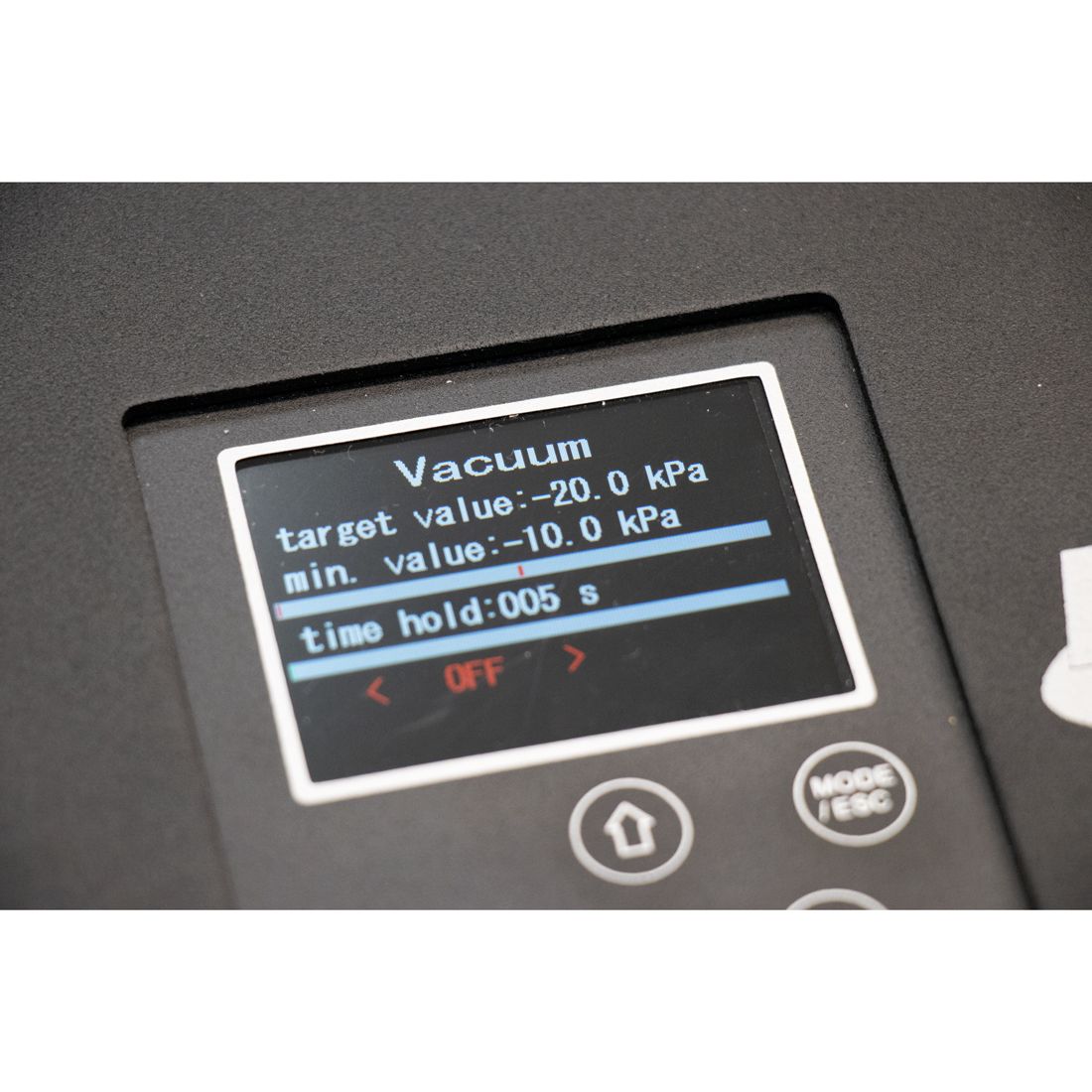

Easy to navigate LCD Control Menu Display
Fixture Serial Number Input for Tracking Test Results
Micro SD Card to Store Test Results
USB Connection for PC Software Control (Windows)

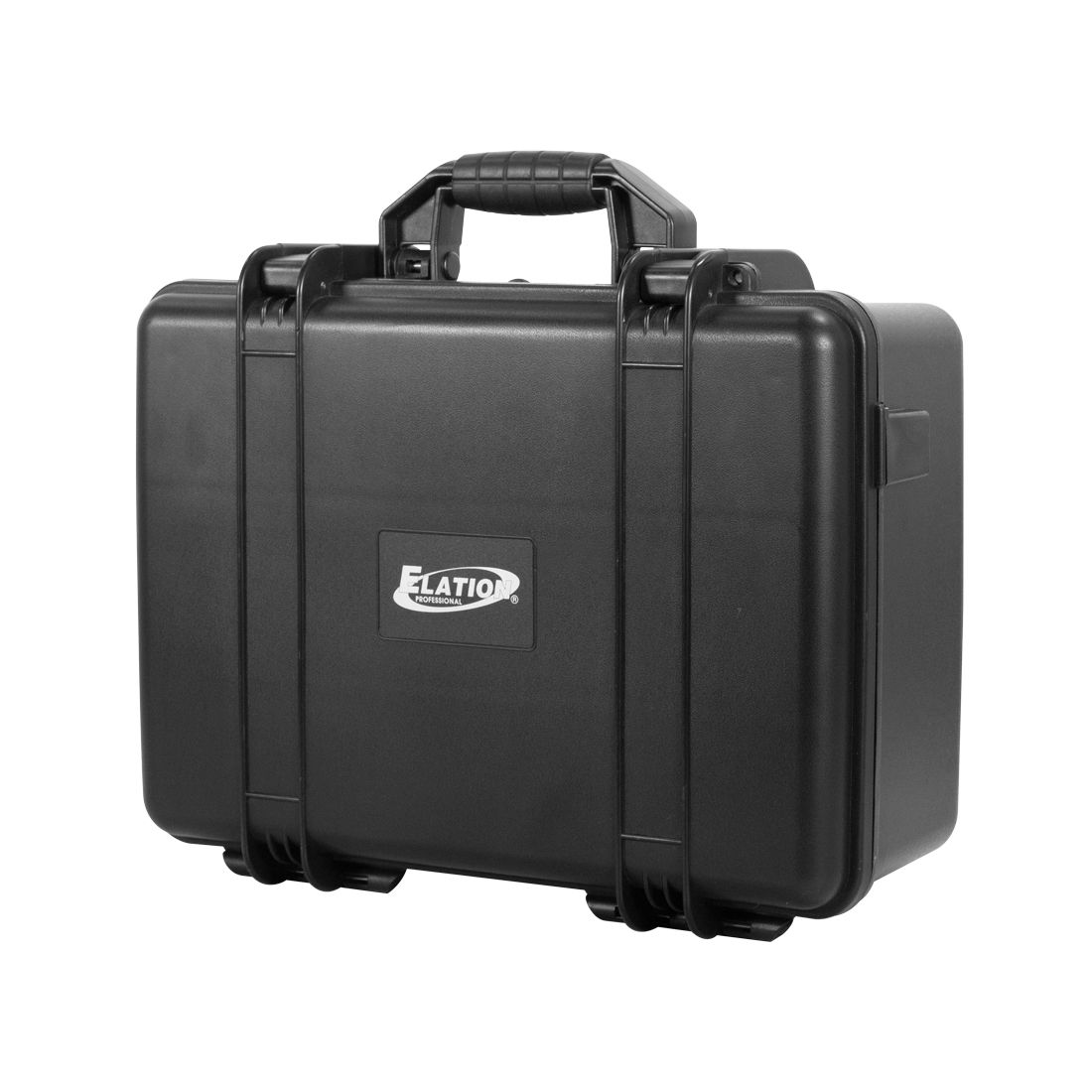

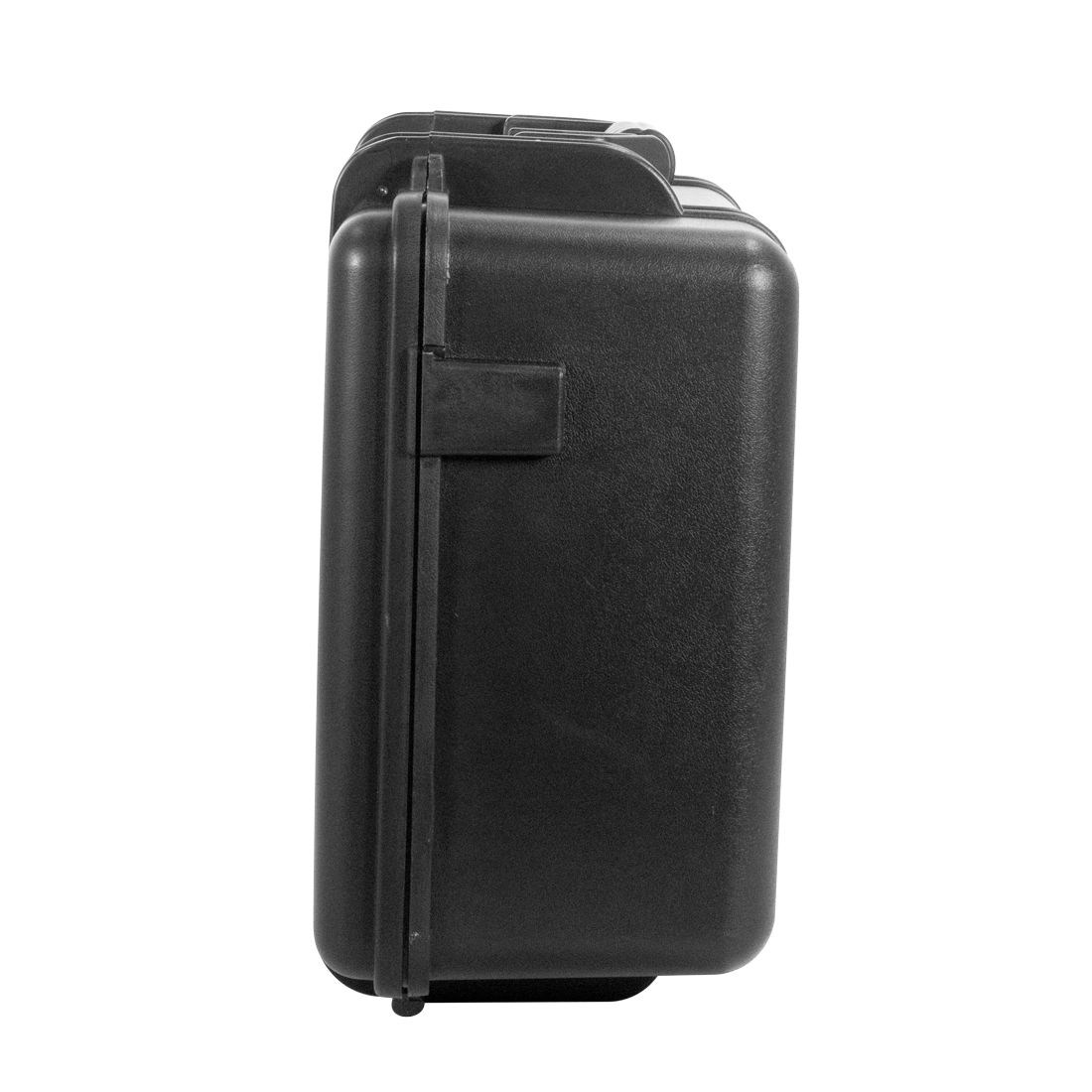

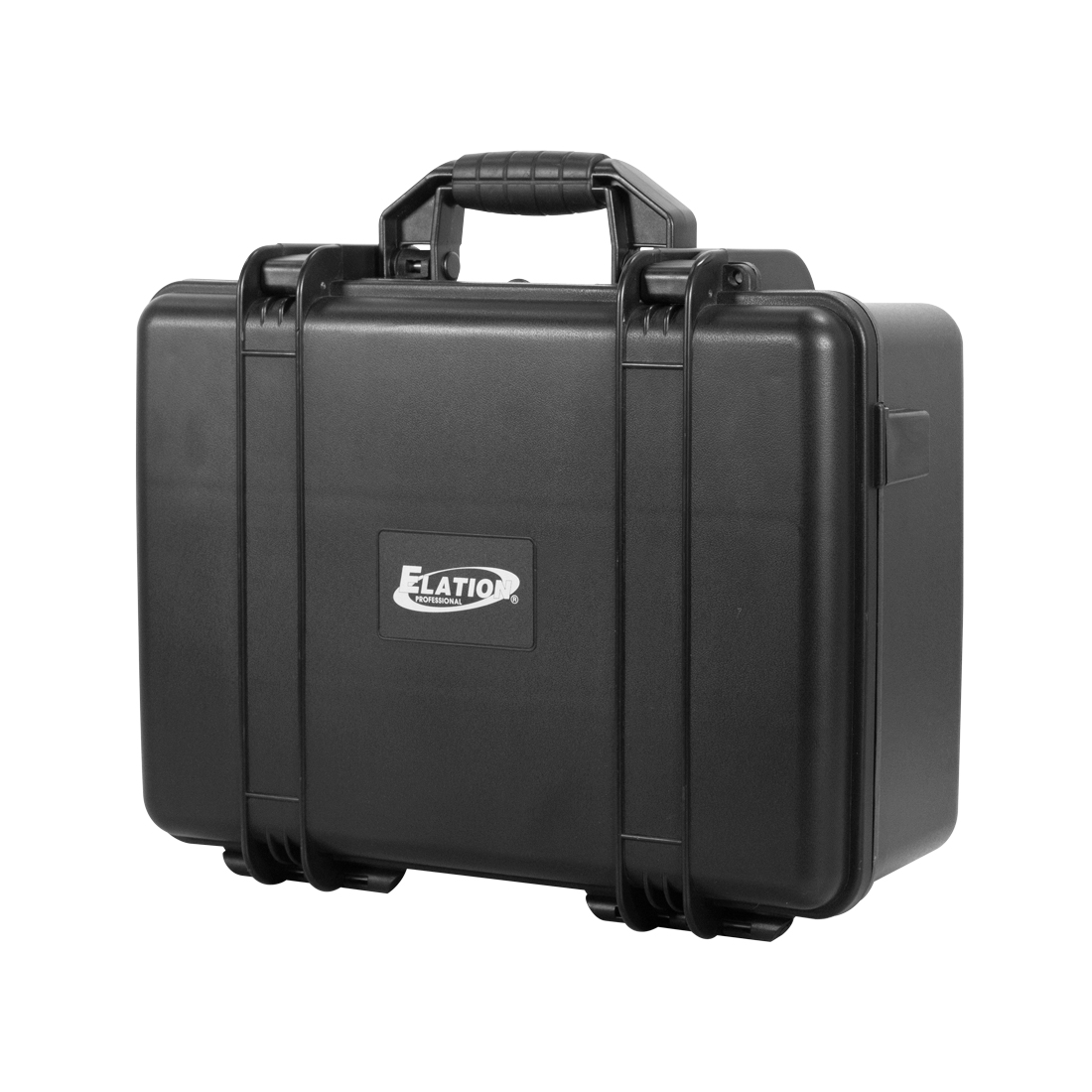

Easy To Carry Rugged Case

CONTROL / CONNECTIONS

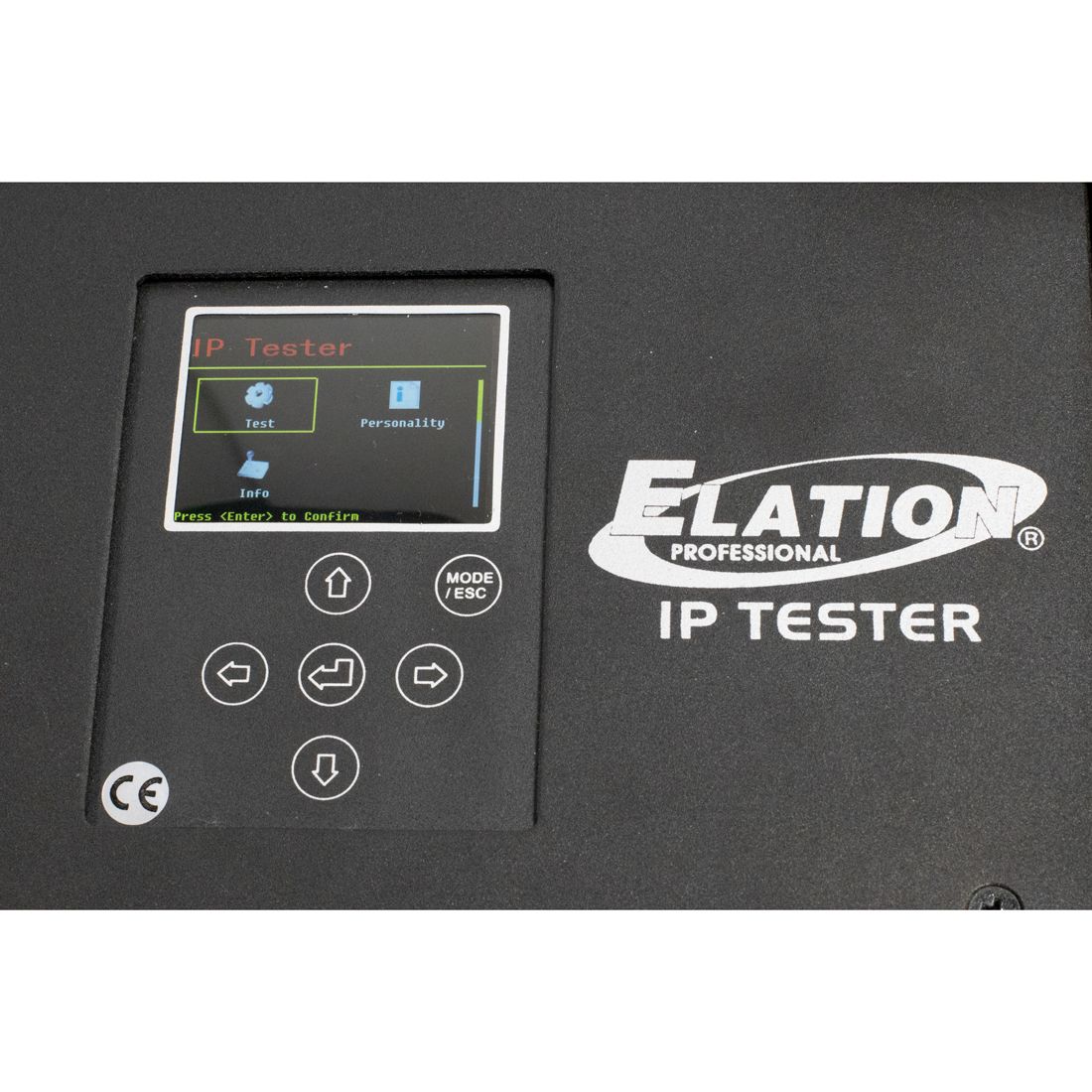

LCD Control Menu Display
PC SOFTWARE (Win 7, 8, 8.1, 10)
Air In/Out Vent
Quick-Release Air Hose Fitting
Micro SD Card Slot
USB B Port
Locking Power In

SIZE / WEIGHT

Length: 16.5” (419.1mm)
Width: 6.5” (165.1mm)
Vertical Height: 14.25” (362mm)
Weight: 15.4 lbs. (7.0kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
40W Max Power Consumption

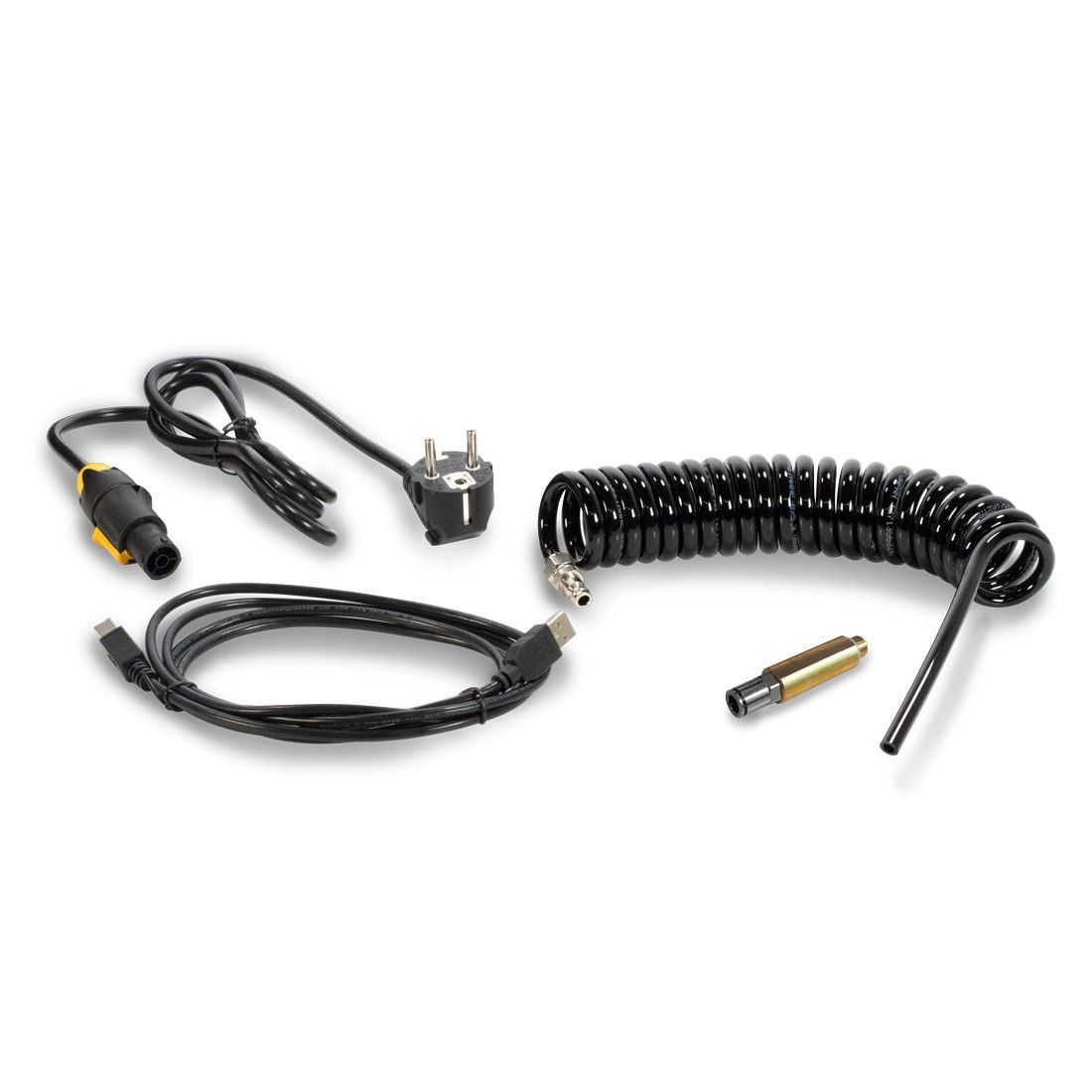

INCLUDED ITEMS

3-5ft (0.9-1.8m) Air Hose with Quick-Connect Fitting
M12 Threaded Brass Nozzle with Push-to-Connect Fitting
(x2) M12 x 1.5 Orange Colored Nylon Bolt
6ft (1.8m) USB Cable
5ft (1.5m) Locking Power In to CEE 7/7 Cable
Micro SD Card (4GB min)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
