PROTEUS MAXIMUS

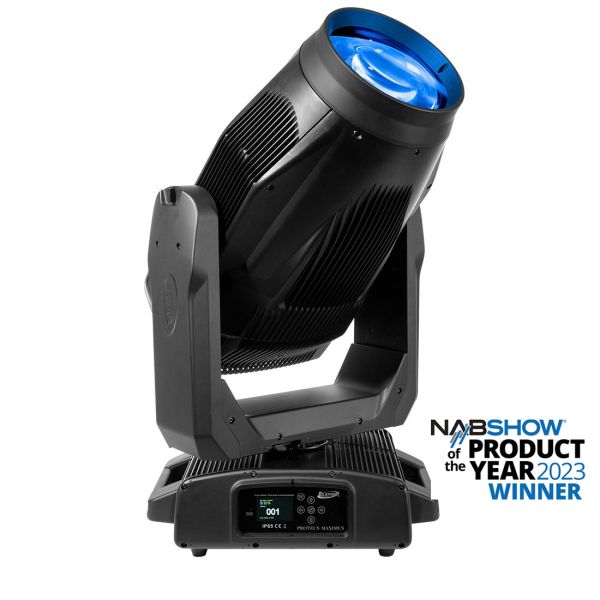

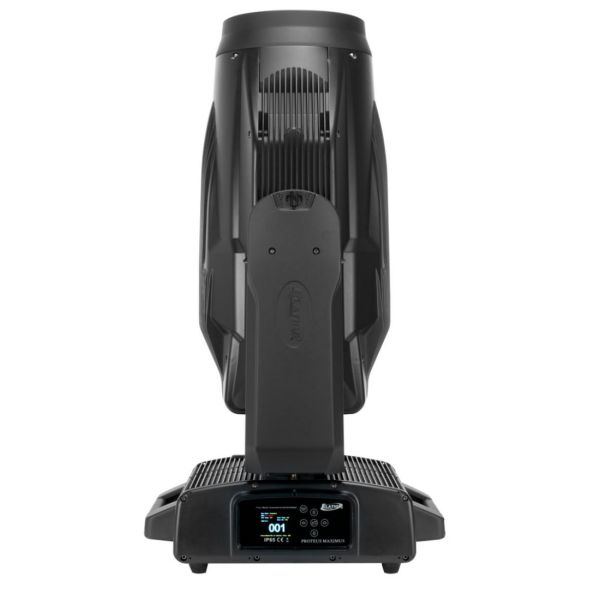

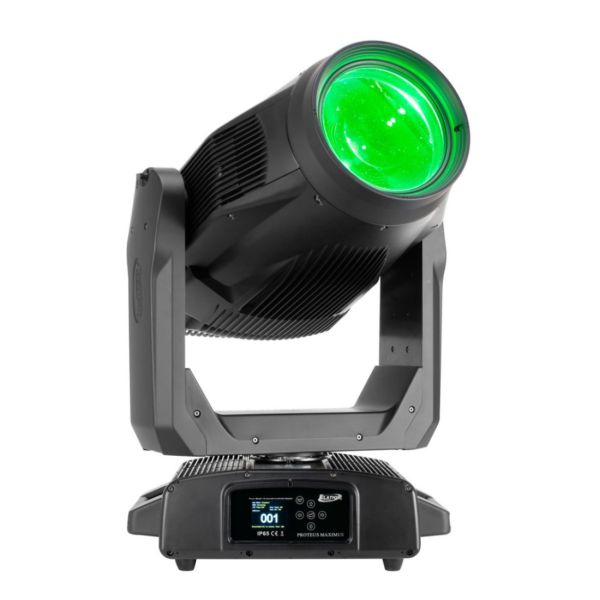

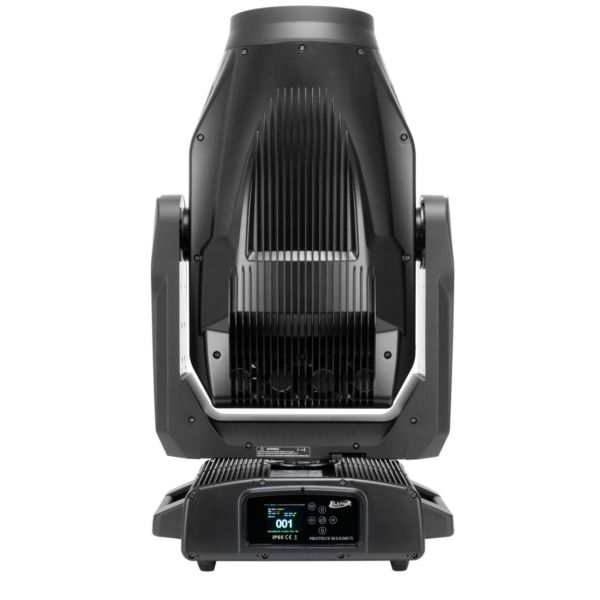

The PROTEUS MAXIMUS™ is an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam and wash qualities in any environment.

Providing up to 50.000 lumens from its custom designed 950W 6,500K LED engine the Proteus Maximus is the ideal fixture for any outdoor application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors. Proteus Maximus provides the designer a comprehensive FX package with 6 rotating and 7 fixed glass gobos, full animation wheel, dual prisms, dual frost and a high-speed Iris. Its indexable framing system provides full blackout shutter cuts for precise beam shape control. With a fast zoom range from 5.5° to 55° and an impressive 180mm front lens the Proteus Maximus has the power to cut through at great distances in any outdoor concert, special events and with its fully dust and water proof design it is an ideal fixture for theme parks and cruise ships.

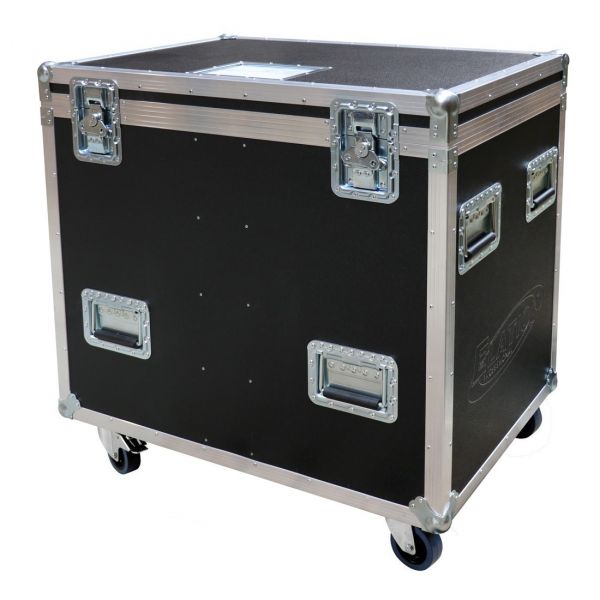

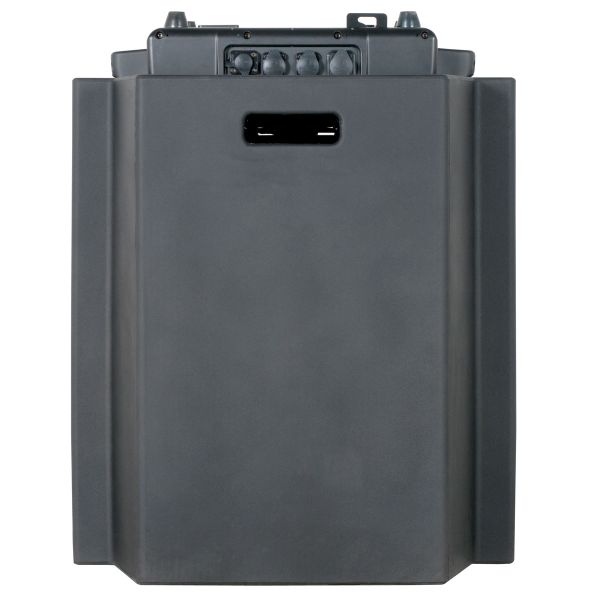

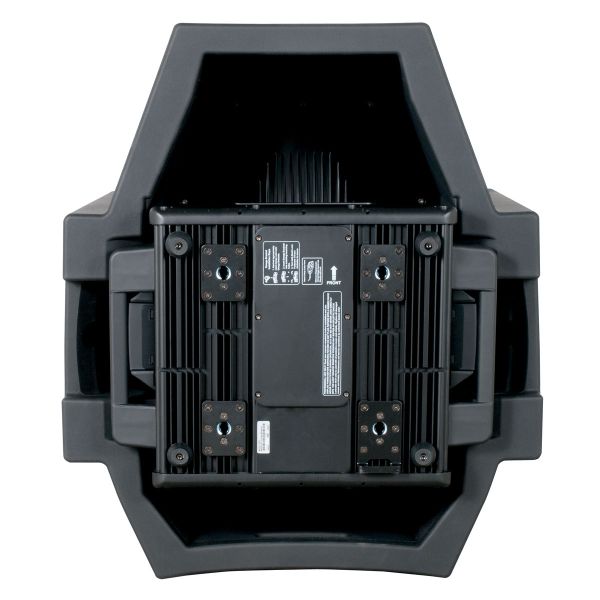

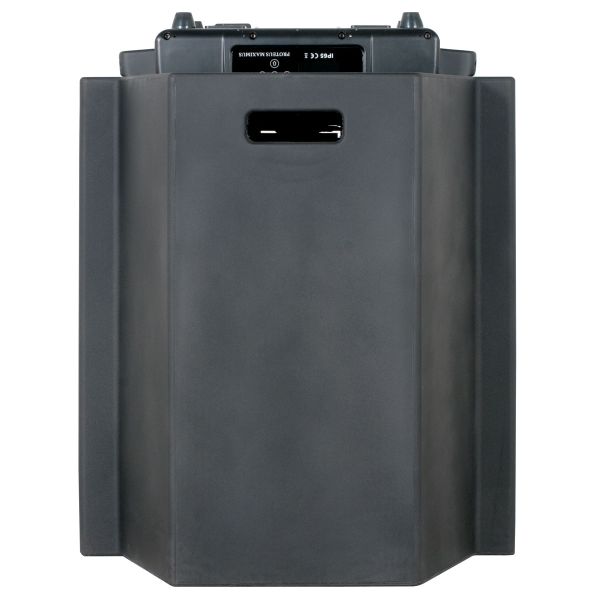

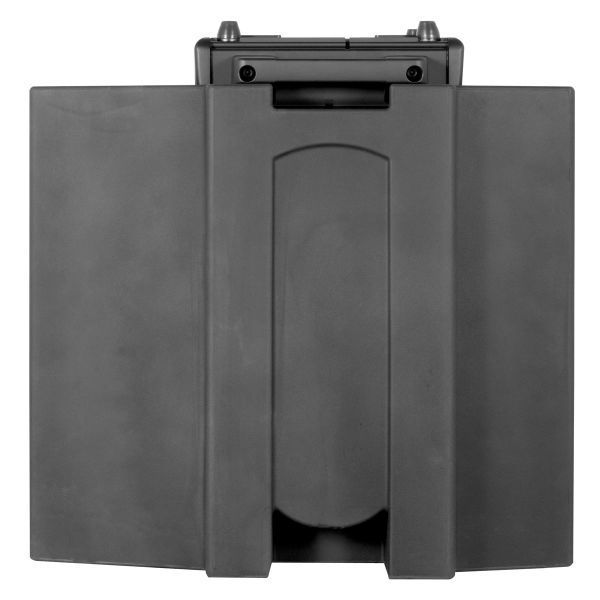

The PROTEUS MAXIMUS fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam Inlay) insert. This foam insert easily fits into a custom sized flight case (not included) and provides enhanced impact protection during transport.


Technical Data

FEATURES

High Efficiency 950W 6,500K White LED Engine
Up to 50,000 Total Lumen Fixture Output
CMY Color Mixing and Variable CTO
6 Position Color Wheel, High CRI, UV filter
Complete FX System featuring Rotating and Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 55° / Large 180mm Front Aperture
FIL (Foam In Lay) Polyurethane Foam Packaging Included


SOURCE

950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

50,000 Total Lumen Output
CRI 70+ (82+ with HCRI Filter)
2:1 Hotspot Ratio
Zoom Range 5.5° - 55°
Beam Angle 4.8° - 41.2°
Field Angle 6.1° - 51°


EFFECTS

Motorized Zoom (Large 180mm Front Aperture)
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°


COLOR

CMY Color Mixing
Linear CTO Color Correction
6 Dichroic Colors including High CRI Filter and UV


GOBOS

2 Gobo Wheels
6 Rotating / Indexing Interchangeable Glass Gobos
7 Static Glass Gobos


CONTROL / CONNECTIONS


2 DMX Channel Modes (37 / 61)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
5pin XLR DMX In/Out
IP65 RJ45 ethernet In/Out
IP65 locking power Cable In
With Wired Digital Communication Network


SIZE / WEIGHT


Length: 458mm (18.0 in)
Width: 591mm (23.3 in)
Height: 825mm (32.5 in)
Weight: 53kg (117 lbs.)


ELECTRICAL / THERMAL

AC 120-240V 50/60Hz
Max Power Consumption 1,400W
-20°C to 45°C (-4°F to 113°F)


FIRMWARE UPDATES

Current firmware can be found here (login required)


Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
 C.T.O. C.T.O.
Color Wheel
Green Green
 Red Red
 Blue Blue
 Orange Orange
 UV UV
 High CRI High CRI
Gobo Wheel 1
Gobo 17
 Gobo 22
 Gobo 30
 Gobo 31
 Gobo 32
 Gobo 33
Gobo Wheel 2
Gobo 18
 Gobo 23
 Gobo 24
 Gobo 25
 Gobo 26
 Gobo 28
 Gobo 78
Animation Wheel
Animation Wheel 1
Prisms
Prism 2
 Prism 3
Framing
Endless Rotation
