PROTEUS LUCIUS

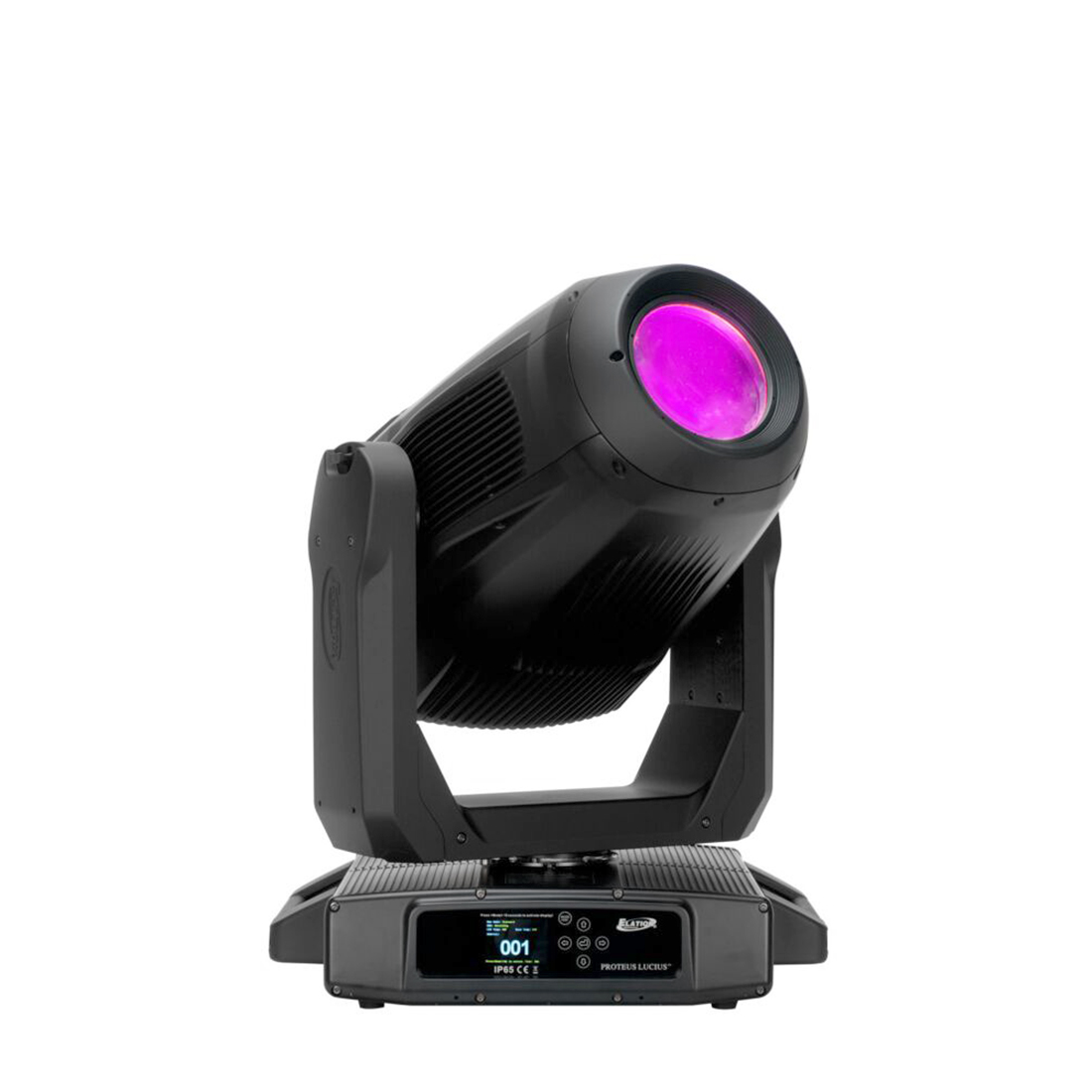

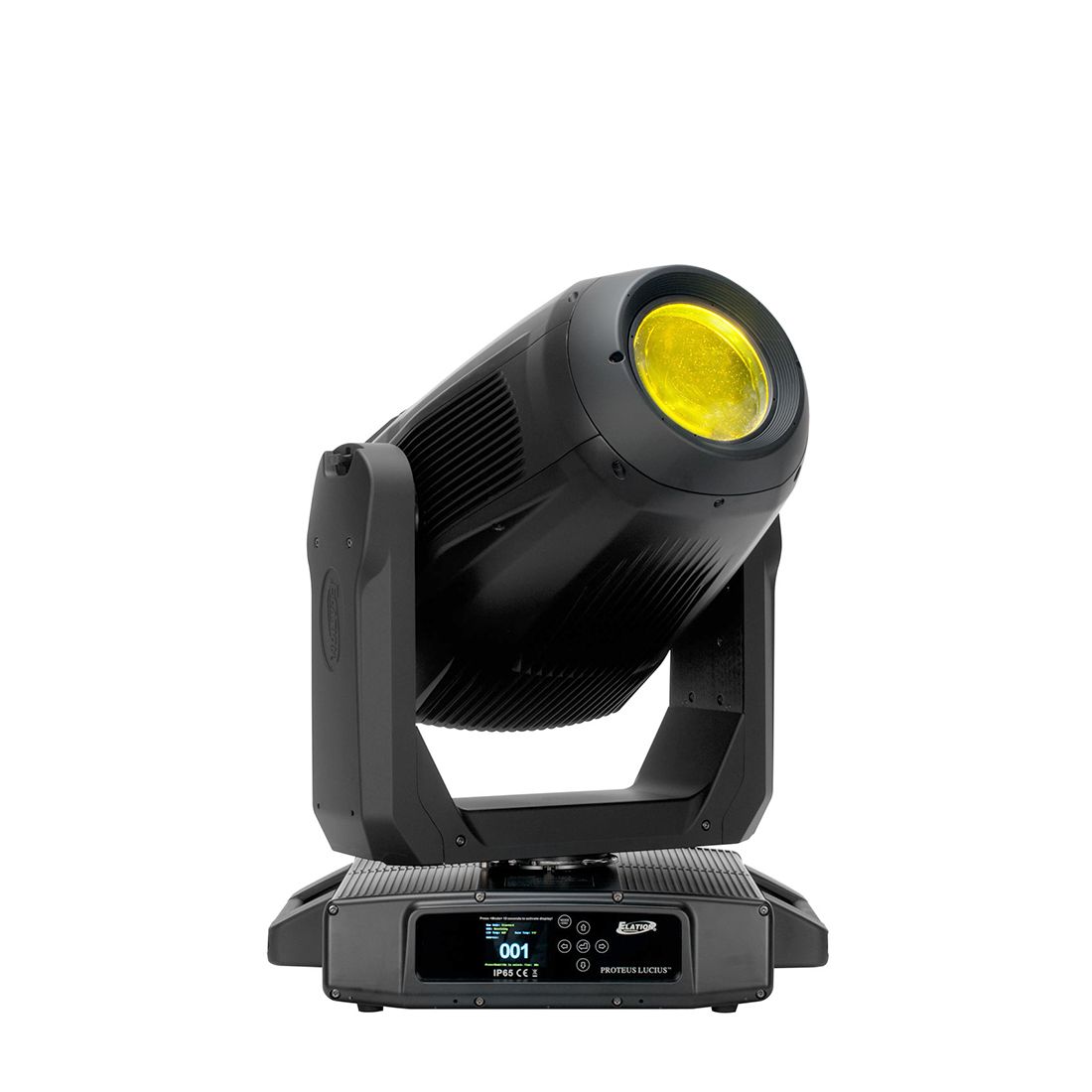

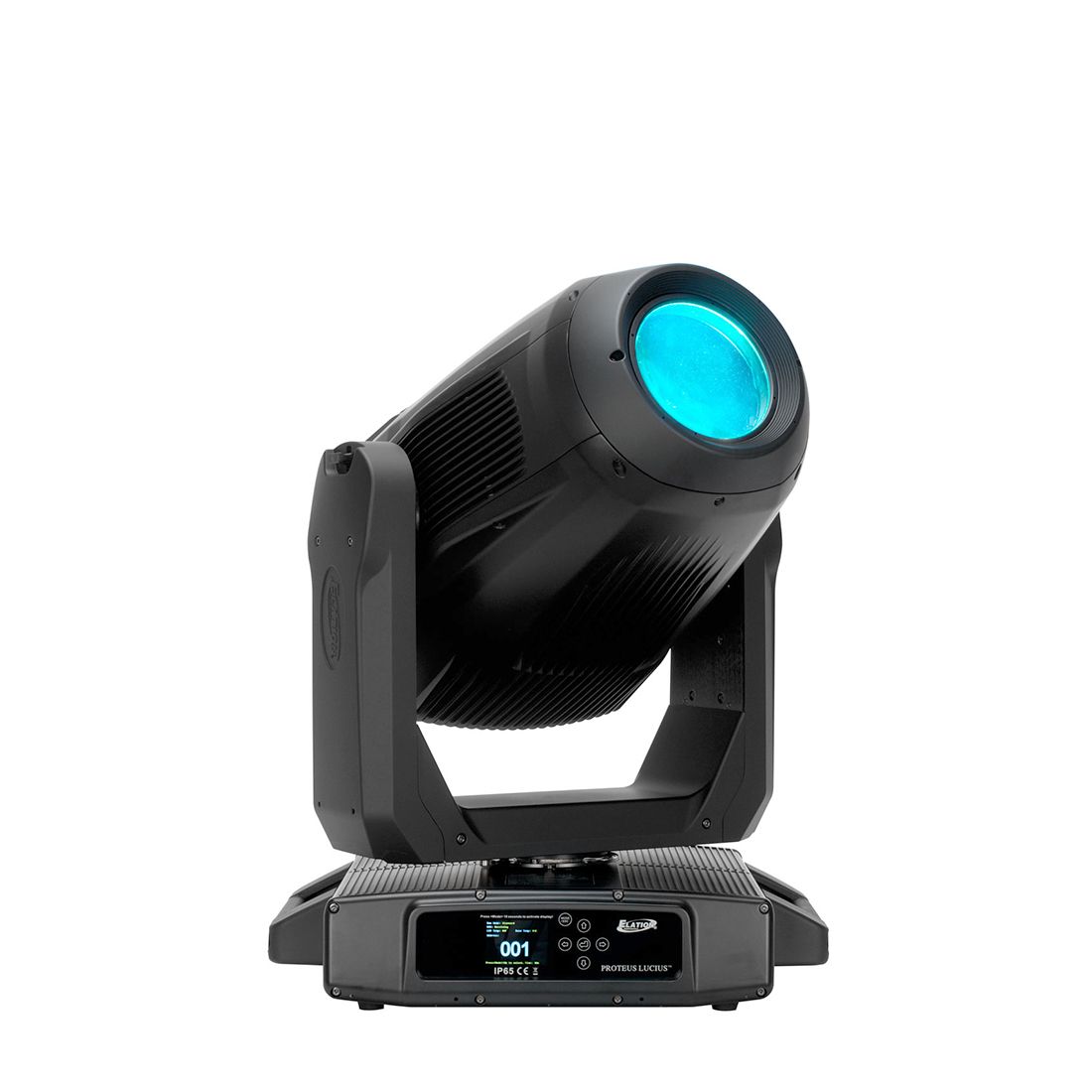

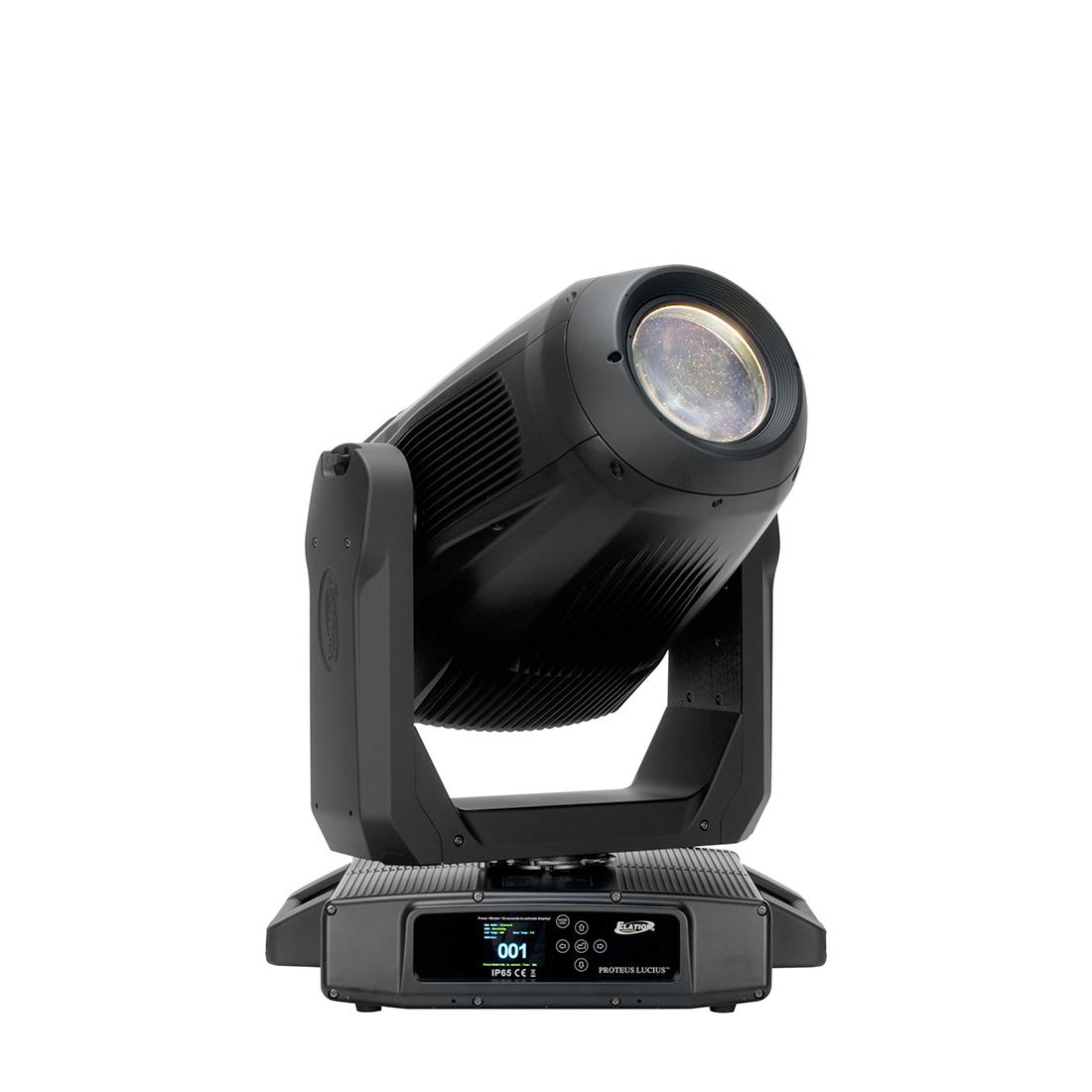

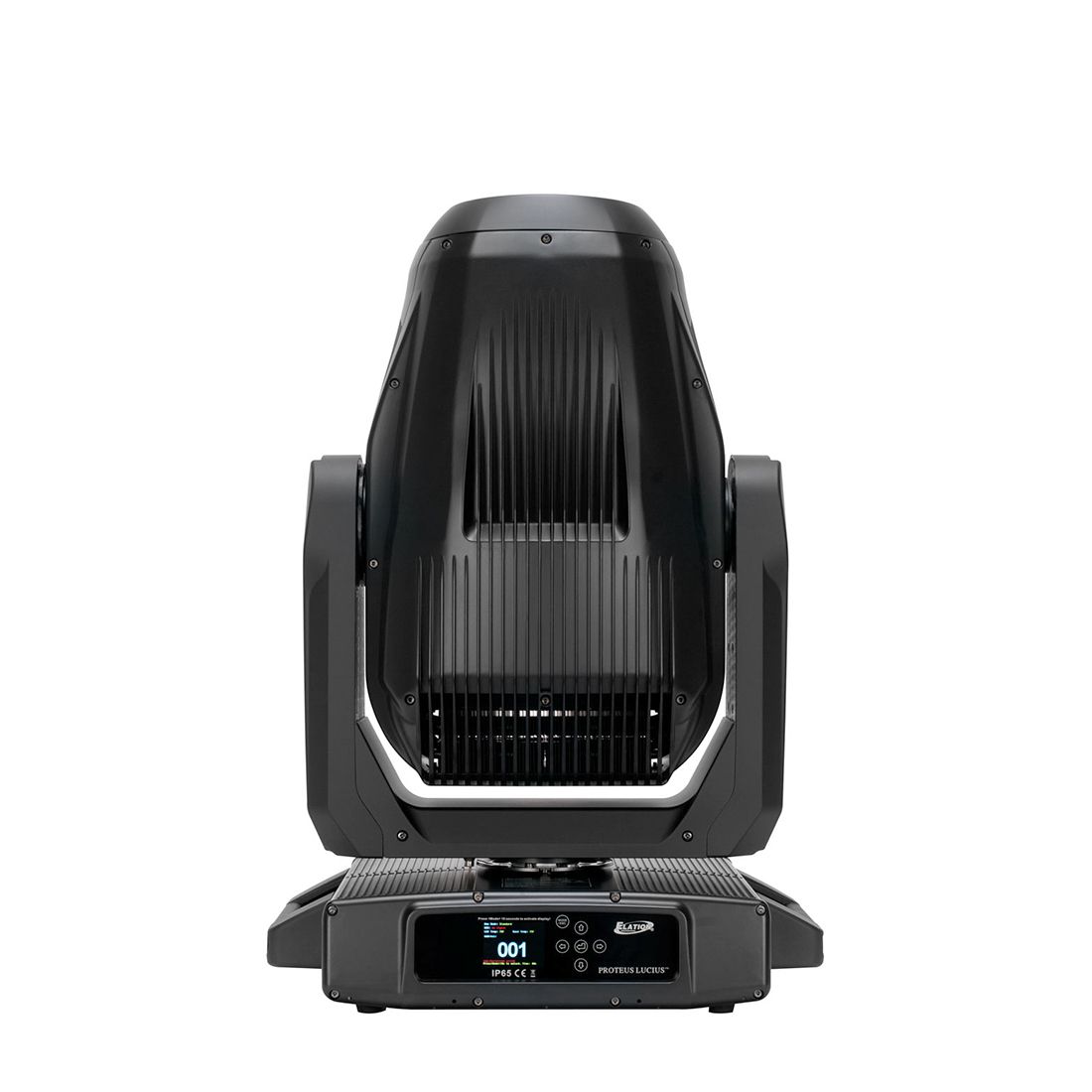

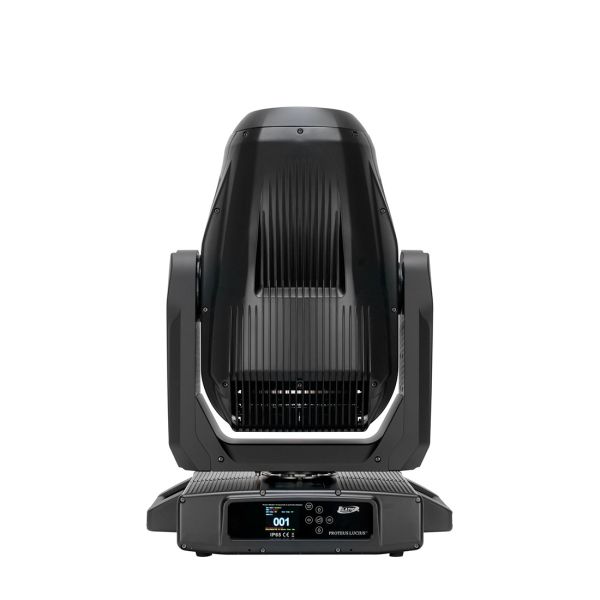

The PROTEUS LUCIUS™ is a powerful yet compact IP65-rated LED profile fixture offering outstanding projection and beam qualities in any environment.

Providing up to 33,500 lumens output from its custom-designed Peak Field 580W 6,500K LED engine, the PROTEUS LUCIUS is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors. PROTEUS LUCIUS provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.

With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS LUCIUS has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications.

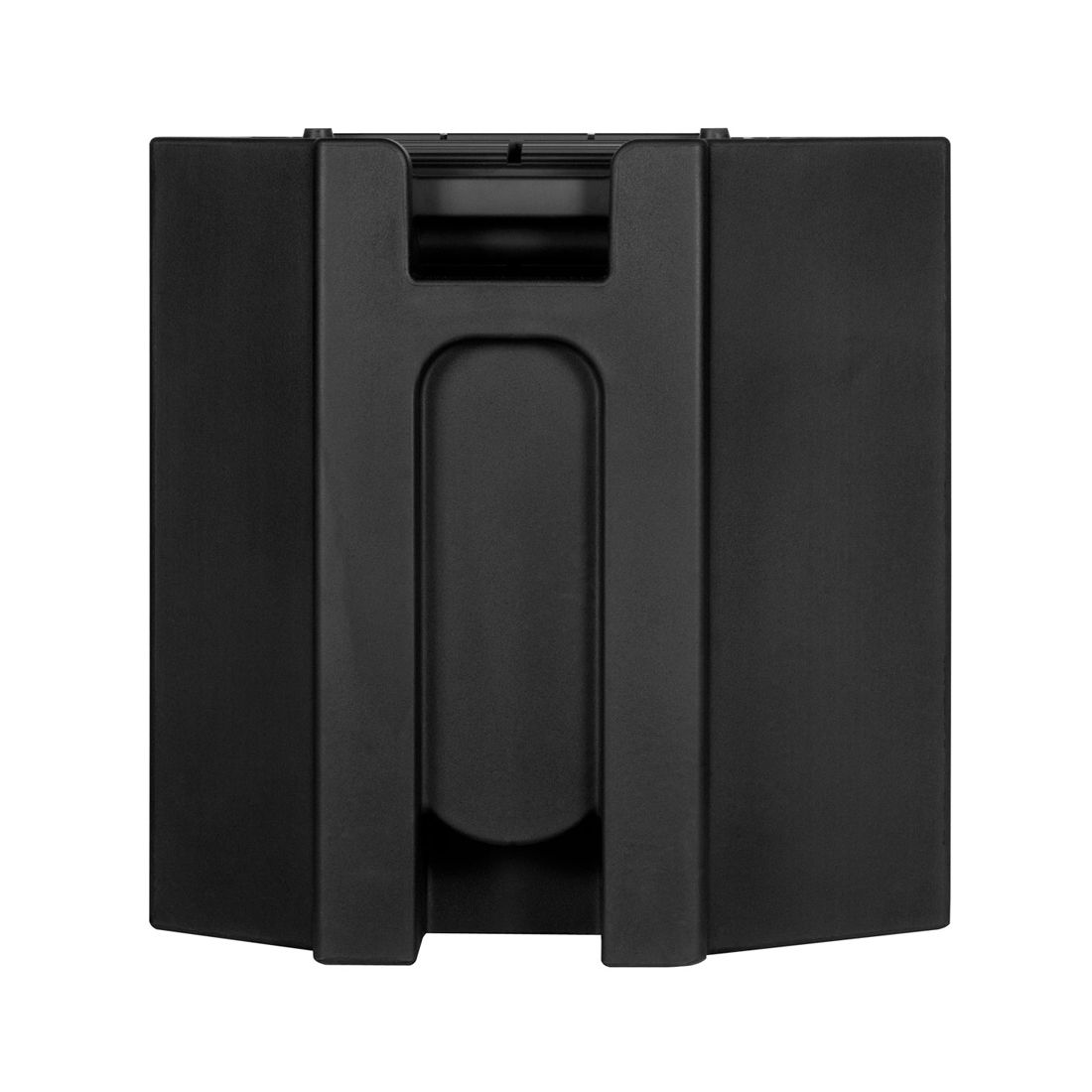

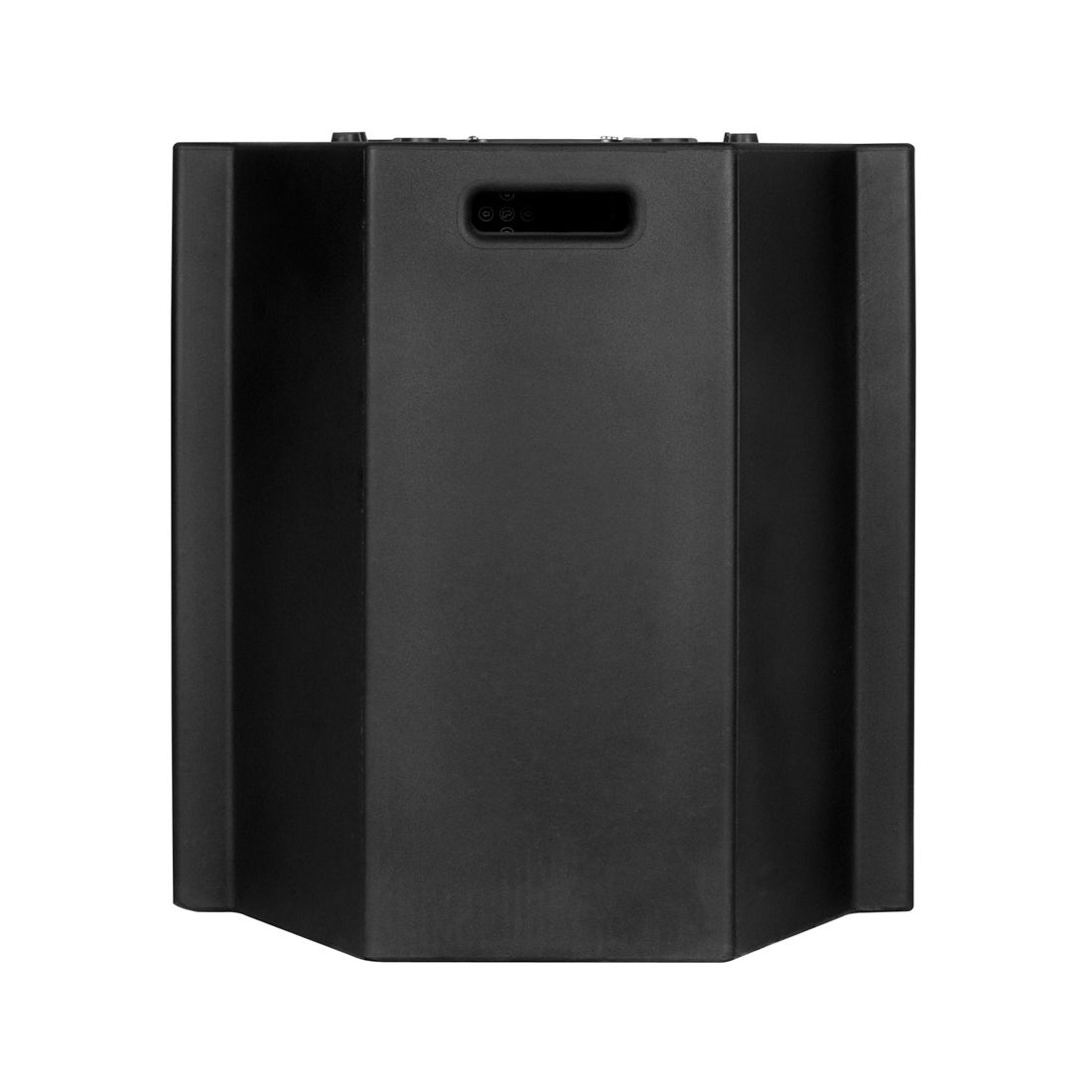

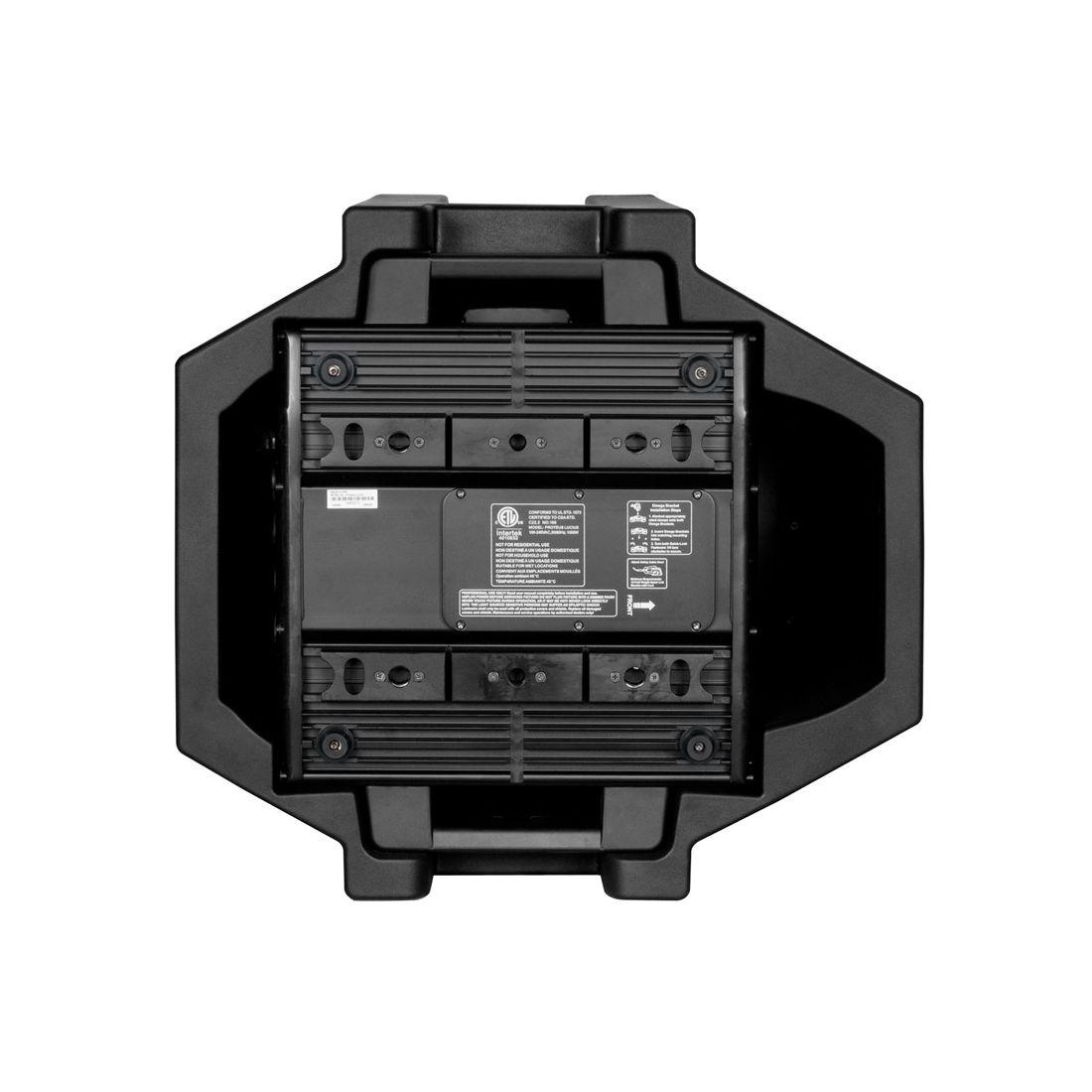

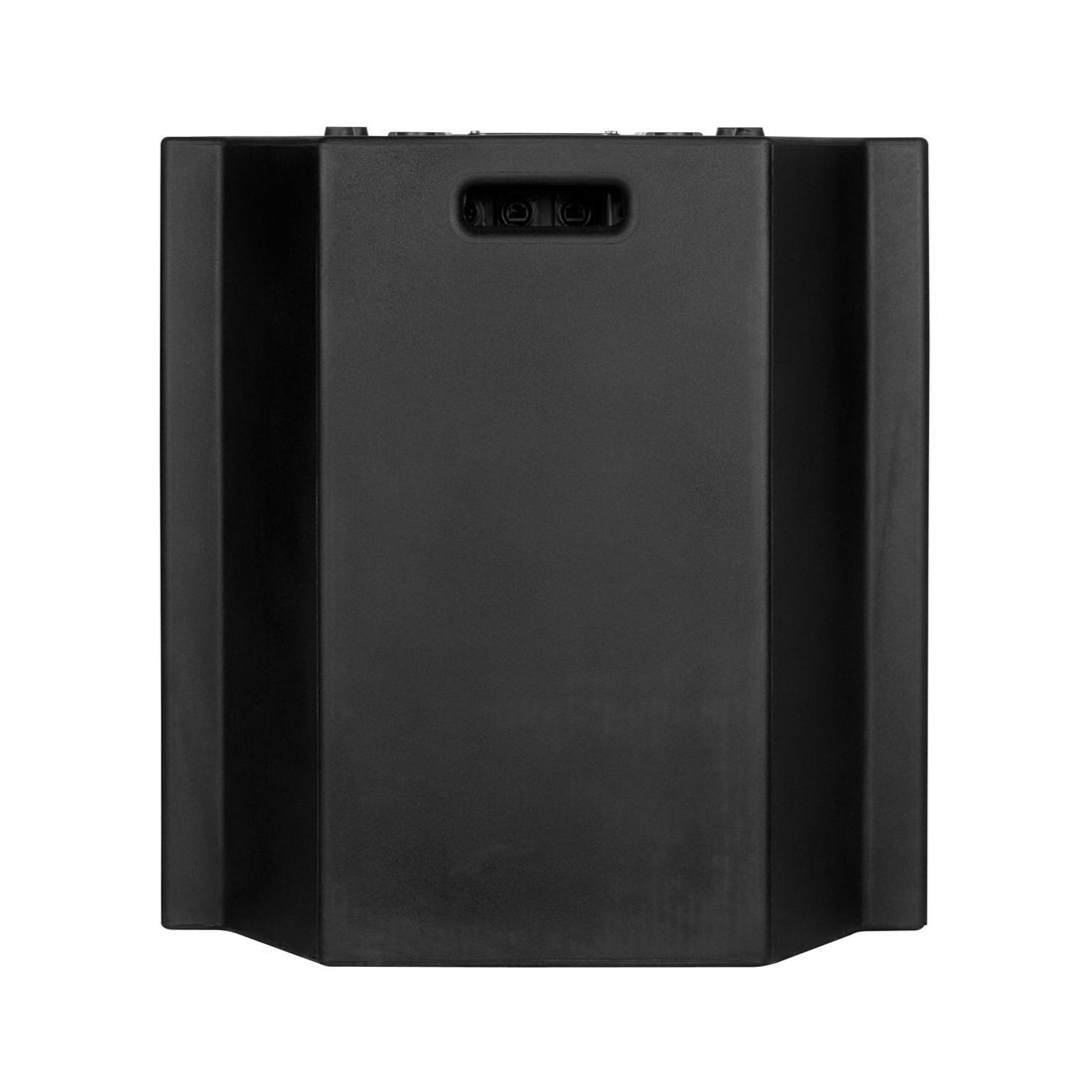

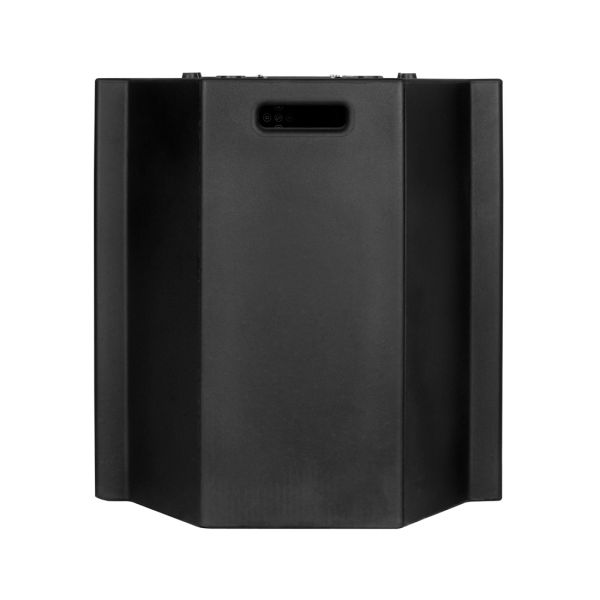

The PROTEUS LUCIUS ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

Technical Data

FEATURES

IP65 Outdoor Rated
High Efficiency 580W 6,500K White LED Engine
Up to 33,500 Total Lumen Fixture Output
Peak Field engine for powerful projection at long distances
CMY Color Mixing and Variable CTO
5-Position Color Wheel with High CRI Filter
Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 50°
Polyurethane Foam Packaging Included

SPECIFICATIONS


SOURCE

580W 6,500K Bright White Peak Field LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

33,500 Total Lumen Fixture Output
CRI 71+ (85+ with HCRI Filter)
2.5:1 Hotspot Ratio
Zoom Range 5.5° - 50°
Beam Angle 6° - 36.7°
Field Angle 7.6° - 51.3°

EFFECTS

Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°

COLOR

CMY Color Mixing
Linear CTO Color Correction
5 Dichroic Colors including High CRI Filter

GOBOS

3 Gobo Wheels
6 Rotating Gobo (Wheel #1)
7 Rotating Gobos (Wheel #2)
7 Static Gobos (Wheel #3)

CONTROL / CONNECTIONS

2 DMX Channel Modes (43/68 Ch.)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)

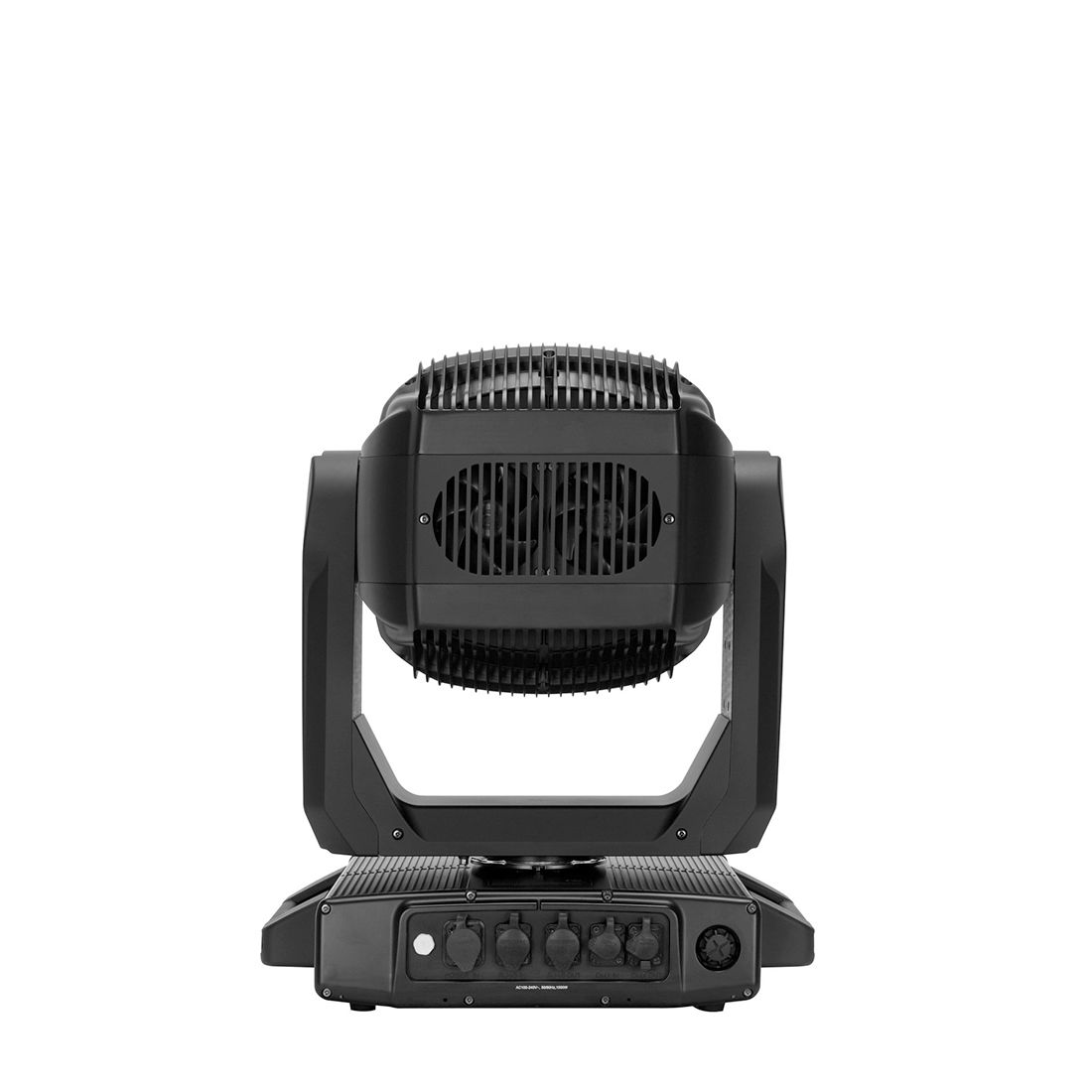

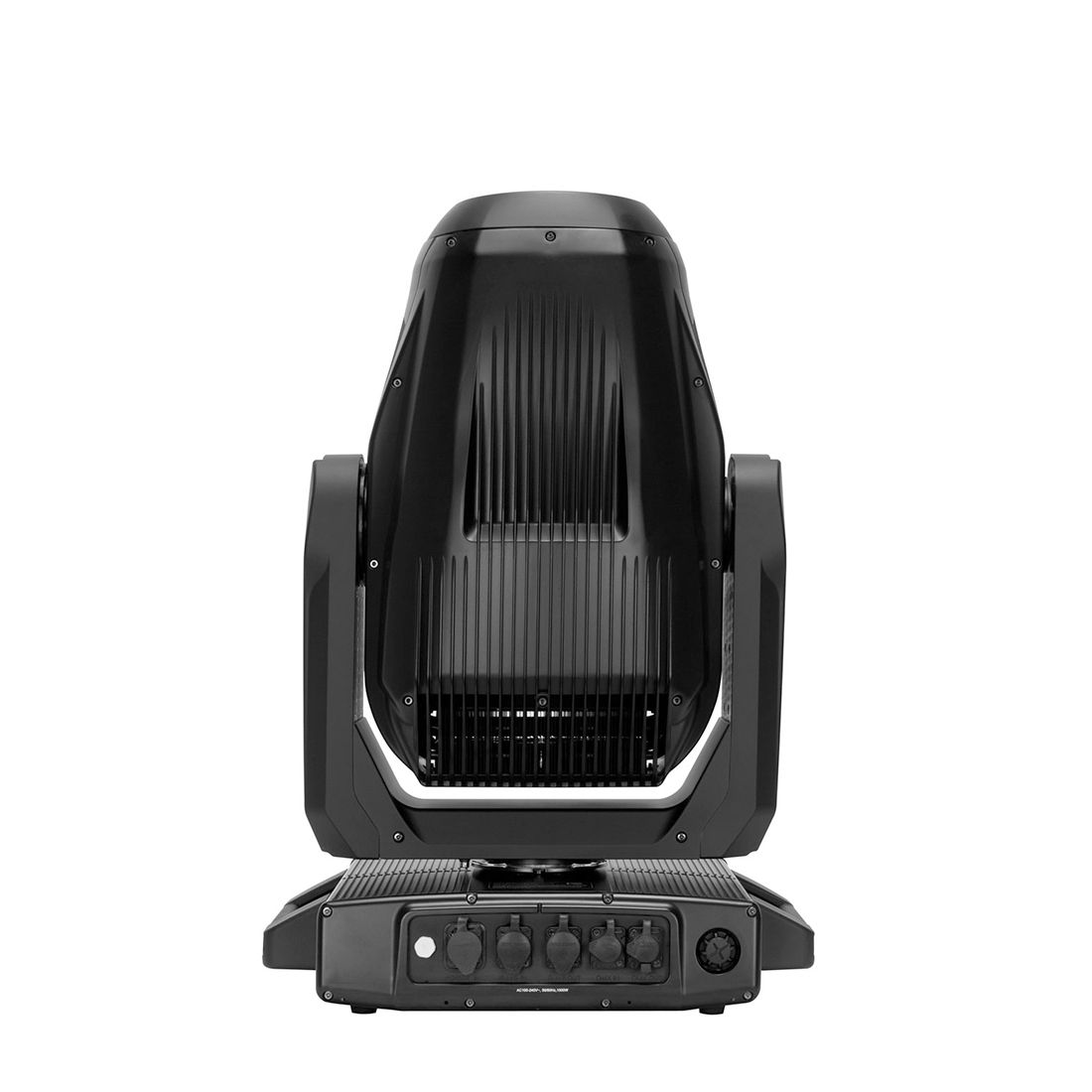

IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 468mm (18.4 in)
Width: 370mm (14.57 in)
Height: 682mm (26.8 in)
Center-to-Center Spacing 626m (24.6in)
Weight: 40.8kg (89.9 lbs.)

ELECTRICAL

AC 100-240V 50/60Hz
Max Power Consumption 1000W
-20°C to 45°C (-4°F to 113°F)
BTU/hr (+/- 10%) 3239.5

INCLUDED ITEMS

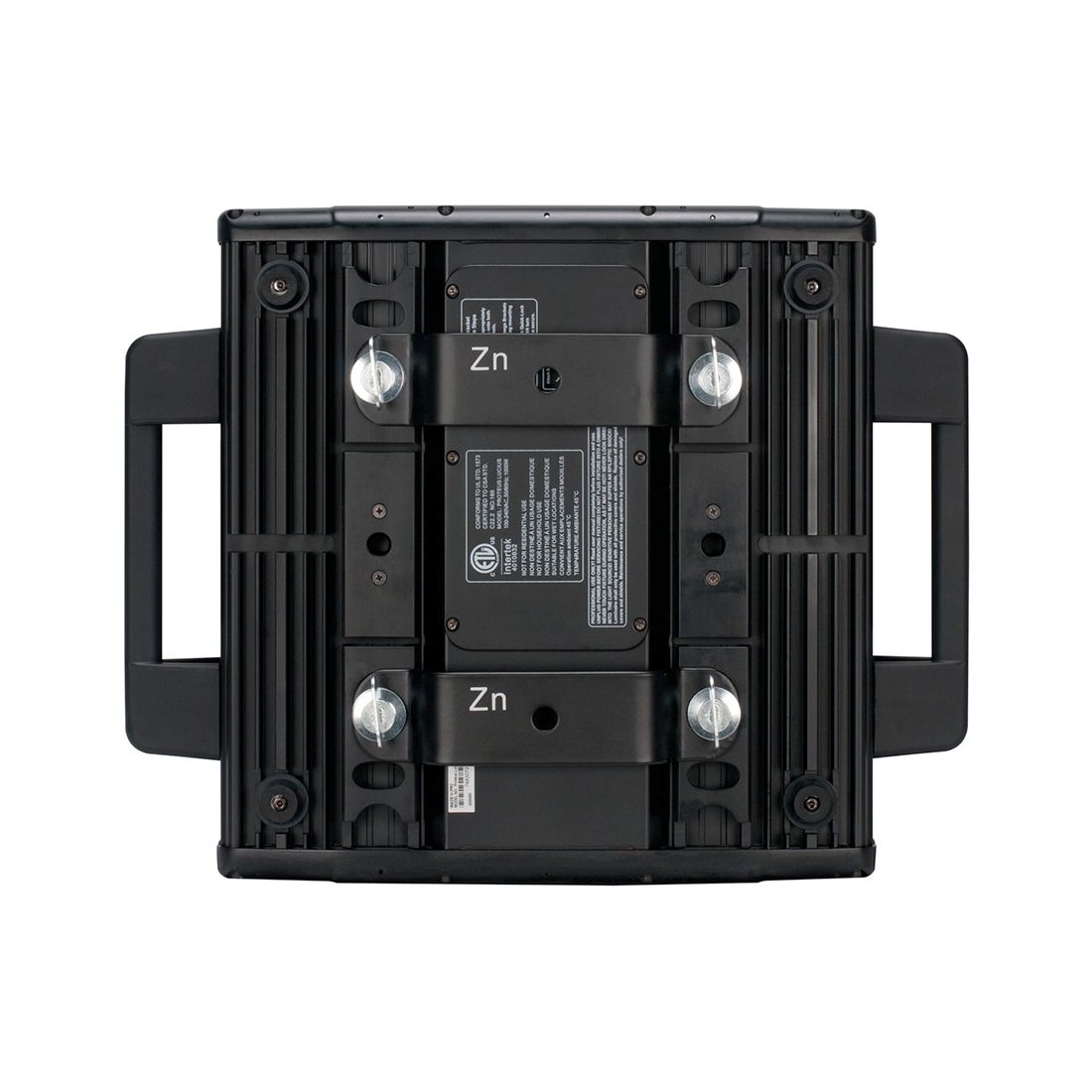

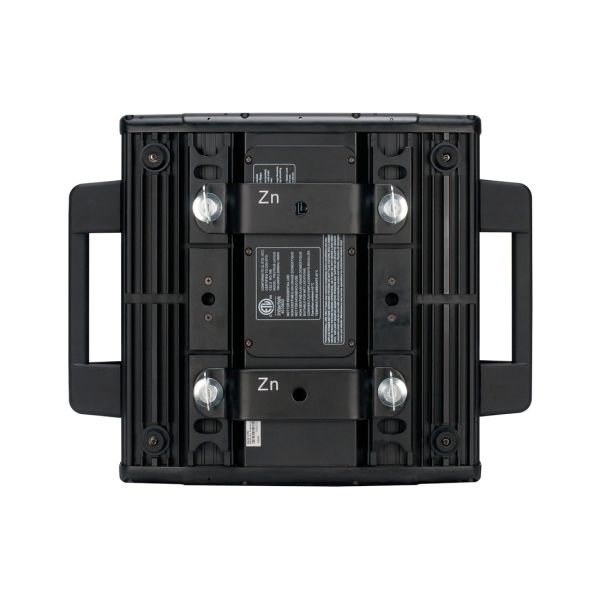

Omega Brackets (x2)
IP65 Rated 5pin DMX Cable
IP65 Rated RJ45 DATA Cable (Fixture to Fixture Interconnect Use Only!)
IP65 Rated Twist-Lock Power Cable

FIRMWARE UPDATES

Current firmware can be found here (login required)

FIXTURE LIBRARIES

ONYX
GDTF
GRANDMA2

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
C.T.O.
C.T.O.
Color Wheel
Green
Green
Red
Red
Blue
Blue
Orange
Orange
High CRI
High CRI
Gobo Wheel 1
Gobo 17
Gobo 22
Gobo 32
Gobo 57
Gobo 66
Gobo 78
Gobo Wheel 2
Gobo 19
Gobo 30
Gobo 33
Gobo 34
Gobo 55
Gobo 63
Gobo 64
Gobo Wheel 3
Gobo 20
Gobo 23
Gobo 24
Gobo 25
Gobo 26
Gobo 28
Gobo 114
Animation Wheel
Animation Wheel 7
Prisms
Prism 2
Prism 3
Framing
Endless Rotation
