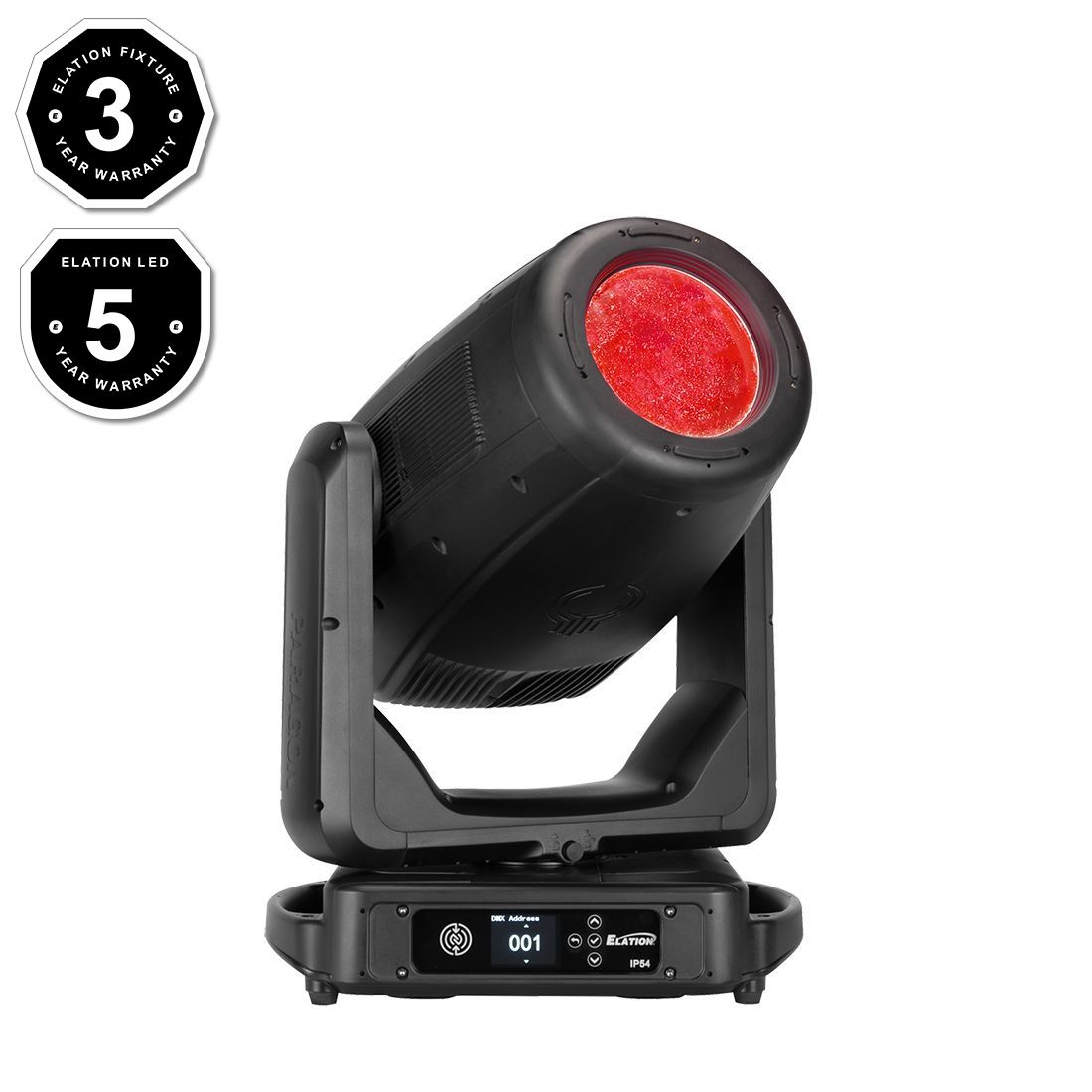

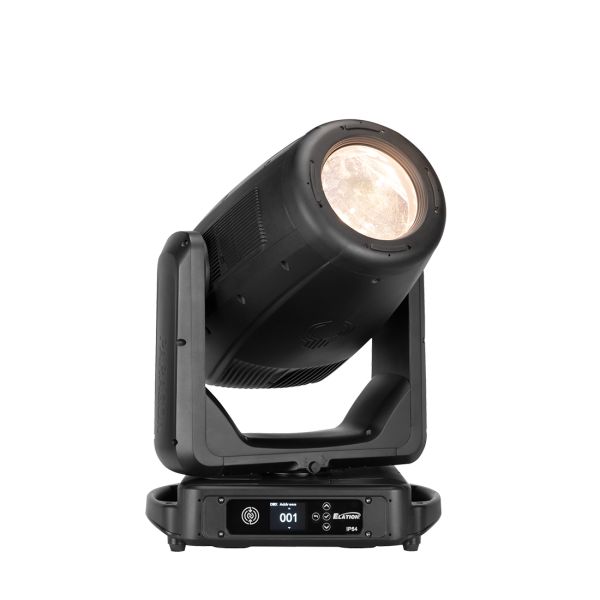

Paragon M

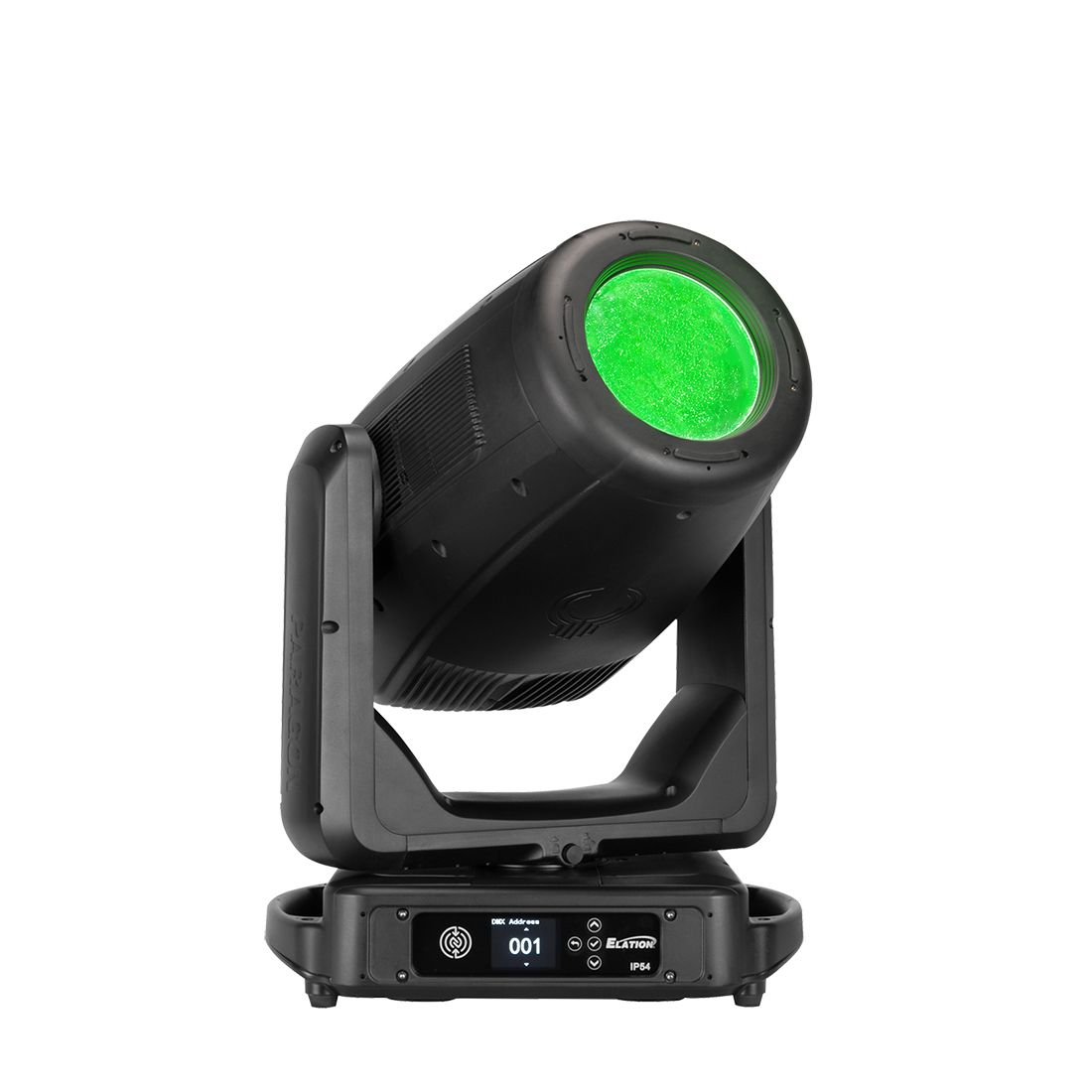

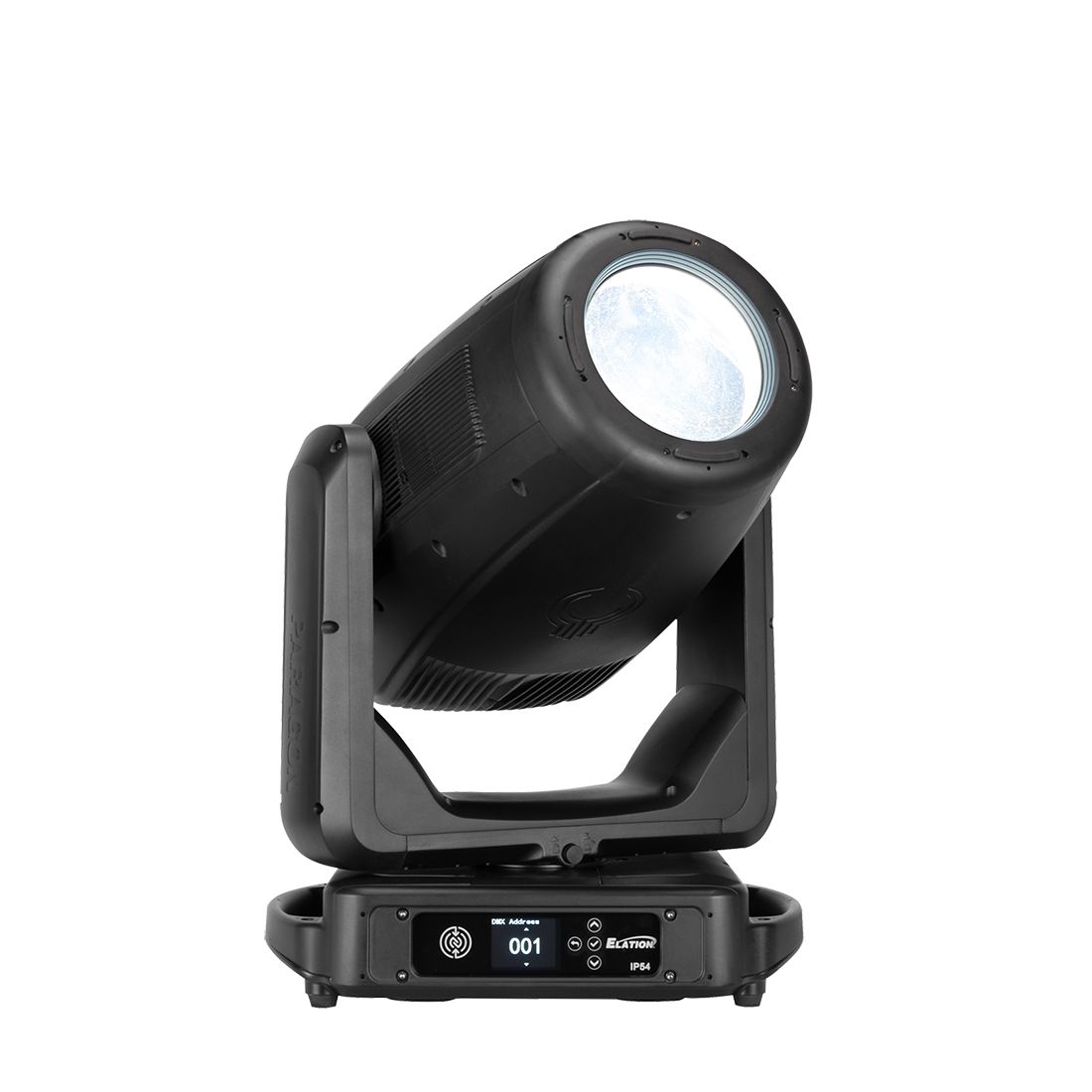

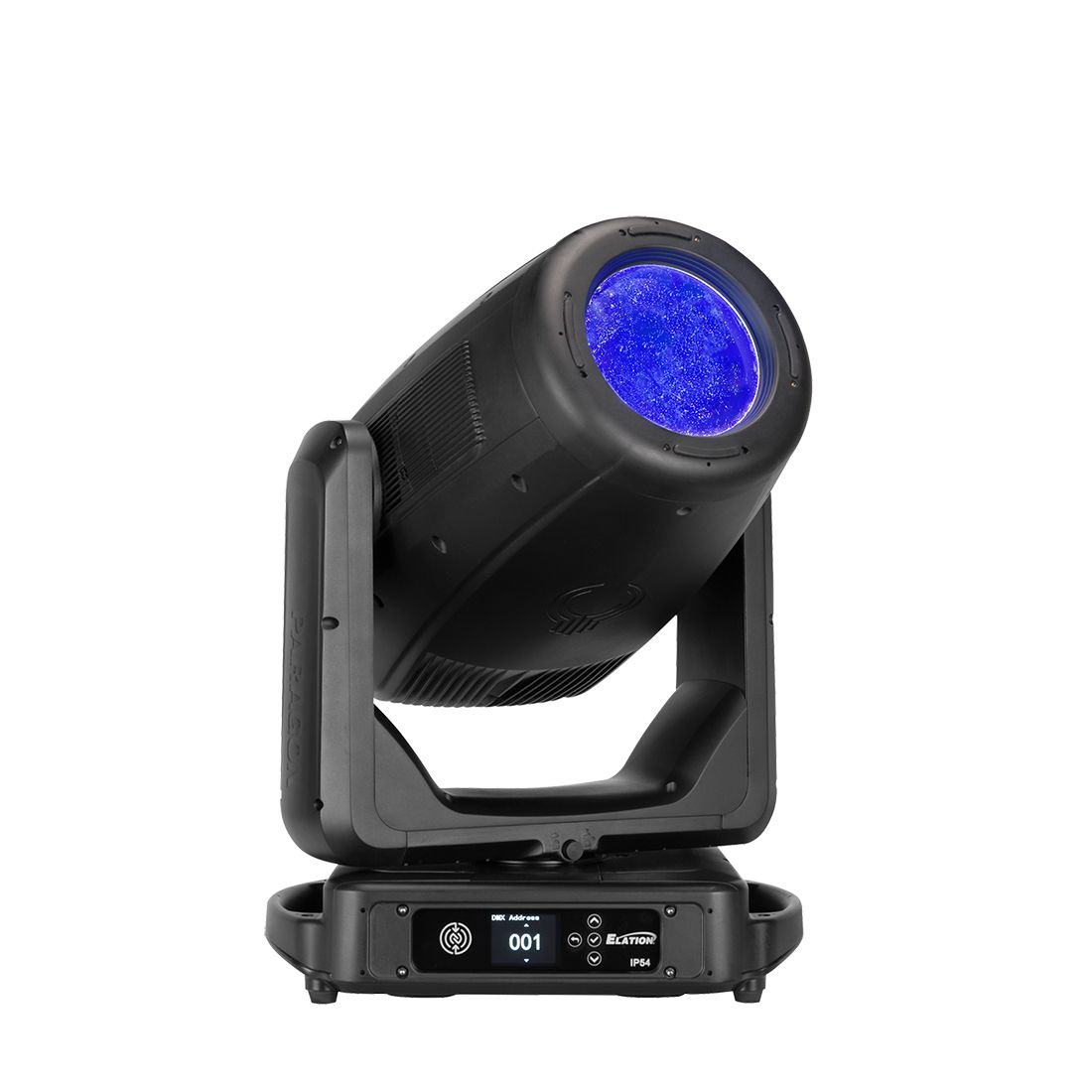

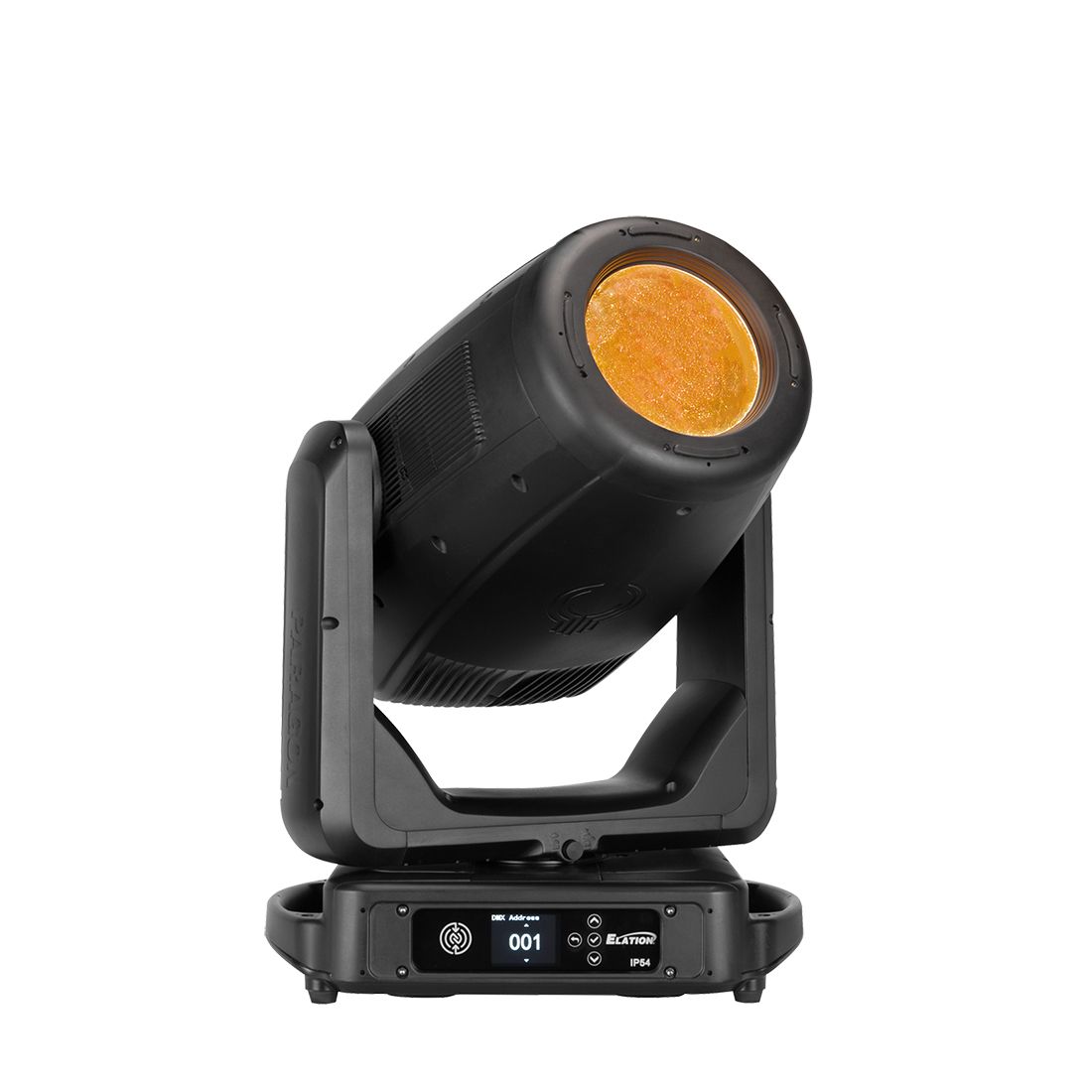

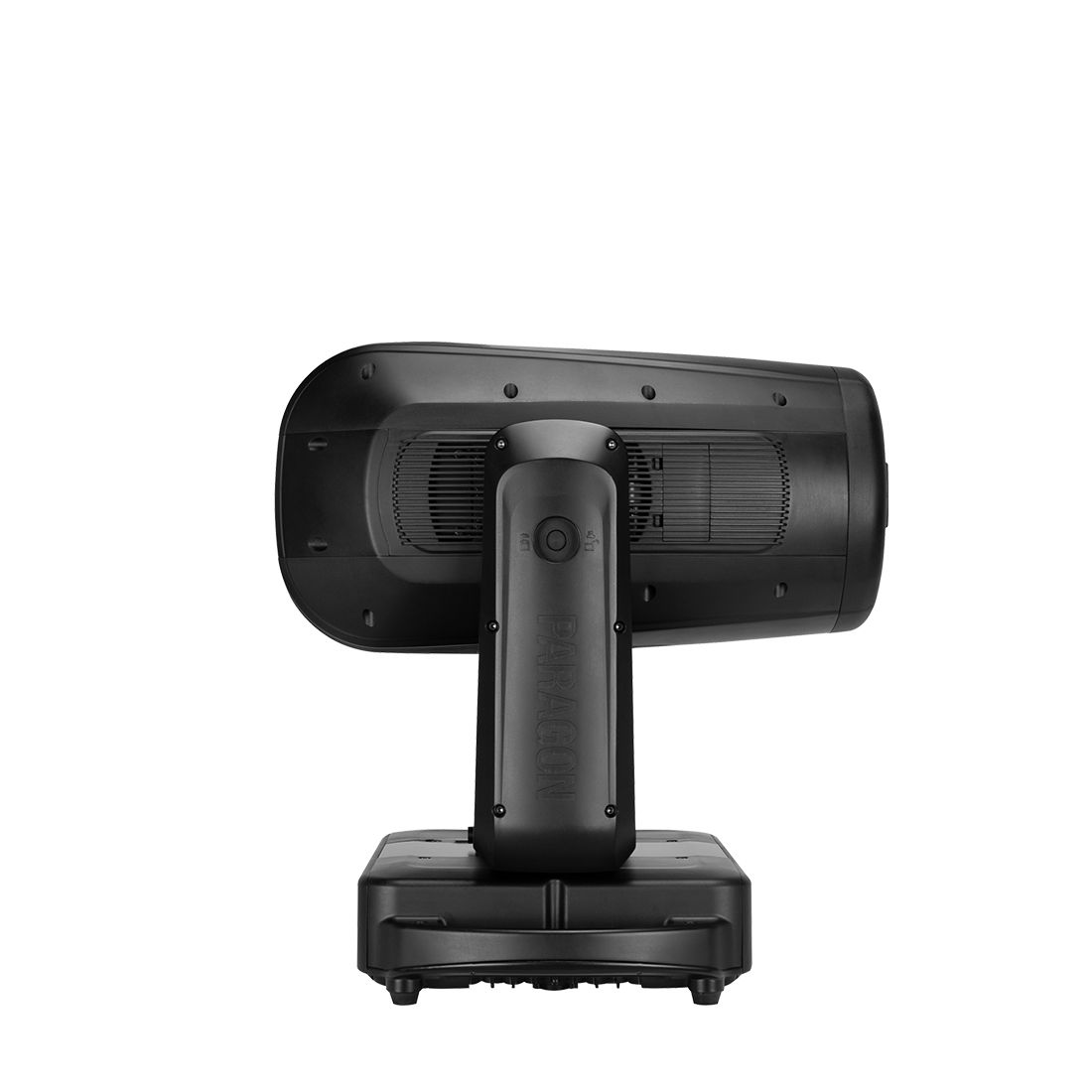

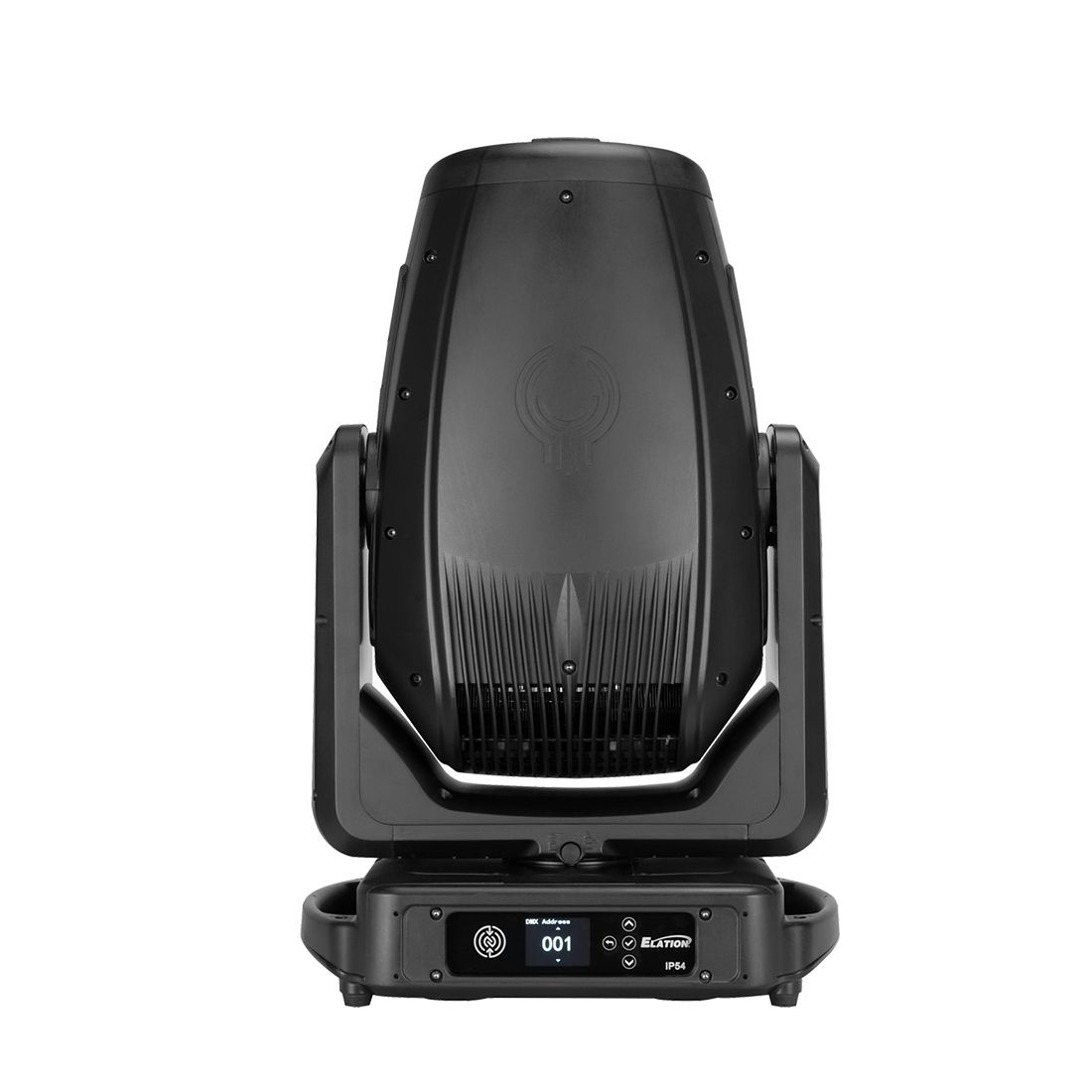

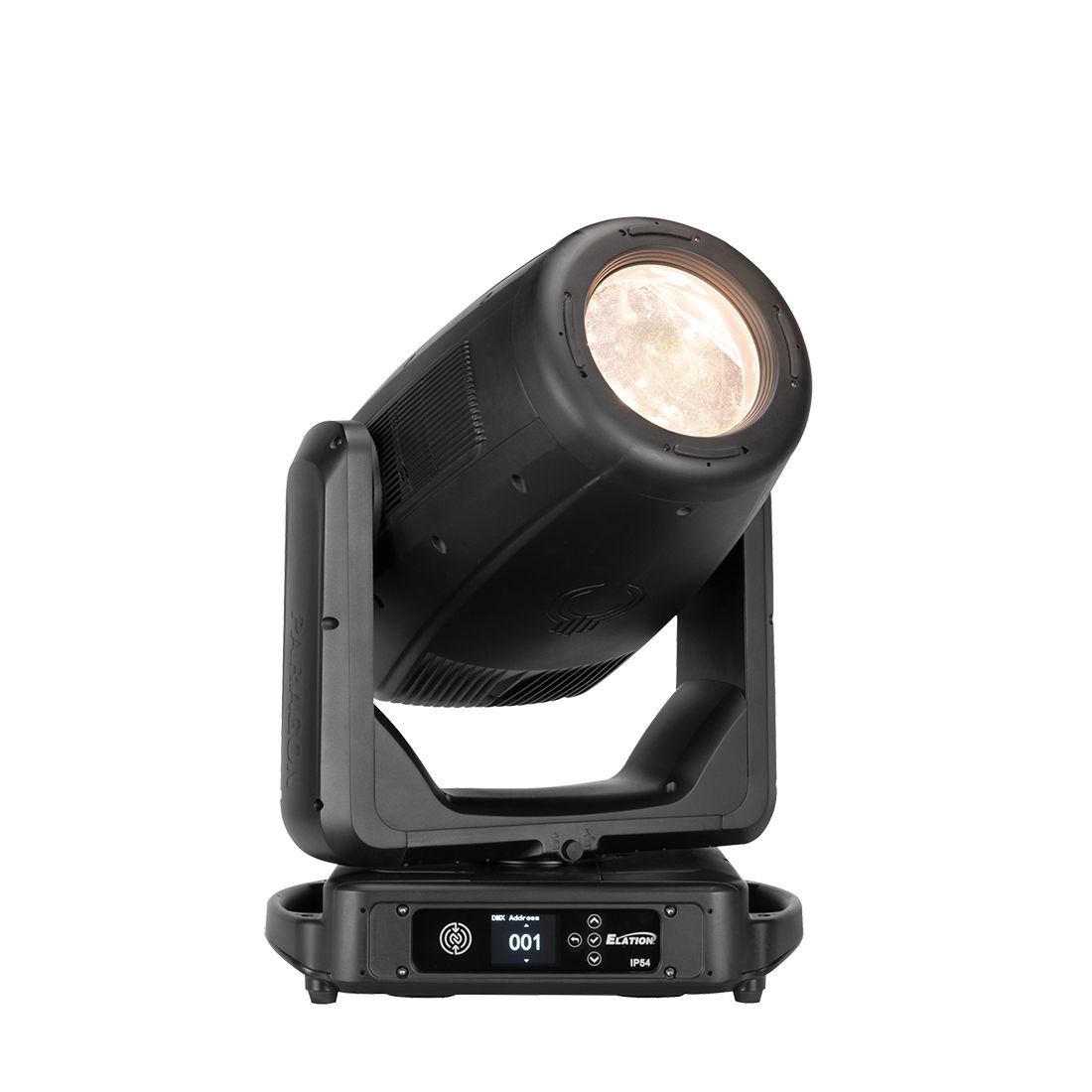

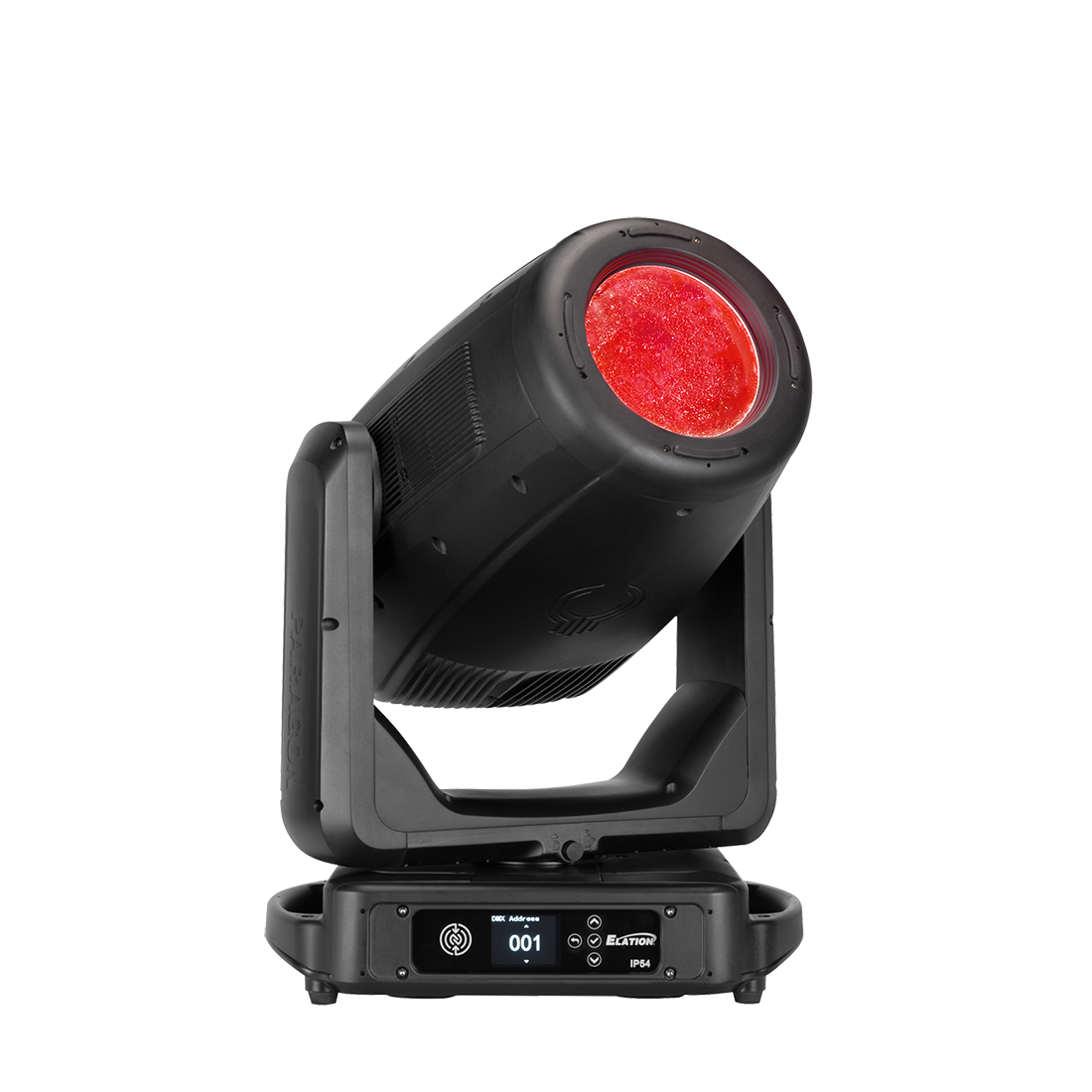

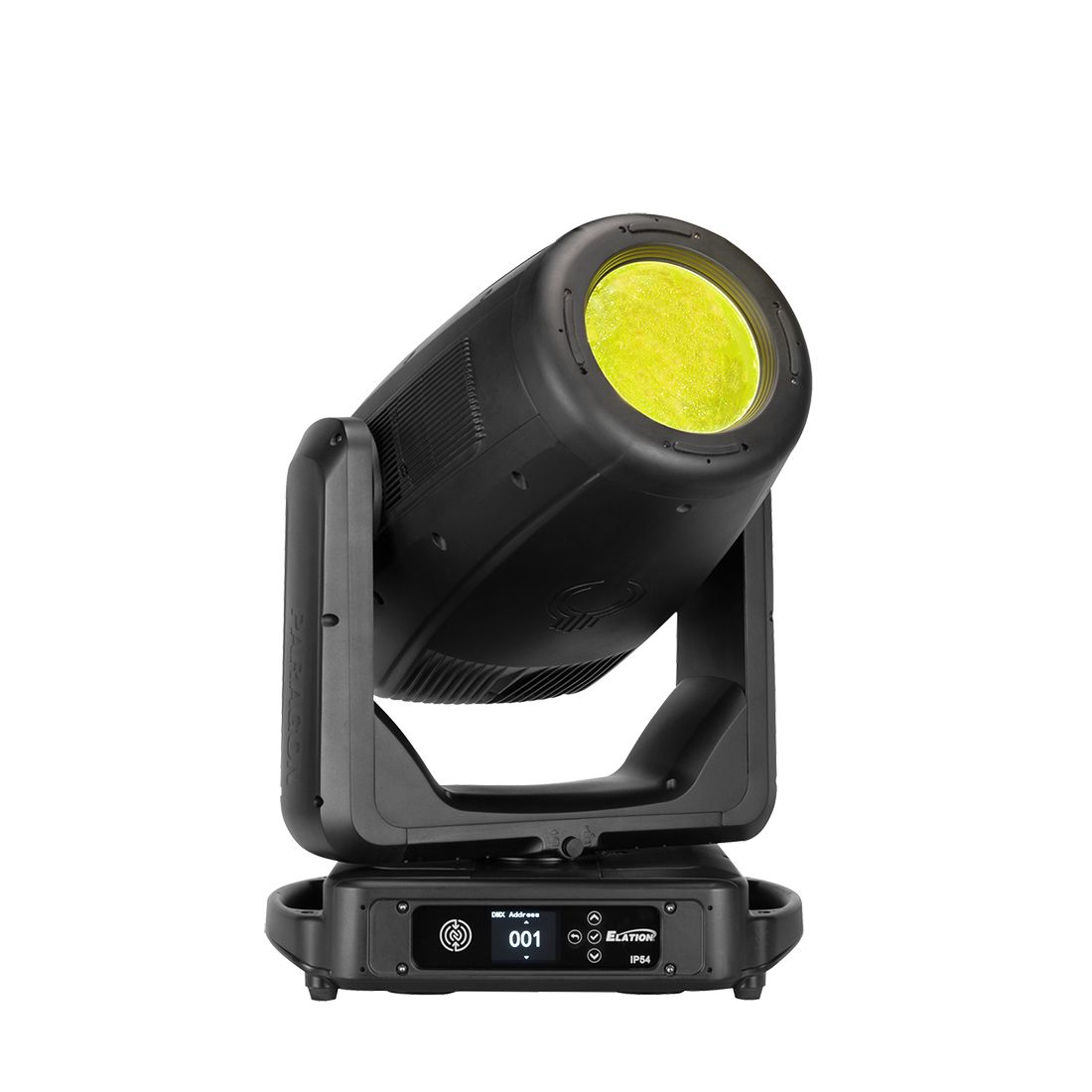

The PARAGON M™ is a powerful IP54-rated LED profile fixture with outstanding projection and beam qualities in a compact and lightweight form.

Powered by its custom-designed Variable CRI LED engine, the PARAGON M provides over 37000 lumens (at CRI 80), making it ideal for applications requiring superior output, bright and powerful beams, quiet operation, stunningly precise gobos, colors, and framing cuts.

The PARAGON M harnesses Elation’s TruTone variable CRI technology to empower designers to fine-tune any application's light output and color accuracy. From CRI 70 to CRI 93, its true variable color fidelity enriches mixed tones with infinite adjustments to the underlying white spectrum. Alongside these innovations, PARAGON M features Elation’s fastest and quietest CMY color mixing arrays for flawless performance.

Equipped with a robust FX package, the PARAGON M includes two wheels of seven rotating glass gobos, a complete animation wheel, overlapping dual prisms, dual frost options, and a high-speed iris. The animation wheel’s interchangeable design supports custom patterns or an optional seven-position gobo disc. The PARAGON M also utilizes a zoom range of 4.5° to 52° , a 240° indexable framing system, 45° blade angles that deliver precise beam shaping, and full-blackout shutter cuts that ensure it makes a bold visual statement in any setting.

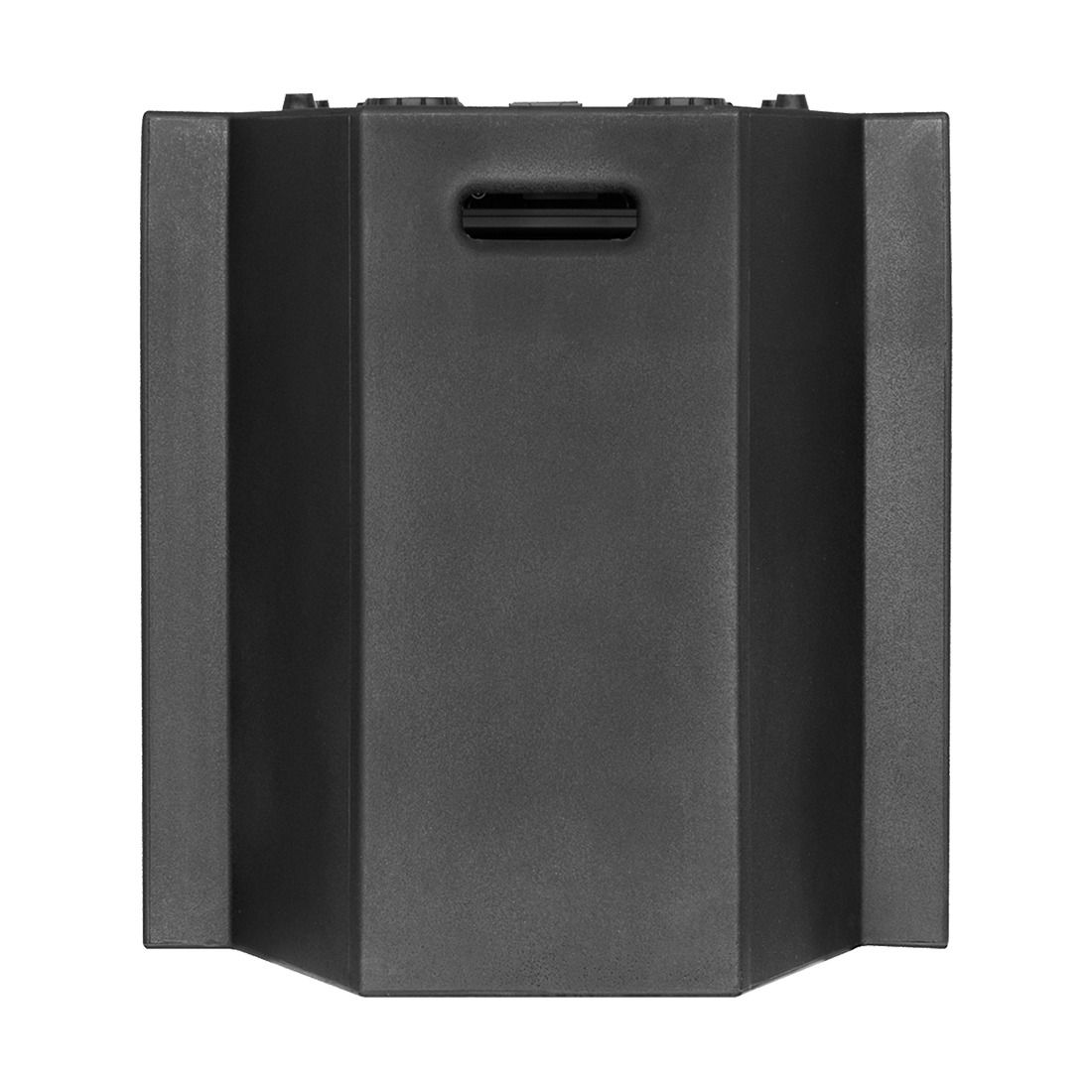

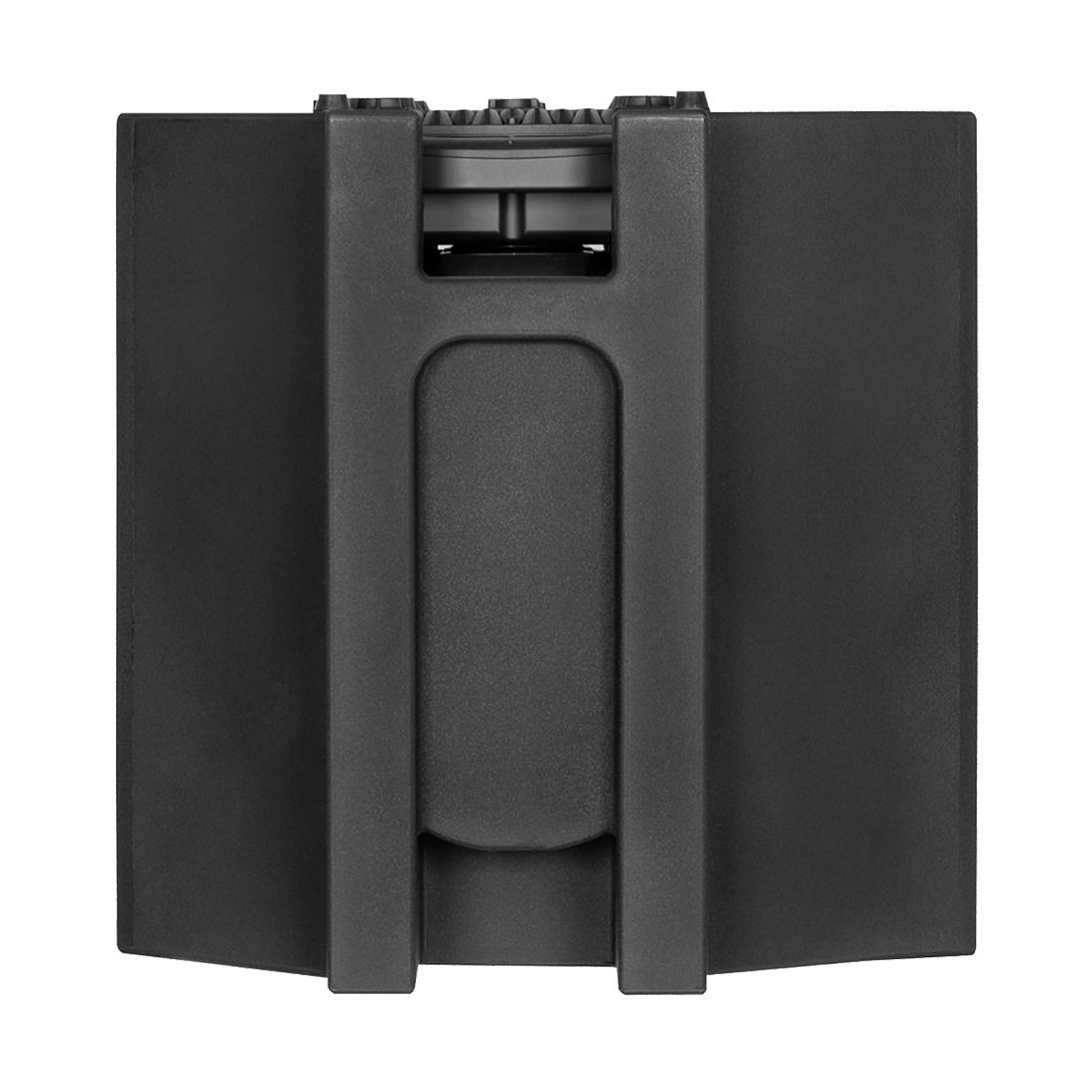

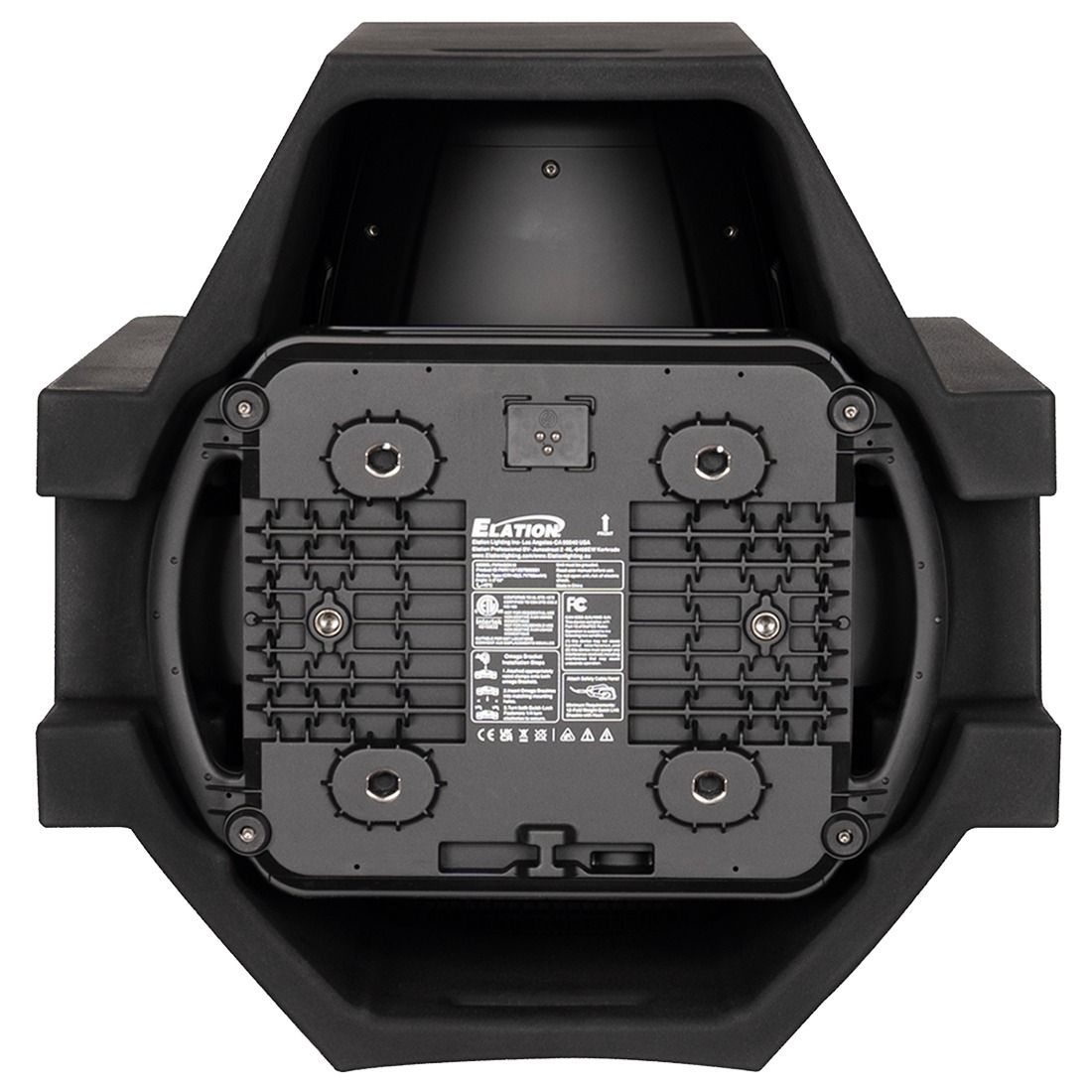

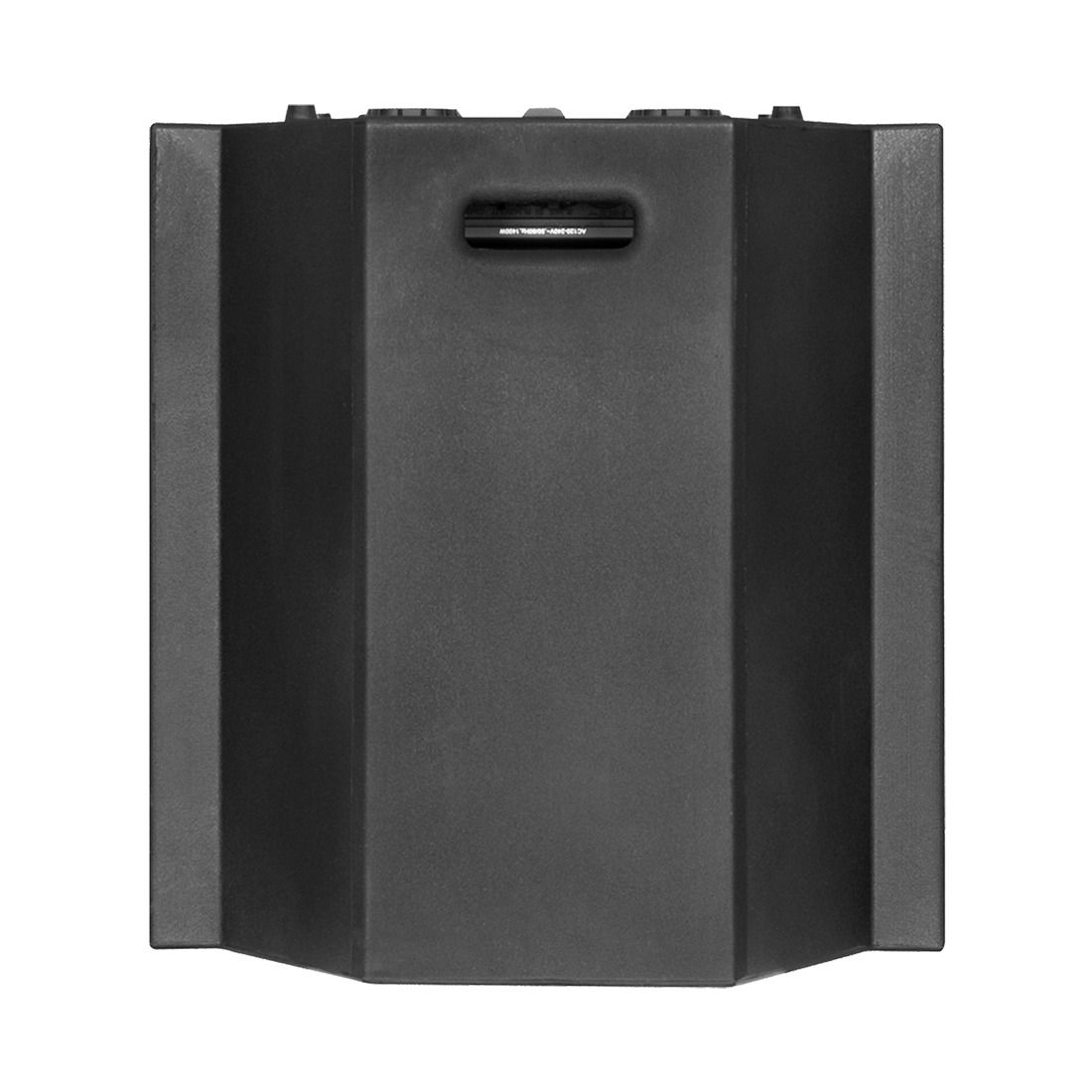

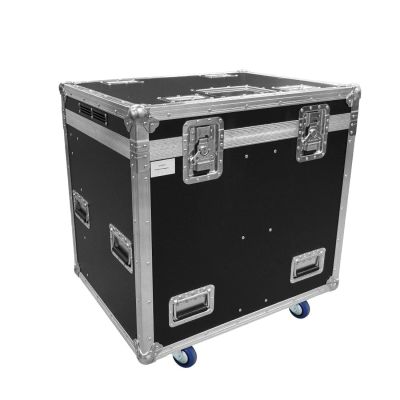

The PARAGON M ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert that easily fits into a custom flight case (not included), providing enhanced impact protection during transport.

Technical Data

FEATURES

IP54 rated for indoor and temporary outdoor use
All weather protection through innovative chassis, sealing and cooling construction
Impact resistant lightweight polycarbonate chassis
High Efficiency 6,500K Variable CRI White LED Engine
TruTone remote color fidelity adjustment up to CRI 93
37000 Total Lumen Fixture Output at CRI 80
Flat Field Engine for precise projection
Ultra-fast CMY Array and Variable Linear CTO
6 Dichroic Colors including UV-Filter, Quad Color
Complete FX System featuring Dual Rotating Gobo Wheels, Animation, Iris, Dual Prism, Dual Frost
Interchangeable Animation Disc (optional)
Indexable 240° Full Blackout Framing System
Wide Zoom Range from 4.5° to 52°
Interchangeable Fresnel Wash and PC Beam Lens (optional)
FIL (Foam In Lay) Polyurethane Foam Packaging Included


SOURCE

High Efficiency 900W 6,500K Variable CRI White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

37200 Total Lumen Fixture Output @ CRI 80
TruTone variable CRI up to CRI 93
Front Lens 160mm (6.3")

Profile Lens (standard)
Zoom Range 4.5° - 52°
Beam Angle 4° - 48.6°
Field Angle 4.4° - 52°
Cutoff Angle 4.5° - 54.2°

PC Lens (optional)
Zoom Range 6° - 50°
Beam Angle 3.7° - 44.5°
Field Angle 5.8° - 50.2°
Cutoff Angle 6.7° - 52.1°

Fresnel Lens (optional)
Zoom Range 9° - 55°
Beam Angle 4.5° - 46.8°
Field Angle 8.9° - 54°
Cutoff Angle 13.4° - 60.4°

EFFECTS

Motorized Zoom
4 Full Blackout Framing Blades, +/-45° Index
+/-120° Framing Index
Full 360° Bi-Directional Animation Wheel
4-Facet Round and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°
Tilt Angle: 260°


COLOR

CMY Color Mixing
Linear CTO Color Correction 6500K - 2600K
6 Dichroic Colors including UV-Filter, Quad Color
TruTone variable CRI 73-93



GOBOS

2x 7 Rotating / Indexing Interchangeable Glass Gobos

CONTROL / CONNECTIONS


4 DMX Channel Modes (43/65/43/65)
16-bit Pan, Tilt and Dimming Control
5 Fan modes for ultra quiet operation
DMX, RDM, Art-NET, sACN Protocol Support
(4) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
NFC on bottom and front of fixture base
Hibernation Mode (Power Save)

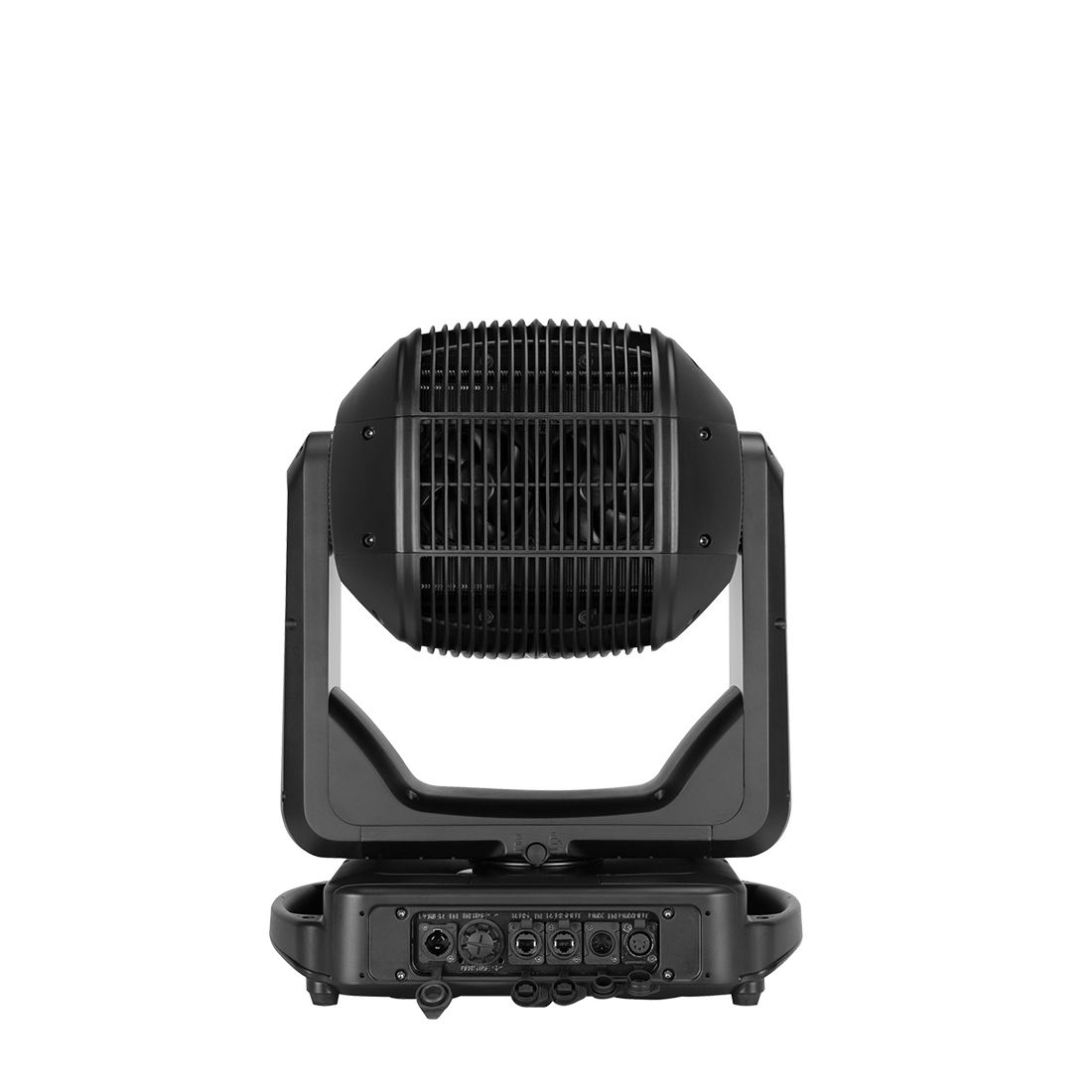

IP65 Locking 5pin XLR In/Out
IP65 Locking RJ45 Ethernet In/Out
IP65 Locking Power In


SIZE / WEIGHT


Length: 444 mm (17.5 in)
Width: 315 mm (12.4 in)
Height: 680 mm (26.6 in)
Weight: 32 kg (70.5 lbs.)


MOUNTING

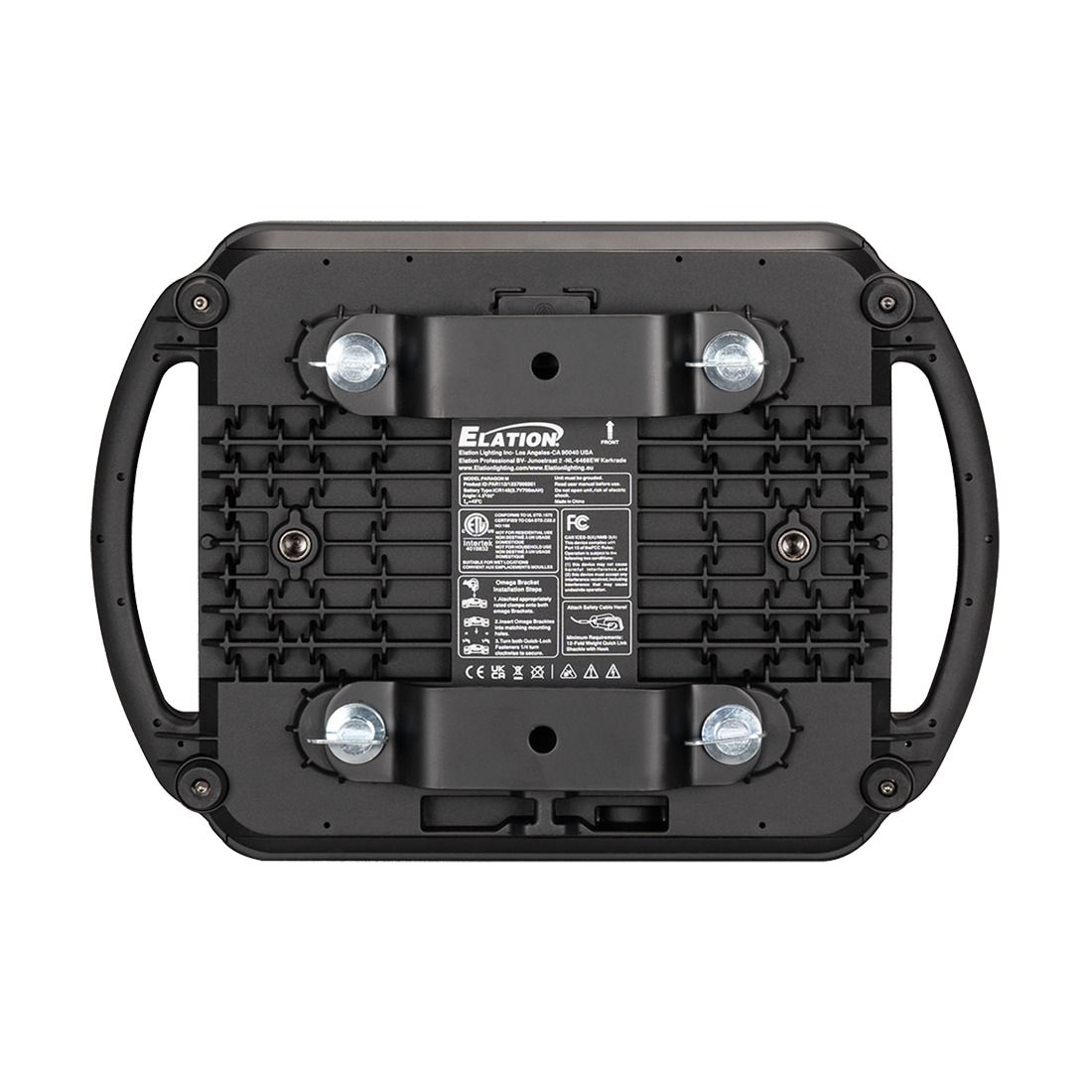

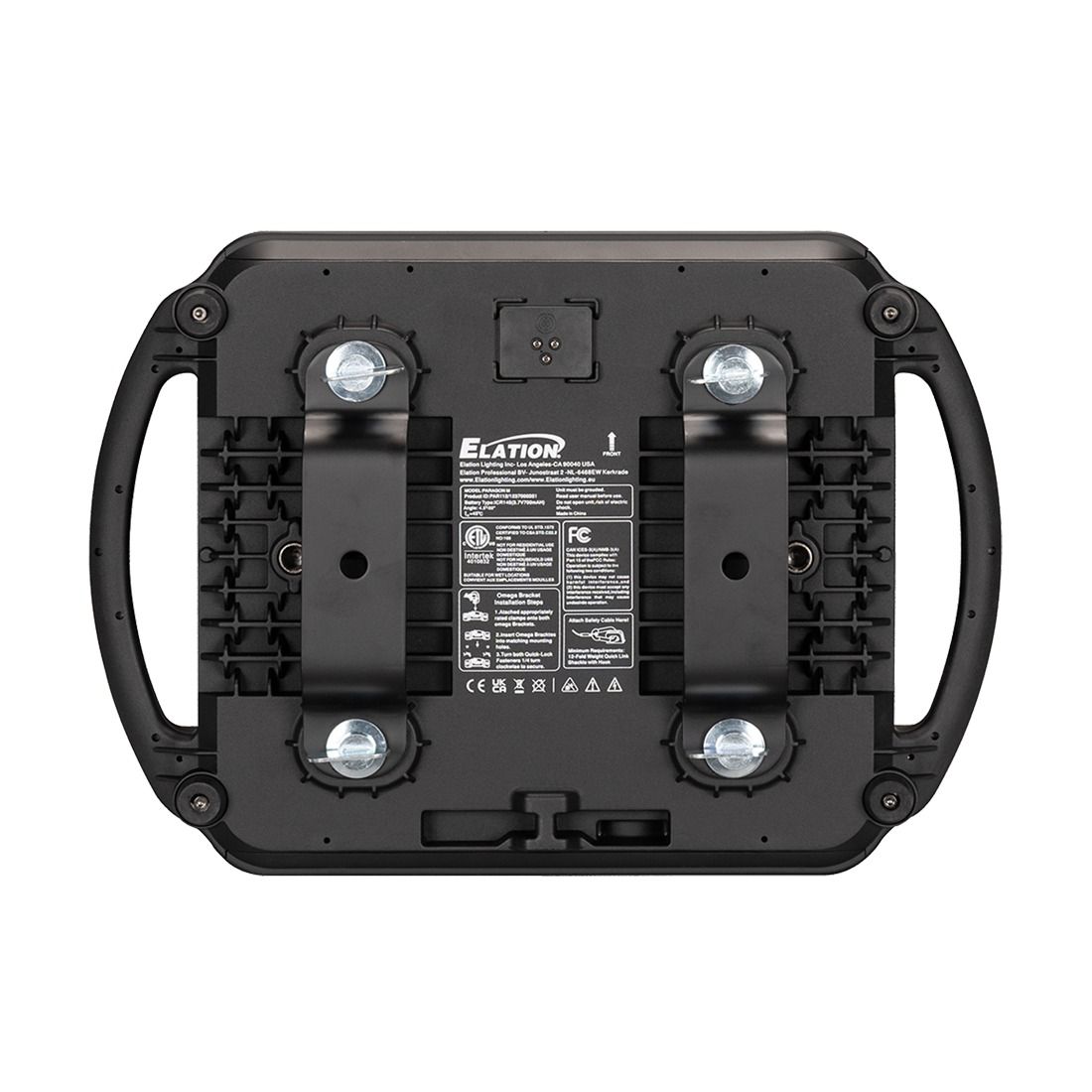

2x 180mm Omega Bracket
2x M12 Screw Hole
Fixture can be mounted in any orientation


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
Max Power Consumption 1400W
-20°C to 45°C (-4°F to 113°F)


INCLUDED ITEMS

Omega Brackets (x2)
IP65 Rated Locking Power Cable
Foam Inlay


FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
C.T.O.
C.T.O.
Color Wheel
Green
Green
Red
Red
Blue
Blue
UV
UV
CTB
CTB
Quad Color
Quad Color
Gobo Wheel 1
Gobo 175
Gobo 178

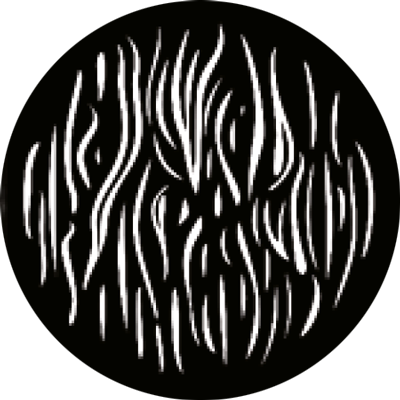

Gobo 185

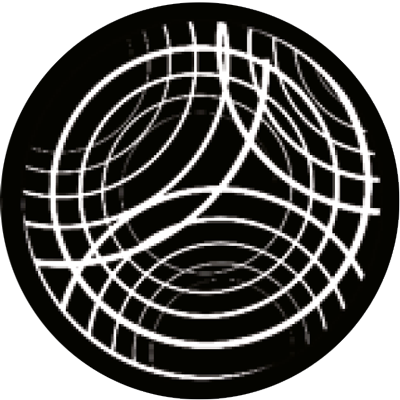

Gobo 187

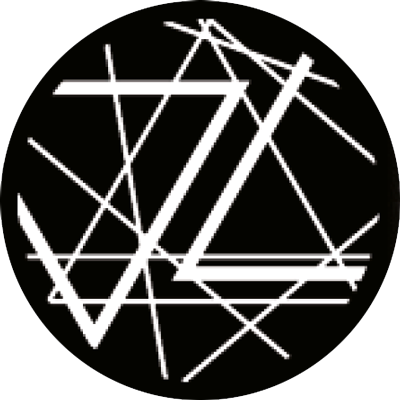

Gobo 188
Gobo 189
Gobo 190
Gobo Wheel 2
Gobo 22
Gobo 174
Gobo 176
Gobo 177
Gobo 191

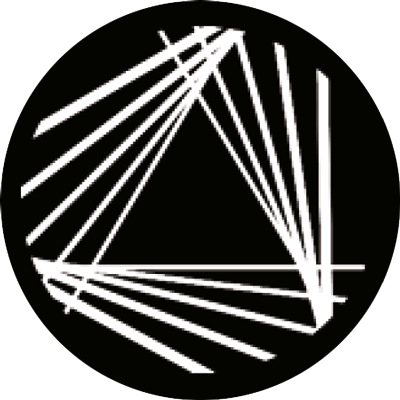

Gobo 192

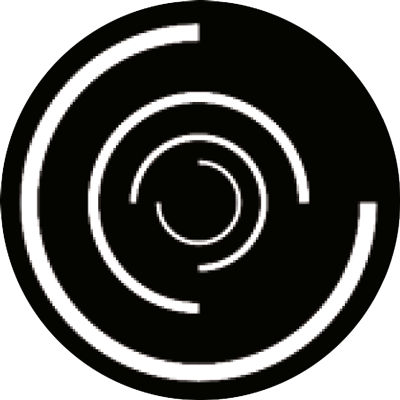

Gobo 193
Animation Wheel
Animation Wheel 10
Prisms
Prism 2
Prism 3
Framing
Endless Rotation

Related Products

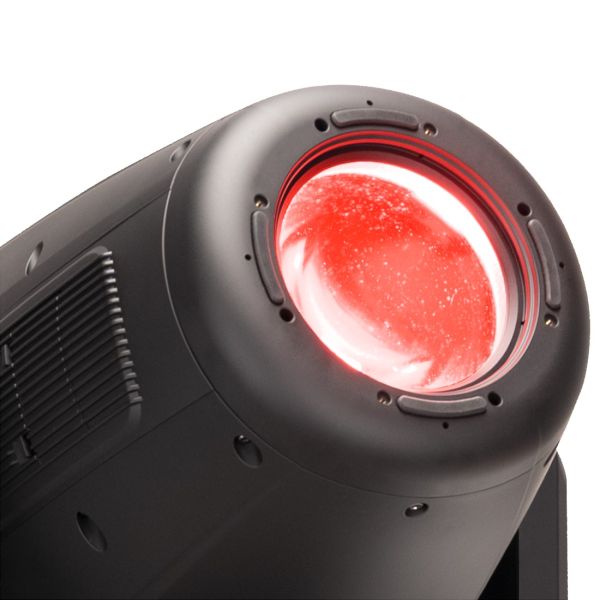

PARAGON M PC Lens

PARAGON M PC Lens

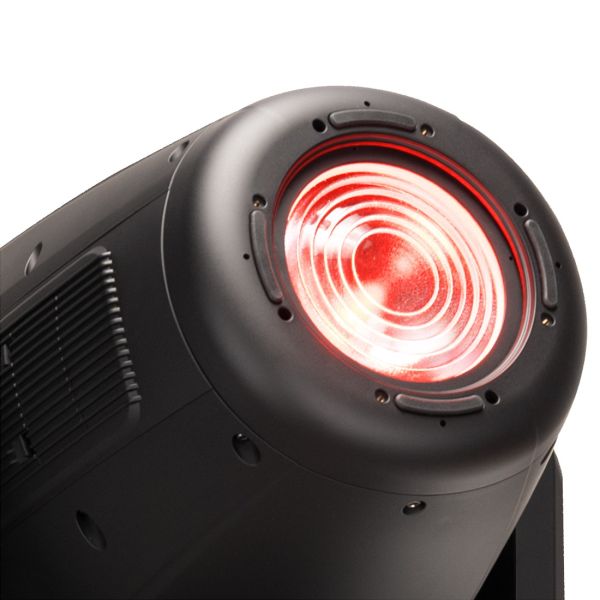

PARAGON M Fresnel Lens

PARAGON M Fresnel Lens

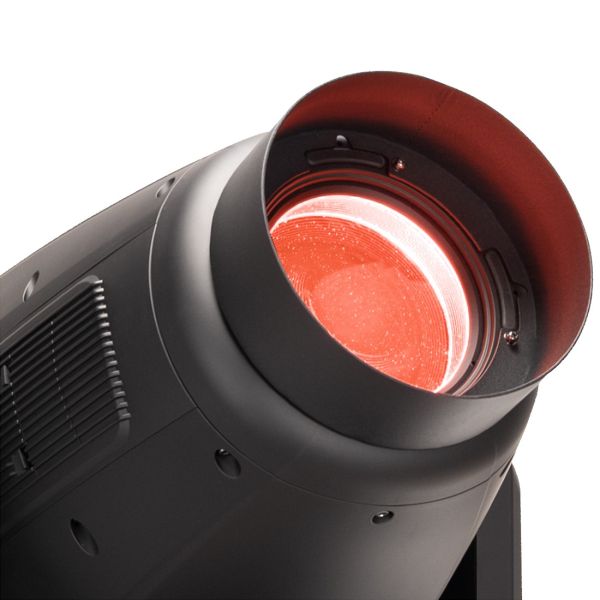

PARAGON M Snoot
