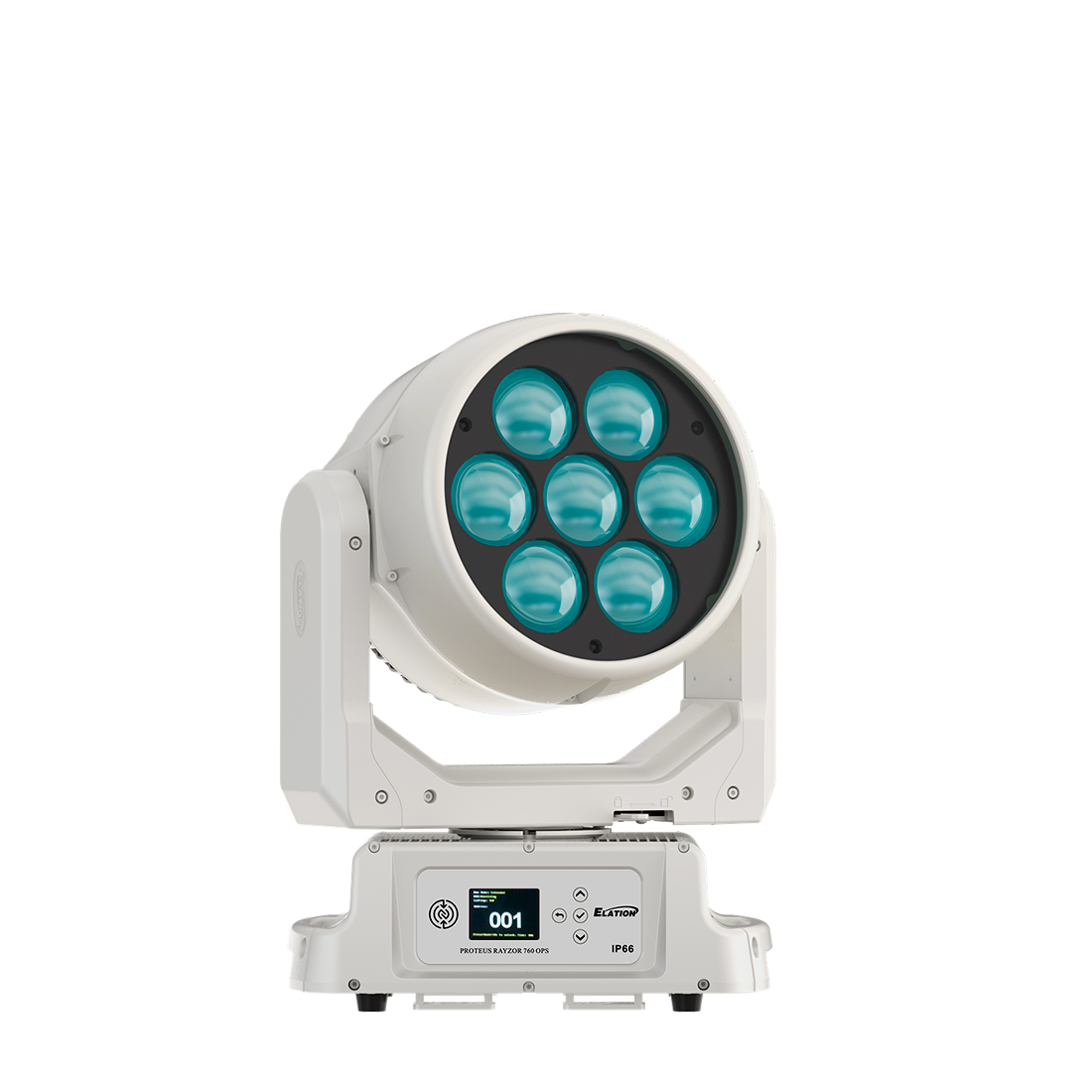

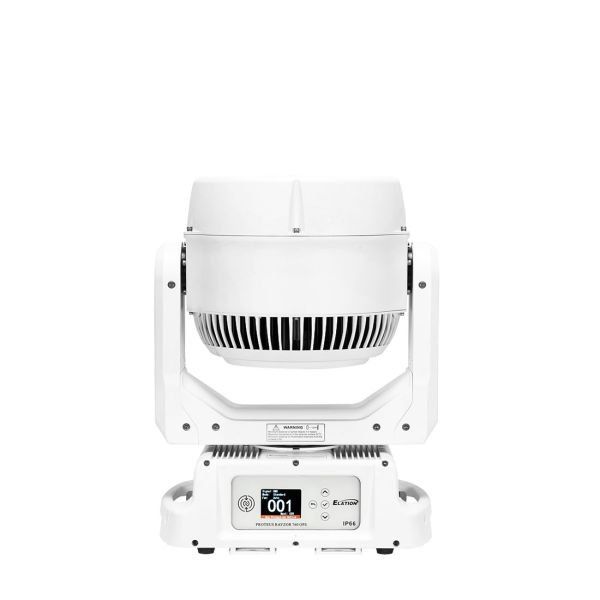

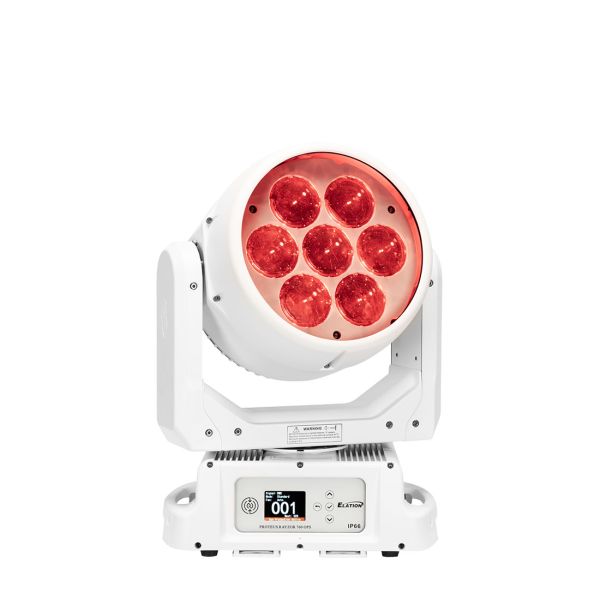

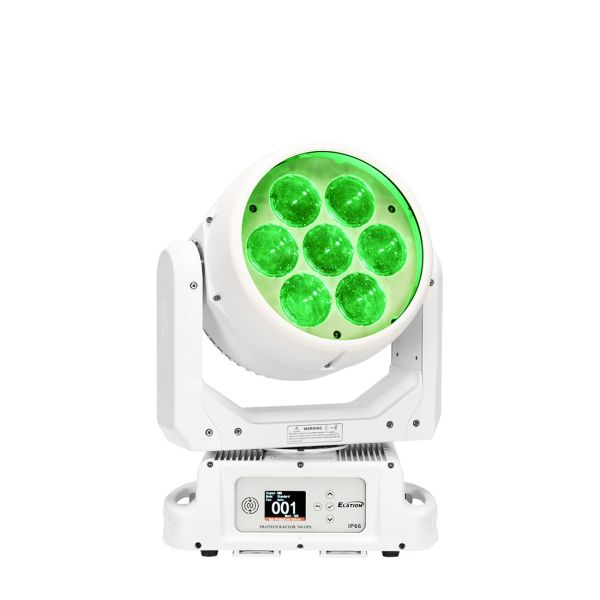

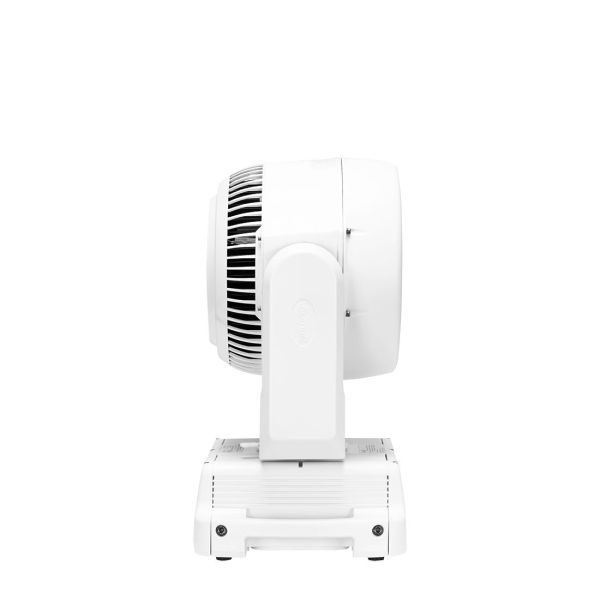

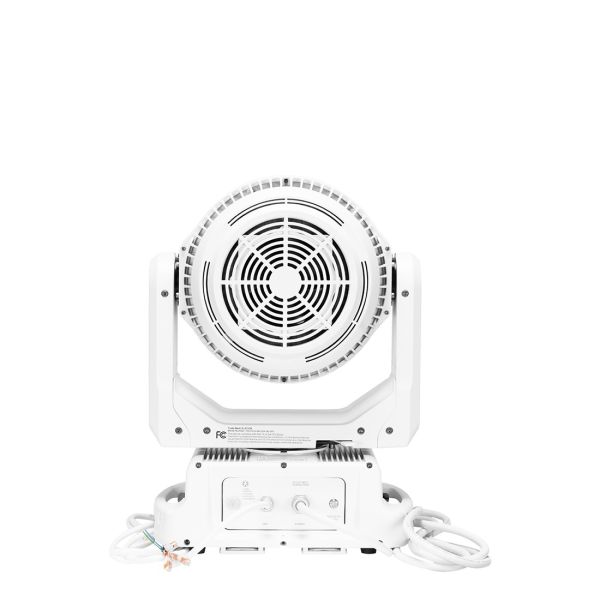

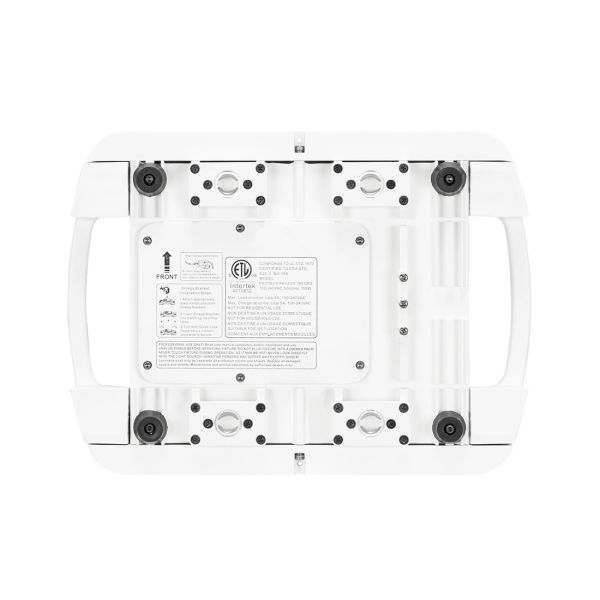

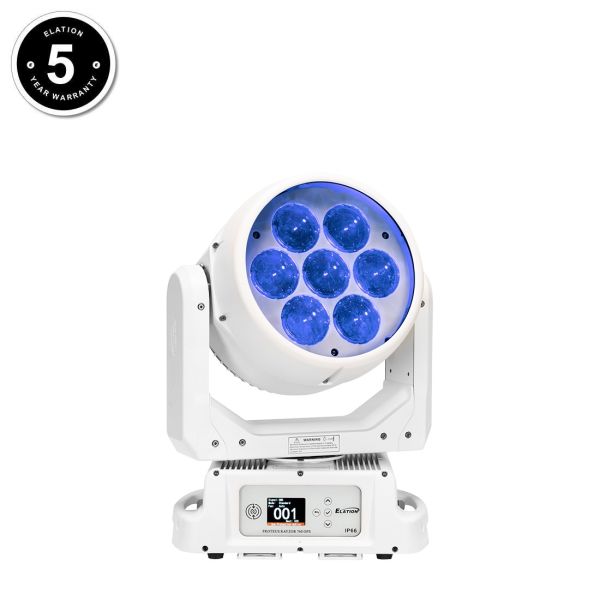

Proteus Rayzor 760 OPS

The Proteus Rayzor 760™ OPS is a compact yet extremely powerful IP66 rated Wash Effects fixture featuring Elation’s unique SparkLED™ system and fast continuous Pan and Tilt motion. With its wide zoom range from 5 to 77 degrees it provides intense and well-defined mid-air beams at over 7,200 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

Driven by 7, independently controlled, 60W RGBW LEDs, delivering over 7,200 lumens of output with a total power of 420W, the Proteus Rayzor 760 OPS provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor 760 OPS offers this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.

In addition to its powerful wash and enhanced effects, the Proteus Rayzor 760 OPS offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the SparkLEDs while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.


ELATION OPS fixtures are optimized for permanent exterior installations. Utilizing CX Extreme Marine Grade Coatings, cabling and Stainless-Steel fasteners they are rugged, reliable and designed to withstand the elements.

Technical Data

FEATURES

IP65 Rated LED Wash Effects Fixture
7x 60W OSRAM RGBW LED with Pixel Control
28x 2W SparkLED™ Effect with Pixel Control (patent pending)
Extreme Zoom – 5° for mid-air beam to 77° for even washes
Fast and precise 360° continuous Pan and Tilt rotation
Beam FX and Smooth Wash fixture in a compact IP66 certified housing
ELATION OPS - Designed for permanent outdoor installations
CX Extreme Marine Grade Coating

SOURCE

(7) 60W Osram RGBW LEDs
(28) 2W White SparkLED™
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

7200 Total Lumen Output
CRI 80
Zoom Range 5° - 77°
Beam Angle 5.4° - 56.4°
Field Angle 8.1° - 74°

EFFECTS

Motorized Zoom
Linear Color Temperature Presets (2,000 - 10,000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Pan Angle: 540°/630°
Tilt Angle: 270°/360°

COLOR

RGBW Multi-Chip LEDs
White SparkLEDs
Variable Color Temperature (2,700K – 8,000K)

CONTROL / CONNECTIONS

3 DMX Channel Modes (25 / 52 / 80 channels)
360° Continuous Pan and Tilt Movement
DMX Adjustable Refresh Rate (900 -25,000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
NFC Support
3m (10') DMX In/Out combo cable
3m (10') Power cable

SIZE / WEIGHT

Length: 363 mm (14.3 in)
Width: 260 mm (10.2 in)
Height: 493 mm (19.4 in)
Center-to-Center: 422 mm (16.6”)
Weight: 18.6 kg (41.0 lbs.)

Exterior Finish

RAL9016 (custom colors available on request)
CX Extreme Marine Grade Coating
Stainless Steel 316 Fasteners

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
700W Max Power Consumption
-20°C to 45°C (-4°F to 113°F)
BTU/hr (+/- 10%) 2,387

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
