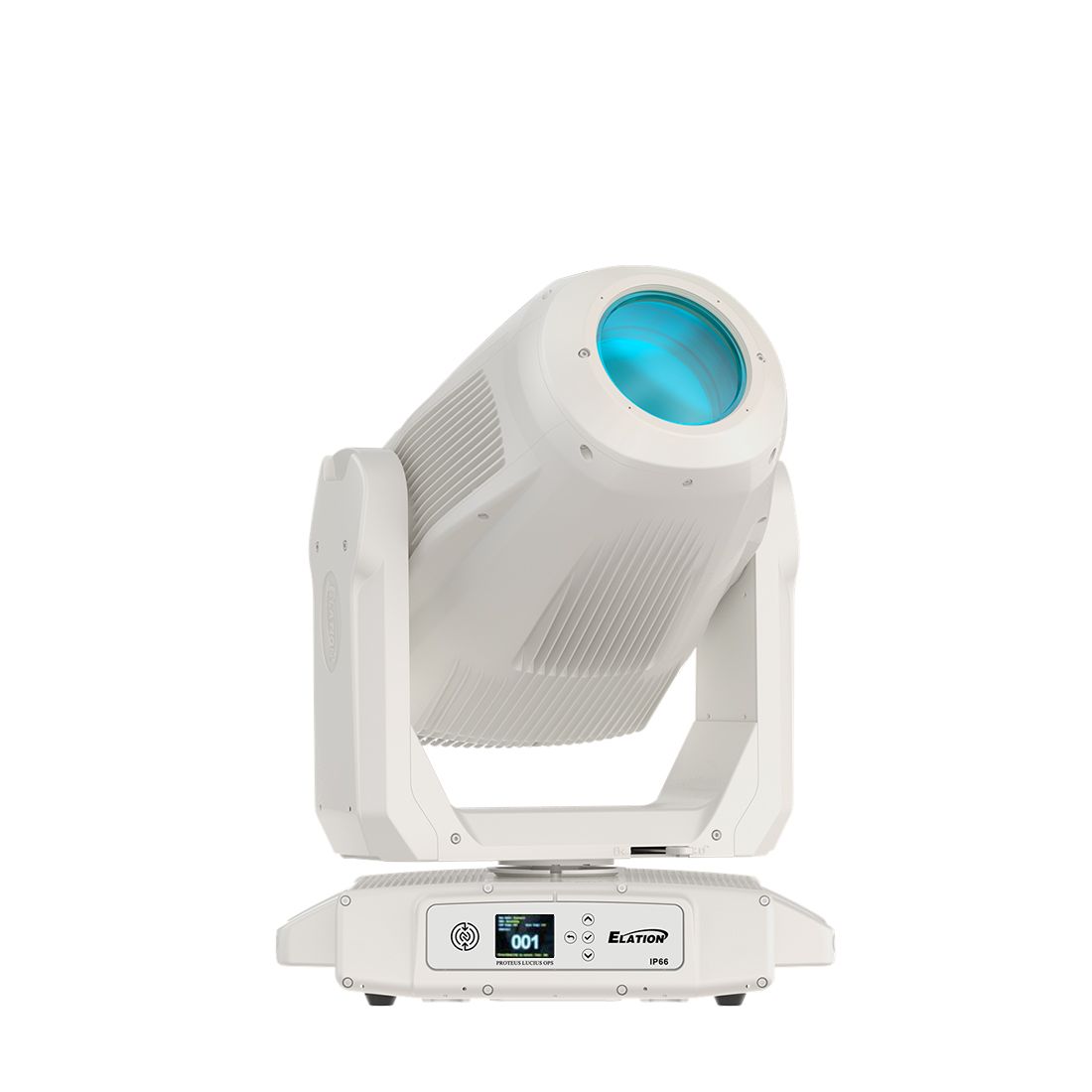

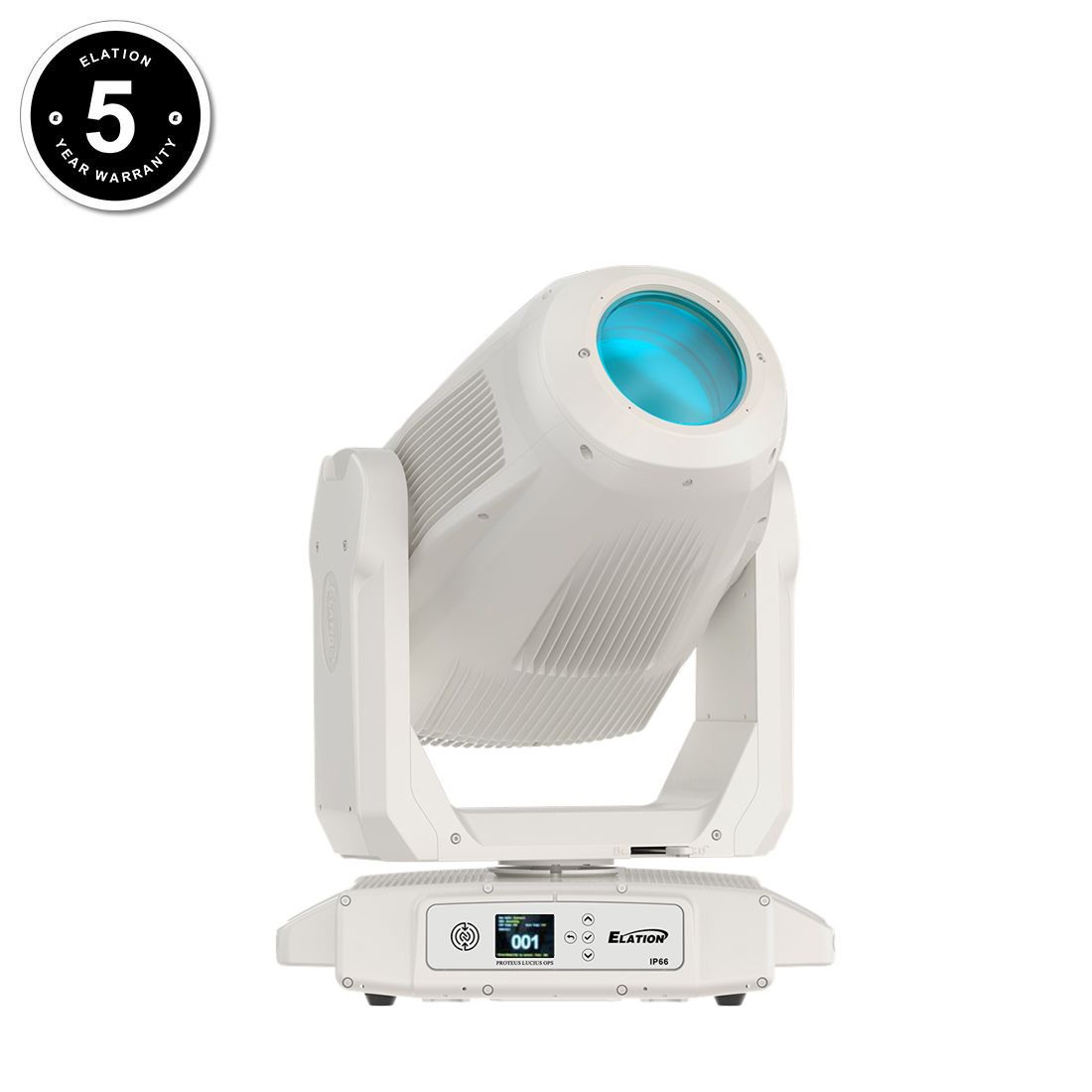

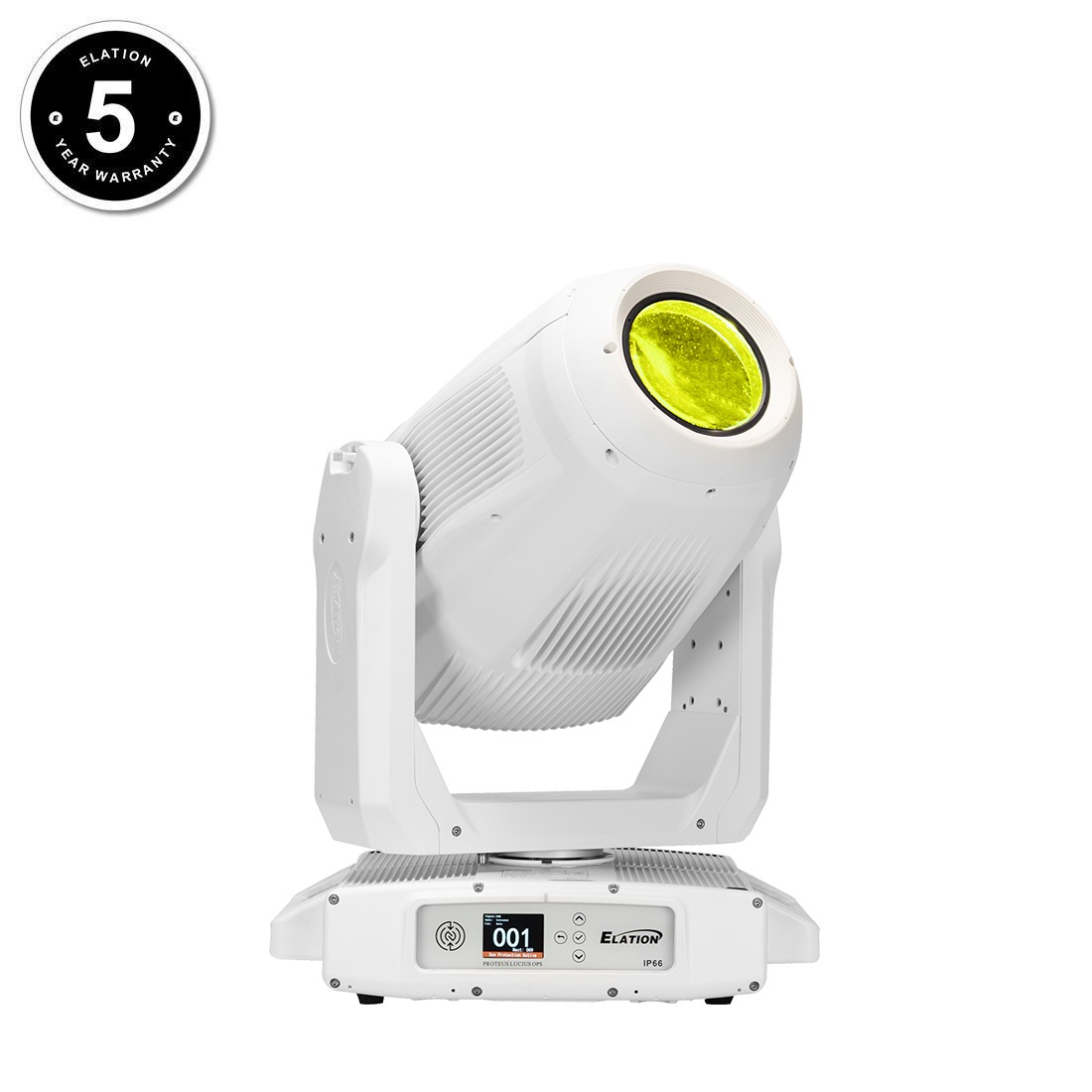

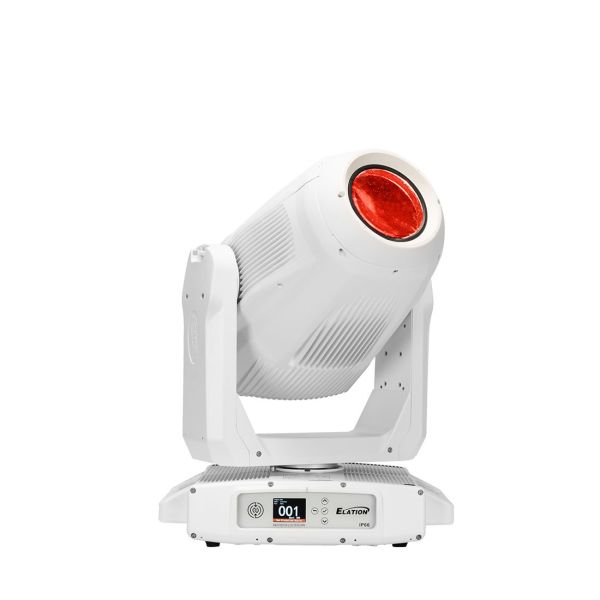

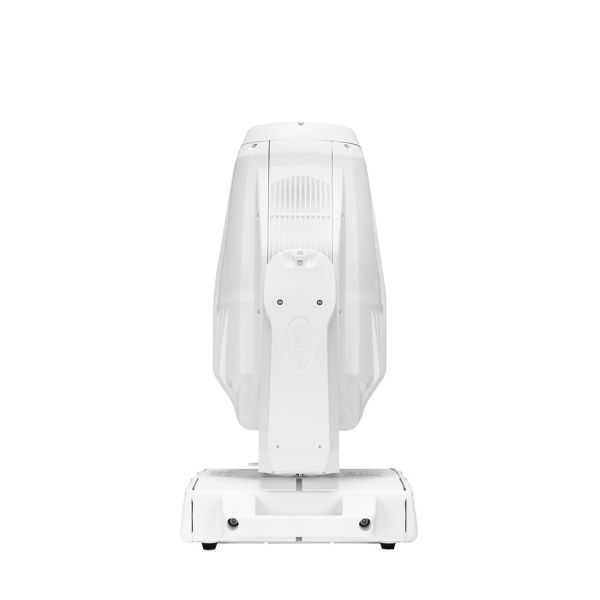

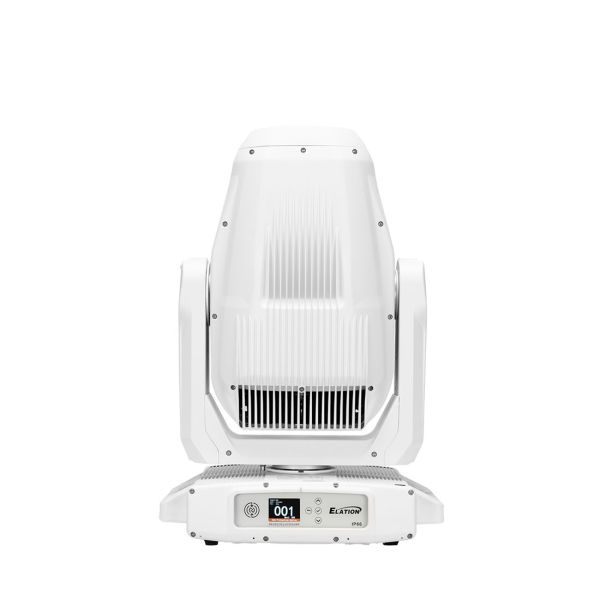

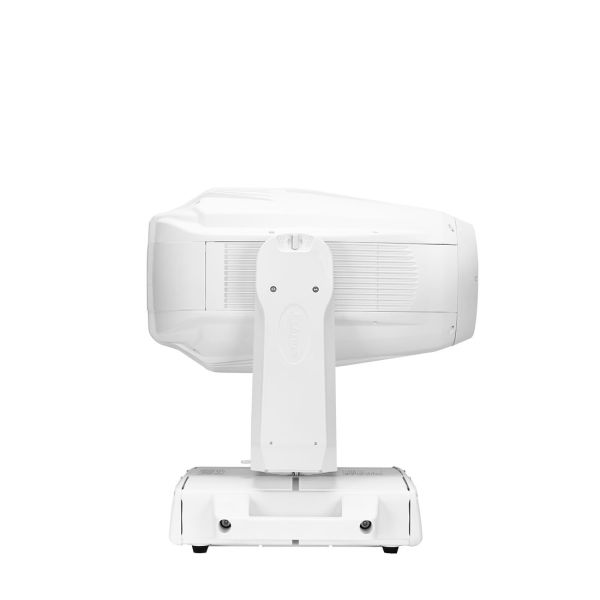

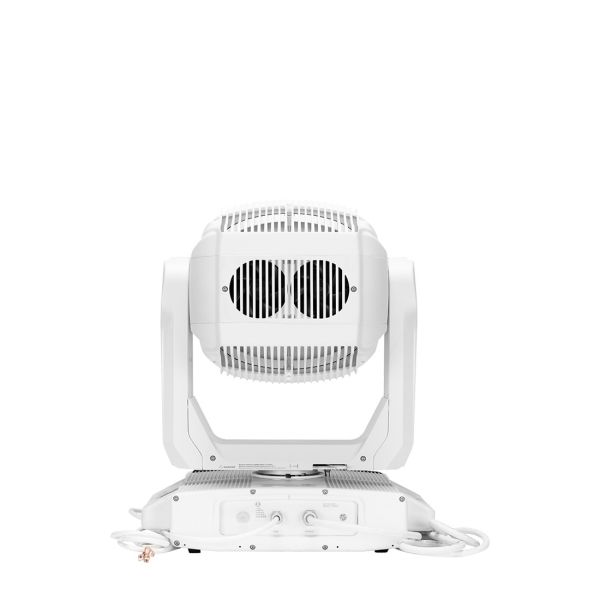

Proteus Lucius OPS

The PROTEUS LUCIUS OPS™ is a powerful yet compact IP66-rated LED profile fixture offering outstanding projection and beam qualities in any environment.

Providing up to 33,500 lumens output from its custom-designed Peak Field 580W 6,500K LED engine, the PROTEUS LUCIUS OPS is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors. PROTEUS LUCIUS provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.

With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS LUCIUS OPS has the power to cut through and make a statement on any stage.

ELATION OPS fixtures are optimized for permanent exterior installations. Utilizing CX Extreme Marine Grade Coatings, cabling and Stainless-Steel fasteners they are rugged, reliable and designed to withstand the elements.

Technical Data

FEATURES

IP66 Outdoor Rated
High Efficiency 580W 6,500K White LED Engine
Up to 33,500 Total Lumen Fixture Output
Peak Field engine for powerful projection at long distances
CMY Color Mixing and Variable CTO
5-Position Color Wheel with High CRI Filter
Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 50°
ELATION OPS - Designed for permanent outdoor installations
CX Extreme Marine Grade Coating

SPECIFICATIONS


SOURCE

580W 6,500K Bright White Peak Field LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

33,500 Total Lumen Fixture Output
CRI 71+ (85+ with HCRI Filter)
2.5:1 Hotspot Ratio
Zoom Range 5.5° - 50°
Beam Angle 6° - 36.7°
Field Angle 7.6° - 51.3°

EFFECTS

Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°

COLOR

CMY Color Mixing
Linear CTO Color Correction
5 Dichroic Colors including High CRI Filter

GOBOS

3 Gobo Wheels
6 Rotating Gobo (Wheel #1)
7 Rotating Gobos (Wheel #2)
7 Static Gobos (Wheel #3)

CONTROL / CONNECTIONS

2 DMX Channel Modes (43/68 Ch.)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
NFC Support
3m (10') DMX In/Out combo cable
3m (10') Power cable

SIZE / WEIGHT

Length: 468mm (18.4 in)
Width: 370mm (14.57 in)
Height: 682mm (26.8 in)
Center-to-Center Spacing 626m (24.6in)
Weight: 40.8kg (89.9 lbs.)

Exterior Finish

RAL9016 (custom colors available on request)
CX Extreme Marine Grade Coating
Stainless Steel 316 Fasteners

ELECTRICAL

AC 100-240V 50/60Hz
Max Power Consumption 1000W
-20°C to 45°C (-4°F to 113°F)
BTU/hr (+/- 10%) 3239.5

INCLUDED ITEMS

Omega Brackets (x2)

FIRMWARE UPDATES

Current firmware can be found here (login required)

FIXTURE LIBRARIES

ONYX
GDTF
GRANDMA2

Specifications and documentation subject to change without notice
