PROTEUS ATLAS

PROTEUS ATLAS

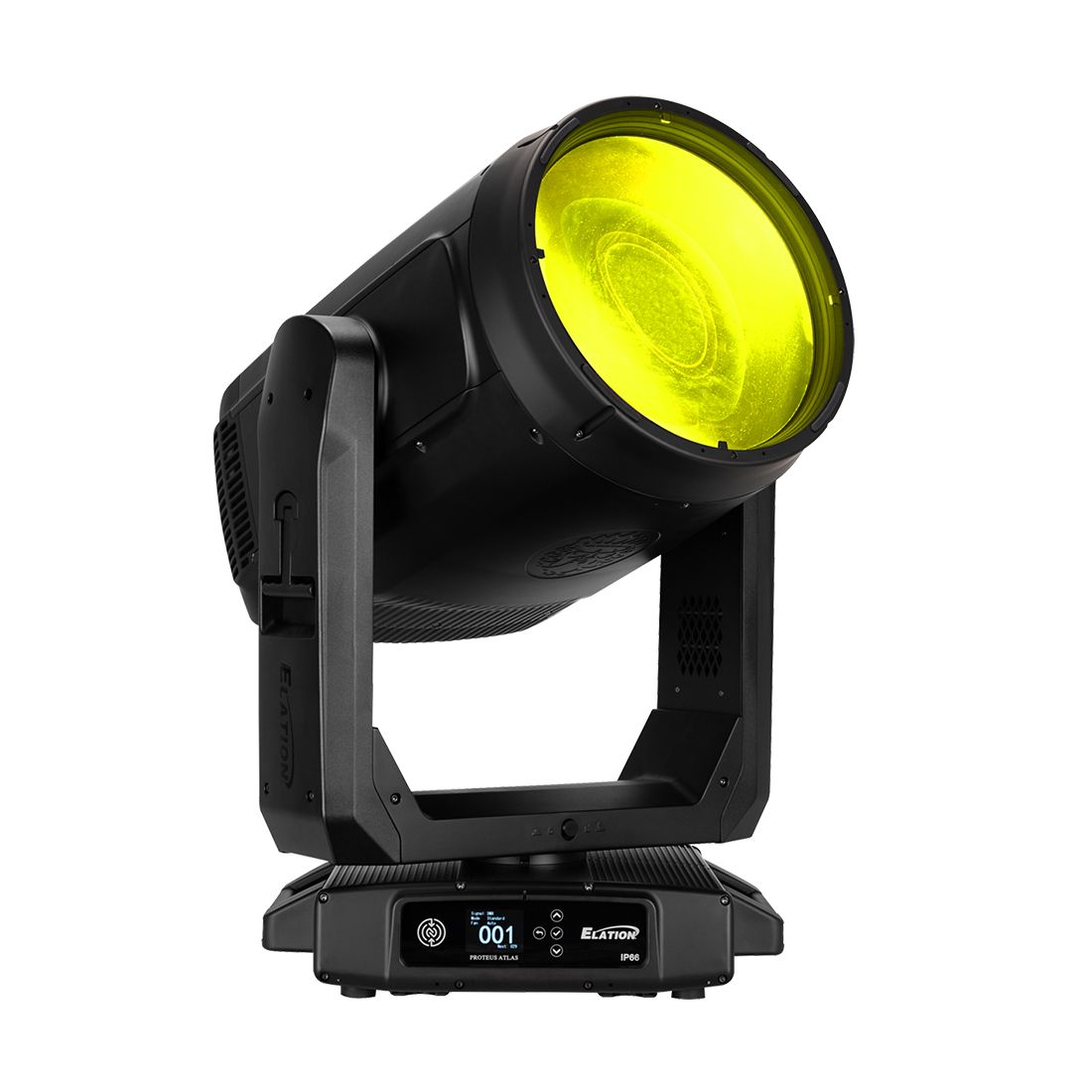

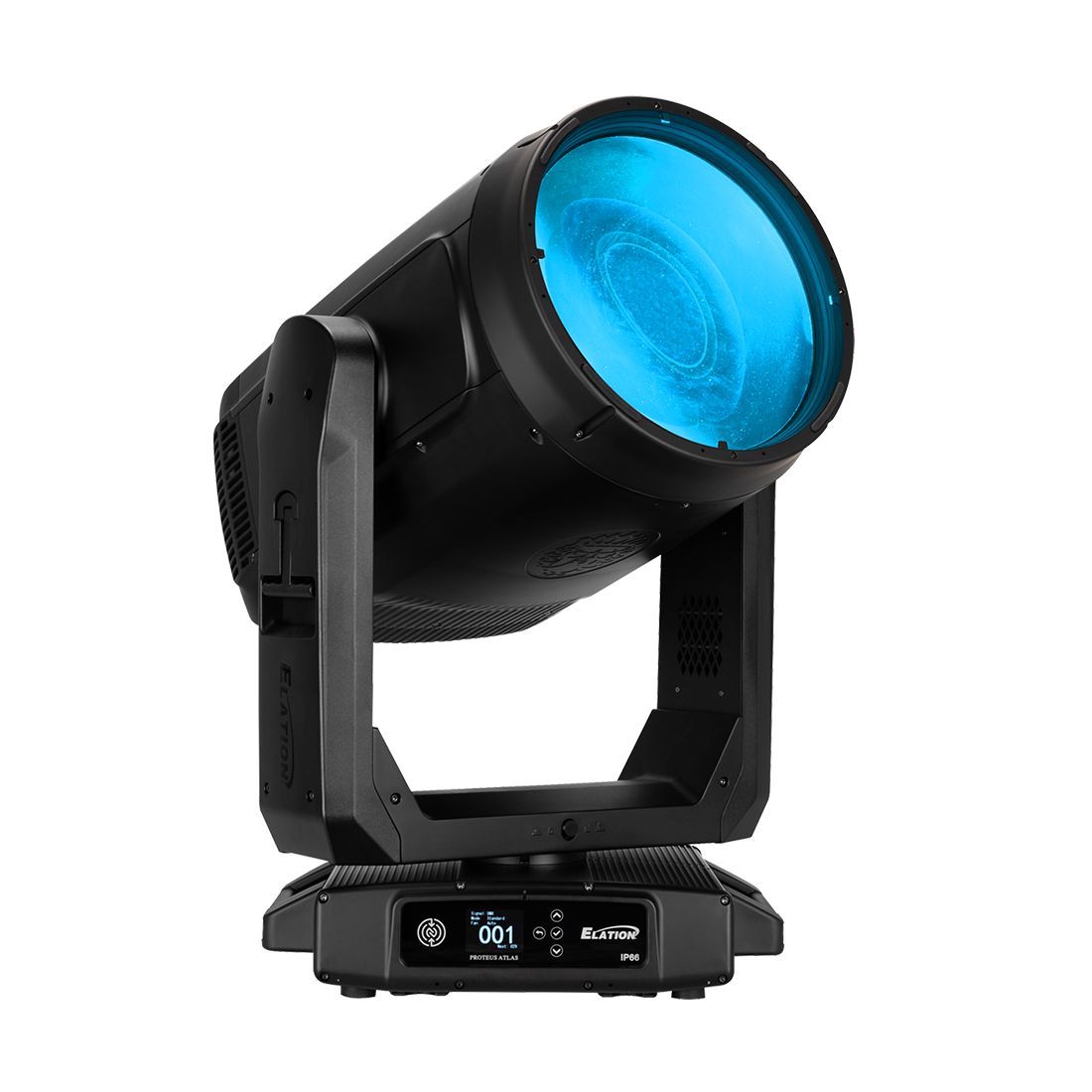

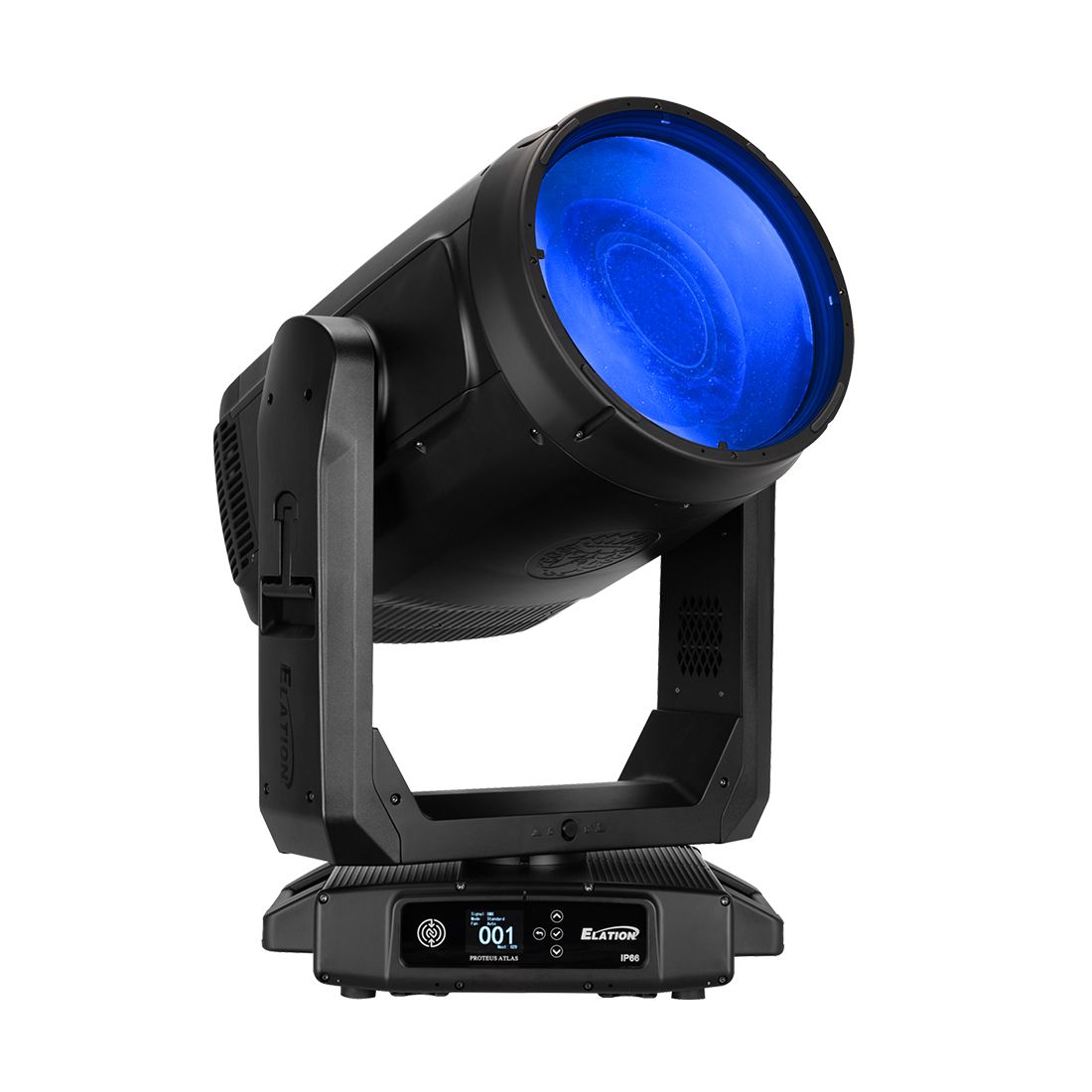

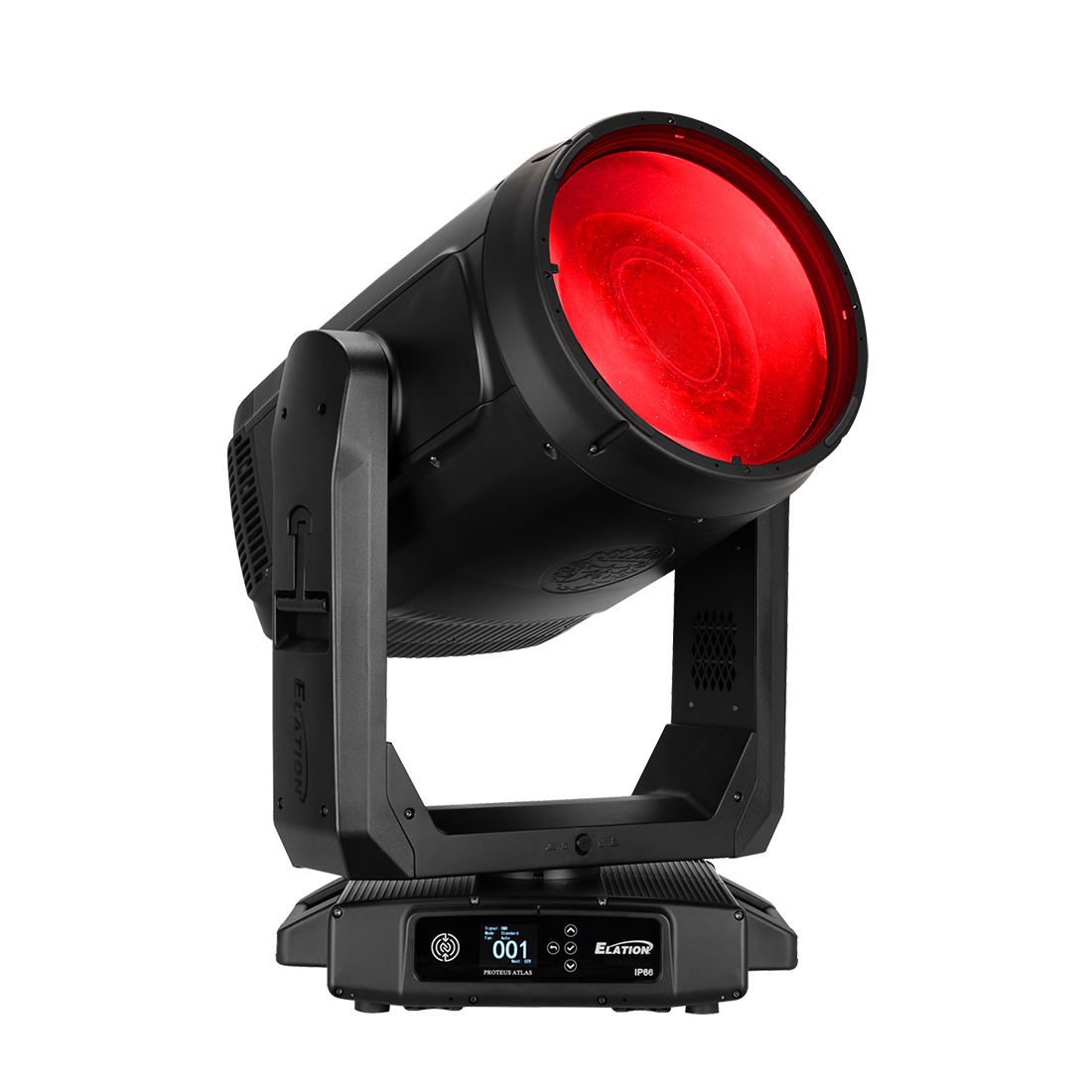

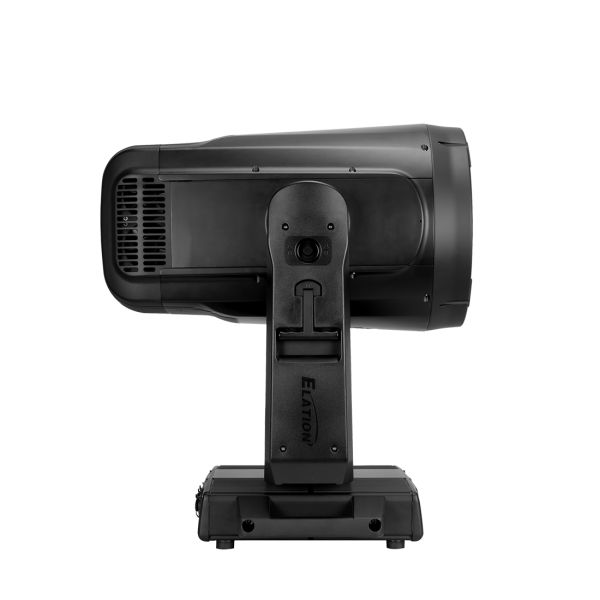

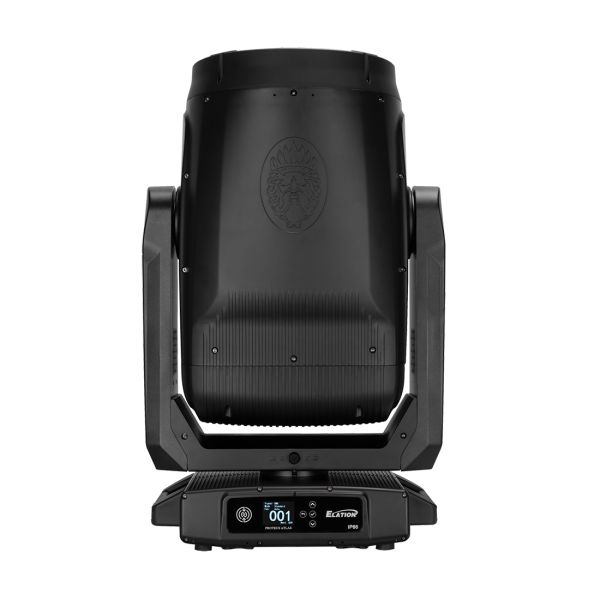

500W Solid State phosphor-converted Beam FX Fixture

Code 1237000285

Command the heavens with Elation’s PROTEUS ATLAS, built to deliver otherworldly light for large-scale productions and permanent outdoor installations. With 1 million LUX at 20 meters, LILI technology, and a massive 320mm lens, Atlas cuts through the sky with bold, focused beams that evoke the power of traditional Xenon fixtures. Its onboard effects system sculpts light with gobos, frosts, and prisms—shifting seamlessly from piercing beams to layered textures and...

Code 1237000285

PROTEUS ATLAS

Its onboard effects system sculpts light with gobos, frosts, and prisms—shifting seamlessly from piercing beams to layered textures and soft washes. With CMY color mixing and a 25-position color wheel, Atlas offers a rich palette for bold bursts, atmospheric moods, and everything in between.

The Atlas’ precision motors provide smooth pan, tilt, and continuous rotation, while Elation’s SkyMotion system enables synchronized patterns across fixtures without a console. Built and certified with an IP-66 rating, Atlas stands strong in any weather, making it ideal for concerts, cruise ships, and permanent outdoor installs.

Designed for those who think on a larger scale, PROTEUS ATLAS delivers power, precision, and creative freedom, letting audiences look up and experience the extraordinary.

Technical Data

FEATURES

500W LILI (Laser Illuminated Lighting Instrument)
IP66 housing
Ultra Long Throw Beam FX
Continuous 360 Pan Movement
CMY Color Mixing
FX Package with rotating, fixed gobos, prisms and dual frost
Sky Motion Standalone System

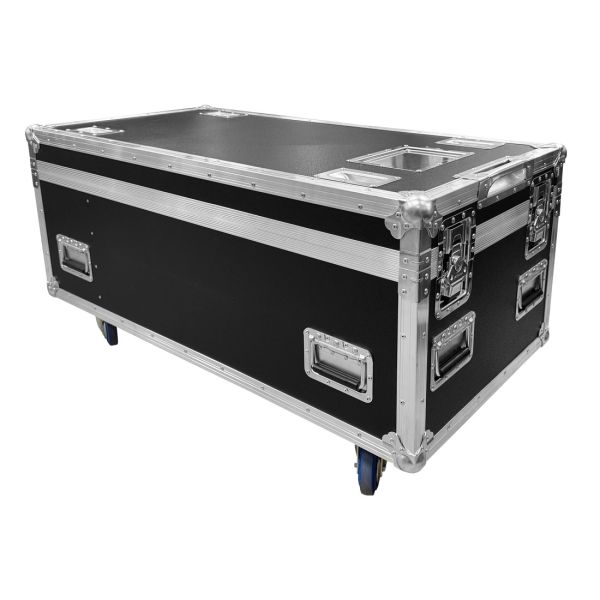

Protective Foam In Lay for transport

SOURCE

500W LILI (Laser Illuminated Lighting Instrument)
9000K, CRI 70
12,000 Hour Lamp Life

*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

1.000.000 Lux @ 20m
100.000 Lux @ 100m
Beam Angle 0.6° - 8.5°˚

EFFECTS

Dual Frost (Hot- Spot Beam, Wash FX)
Ultra- Fast Zoom
Focus
2x3 Prisms on Dual Planes
Digital Shutter and Strobe
Pan Angle 360° / 540°
Tilt Angle 250°

COLOR

Full CMY Color Mixing System
25 Position Color Wheel

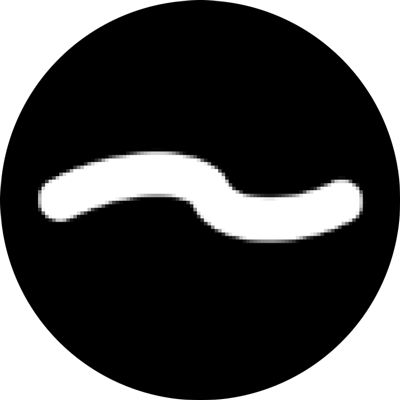

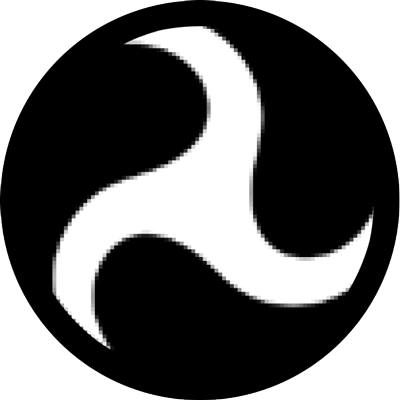

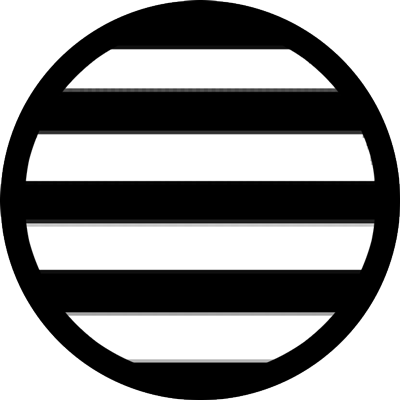

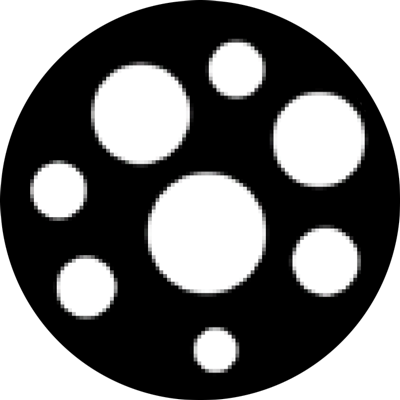

GOBOS

2 Gobo Wheels
13 Interchangeable-Rotating / Indexing Metal Gobos
26 Static-Stamped Metal Gobos

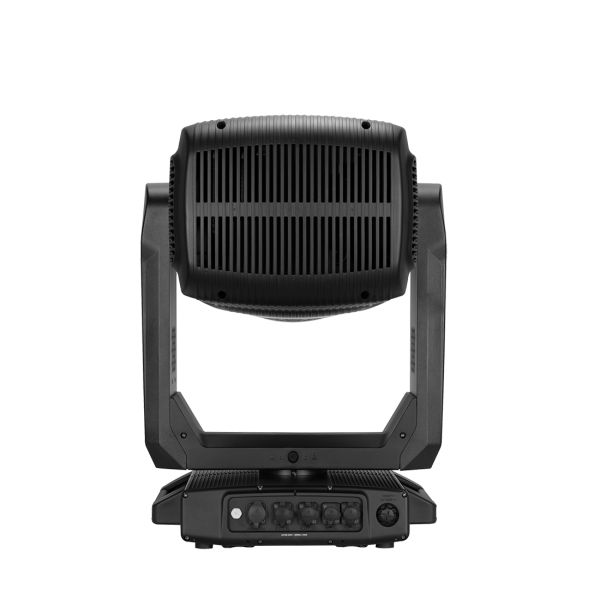

CONTROL / CONNECTIONS

2 DMX Channel Modes (26/36 Ch)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
NFC Support
Ip65 5pin DMX In/Out
IP65 RJ45 Ethernet In/Out
IP65 Locking Power In

SIZE / WEIGHT

Length: 370mm (14.5")
Width: 508mm (20")
Height: 800mm (31.5")
Weight: 56,3 kg (124.1lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
670W Max Power Consumption
-20°C to 45°C (-4°F to 113°F)

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags

Cyan

Magenta

Yellow

Color Wheel

Cyan	Cyan 2	Green	Green 2	Kelly Green	Red	Blue	Blue 2
Deep Blue	Orange	High CRI	Yellow	Yellow Green	Magenta	C.T.O.	CTB
Light Blue	Pink	Wine Pink	Light Yellow	Deep Yellow	Amber	Dark Amber	Red Amber
Quad Color
