EN6D

Click here to learn more about the EN6D & for all technical details and documentation

Technical Data

FEATURES

RJ45, screw terminal or IDC connectivity
Configurable Top, Bottom and Front ports
RDM, Artnet and sACN support
Factory and user presets for plug and play setup
POE or 9-48V DC power
1.3” OLED Display with rotary knob
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated aluminum DIN Rail housing
Unlocks ONYX NOVA 4-Universe License

SPECIFICATIONS

MOUNTING

DIN Rail
Wall-mount

CONNECTIONS

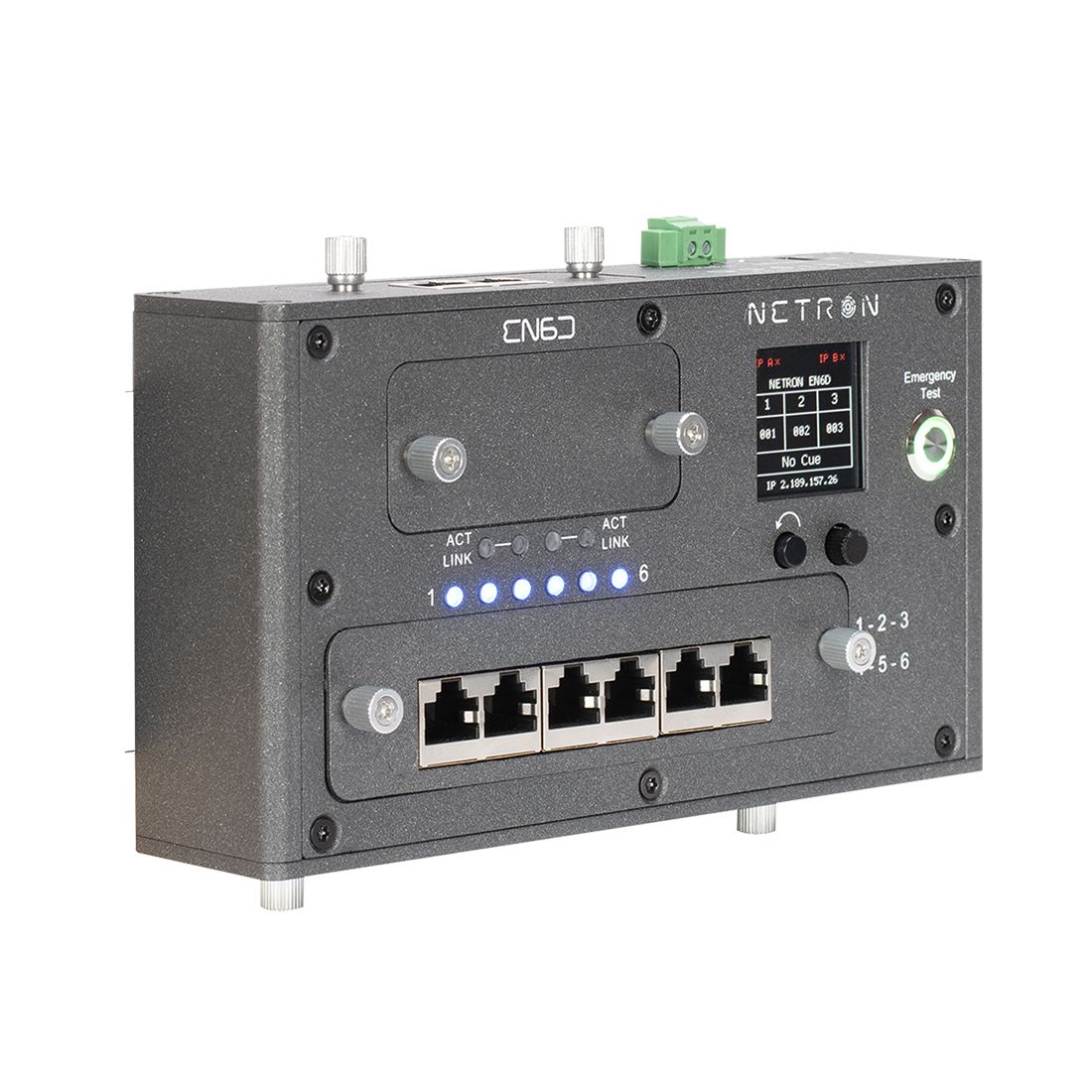

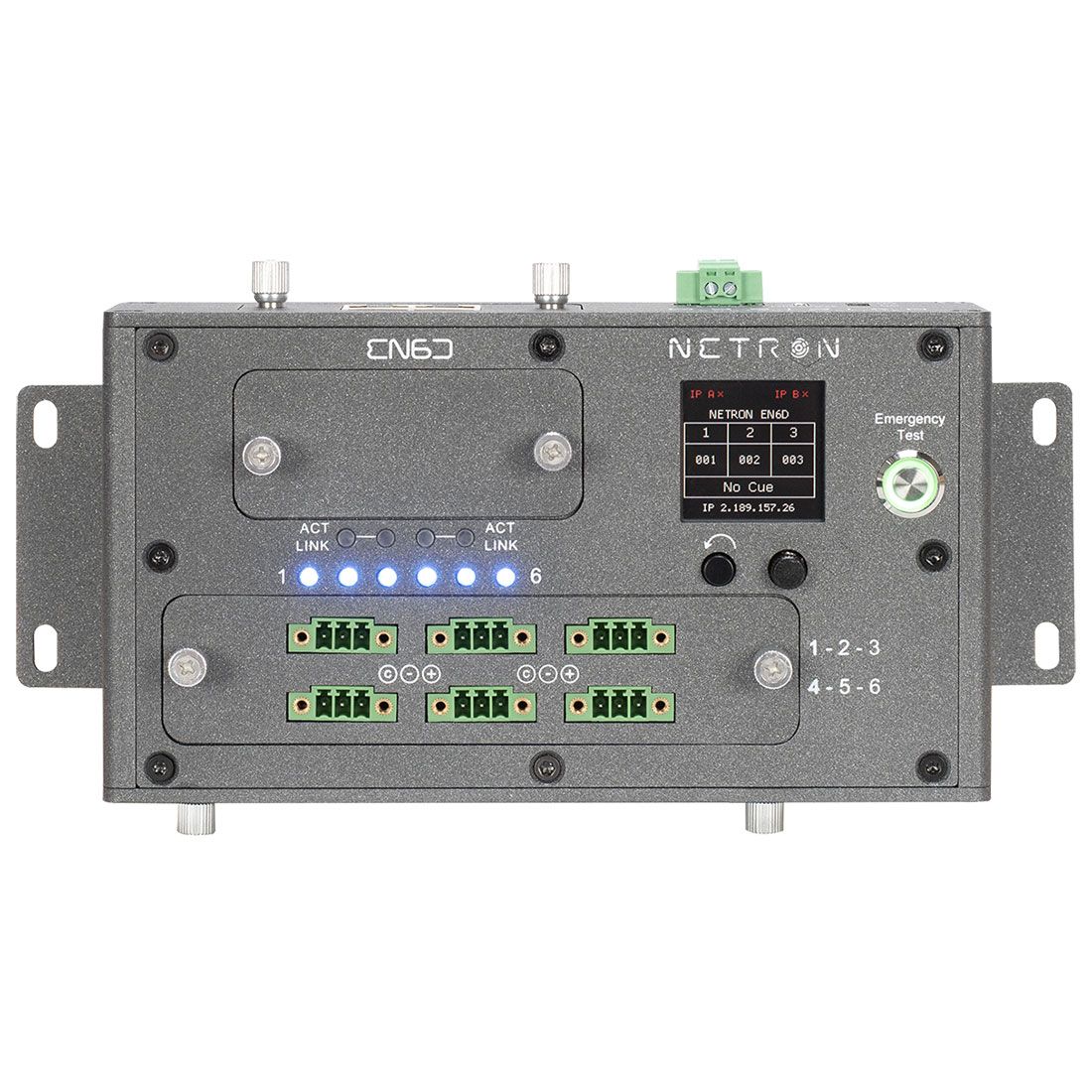

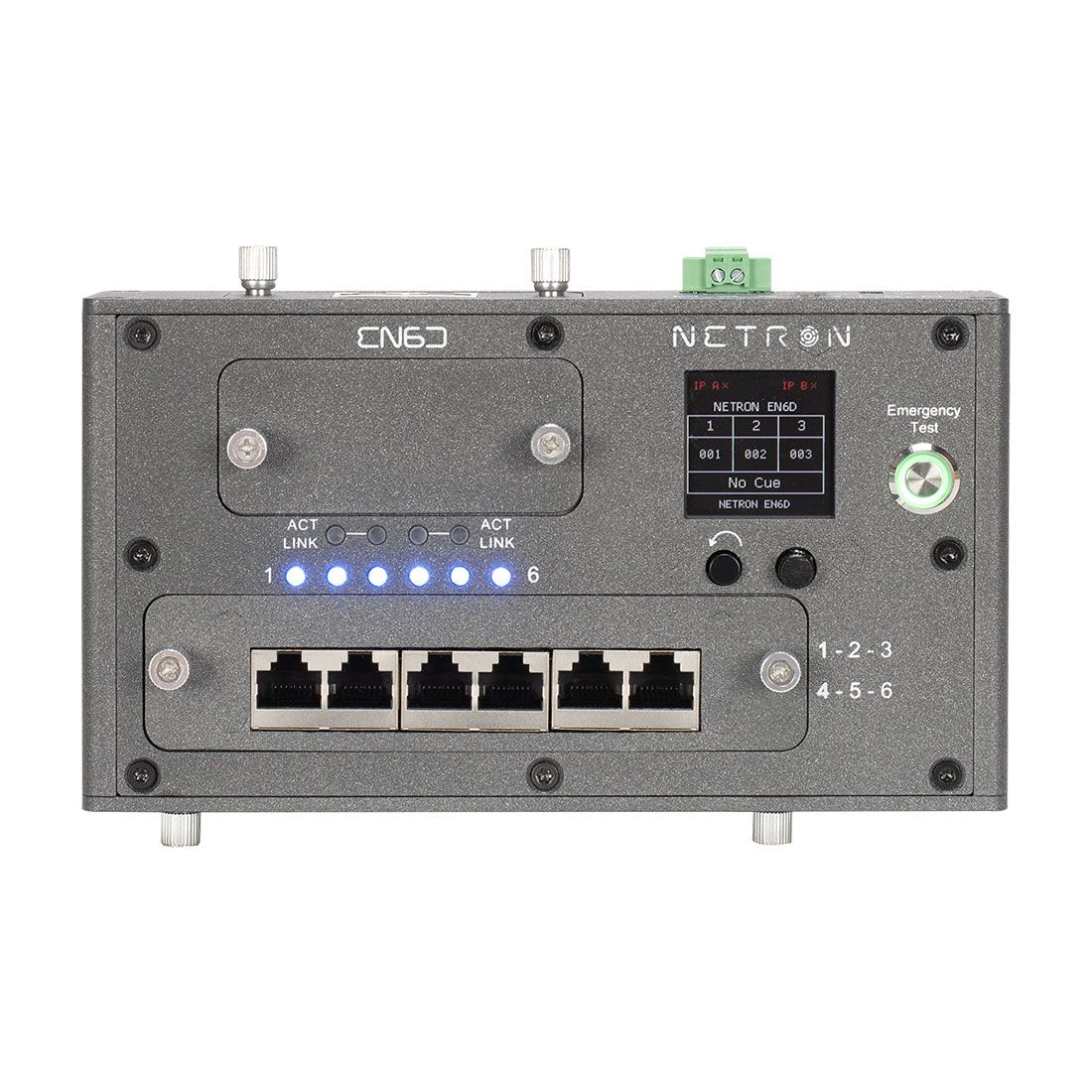

FRONT

Full color 1.3" OLED display
Encoder w. Push to Select / Exit Button
6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate
(2) RJ45 Gigabit Ethernet (1x POE) or Cover Plate

Bottom

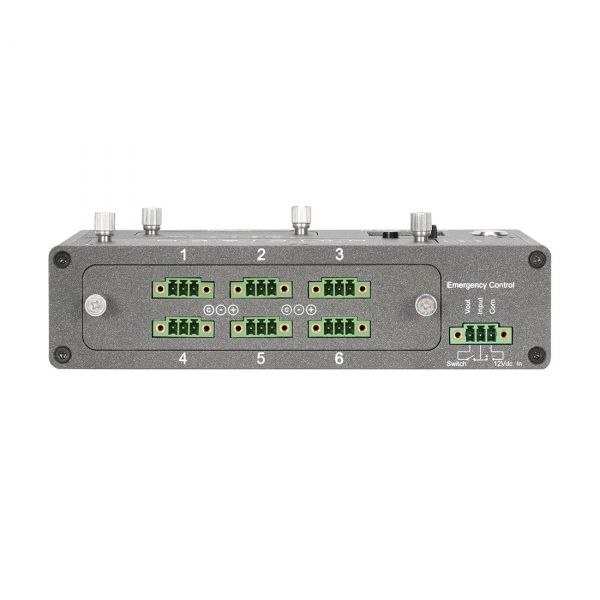

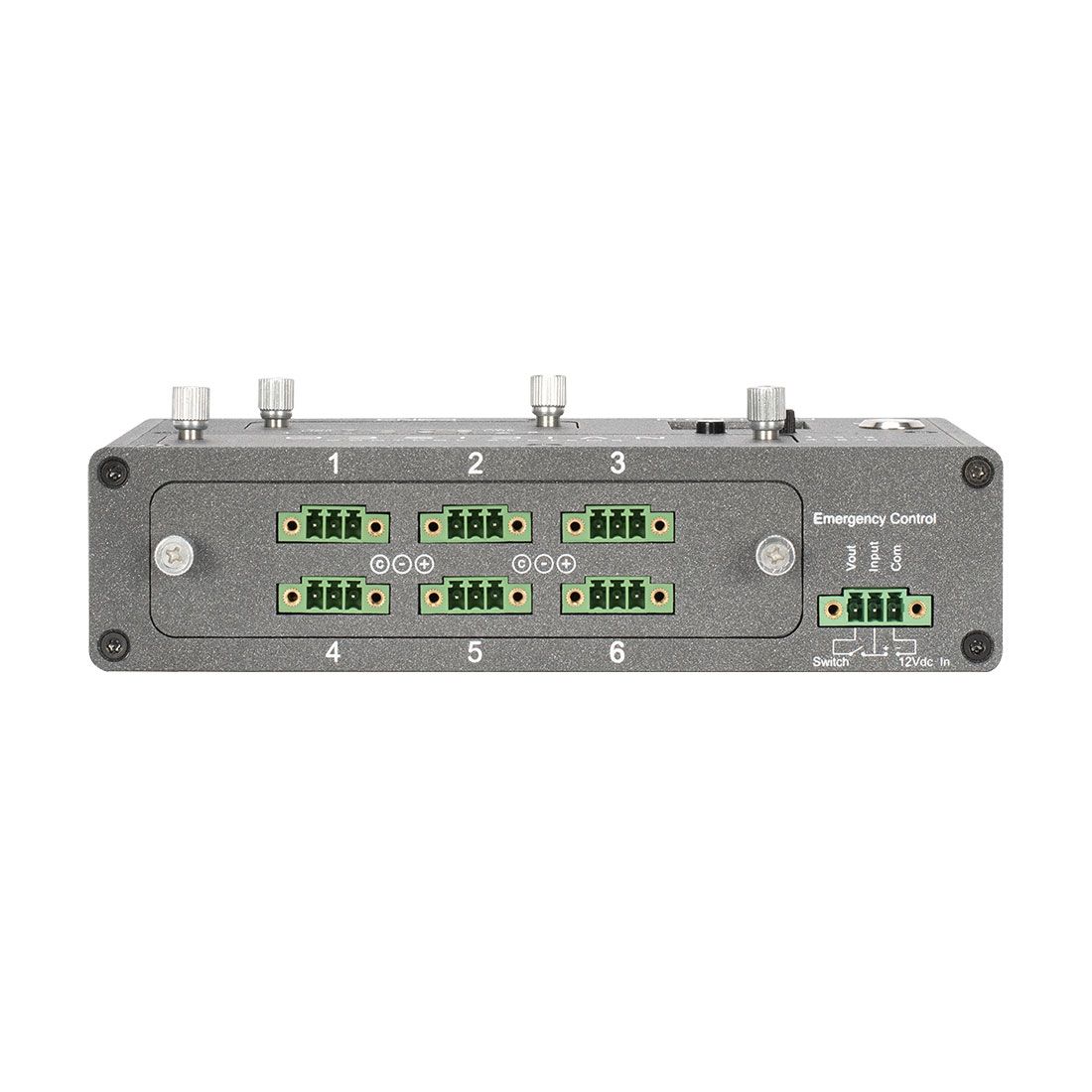

6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate

TOP

(2) RJ45 Gigabit Ethernet (1x POE) or Cover Plate
DC In (2pin Terminal Block)
USB-C (5V/2A)

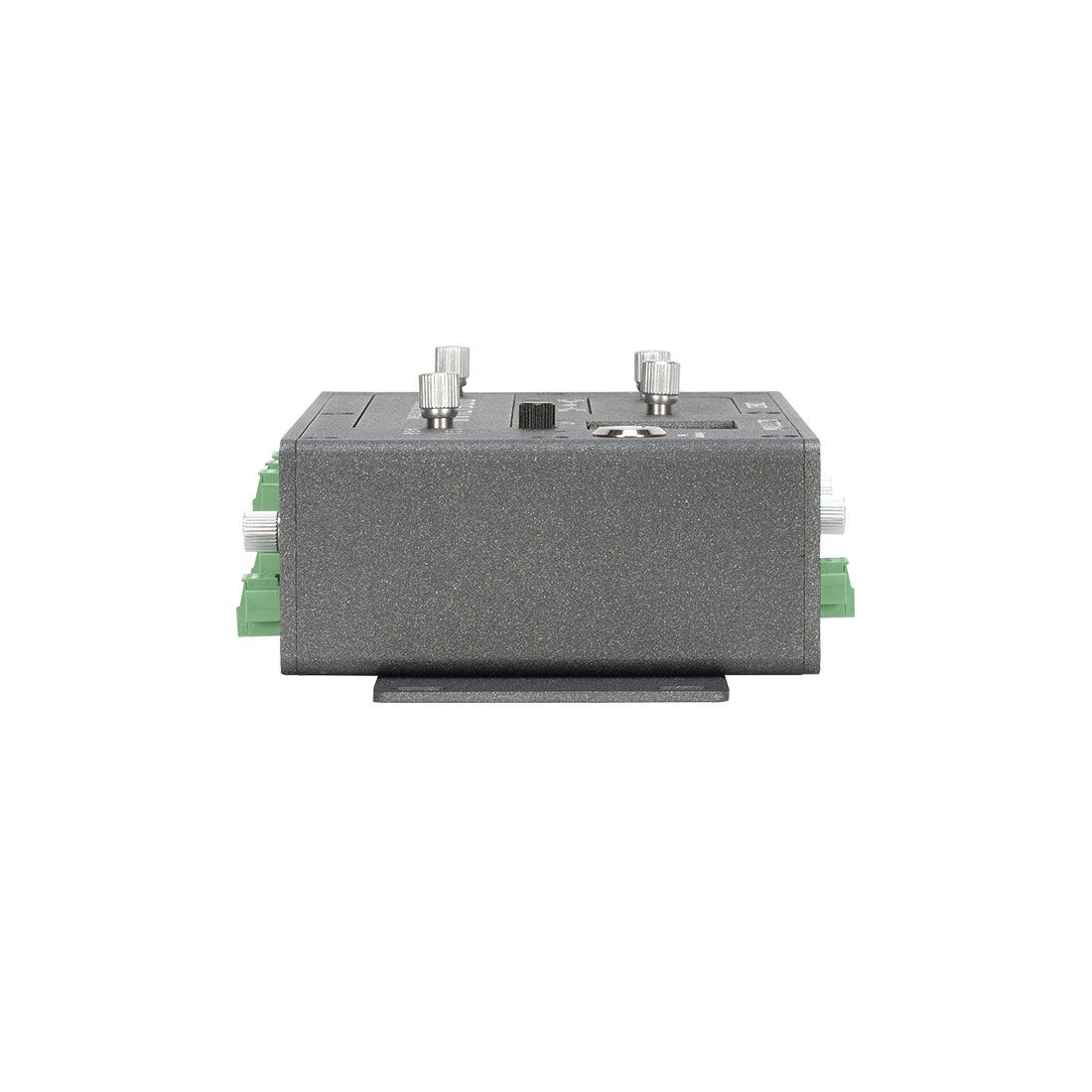

PHYSICAL

Length: 116 mm (4.7 in.)
Width: 143mm (5.6 in.)
Height: 52 mm (2.1 in.)
Weight: kg ( lbs)


ELECTRICAL

POE 802.3af
DC 9-48V
USB-C (5V/2A)

FIRMWARE UPDATES

Current Firmware can be found here (login required)



Specifications and documentation subject to change without notice
