Code
1330000065













FEATURES
RDM, Artnet and sACN supportFactory and user presets for plug and play setups
Line Voltage or POE powered
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated aluminum ½ rack housing
Connect to ONYX PC for a full four Universe Solution
SPECIFICATIONS
MOUNTING

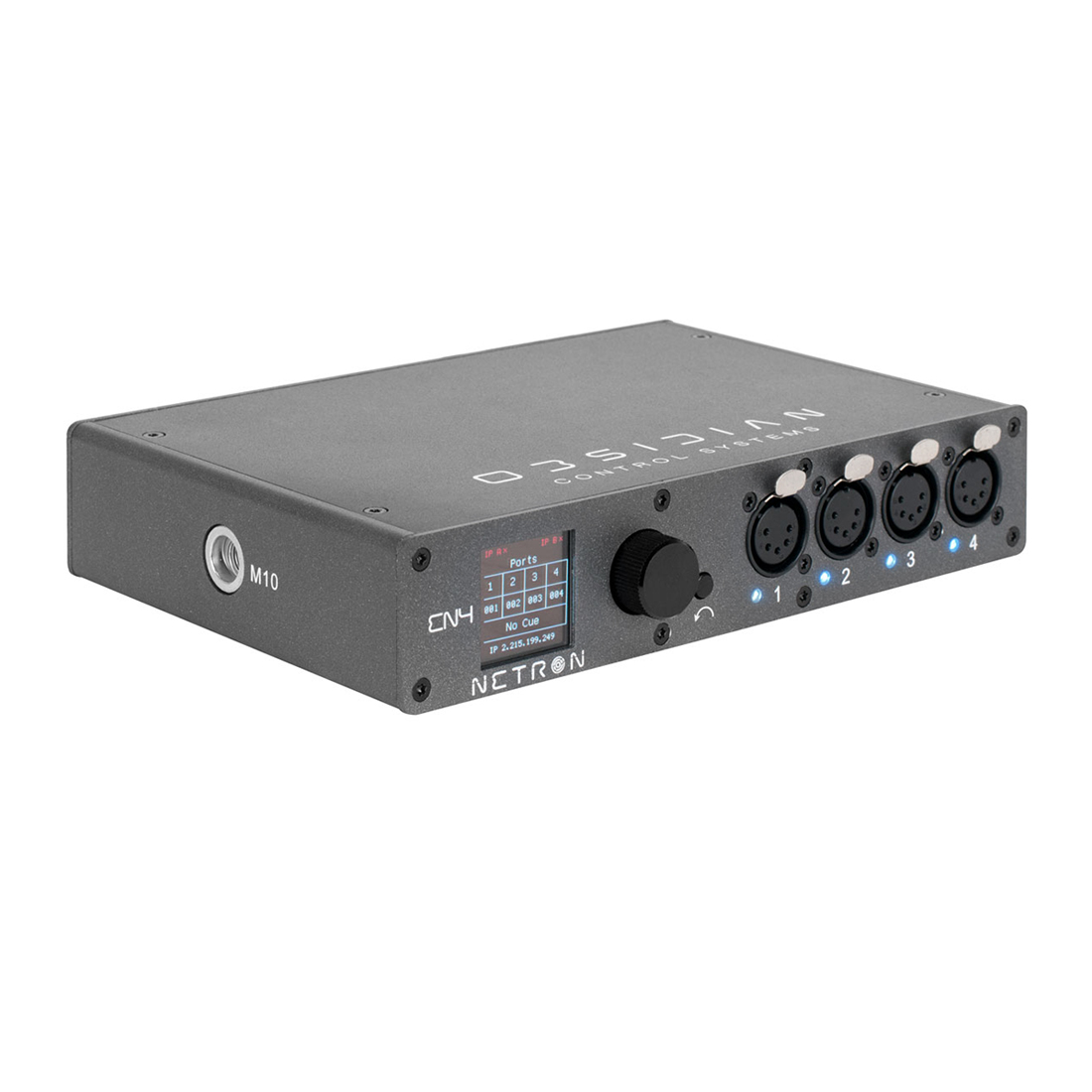

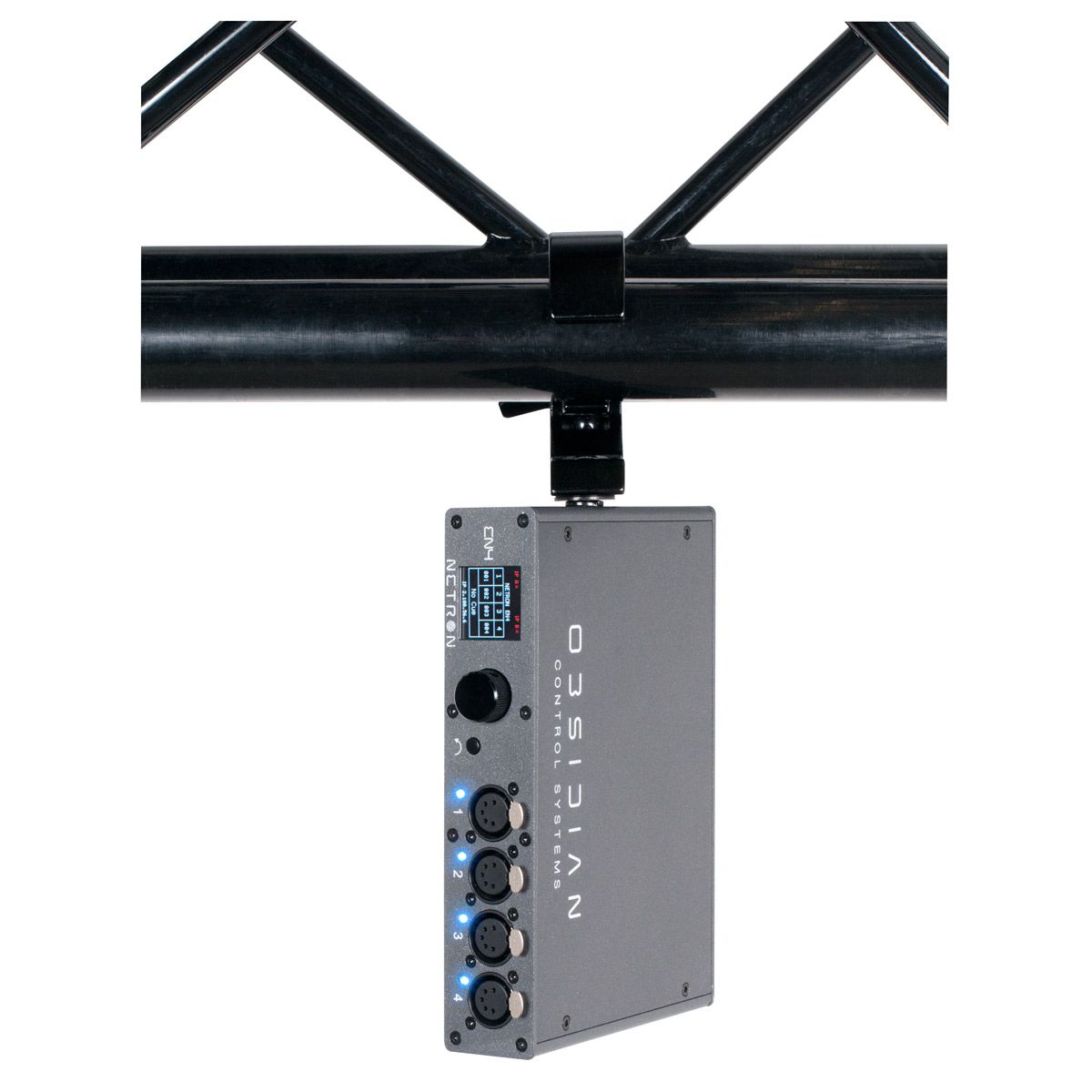

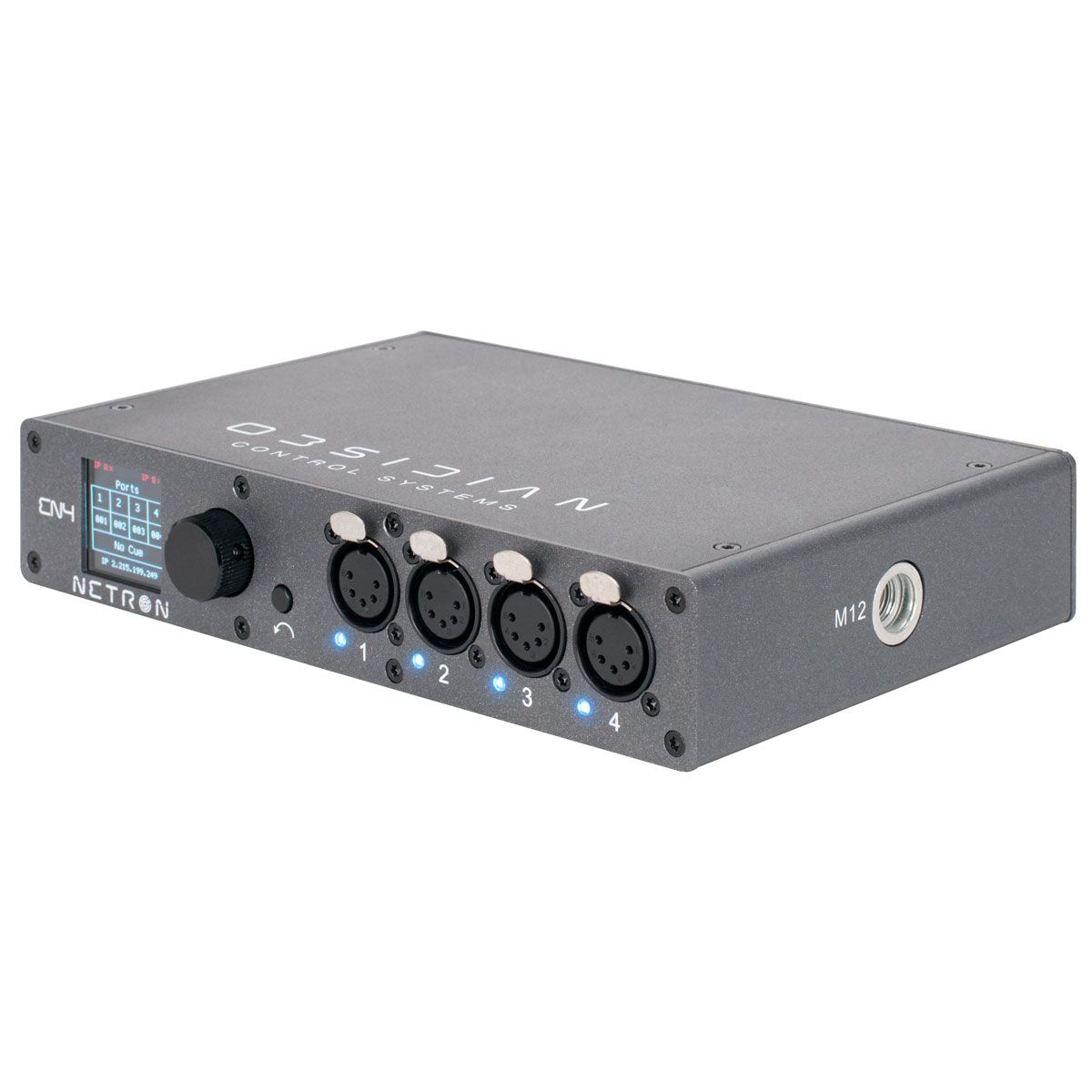

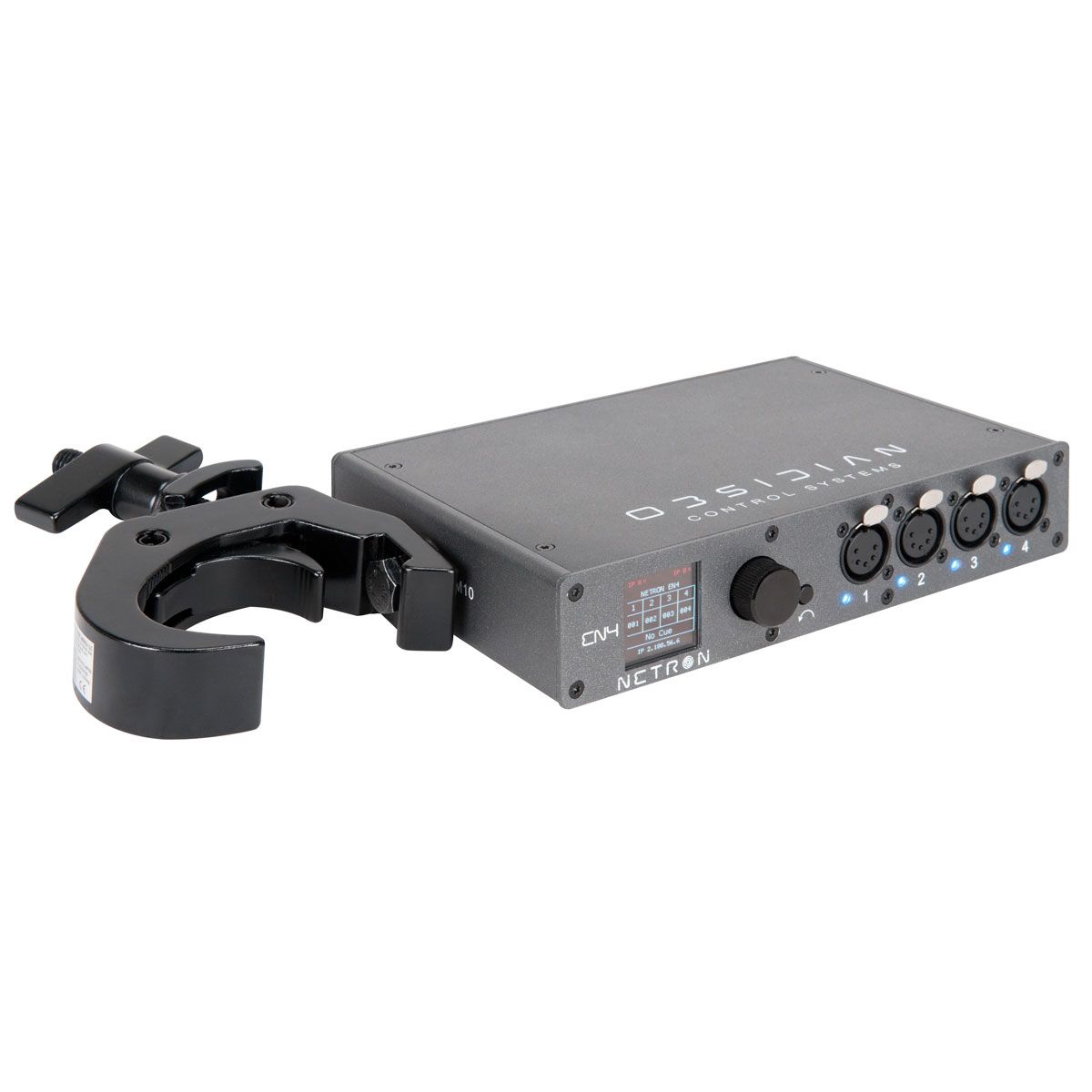

Standalone Truss-mount (M10 or M12 mounting hole)

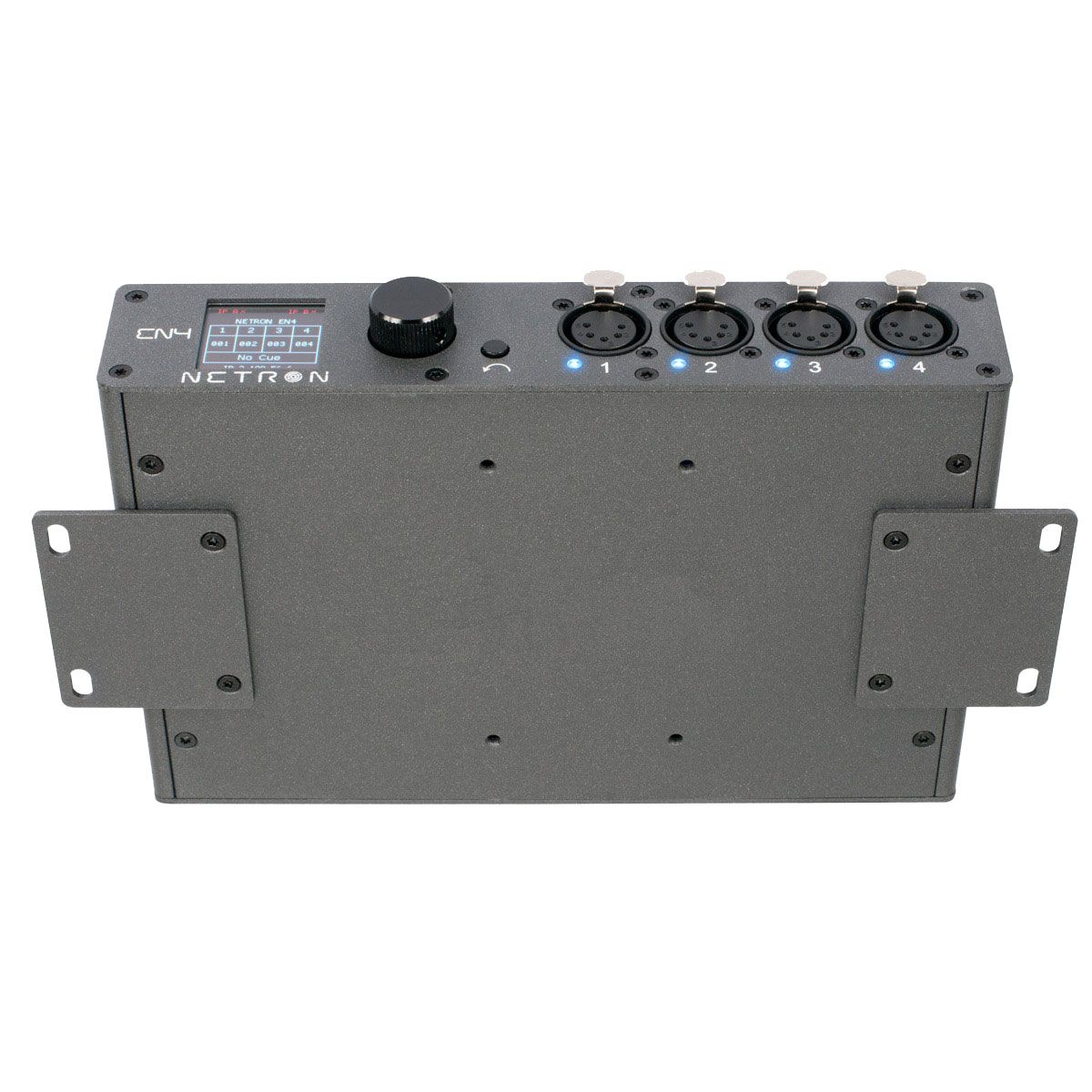

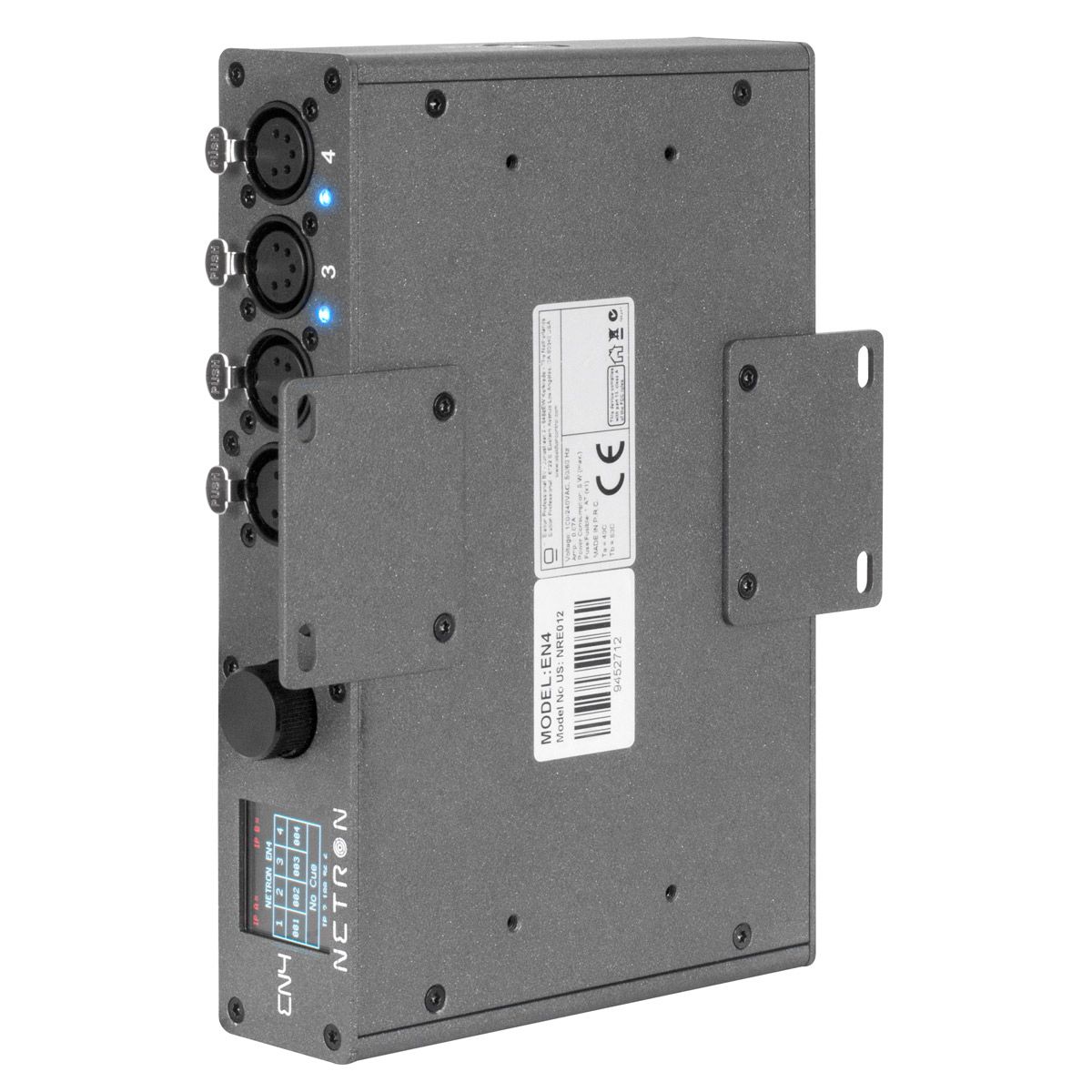

Wall-mount horizontal or vertical (included)

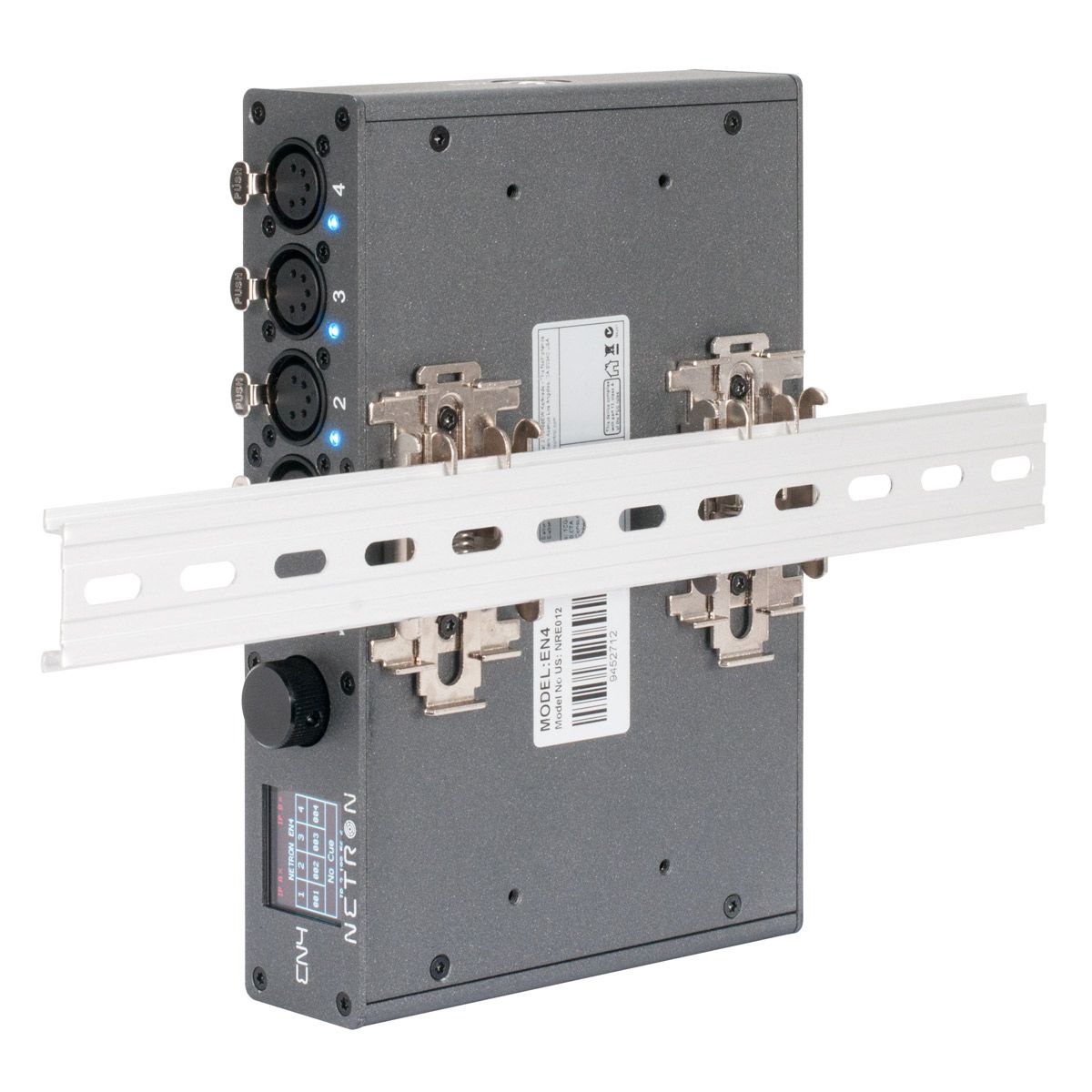

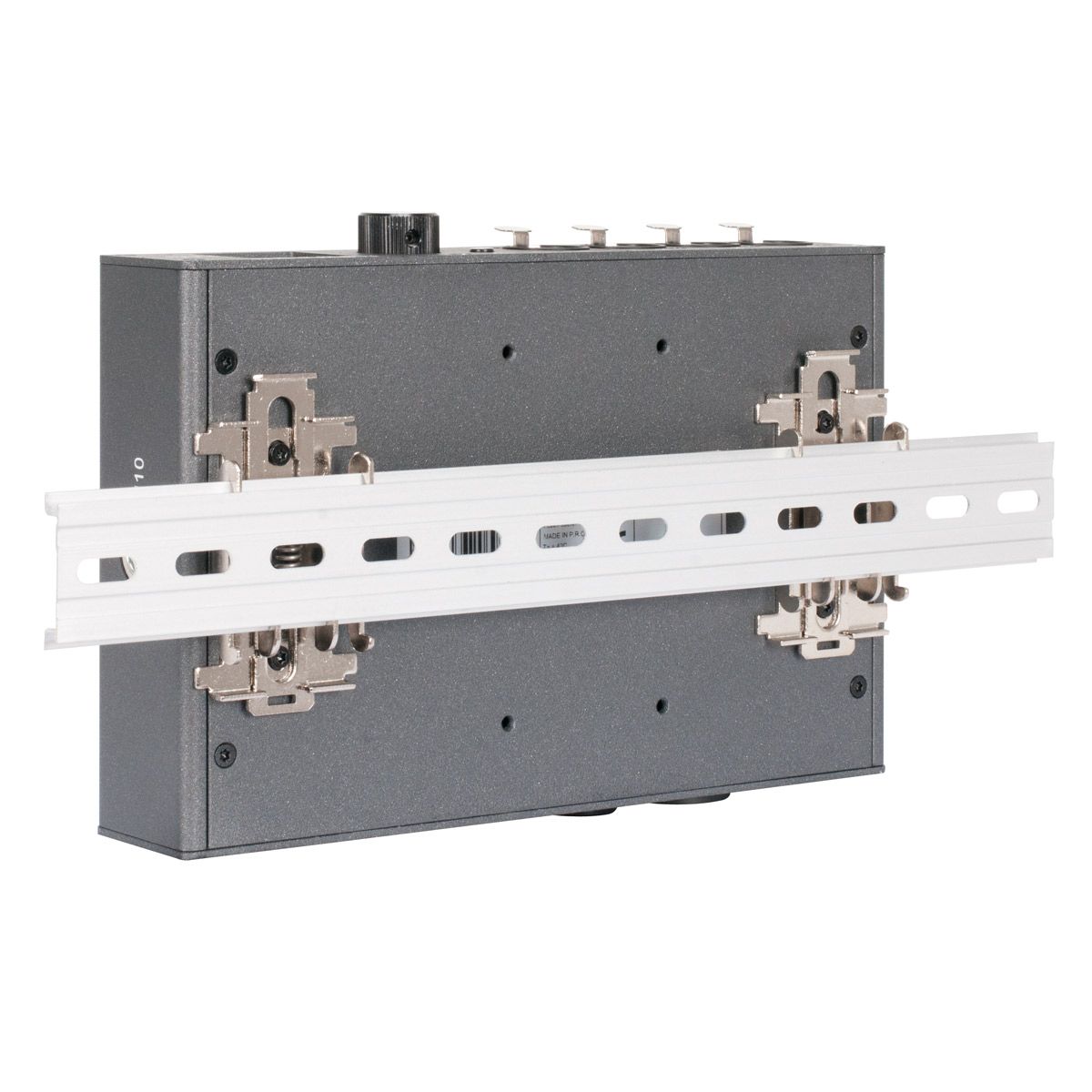

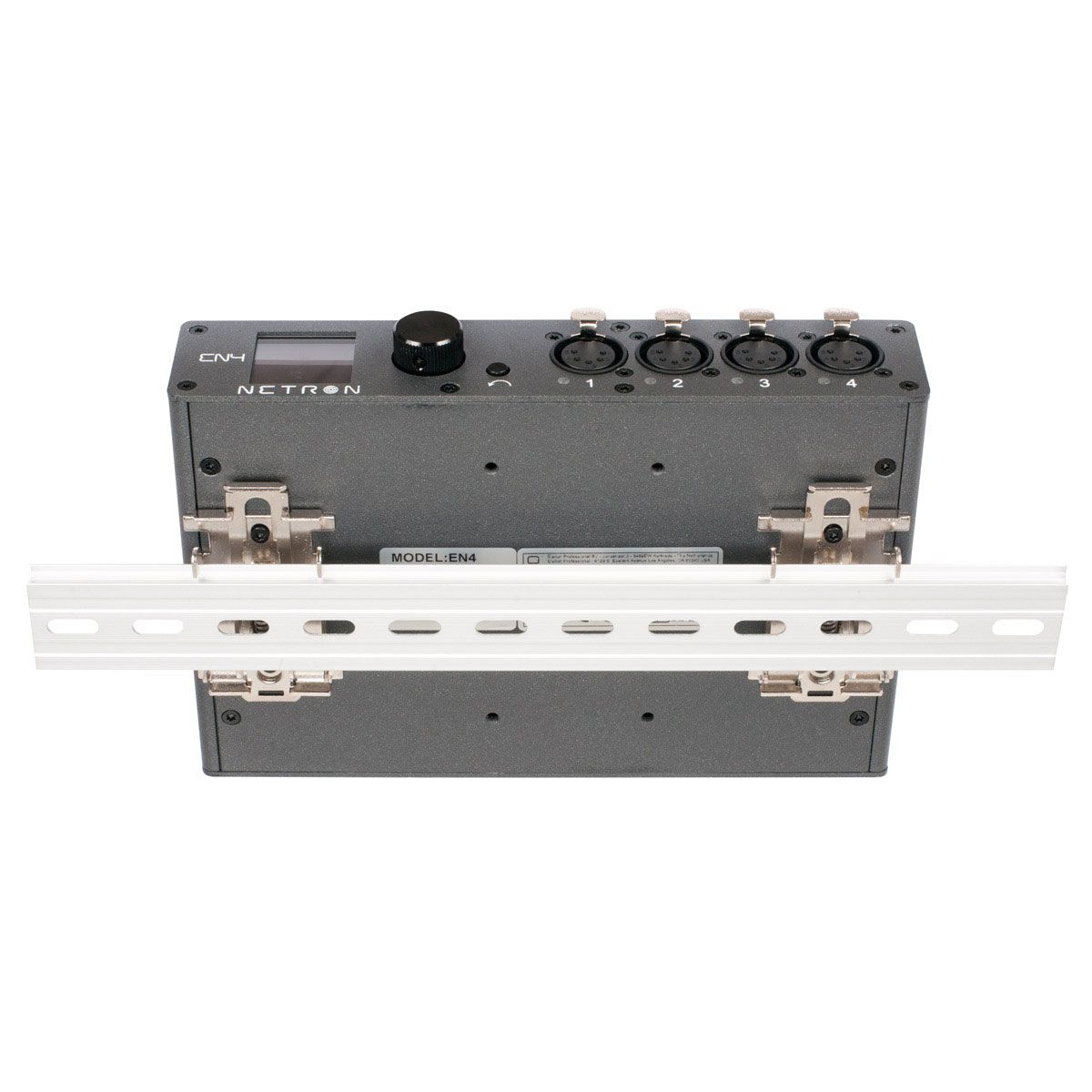

DIN Rail horizontal or vertical (included)

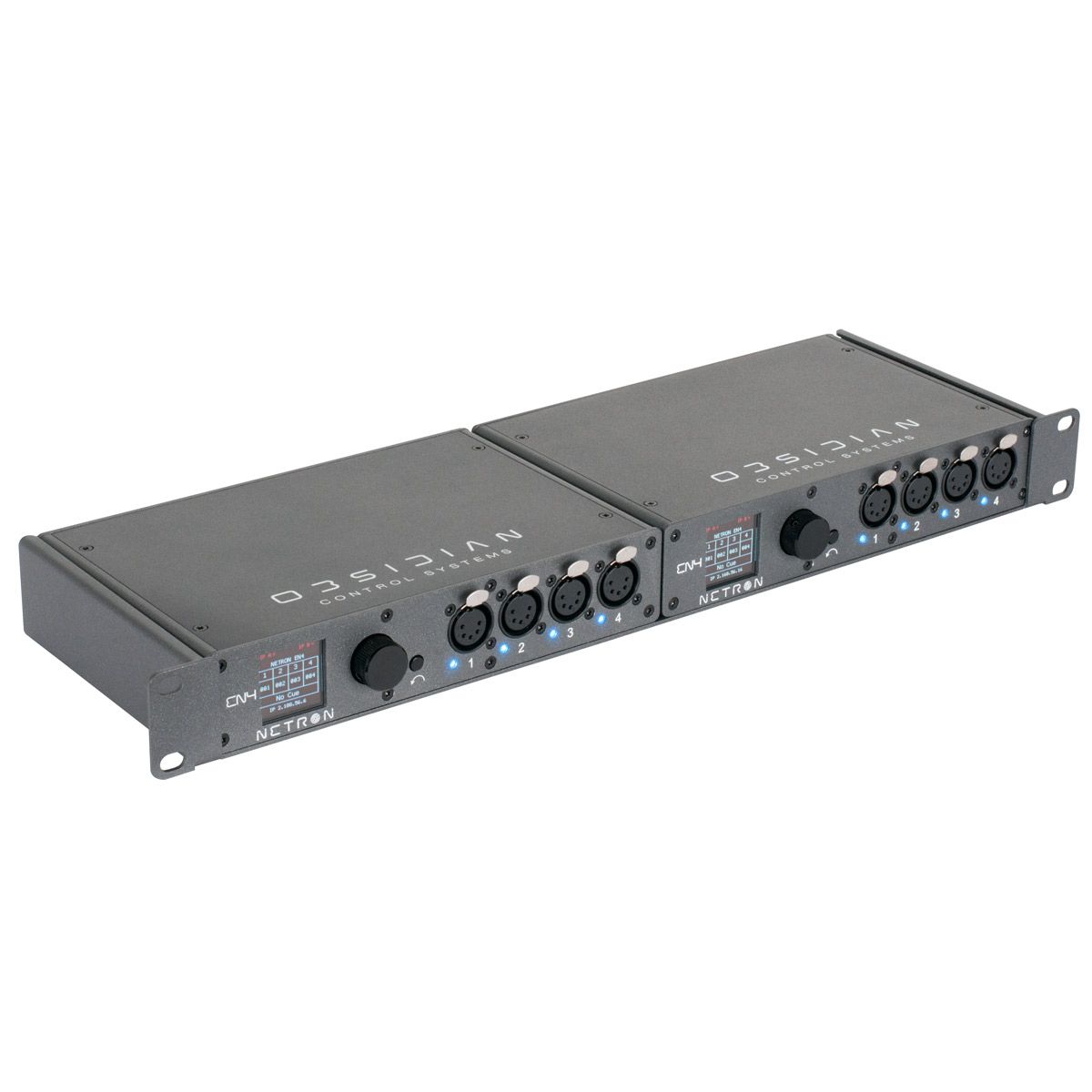

Rack-mount option (requires NET Shelf)
CONNECTIONS

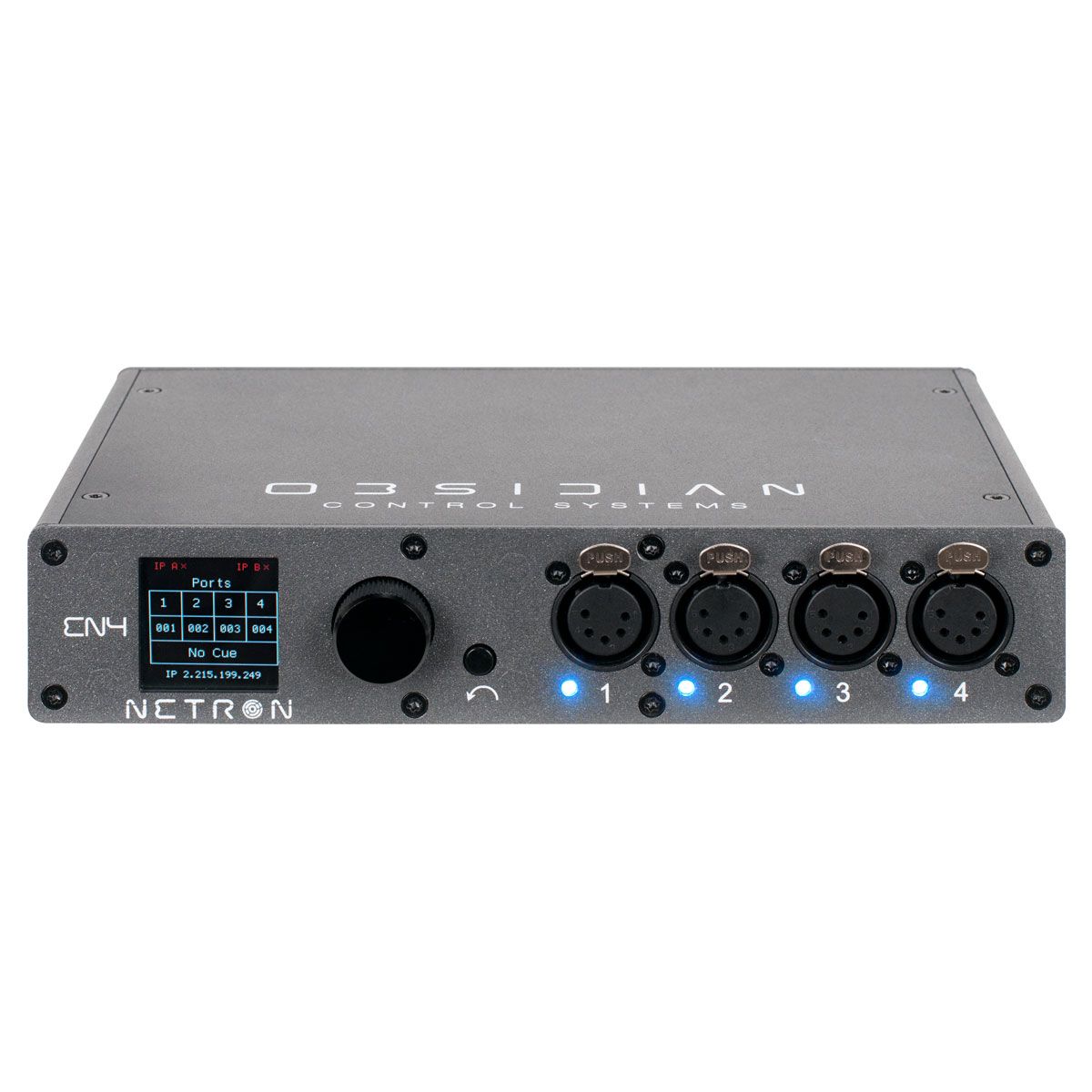

FRONT
(4) 5pin DMX/RDM optically isolated portsPorts are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

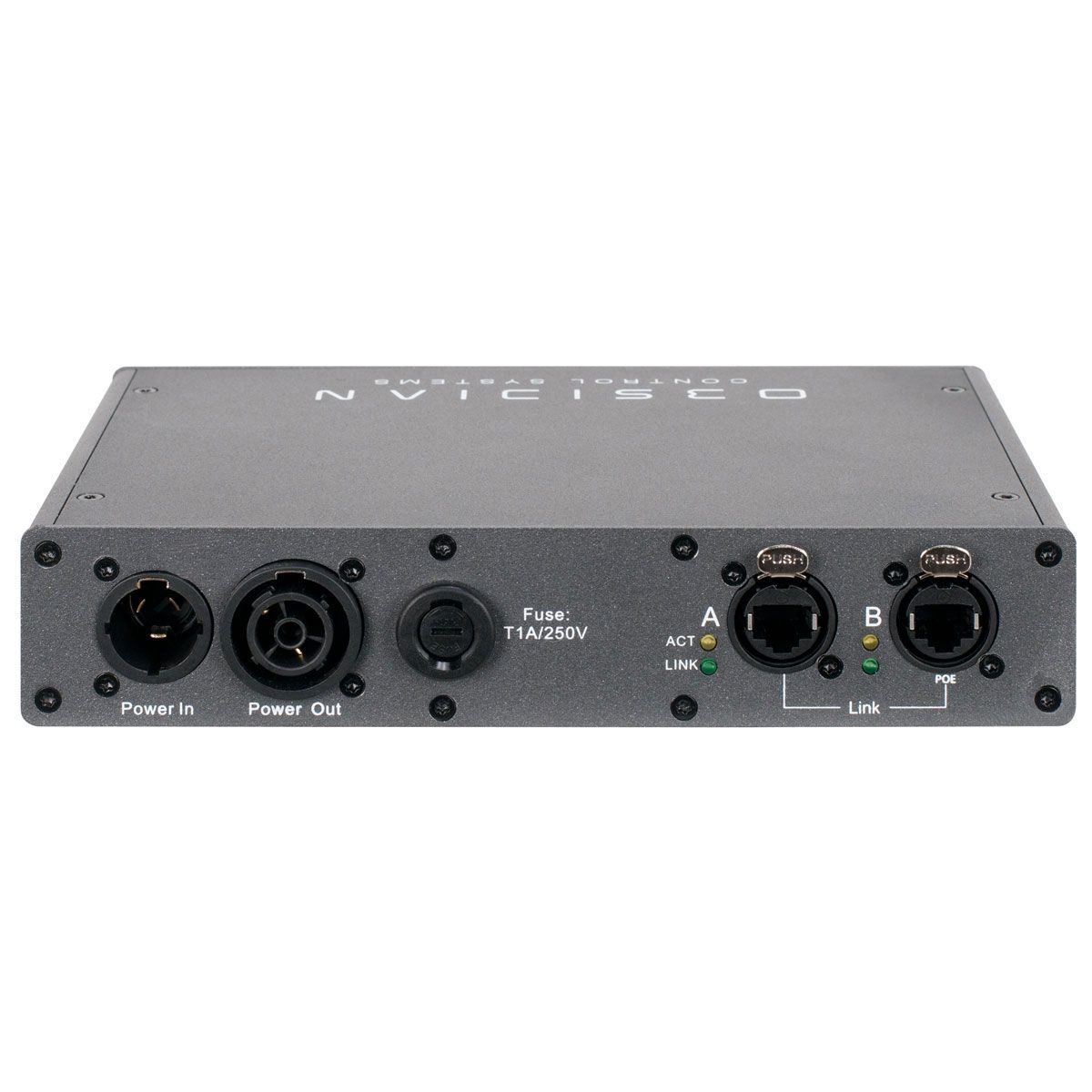

BACK
Locking Power In/Thru(2) Locking RJ45 Ethernet network connections (1x POE)
PHYSICAL
Length: 215 mm (8.5 in.)Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
ELECTRICAL
100-240 V nominal, 50/60 Hz,10WPOE 802.3af
FIRMWARE UPDATES
Current Firmware can be found here (login required)Specifications and documentation subject to change without notice
