EN12

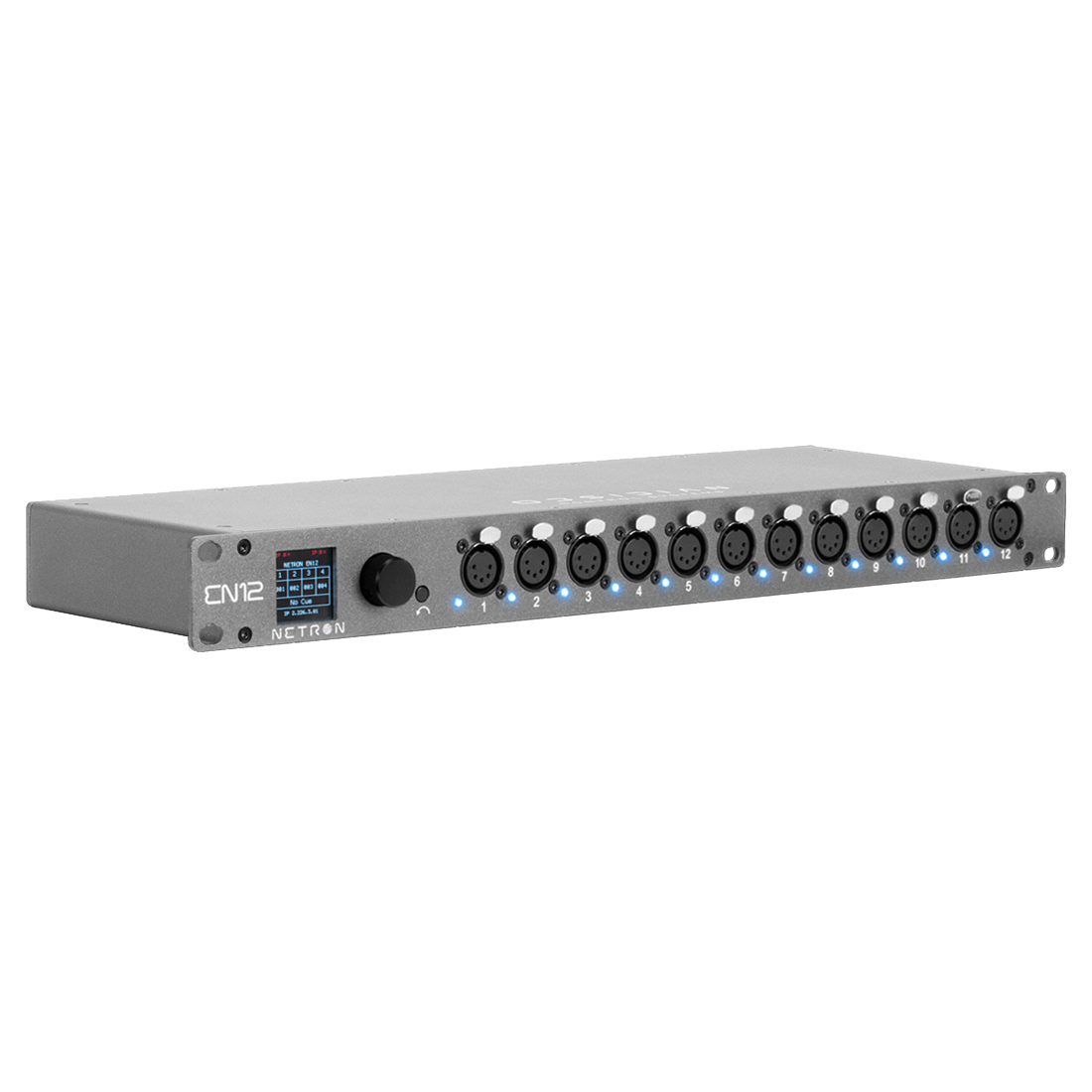

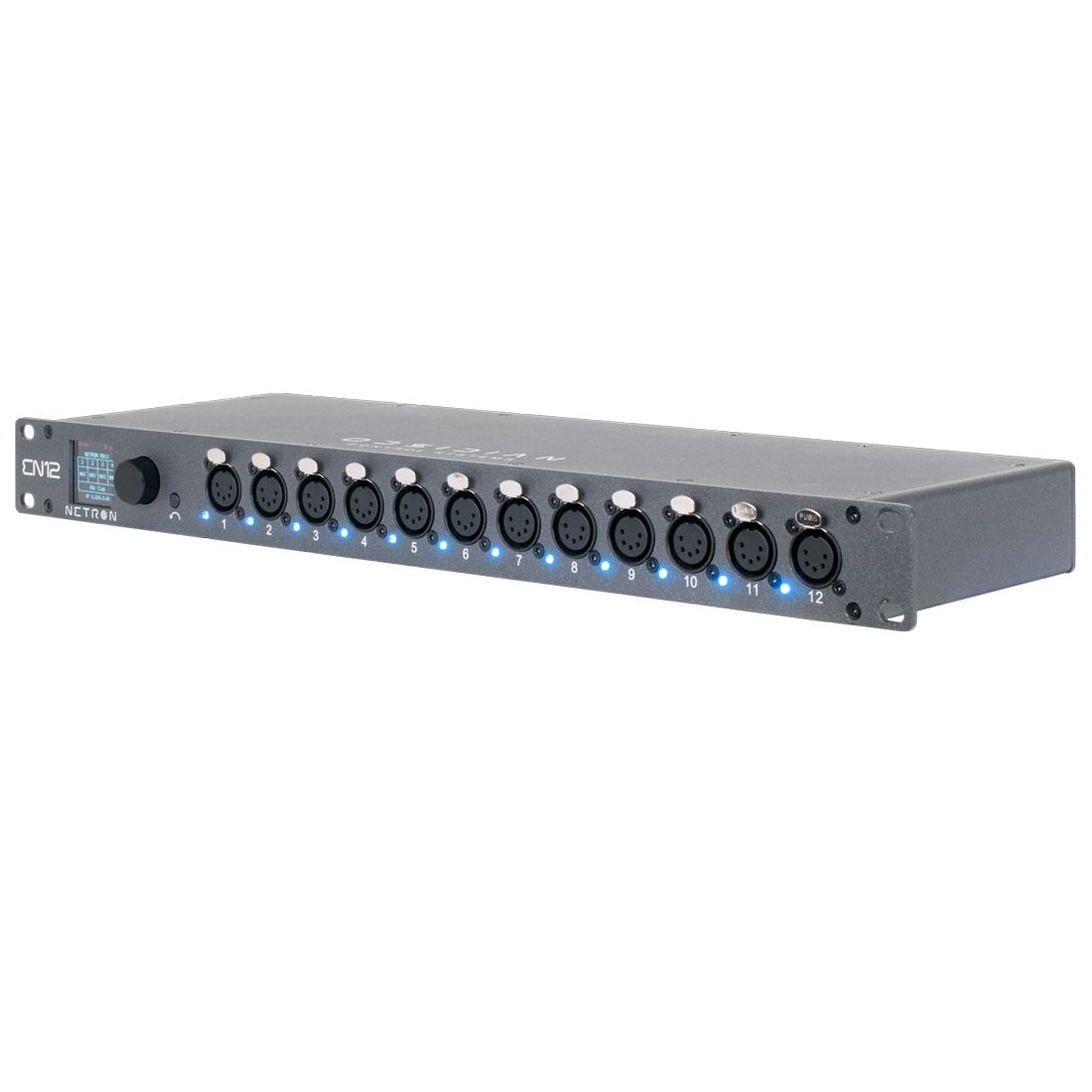

The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.

Click here to learn more about the EN12 & for all technical details and documentation

Technical Data

FEATURES

RDM, Artnet and sACN support
Factory and user presets for plug and play setups
Line Voltage or POE powered
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Customizable routing and merging options
Remote configuration via internal webpage
Contact closures for cue or preset recall
Powder-coated aluminum rackmount housing

SPECIFICATIONS

MOUNTING

Rackmount

CONNECTIONS

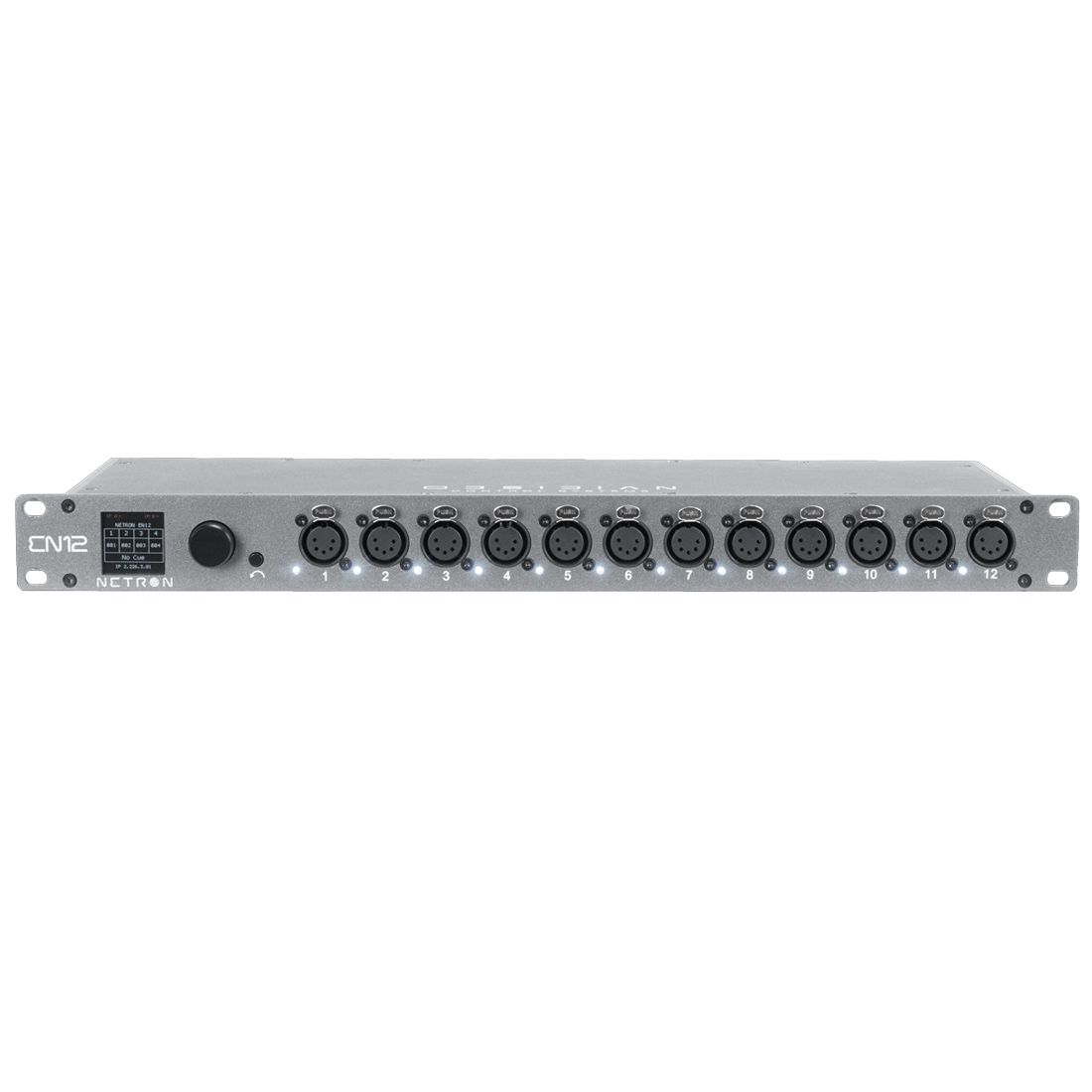

FRONT

(12) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

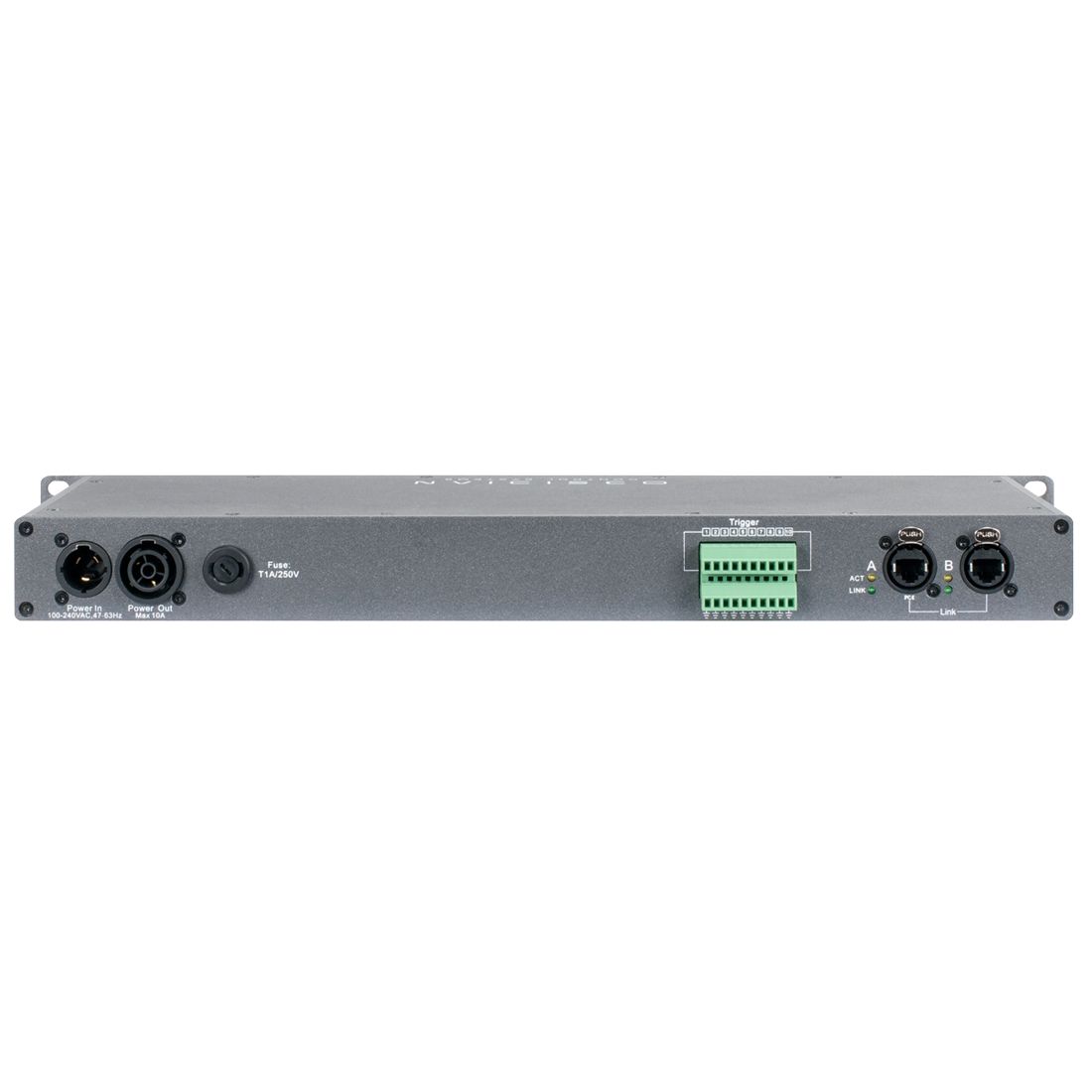

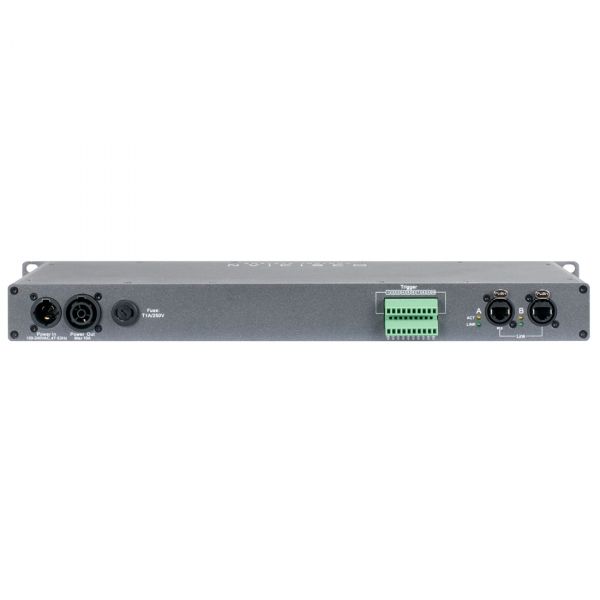

BACK

(2) Locking RJ45 Ethernet network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru

PHYSICAL

Length: 482.5 mm (19 in.)
Width: 146 (5.7mm)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs.)

ELECTRICAL

100-240 V nominal, 50/60 Hz
POE 802.3af

FIRMWARE UPDATES

Current Firmware can be found here (login required)



Specifications and documentation subject to change without notice
