EP4

4U XLR sACN Art-Net Node POE

Code 1330000064

The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection. Click here to learn more about the EP4 & for all technical details & documentation

Code 1330000064

EP4

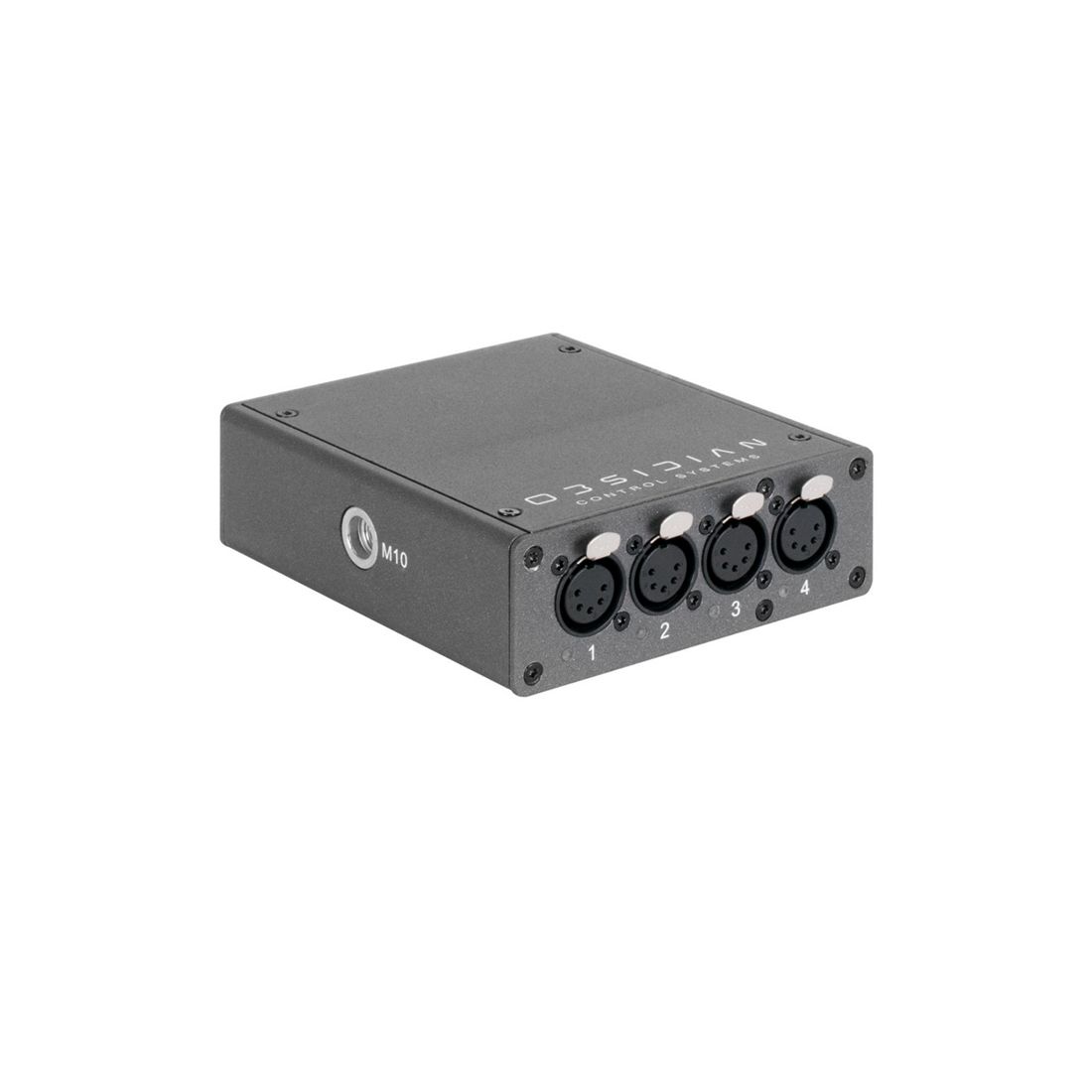

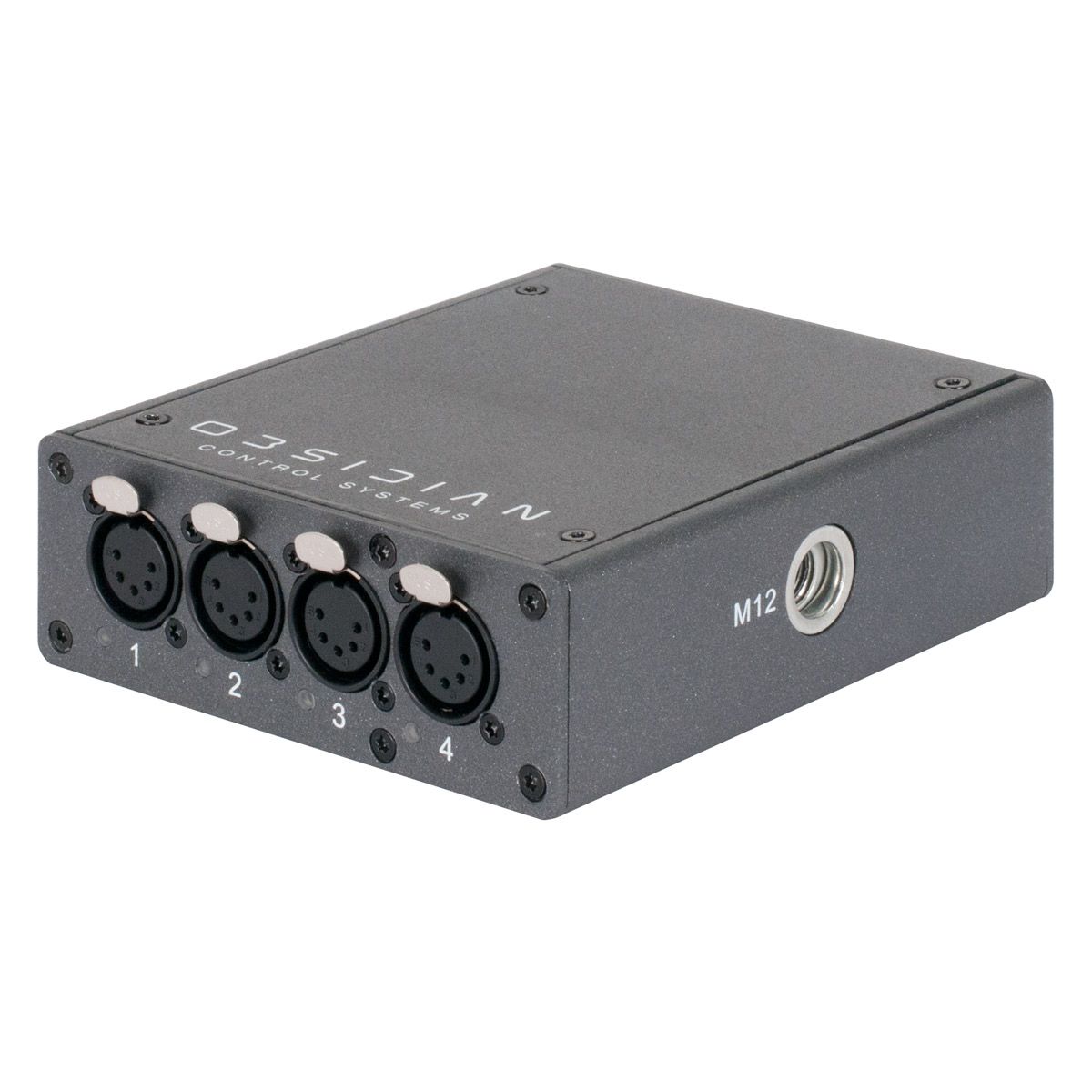

The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.

Click here to learn more about the EP4 & for all technical details & documentation

Technical Data

FEATURES

RDM, Artnet and sACN support
Factory and user presets for plug and play setups
POE or USB-C powered
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated compact aluminum housing
Connect to ONYX PC for a full four Universe Solution

SPECIFICATIONS

MOUNTING

Standalone

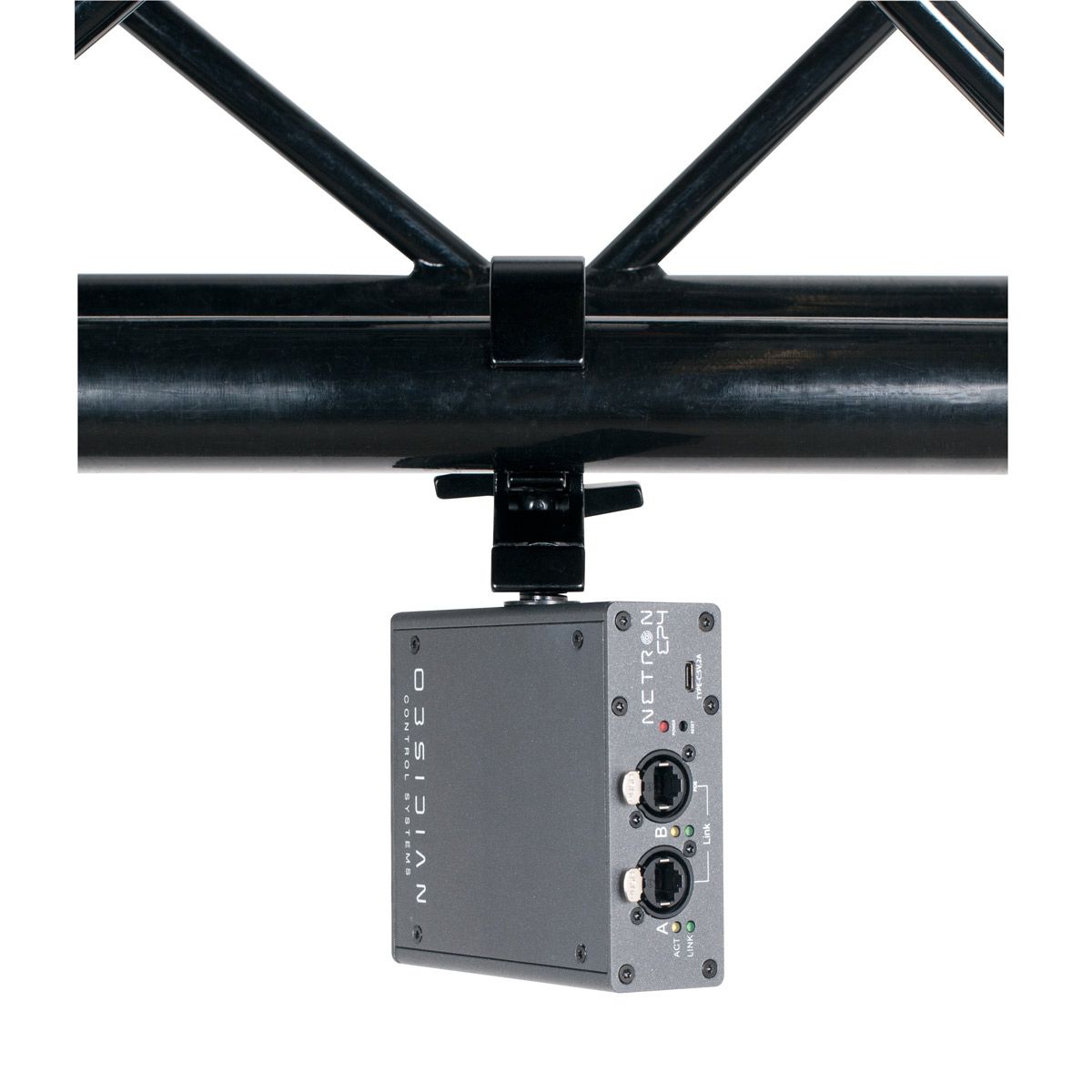

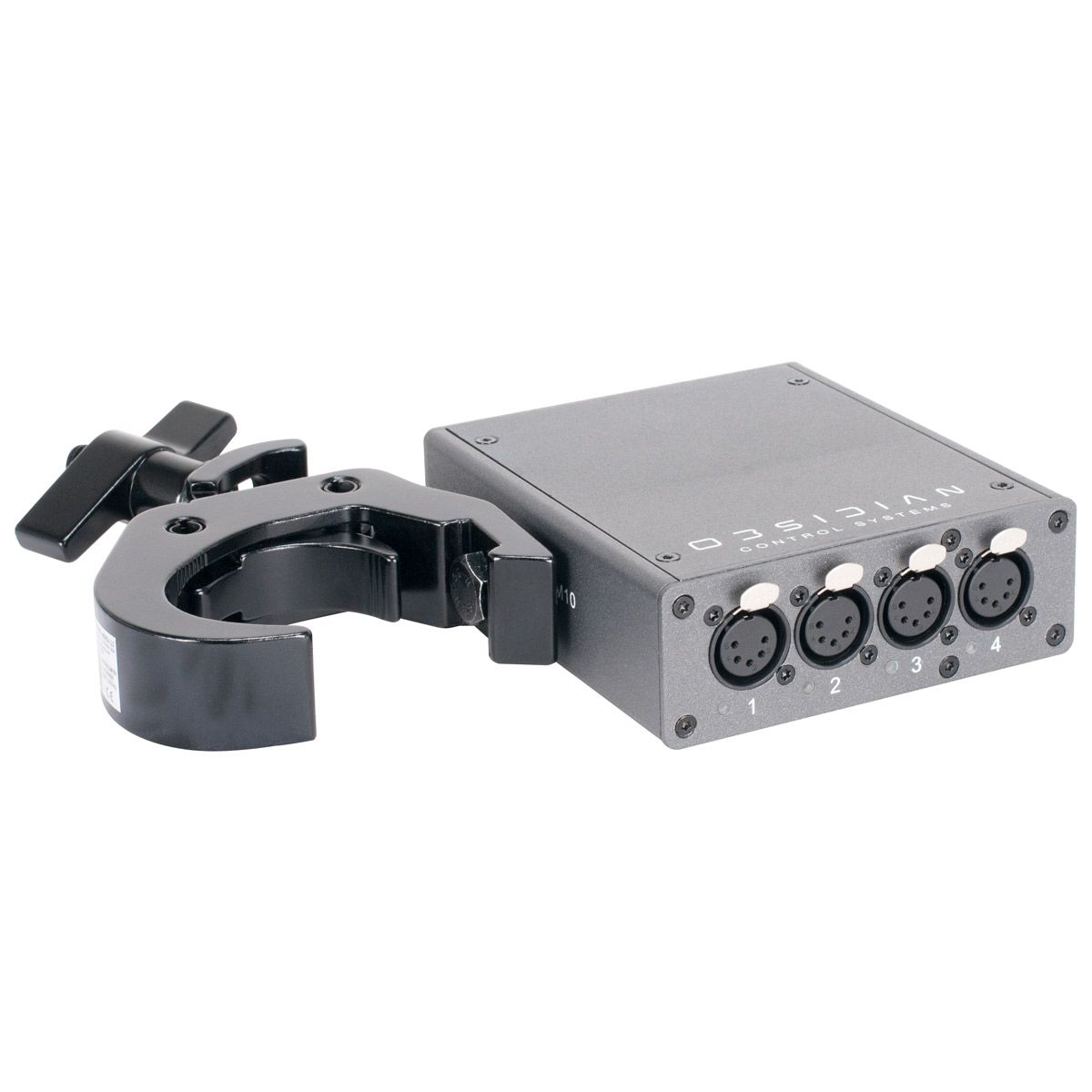

Truss-mount (M10 or M12 mounting hole)

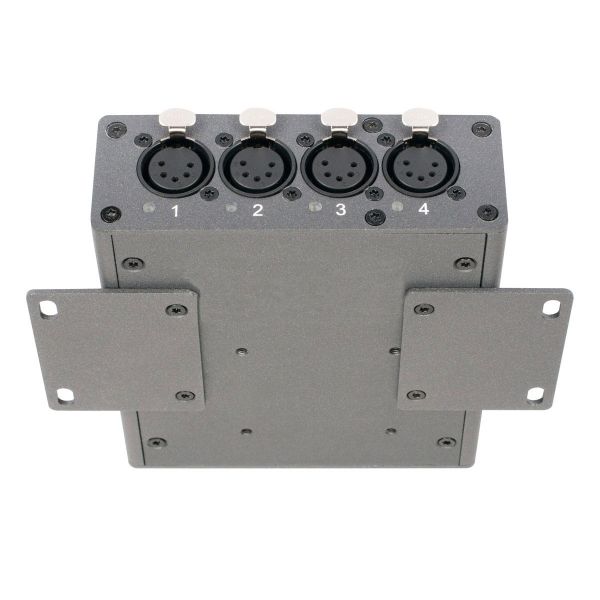

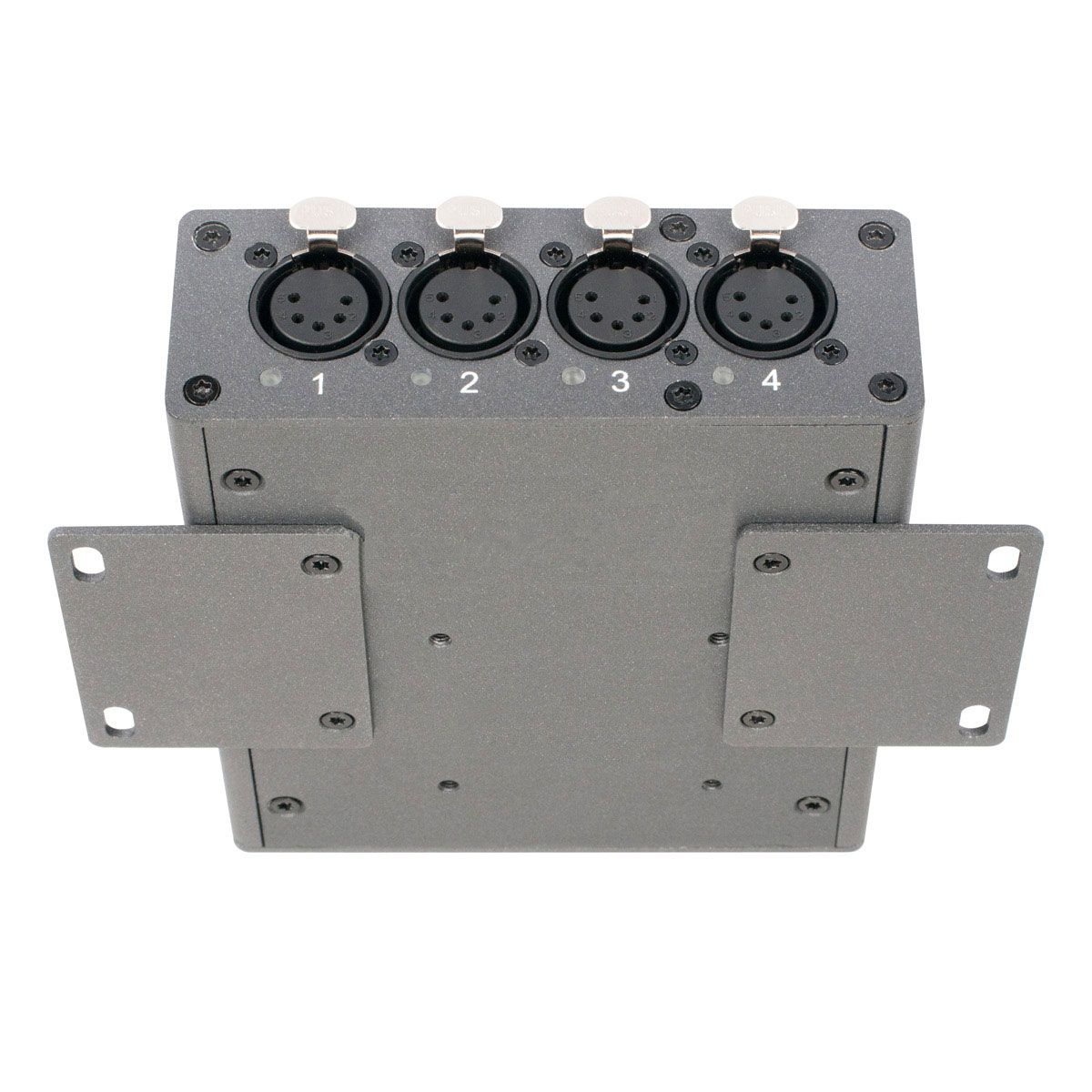

Wall-mount horizontal or vertical (included)

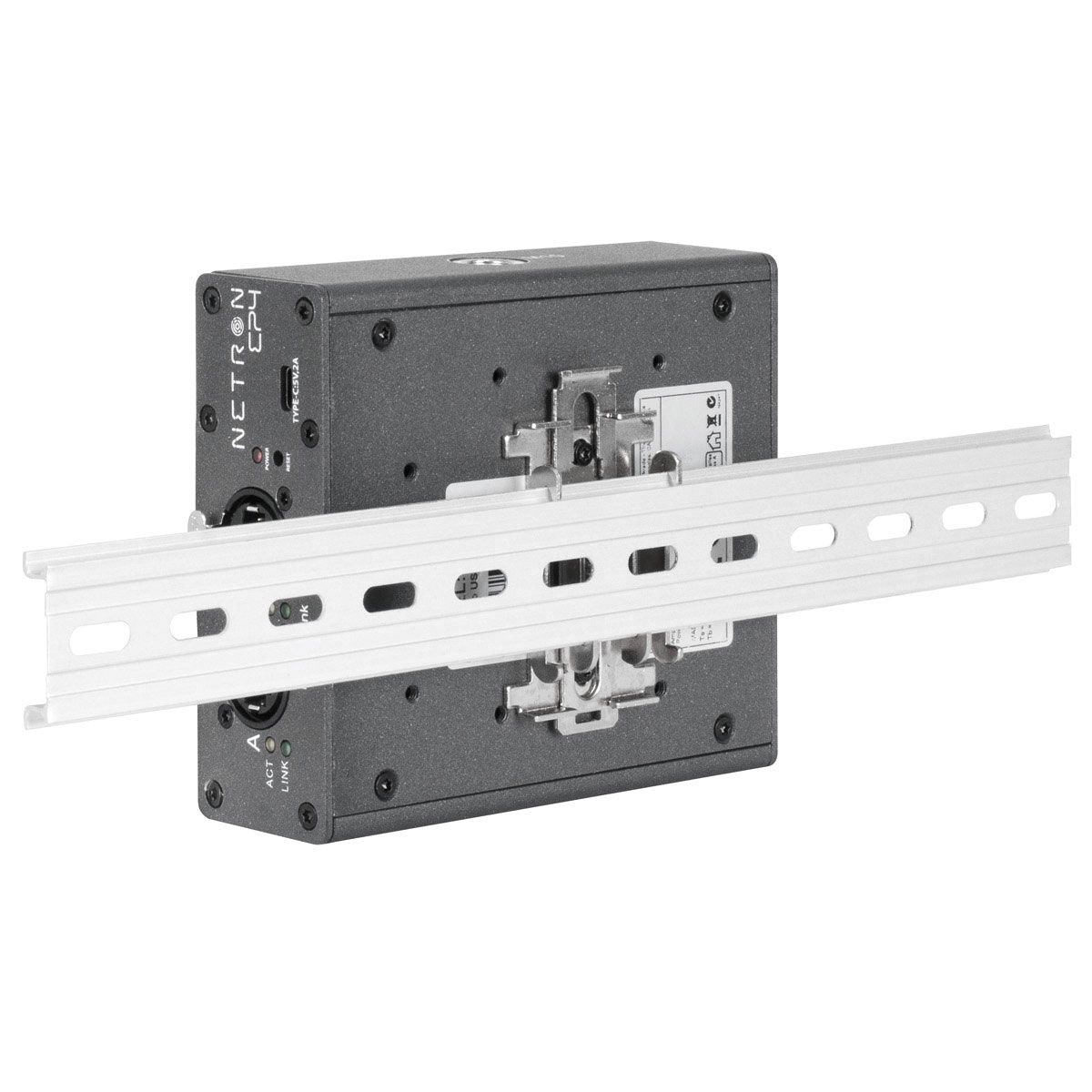

DIN Rail horizontal or vertical (included)

CONNECTIONS

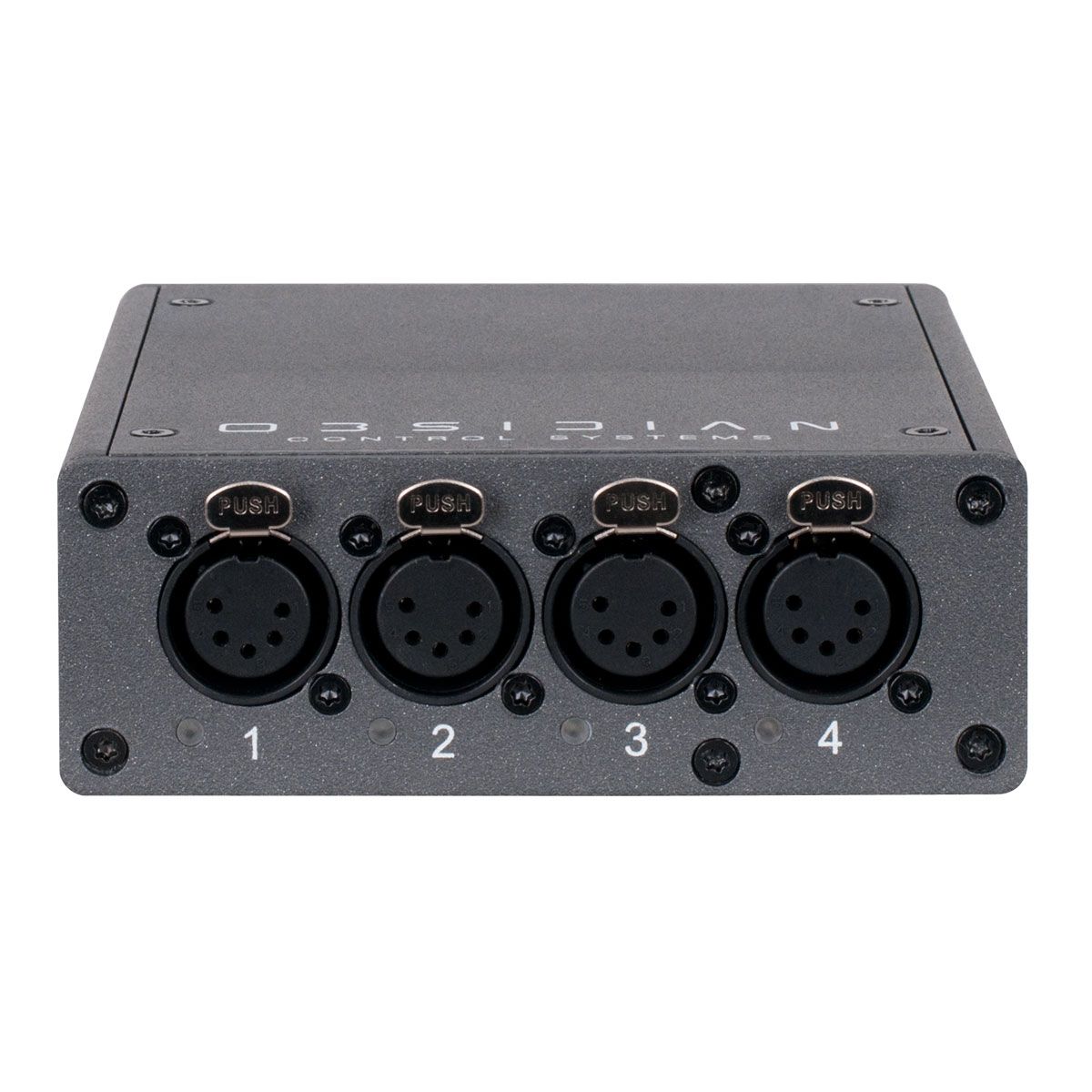

FRONT

(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output

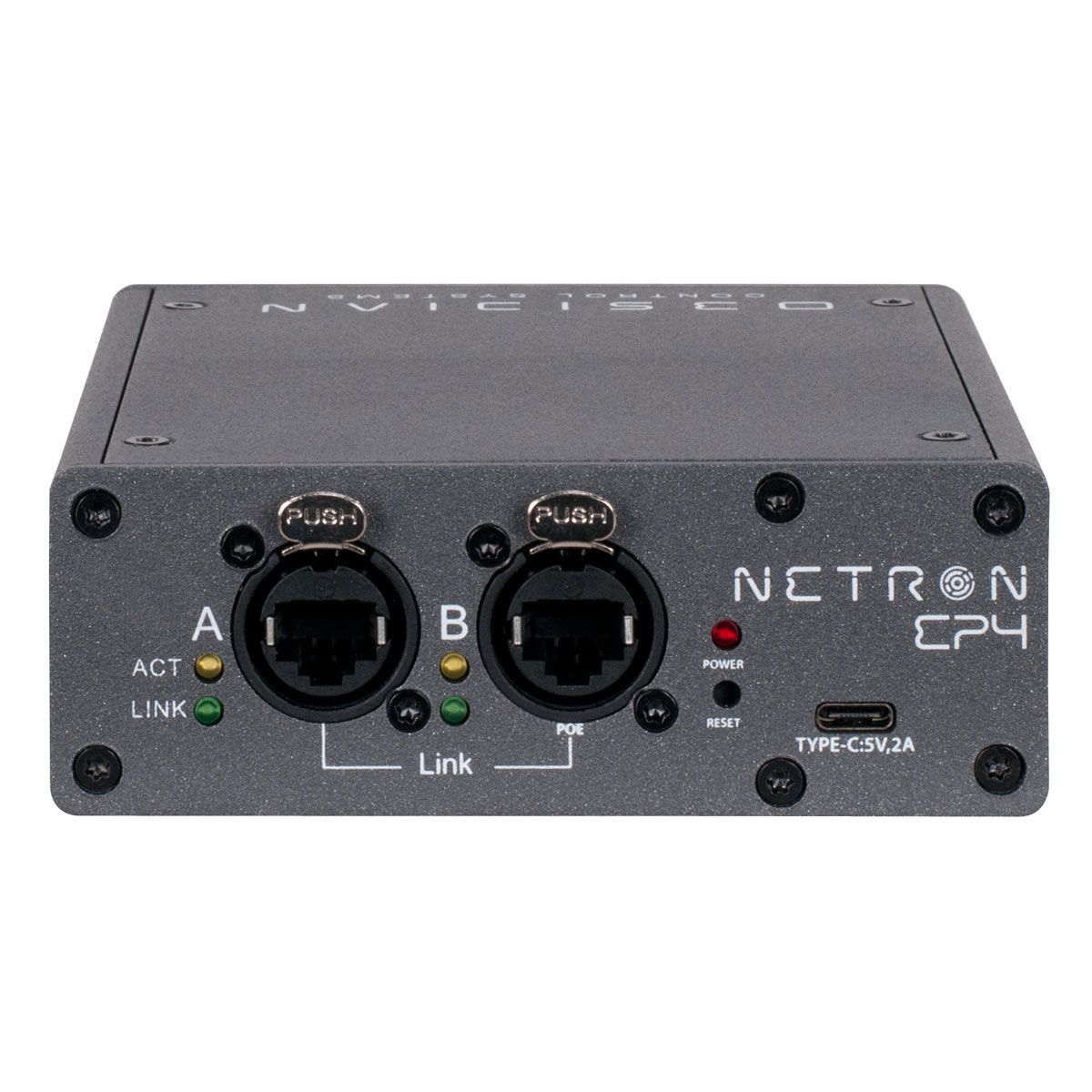

BACK

(2) Locking RJ45 Ethernet network connections (1x POE)
USB-C power option (5V, 2A)

PHYSICAL

Length: 133.5 mm (5.3 in.)
Width: 118 mm (4.6 in.)
Height: 42 mm (1.65 in.)
Weight: 0.5 kg (1.1 lbs)

ELECTRICAL

USB-C 5V
POE 802.3af
Power Consumption 3.8W

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice

Downloads

Tender Specifications

Tender Specifications (Size: 156.1 KB)
