EP2

2U XLR sACN Art-Net Node Wall

Code 1330000072

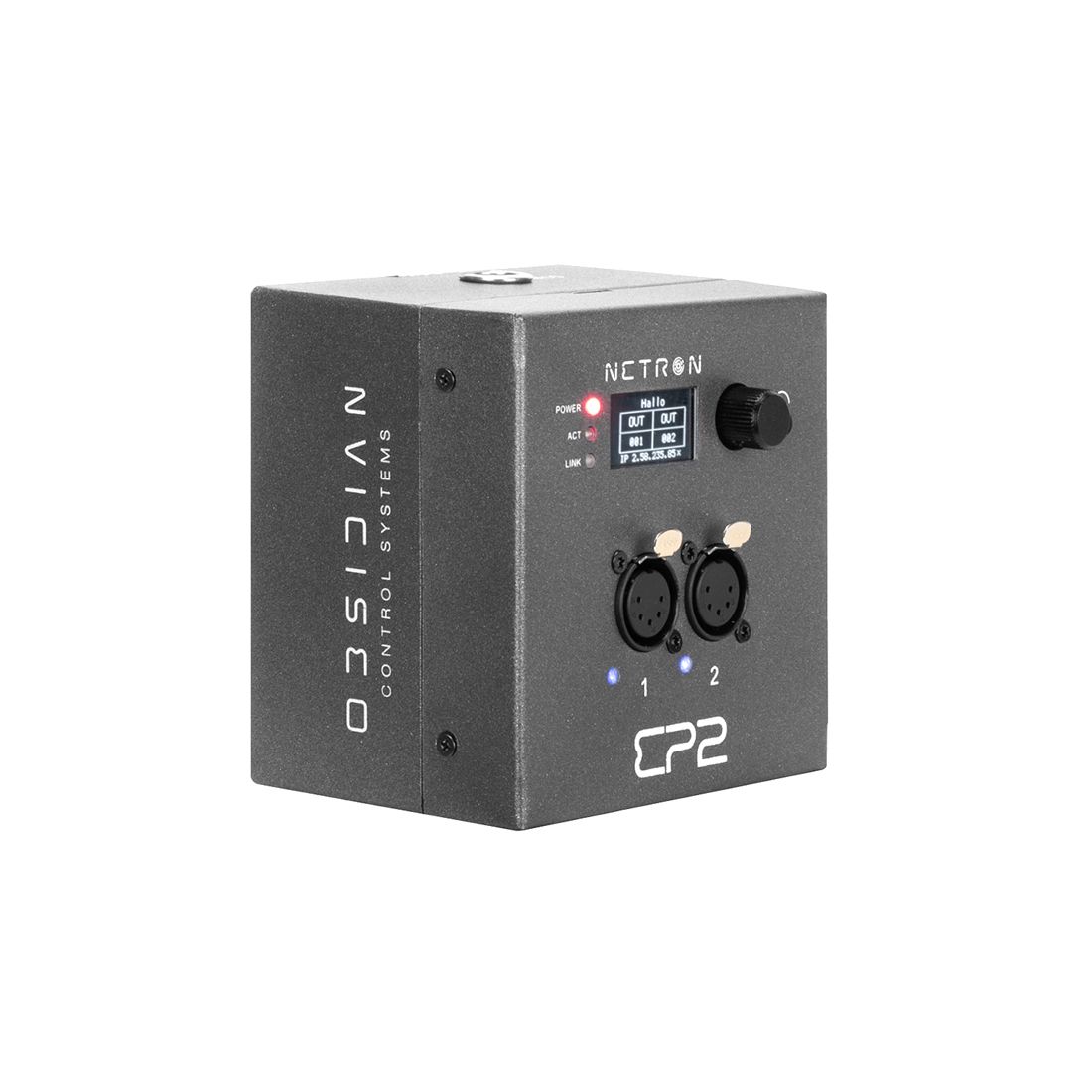

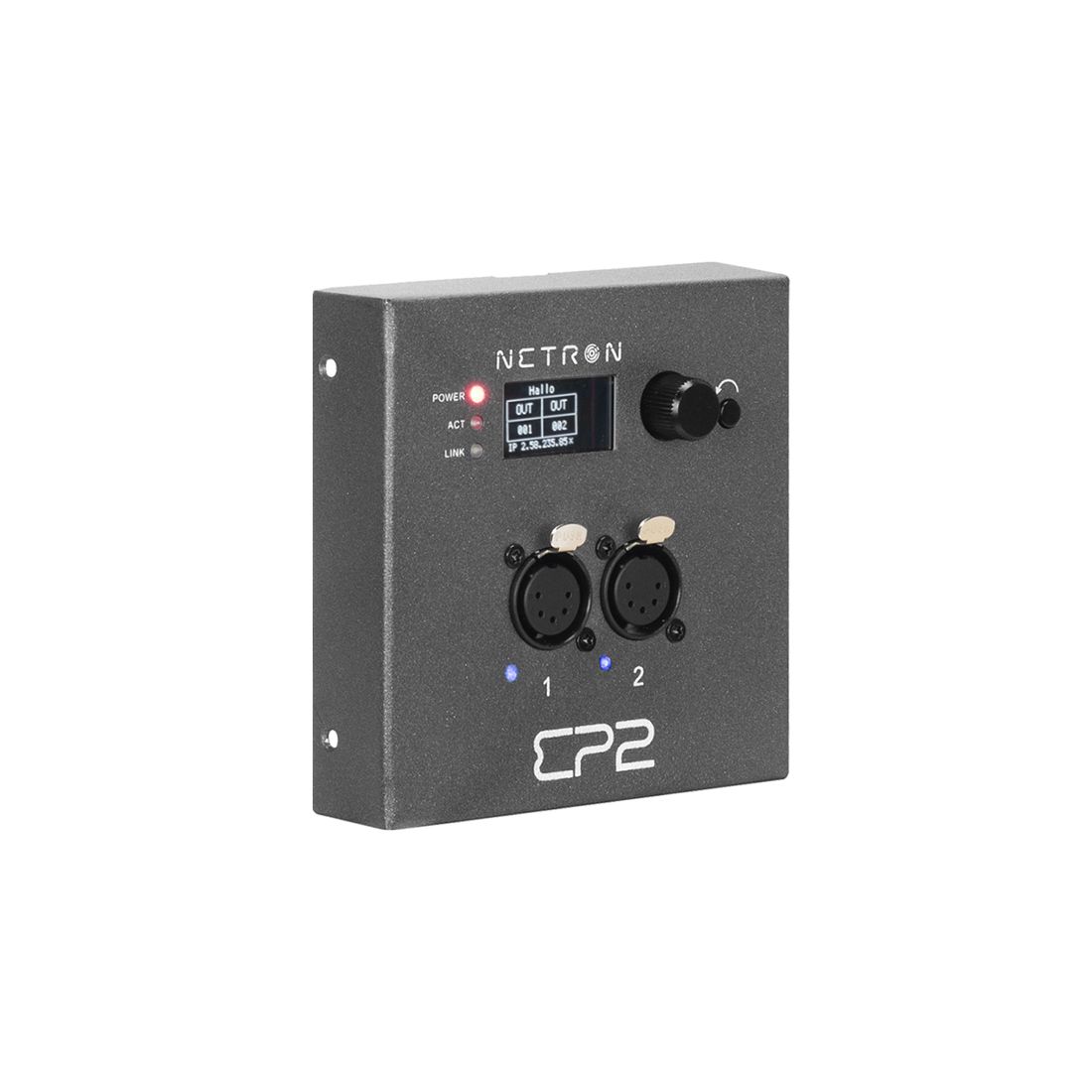

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations. It is configurable via the integrated OLED display and encoder, or the internal web remote. EP2 is powered over Ethernet or via the convenient USB-C connection.

Code 1330000072

EP2

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.

It is configurable via the integrated OLED display and encoder, or the internal web remote. EP2 is powered over Ethernet or via the convenient USB-C connection.

Technical Data

FEATURES

RDM, ArtNet and sACN support
Factory and user presets for plug and play setups
POE or USB-C powered
1.3” OLED Display with rotary knob
Remote configuration via internal webpage
Powder-coated compact metal housing
Connect to ONYX PC for a full four Universe Solution
In-wall, On-Wall, Truss and Standalone mounting
Unlocks ONYX NOVA 4-Universe License

MOUNTING

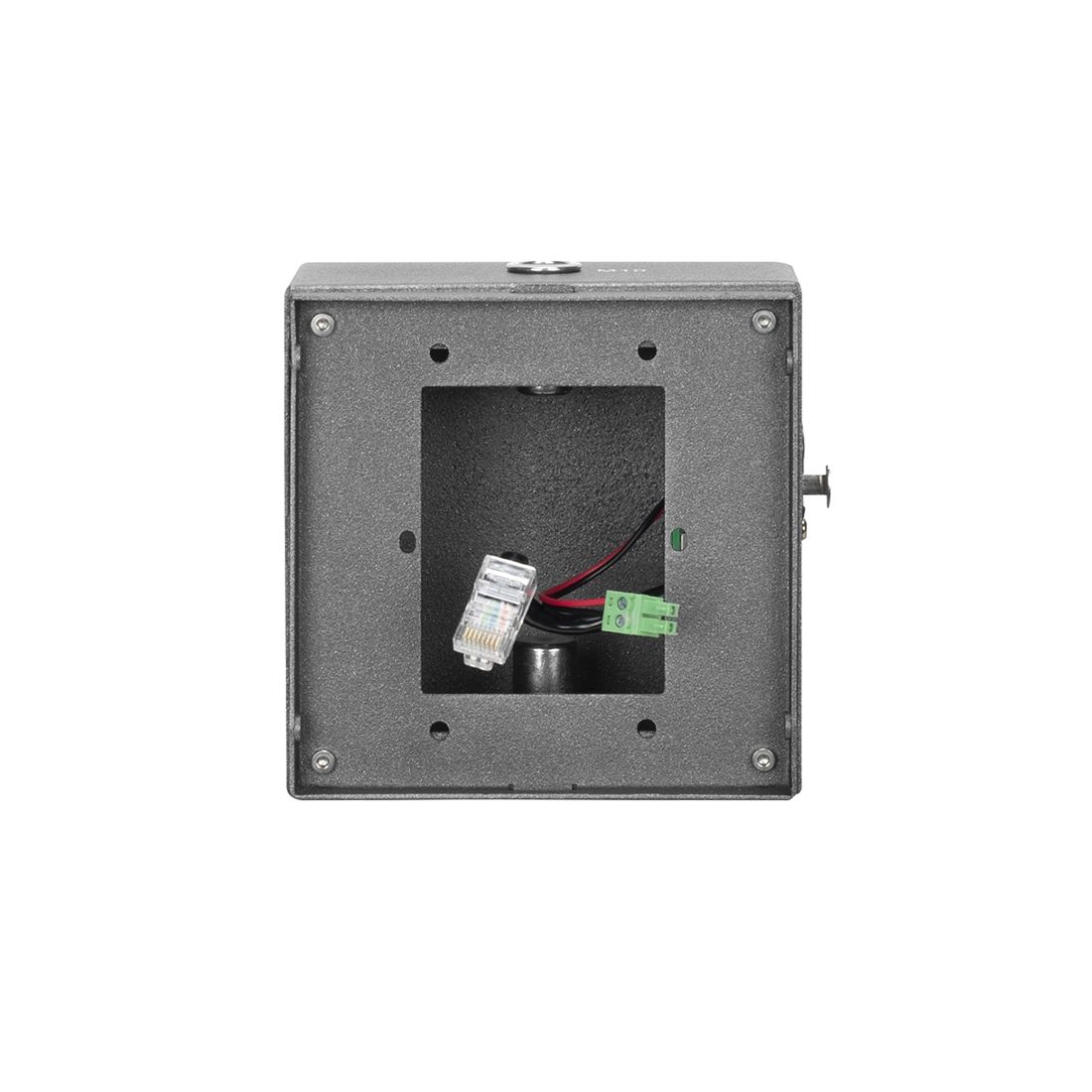

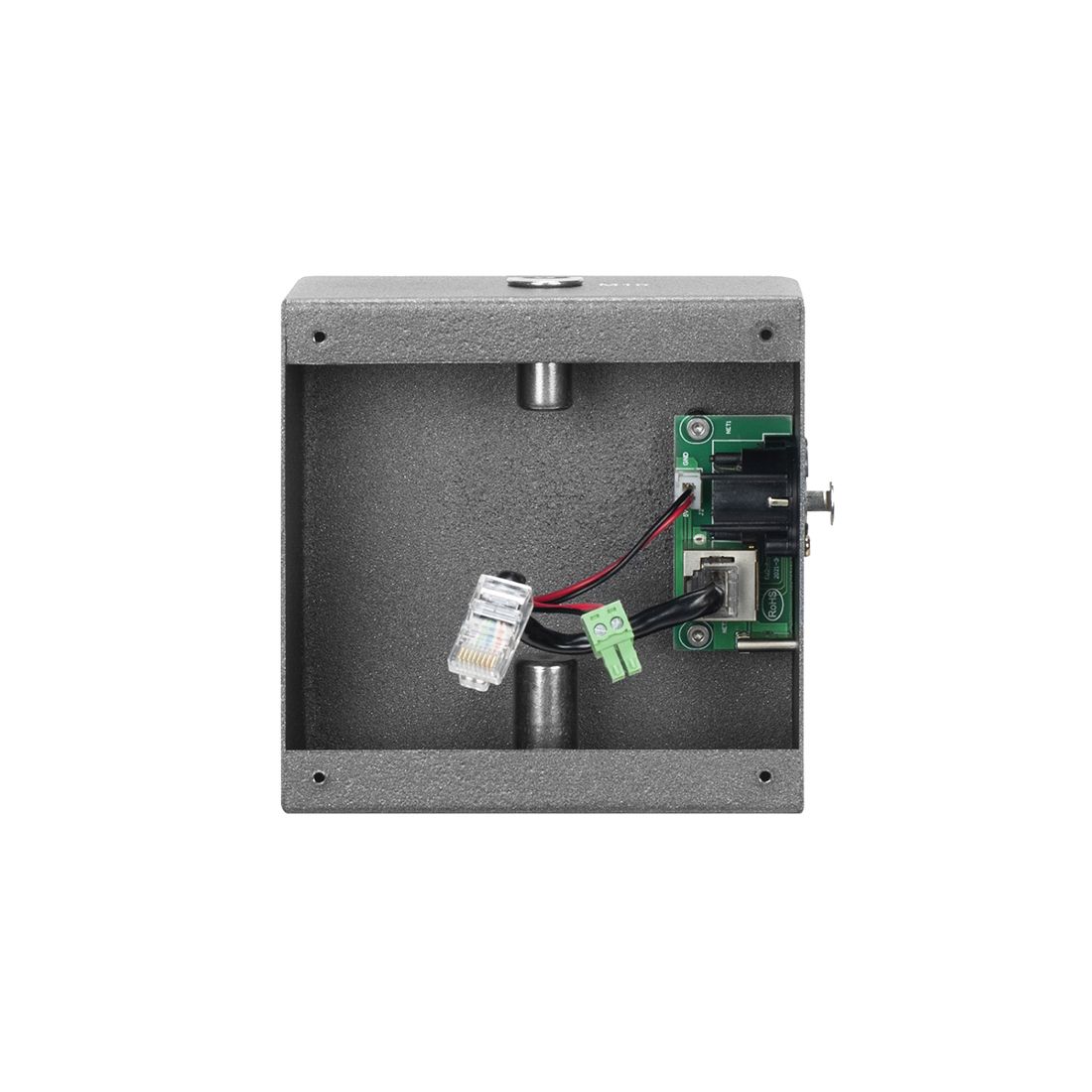

Standalone (Backbox included)
Truss-mount (M10 + M12 mounting hole)

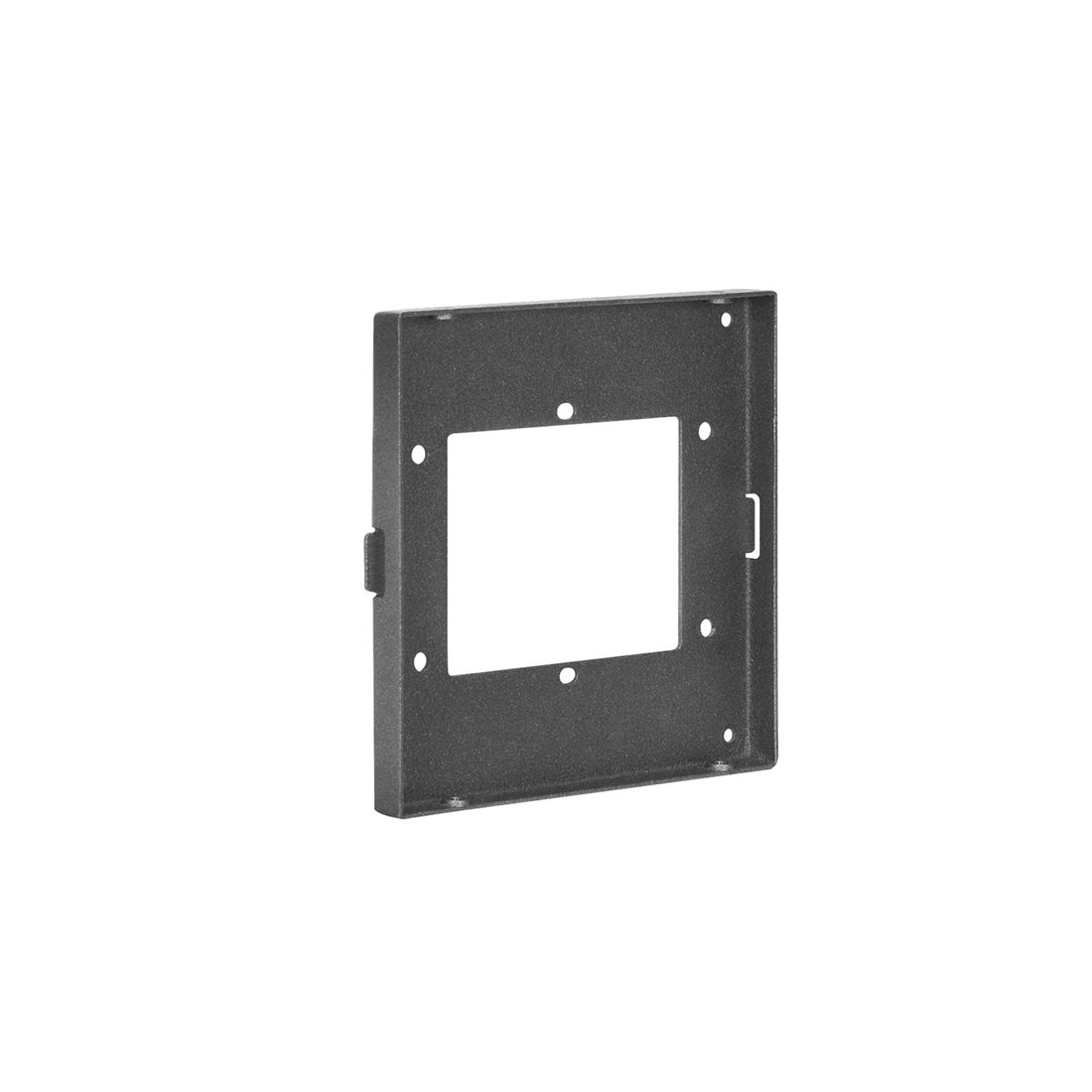

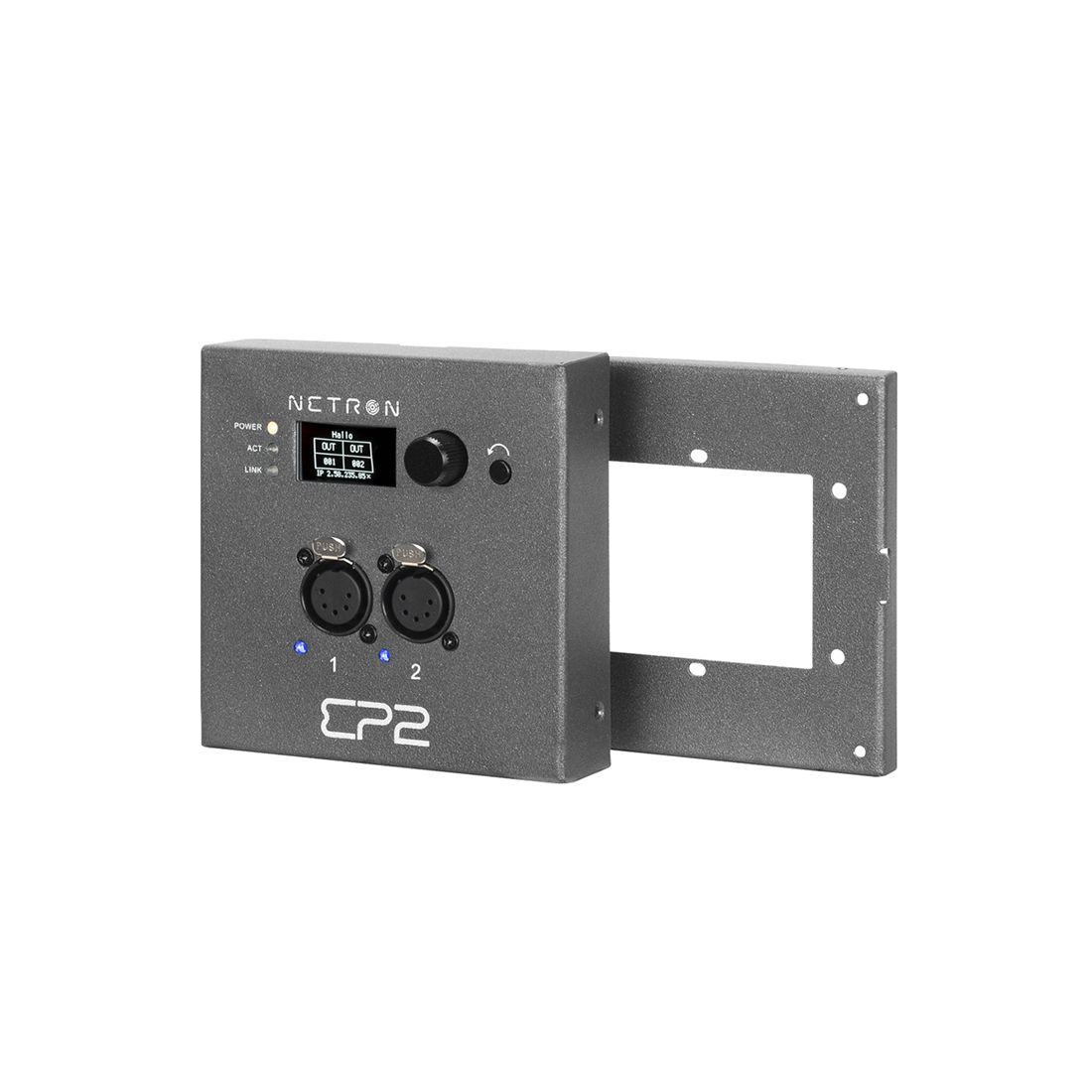

In or On-wall 2-Gang (US) or 50mm round (EU)

CONNECTIONS

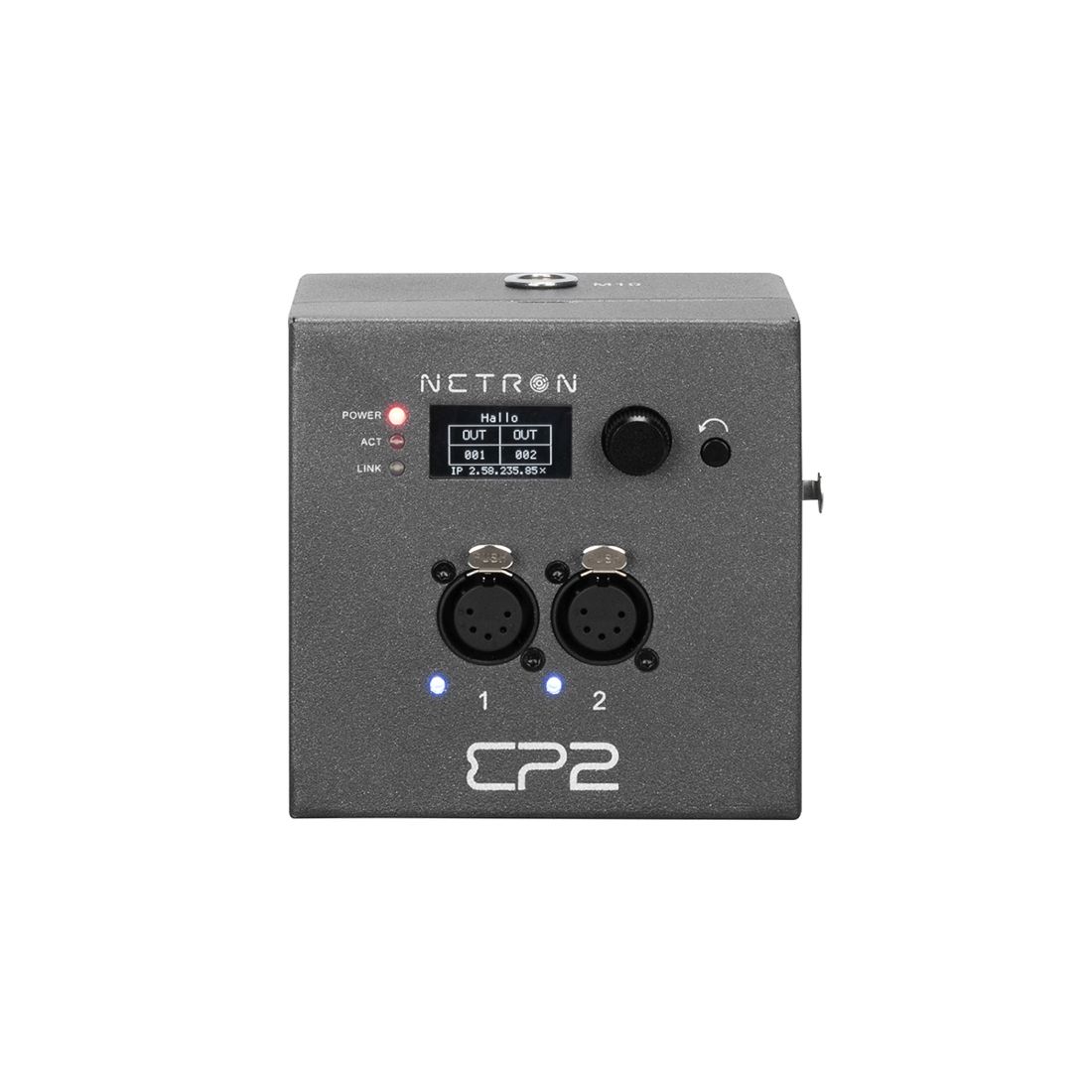

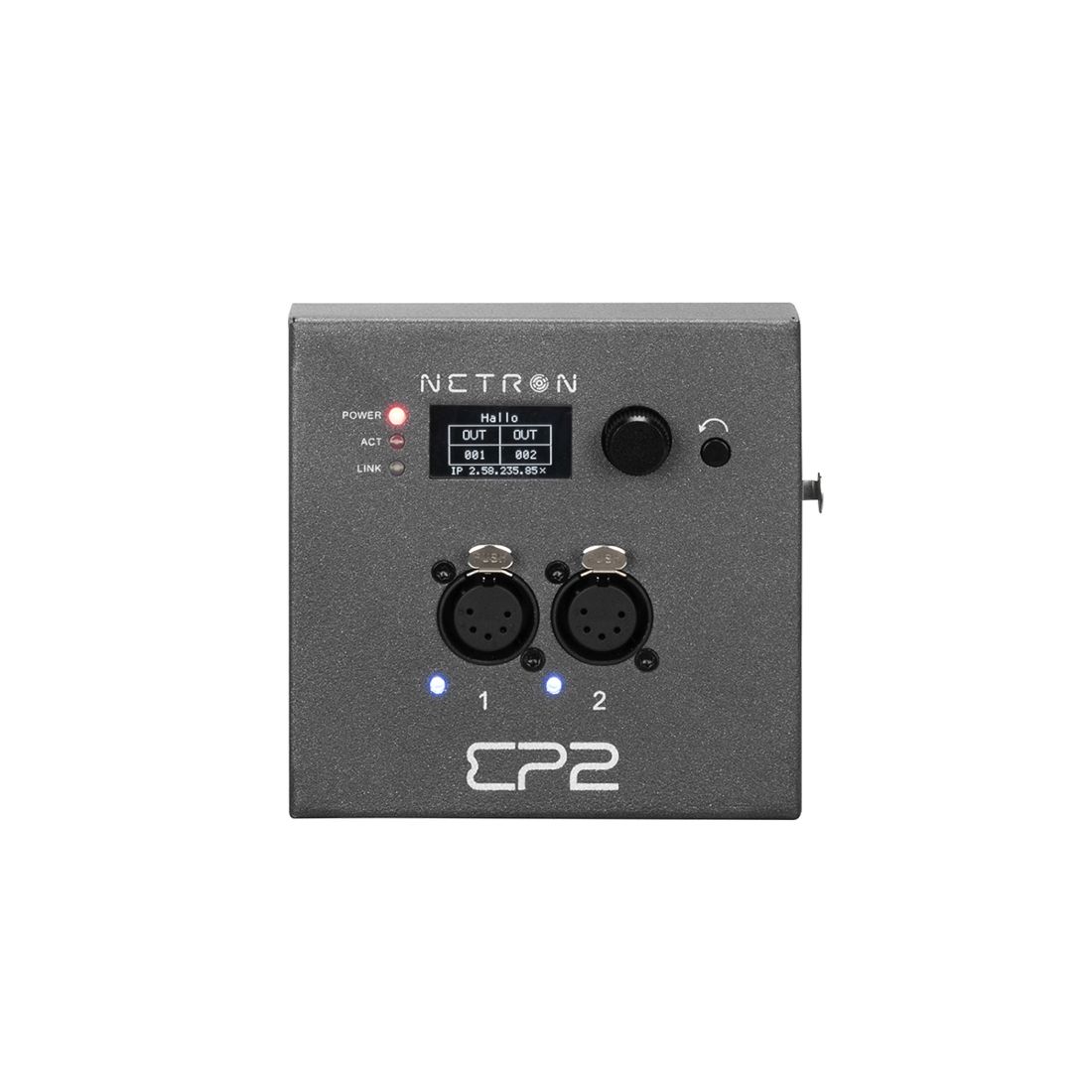

Front

(2) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output

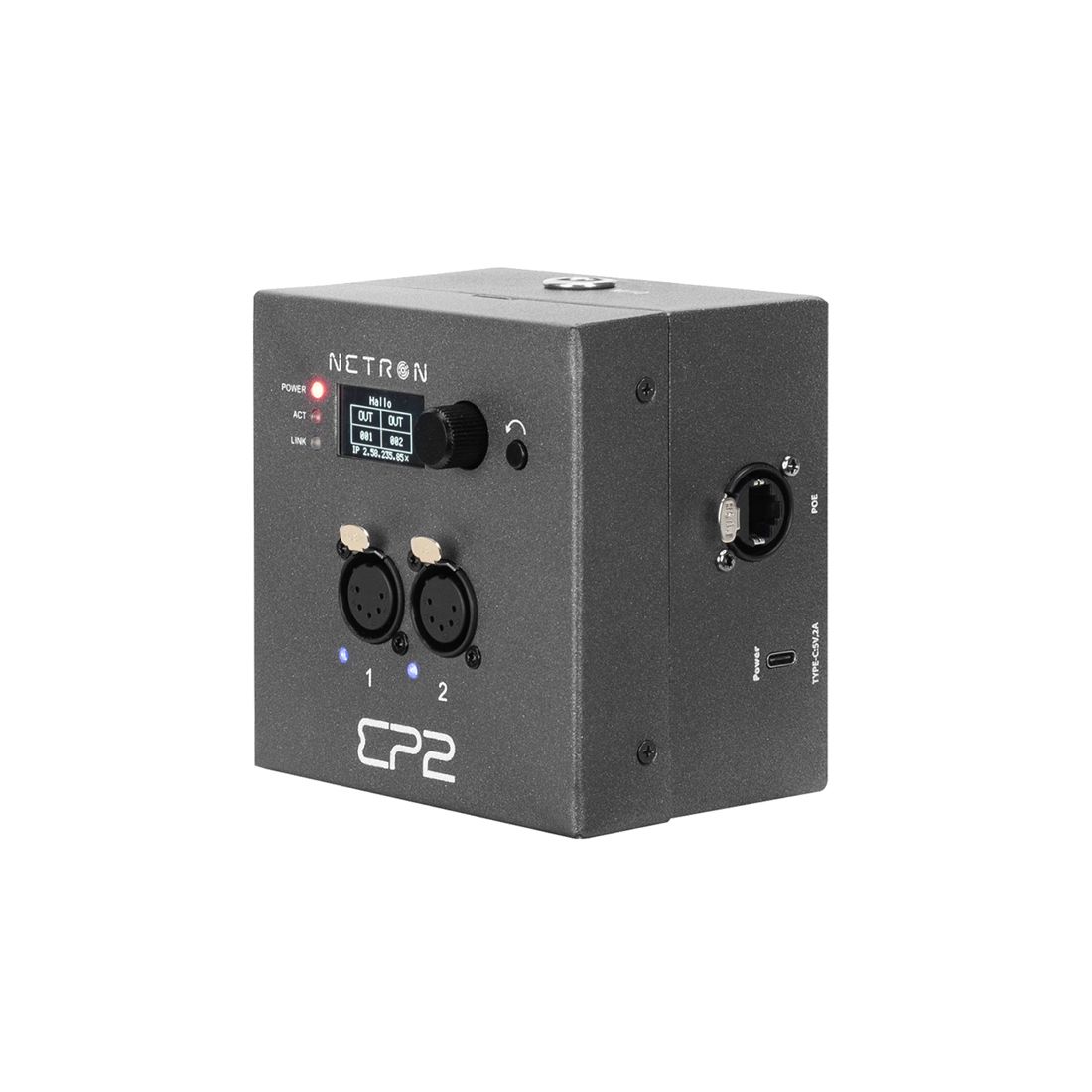

Side

(1) Locking RJ45 Ethernet network connections (POE)
USB-C power option (5V, 2A)

PHYSICAL

Length: 4.6 in. (117.6mm)
Width: 4.5 in. (114.0mm)
Height: 3.5 in. (89.1mm)
Weight: 1.76lbs. (0.8kg)

ELECTRICAL

USB-C 5V
POE 802.3af
Power Consumption 2.8W

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
