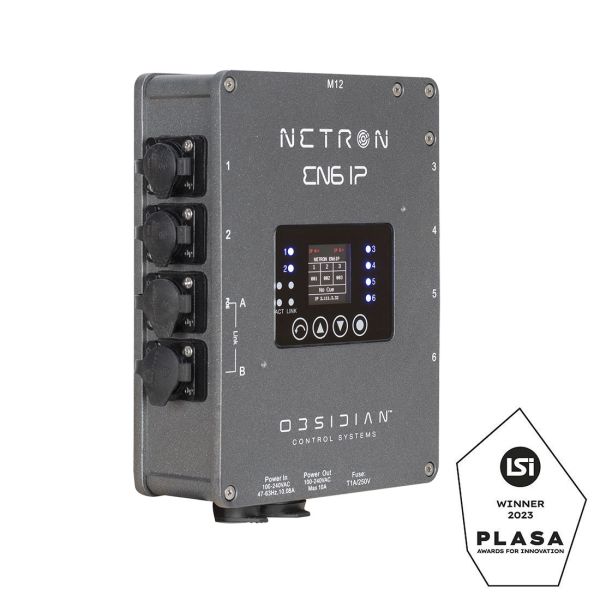

EN6 IP

The Netron EN6 IP is a powerful Ethernet to DMX gateway with six RDM compatible ports in a rugged IP65 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

The EN6 IP unlocks the four Universe ONYX NOVA Edition.



Click here to learn more about the EN6 IP & for all technical details and documentation

Technical Data

FEATURES

IP65 Ethernet to DMX Gateway
RDM, Artnet and sACN support
Factory and user presets for plug and play setups
Line Voltage or POE powered

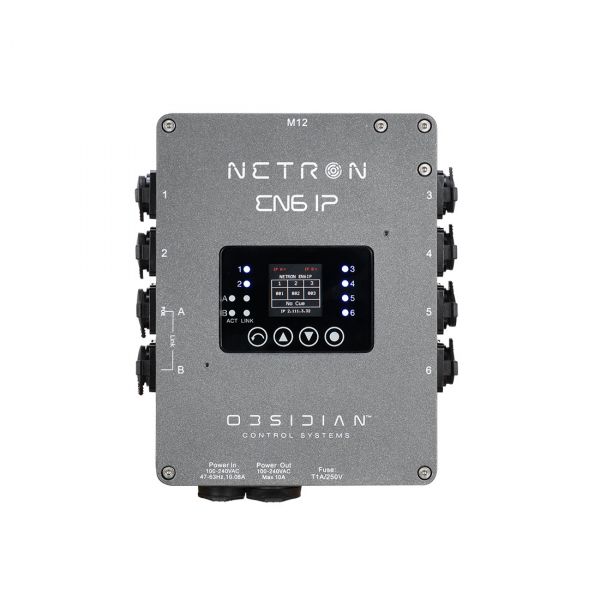

1.8” OLED Display and waterproof touch buttons
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated aluminum chassis
Unlocks ONYX NOVA 4-Universe License

SPECIFICATIONS

MOUNTING

Standalone
Truss-mount (M12)
Wall-mount

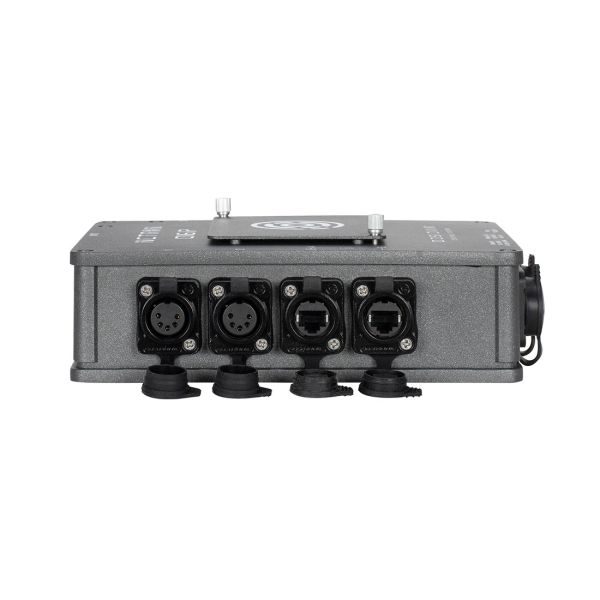

CONNECTIONS

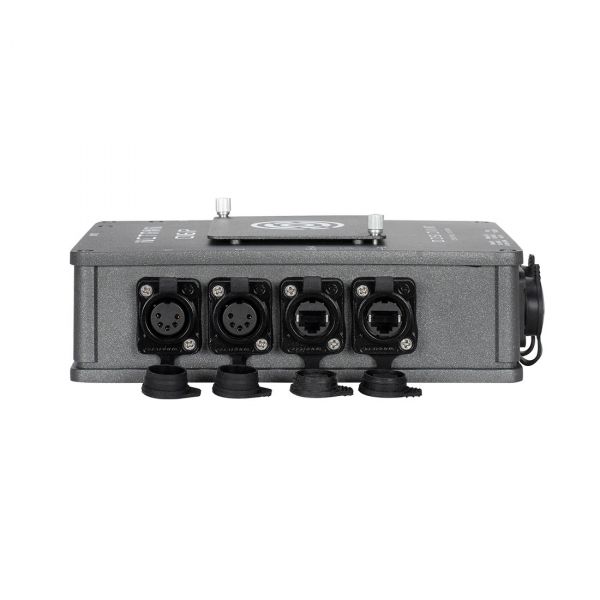

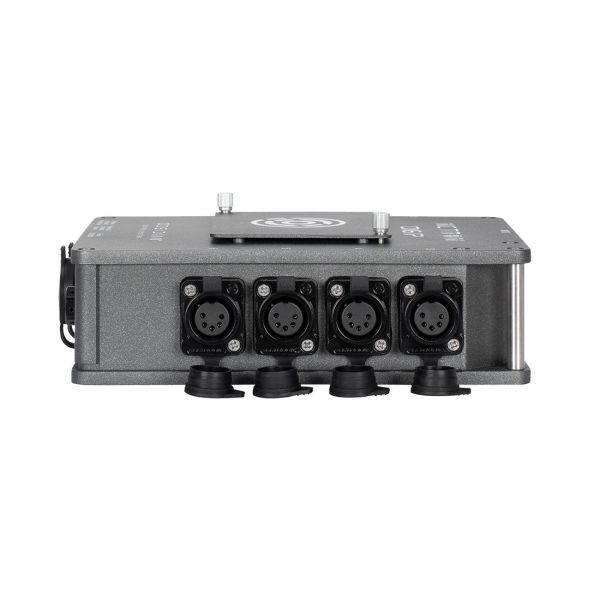

Sides

(6) 5pin IP65 DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
(2) Locking IP65 RJ45 Ethernet network connections (1x POE)

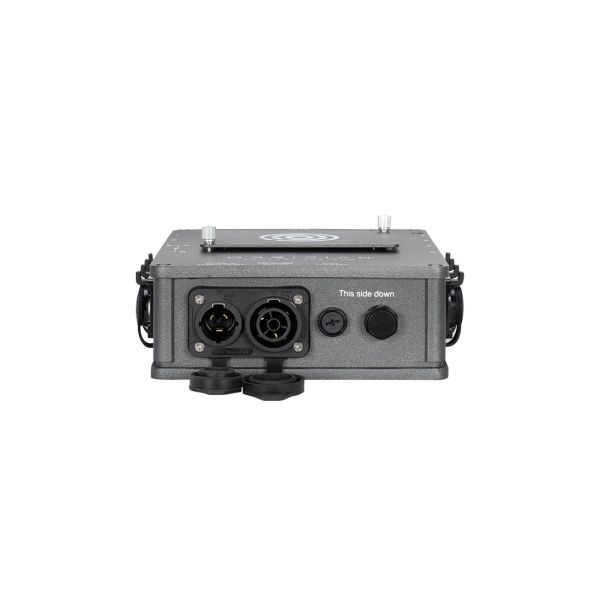

Bottom

Locking IP65 Power In/Thru

PHYSICAL

Length:
Width:
Height:
Weight:

ELECTRICAL

100-240 V nominal, 50/60 Hz
POE 802.3af

FIRMWARE UPDATES

Current Firmware can be found here (login required)

Specifications and documentation subject to change without notice
