FEATURES

RJ45, screw terminal or IDC connectivity
Back facing wiring plates for permanent rack installation
RDM, Artnet and sACN support
Factory and user presets for plug and play setups
Line Voltage or POE powered
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Customizable routing and merging options
Remote configuration via internal webpage
Contact closures for cue or preset recall
Powder-coated aluminum rackmount housing
Unlocks ONYX NOVA 4 Universe License

SPECIFICATIONS

MOUNTING

Rackmount

CONNECTIONS

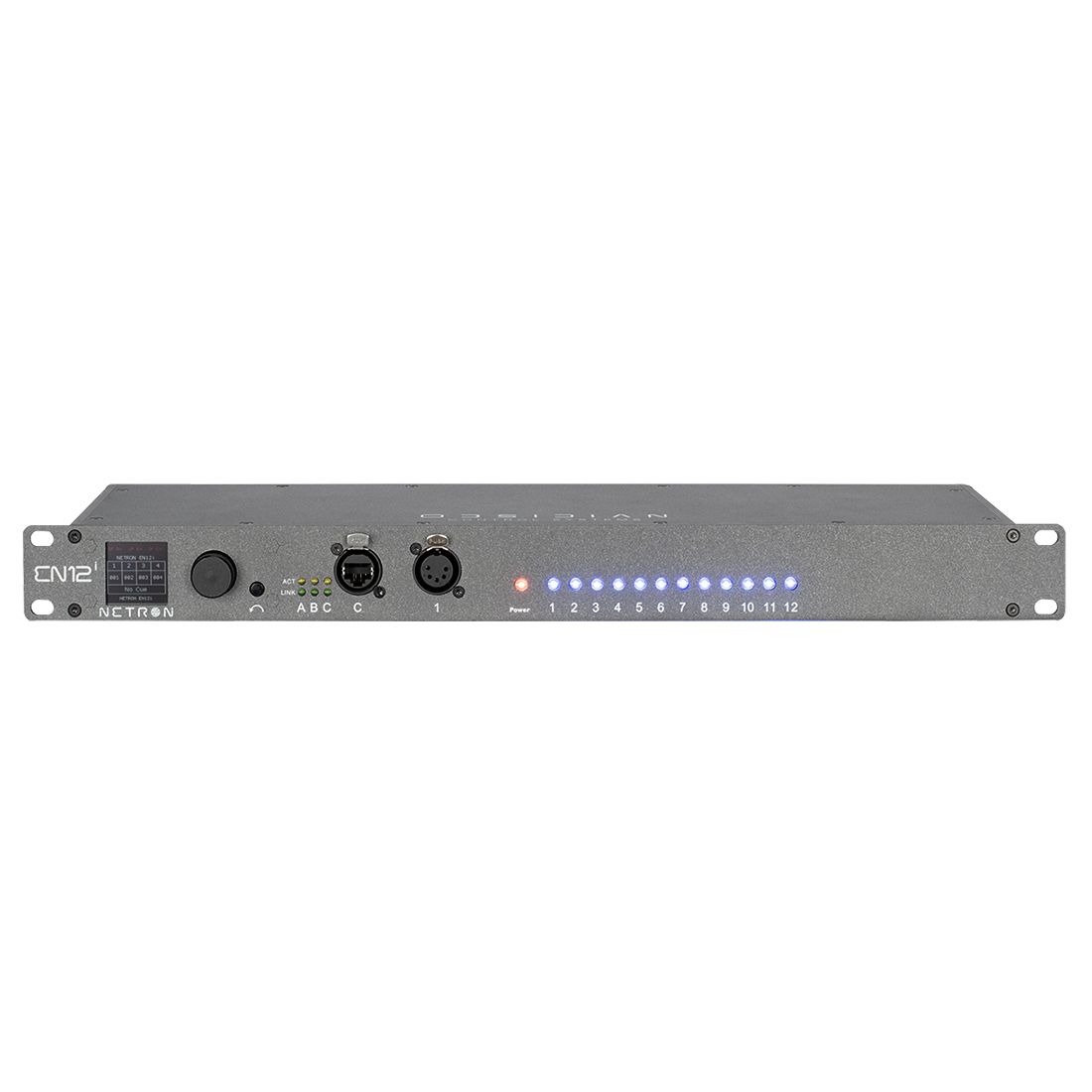

FRONT

(1) 5pin XLR DMX/RDM optically isolated port Bidirectional for DMX In or Output
(1) Locking RJ45 Gigabit Ethernet
Full color OLED display
LED Status feedback array
Encoder w. Push to Select / Exit Button

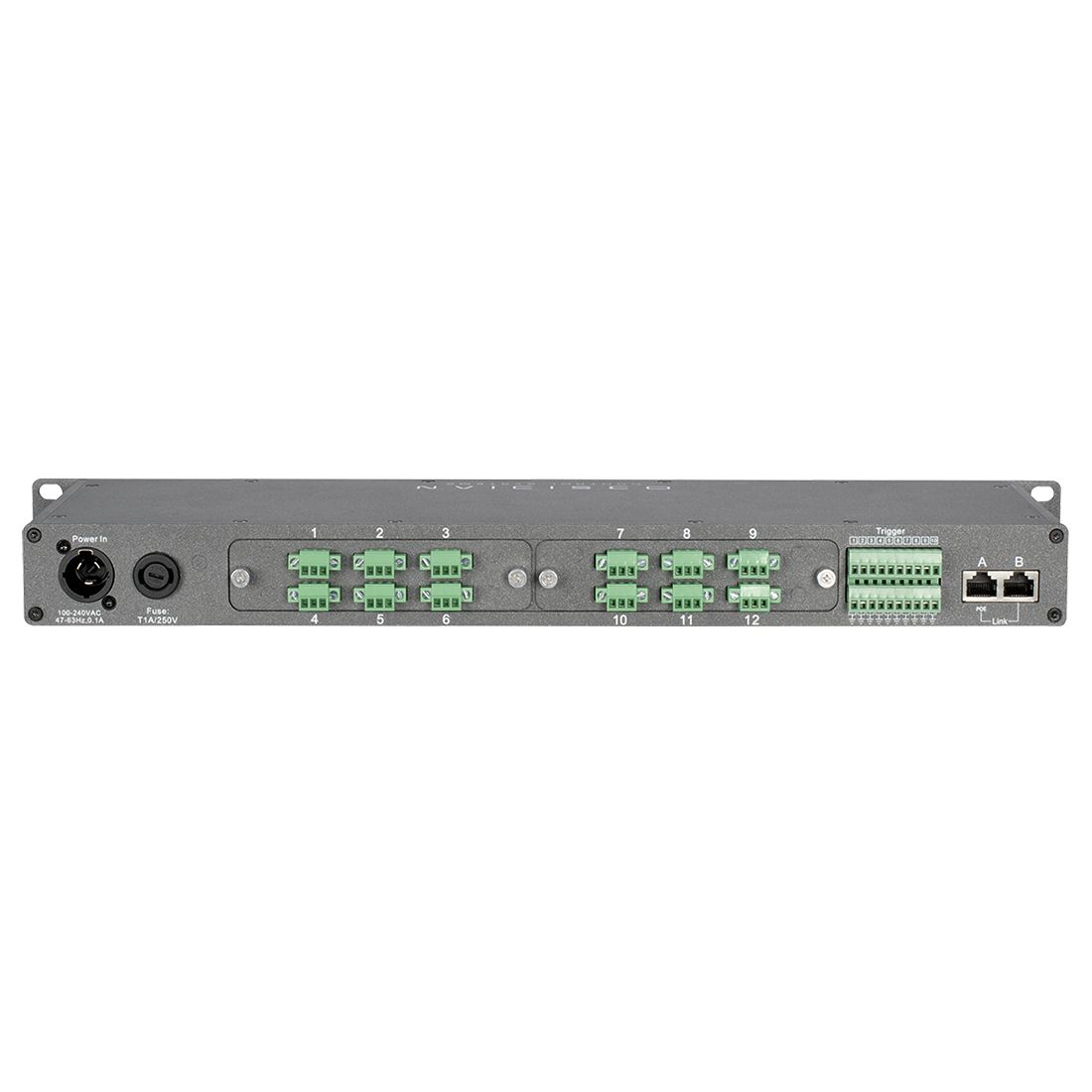

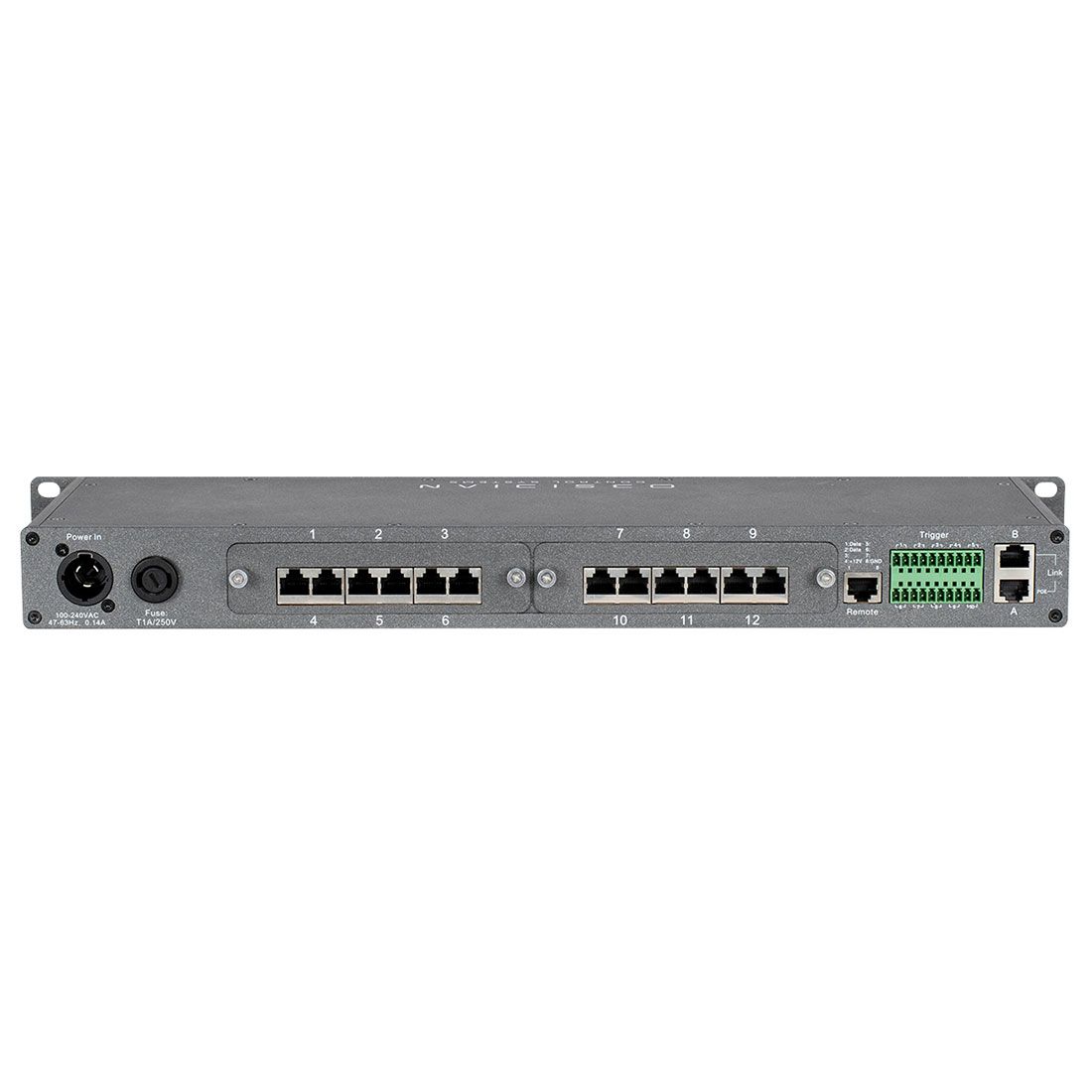

BACK

(2) RJ45 Gigabit Ethernet

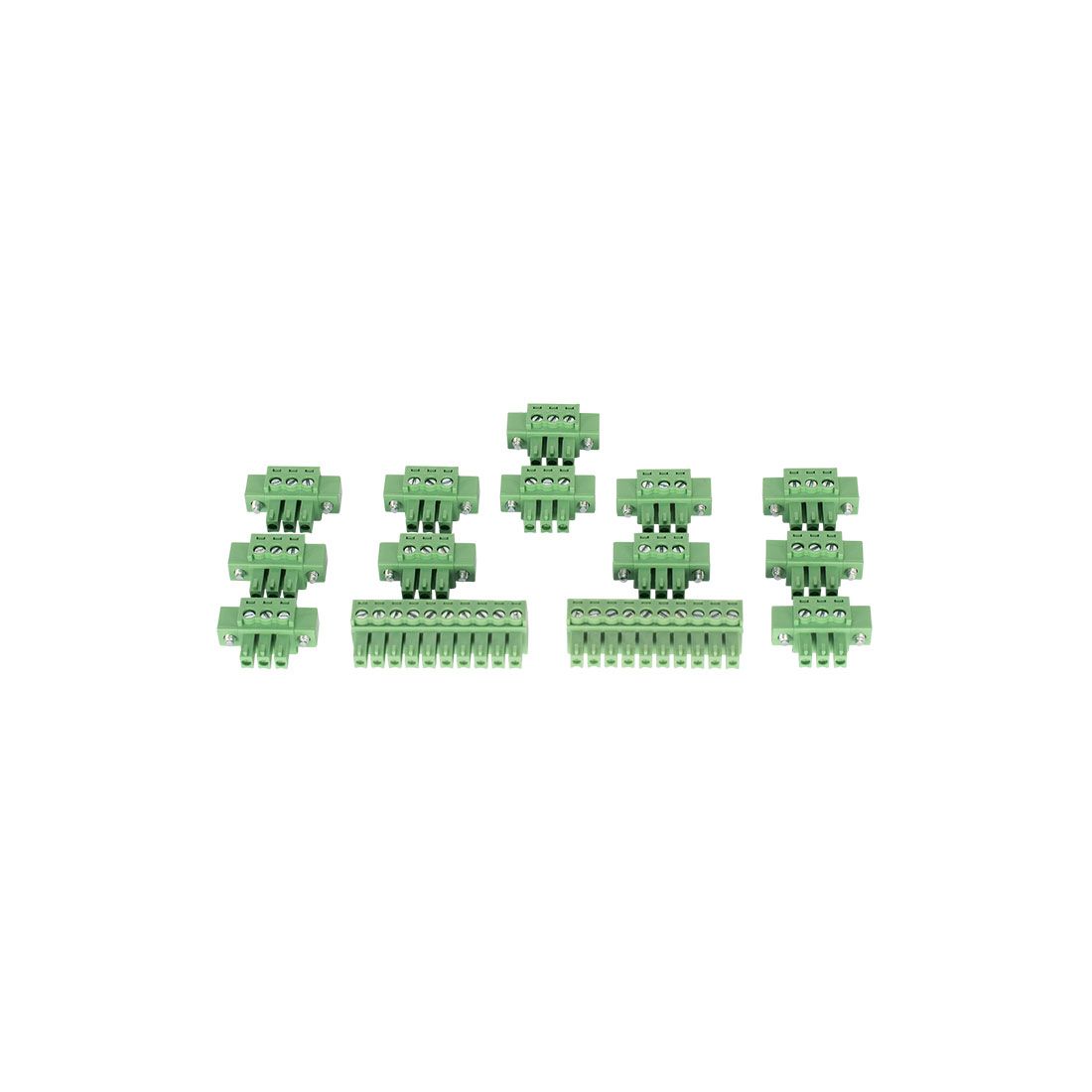

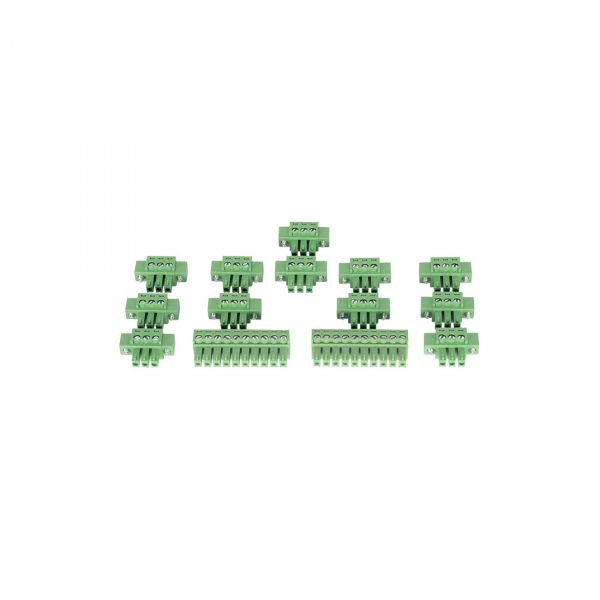

(2x6) DMX connection plates (RJ45 or Terminal Block)
Bidirectional for DMX In or Output
(10) Contact Closures (Terminal Block)
Locking Power In/Thru

PHYSICAL

Length: 482.5 mm (19 in.)
Width: 146 (5.7mm)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs.)

ELECTRICAL

100-240 V nominal, 50/60 Hz
POE 802.3af

FIRMWARE UPDATES

Current Firmware can be found here (login required)
