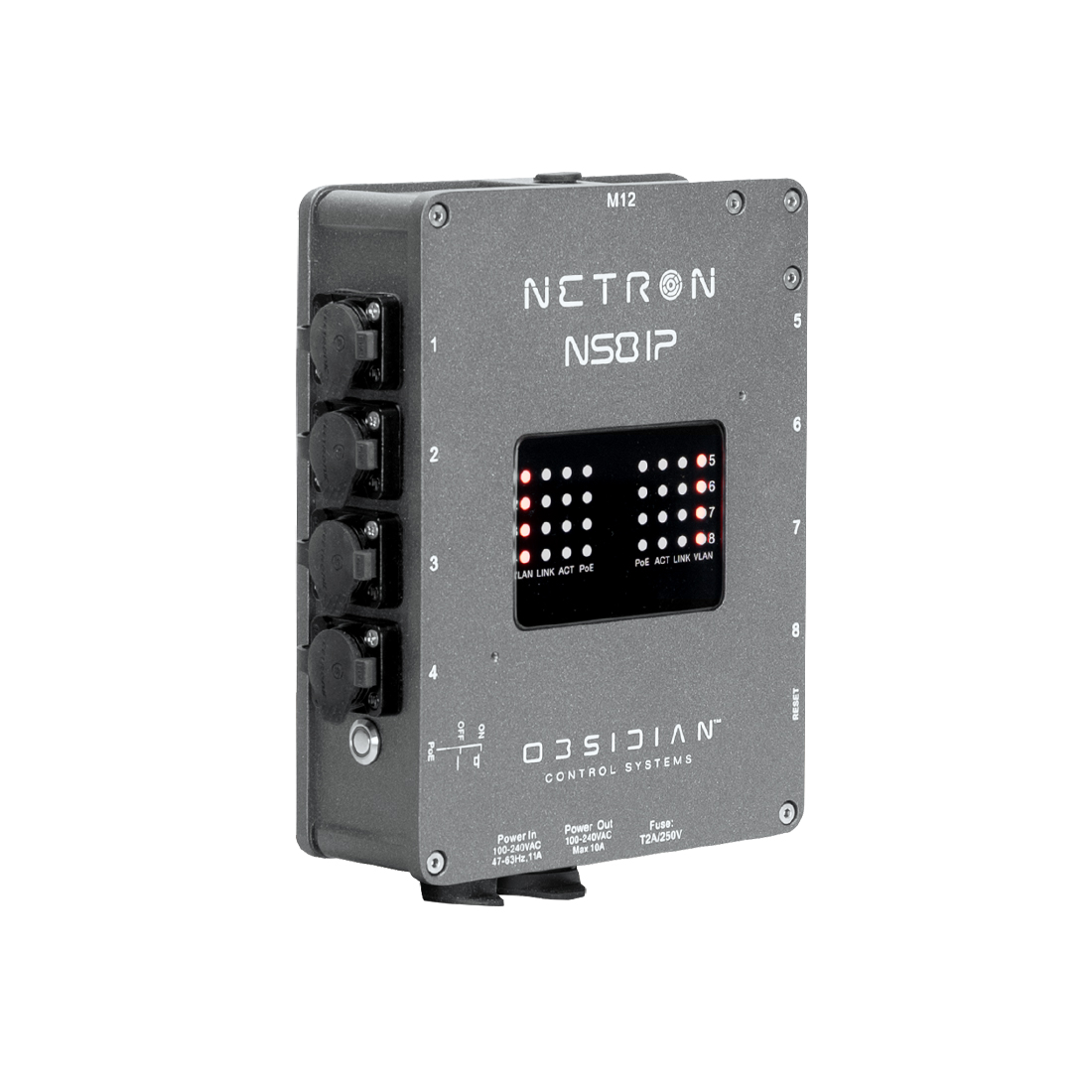

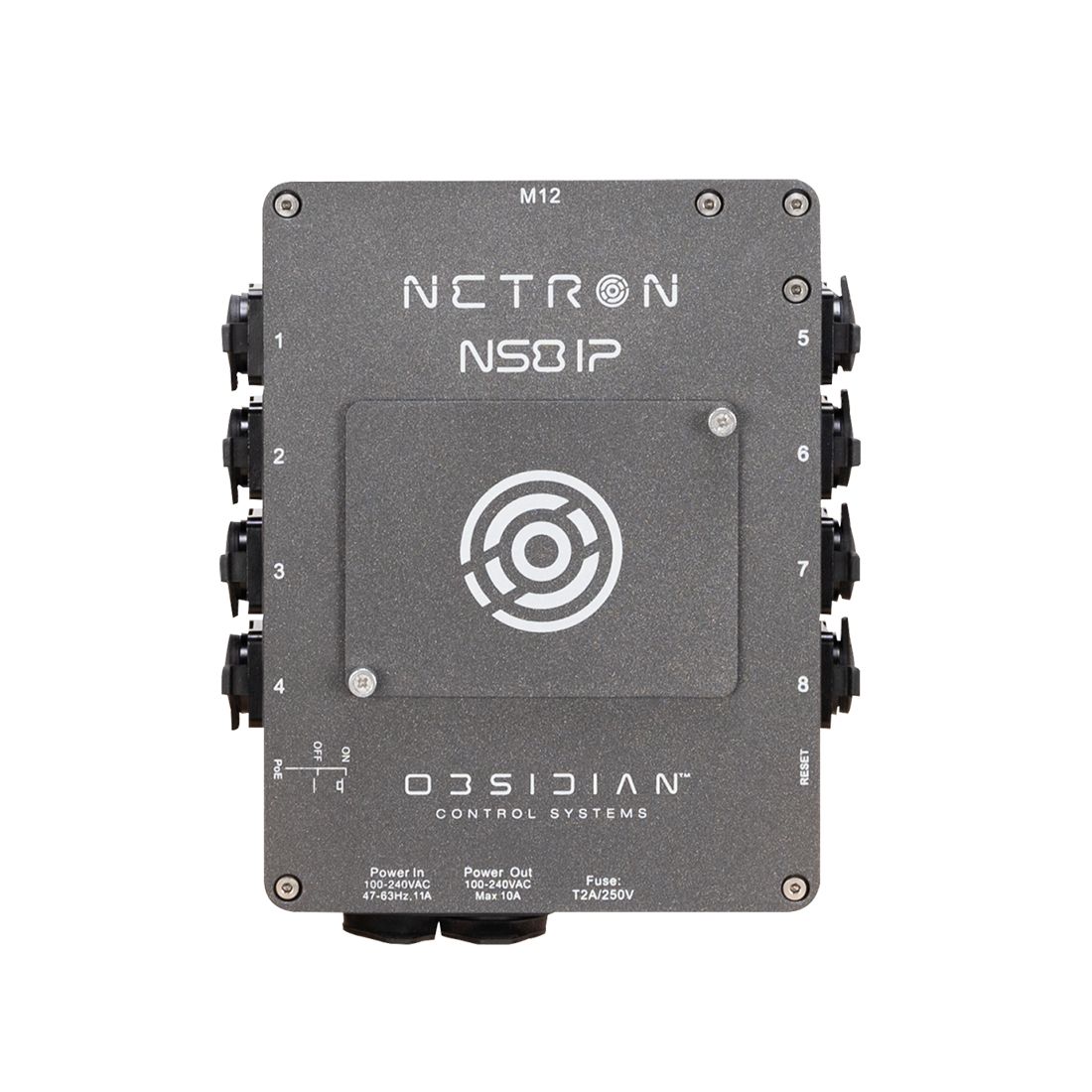

NS8 IP

Gigabit Network Switch optimized for data intensive entertainment applications

Click here to learn more about the NS 8IP& for all technical details and documentation

Technical Data

FEATURES

Rugged IP65 chassis
Gigabit Network Switch optimized for data intensive entertainment applications
Artnet and sACN support
X-Net, HogNet, MA-Net and various other protocols
Factory and user presets for plug and play setups
POE+ support
POE power switch

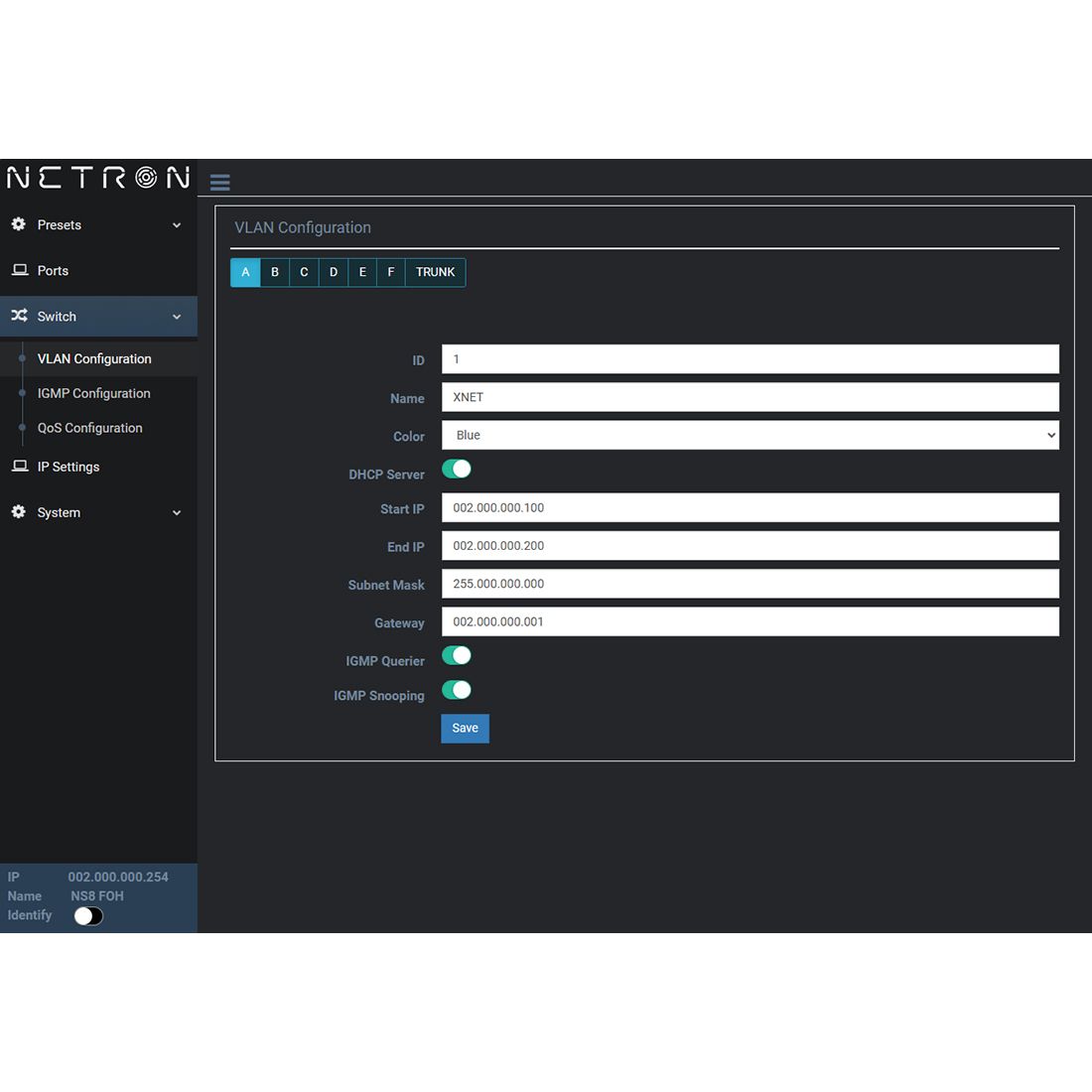

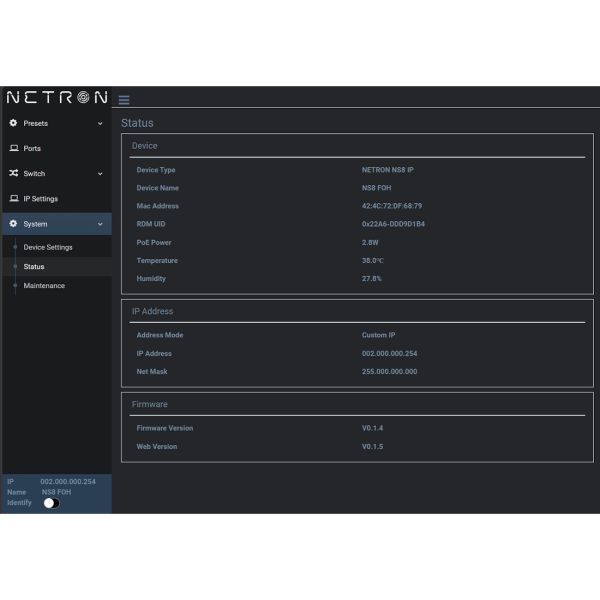

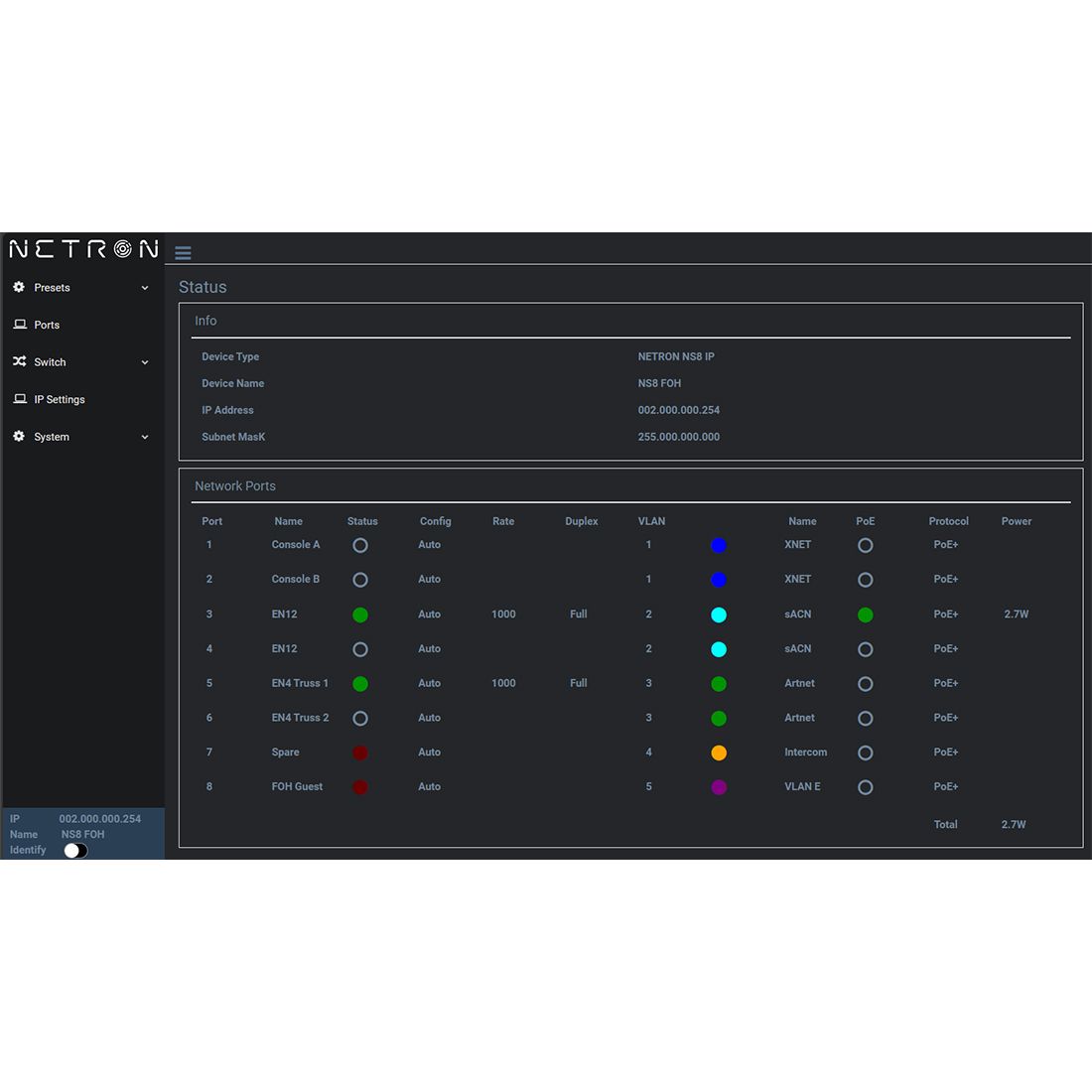

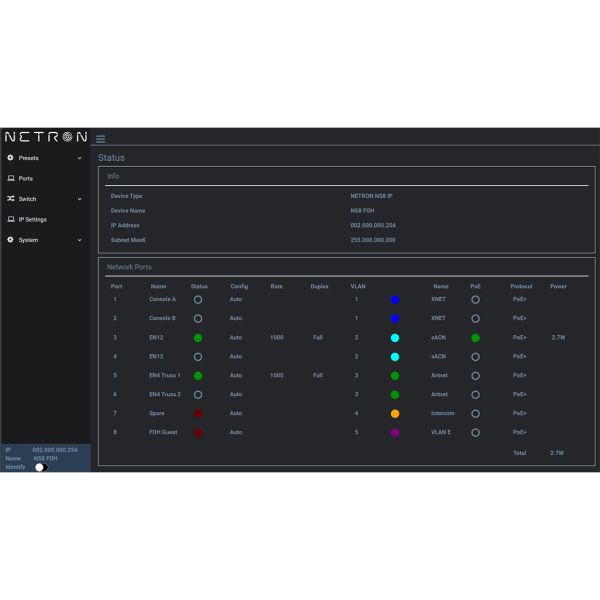

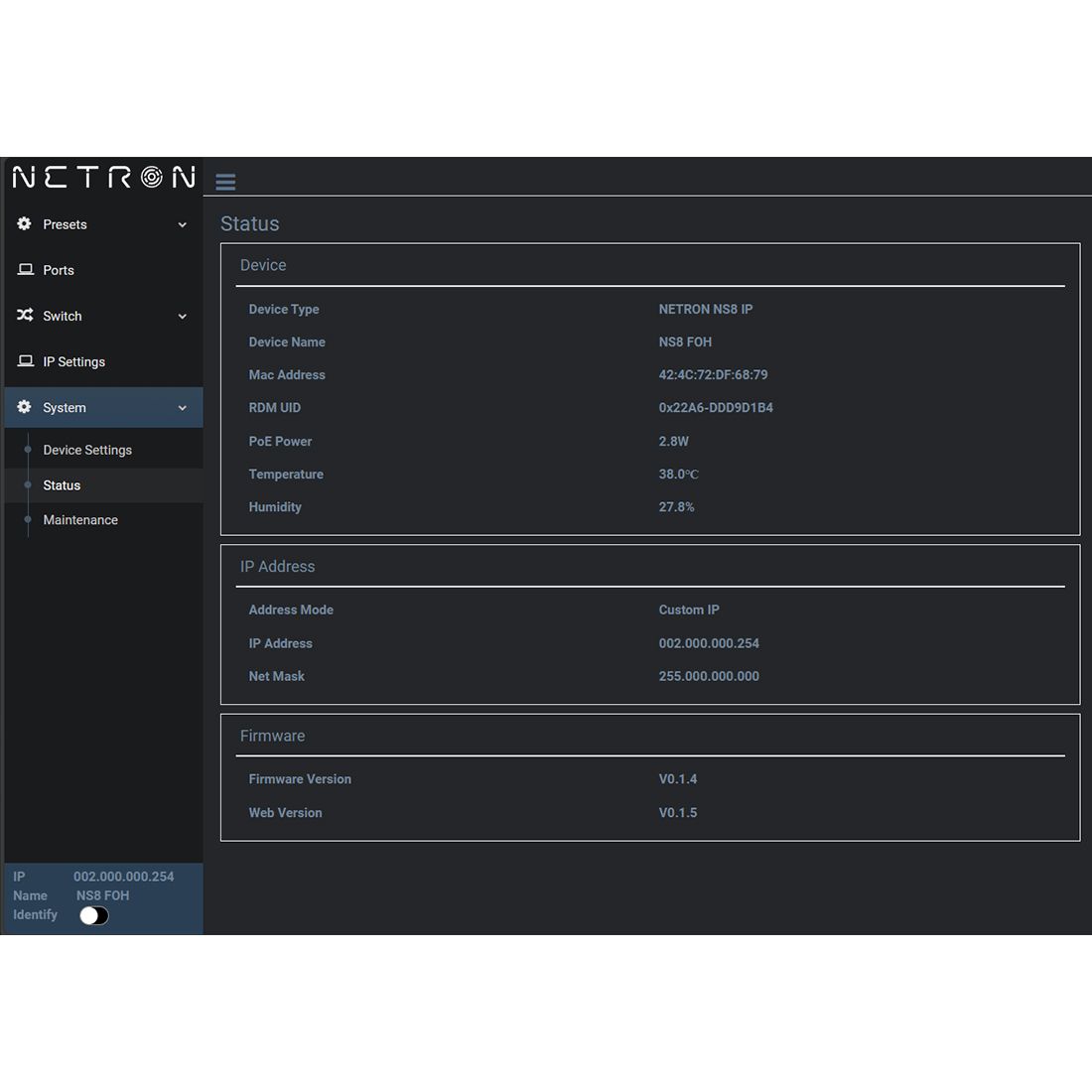

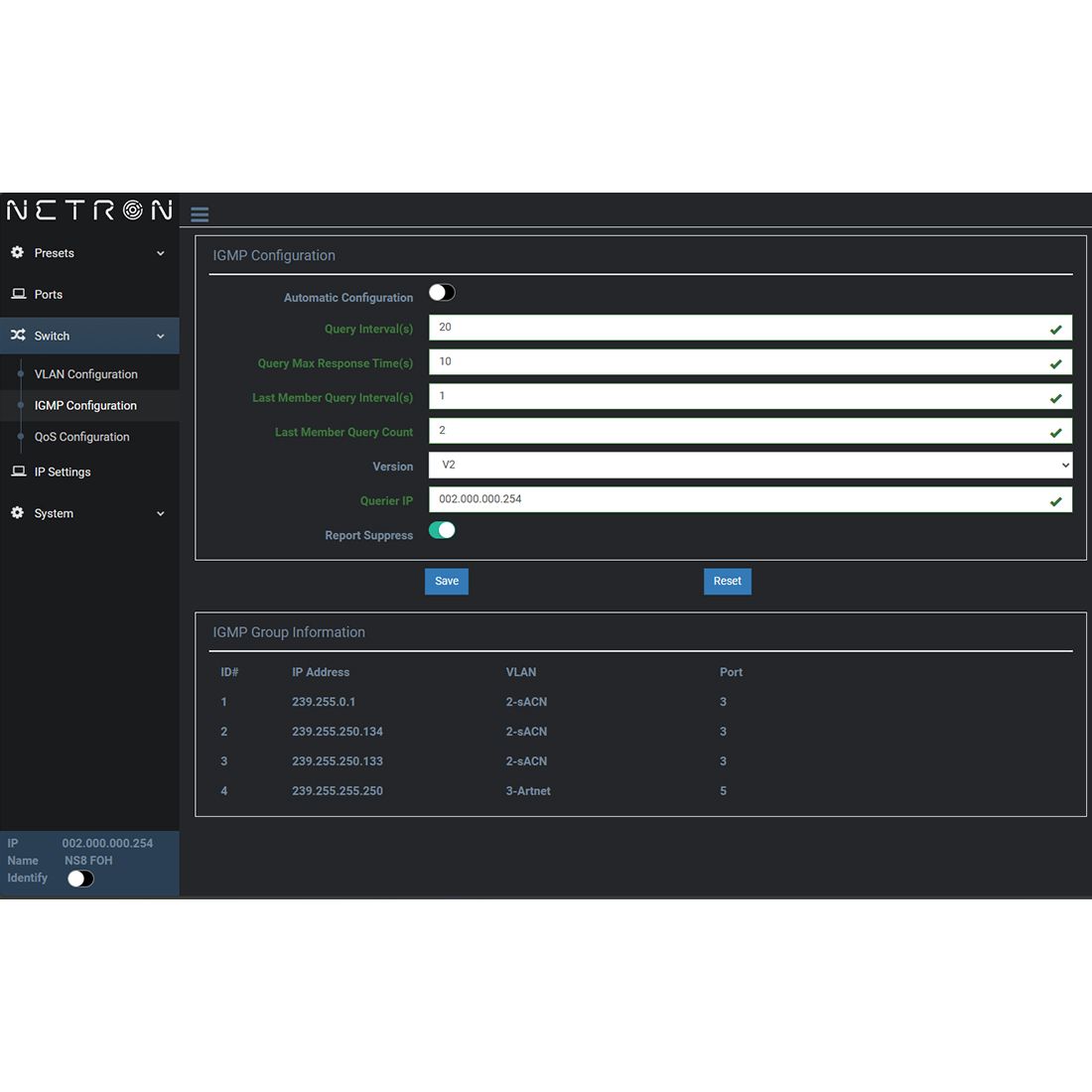

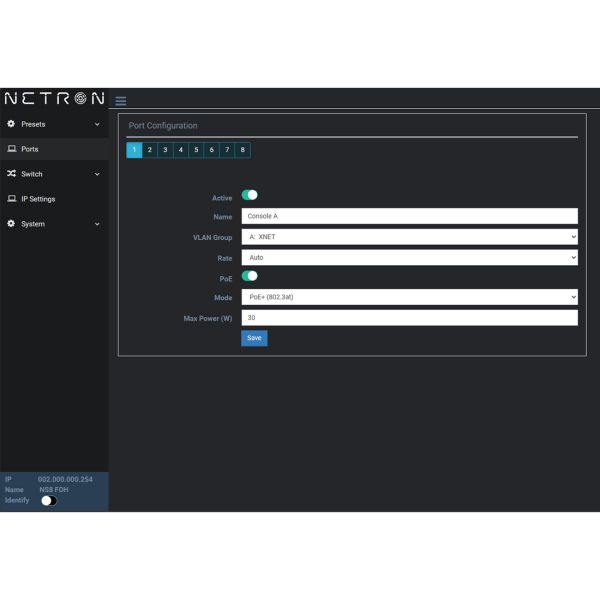

Remote configuration via internal webpage
Convection cooled design
Powder-coated aluminum exterior housing

SPECIFICATIONS

MOUNTING

Standalone

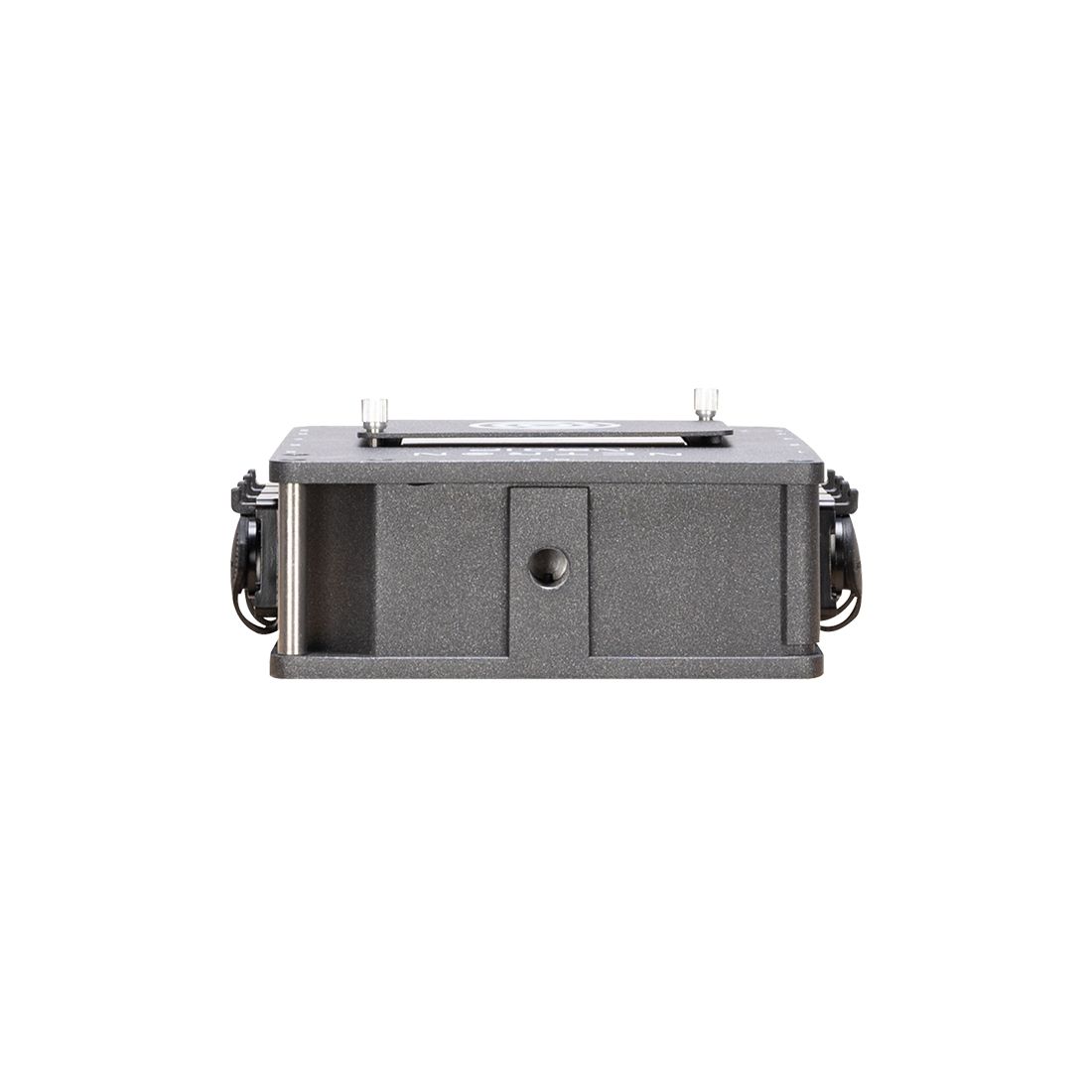

Truss-mount (M12)
Wall-mount

CONNECTIONS

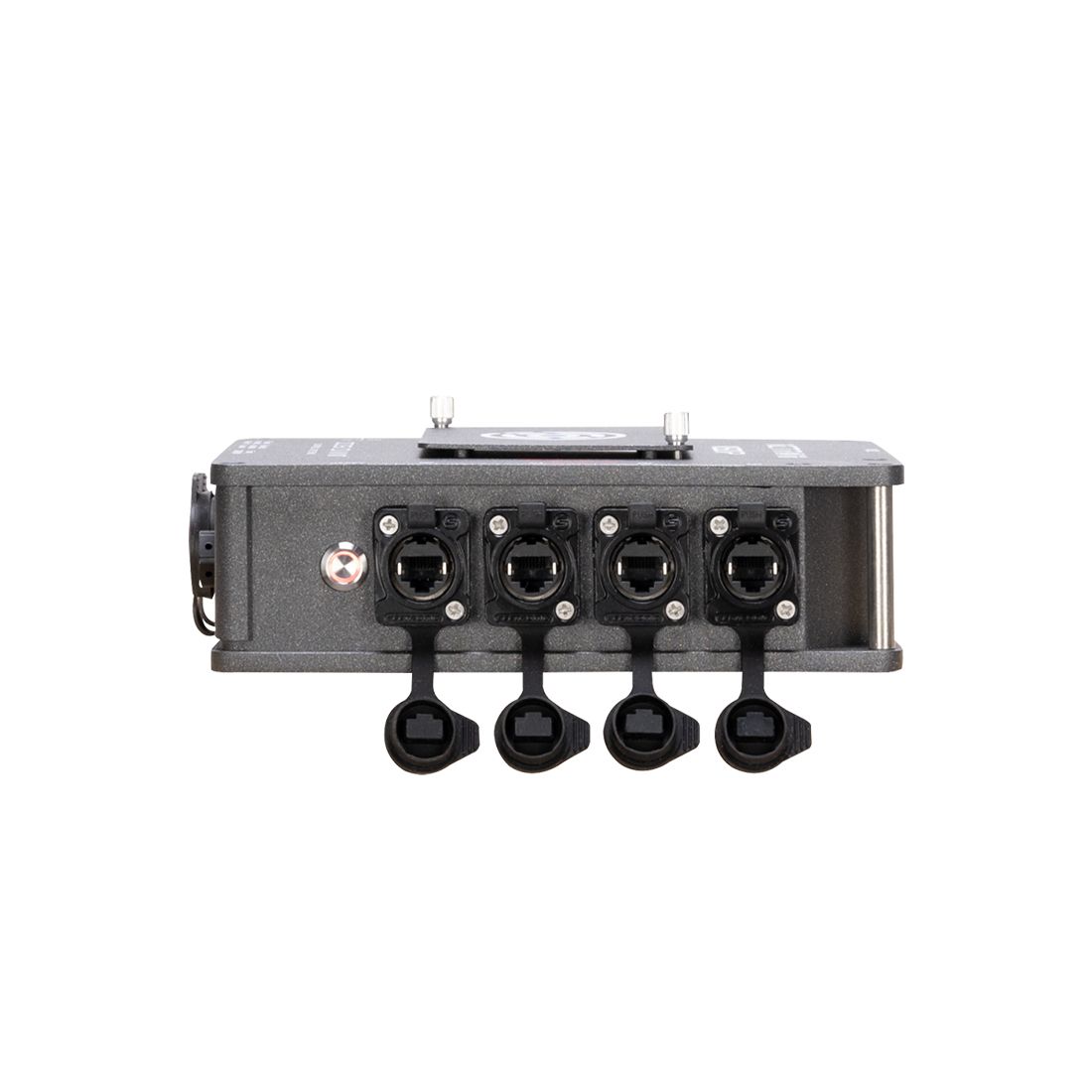

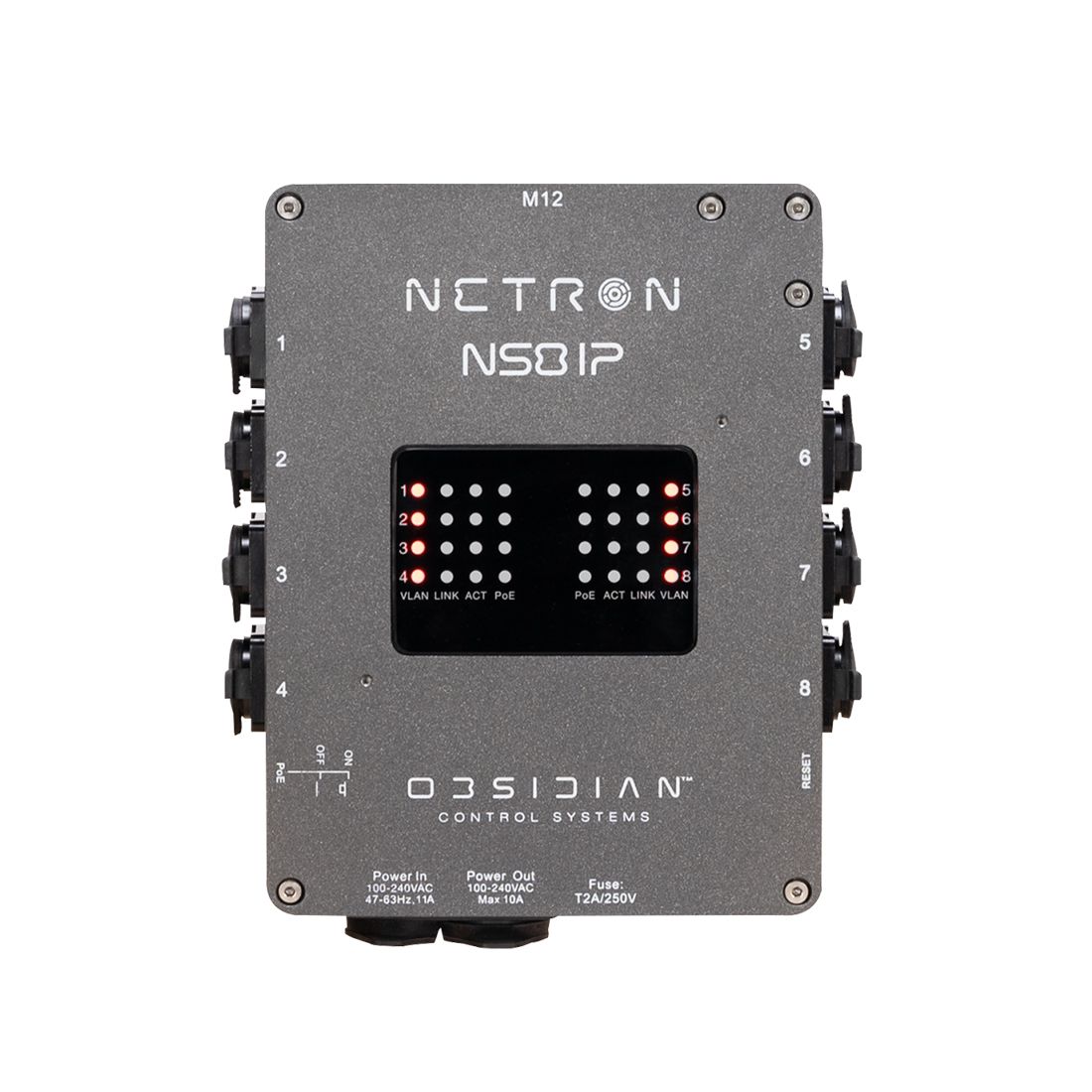

Sides

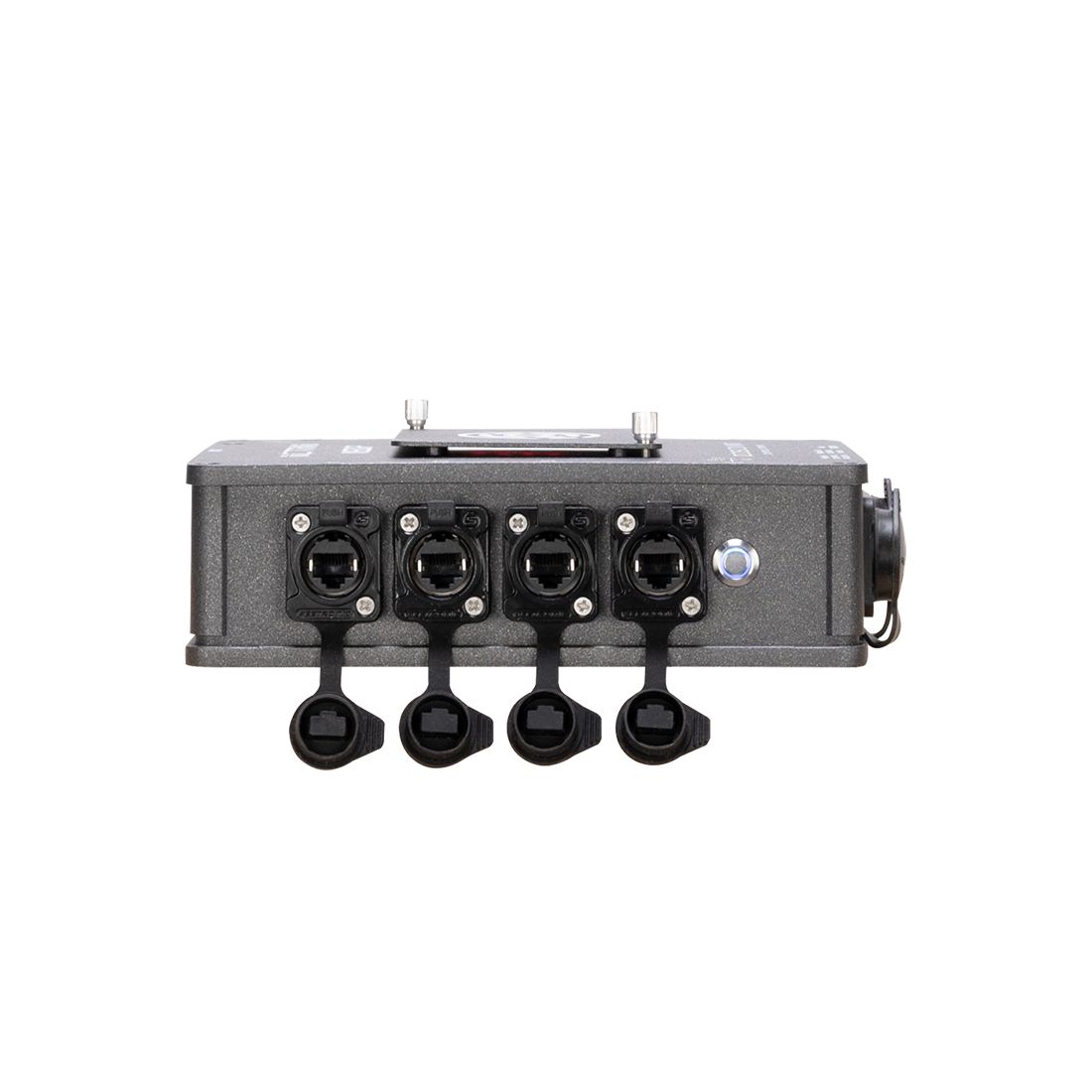

(8) Locking RJ45 Ethernet network connections
LED Feedback for Activity and Link

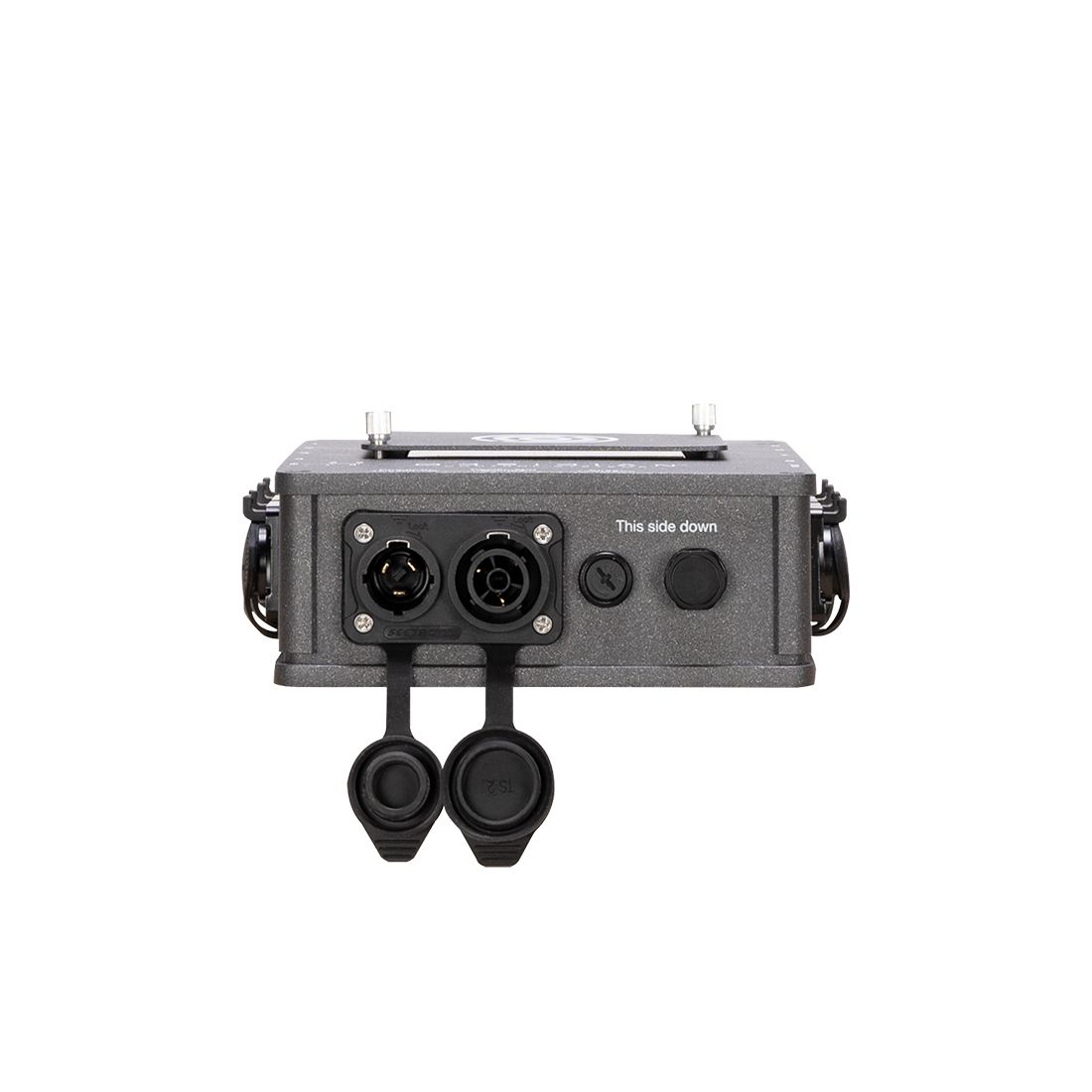

IP65 Locking Power In/Thru
POE Power Switch

PHYSICAL

Length: 177mm (6.9in.)
Width: 213mm 8.4in.)
Height: 69mm (2.7in.)
Weight:

ELECTRICAL

100-240 V nominal, 50/60 Hz
POE 802.3at

FIRMWARE UPDATES

Current Firmware can be found here (login required)

Specifications and documentation subject to change without notice
