NS8

Click here to learn more about the NS8 & for all technical details and documentation

Technical Data

FEATURES

Gigabit Network Switch optimized for data intensive entertainment applications
Artnet and sACN support
X-Net, HogNet, MA-Net and various other protocols
Factory and user presets for plug and play setups
POE+ support
POE power switch

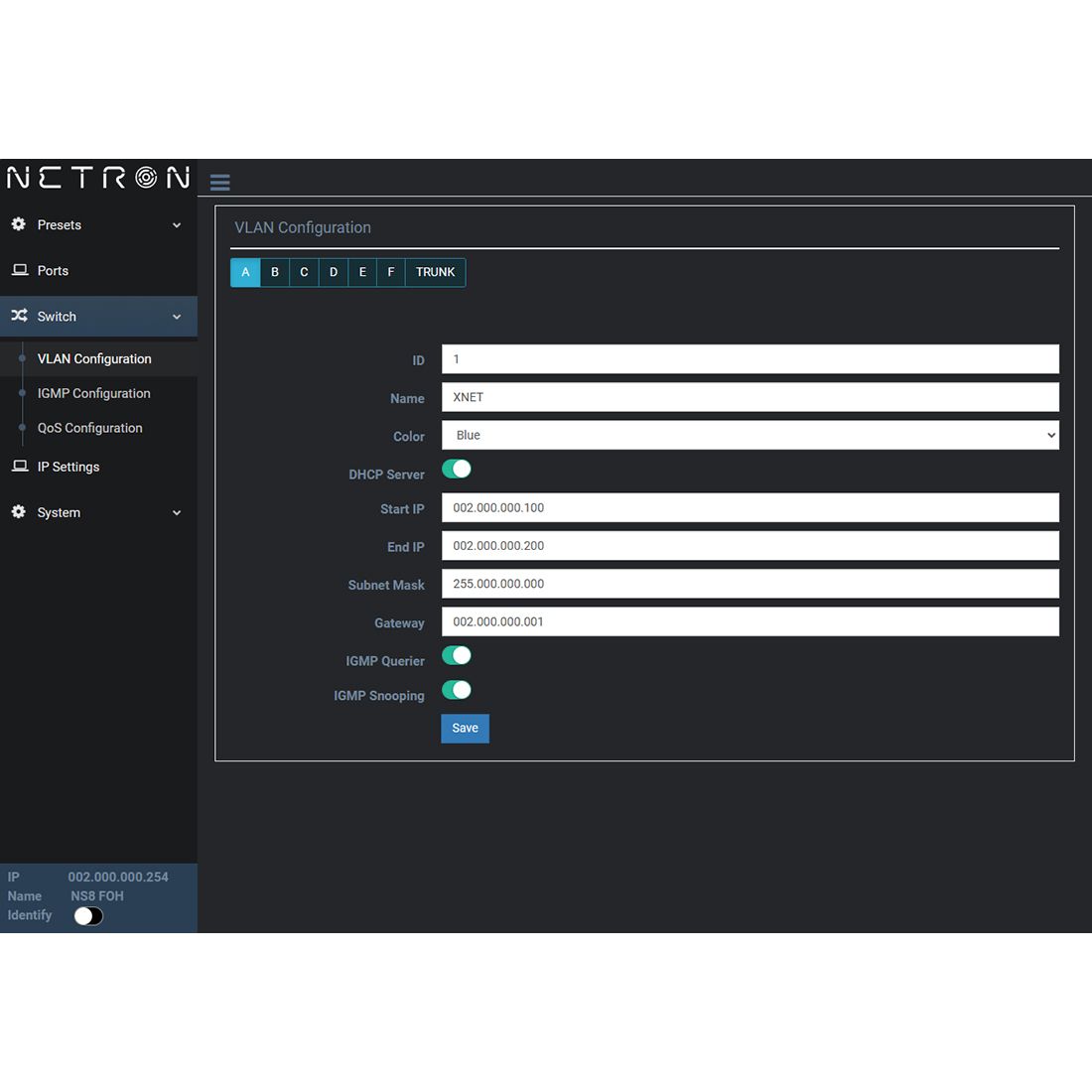

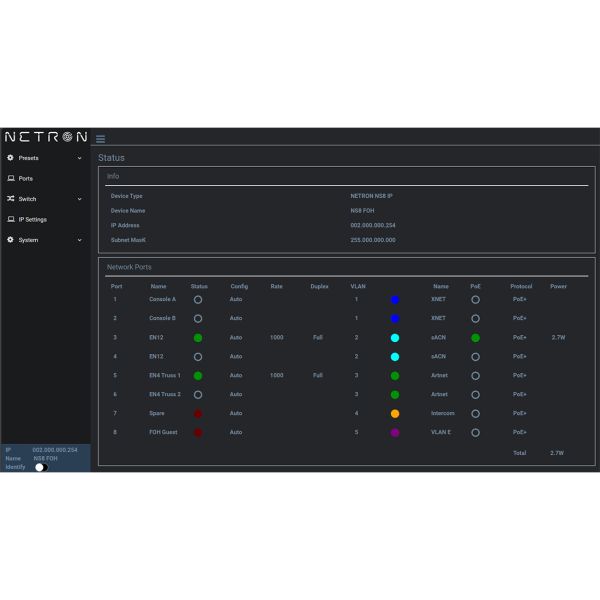

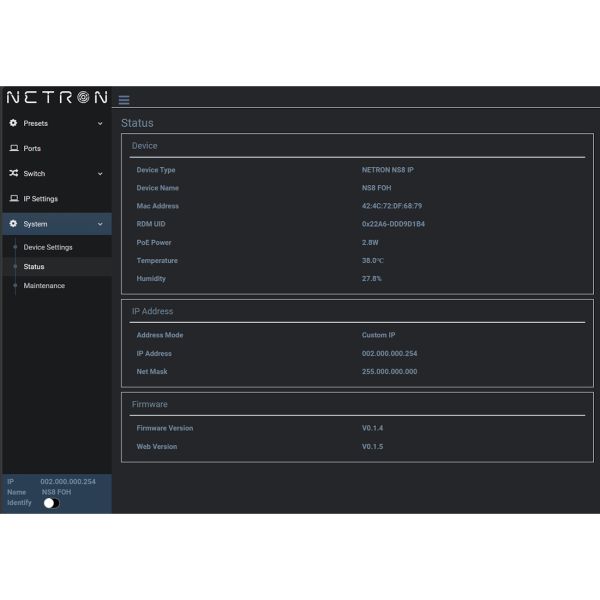

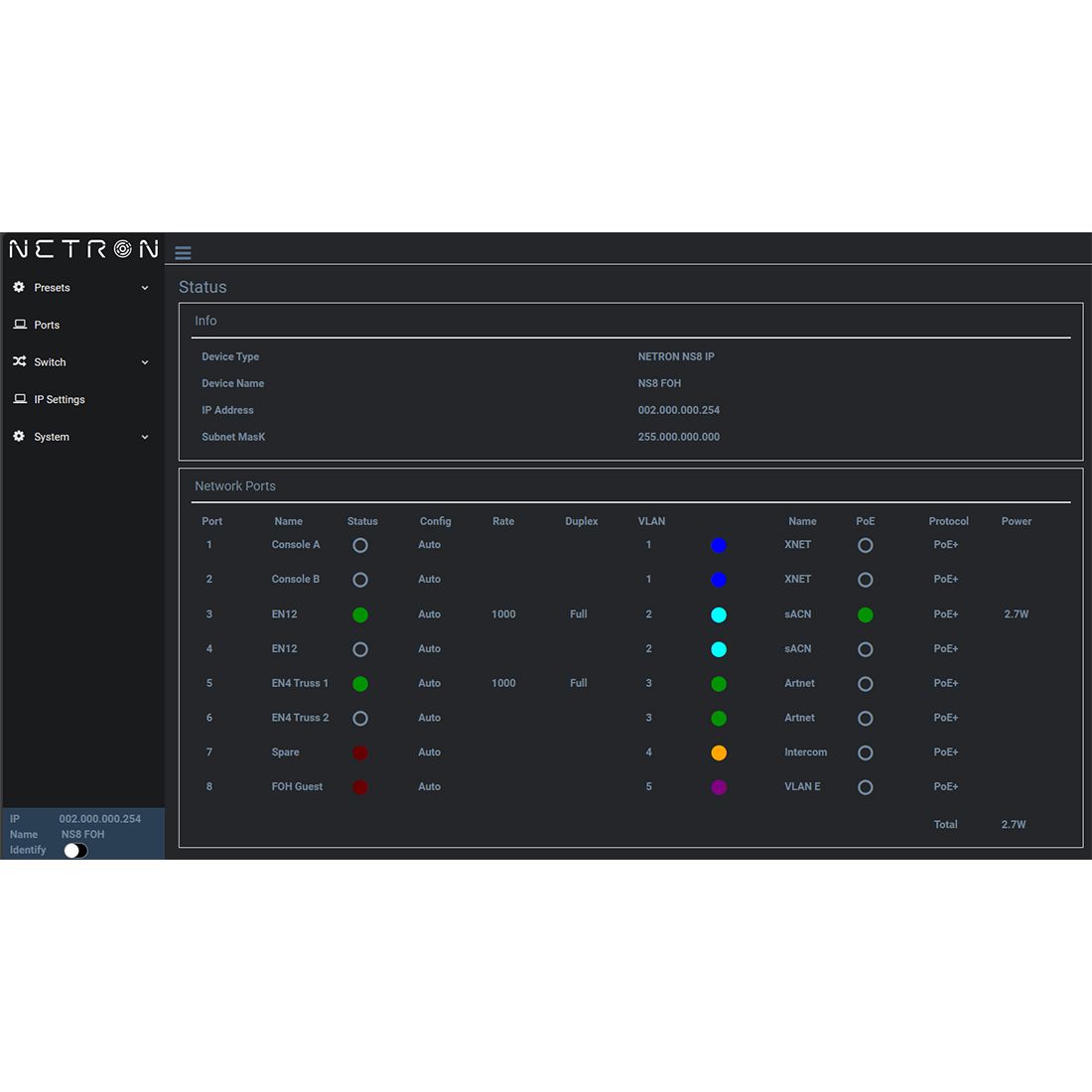

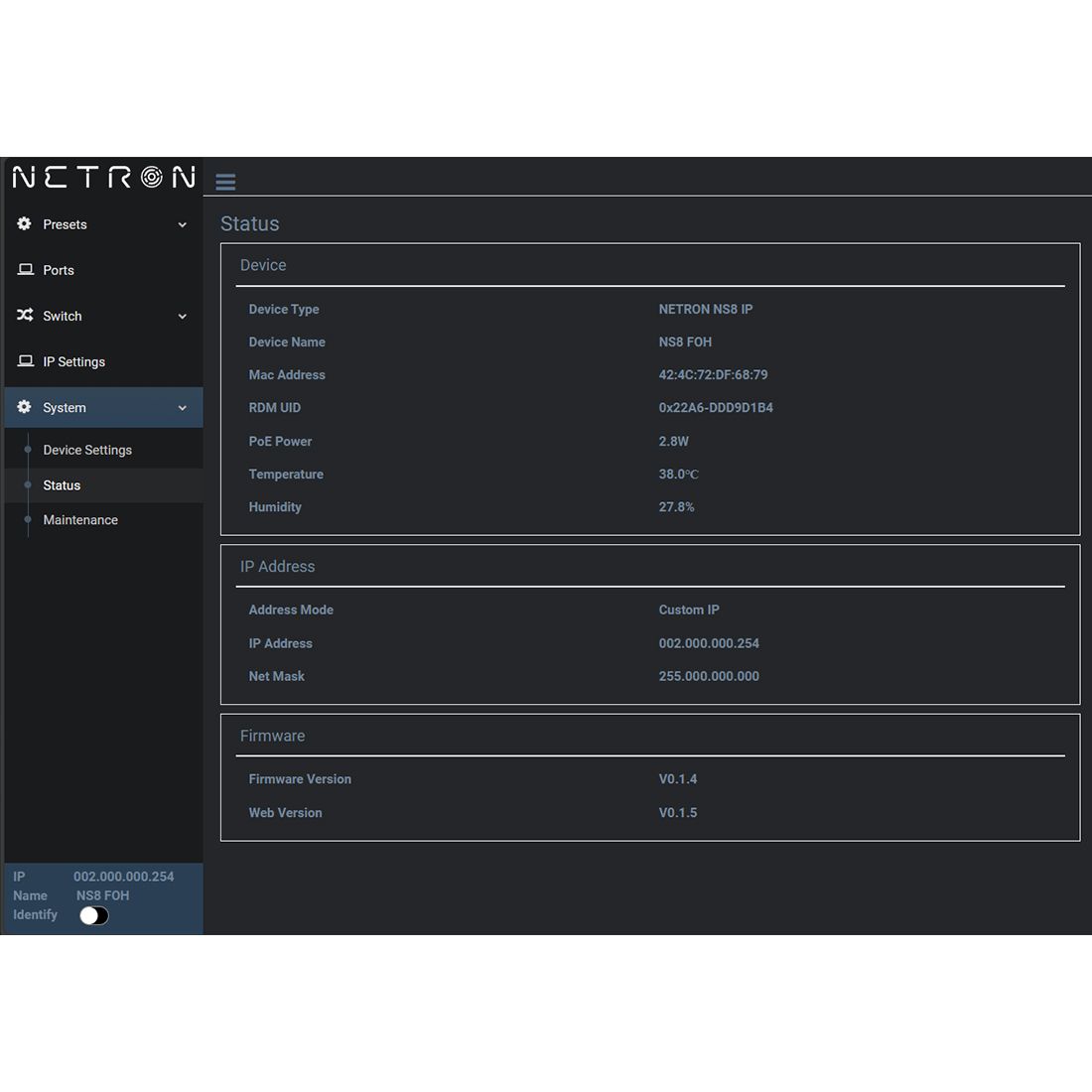

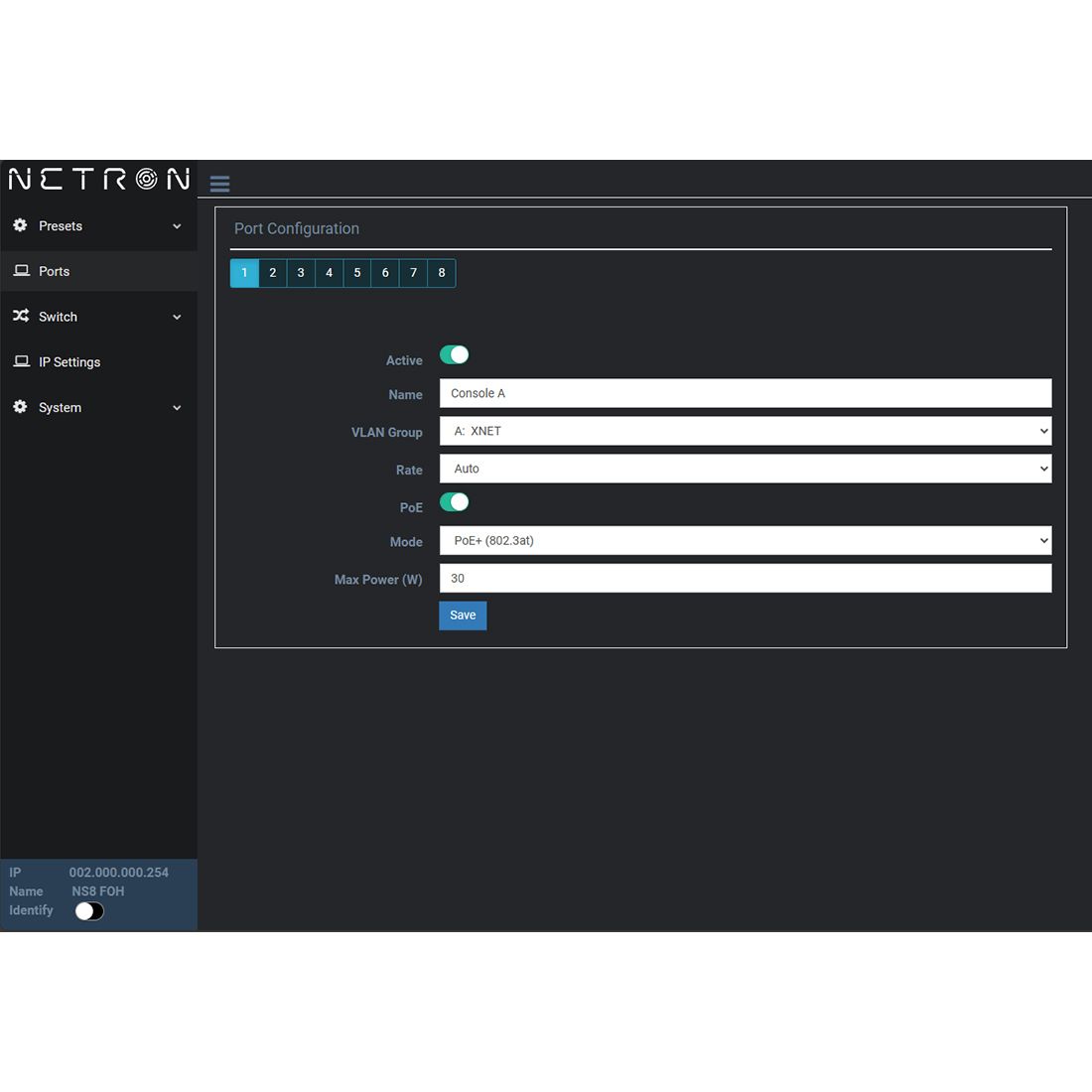

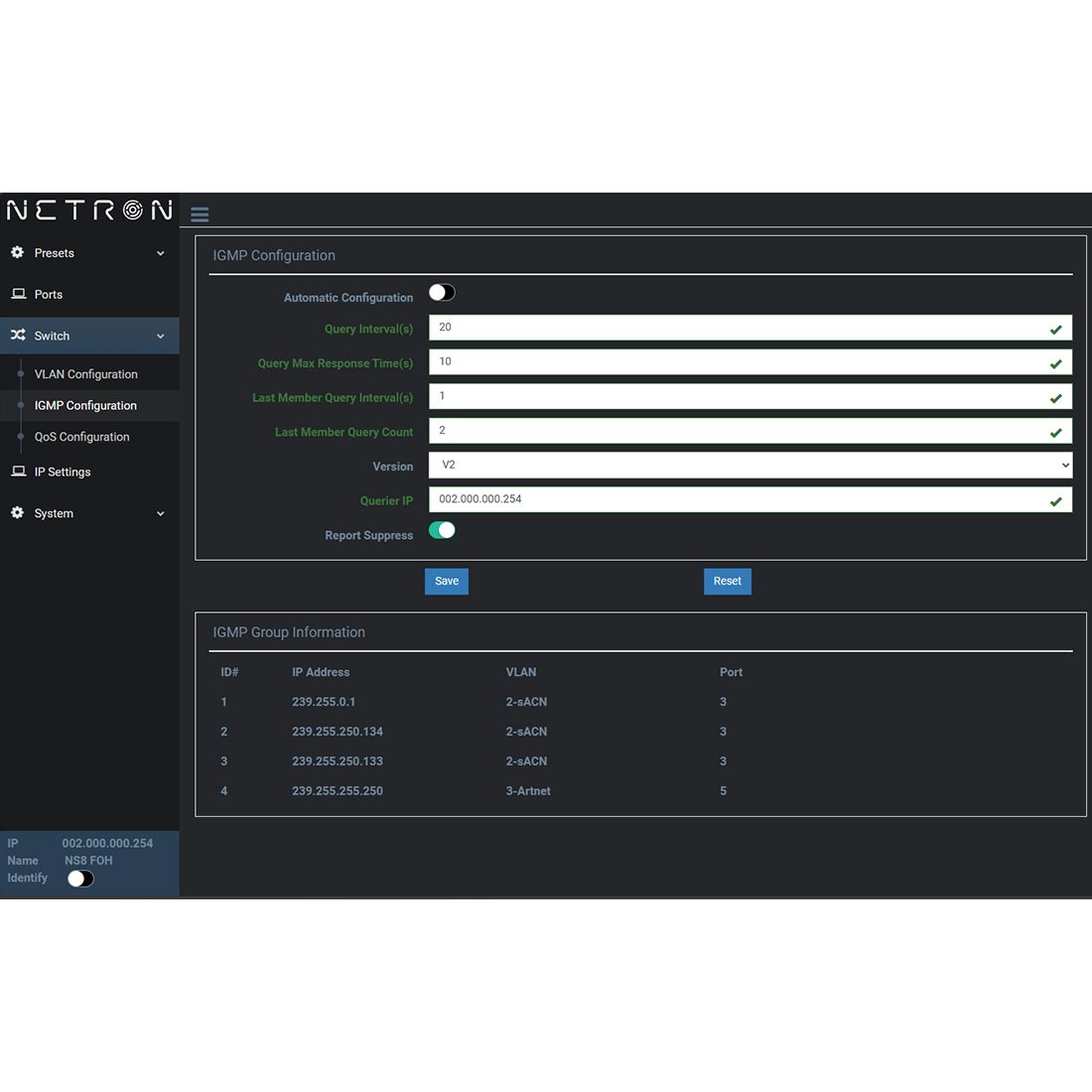

Remote configuration via internal webpage
Convection cooled design
Powder-coated aluminum ½ rack housing

SPECIFICATIONS

MOUNTING

Standalone

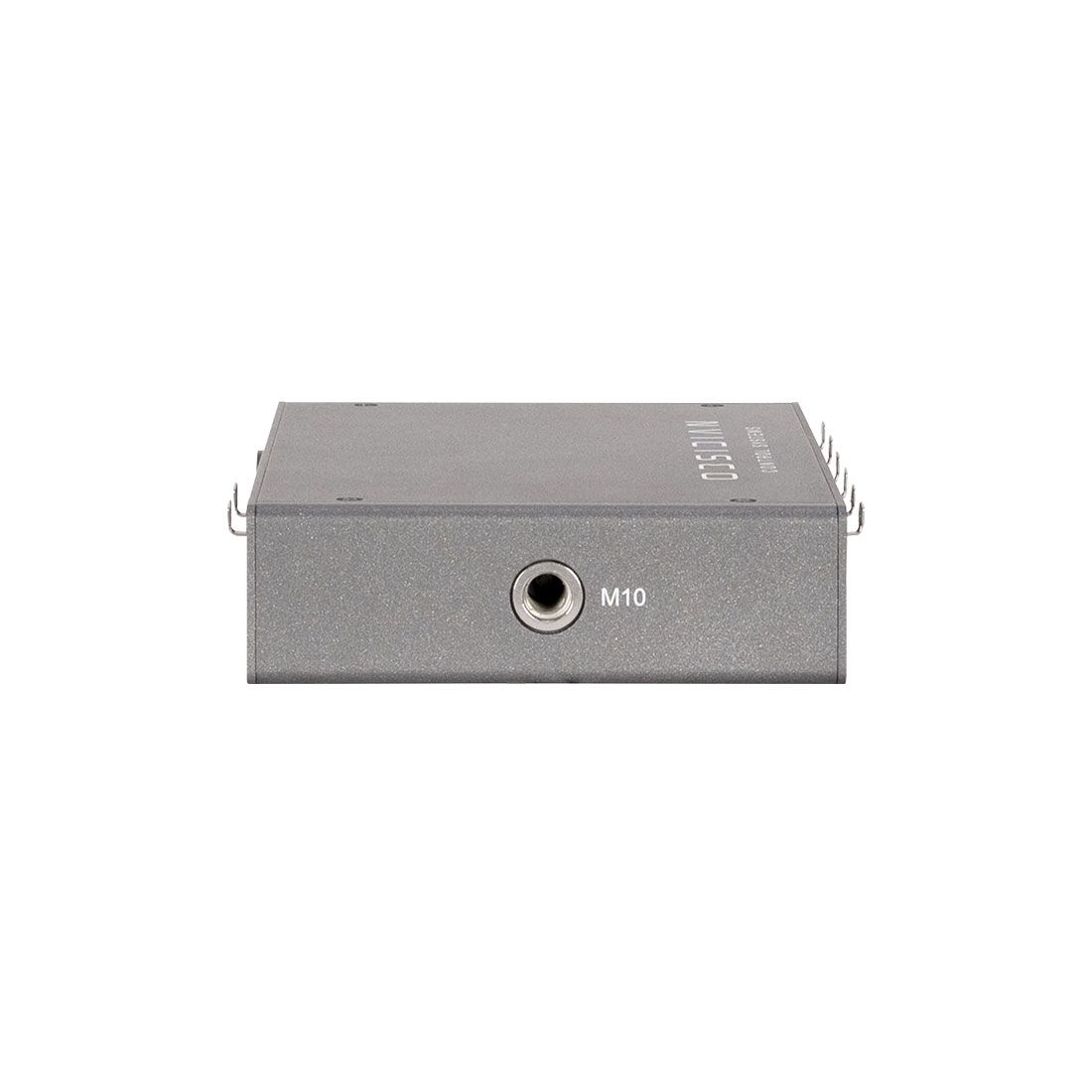

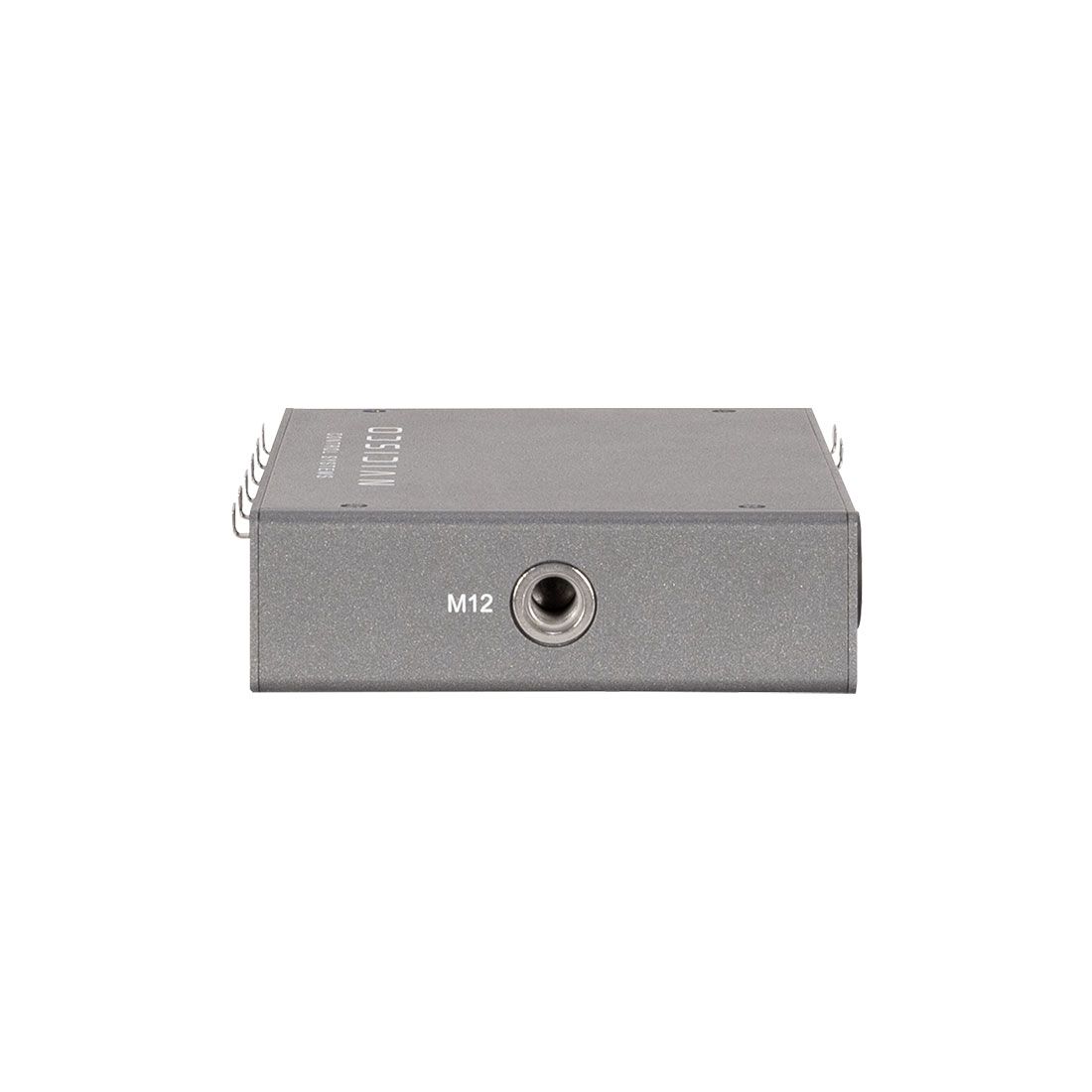

Truss-mount (M10 or M12 mounting hole)

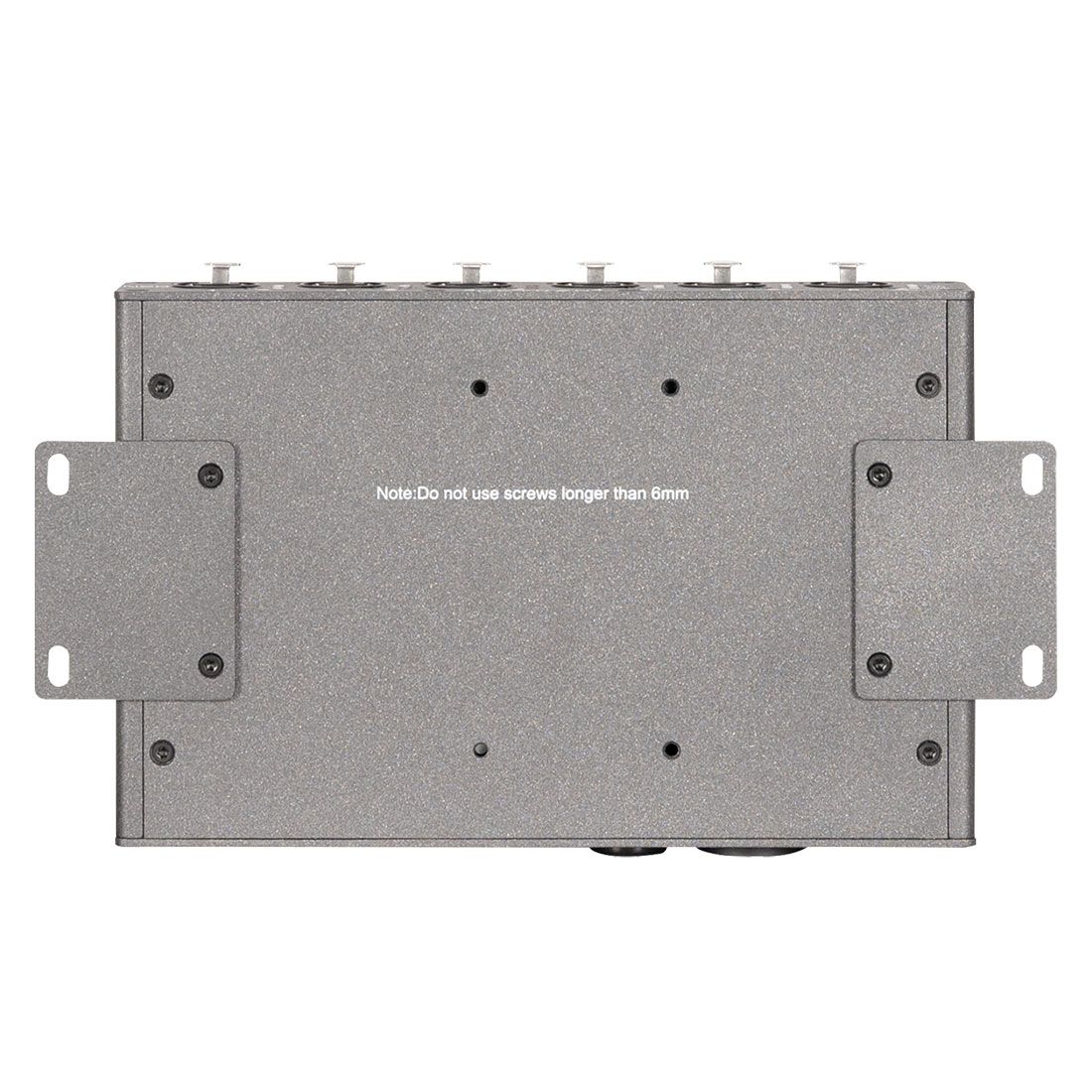

Wall-mount horizontal or vertical (included)

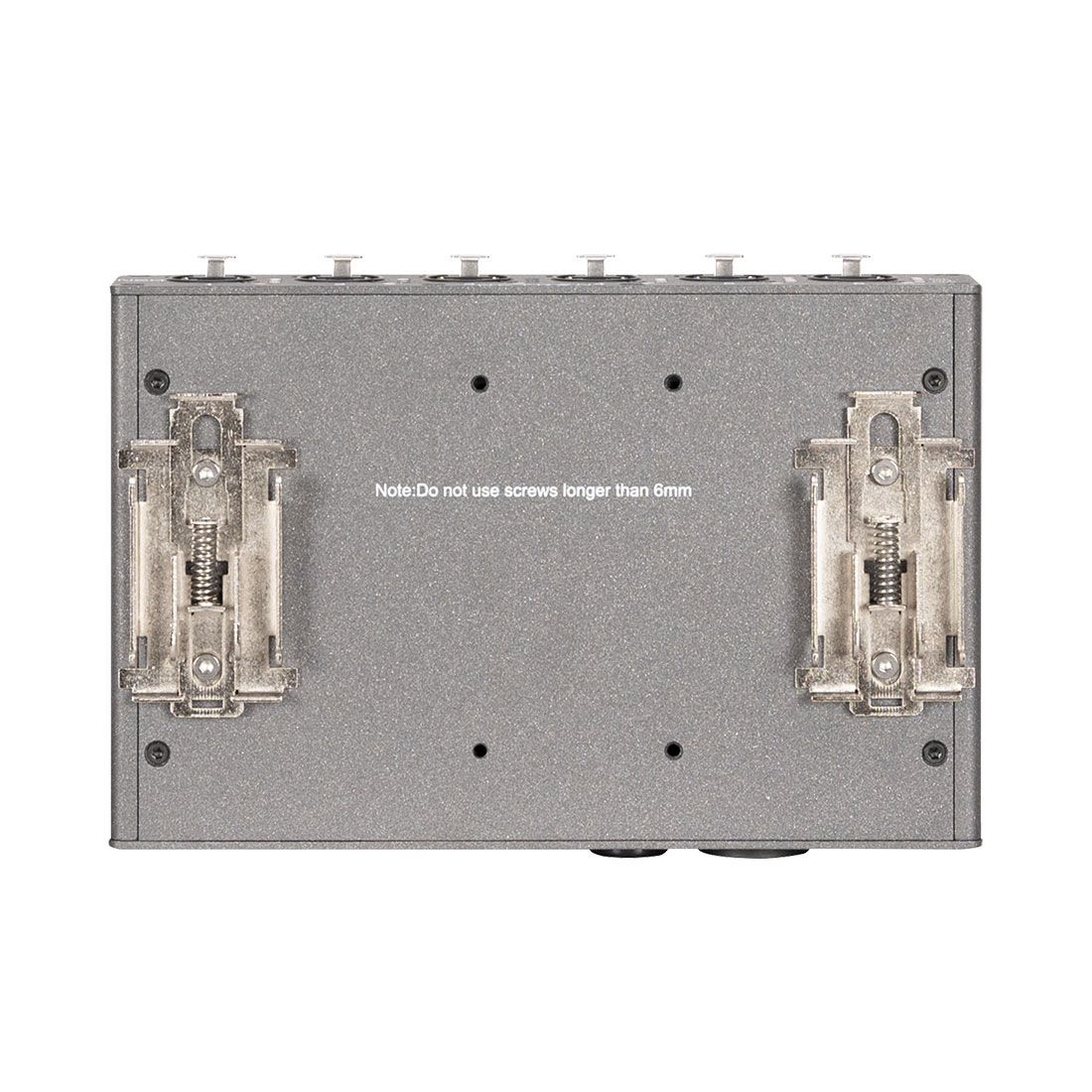

DIN Rail horizontal or vertical (included)
1/2 Rack-mount option (requires NET Shelf)

CONNECTIONS

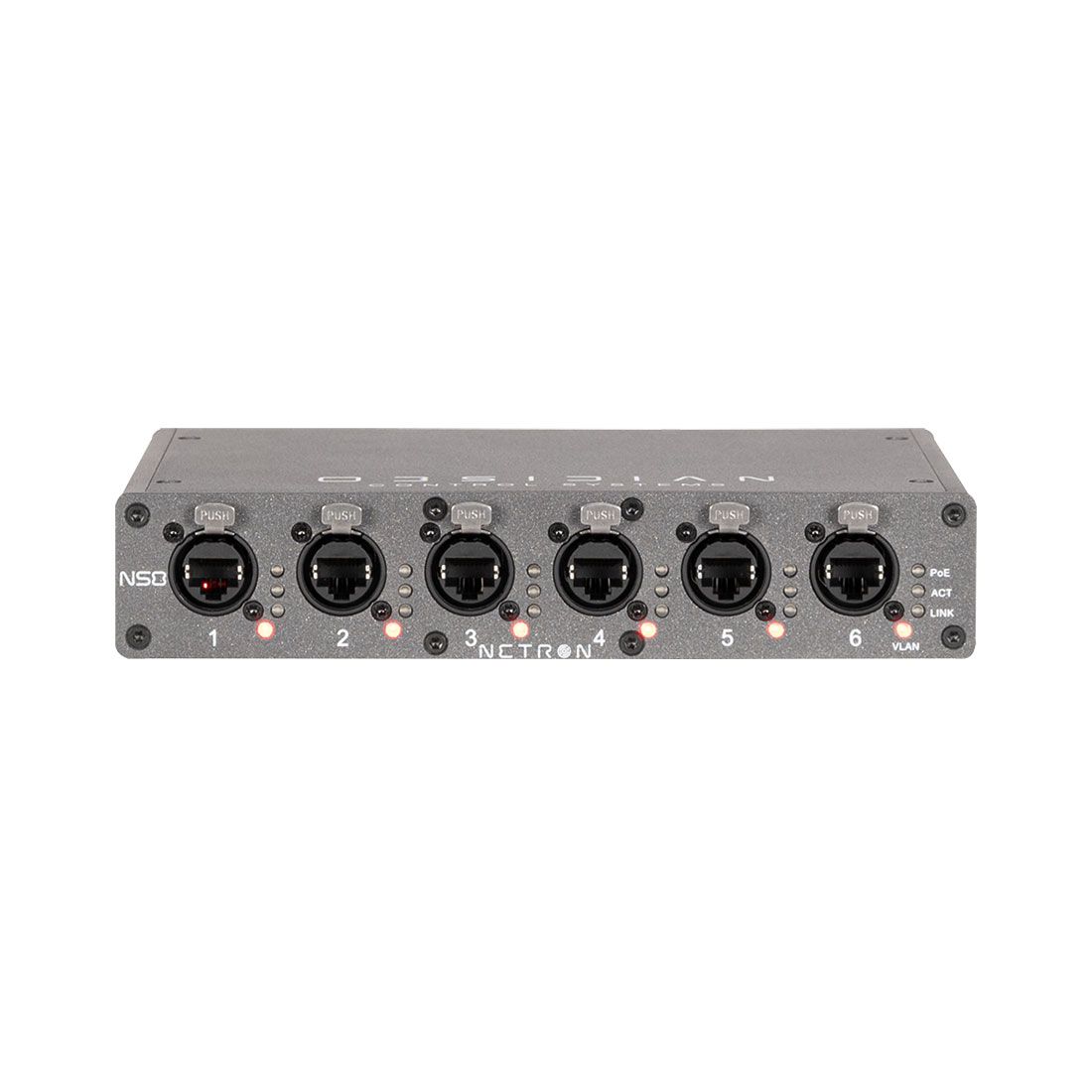

FRONT

(6) Locking RJ45 Ethernet network connections
LED Feedback for Activity and Link

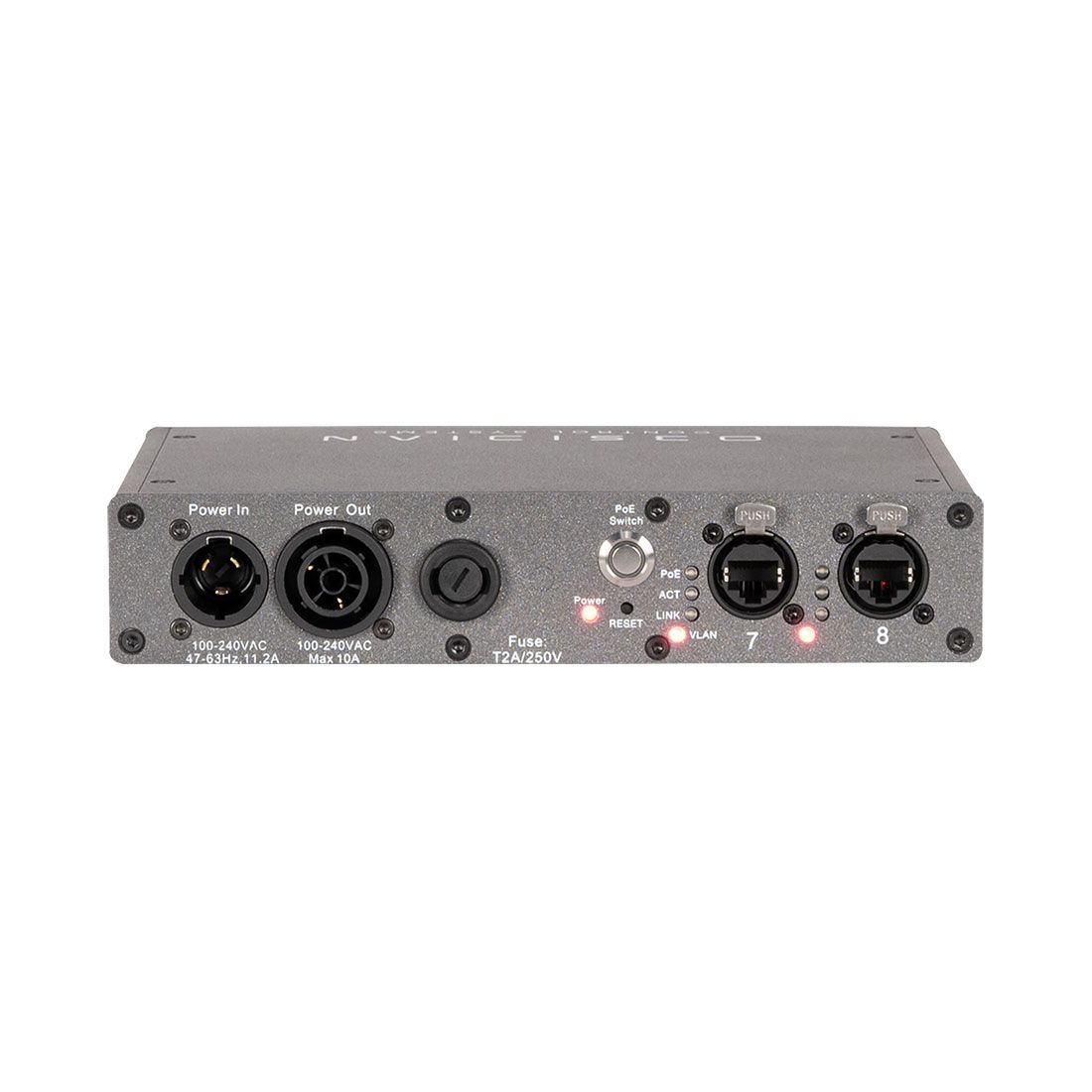

BACK

Locking Power In/Thru
(2) Locking RJ45 Ethernet network connections
LED Feedback for Activity and Link
POE Power Switch

PHYSICAL

Length: 139 mm (5.5 in.)
Width: 215 mm (8.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)

ELECTRICAL

100-240 V nominal, 50/60 Hz 130W
POE 802.3af

FIRMWARE UPDATES

Current Firmware can be found here (login required)



Specifications and documentation subject to change without notice
