RDM6 IP

RDM6 IP

IP65 RDM Splitter 1x6 XLR

Code 1330000086

The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP65 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris. Click here to learn more about the RDM6 IP& for all technical details and documentation

Code 1330000086

RDM6 IP

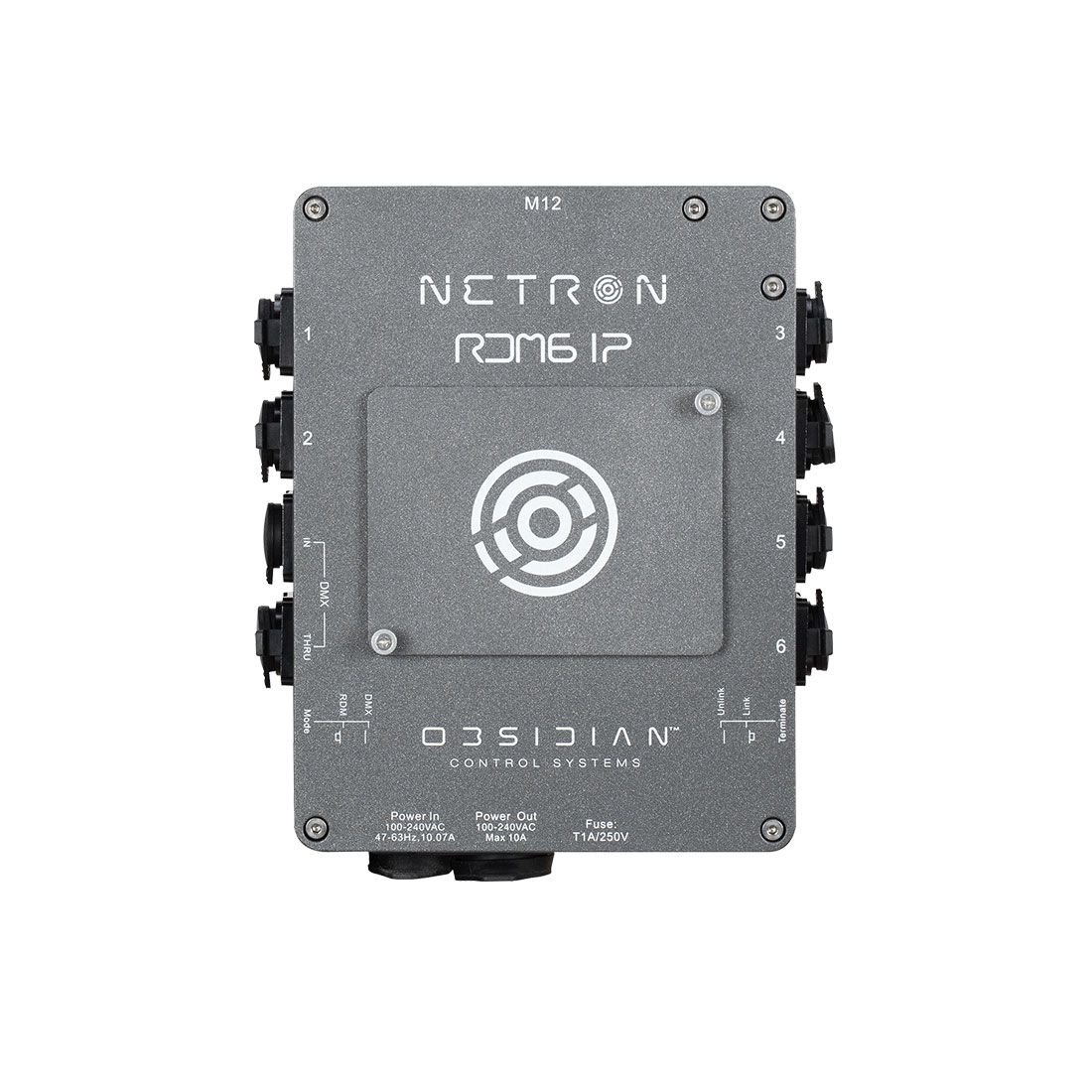

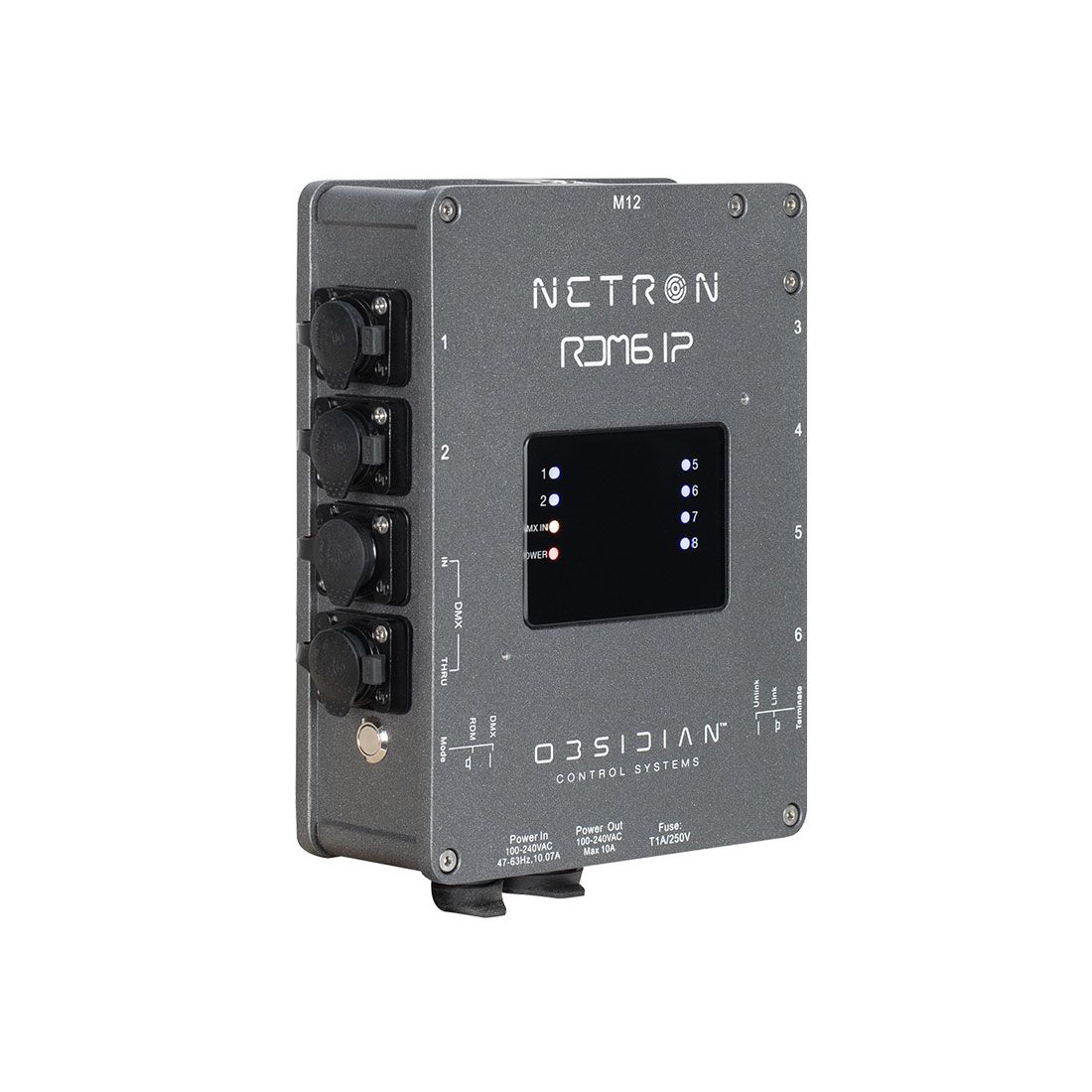

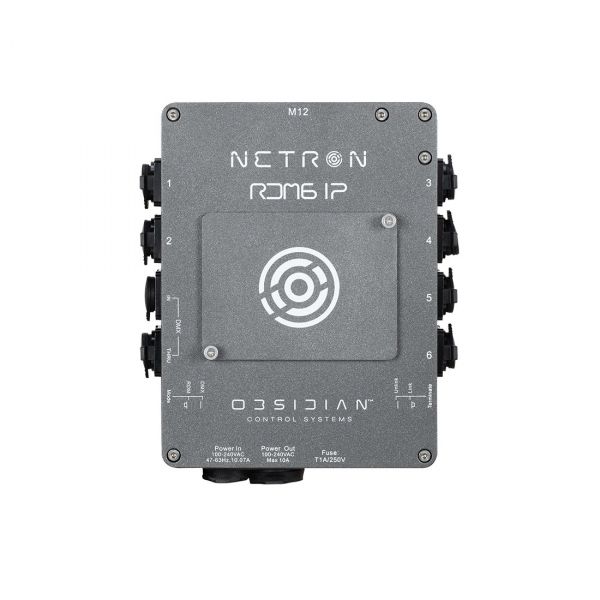

The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP65 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

Click here to learn more about the RDM6 IP& for all technical details and documentation

Technical Data

FEATURES

IP65 Chassis
(6) XLR 5pin outputs
DMX and RDM compliant
Optically isolated ports
Power / DMX Through connectors
Powder-coated aluminum housing

SPECIFICATIONS

MOUNTING

Standalone

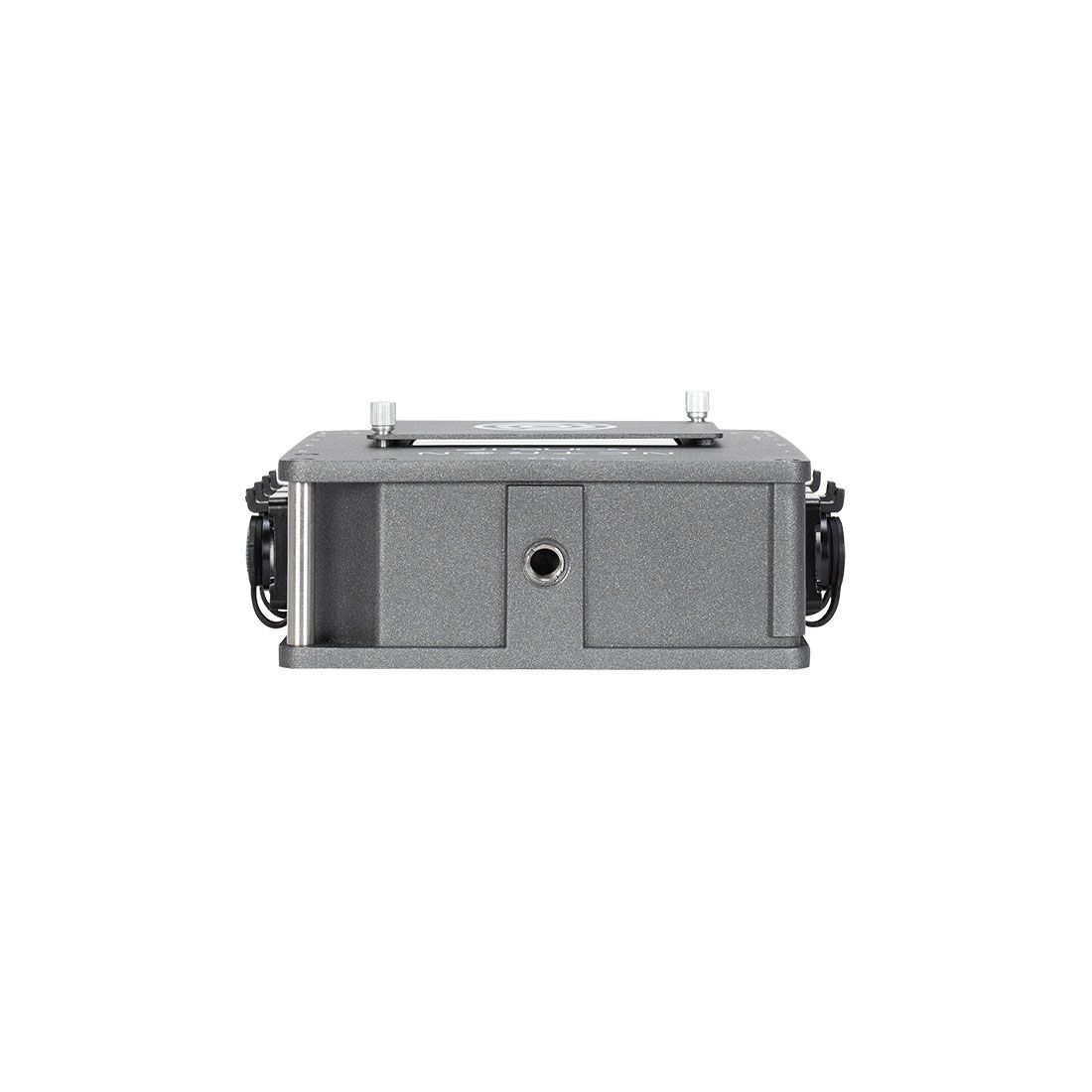

Truss-mount (M12)
Wall-mount

CONNECTIONS

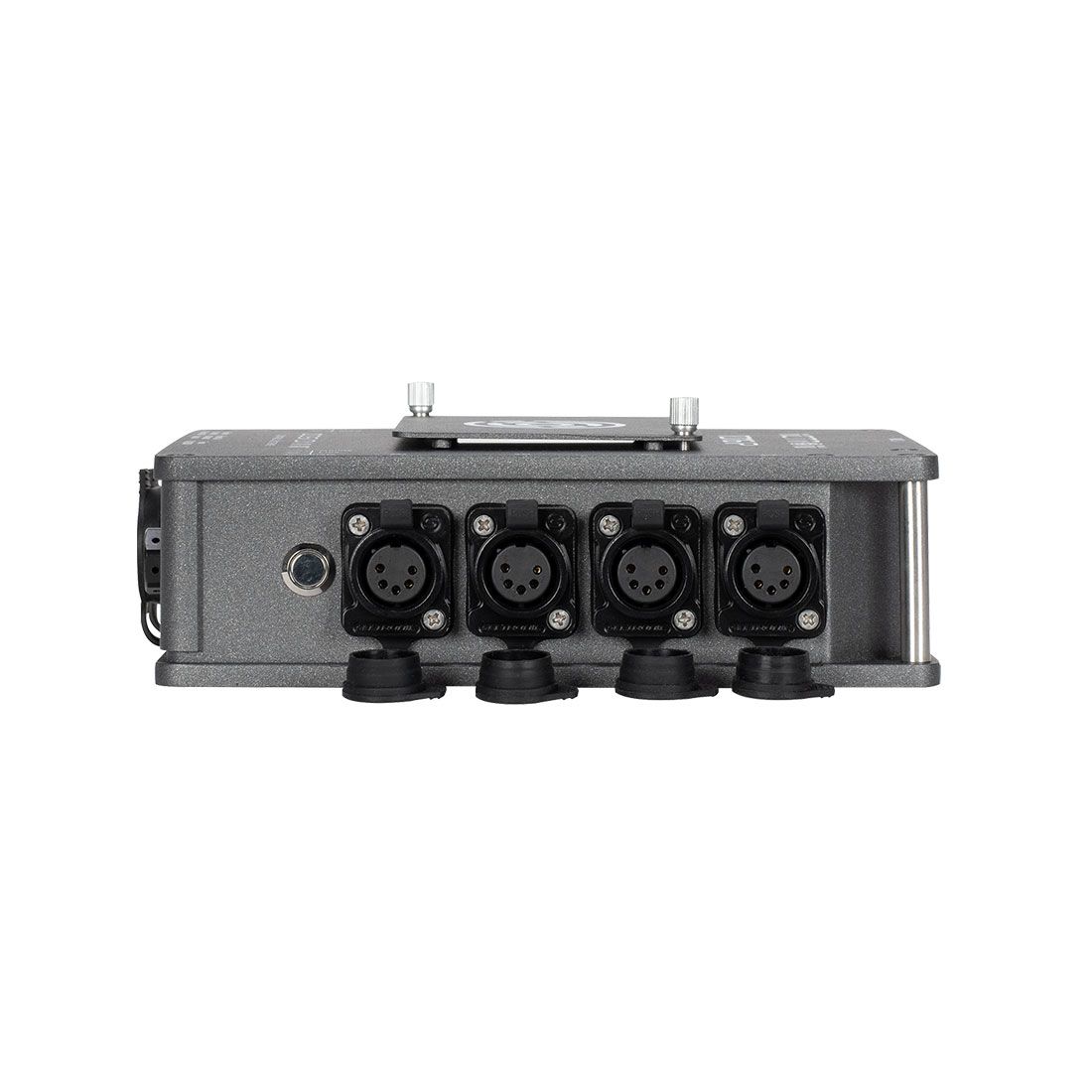

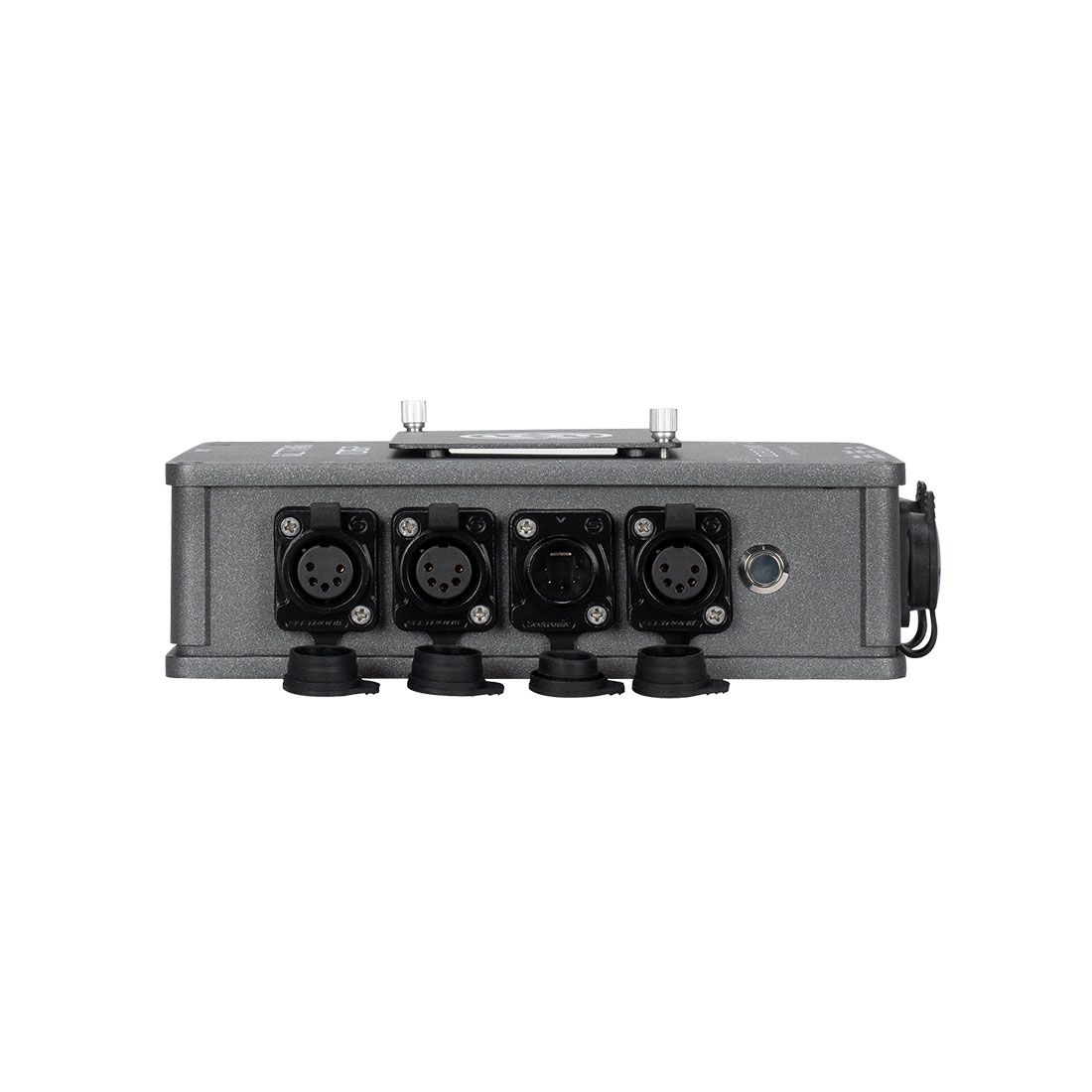

Sides

5pin DMX Input
(6) 5pin Opto-Isolated DMX Outputs

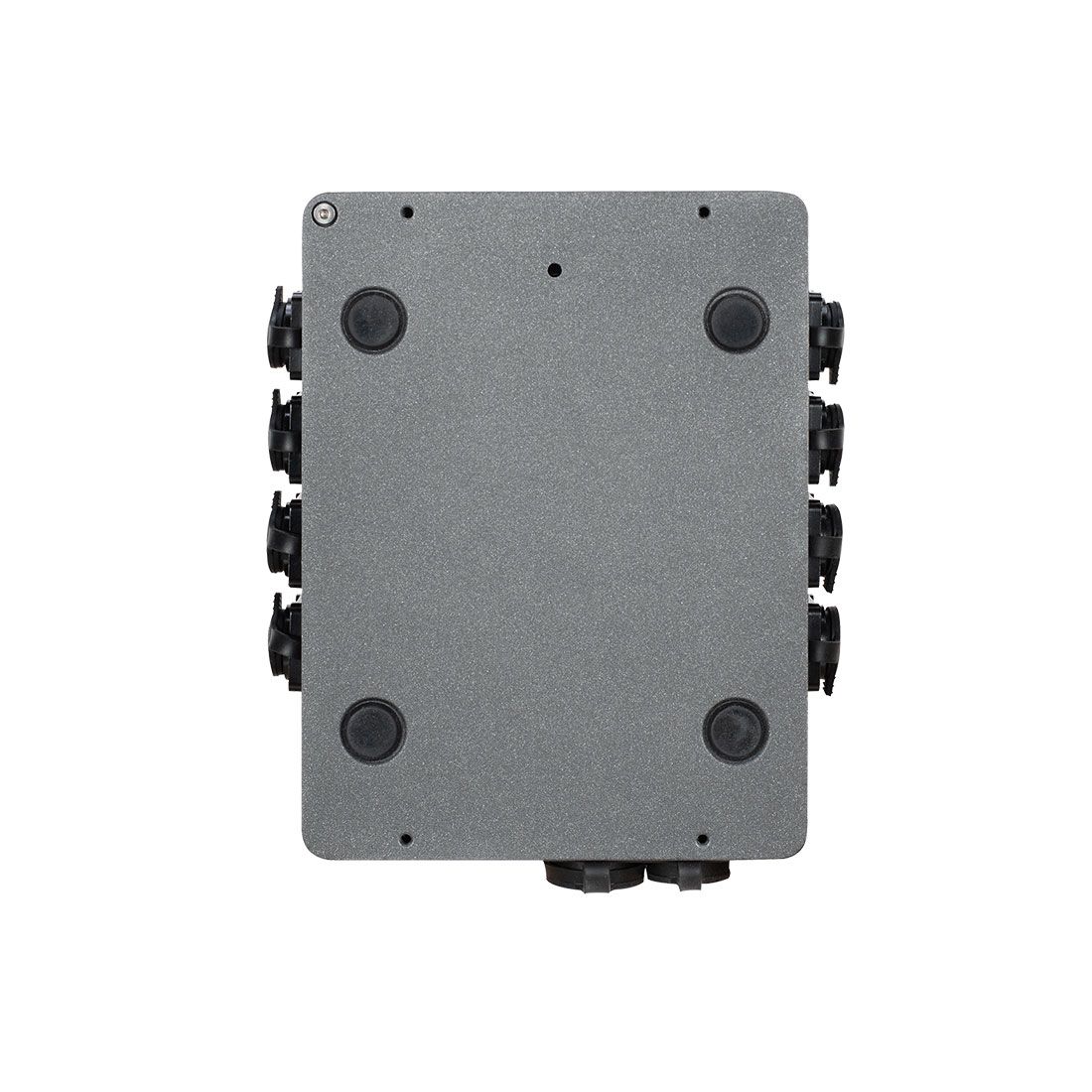

Bottom

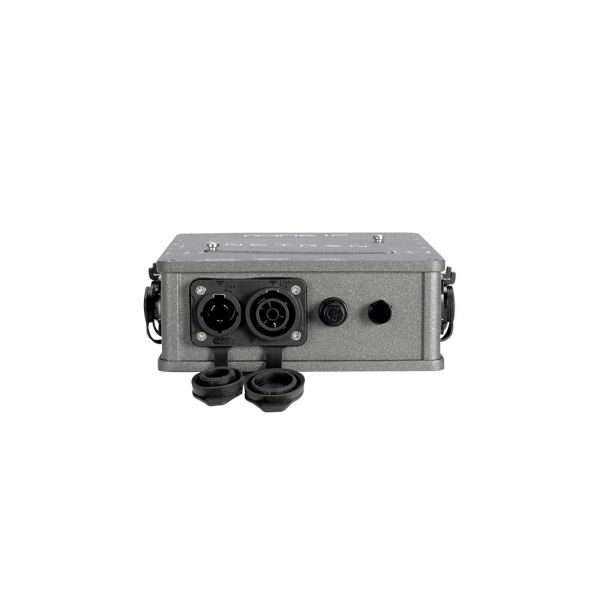

Locking IP65 Power In/Thru

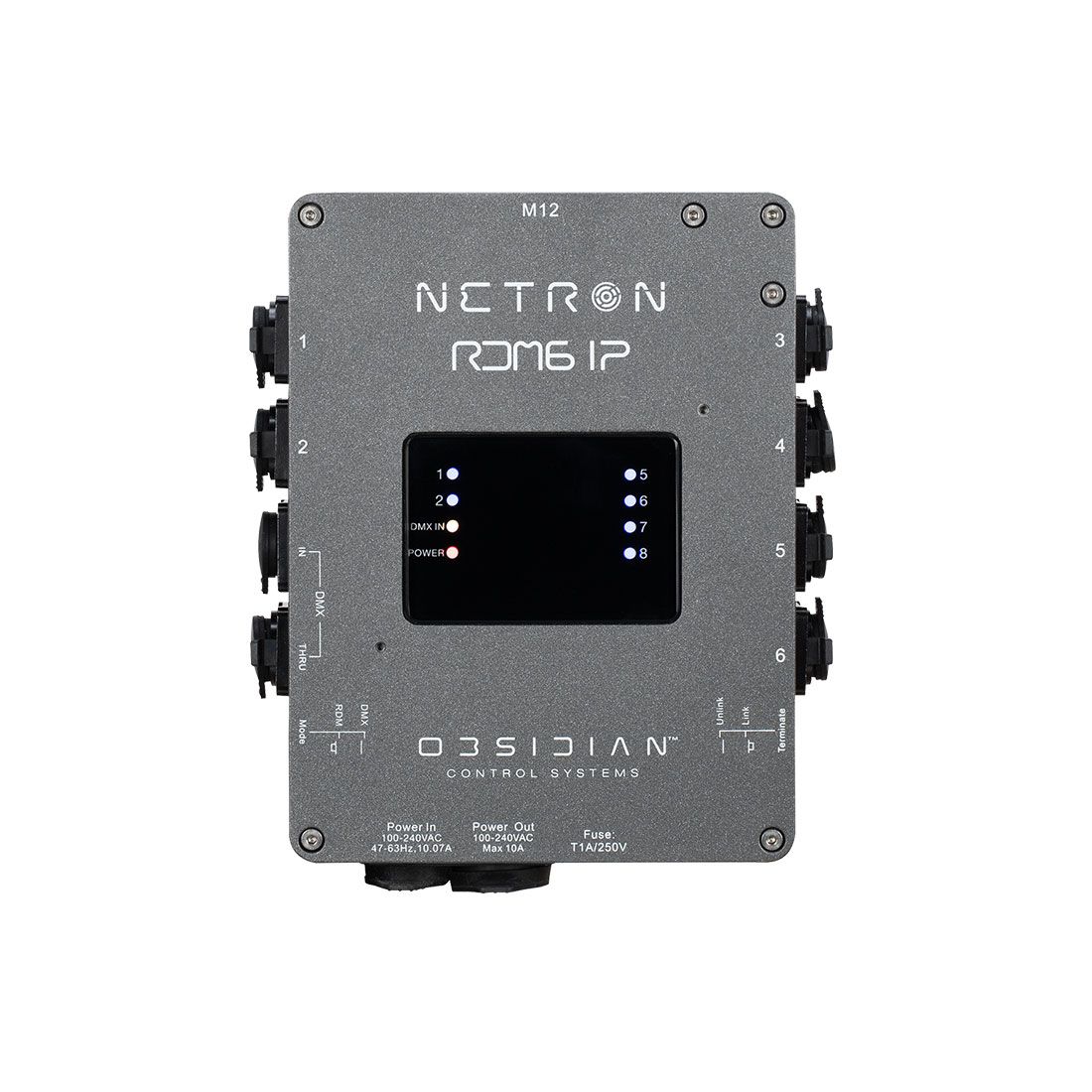

Front

Terminate Button
RDM Enable / Disable Button
LED Port Feedback

PHYSICAL

Length:
Width:
Height:
Weight:

ELECTRICAL

100-240 V nominal, 50/60 Hz

FIRMWARE UPDATES

Current Firmware can be found here (login required)

Specifications and documentation subject to change without notice
