RDM6D

Click here to learn more about the RDM6D & for all technical details and documentation

Technical Data

FEATURES

RJ45, screw terminal or IDC connectivity
Configurable Top, Bottom and Front ports
DMX, RDM support
r 9-48V DC power
Powder-coated aluminum DIN Rail housing

SPECIFICATIONS

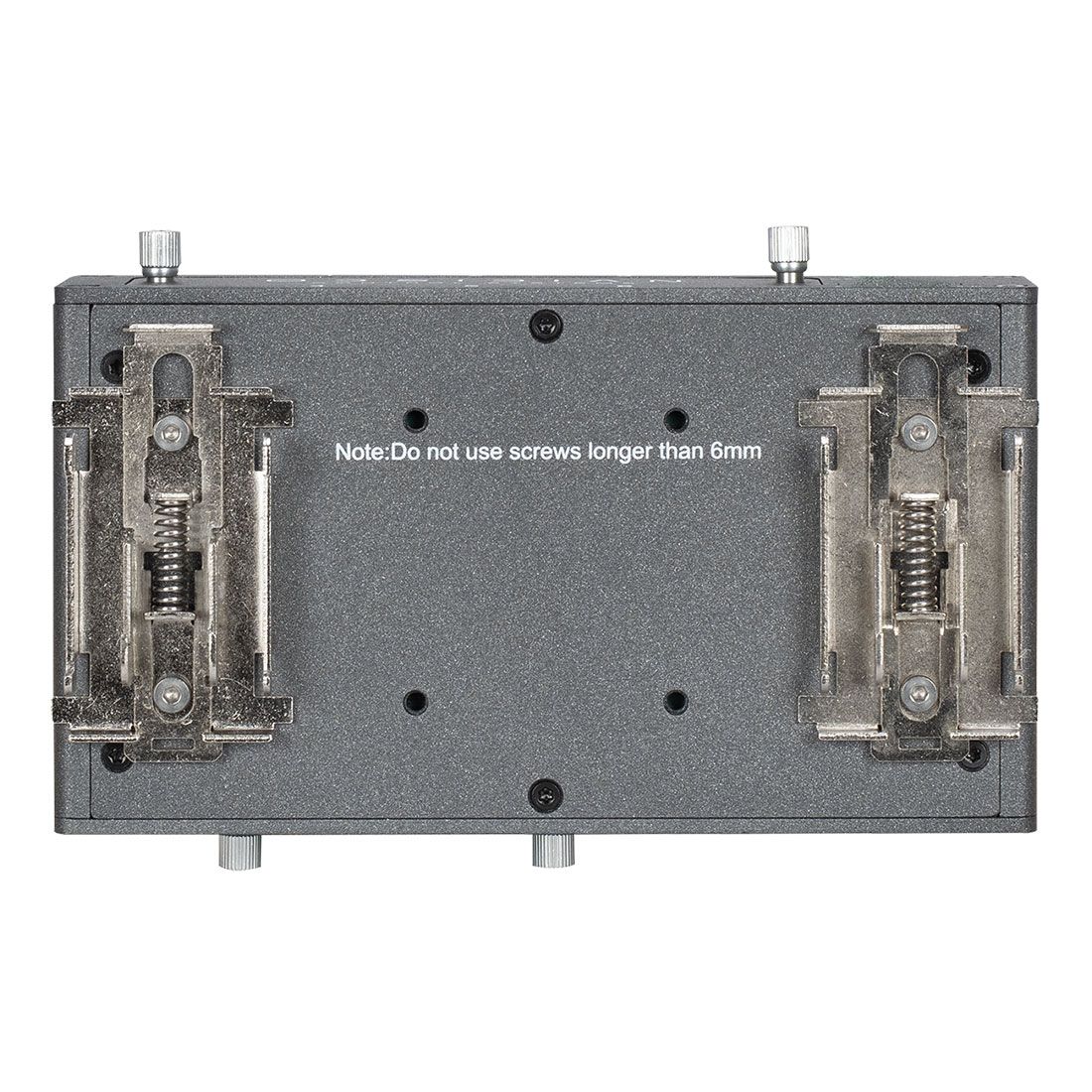

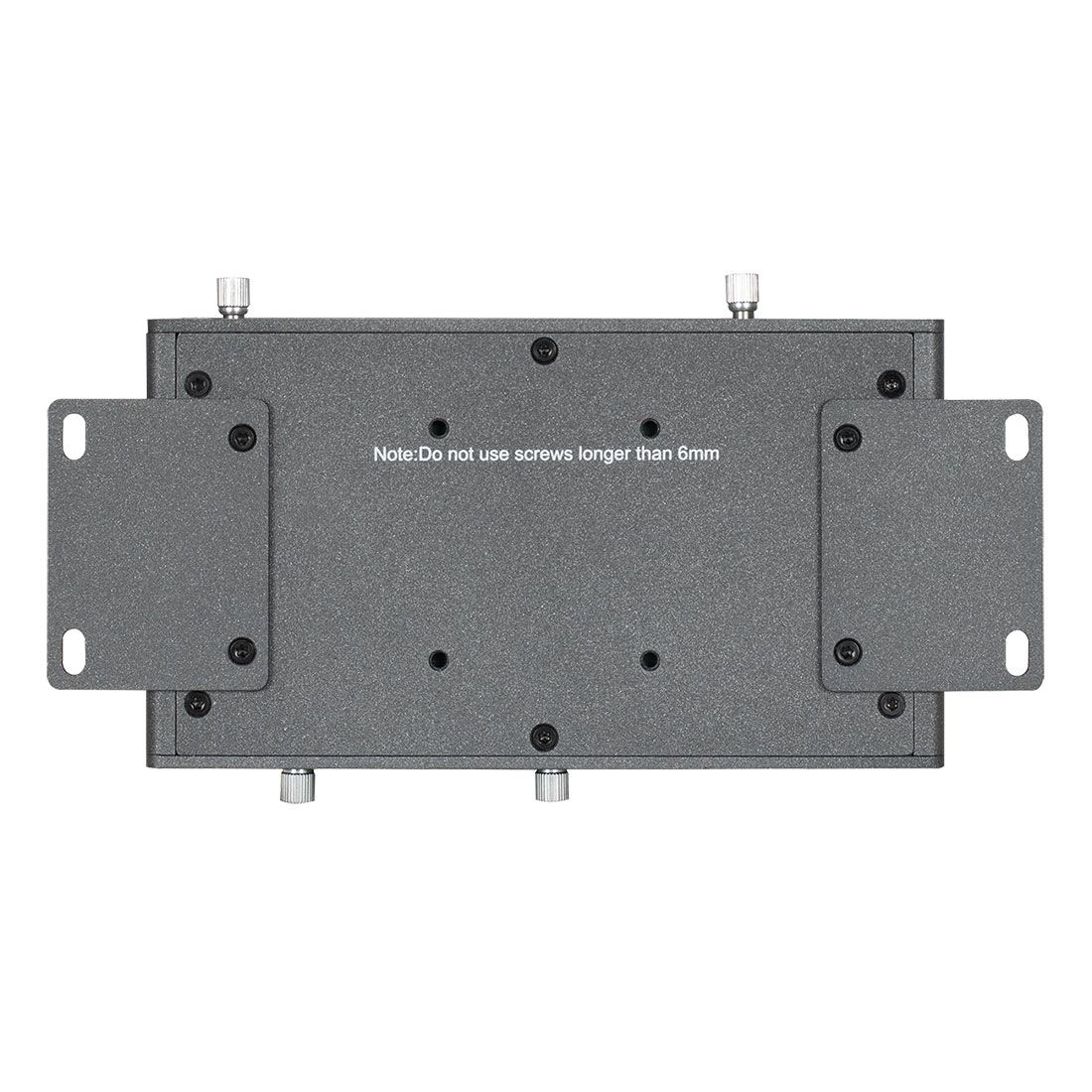

MOUNTING

DIN Rail
Wall-mount

CONNECTIONS

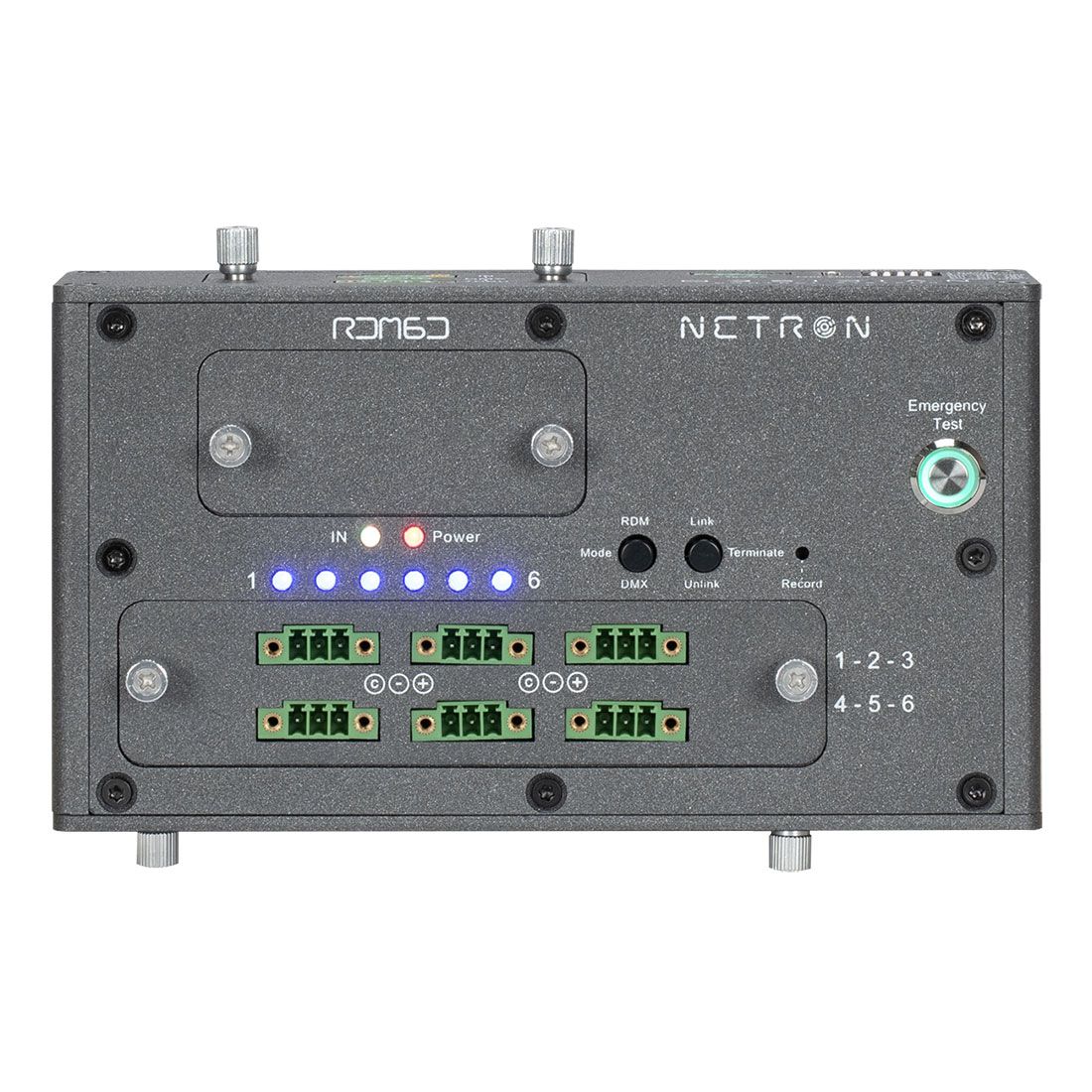

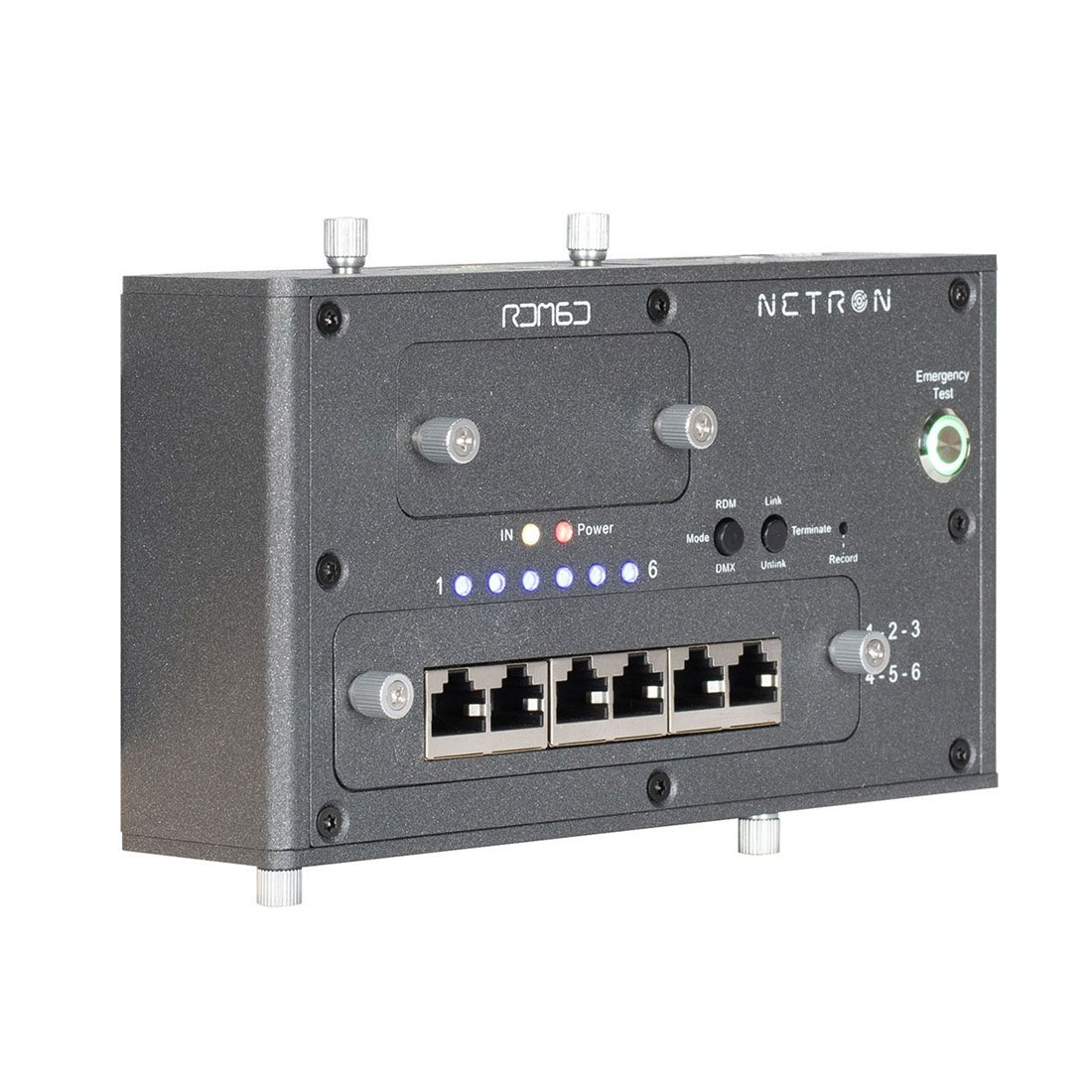

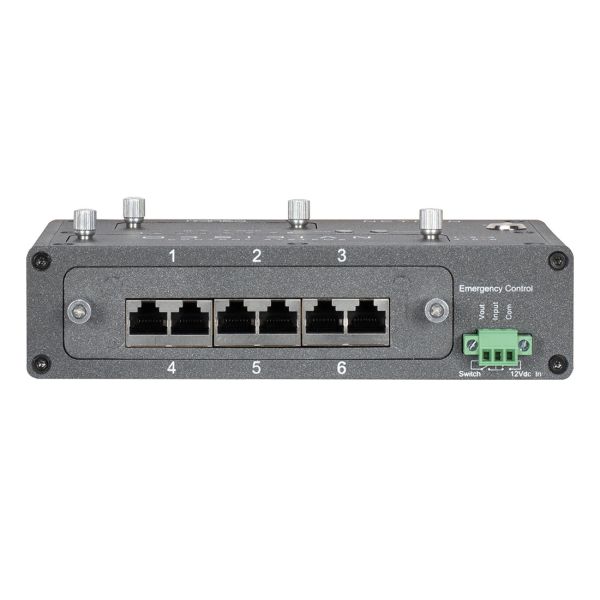

FRONT

6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate
2-port DMX In / Thru connection plate (RJ45 or Terminal Block) or Cover Plate

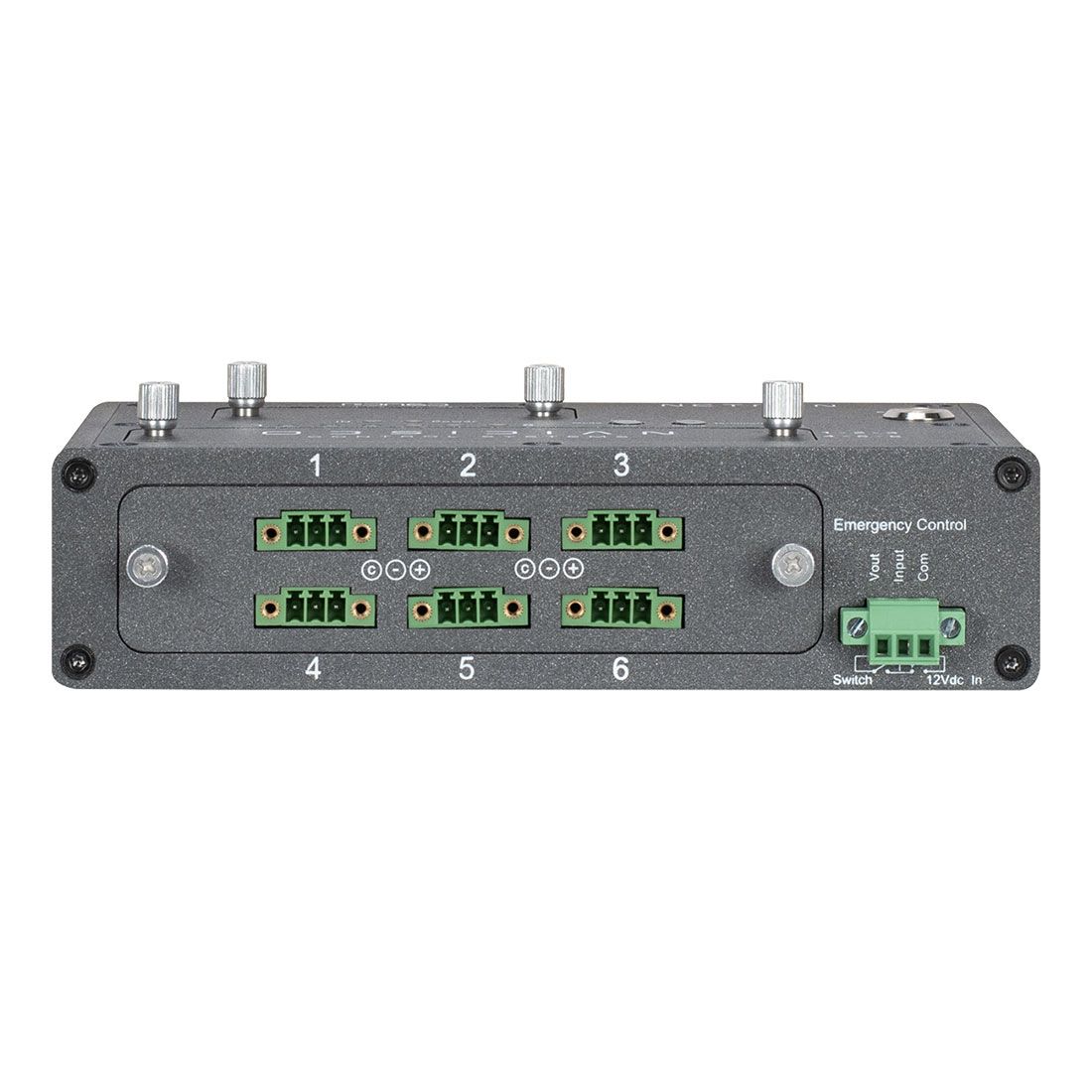

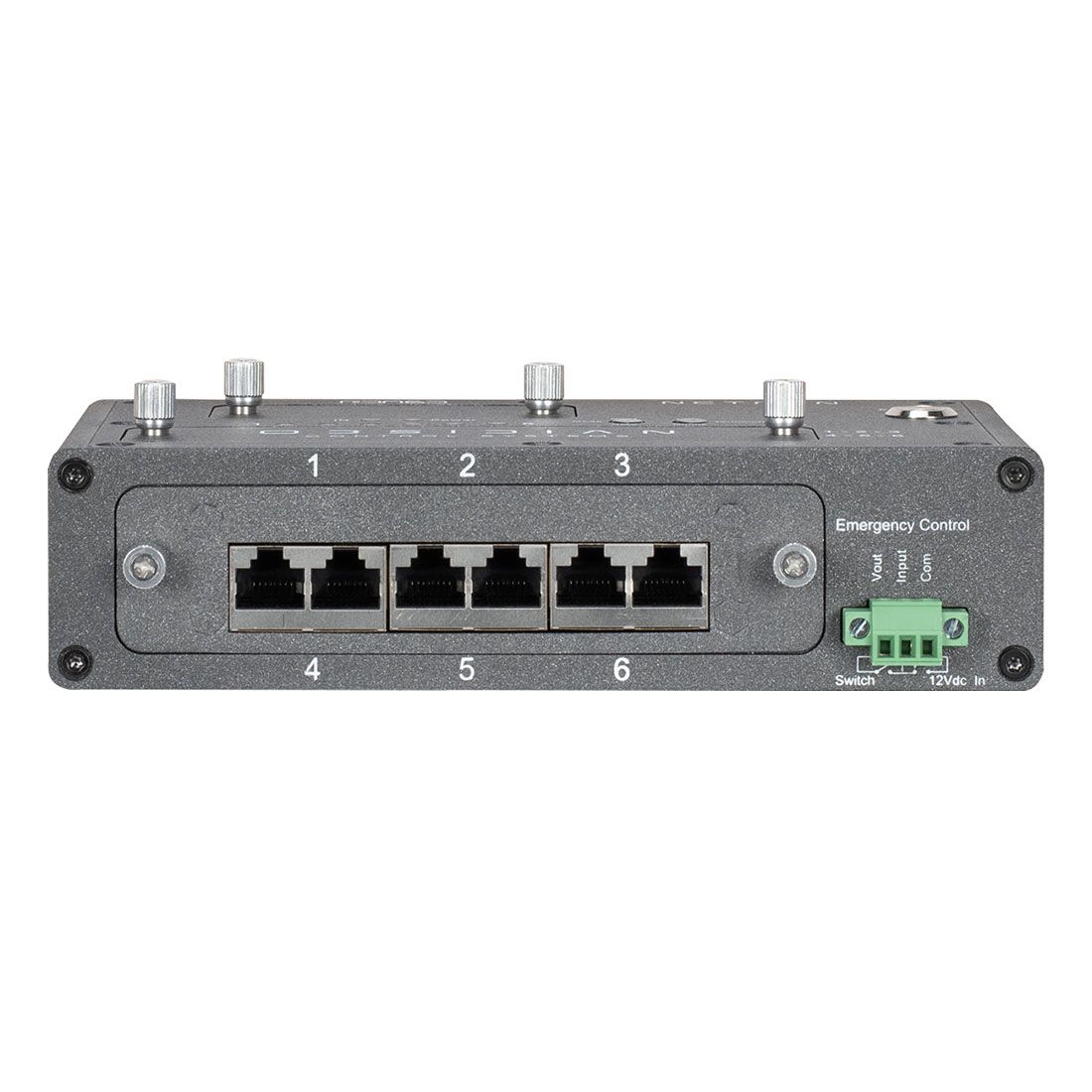

Bottom

6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate

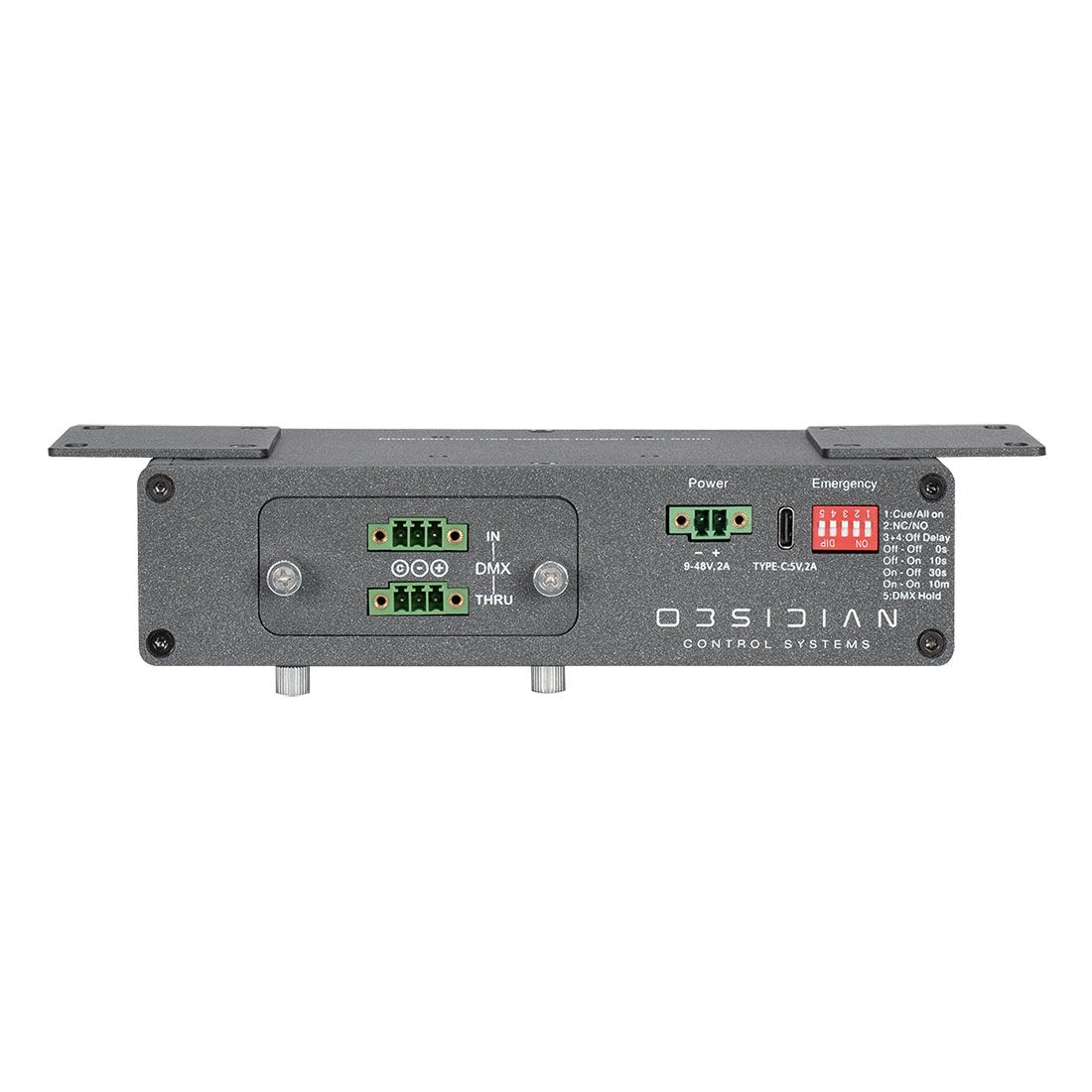

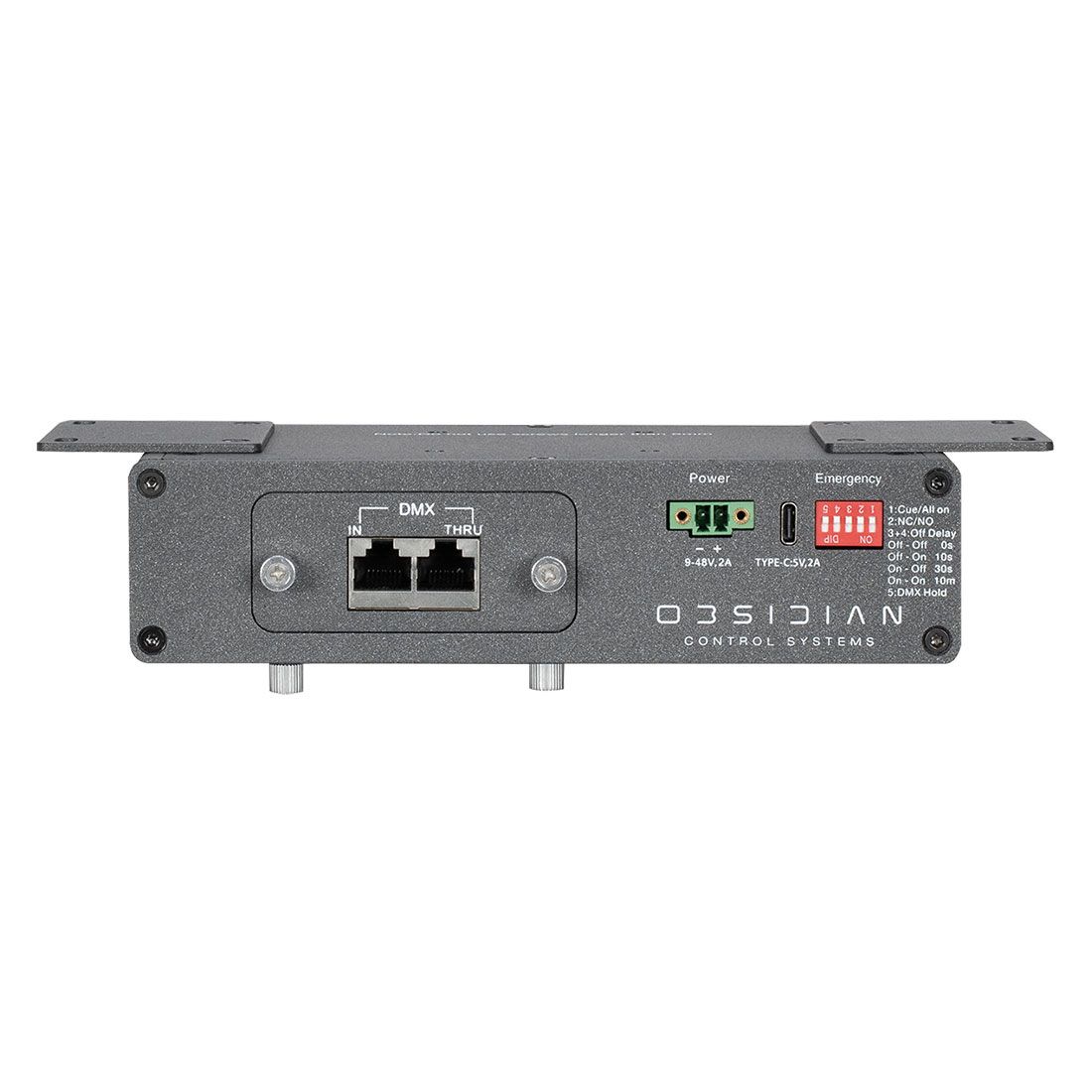

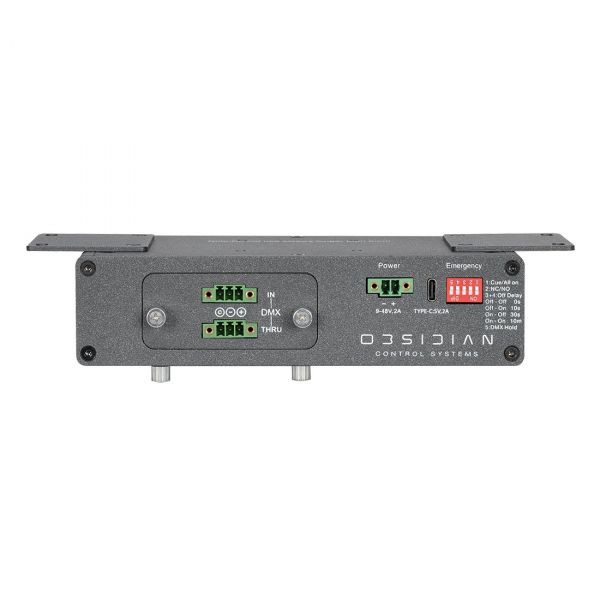

TOP

2-port DMX In / Thru connection plate (RJ45 or Terminal Block) or Cover Plate
DC In (2pin Terminal Block)
USB-C (5V/2A)


PHYSICAL

Length: 116 mm (4.7 in.)
Width: 143mm (5.6 in.)
Height: 52 mm (2.1 in.)
Weight: kg ( lbs)


ELECTRICAL

DC 9-48V
USB-C (5V/2A)

FIRMWARE UPDATES

Current Firmware can be found here (login required)

Specifications and documentation subject to change without notice
