RDM645

RDM645

RDM Splitter 1x6 RJ45 1/2 Rack

Code 1330000062

The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six locking opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.Click here to learn more about RDM 645 & for all technical details & documentation

Code 1330000062

RDM645

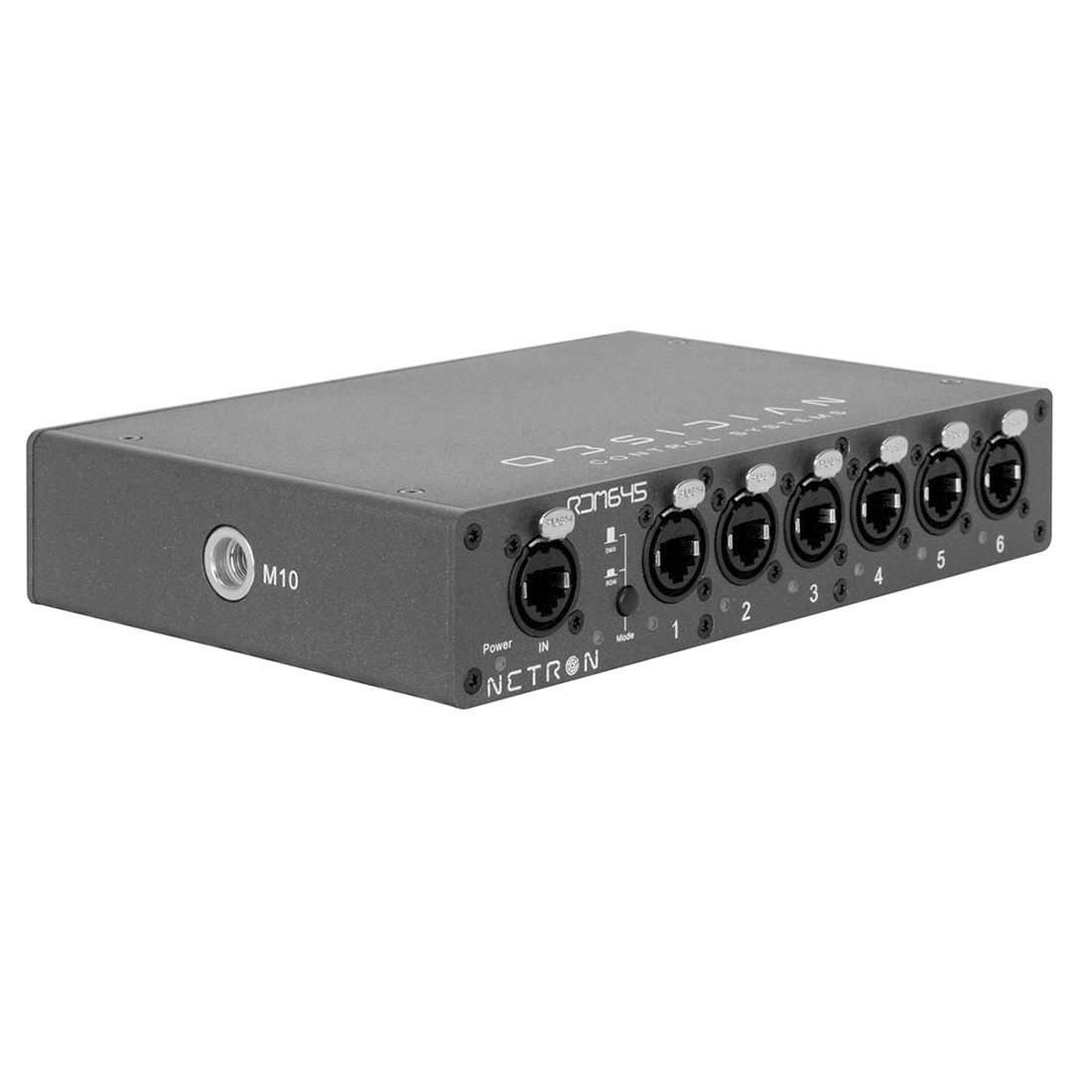

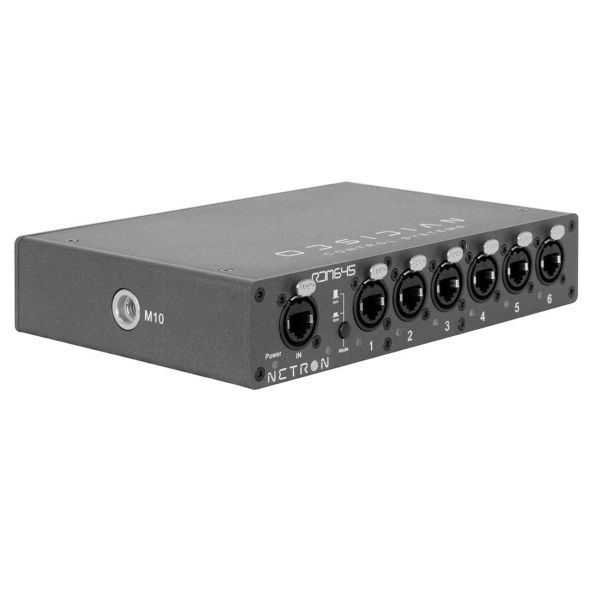

The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six locking opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.

Click here to learn more about RDM 645 & for all technical details & documentation

Technical Data

FEATURES

(6) locking RJ45 Ethernet DMX outputs
DMX and RDM compliant
Optically isolated ports
Power / DMX Through connectors
Powder-coated aluminium ½ rack housing

SPECIFICATIONS

MOUNTING

Standalone

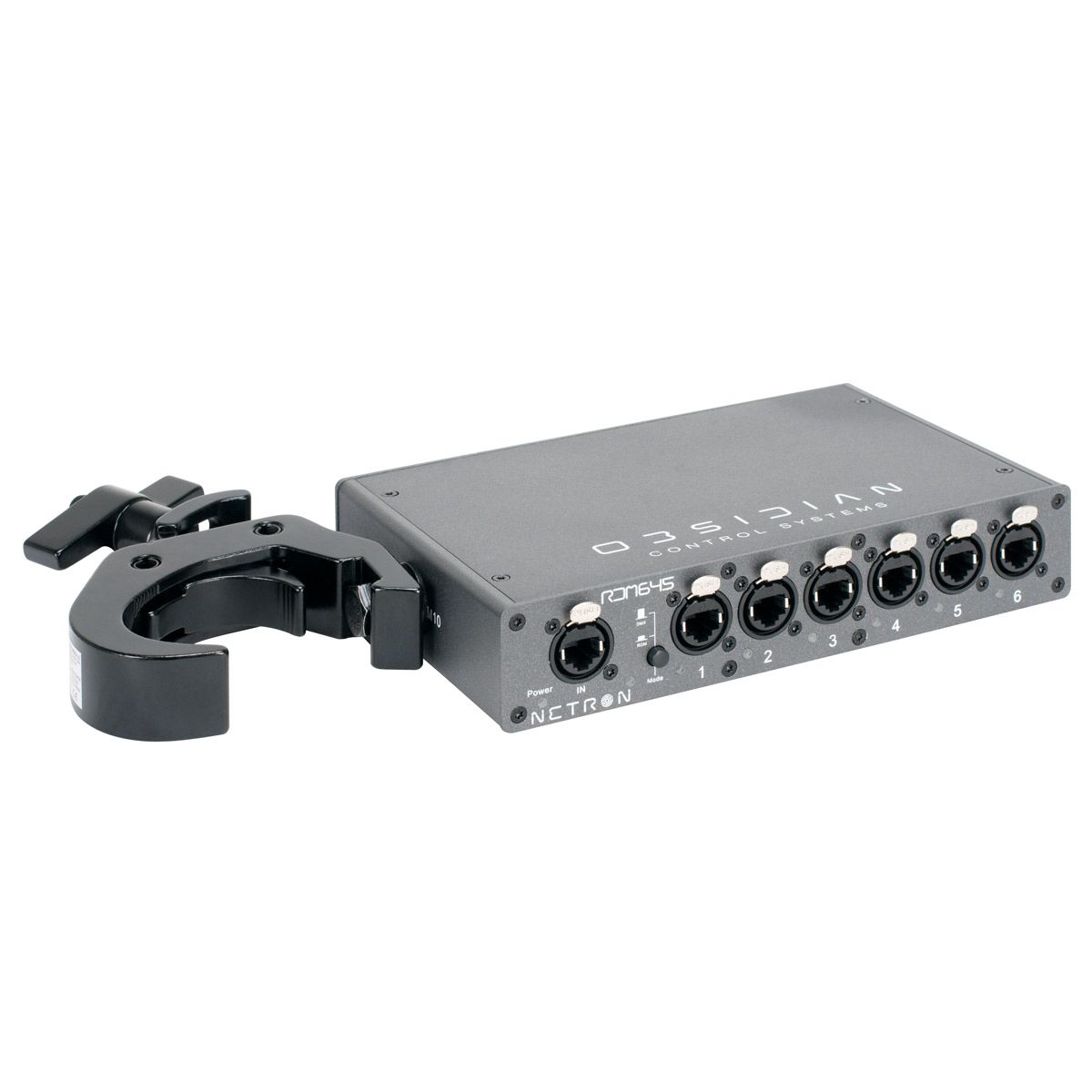

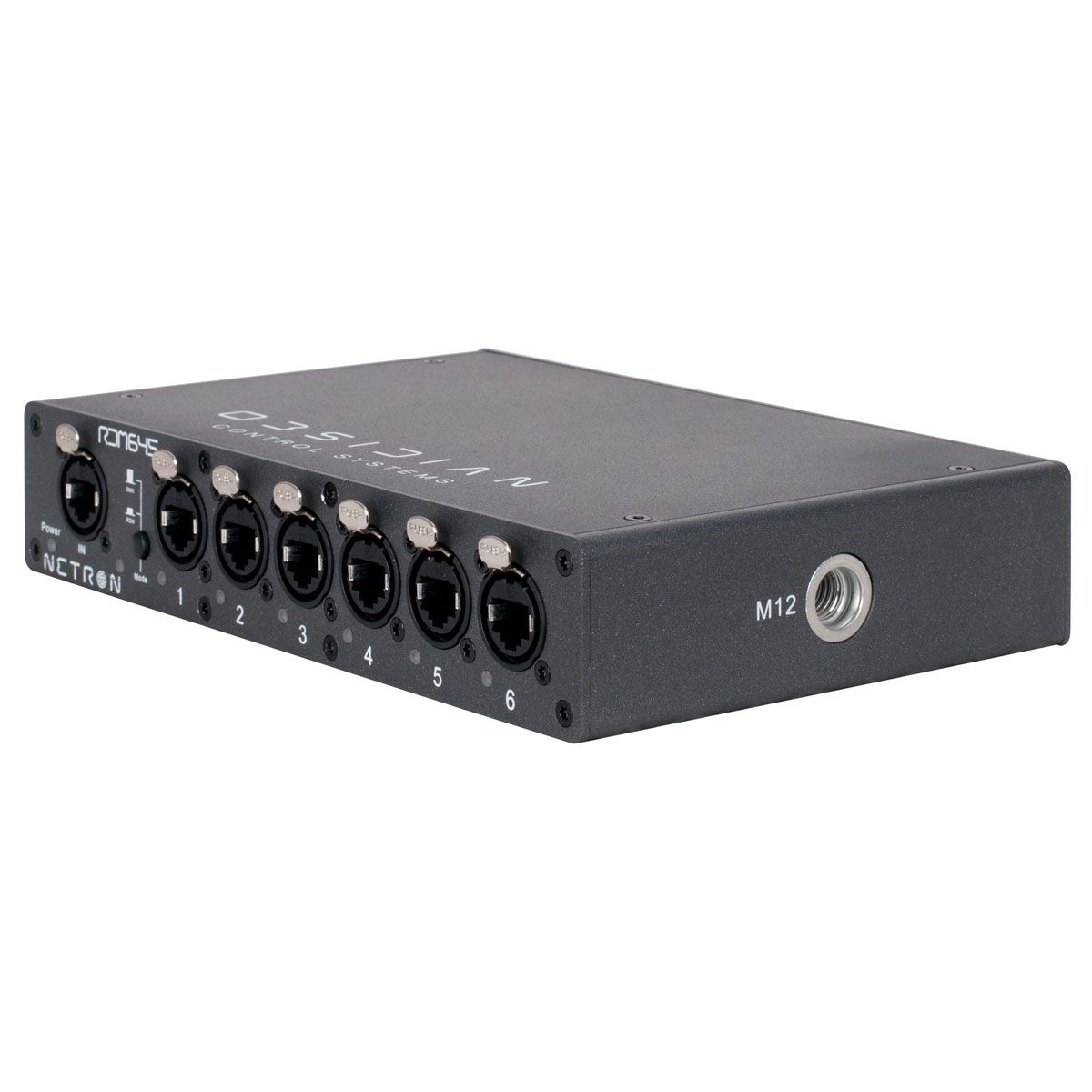

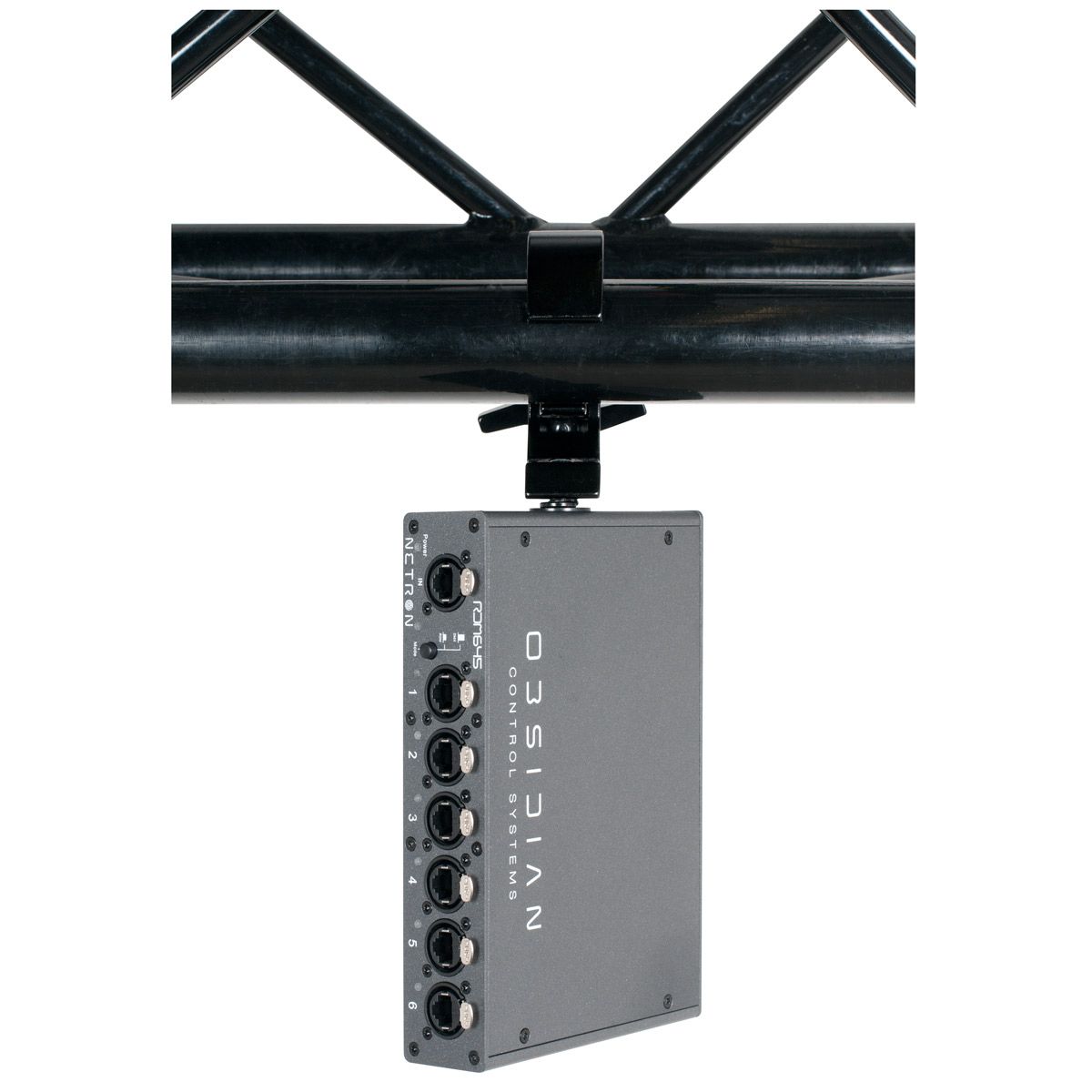

Truss-mount (M10 or M12 mounting hole)

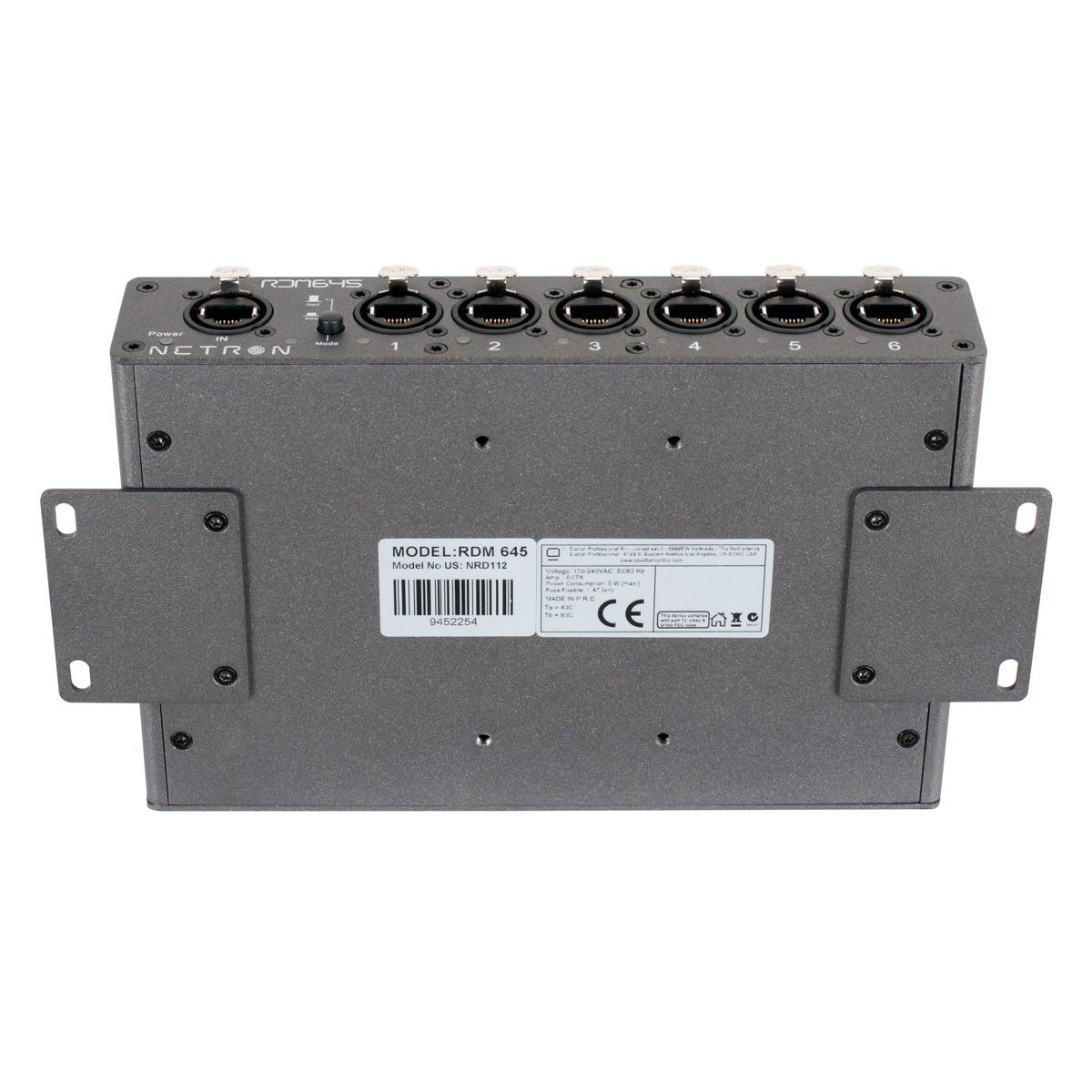

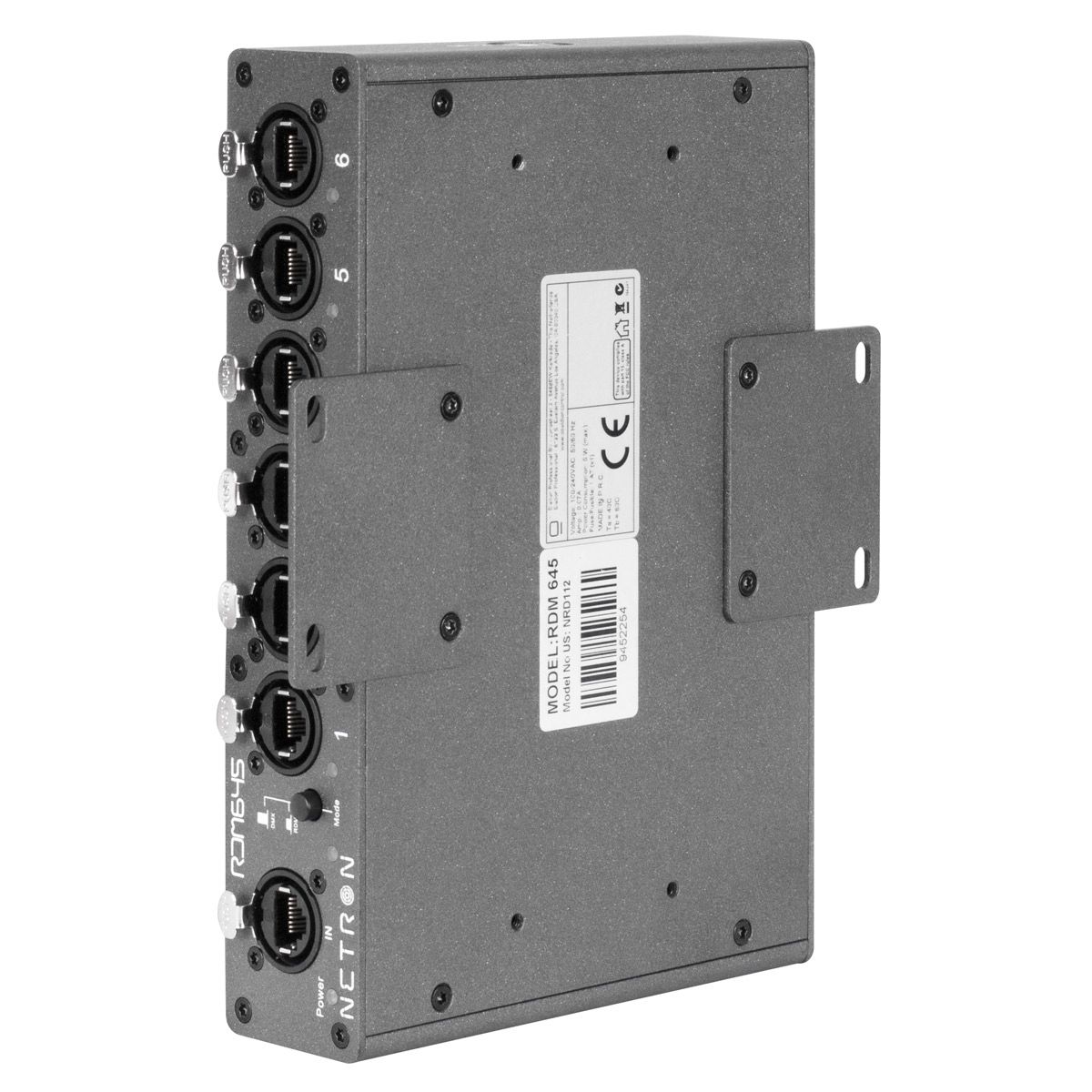

Wall-mount horizontal or vertical (included)

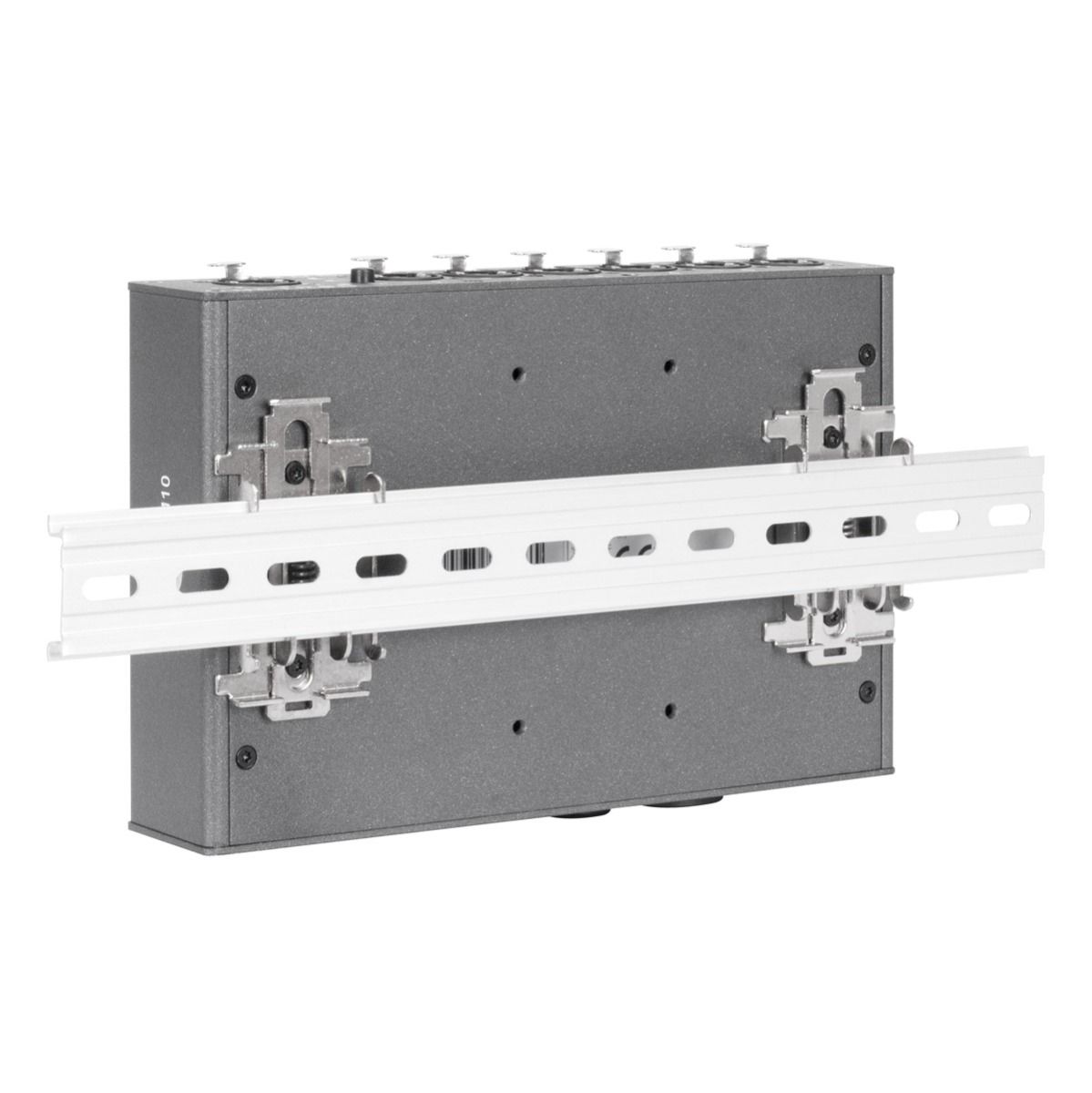

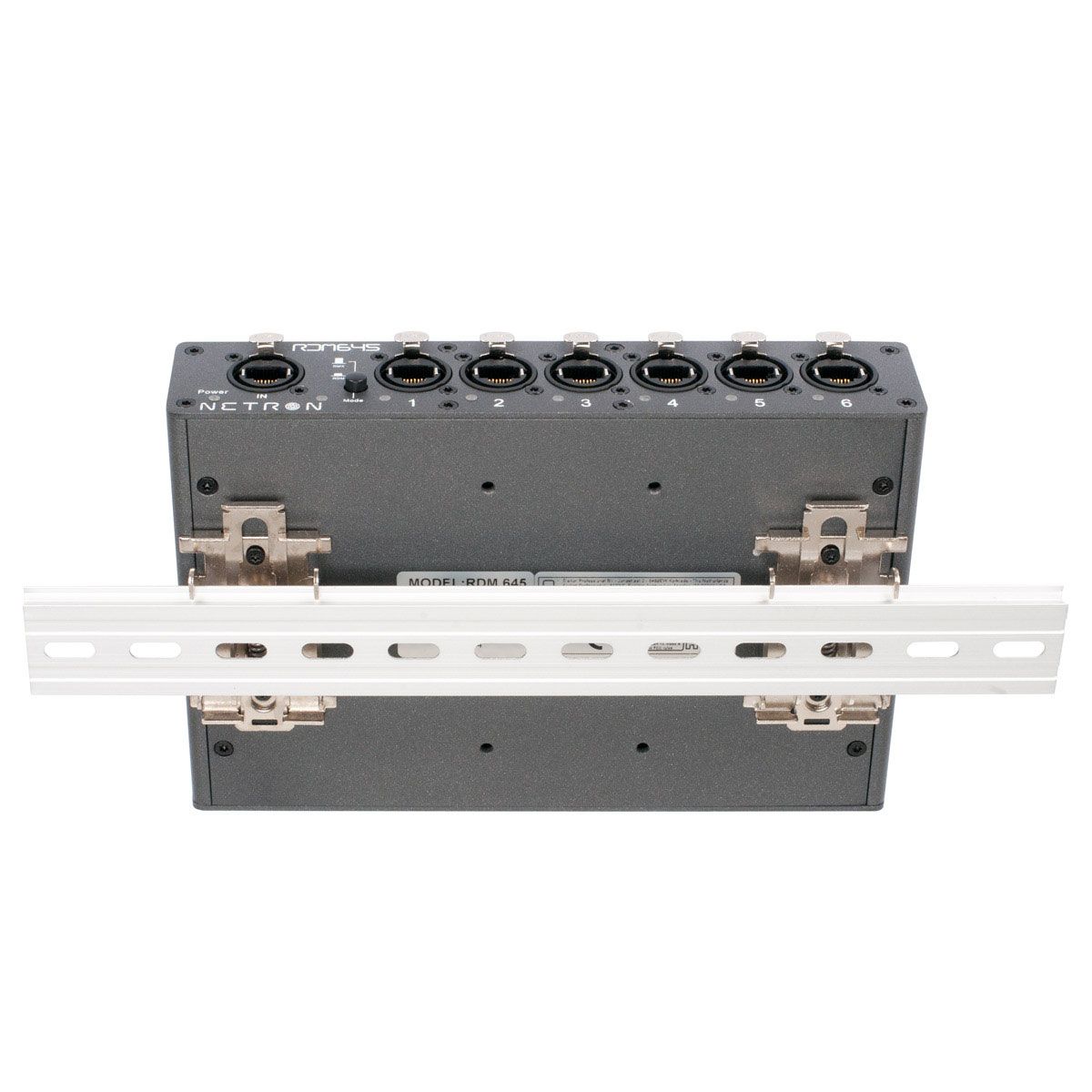

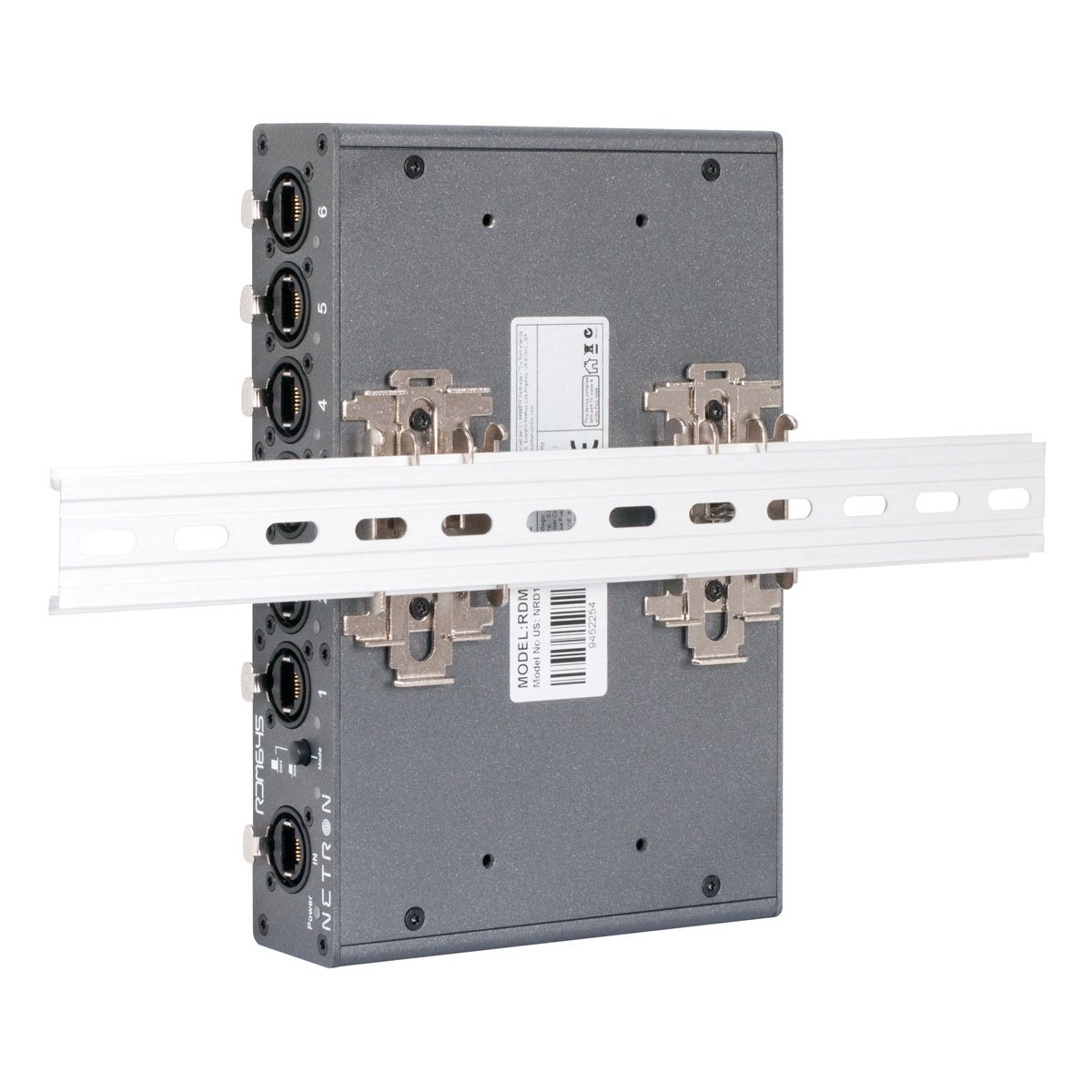

DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)

CONNECTIONS

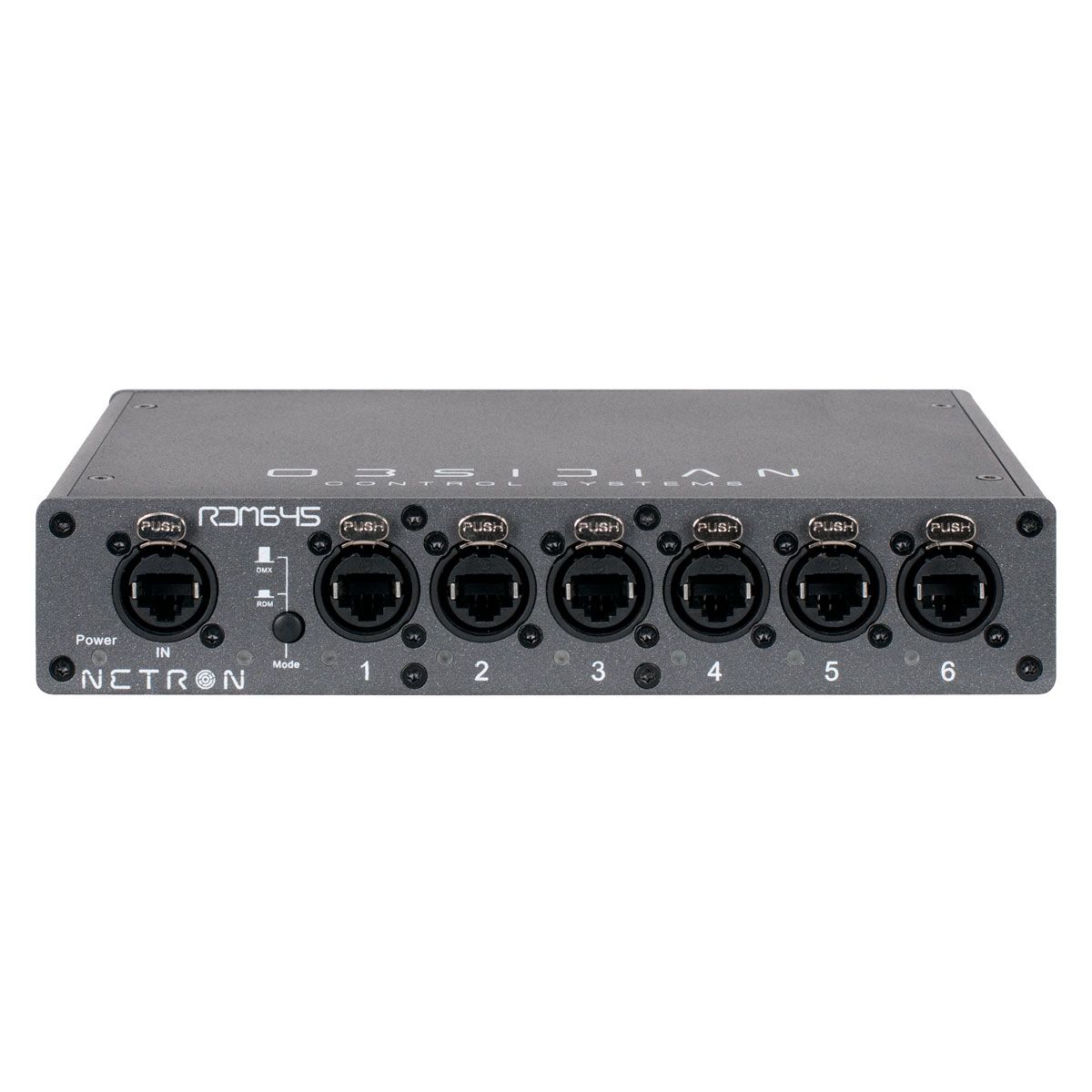

FRONT

Locking RJ45 Ethernet DMX Input
(6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
RDM Enable

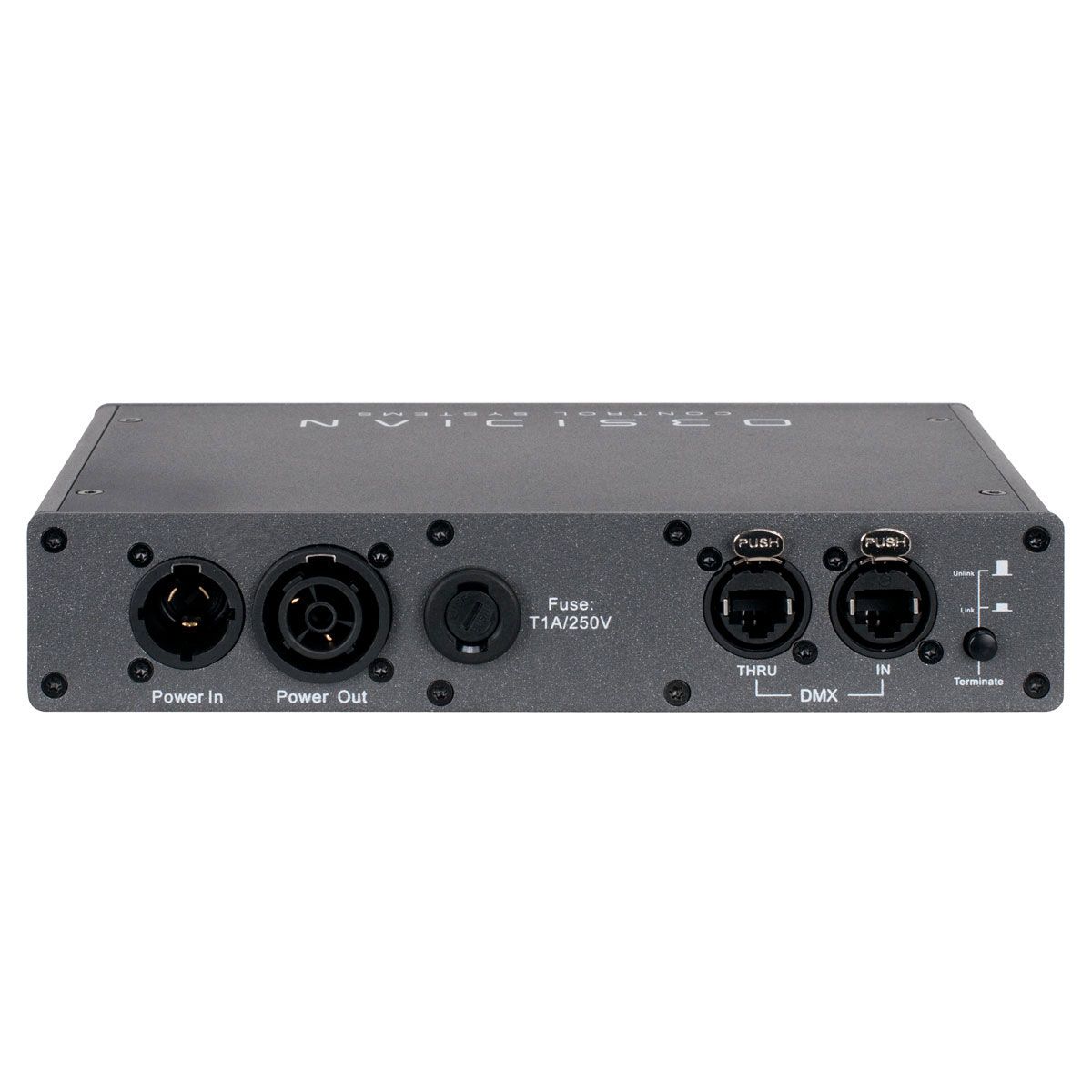

BACK

Locking RJ45 Ethernet DMX Input (parallel with front)
Locking RJ45 Ethernet DMX Through
Terminate
Locking Power In/Thru

PHYSICAL

Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)

ELECTRICAL

100-240 V nominal, 50/60 Hz, 10W

INCLUDED ITEMS

1.5m Locking power cable (EU or US version)
(2) Wallmount plates
(2) DIN-Rail clamps
