Netron RJ-T (Bag of 5)

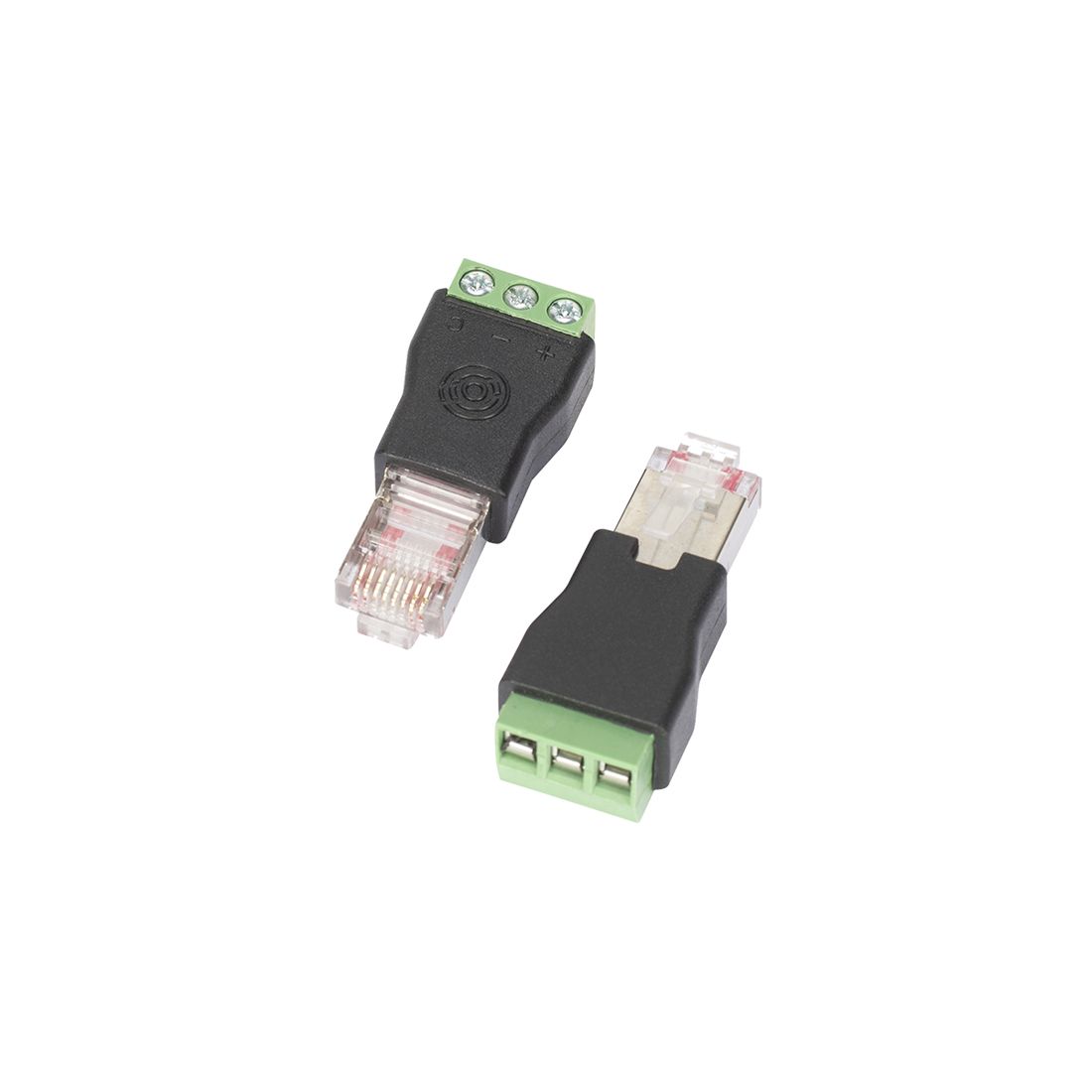

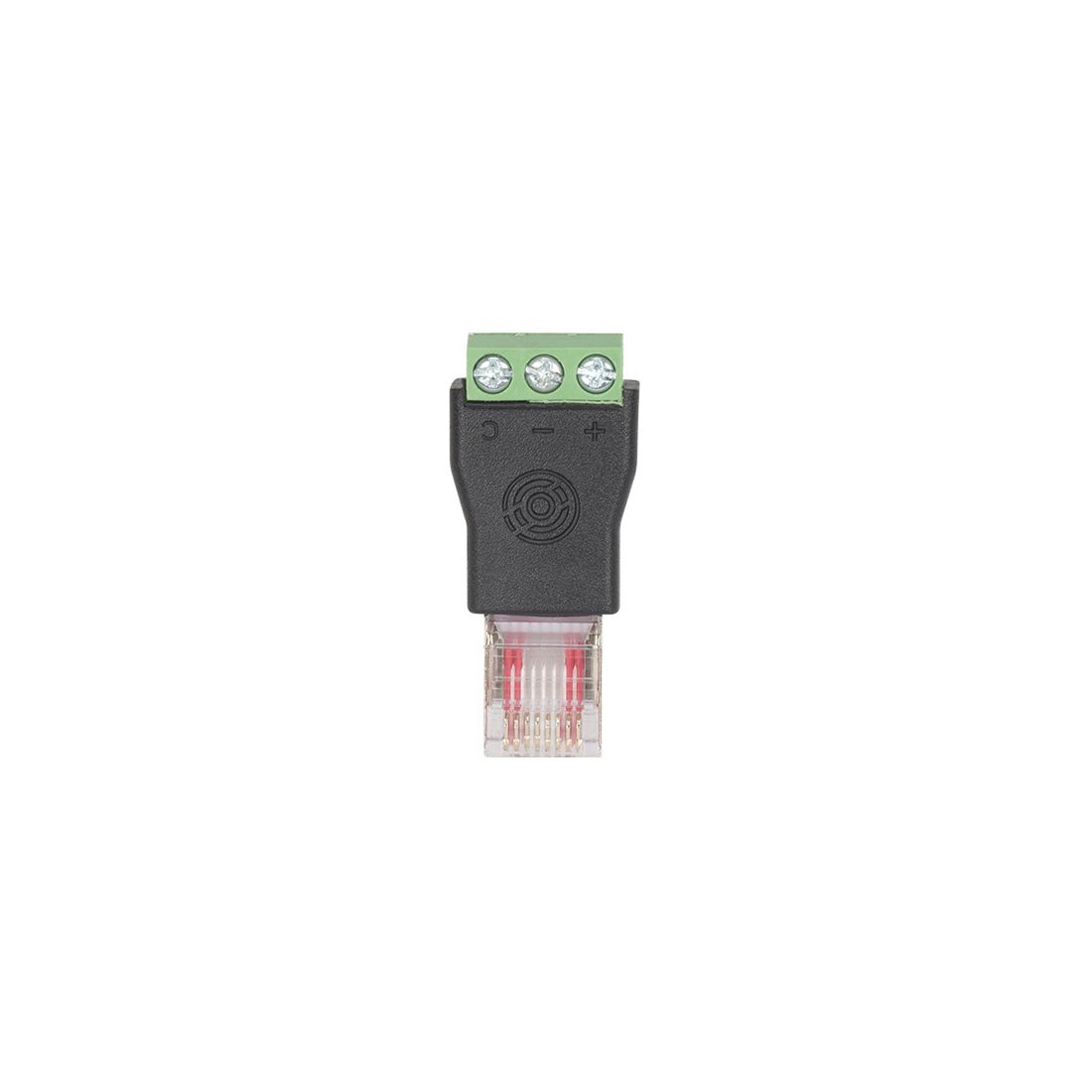

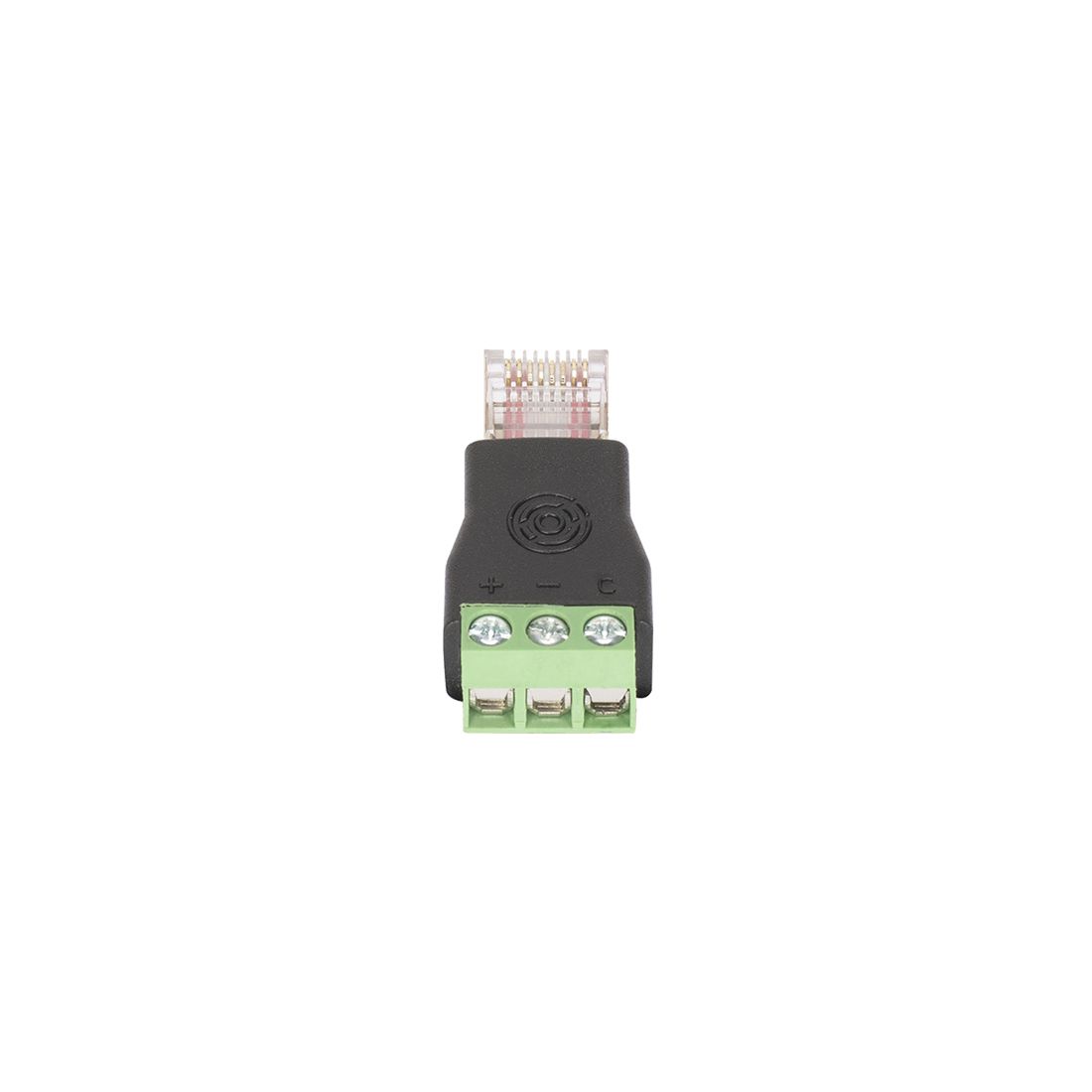

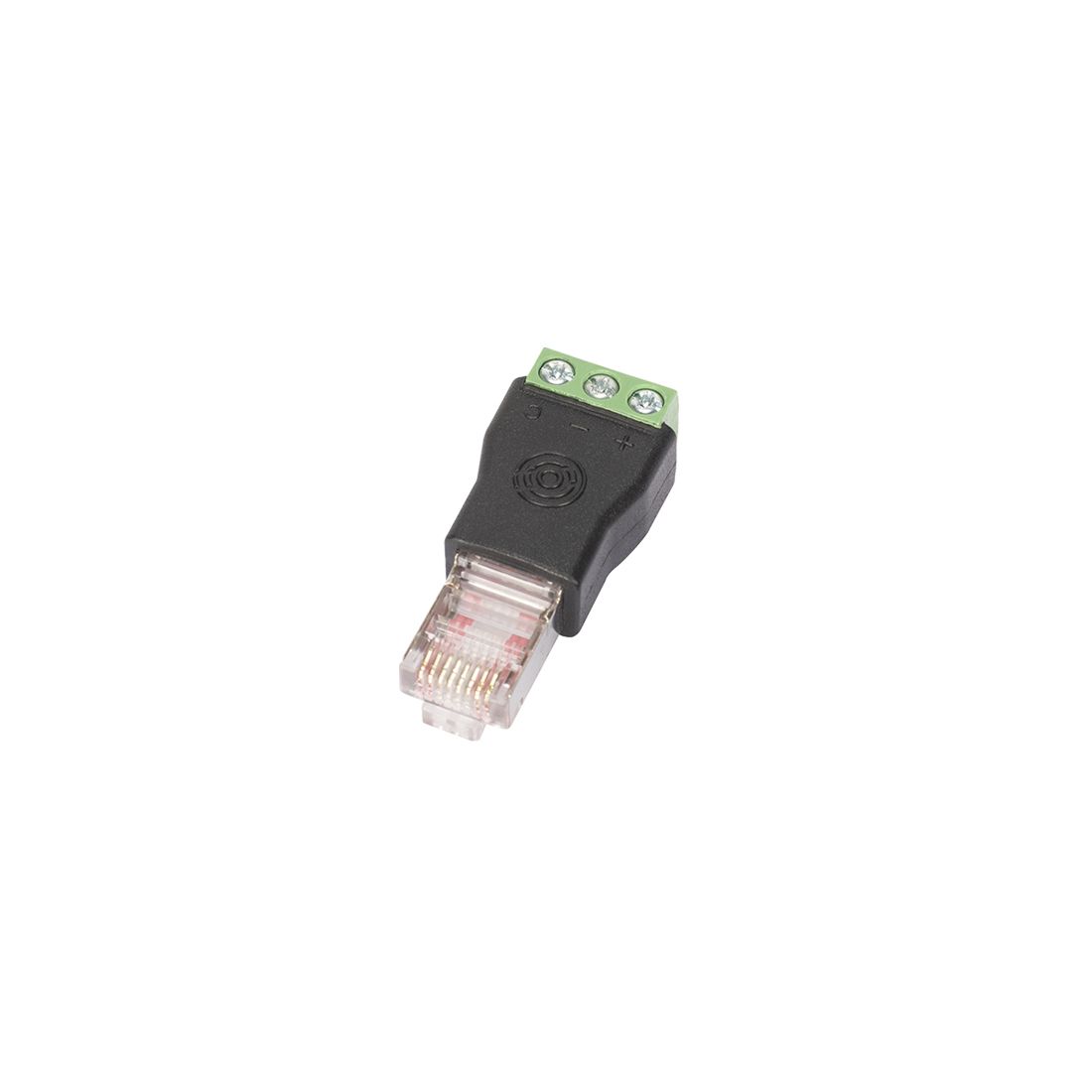

The NETRON RJ-T is a compact useful adapter to convert ESTA compliant RJ45 DMX ports to a 3-wire screw terminal.

Ideal for installations of NETRON RJ45 products like the RDM645 or the EN12-45 it is also a compatible with any other existing RJ45 DMX wiring infrastructure.

Technical Data

FEATURES

RJ45 to screw terminal DMX/RDM Adapter
ESTA compliant DMX pin-out
Compact and short injection molded housing
Compatible with all ESTA DMX compliant fixtures and DMX distribution devices

SPECIFICATIONS

RJ45 Connection
ESTA Compliant DMX pin-out
3x Screw Terminals AWG 14-30

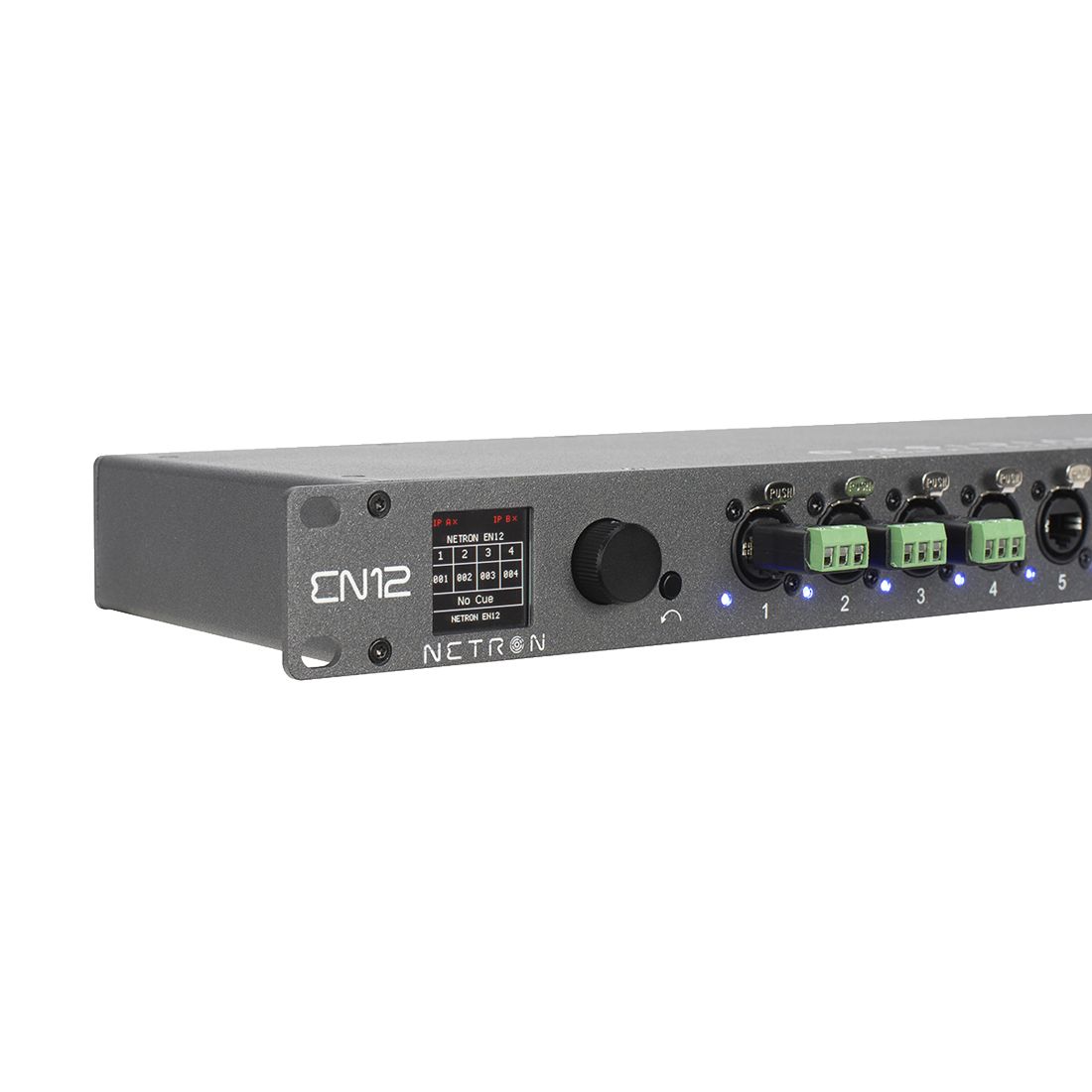

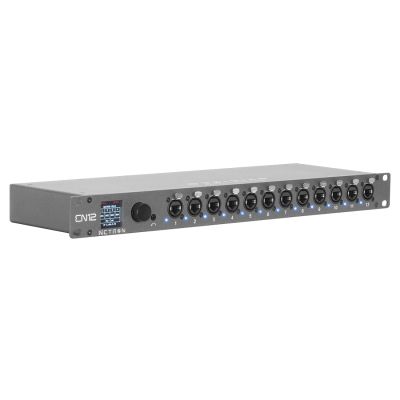

Compatible with EN12-45 and RDM645

PHYSICAL

Length: 43 mm (1.7 in.)
Width: 11 mm (0.43 in.)
Height: 18 mm (0.71 in.)

INCLUDED ITEMS

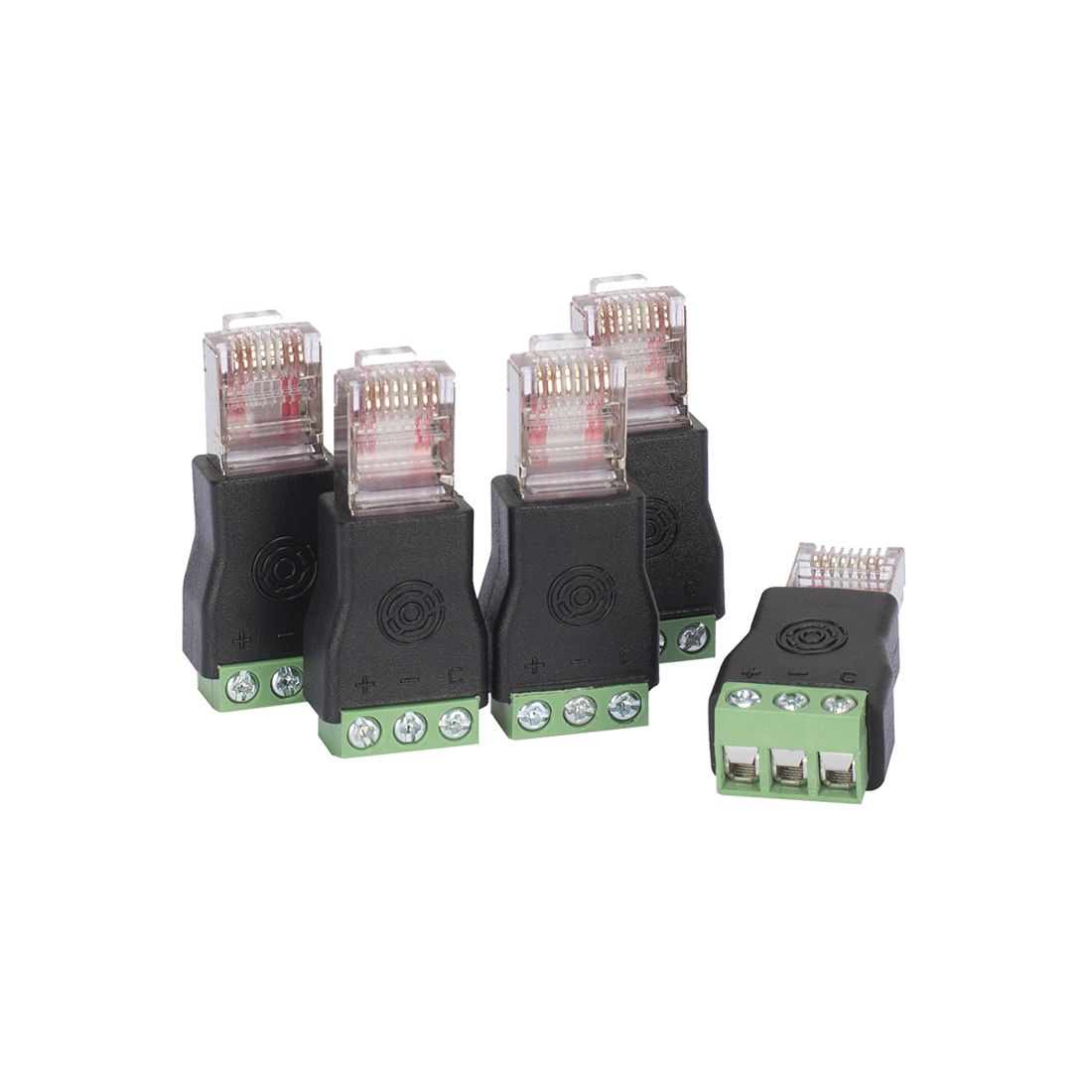

5x RJ45 DMX Adapter


Specifications and documentation subject to change without notice
