RDM10

The NETRON RDM 10 is a first of its kind hybrid splitter. A dual-DMX Input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.

Click here to learn more about the RDM 10 & for all technical details and documentation

Technical Data

FEATURES


10 assignable DMX outputs
Integrated 2 Universe Artnet/sACN node
Configurable DMX refresh rate
Dual DMX Inputs for backup and signal loss options
Remote configuration via internal webpage
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Contact closures for cue or preset recall
Powder-coated aluminium rackmount housing

SPECIFICATIONS

MOUNTING

Rackmount

CONNECTIONS

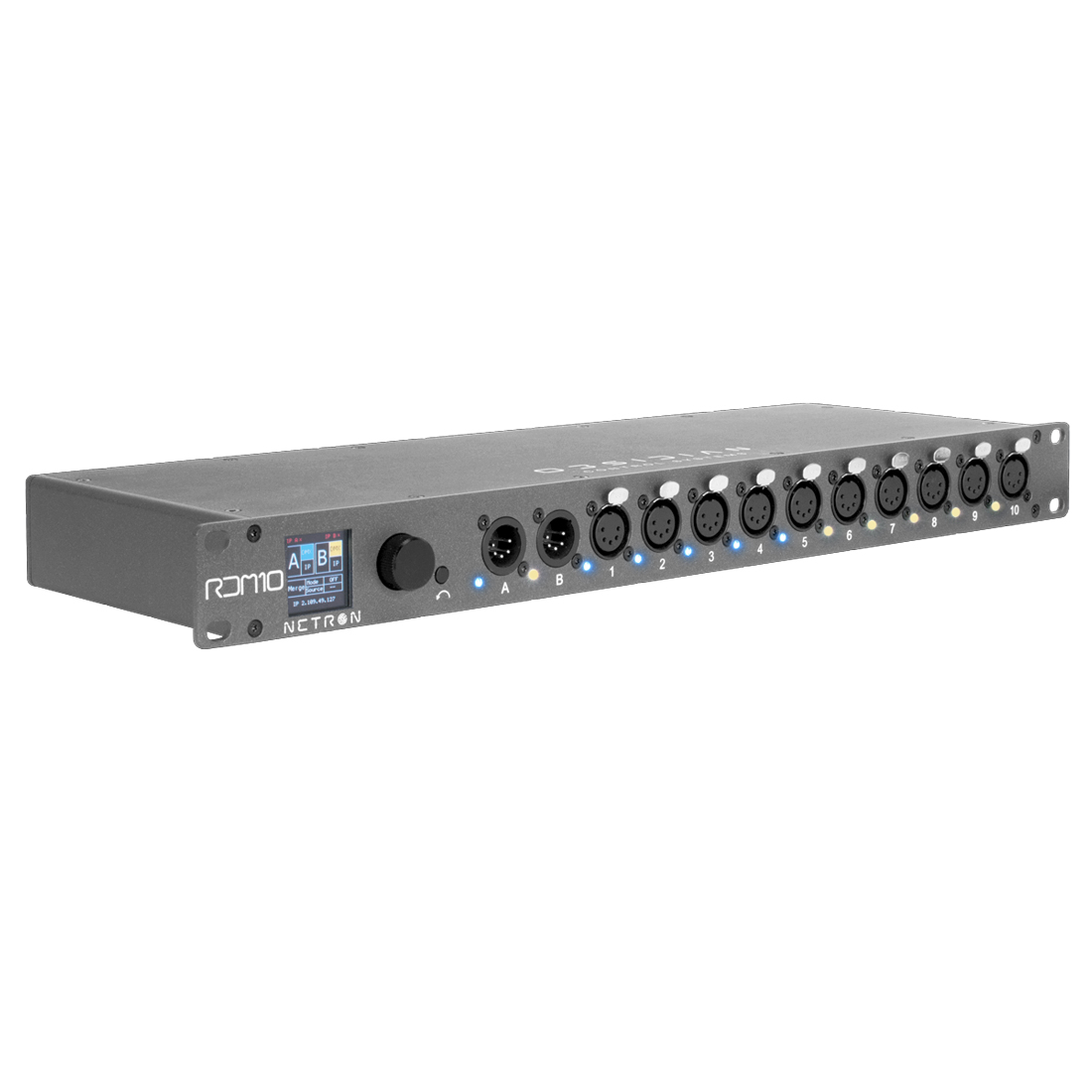

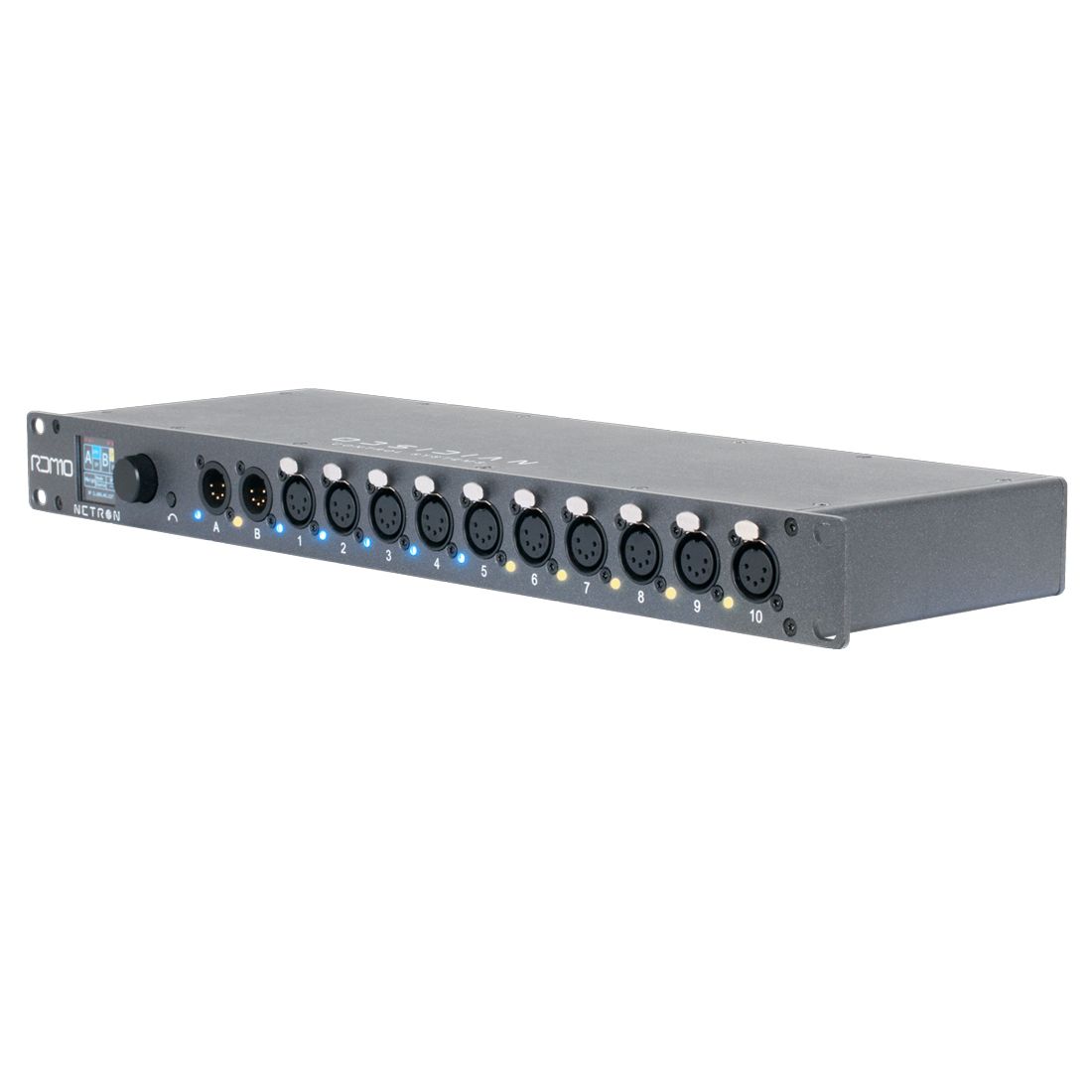

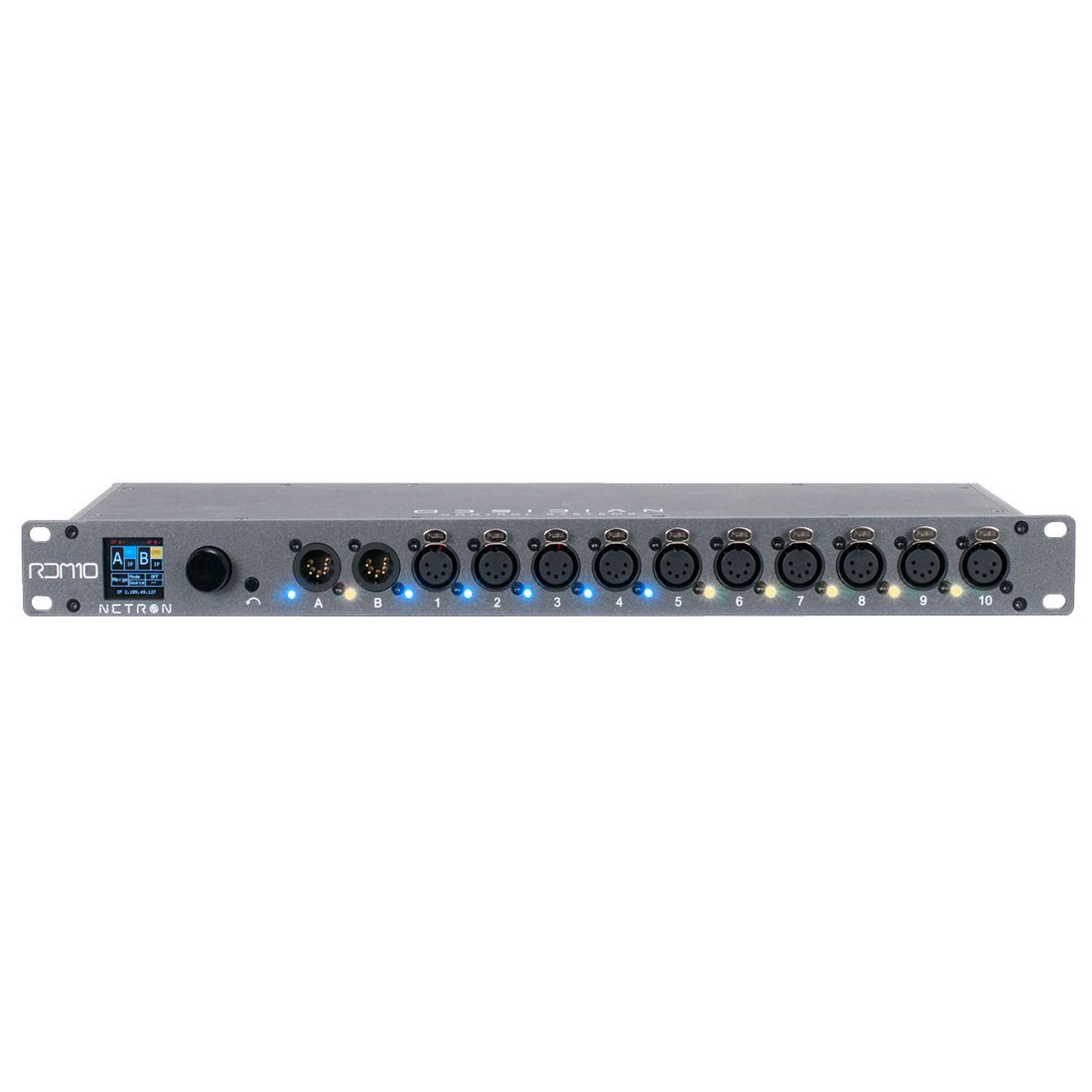

FRONT

(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button

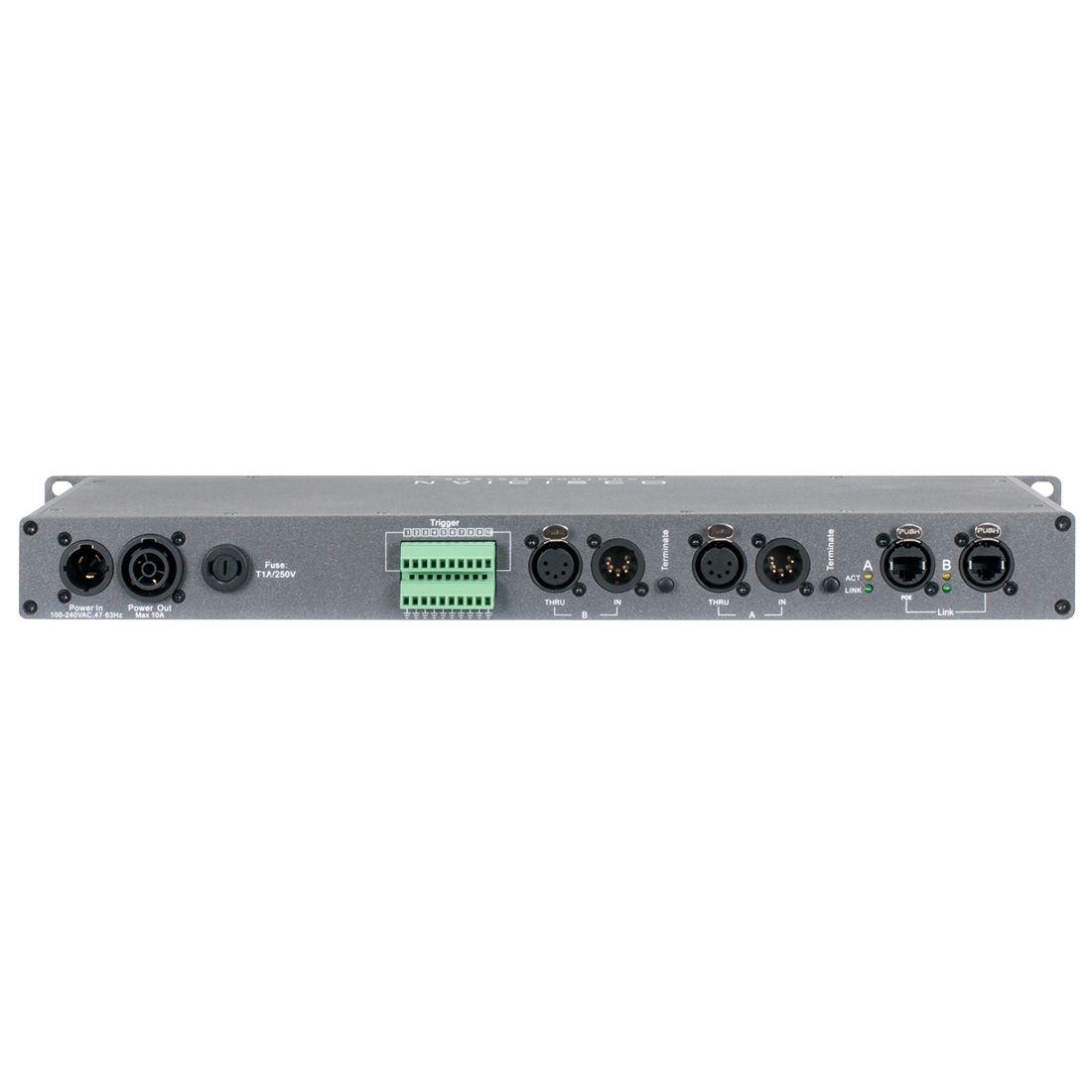

BACK


(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru

PHYSICAL

Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)

ELECTRICAL

100-240 V nominal, 50/60 Hz
POE 802.3af

FIRMWARE UPDATES

Current Firmware can be found here (login required)

Specifications and documentation subject to change without notice
