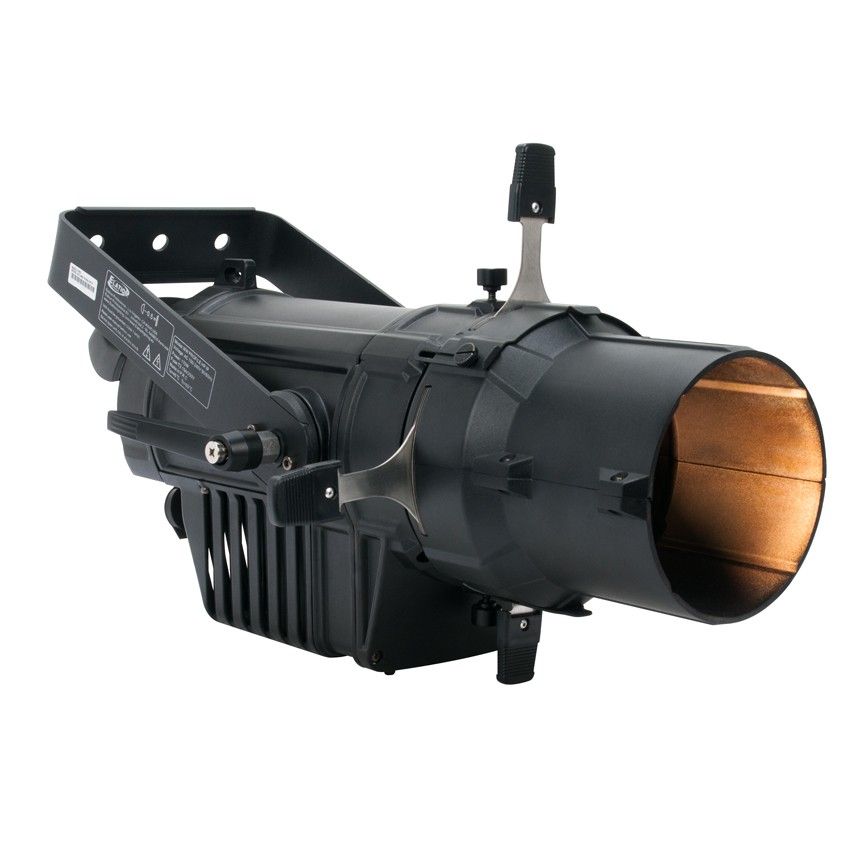

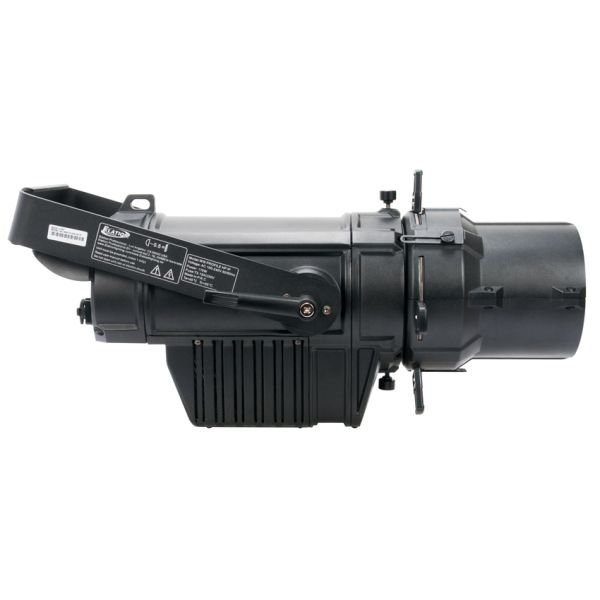

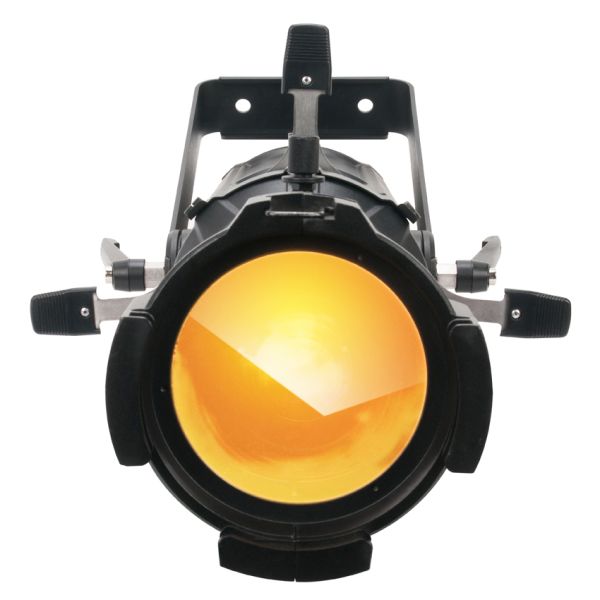

WW Profile HP IP (No Lens)

The IP65 rated WW Profile HP IP™ ellipsoidal features a High Power 130W Warm White 3,000K LED engine producing >91CRI and 10,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, supports B size metal gobos (gobo holder not included) and an optional IP65 rated DMX controlled dual gobo rotator (sold separately), manual focus, DMX controlled electronic strobe, 16bit dimming and selectable dimming curve modes, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, IP rated 5pin DMX and IP65 locking power cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

IP65 Rated High Power Ellipsoidal
130W Warm White 3,000K LED Engine
>91CRI and 10,000+ Total Lumens Output

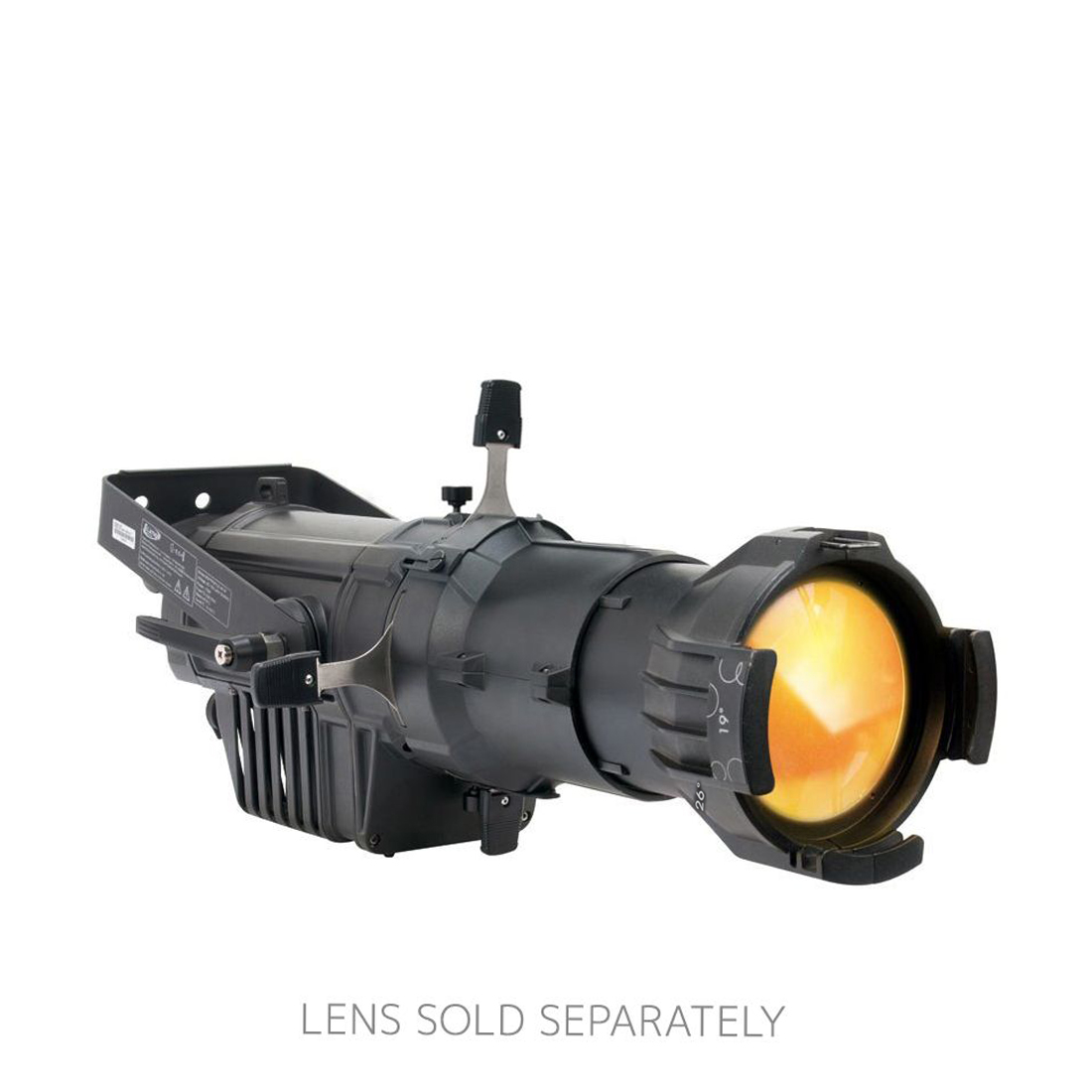

19°, 26°, 36°, 50° Lens Options (sold separately)
Supports B Size Metal Gobos (gobo holder not included)

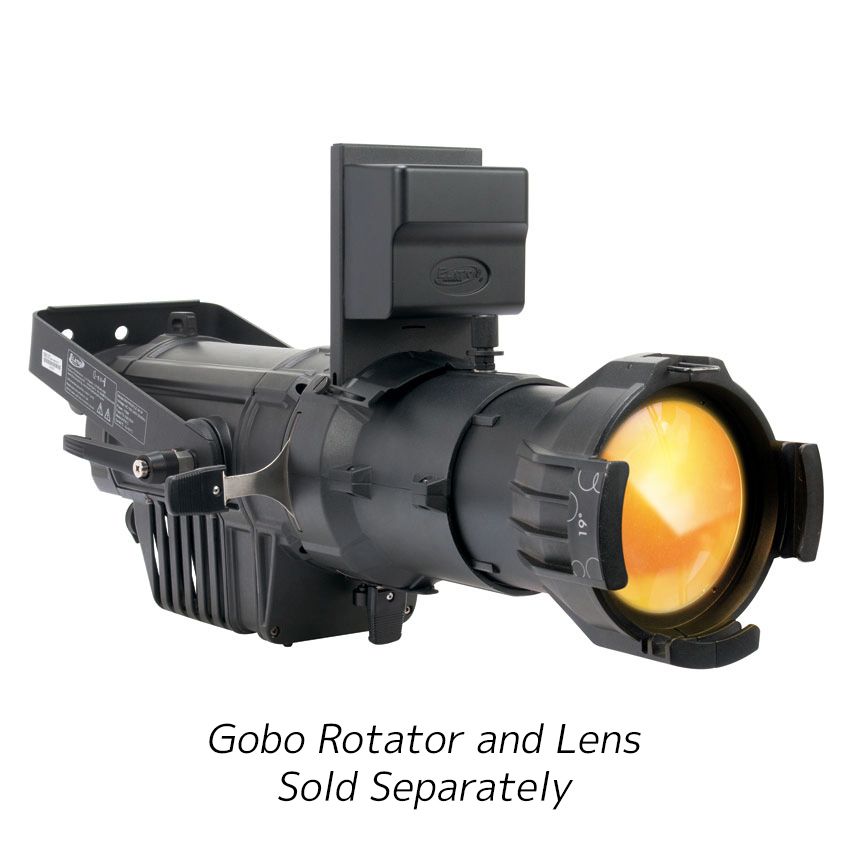

IP65 DMX Controlled Dual Gobo Rotator (sold separately)
(4) Blade Manual Framing Shutters
DMX Controlled Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable Refresh Frequency and Gamma Brightness
Quiet Fan Cooling

SOURCE

High Power 130W 3,000K Warm White LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

>91CRI | 10,000+ Total Lumens

EFFECTS

Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes

COLOR

Warm White 3,000K LED

GOBOS

Supports “B” Size Metal Gobos**
IP65 Rated DMX Controlled Dual Gobo Rotator***
**Gobos and Holder not included.
***Rotator Sold Separately

CONTROL / CONNECTIONS

4 DMX Channel Modes (1 / 3 / 6 / 8)
Adjustable Refresh Rates
Adjustable Gamma Brightness

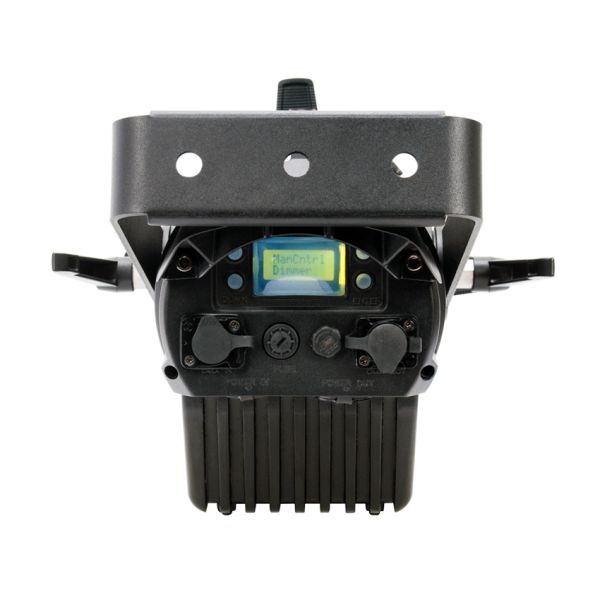

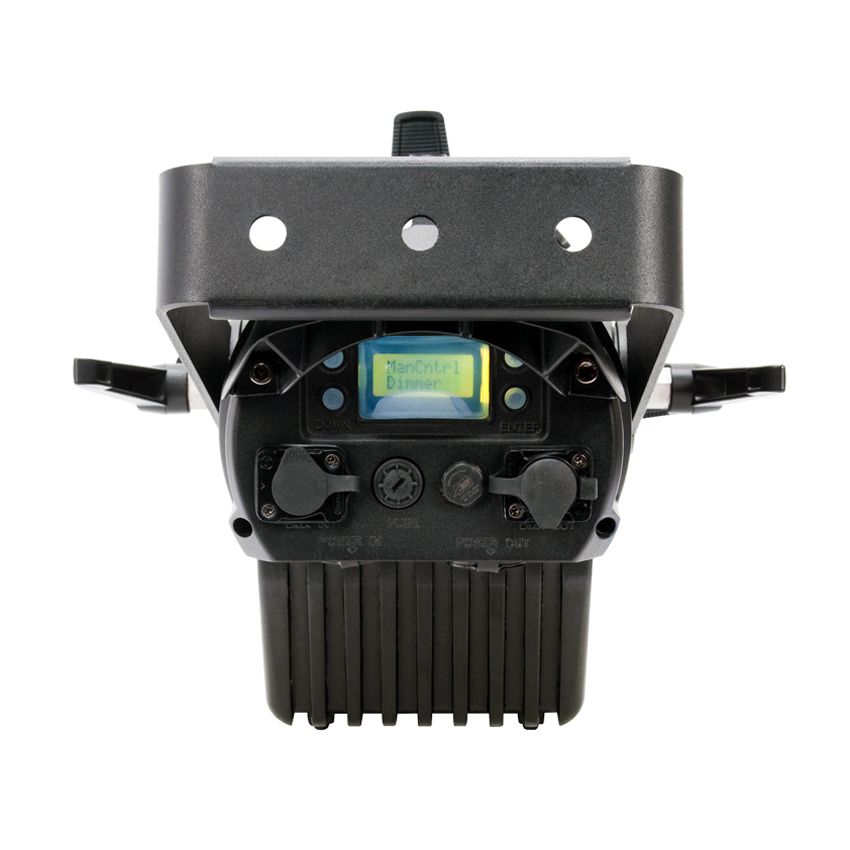

4 Button Control Panel / LED Menu Display
IP Rated 5pin DMX In/Out and IP65 locking power cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 29.6” (753mm)
Width: 13.9” (353mm)
Vertical Height: 18.9” (480mm)
Weight: 24 lbs. (11kg)

ELECTRICAL / THERMAL

Quiet Fan Cooling
AC 100-240V - 50/60Hz
170W Max Power Consumption
14° to 113°F (-10° to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)





Specifications and documentation subject to change without notice
