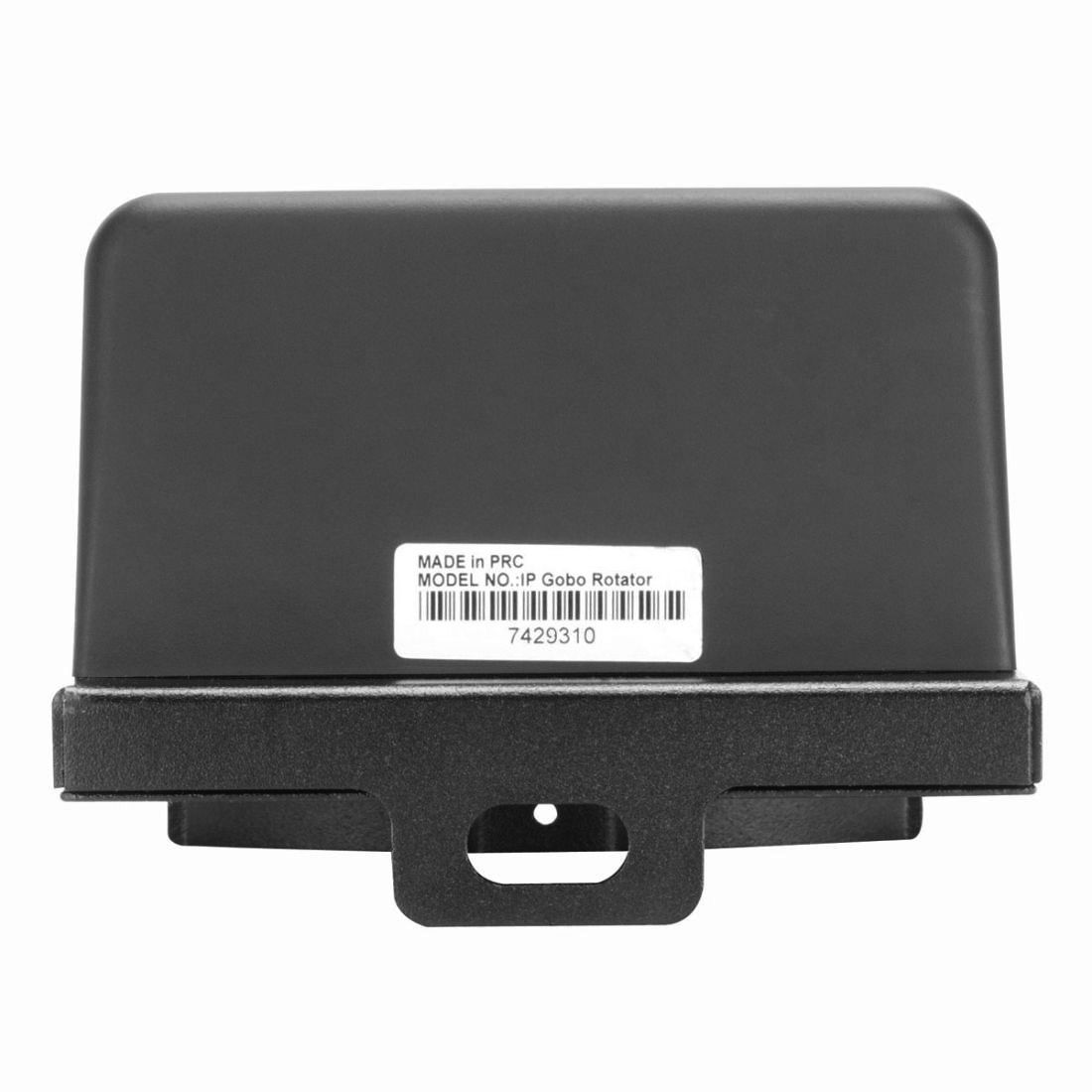

IP Gobo Rotator

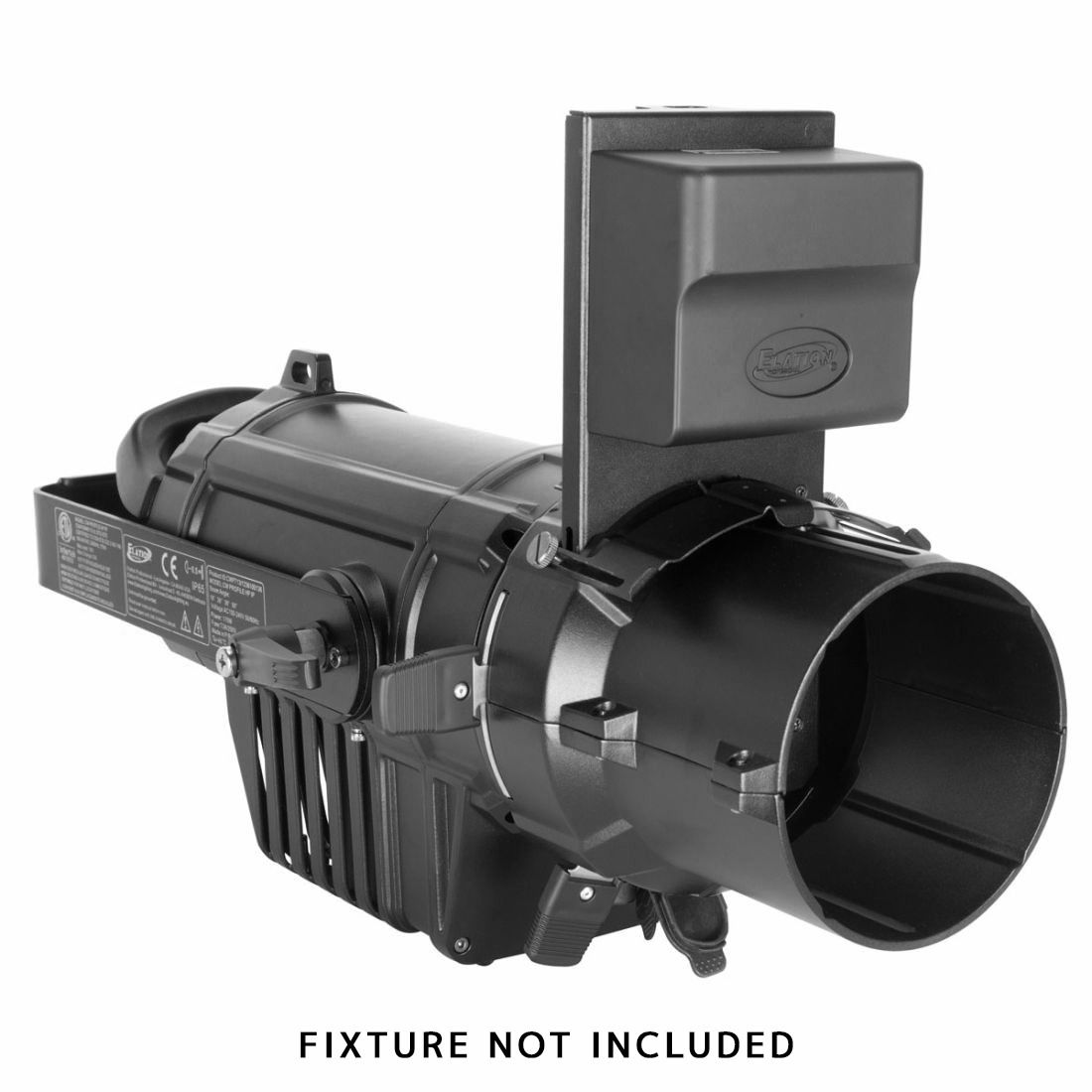

The IP GOBO ROTATOR is an IP65 rated B-Size gobo rotator designed exclusively for the Elation WW / CW Profile HP IP ellipsoidal series. Easily installed into the profile fixture, the rotator features bi-directional variable speed counter-rotation, full indexable and slow to fast continuous gobo rotation control via DMX, holds 2 separate gobos for eye catching animation effects, and includes 2 sample gobos.

Technical Data

FEATURES

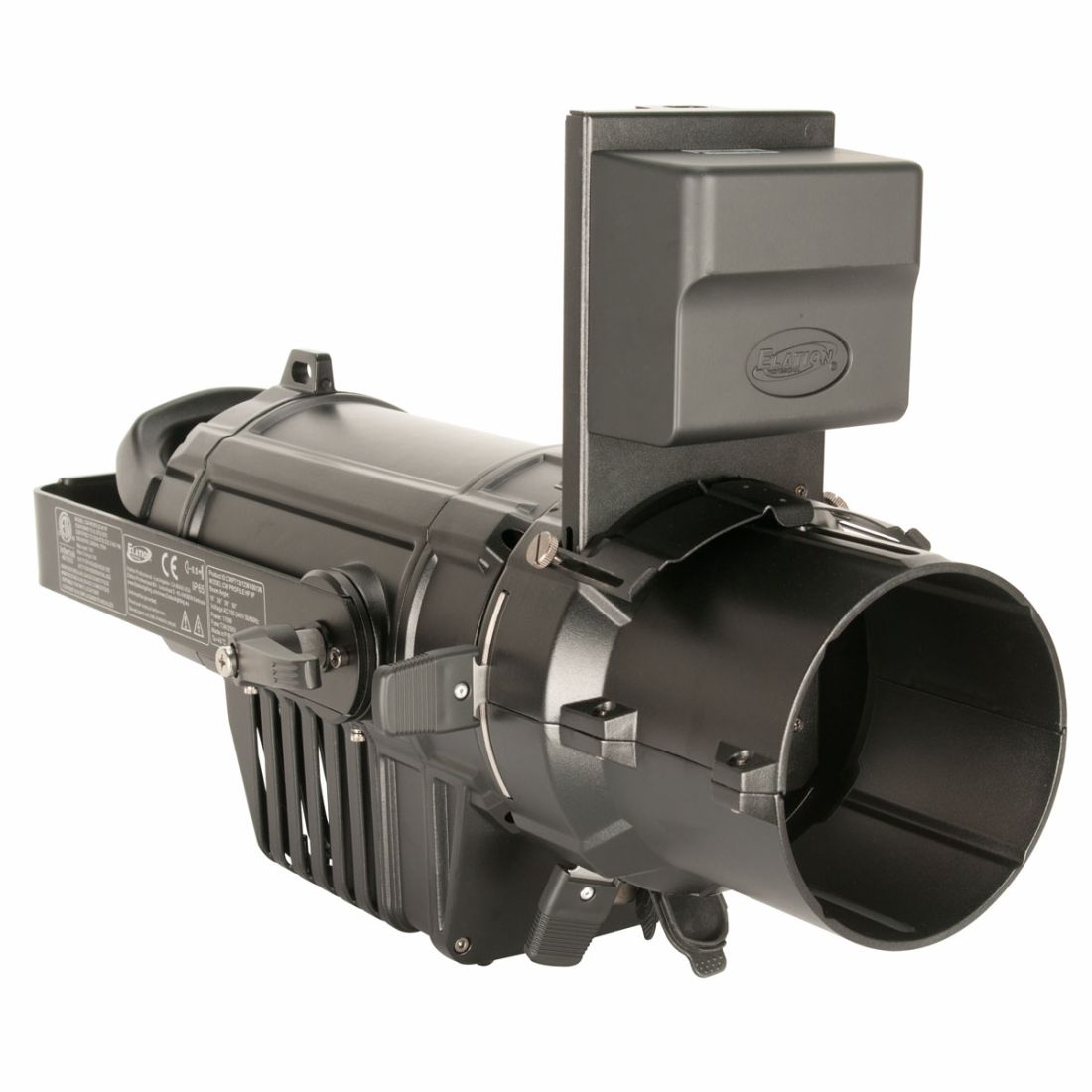

Designed for Elation WW / CW PROFILE HP IP Ellipsoidal Series
Bi-Directional Variable Speed Counter-Rotation
Full Indexable and Slow to Fast Continuous Rotation
DMX Controlled
Supports B-Size (86mm) Gobos

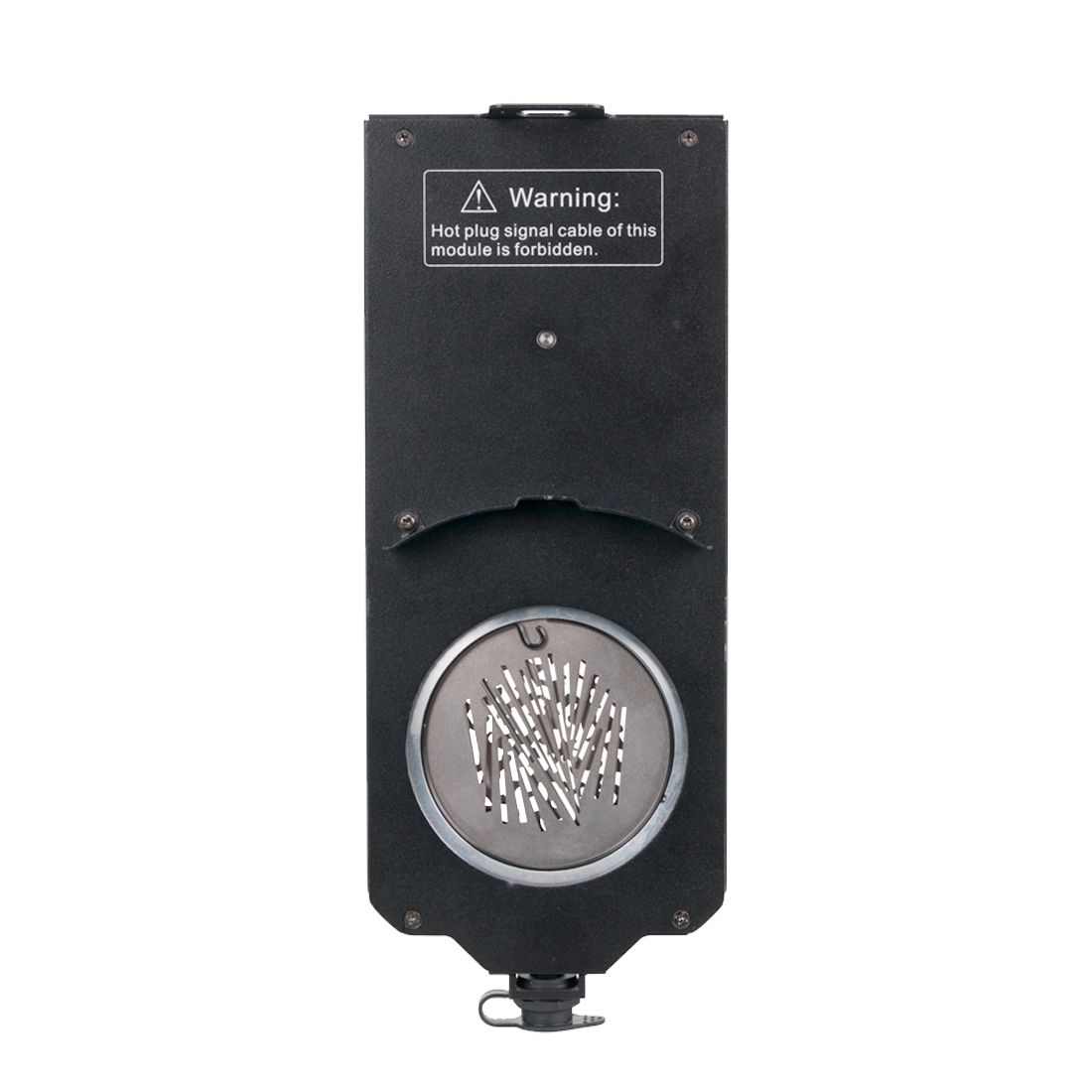

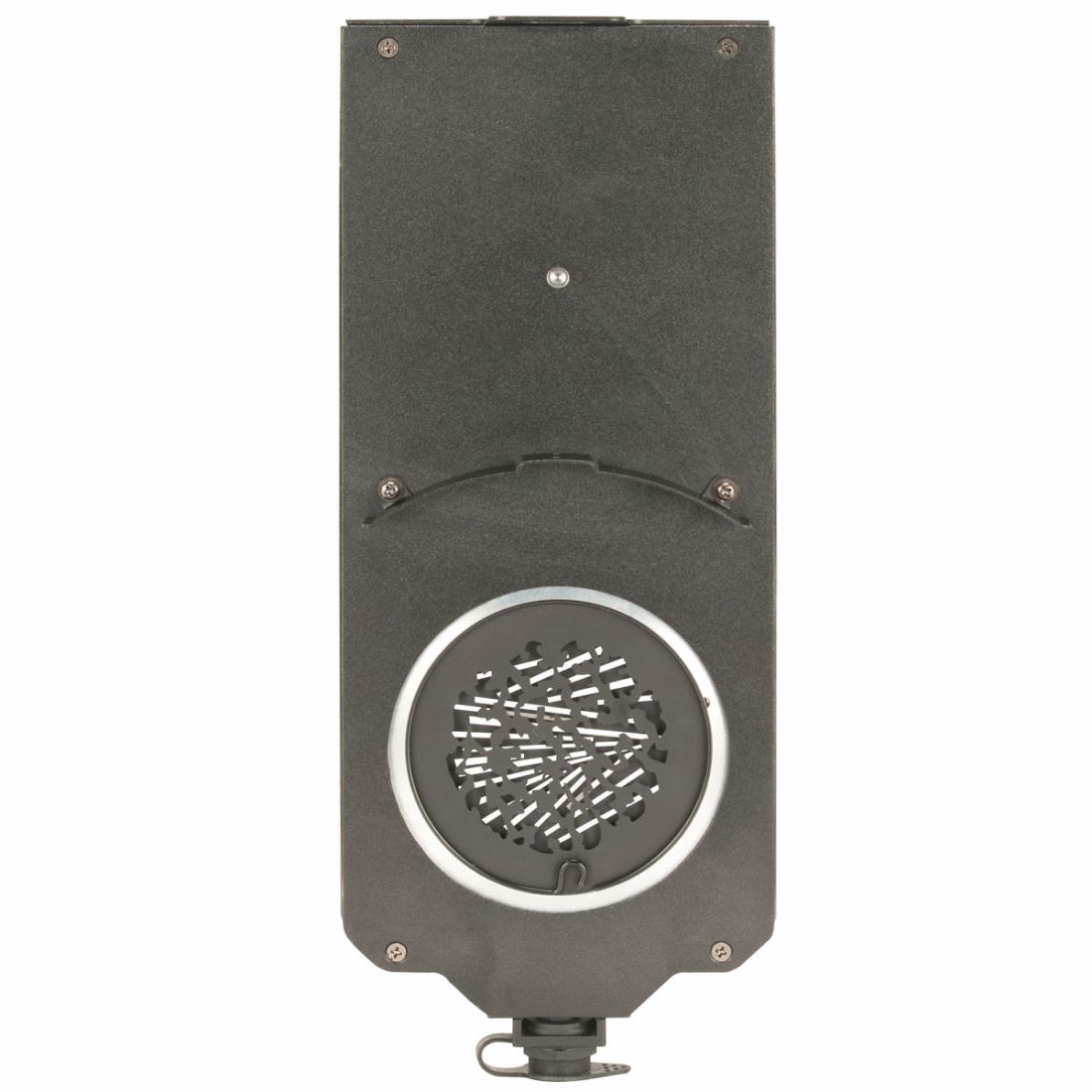

Holds (2) Gobos for Animation Effects
(2) Sample Metal Gobos Included
IP65 Rated

GOBO SIZE

B-Size OD 86mm | 64.5mm ID
Holds (2) Gobos for Animation Effects (2 sample metal gobos included)

CONTROL / CONNECTION

DMX Control (Indexing and Slow to Fast Gobo Rotation)

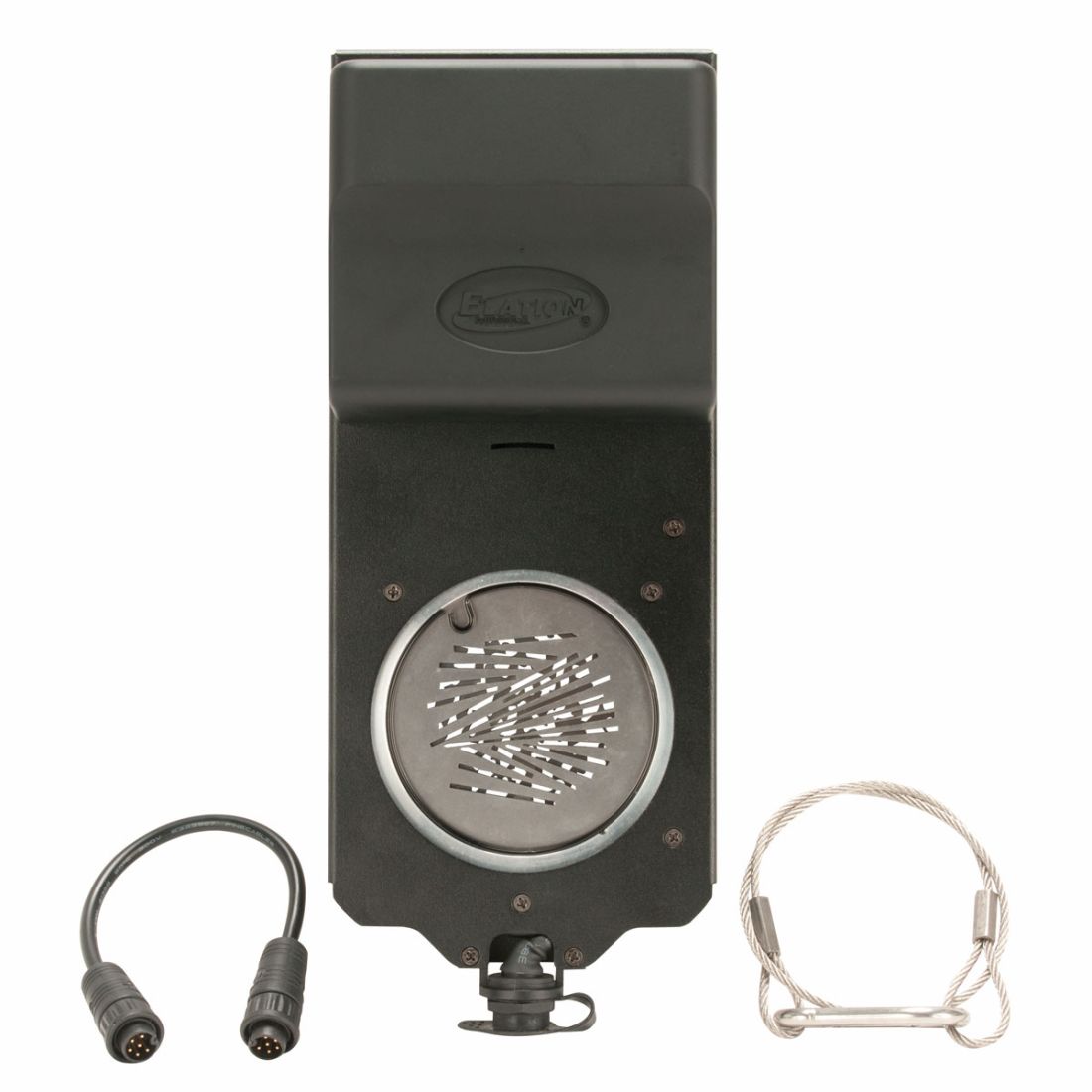

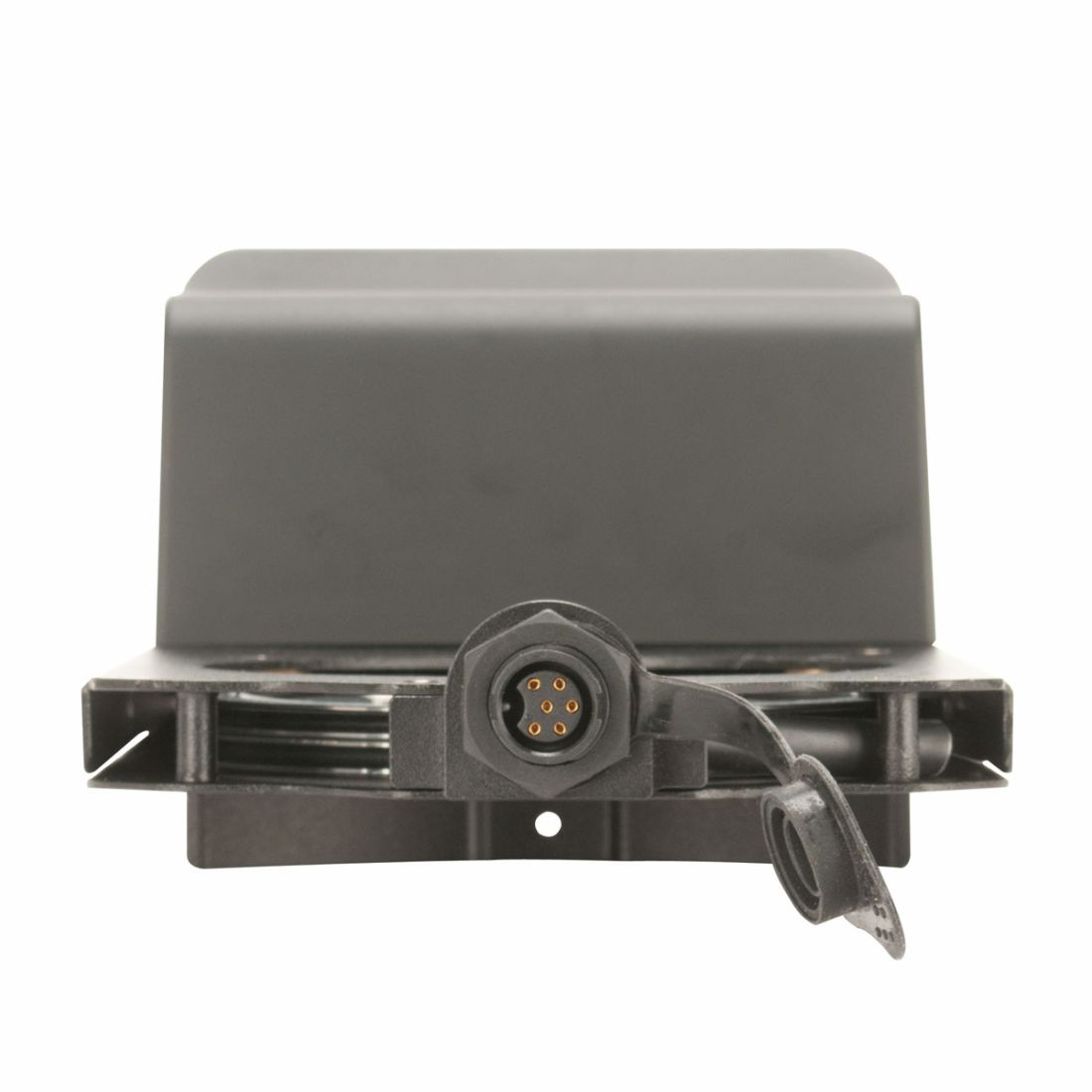

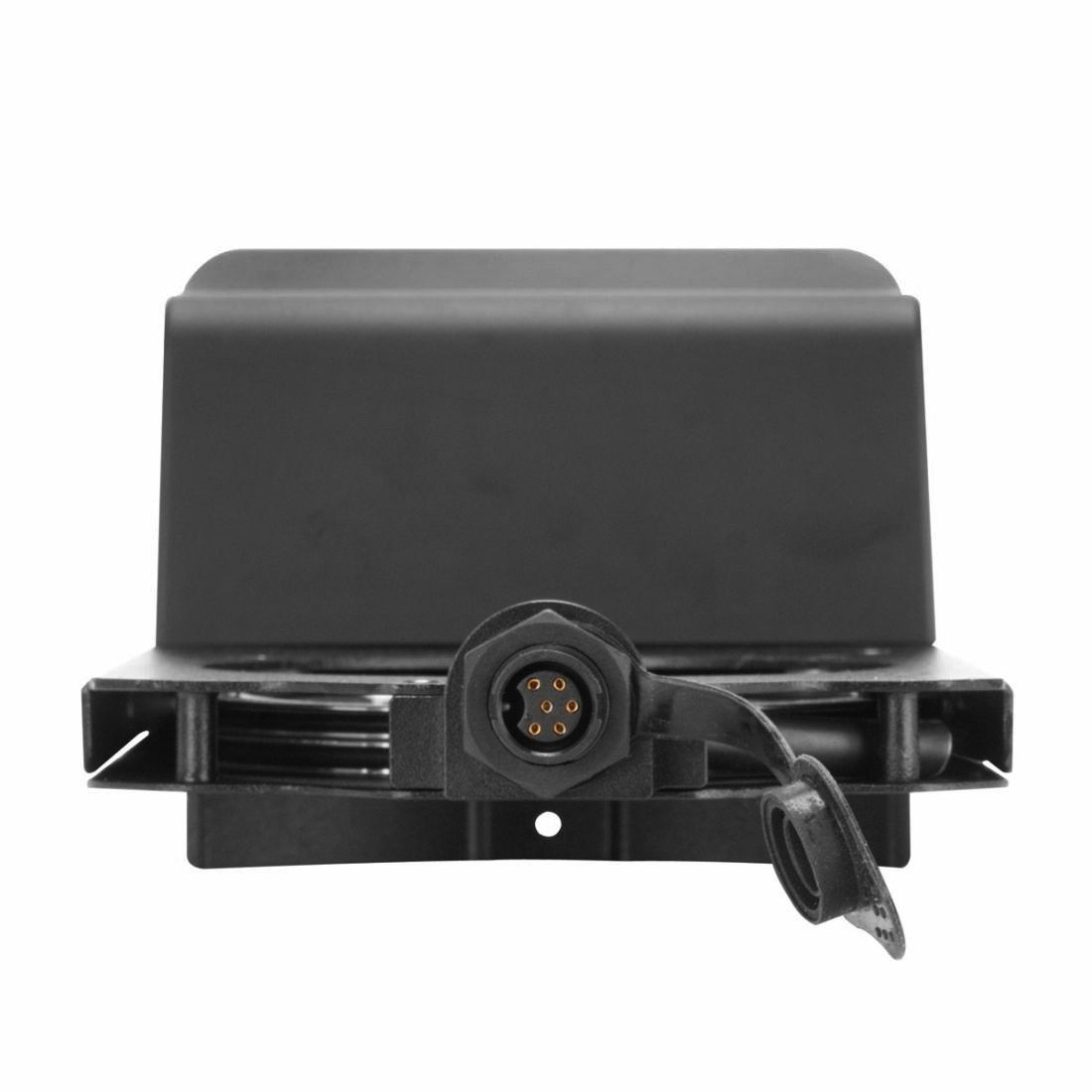

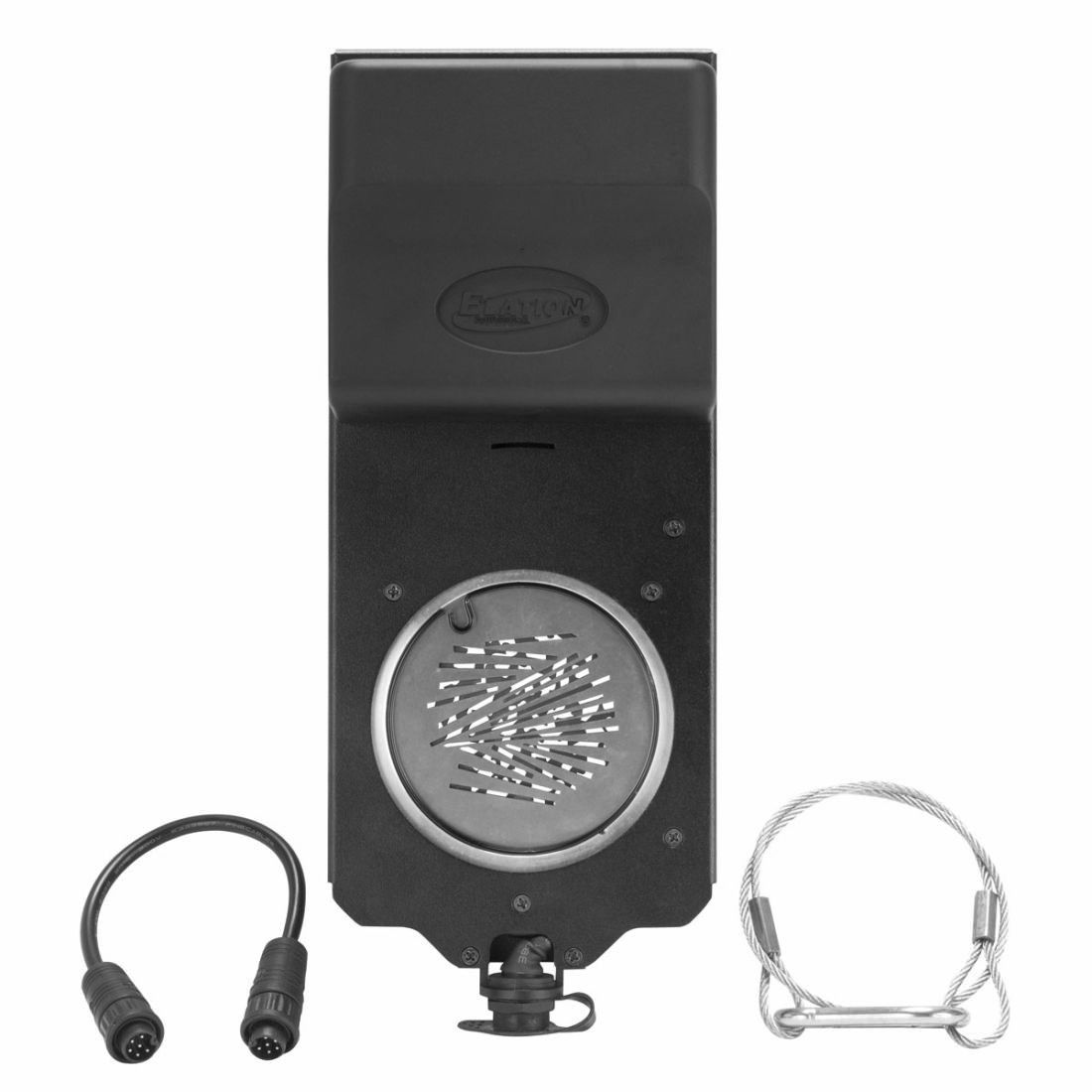

5pin Power/Data (rotator to fixture linking cable included)

SIZE / WEIGHT

Length: 121mm (4.8”)
Width: 89.7mm (3.5”)
Vertical Height: 306mm (12.0”)
Weight: 0.9 kg (2.0 lbs.)



Specifications and documentation subject to change without notice
