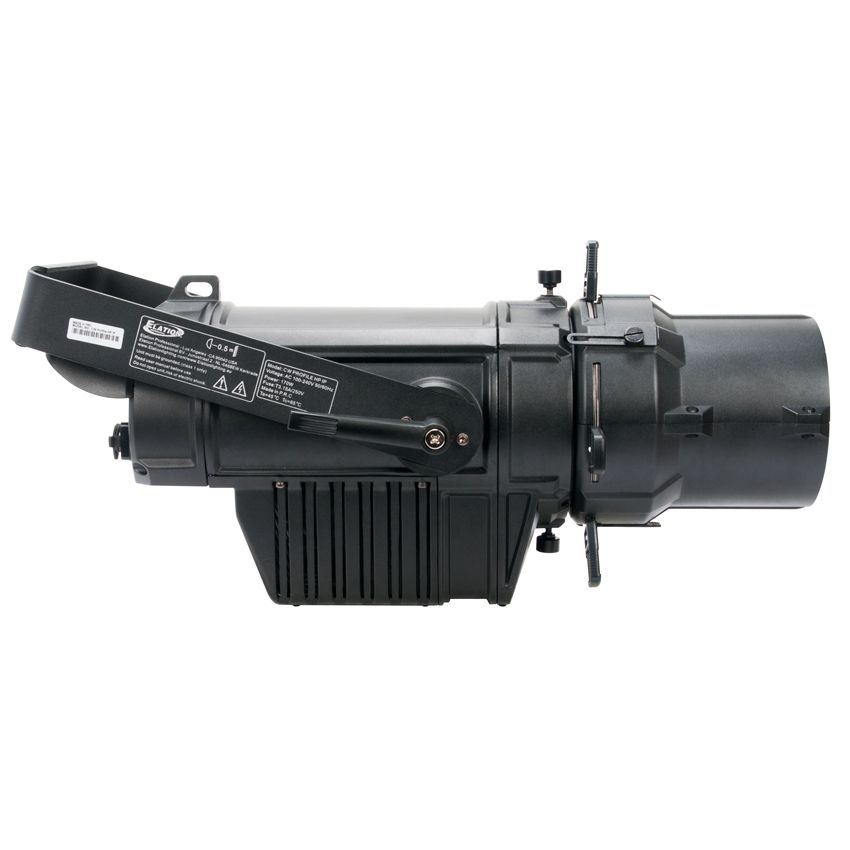

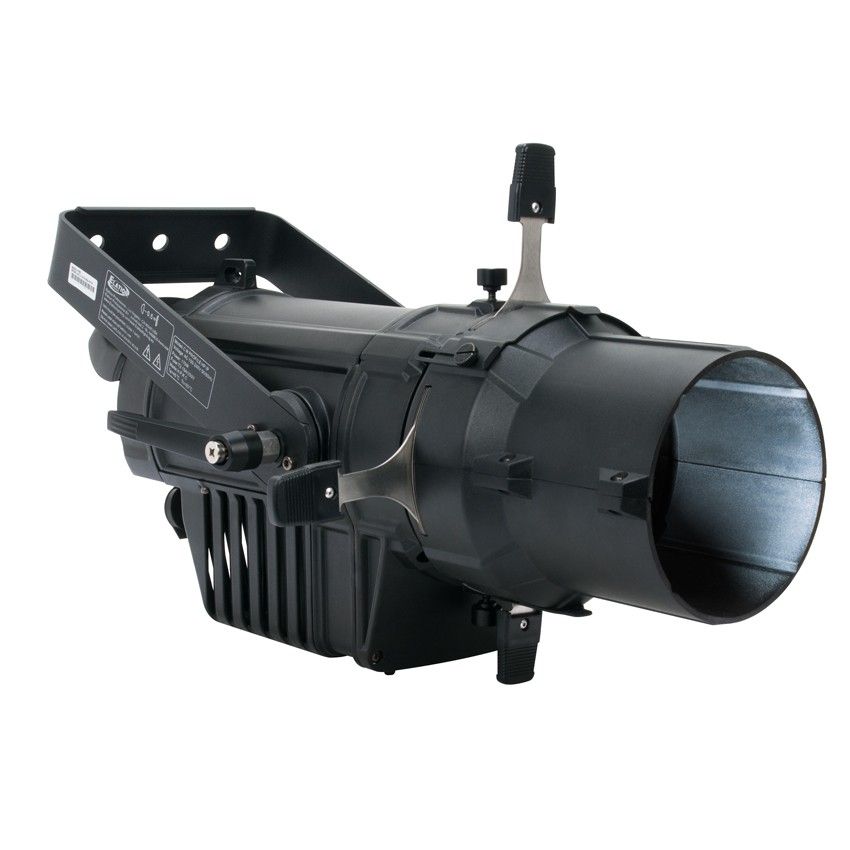

CW Profile HP IP (No Lens)

The IP65 rated CW Profile HP IP™ ellipsoidal features a High Power 130W Cool White 5,600K LED engine producing >90CRI 12,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, supports B size metal gobos (2 sample gobos included, single gobo holder not included) and an optional IP65 rated DMX controlled dual gobo rotator (sold separately), manual focus, DMX controlled electronic strobe, 16bit dimming and selectable dimming curve modes, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, IP rated 5pin DMX and IP65 Locking Power Cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

IP65 Rated High Power 130W Cool White 5,600K LED Engine
>90CRI and 12,000+ Total Lumens Output

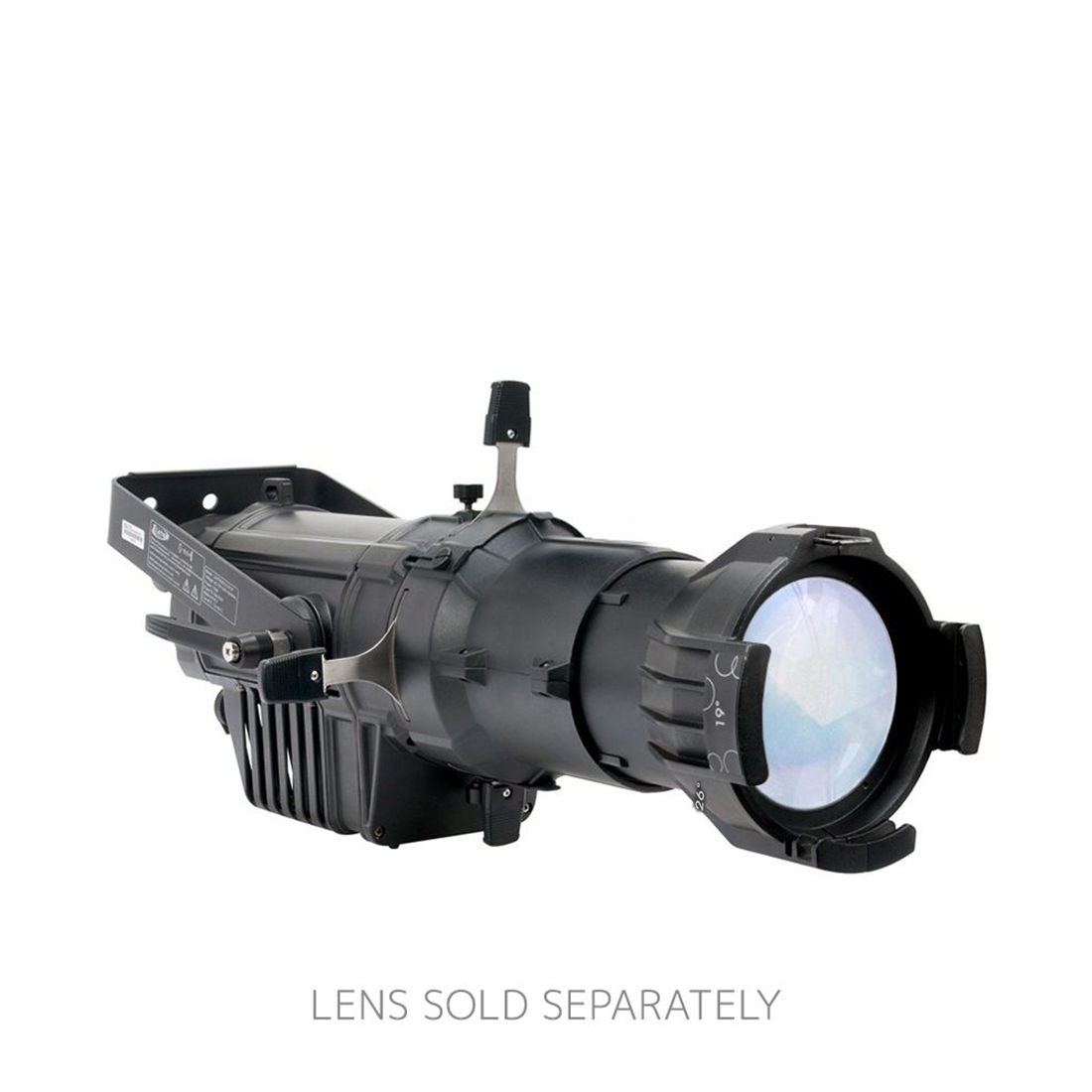

Interchangeable Lens Options* 19°, 26°, 36°, 50°
Supports B Size Metal Gobos

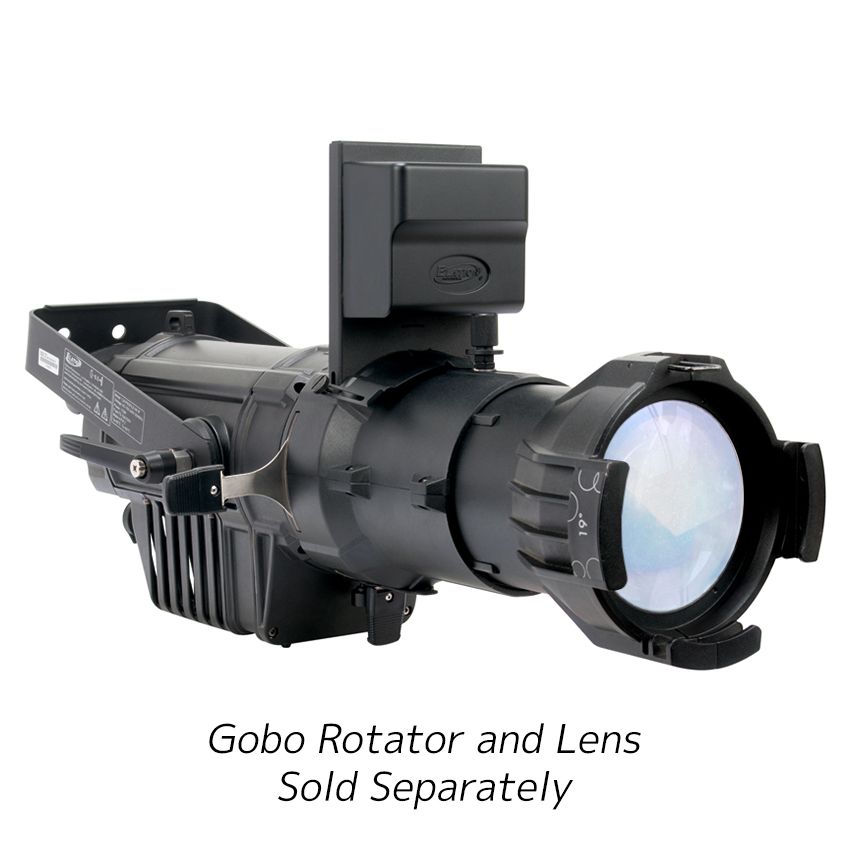

IP65 DMX Controlled Dual Gobo Rotator*
(4) Blade Manual Framing Shutters
DMX Controlled Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable Refresh Frequency and Gamma Brightness
Quiet Fan Cooling
(*sold separately)

SOURCE

High Power 130W Cool White LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

>90CRI | 12,000+ Total Lumens

EFFECTS

Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes

COLOR

Cool White 5,600K LED

GOBOS

Supports “B” Size Metal Gobos**
IP65 Rated DMX Controlled Dual Gobo Rotator***
**Gobos and Holder not included.
***Rotator Sold Separately

CONTROL / CONNECTIONS

4 DMX Channel Modes (1 / 3 / 6 / 8)
Adjustable Refresh Rates
Adjustable Gamma Brightness

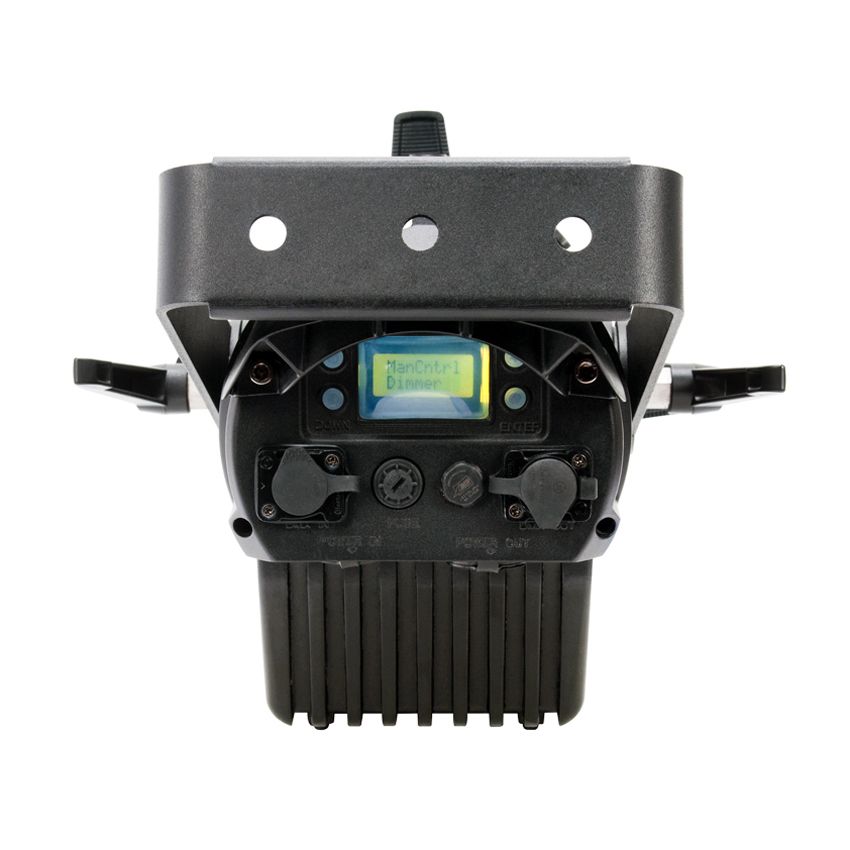

4 Button Control Panel / LED Menu Display
IP Rated 5pin DMX In/Out / IP65 Locking Power Cable In/Out
With Wired Digital Communication

SIZE / WEIGHT

Length: 29.6” (753mm)
Width: 13.9” (353mm)
Vertical Height: 18.9” (480mm)
Weight: 24 lbs. (11kg)

ELECTRICAL / THERMAL

Quiet Fan Cooling
AC 100-240V - 50/60Hz
170W Max Power Consumption
14° to 113°F (-10° to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)







Specifications and documentation subject to change without notice
