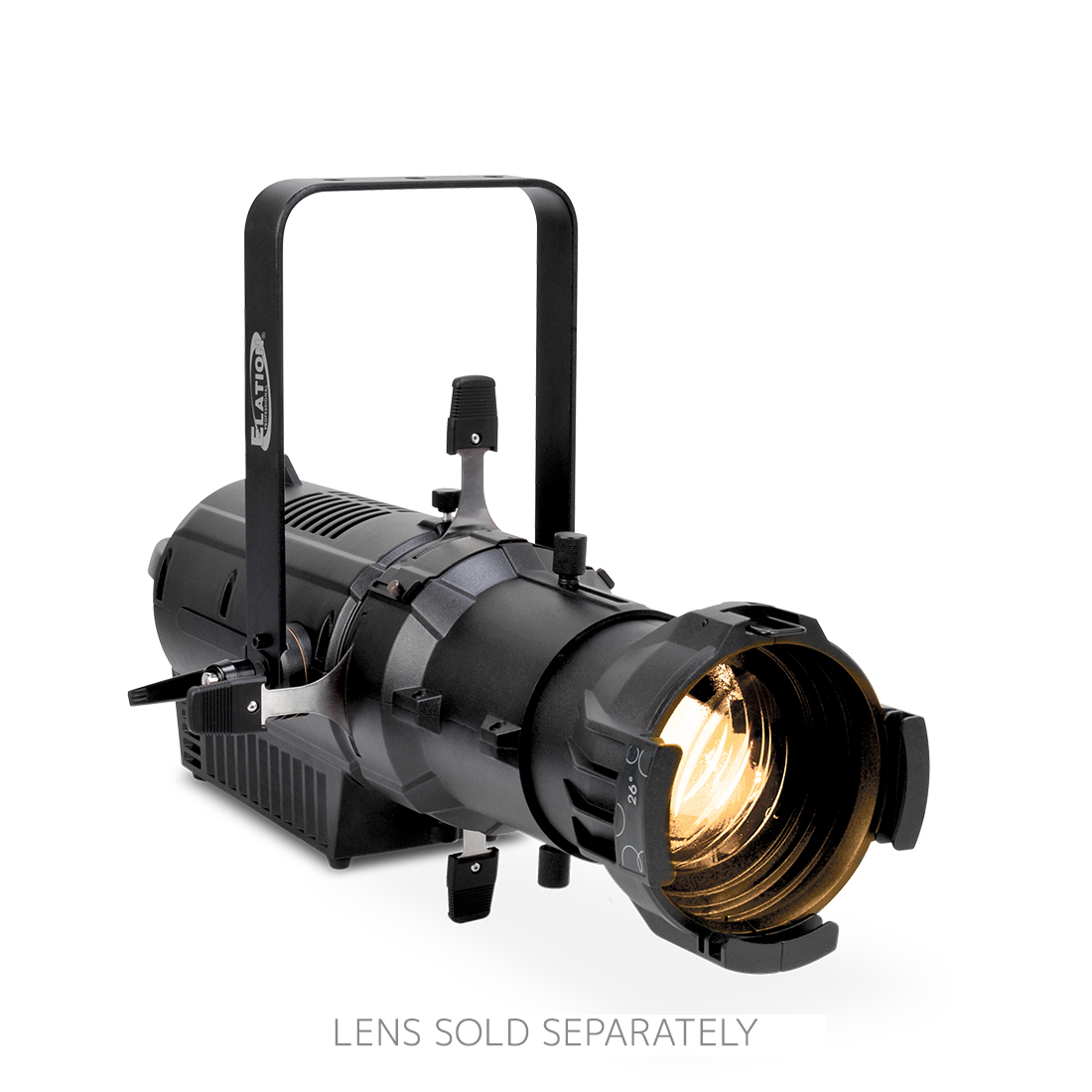

WW Profile HP (no lens)

The WW Profile HP™ ellipsoidal features a High Powered 130W Warm White >91CRI 3,000K LED engine producing 10,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and FILM, 3/5pin DMX and IP65 locking power cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

High Power 130W Warm White 3,000K LED Engine
>91CRI | 10,000+ Total Lumens
Interchangeable Lens Options (19°, 26°, 36°, 50°) (not included)
(4) Blade Manual Framing Shutters
Supports B Size Metal or HT Transparency Gobos (not included)
DMX Controlled Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable LED Refresh Rate and Gamma Brightness
Quiet Fan Cooling

SOURCE

High Power 130W Warm White 3,000K LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

>91CRI | 10,000+ Total Lumens

EFFECTS

Electronic Strobe
Variable Dimming Curve Modes

COLOR

Warm White 3,000K LED

GOBOS

Supports "B" Size Metal, HT Transparency Gobos**
**Gobo Holder Not Included

CONTROL / CONNECTIONS

2 DMX Channel Modes (4 total channels)
4 Button Control Panel
LED Menu Display

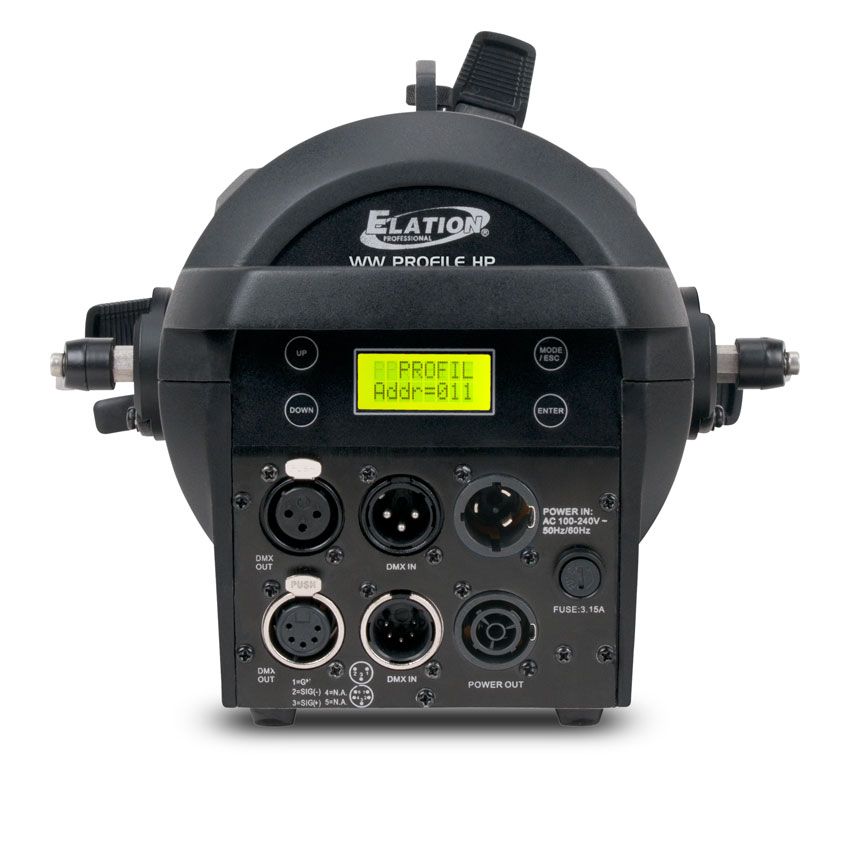

3/5pin DMX In/Out and IP65 locking Power cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 24.3" (618mm)
Width 12.2" (310mm)
Vertical Height: 15.7" (398mm)
Weight: 21.0 lbs. (9.5kg)

ELECTRICAL / THERMAL

Quiet Fan Cooling
AC 100-240V - 50-60Hz
160W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)





Specifications and documentation subject to change without notice
