PHDL36

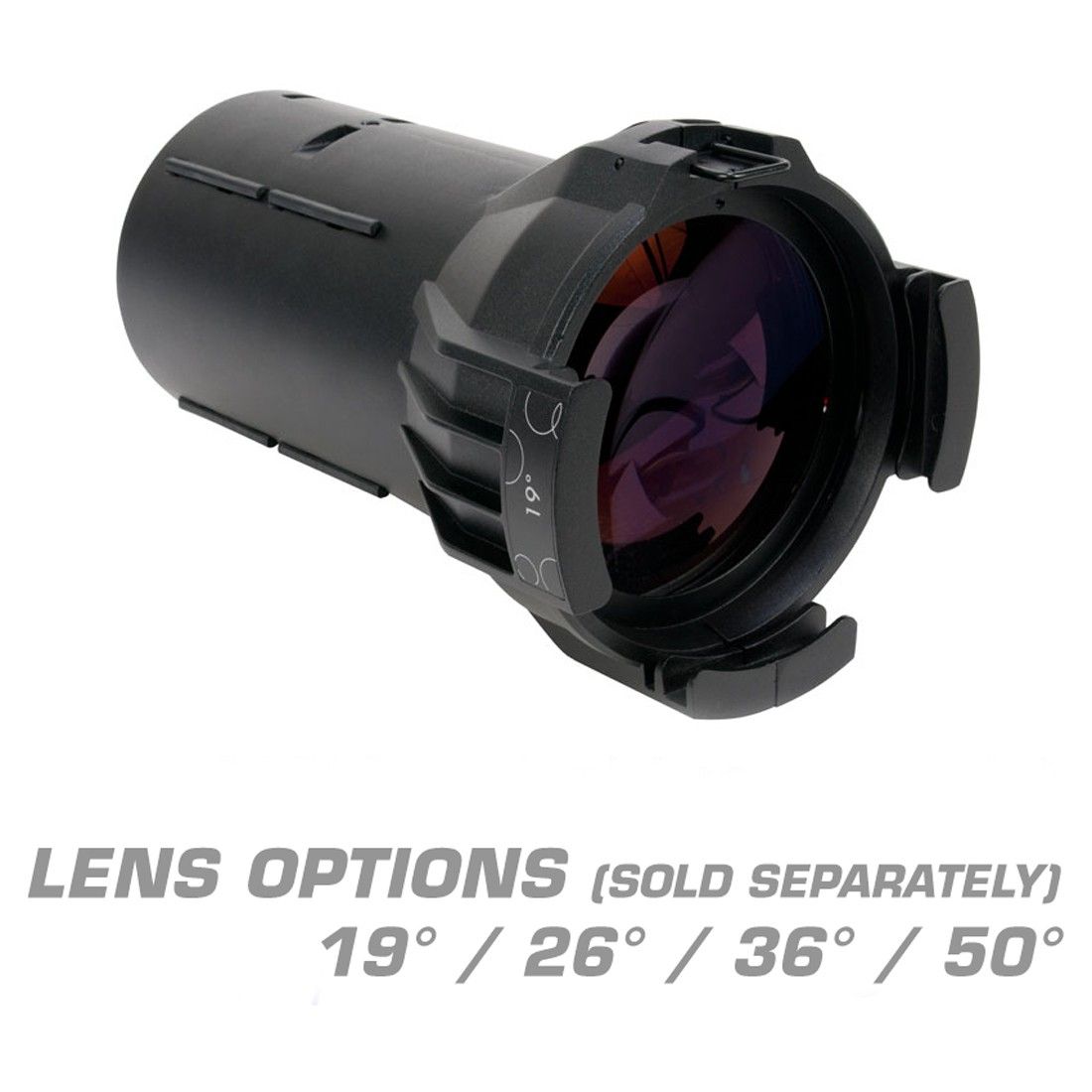

The Profile HD 36 Degree Lens is a high definition enhanced output lens designed to fit all Elation Profile ellipsoidal models. The lens features dual advanced fixed length aspheric lenses with a non-glare coating, an integrated 6.25" (159mm) gel frame holder (gel frame not included), and a rugged die-cast aluminum housing.

Technical Data

FEATURES


High Definition 36° Enhanced Output Lens
Dual Advanced Fixed Length Aspheric Lens with Non-Glare Coating
Integrated 6.25" (159mm) Gel Frame Holder (gel frame not included)
Rugged Die-Cast Aluminum Housing
Fits All Elation Profile Ellipsoidal Models

SPECIFICATIONS



ANGLE


36°

GEL FRAME HOLDER


Supports Standard 6.25” (159mm) Gel Frame (not included)

SIZE / WEIGHT


Length: 11.3” (288mm)
Width: 7.05" (180mm)
Vertical Height: 7.05” (180mm)
Weight: 5.2 lbs. (2.4kg)


Specifications and documentation subject to change without notice
