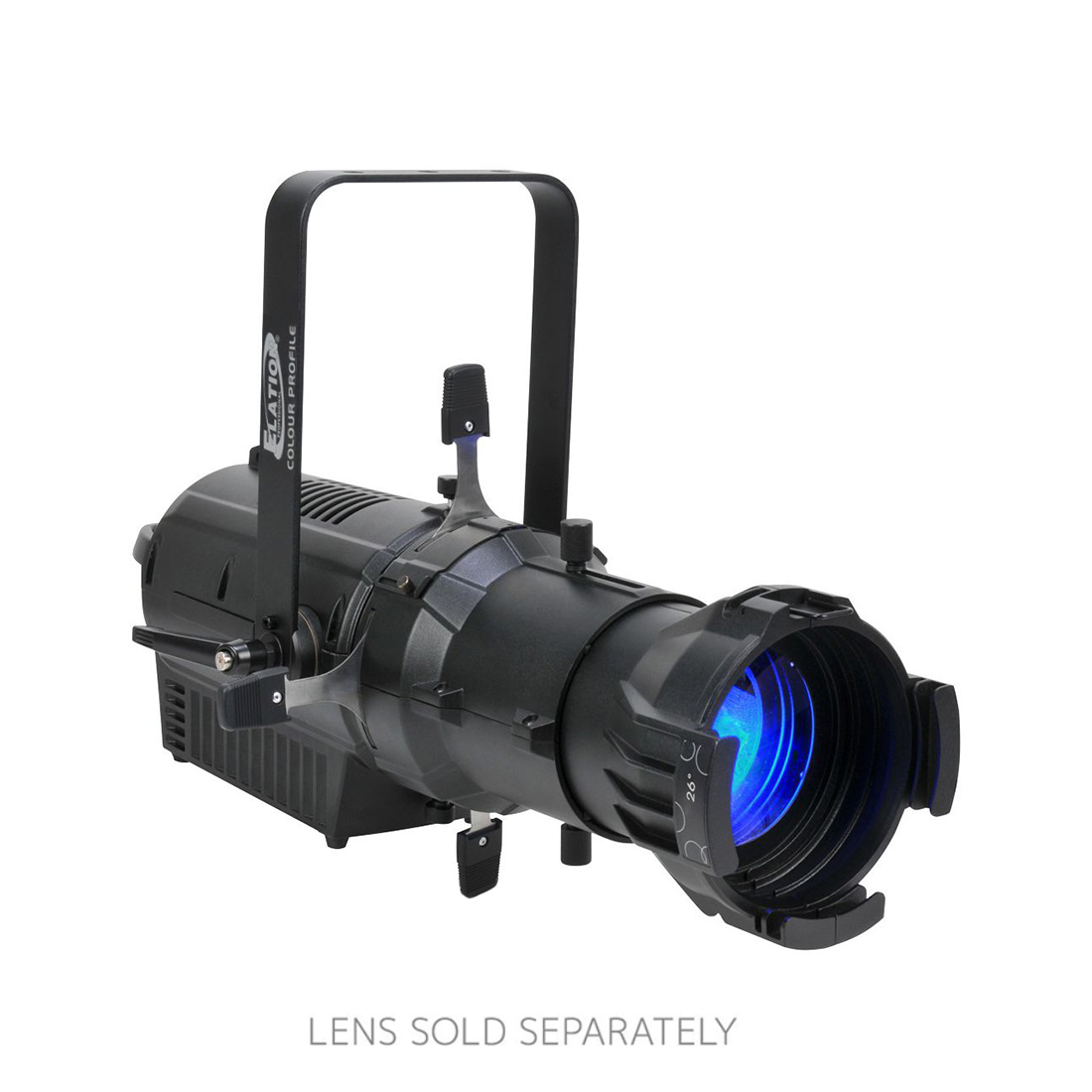

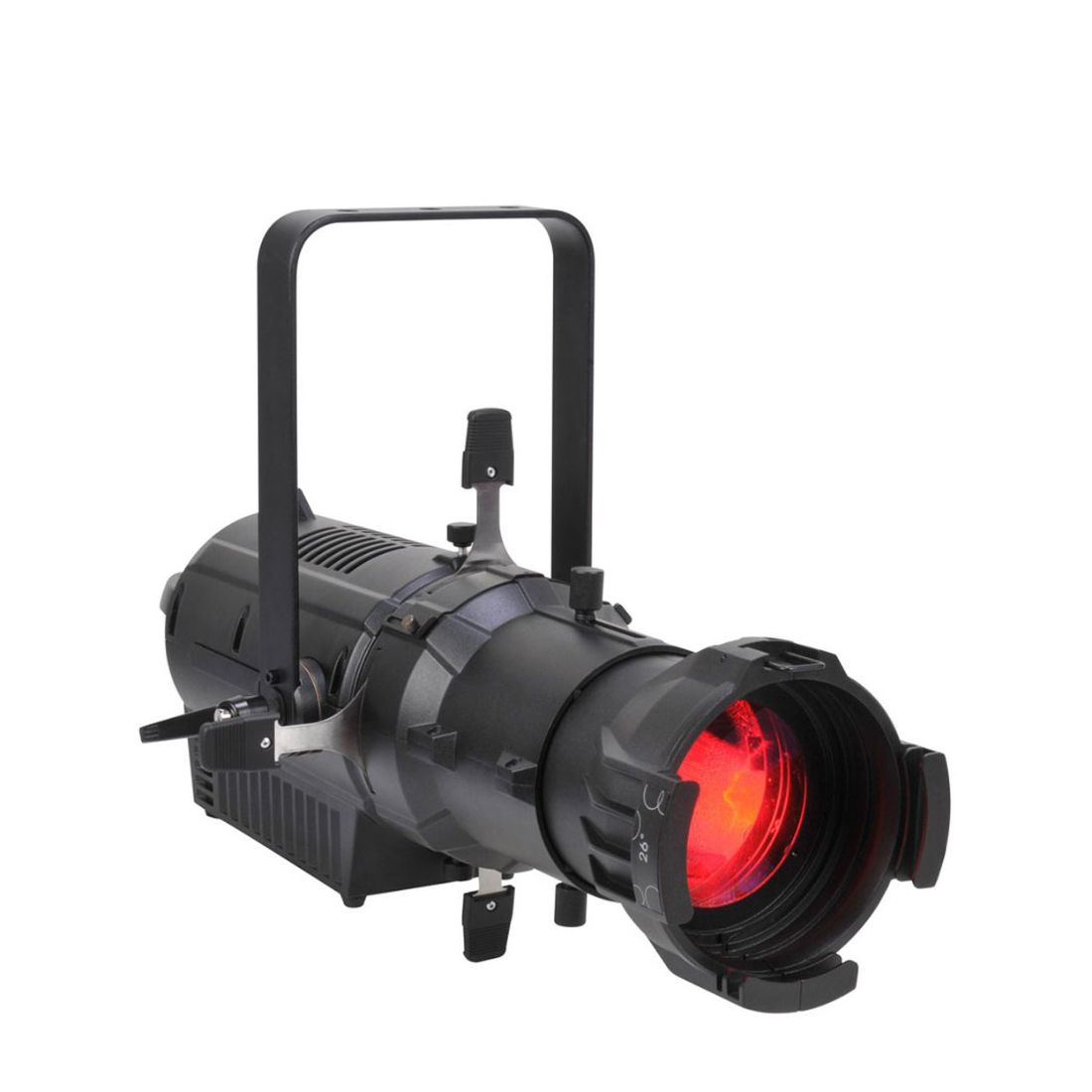

Colour 5 Profile (no lens)

The COLOUR 5 Profile™ Ellipsoidal features a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine, >94CRI, 4,100 total lumens, with 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, and dimming curves, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, 5pin DMX and Locking Power Cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

High CRI >94, 4,100 Total Lumens*

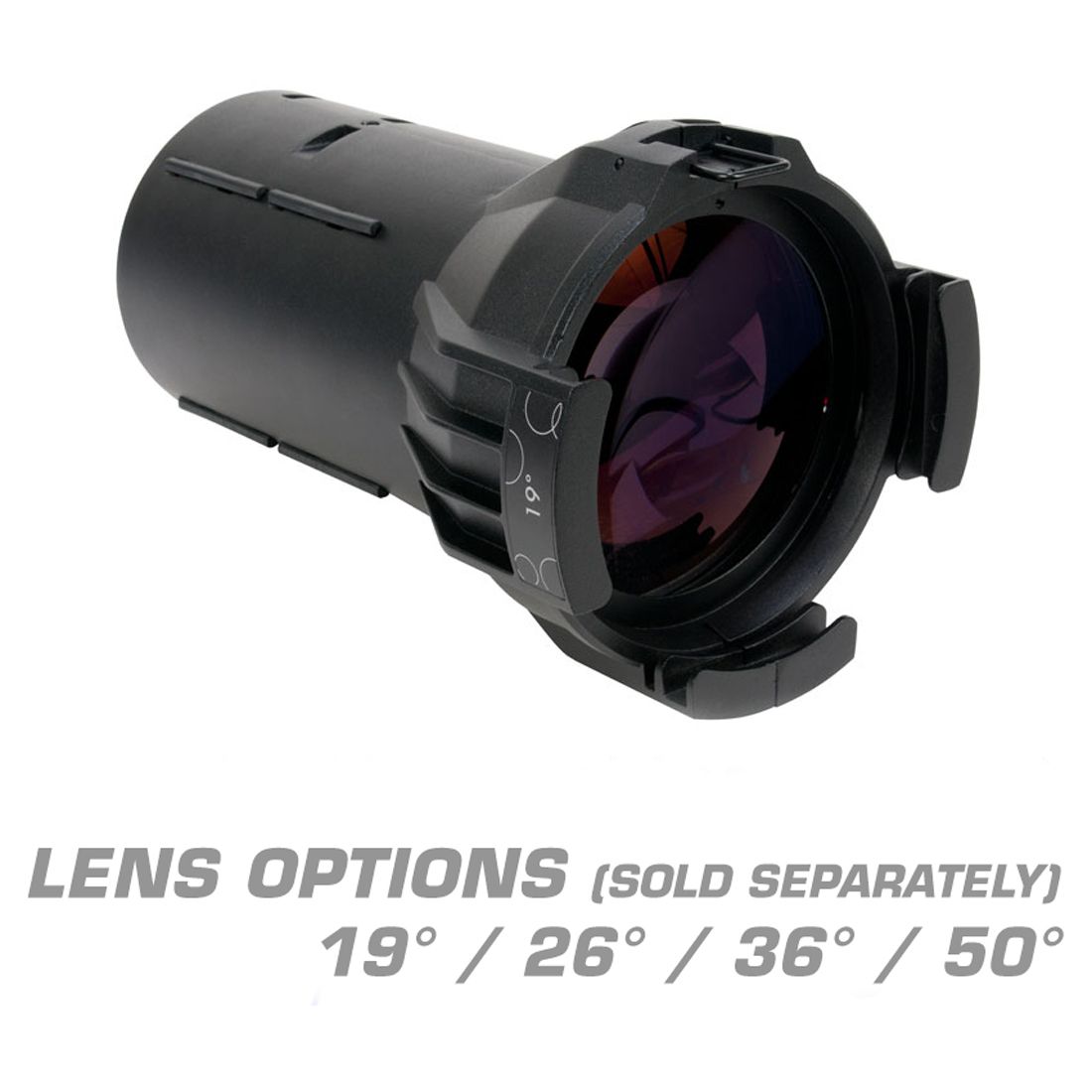

Interchangeable Lens Options** (19°, 26°, 36°, 50°)

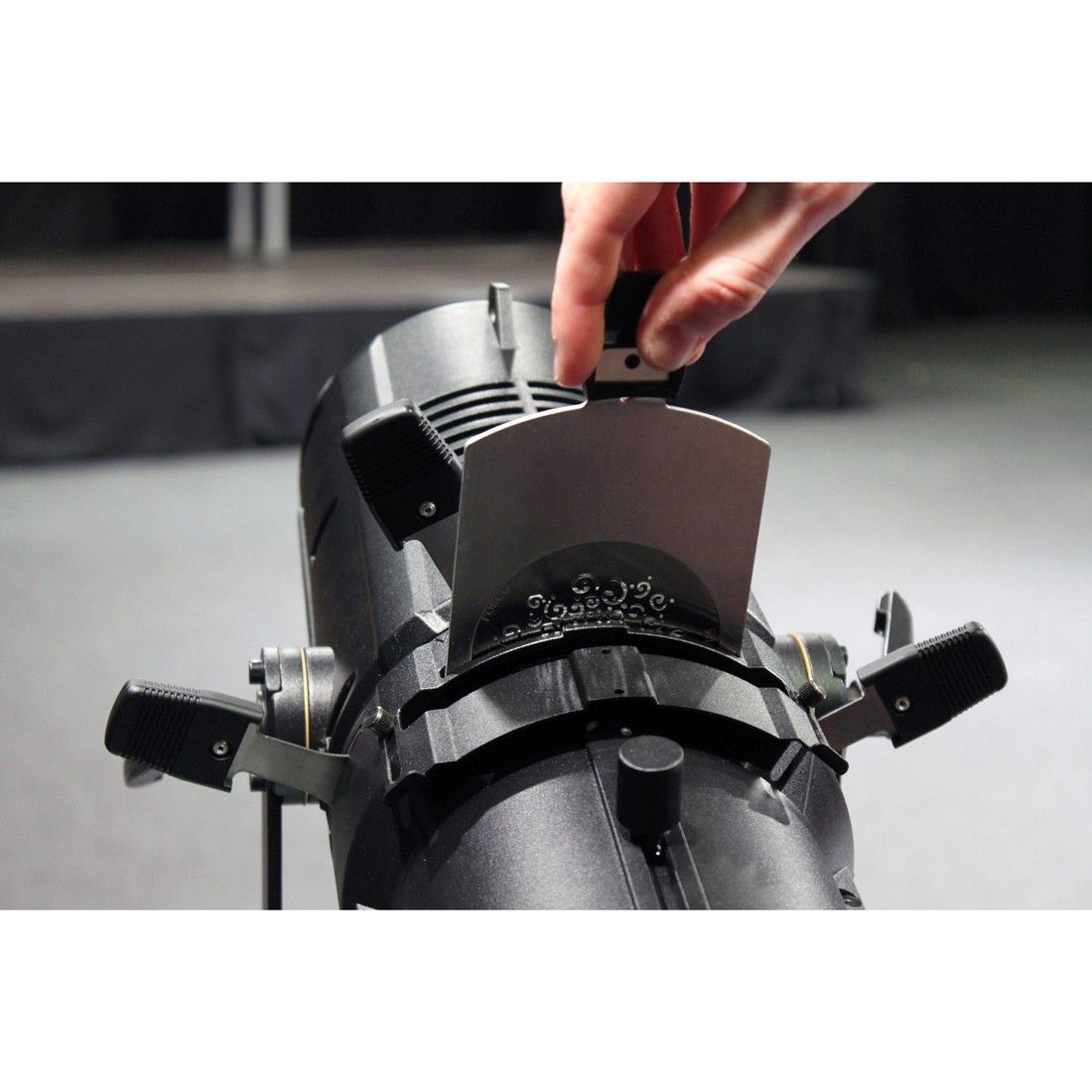

(4) Blade Manual Framing Shutters
Variable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable Refresh Frequency and Gamma Brightness
Quiet Fan Cooling
(*with 26° lens)(**sold separately)

SOURCE

180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

>94CRI 4,100 Total Lumens*
(*with 26° lens)

EFFECTS

Electronic Strobe and Dimming
Variable Dimming Curve Modes

GOBOS

Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.

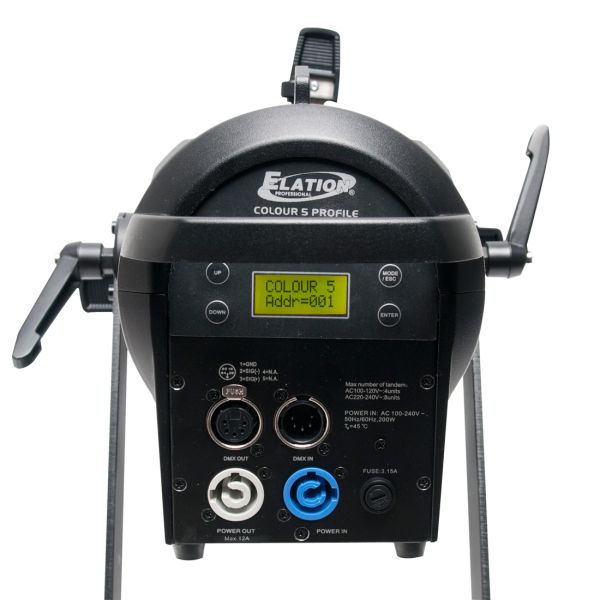

CONTROL / CONNECTIONS

(5) DMX Channel Modes (5 / 6 / 8 / 13 / 19)
Adjustable Refresh Rate (900-1500, 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Control Panel
LED Menu Display
5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 24.3” (618mm) / 26.5” (674mm) Fully Extended
Width: 12.2” (310mm)
Vertical Height: 15.7” (398mm)
Weight: 21.0 lbs. (9.5 kg)

ELECTRICAL / THERMAL

Quiet Fan Cooling
AC 100-240V - 50/60Hz
225W Max Power Consumption
Power Linking: 4pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)





Specifications and documentation subject to change without notice

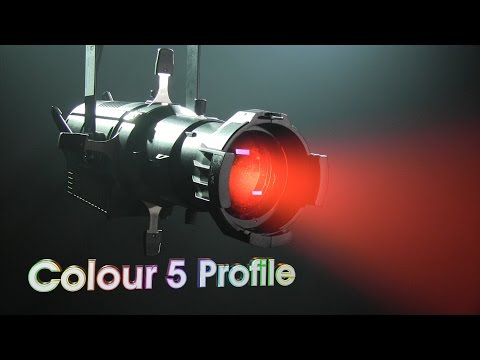

Videos
