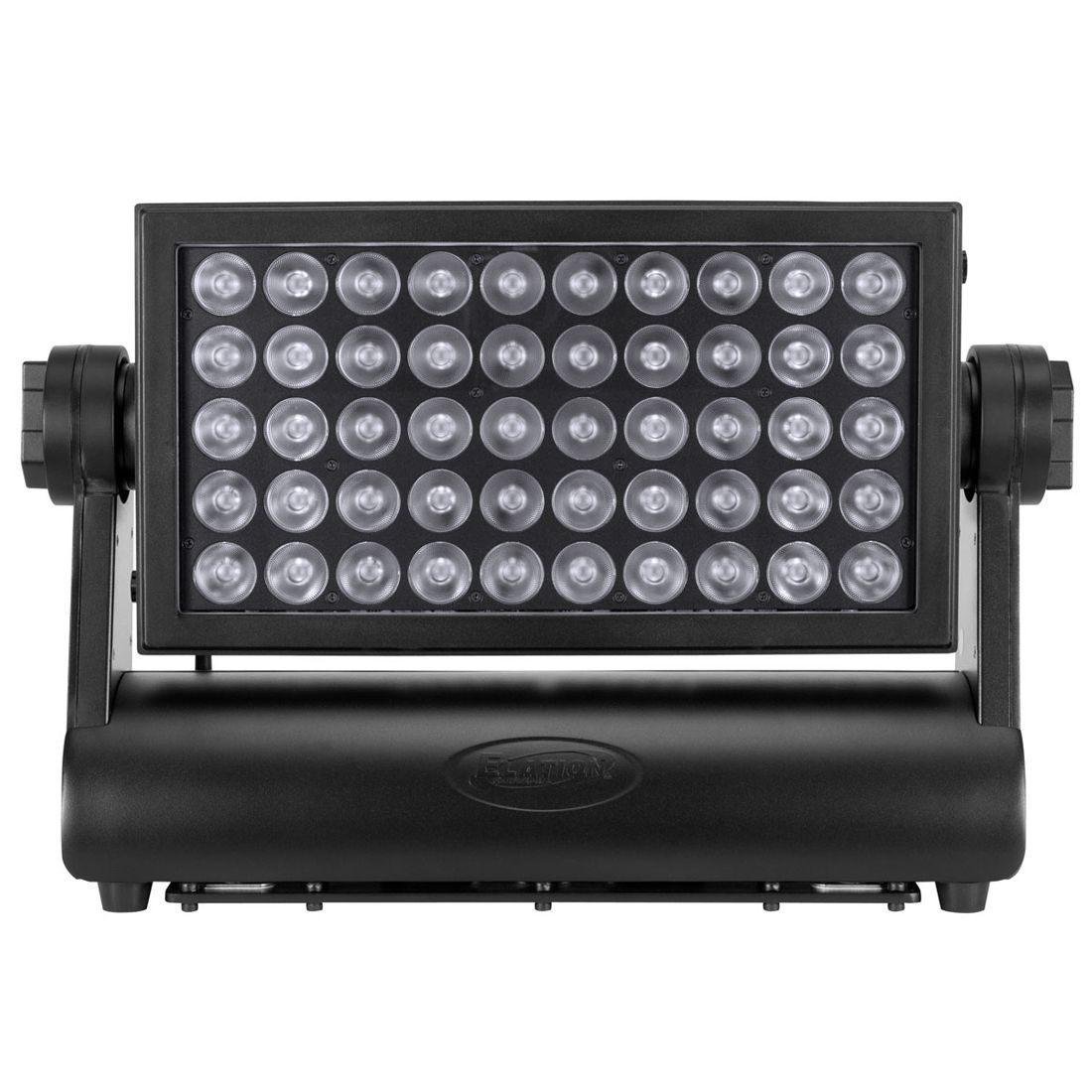

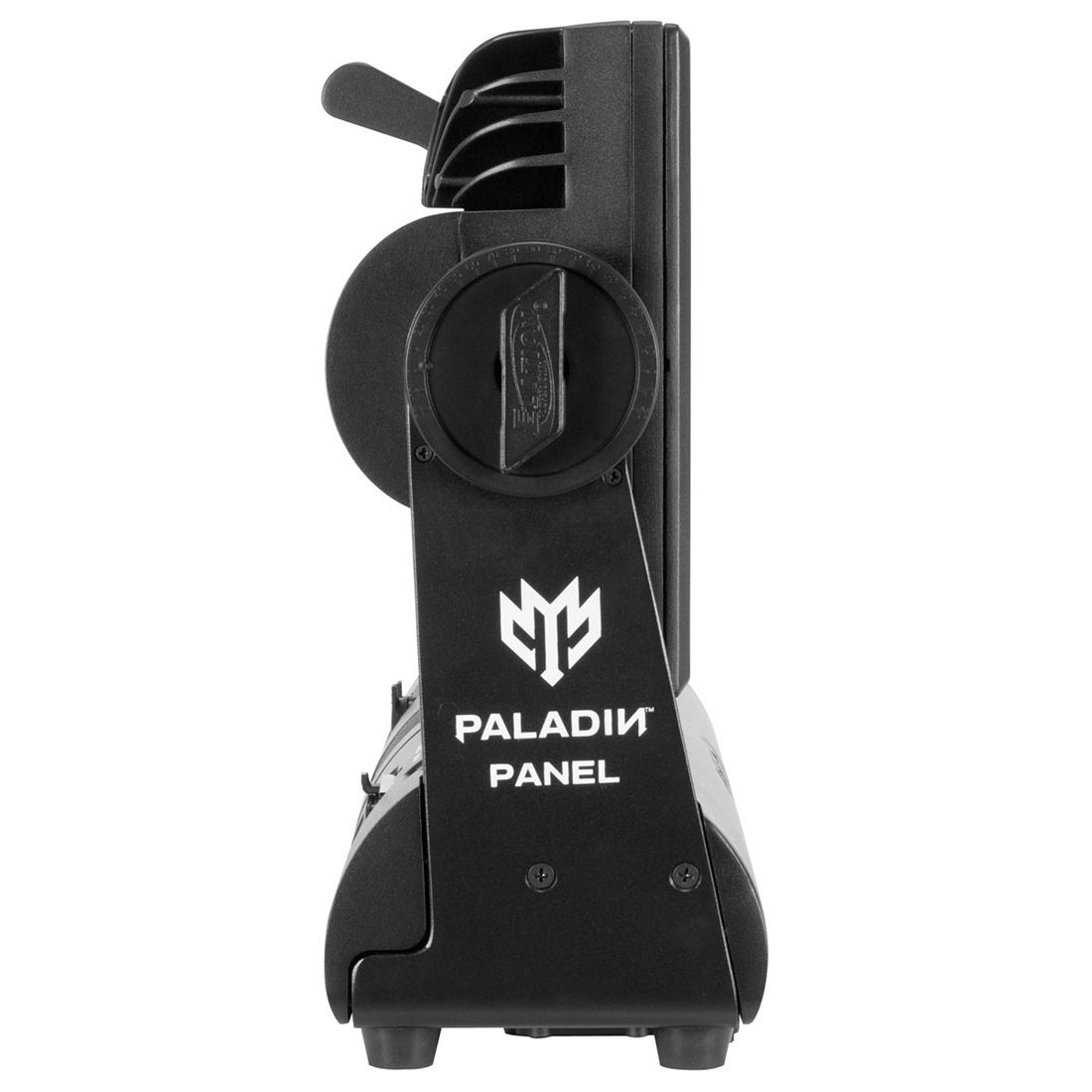

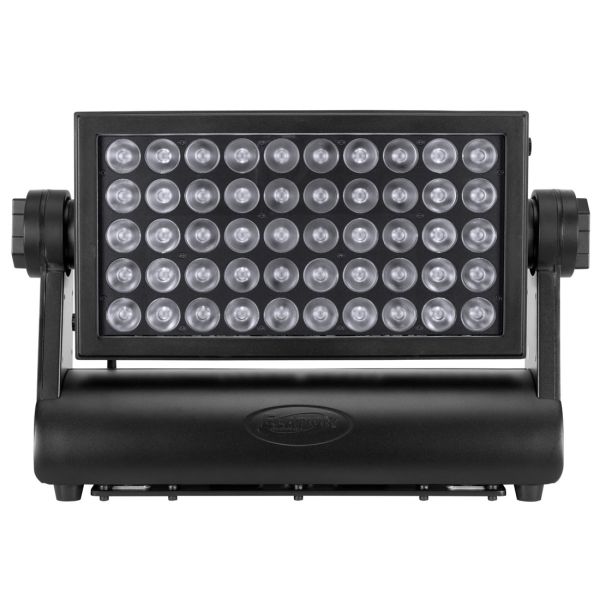

PALADIN PANEL

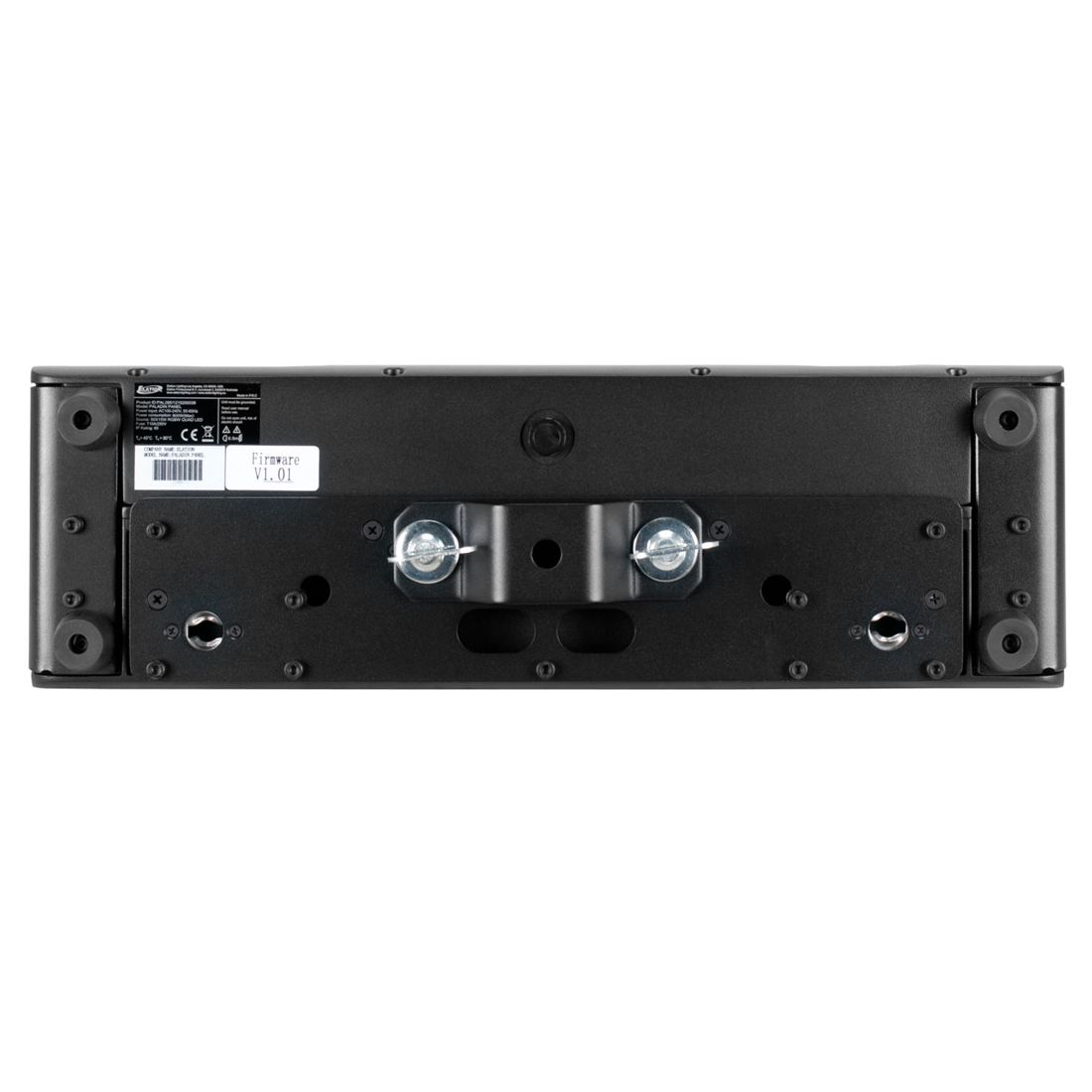

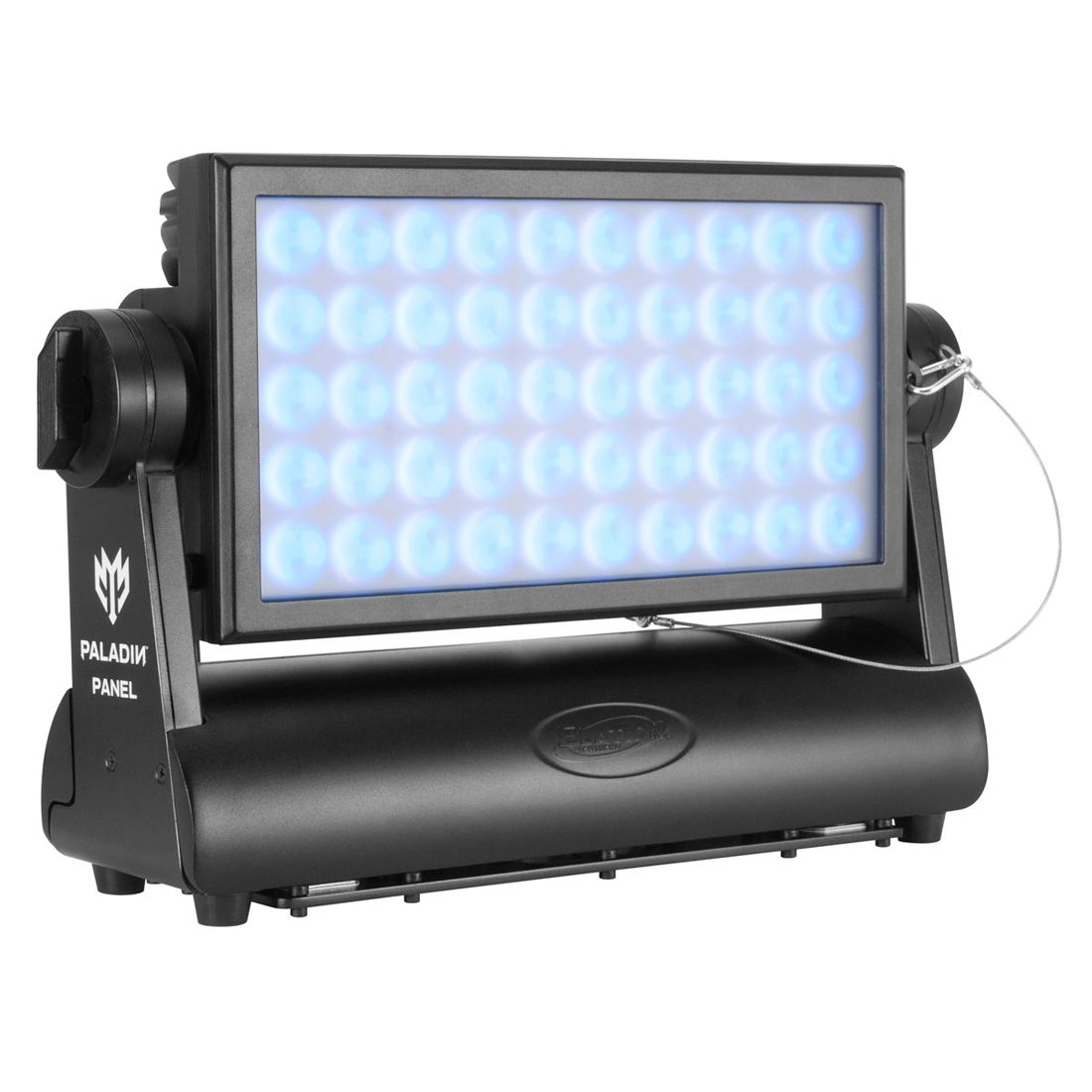

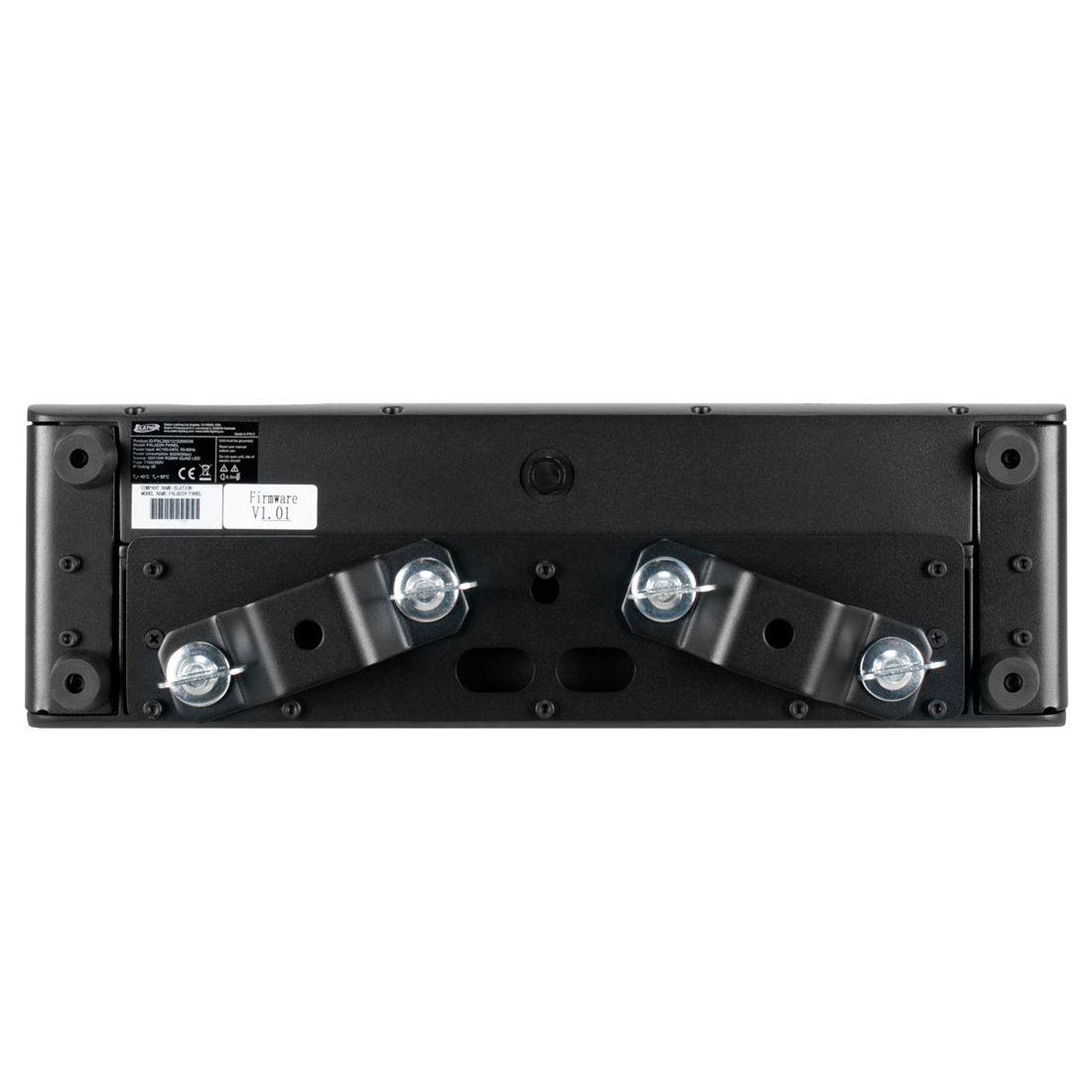

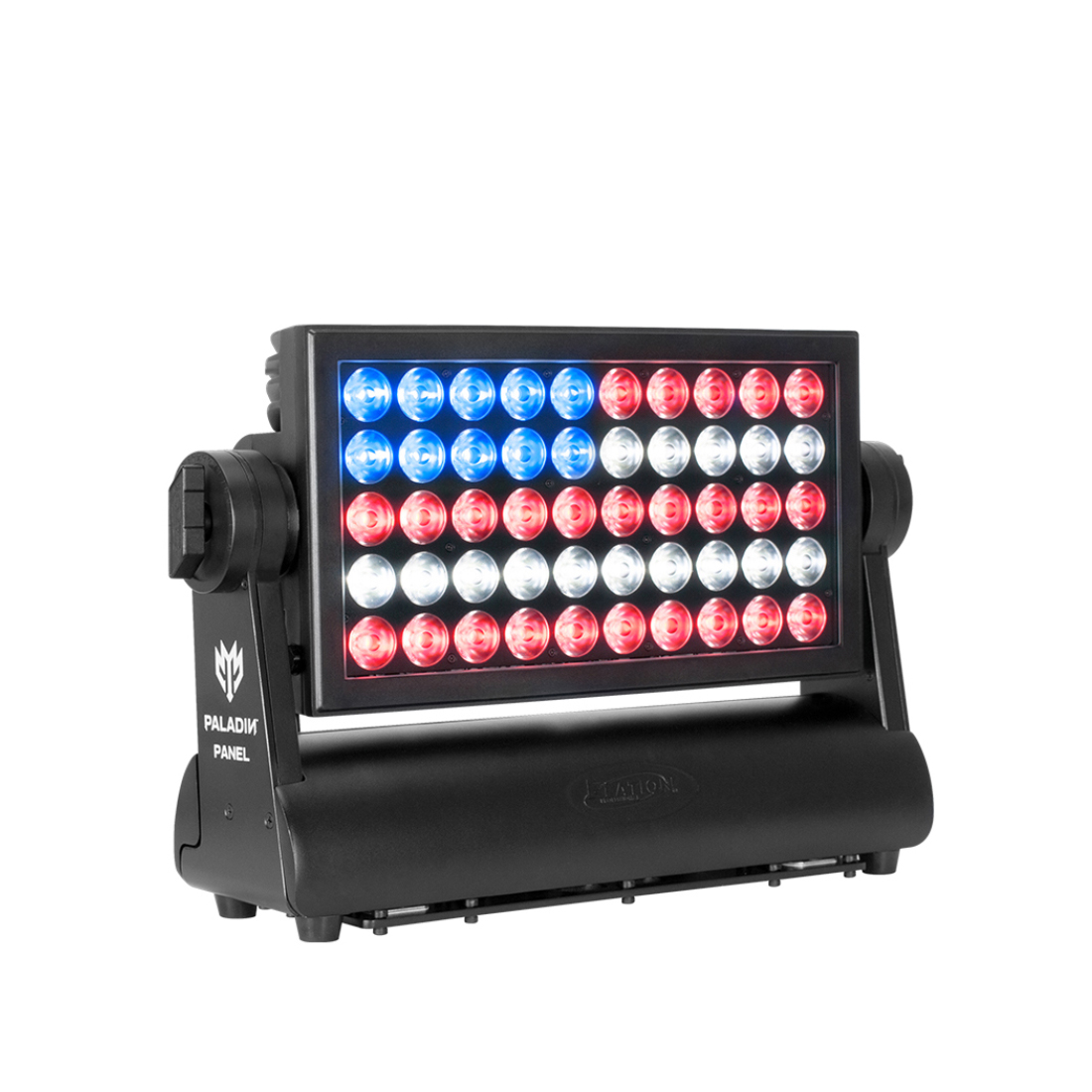

The PALADIN Panel™ is a compact and powerful outdoor floodlight for a wide variety of applications. Using 50x15W RGBW cells it provides a total output of up to 20,000 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN Panel also a versatile effects fixture or audience blinder.

Technical Data

FEATURES

750W RGBW Flood Light
5x2 Cell Control
Rugged IP65 Design for Outdoor Events
Floor Standing or Mountable in any Orientation
Optional 60 and 100 degree Lens Kits Available*

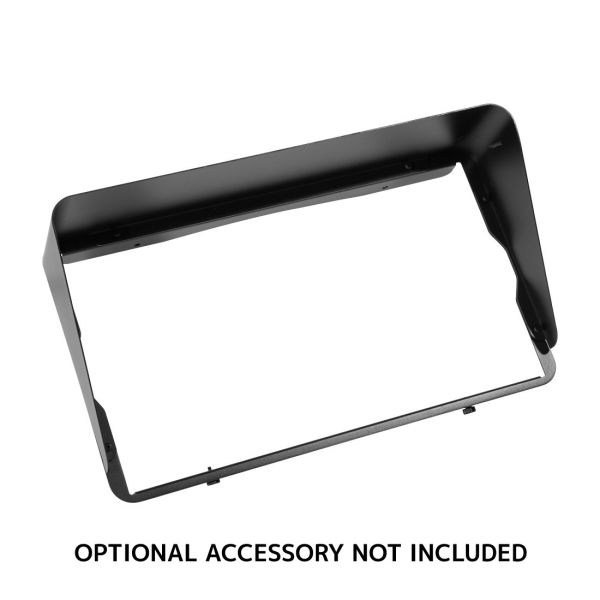

Optional Barn Door Kit Available*
*Special Order Item

SOURCE

50x 15W RGBW LED Emitters
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

COLOUR

RGBW

EFFECTS

Pixel Zone Control
64 Color Presets and 15 Unique Color Macros
Electronic Strobe
16-Bit Dimming and Variable Dimming Curve Modes

PHOTOMETRIC DATA

6,000K Color Temperature
20,000 Total Lumen Output
13.5° Beam 24.3° Field Angle (without diffuser)

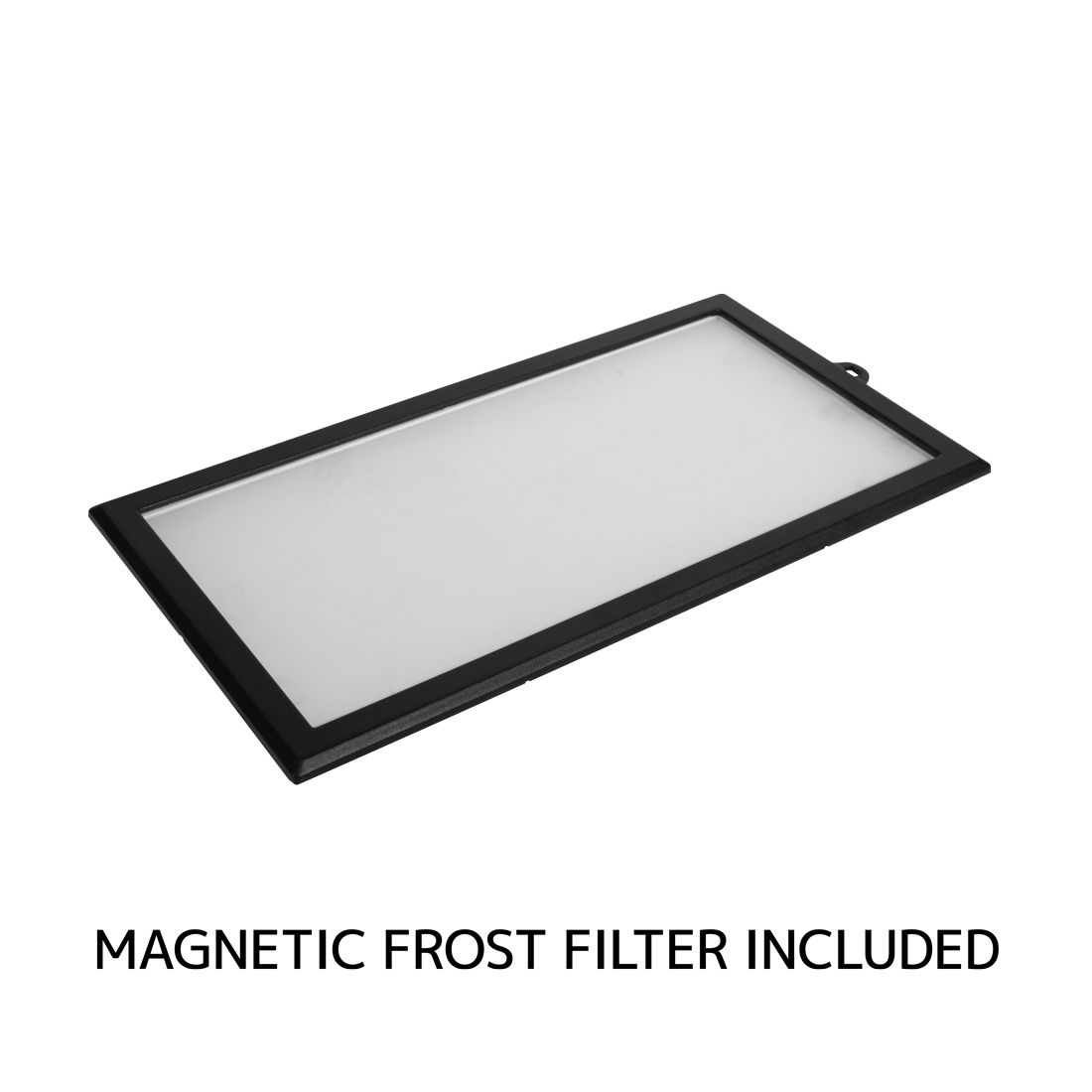

25.2° Beam 50.1° Field Angle (with diffuser)

EFFECTS

Pixel Zone Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays

CONTROL / CONNECTIONS

11 DMX Channel Modes (88 Total Channels)
5x2 Cell Control

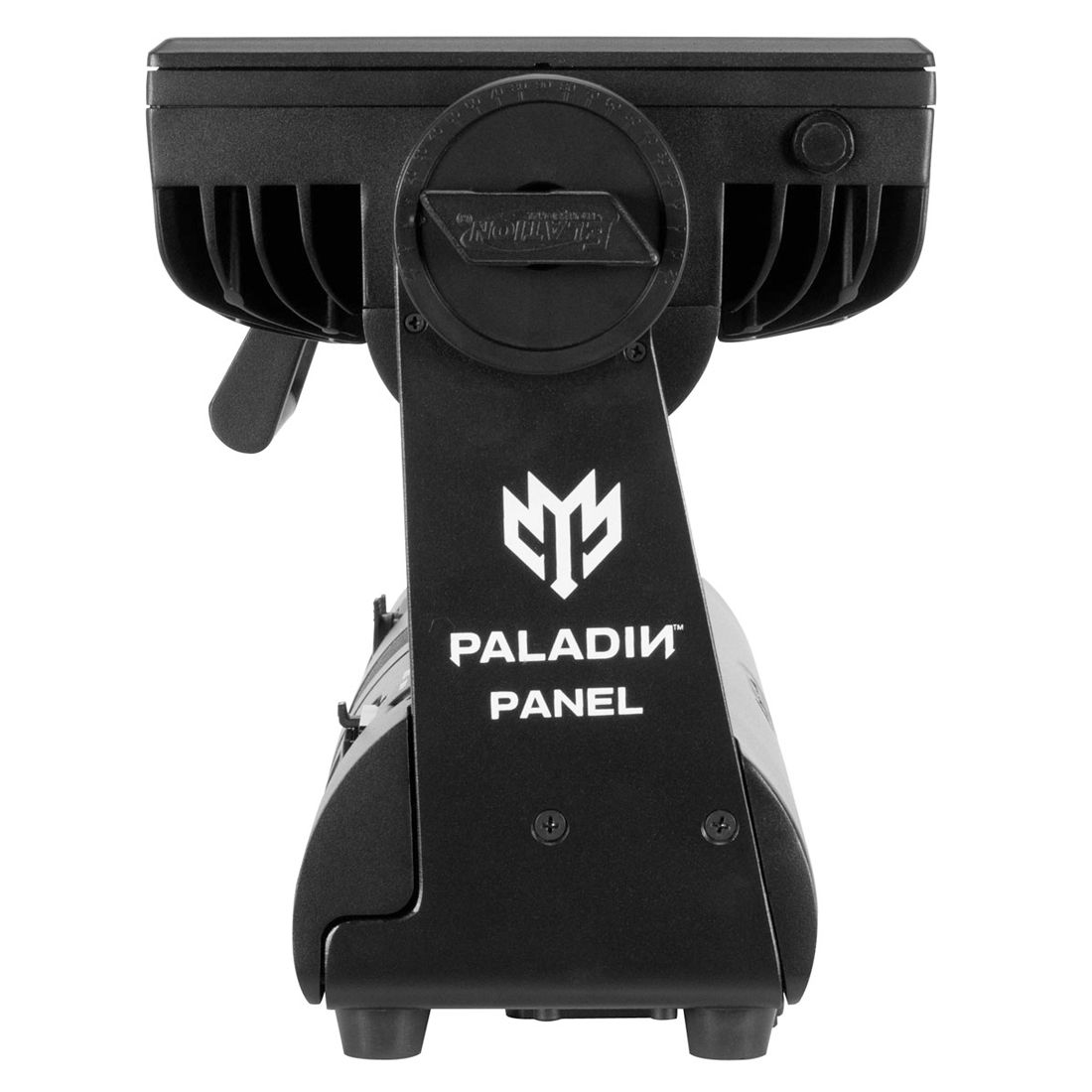

Manual Tilt Adjustment
DMX, RDM Protocol Support
Standalone and Master / Slave Operation
4 Button OLED Control Display

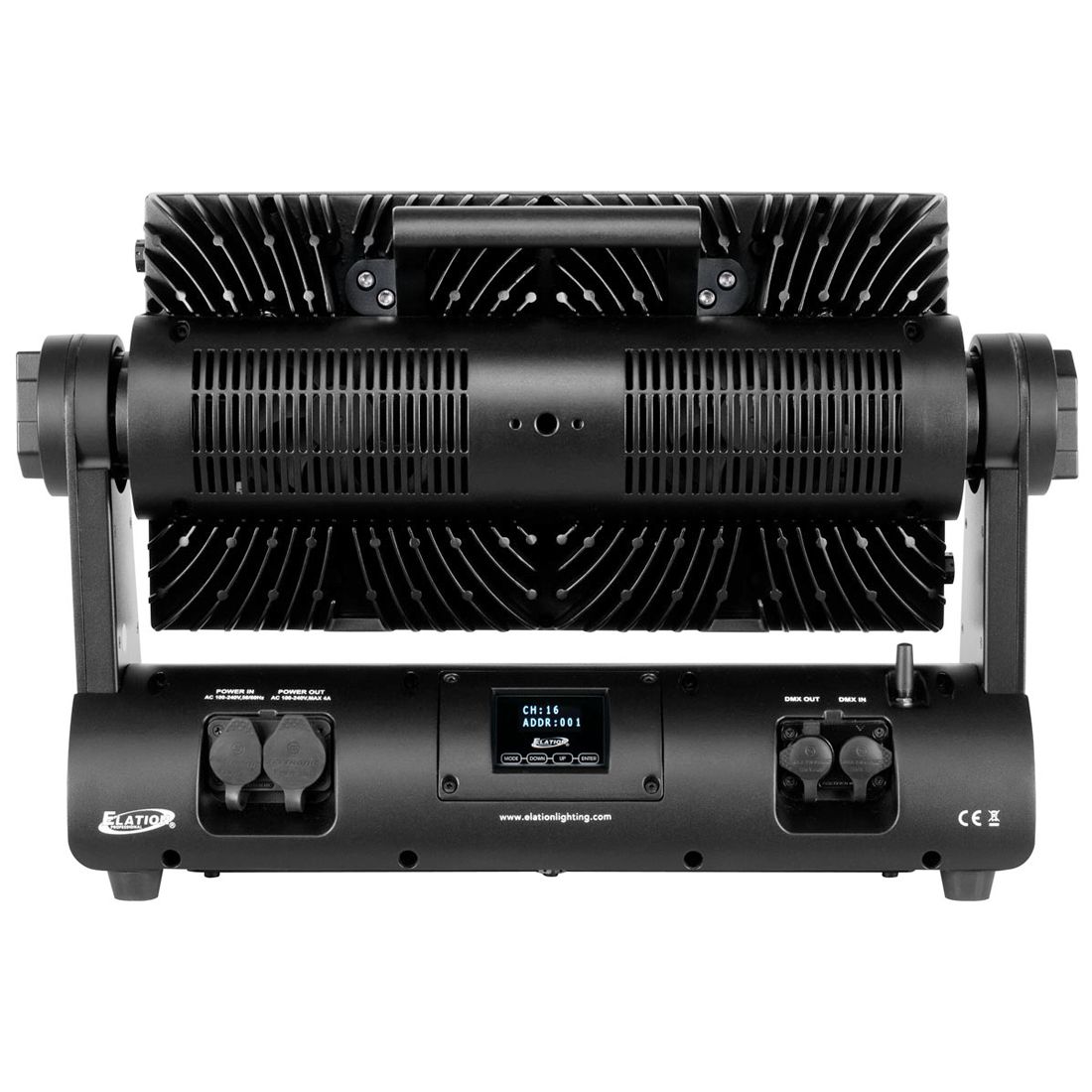

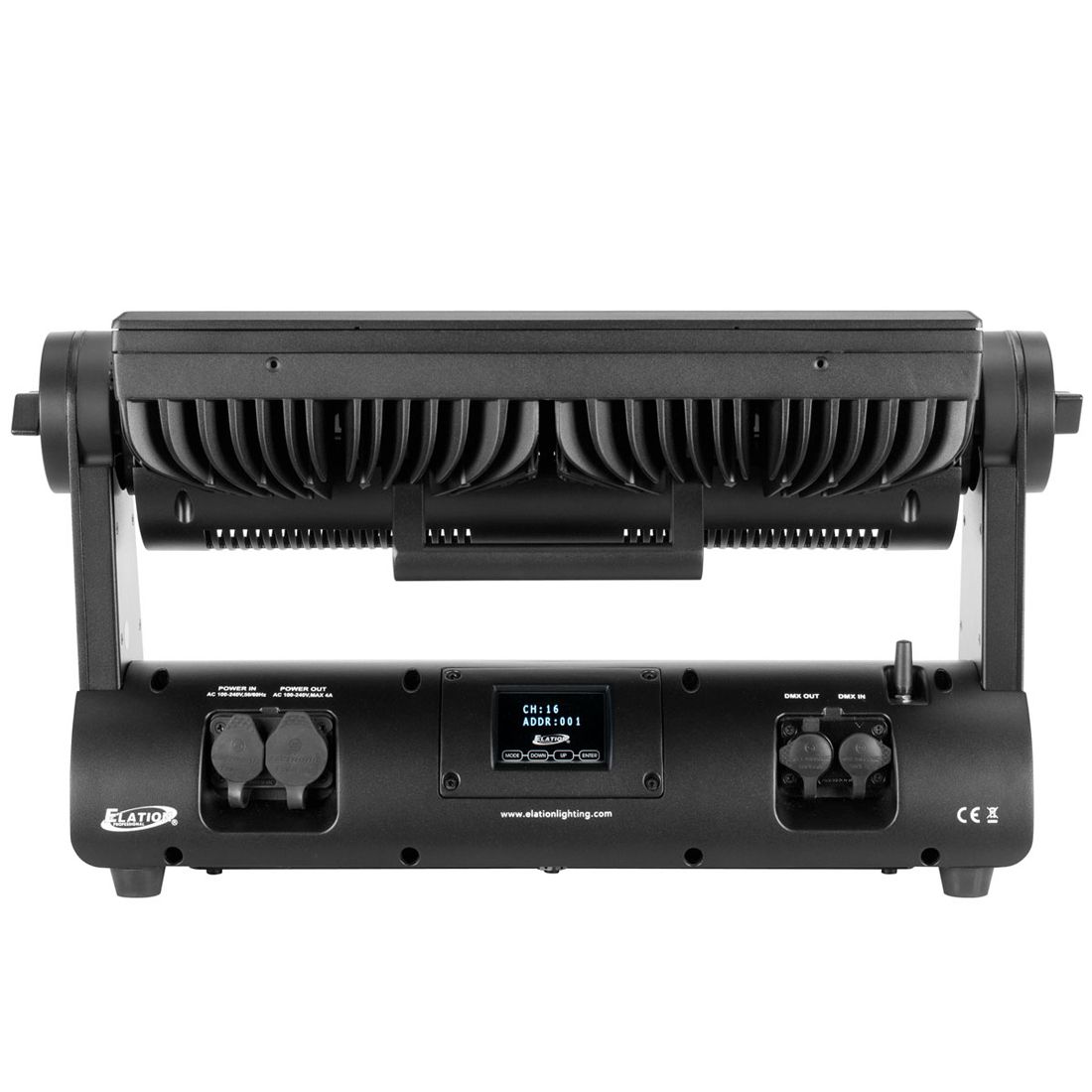

IP65 locking 5pin XLR DMX In/Out
IP65 locking Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 20.9” (531mm)
Width: 5.8” (148mm)
Height: 13.7” (348mm)
Weight: 33.0 lbs. (15 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
800W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice
