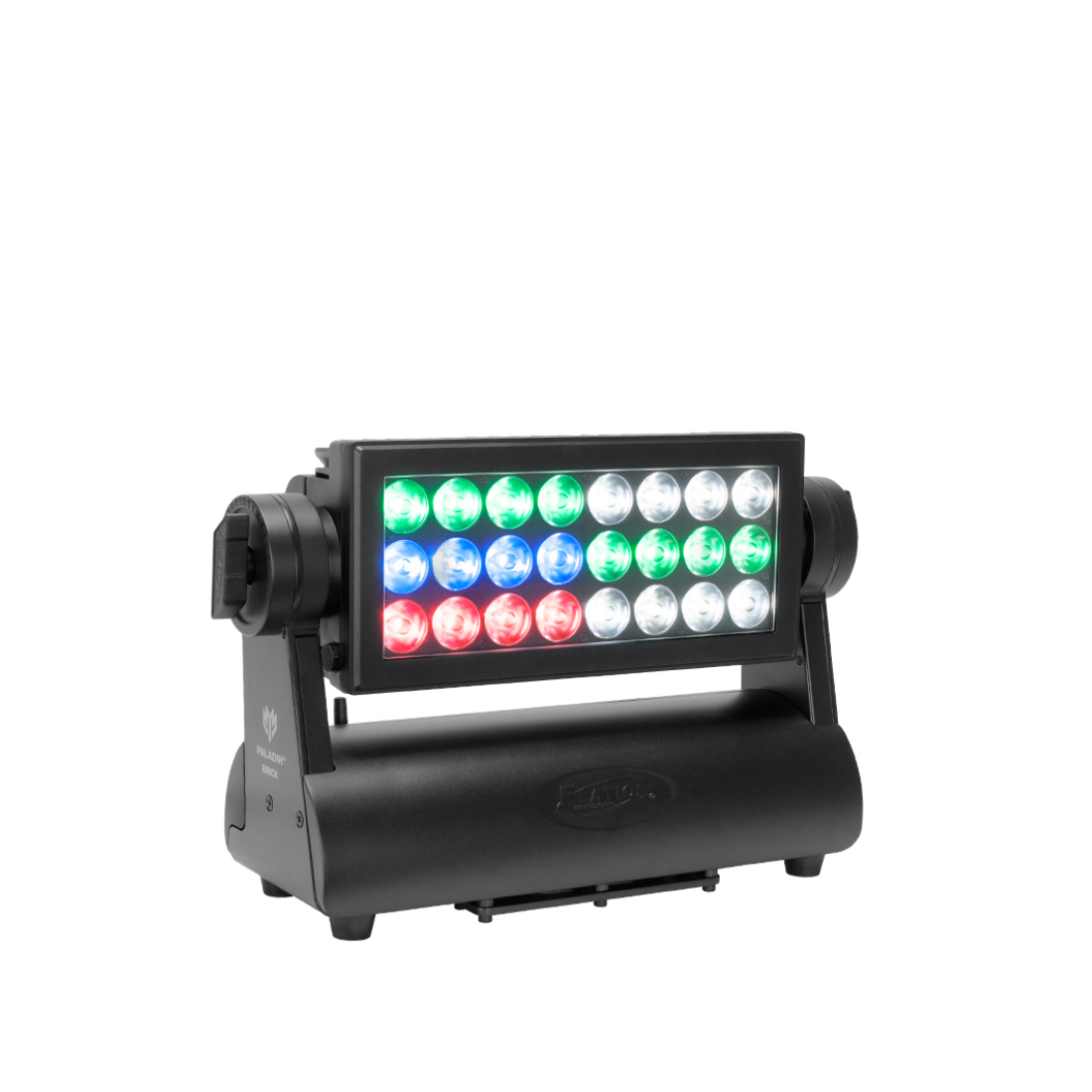

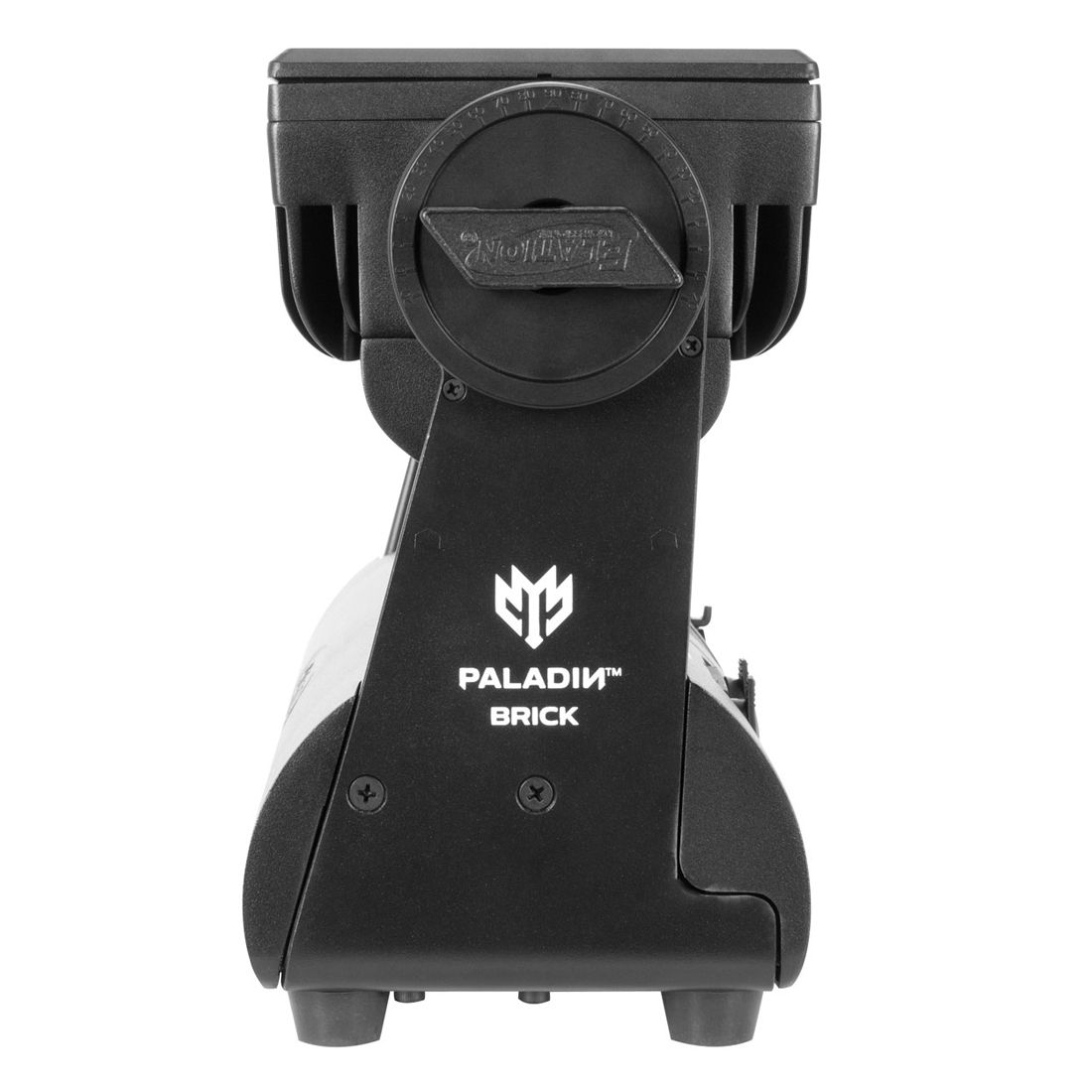

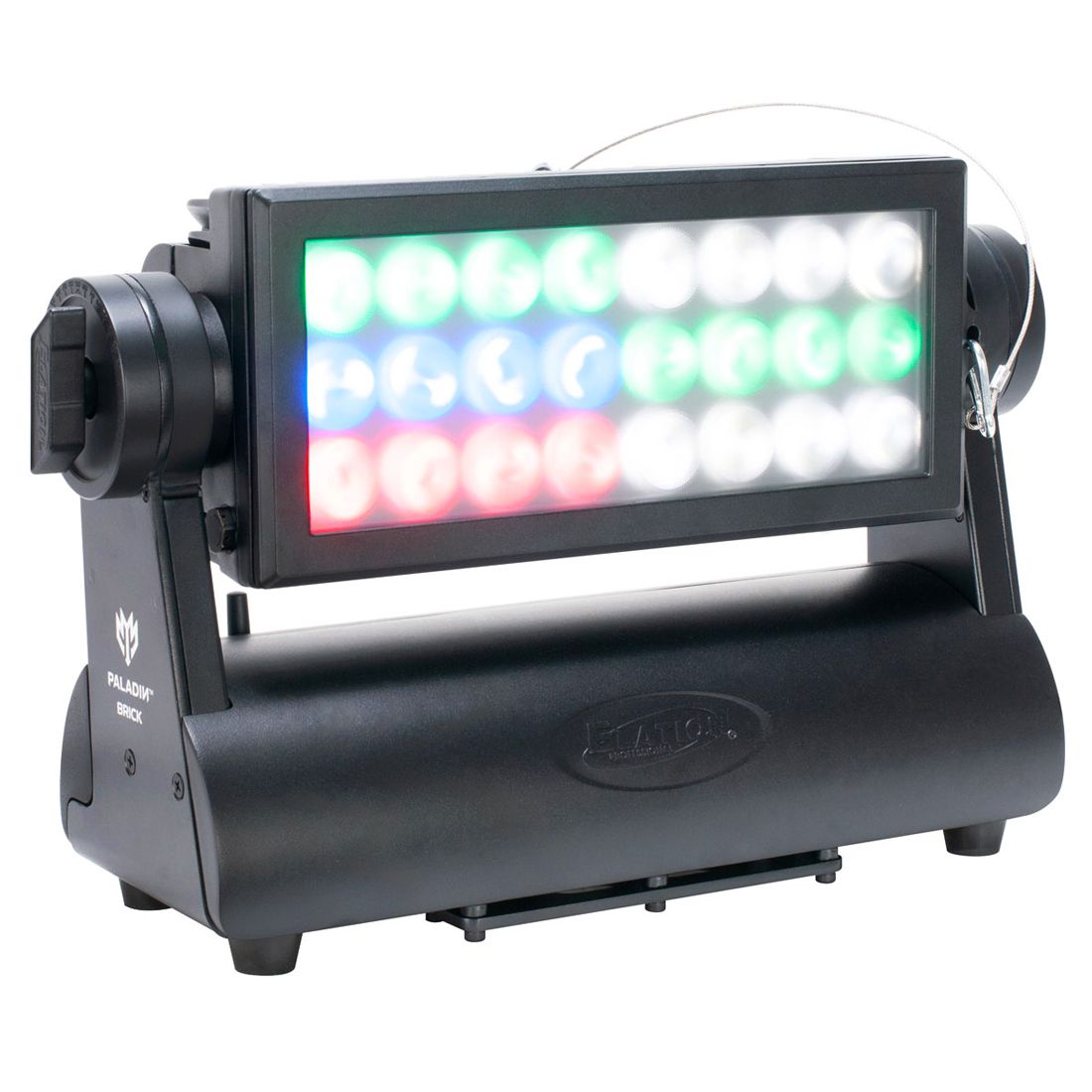

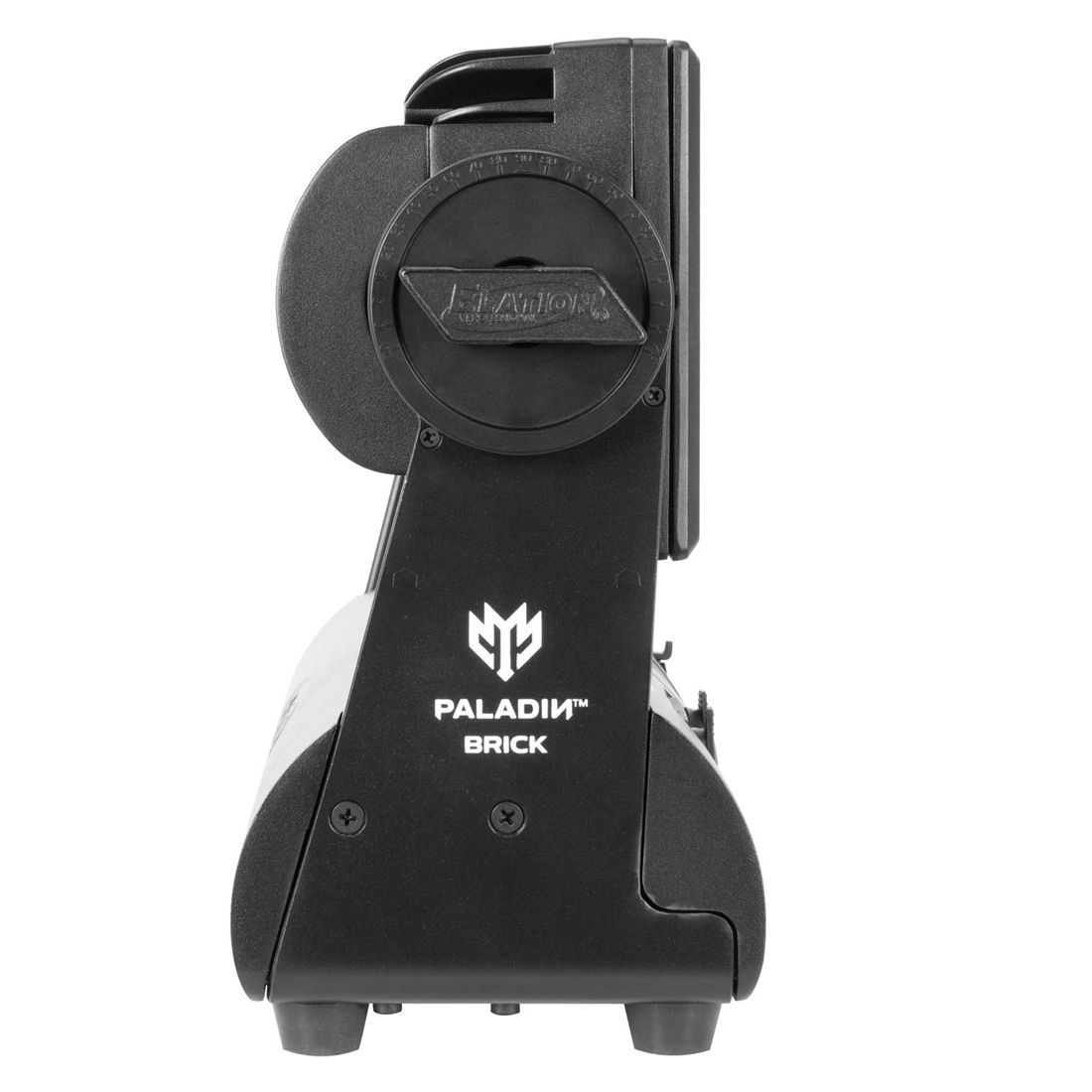

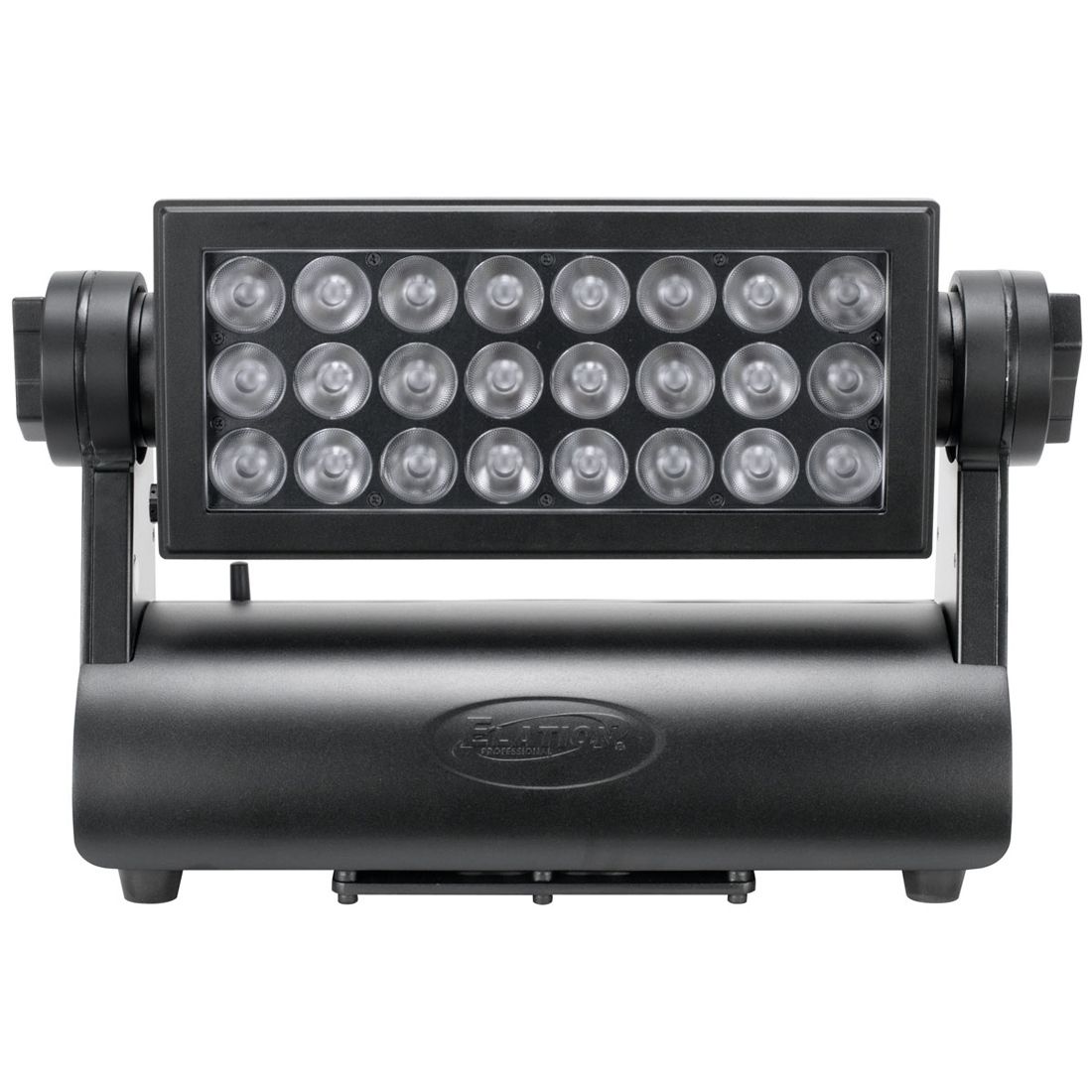

PALADIN BRICK

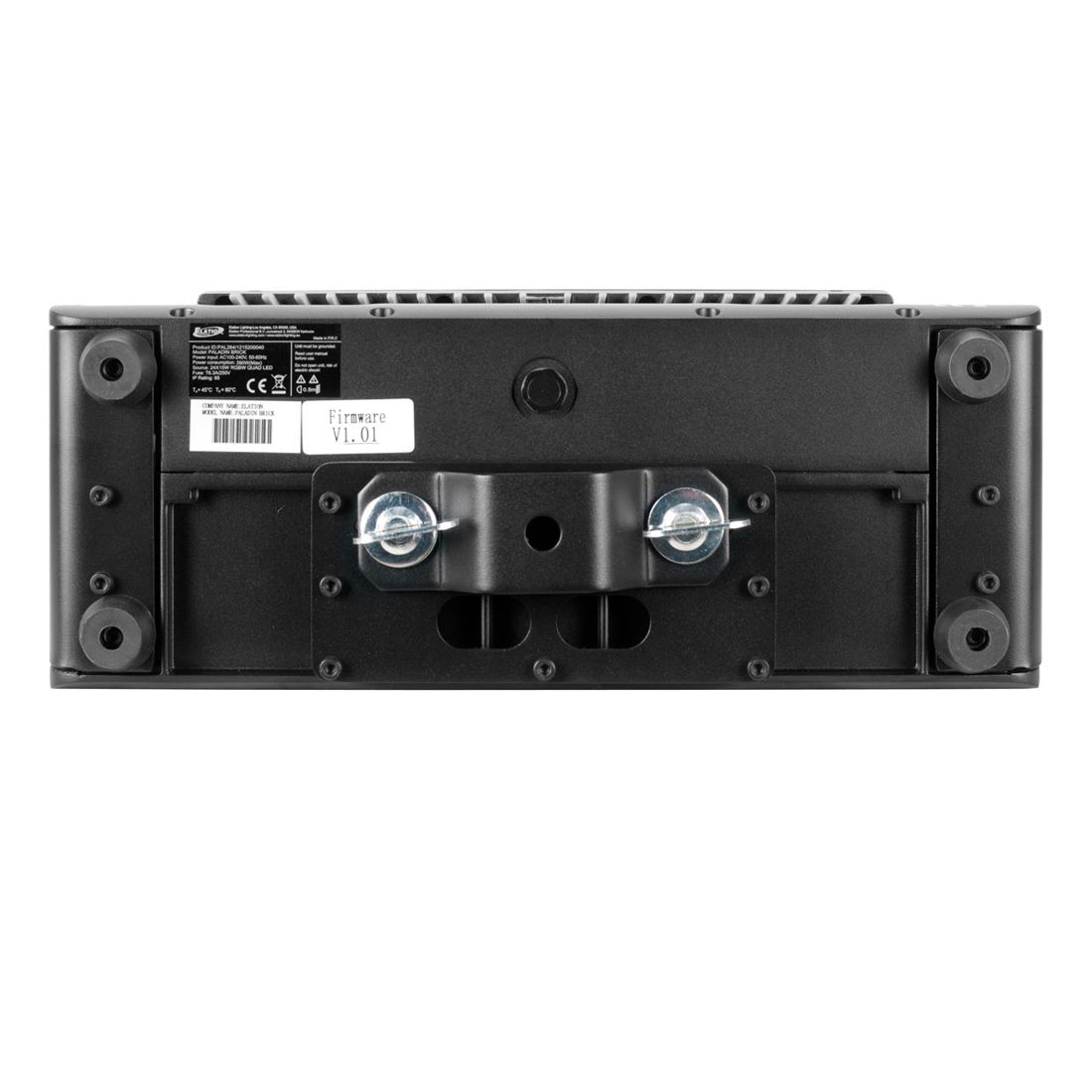

The PALADIN Brick™ is a compact and powerful outdoor flood light for a wide variety of applications. Using 24x15W RGBW cells it provides a total output of up to 8,200 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN Brick also a versatile effects fixture or audience blinder.

Technical Data

FEATURES

360W RGBW Flood Light
3x2 Cell Control
Rugged IP65 Design for Outdoor Events
Floor Standing or Mountable in any Orientation

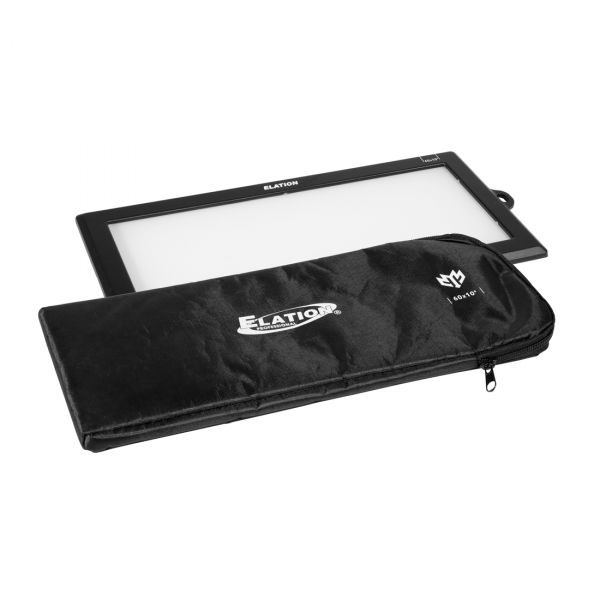

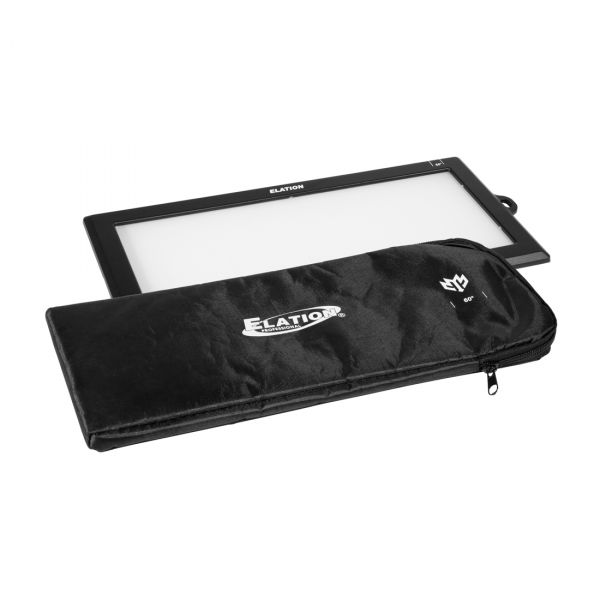

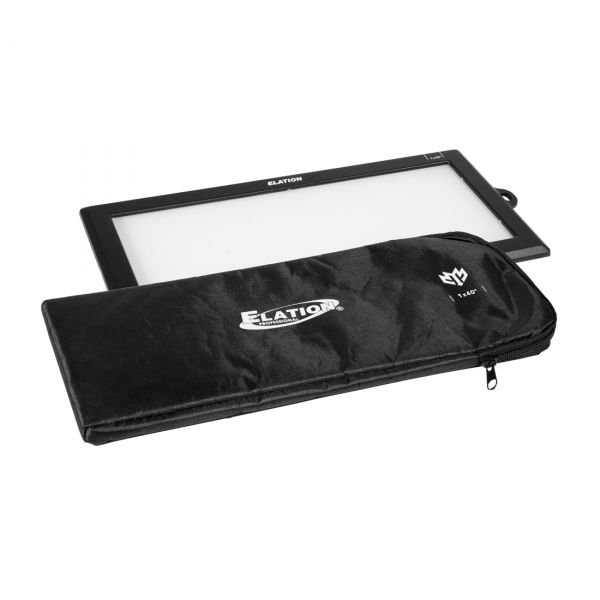

Optional Lenses are available (see below in related products)*

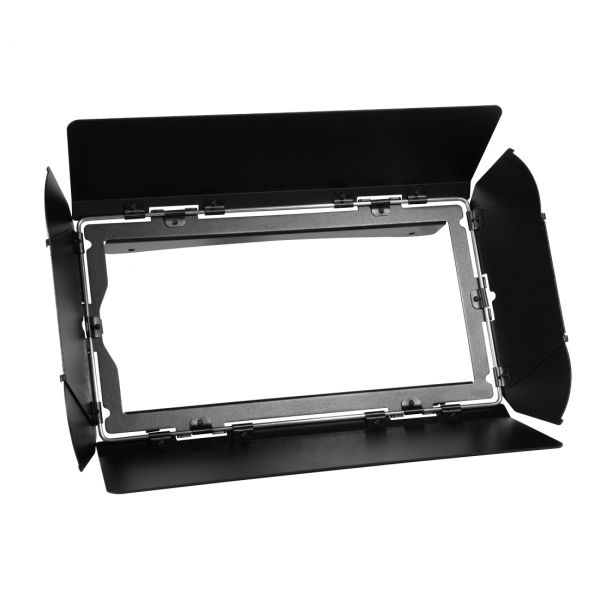

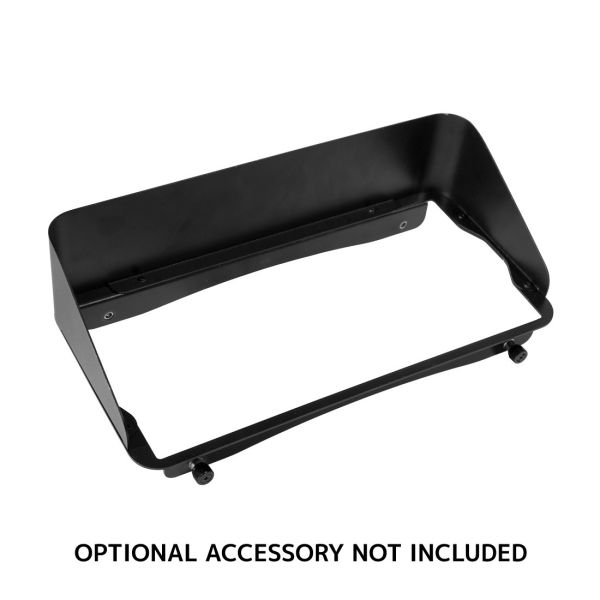

Optional Barn Doors or Shaders are available (see below in related products)*
*Special Order Item

SOURCE

24x 15W RGBW LED Emitters
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

6,000K Color Temperature
8,200 Total Lumen Output
14.1° Beam 25.4° Field Angle (without diffuser)

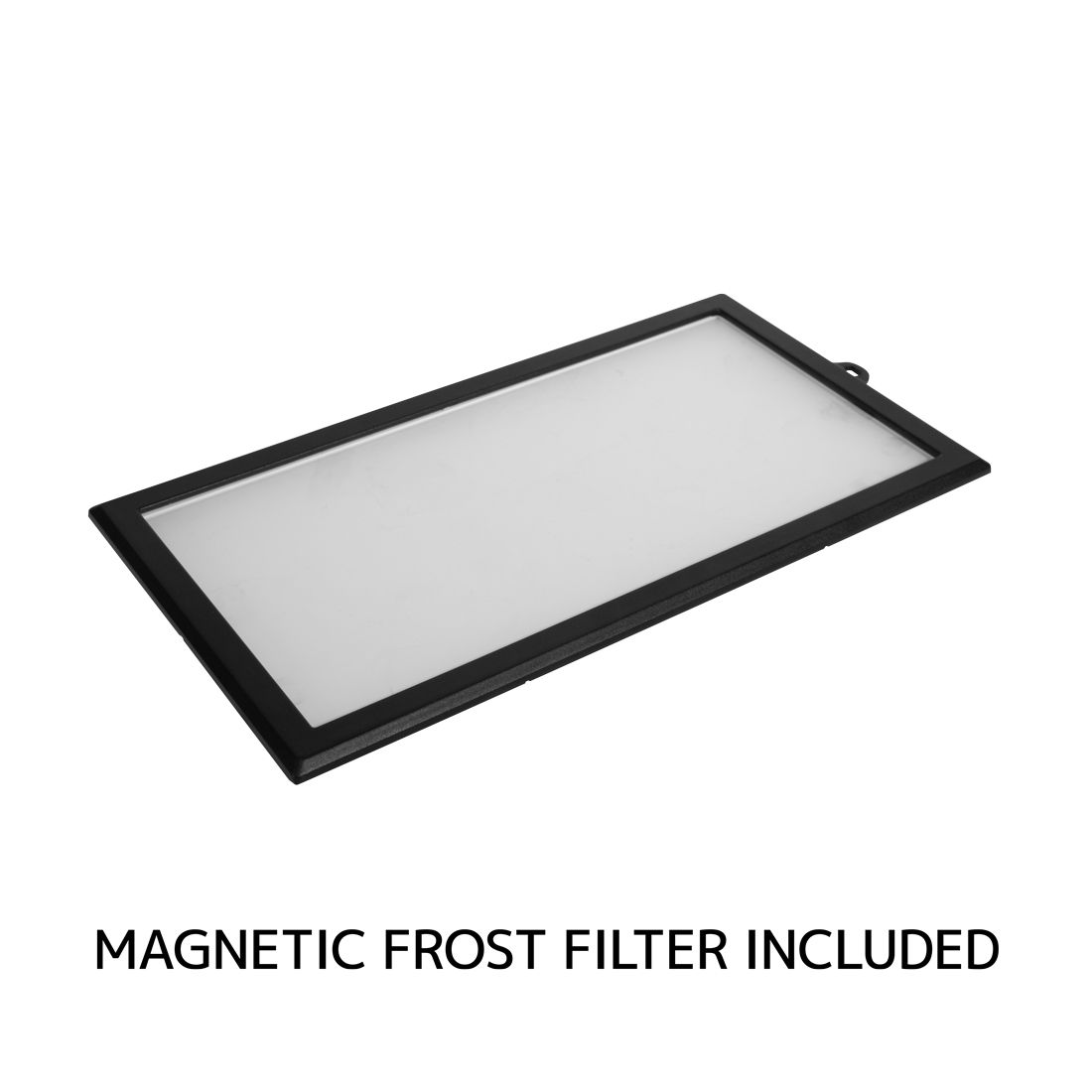

25.3° Beam 50° Field Angle (with diffuser)

COLOUR

RGBW

CONTROL / CONNECTIONS

11 DMX Channel Modes (56 Total Channels)
3x2 Cell Control

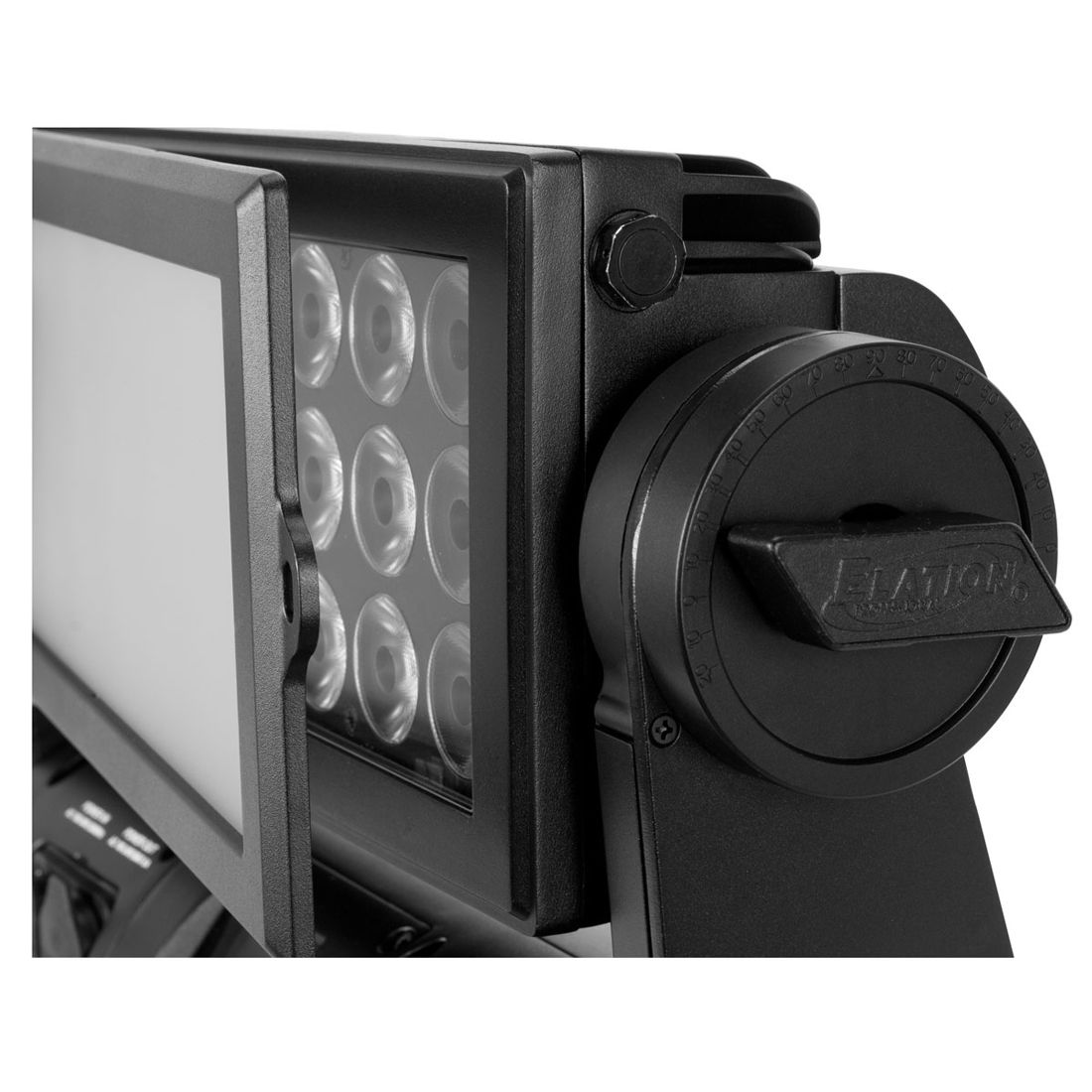

Manual Tilt Adjustment
DMX, RDM Protocol Support

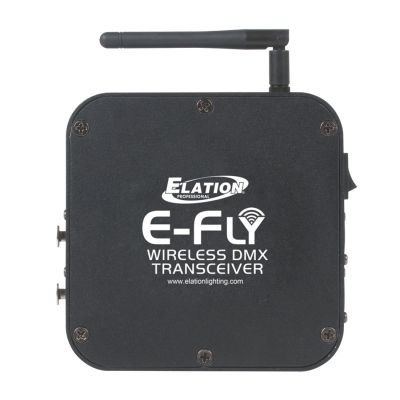

Elation’s E-FLY™ Internal Wireless DMX Transceiver
Standalone and Primary / Secondary Operation

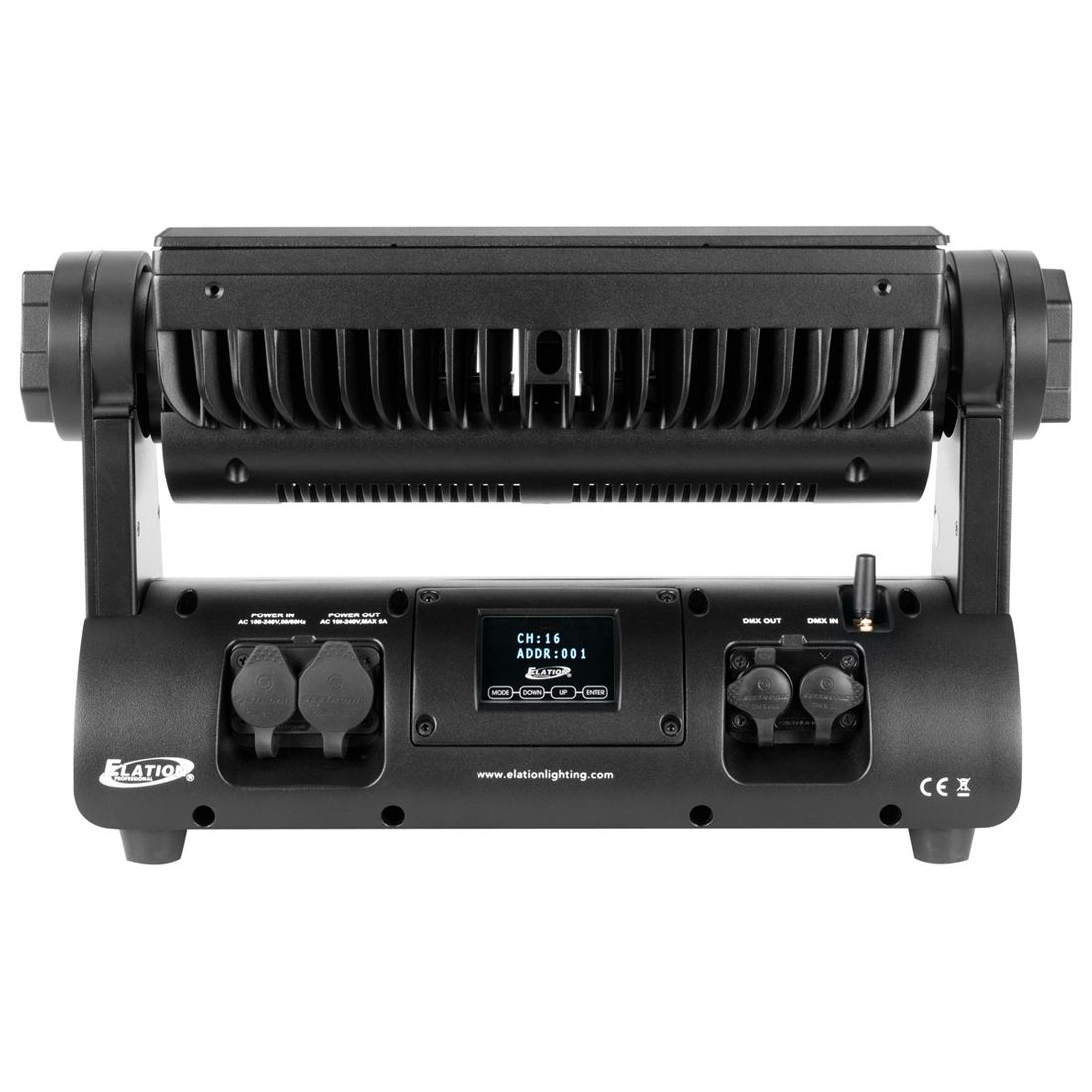

4 Button OLED Control Display
IP65 locking 5pin XLR DMX In/Out
IP65 locking Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 438mm (17.2”)
Width: 147mm (5.8”)
Height: 286mm (11.3”)
Weight: 9.5 kg (21 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
390W Max Power Consumption
-15°C to 45°C (5°F to 113°F)

FIRMWARE UPDATES

Current firmware can be found here (login required)





Specifications and documentation subject to change without notice
