C-Loader II

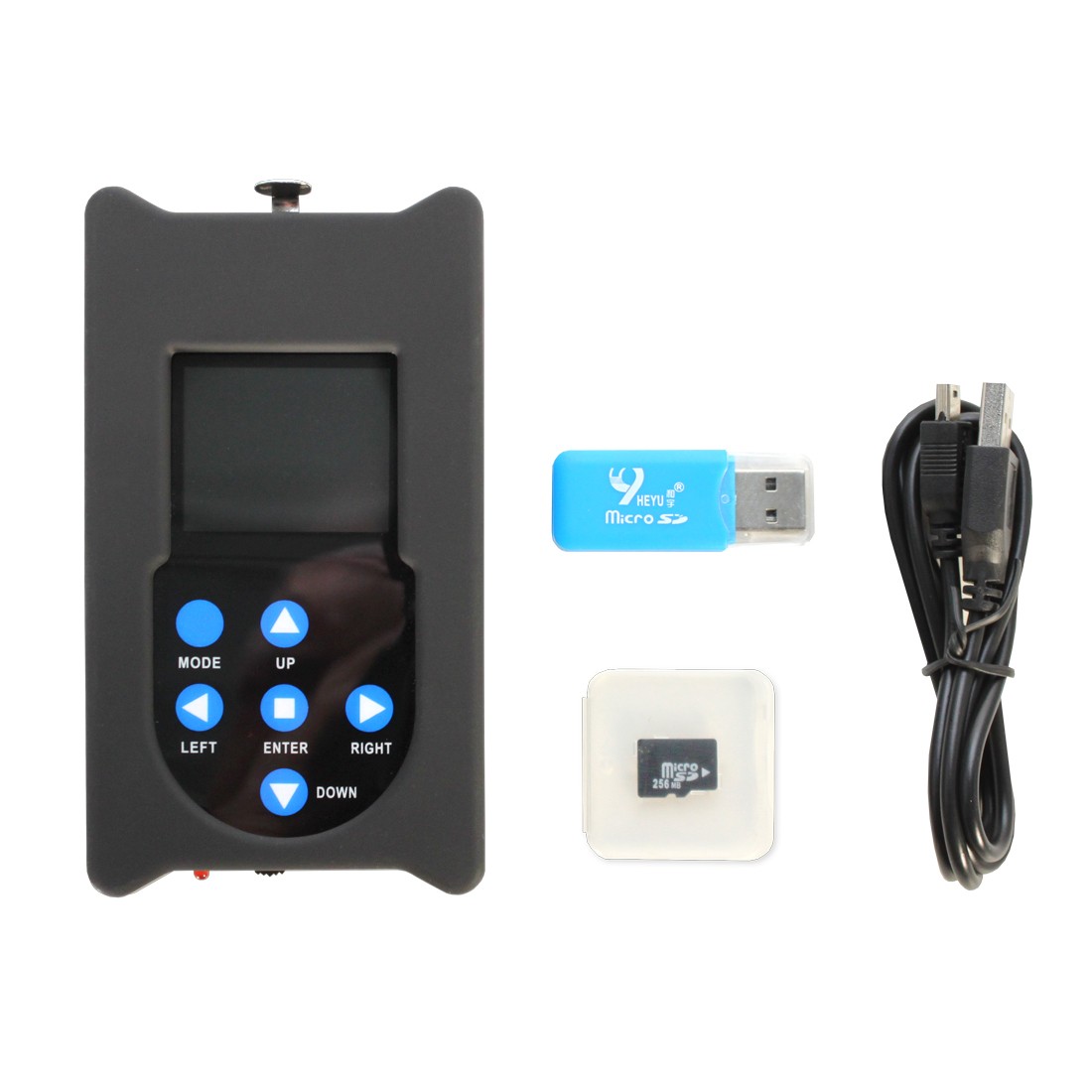

The C loader-II™ is a battery powered hand held software uploader device used to update and test Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader. The C-Loader-II™ can also be used as a DMX and RDM Tester. The C loader-II™ features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, USB cable, USB to MICRO SD card adapter and blank MICRO SD card.

Technical Data

FEATURES

Firmware Upload Tool
DMX Tester (Send and Receive DMX Signal)
DMX Programmer for Test Programs
RDM Sender and Receiver

CONTROL / CONNECTIONS

6 Button Touch Control Panel
LCD Menu Display
3pin DMX Out
MICRO SD Card Slot
Mini USB Input

SIZE / WEIGHT

Length: 4.89” (124.15mm)
Width: 2.73” (69.46mm)
Vertical Height: 1.48” (37.5mm)
Weight: 0.4 lbs. (0.2 kg)

ELECTRICAL

USB Powered (Internal Battery)

INCLUDED ITEMS

USB Cable
MICRO SD Card
USB to MICRO SD Card Adapter

Specifications and documentation subject to change without notice
