Code
1215200041
FEATURES

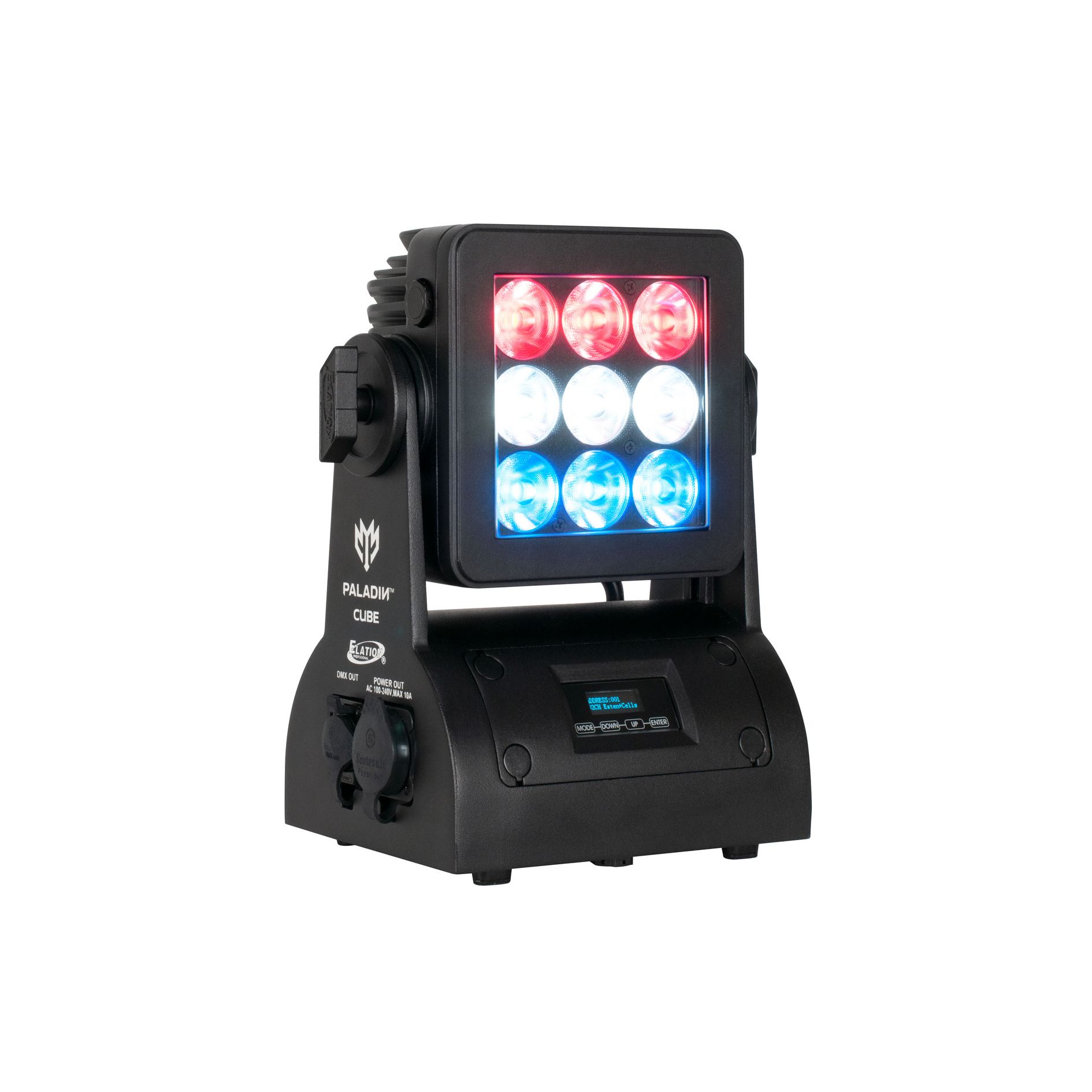

135W RGBW Flood Light3x1 Control
Rugged IP65 Design for Outdoor Events

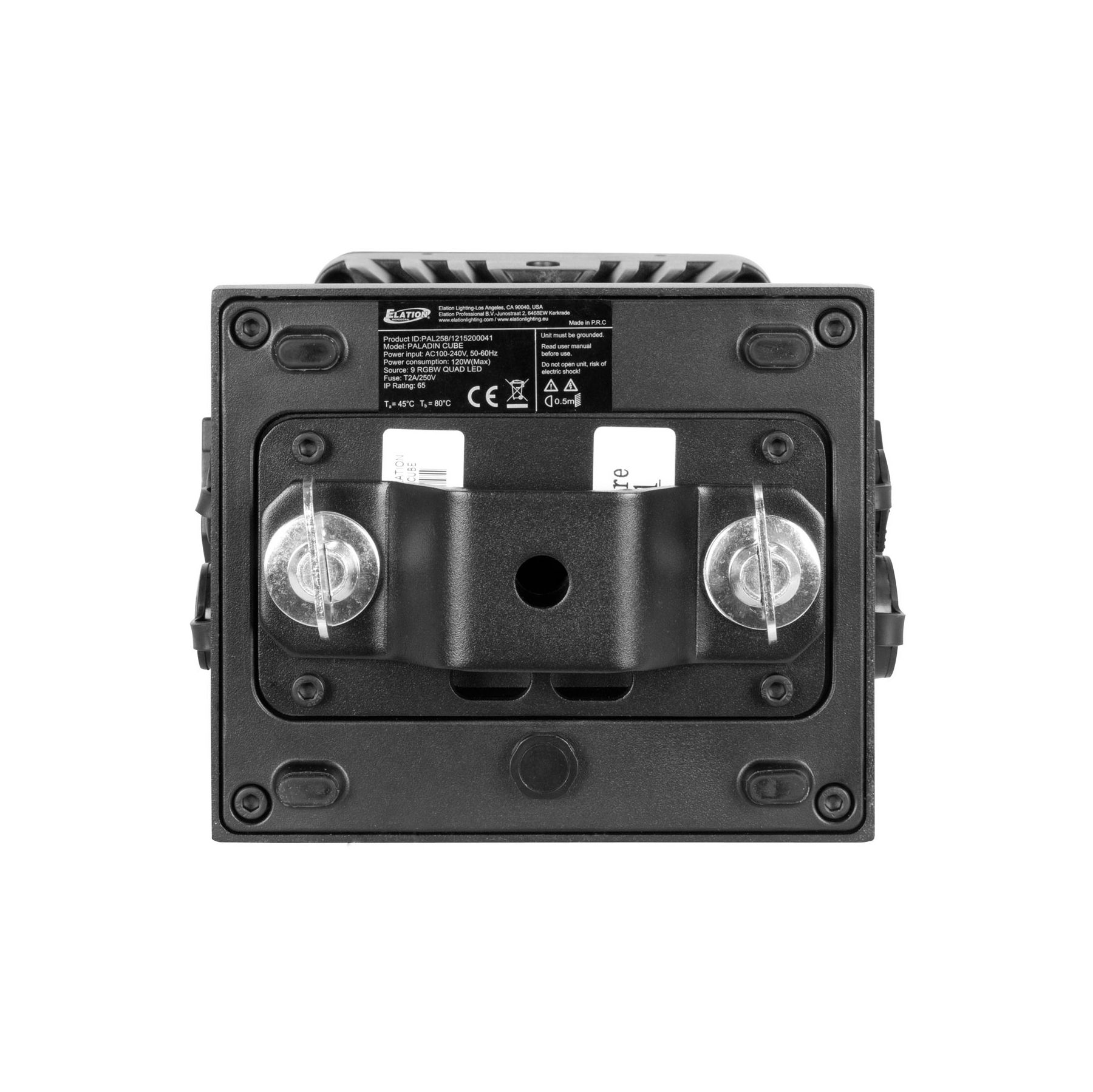

Floor Standing or Mountable in any Orientation
Optional Lenses are available (see below in related products)*

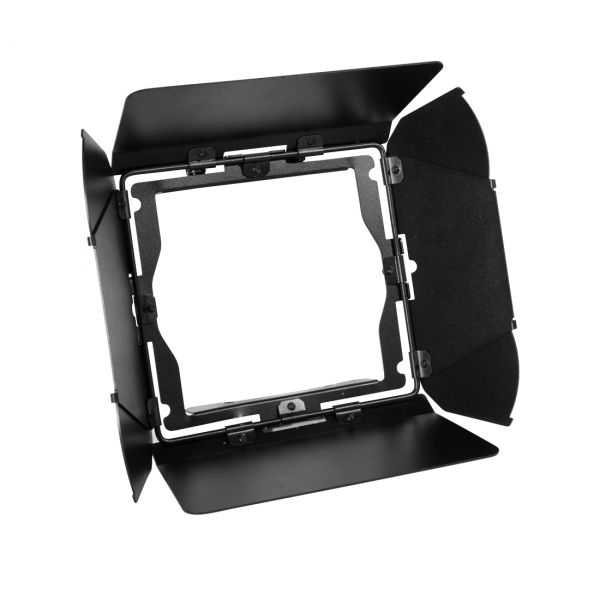

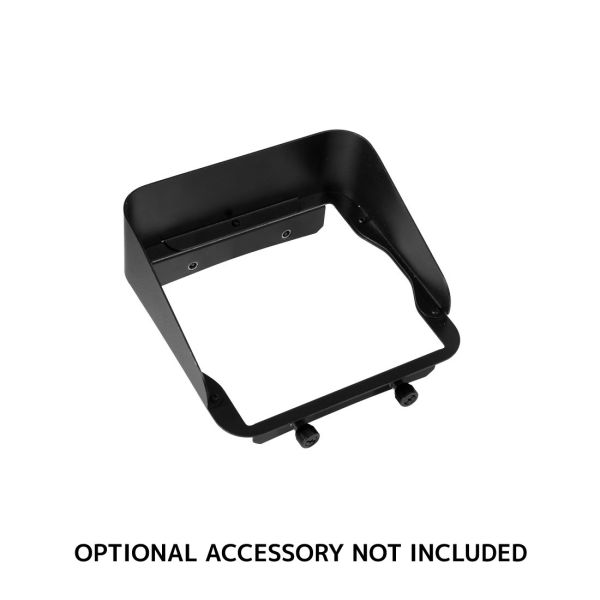

Optional Barn Doors or Shaders are available (see below in related products)*
*Special Order Item
SOURCE
9x 15W RGBW LED Emitters50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
6,000K Color Temperature3,200 Total Lumen Output
14.1° Beam 24.7° Field Angle (without diffuser)

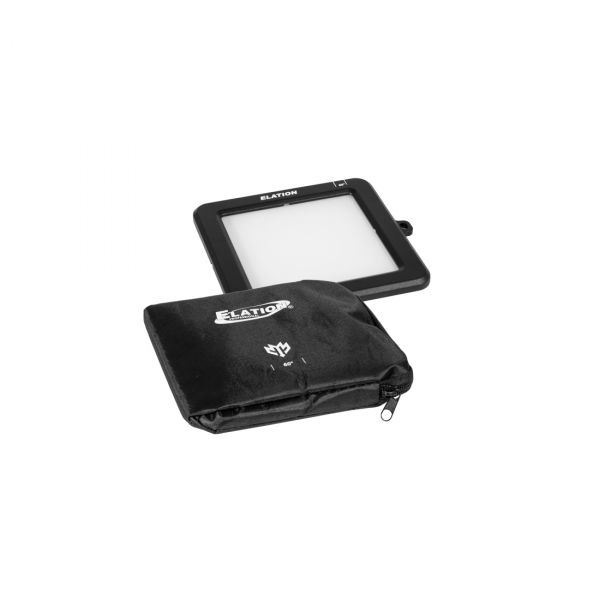

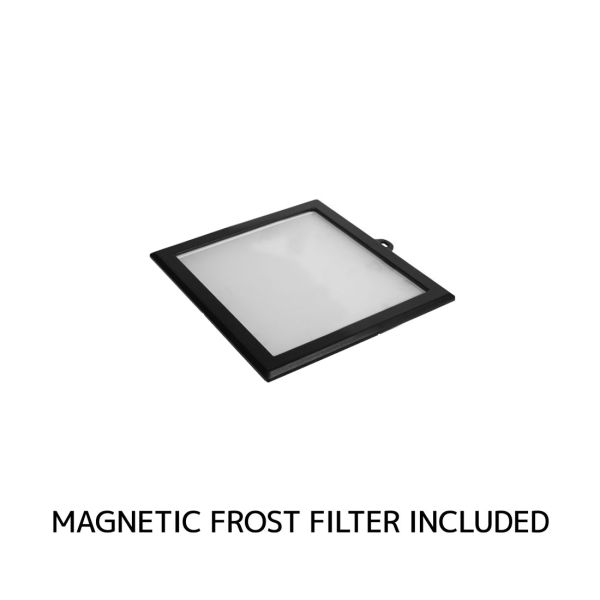

30° Beam 59° Field Angle (with diffuser)
COLOUR
RGBWCONTROL / CONNECTIONS
11 DMX Channel Modes (32 Total Channels)3x1 Cell Control
DMX, RDM Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver
Standalone and Primary / Secondary Operation

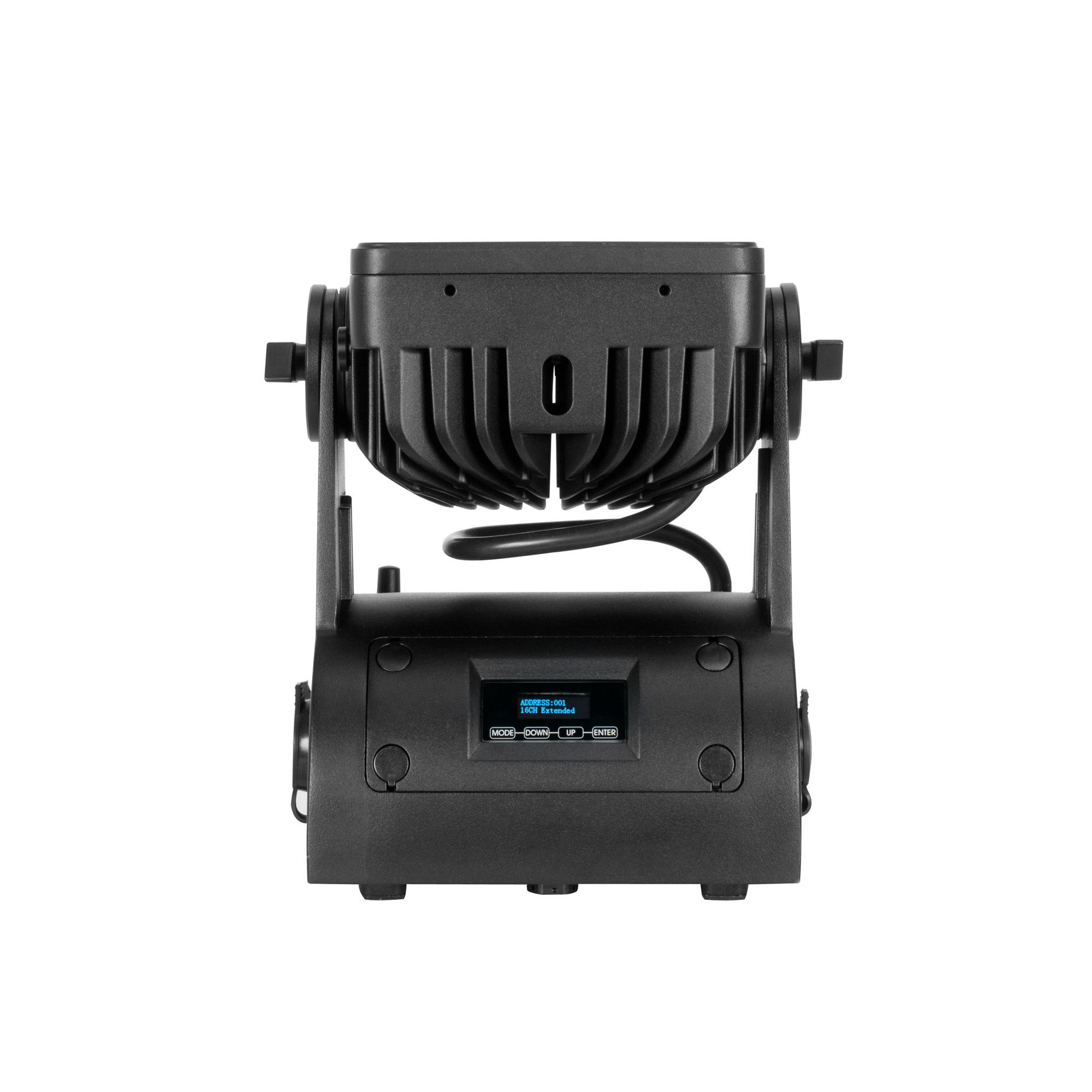

4 Button OLED Control Display

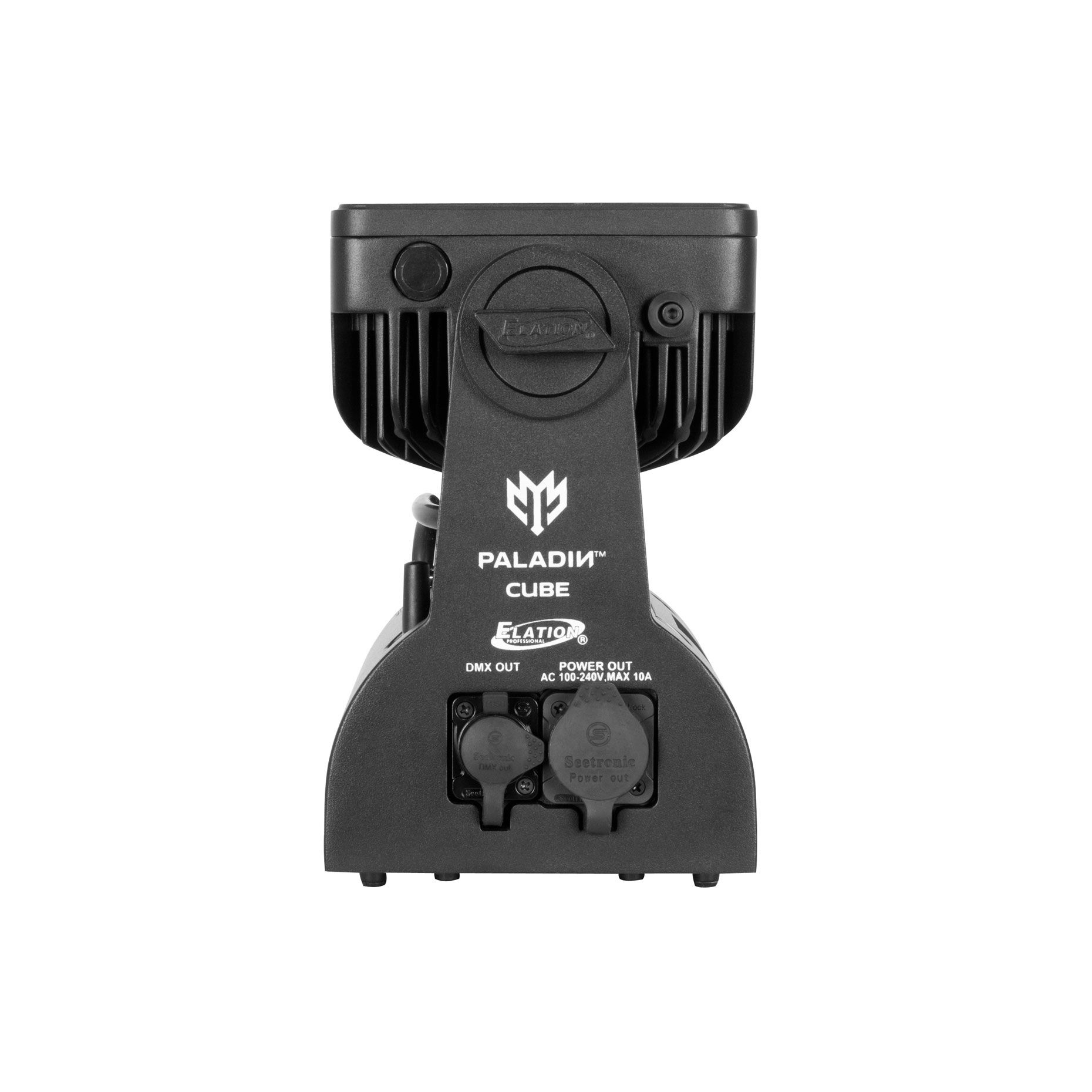

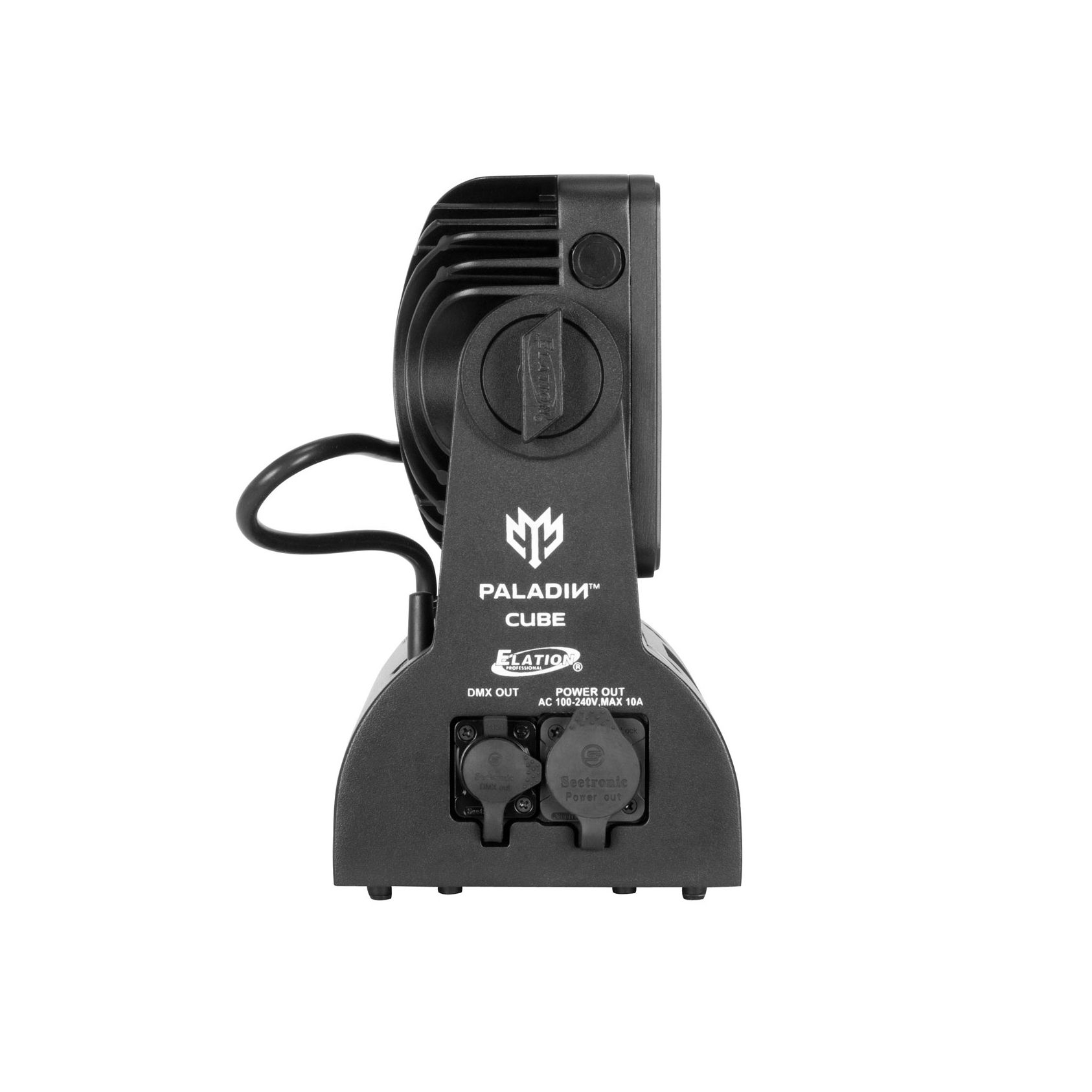

IP65 5pin DMX In/Out
IP65 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 199.11mm (7.8”)Width: 139mm (5.4”)
Height: 248.04mm (7.8”)
Weight: 4.75 kg (10.5 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz120W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
FIRMWARE UPDATES
Current firmware can be found here (login required)
Specifications and documentation subject to change without notice
