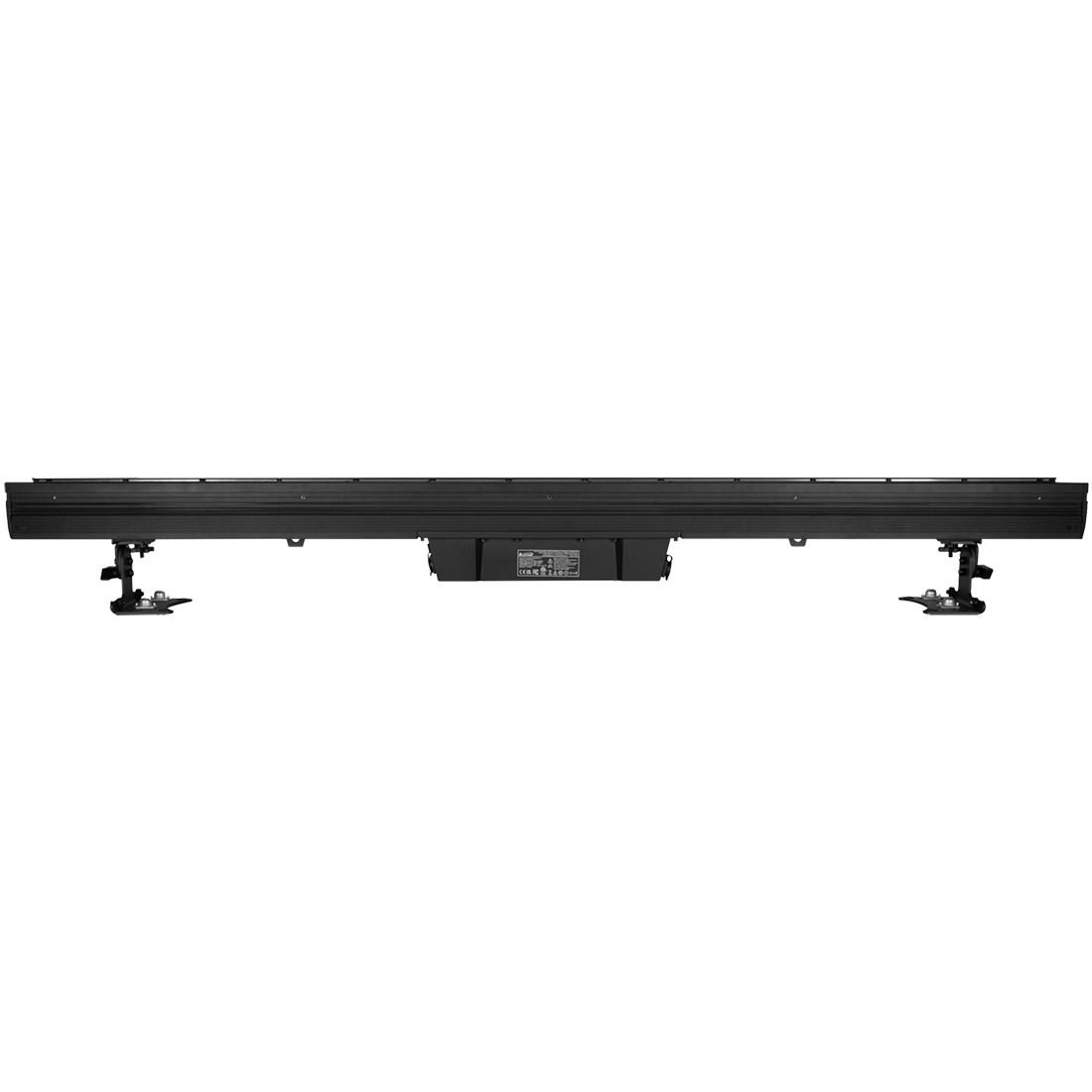

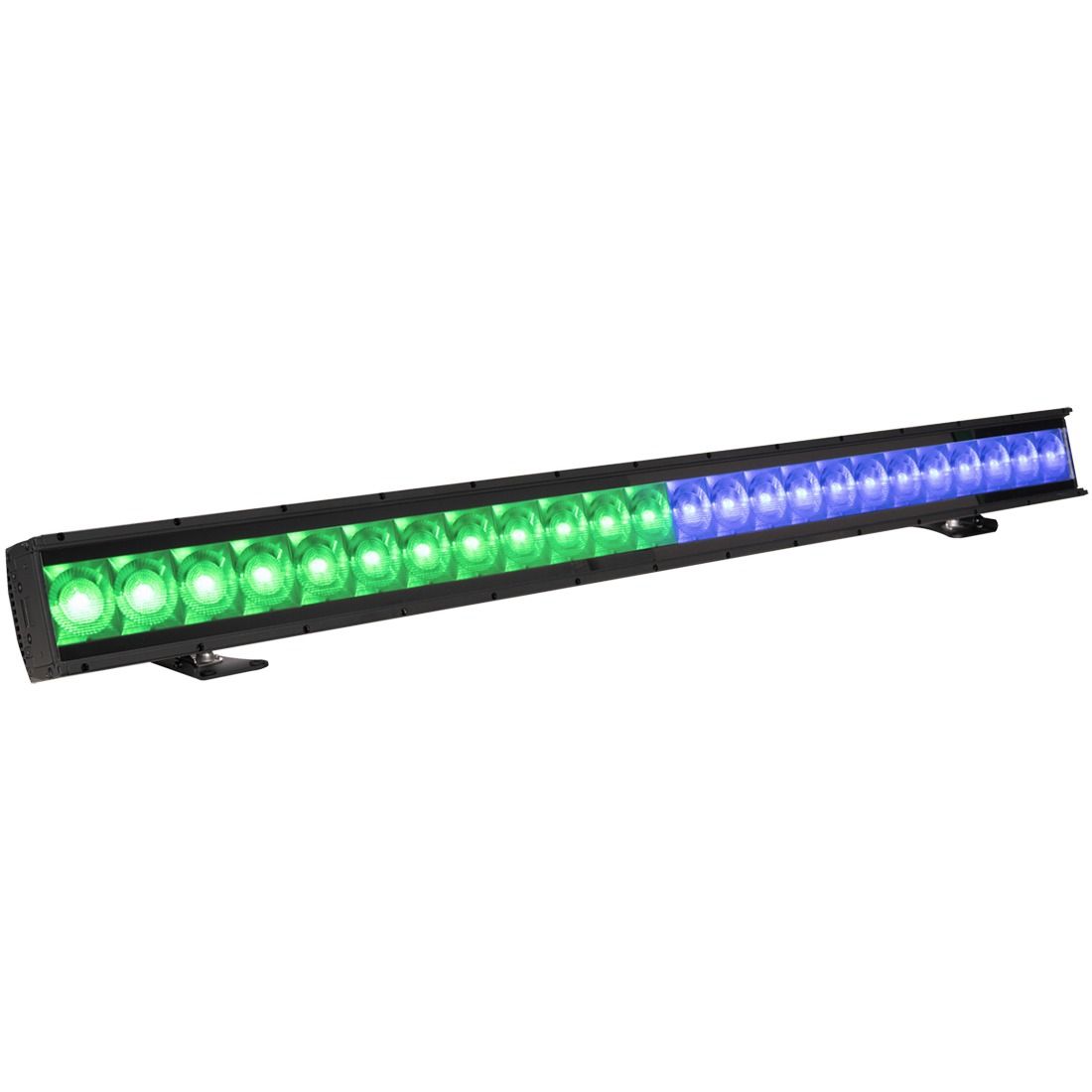

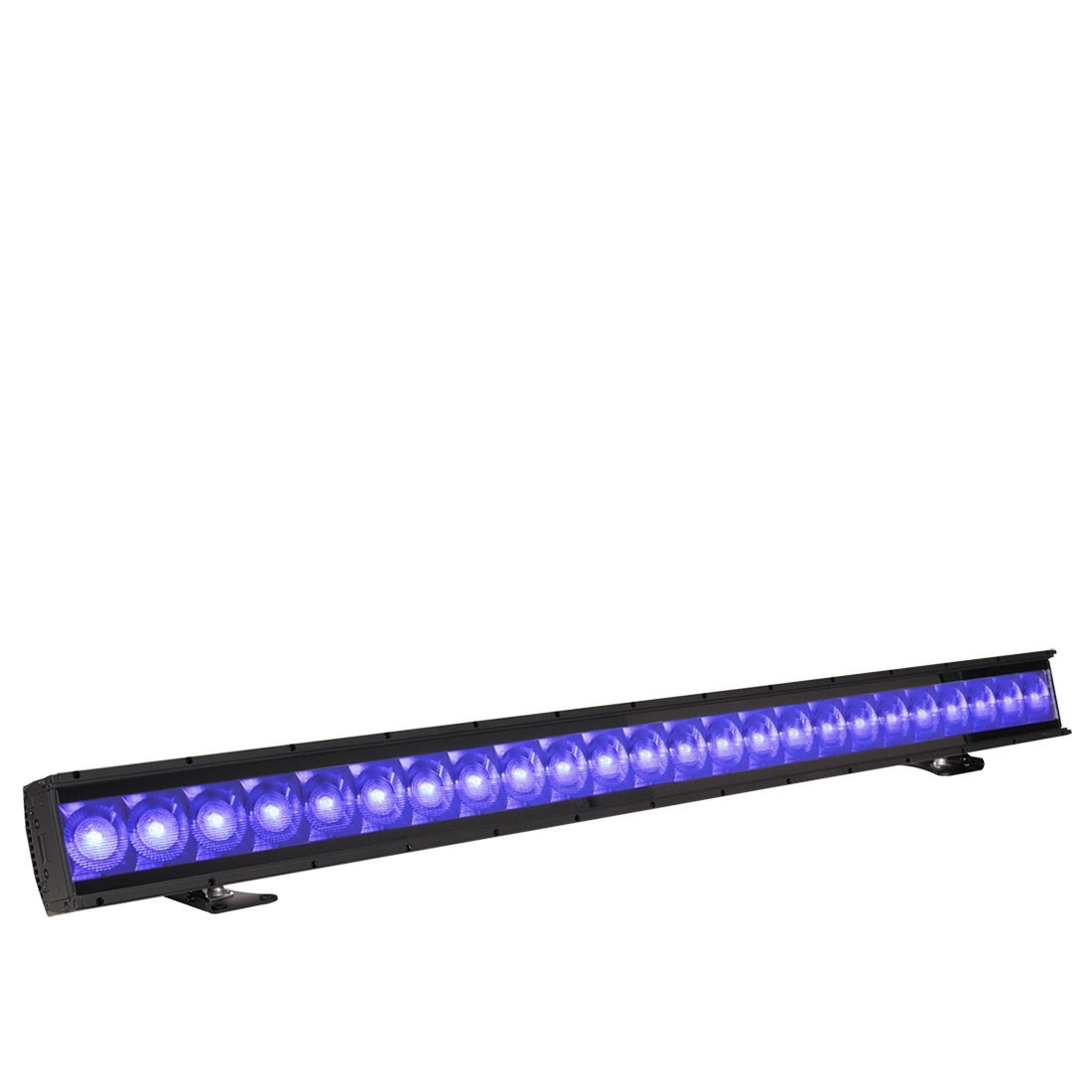

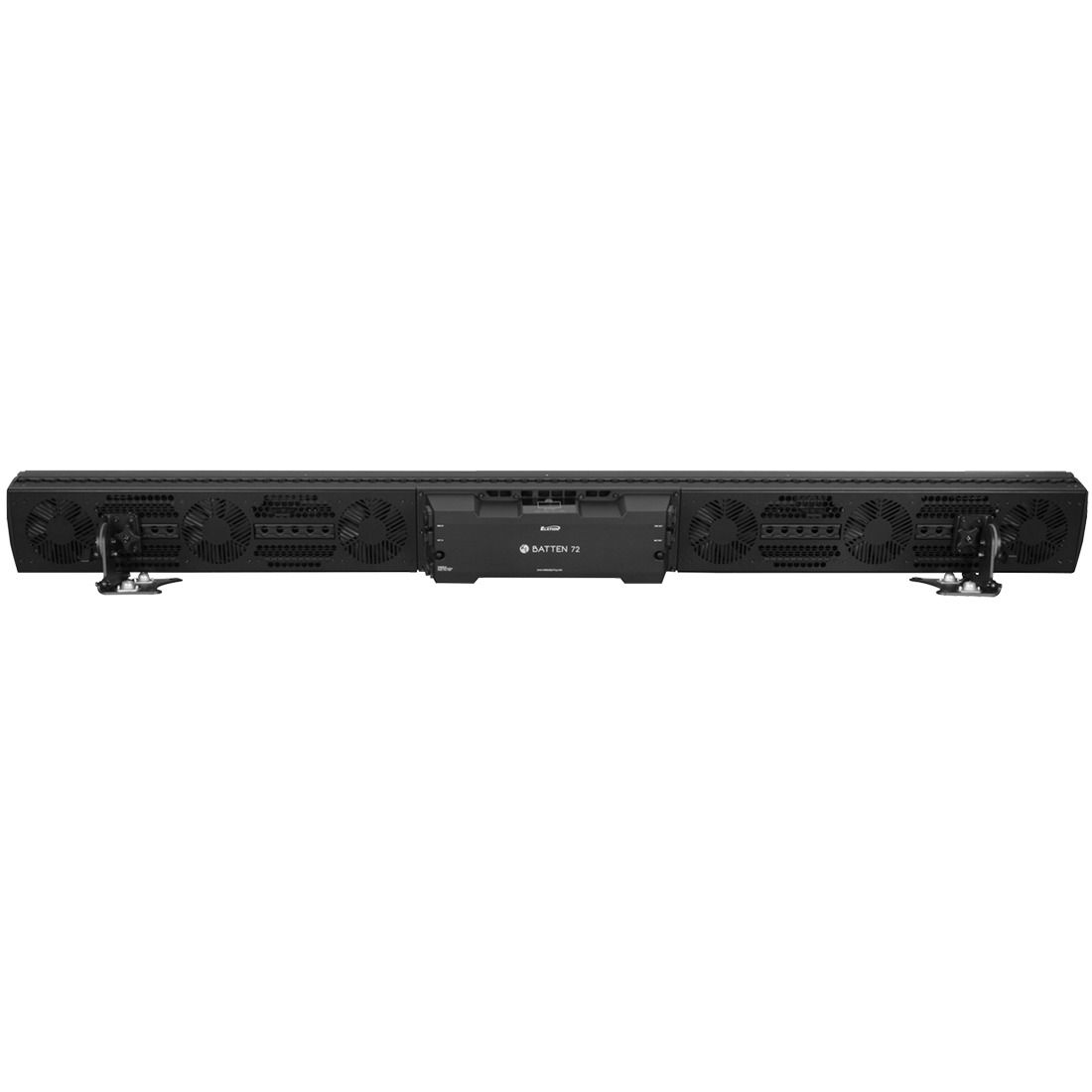

KL Batten 72

Code 1237000410

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output. Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 61,000 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks. A weather-ready housing and integrated L-Track system make installation easy indoors or out, and its advanced control...

Code 1237000410

KL Batten 72

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output.

Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 61,000 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks.

A weather-ready housing and integrated L-Track system make installation easy indoors or out, and its advanced control options ensure reliable performance—from subtle color shifts to complex pixel-mapped effects.

For designers who rely on both power and precision, the KL BATTEN 72 delivers the bold, consistent results that anchor any professional lighting design.

Technical Data

FEATURES

(24) 100W RGBMA LED Array
61,275 Total Fixture Lumen Output (Sphere)
Full Pixel Control
Integrated Lens and Accessory Slots
Art-Net & sACN Support
Integrated L Track for Flexible Mounting
End-to-End Magnetic Alignment System
NFC & Aria x2 Wireless Device Management
IP65 Rated

SOURCE

(24) x 100W RGBMA LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
61,275 (Integrating Sphere)
CRI- 94.9
TLCI- 95
Beam Angle: 82° x 22°
Field Angle: 97° x 53°

EFFECTS

Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

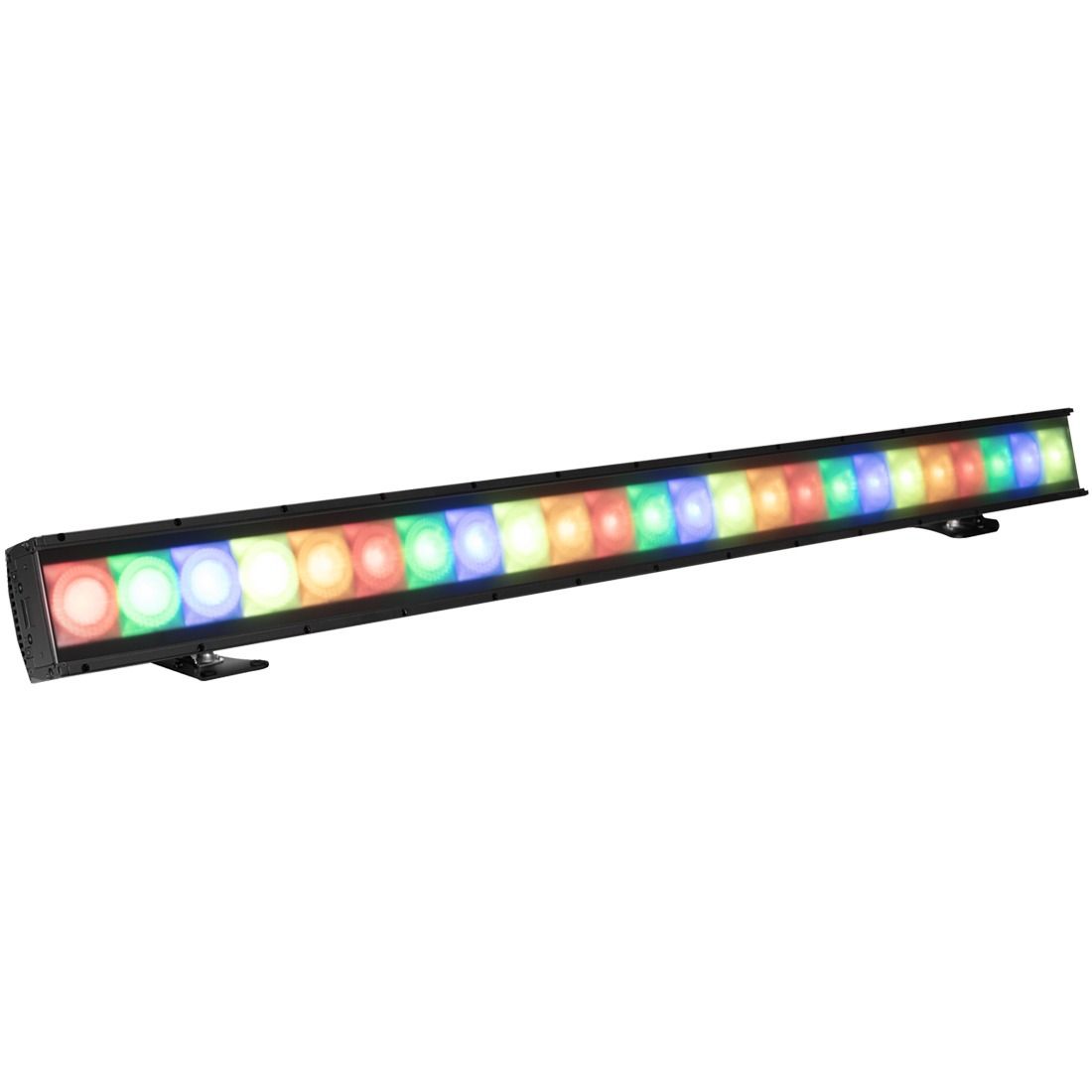

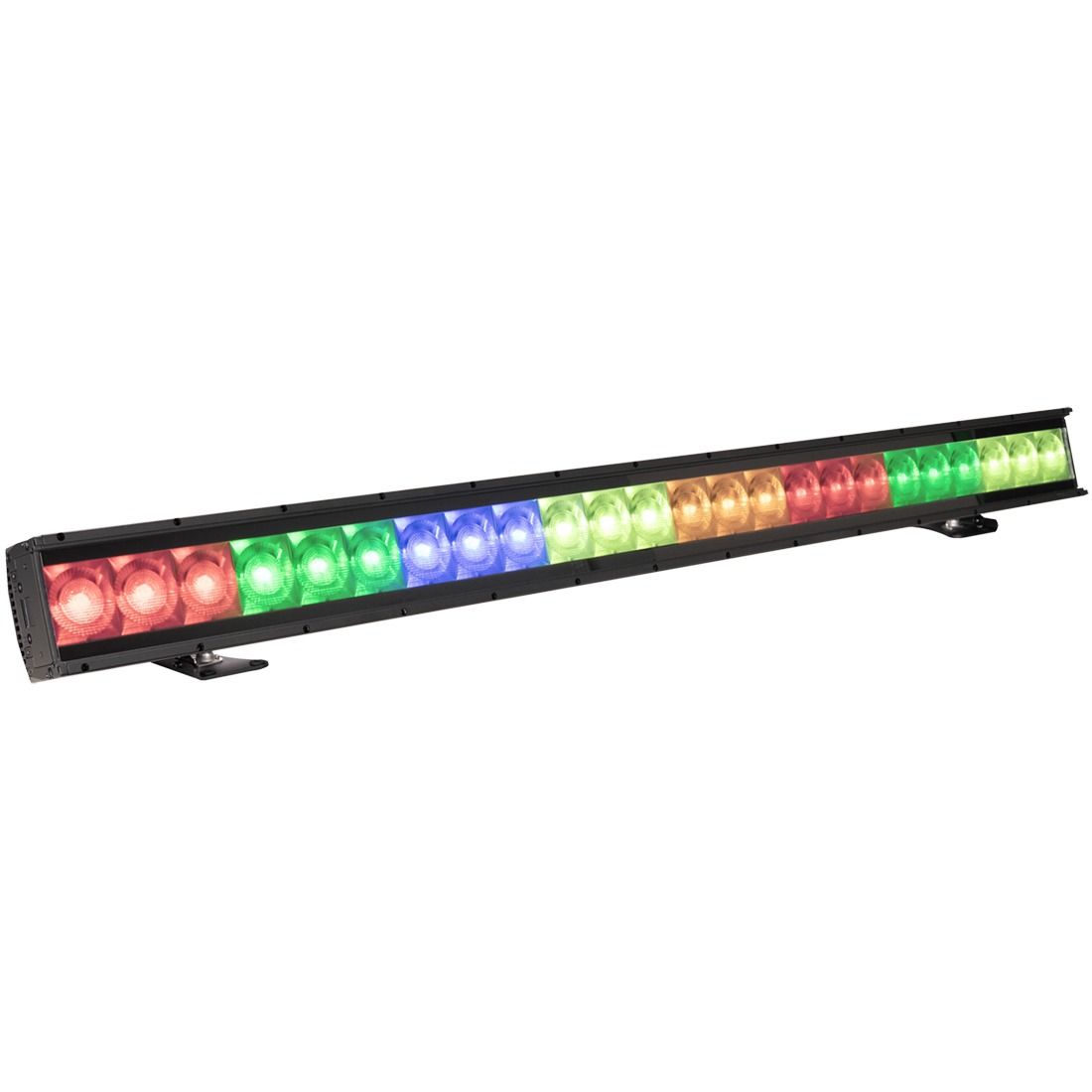

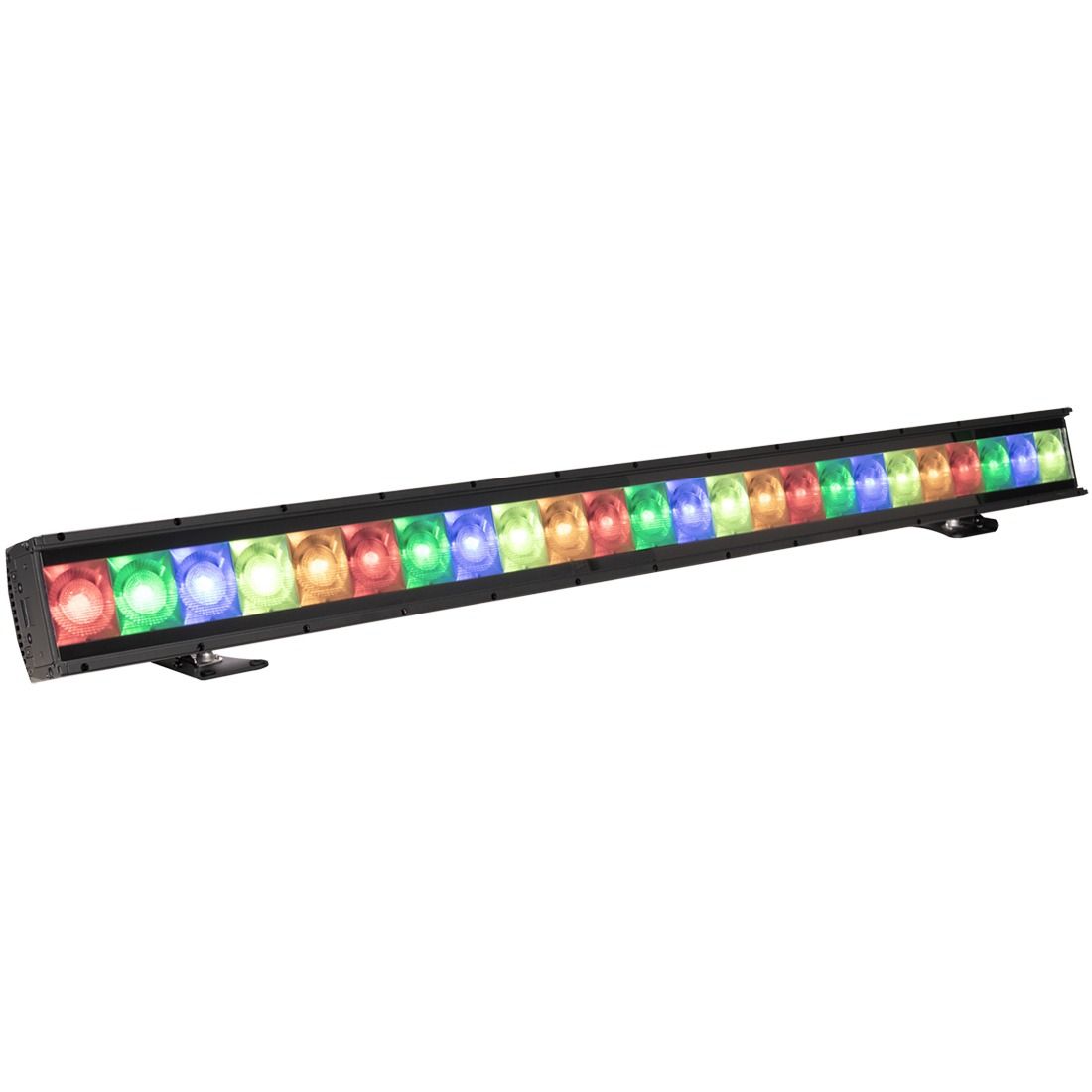

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

52 DMX Channel Modes (1ch, 3ch-A, 4ch-A, 4ch-B, 3ch-B, 6ch-A, 10ch, 14ch, 22ch, 16ch-A, 6ch-B, 8ch, 6ch-C, 20ch-A, 20ch-B, 35ch, 9ch-A, 12ch-A, 9ch-B, 30ch, 26ch, 48ch-A, 12ch-B, 16ch-B, 12ch-C, 40ch, 32ch-A, 61ch, 18ch-A, 24ch-A, 18ch-B, 60ch, 44ch, 87ch, 25ch-B, 32ch-B, 24ch-C, 80ch-A, 56ch, 113ch, 36ch-A, 48ch-B, 36ch-B, 120ch, 80ch-B, 165ch, 72ch-A, 96ch, 72ch-B, 240ch, 152ch, 321ch)

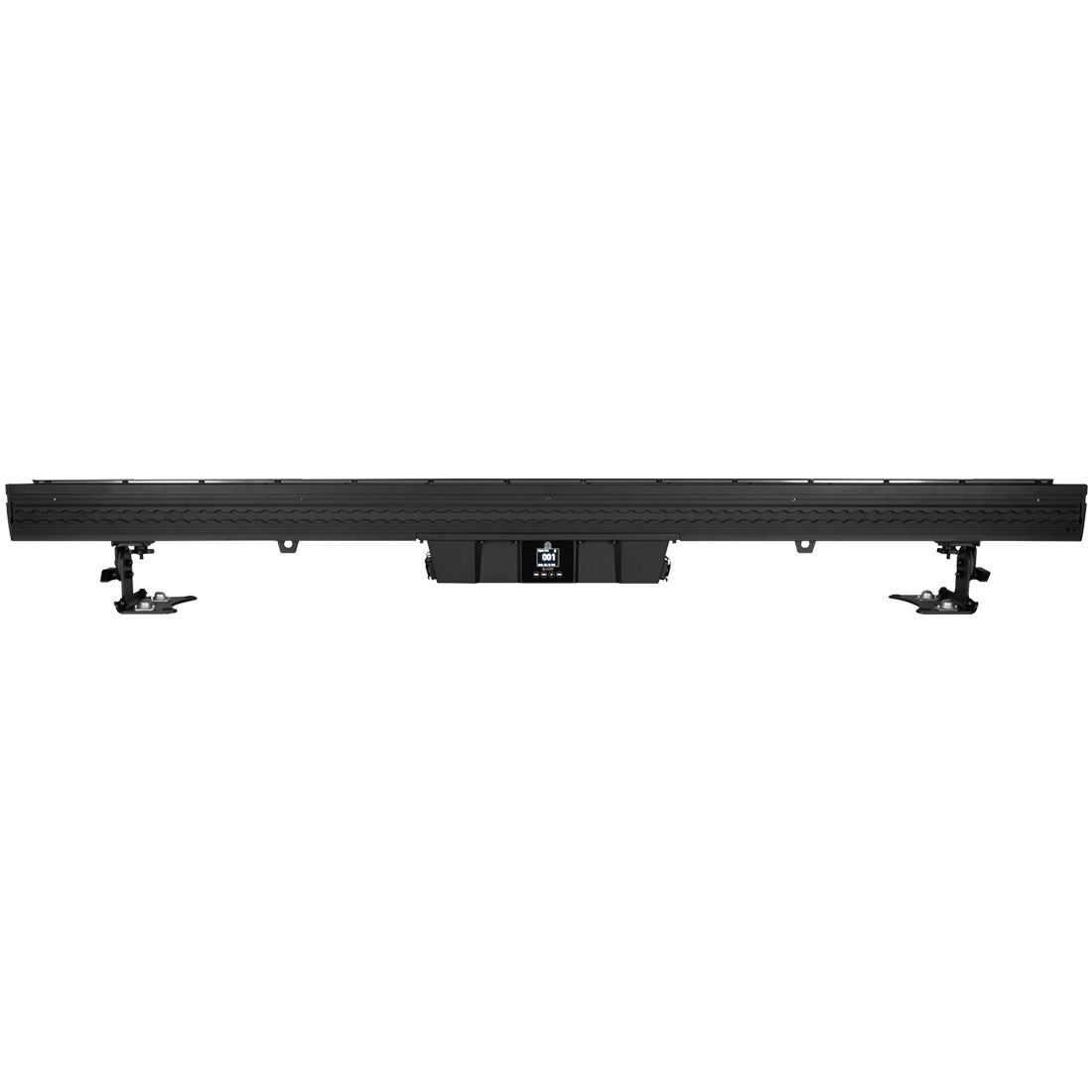

4 Button Control Panel, Color LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net & sACN)
IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 1806mm (71.1")
Width: 184mm (7.2")
Vertical Height: 239mm (9.4”)
Vertical Height (Low Clearance): 219mm (8.6")
Weight: 27.4kg (60.4 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
1200W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 4,092

INCLUDED ITEMS

Glare Shield

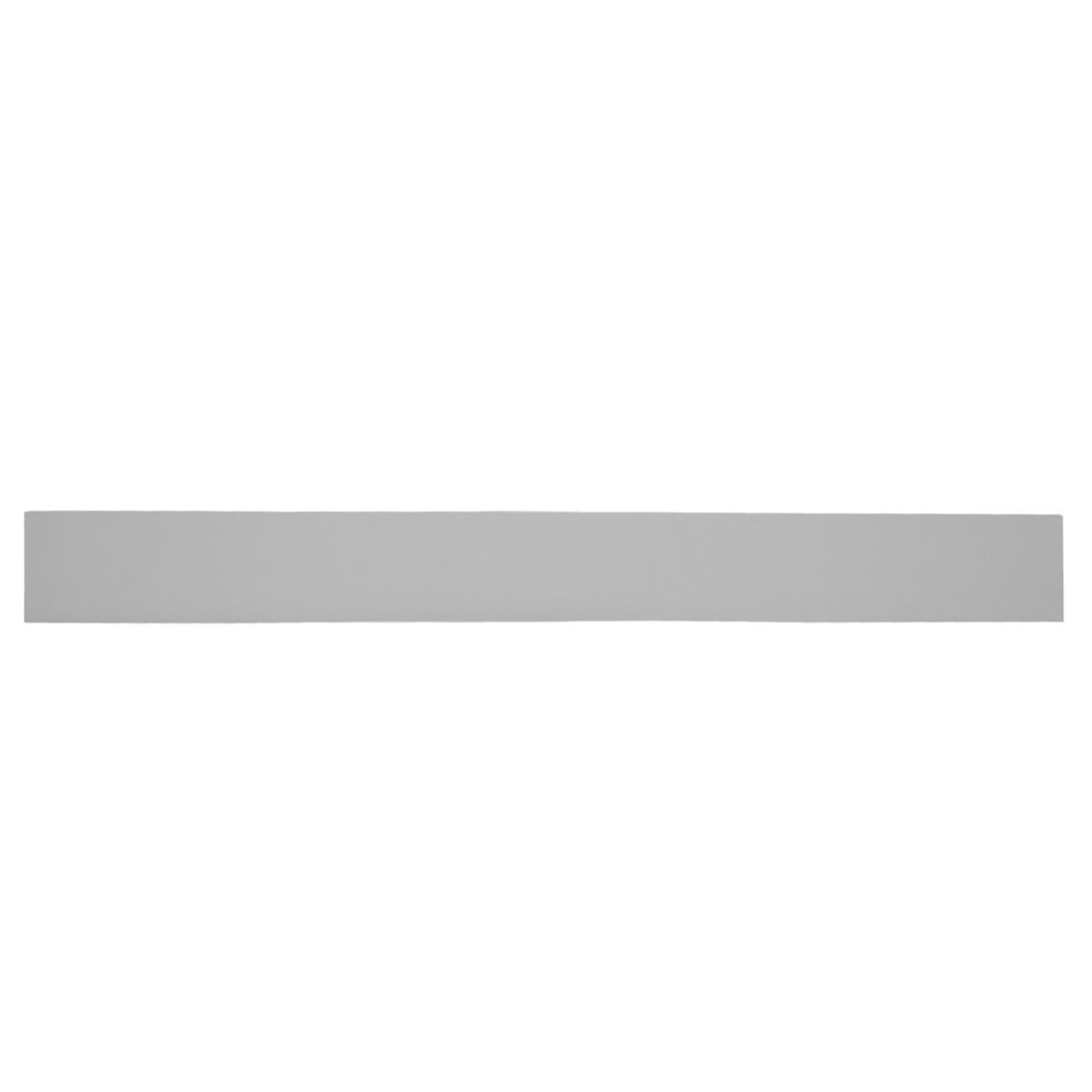

Border Light Filter
IP65 Locking Power Cable

OPTIONAL ITEMS

Omega Bracket (Qty 2)
L-Track to M10 Adapter,70mm
L-Track to M10 Adapter, 44.5mm
L Track C-Clamp & Adapter Assembly, 70mm
L Track C-Clamp & Adapter Assembly, 44.5mm
