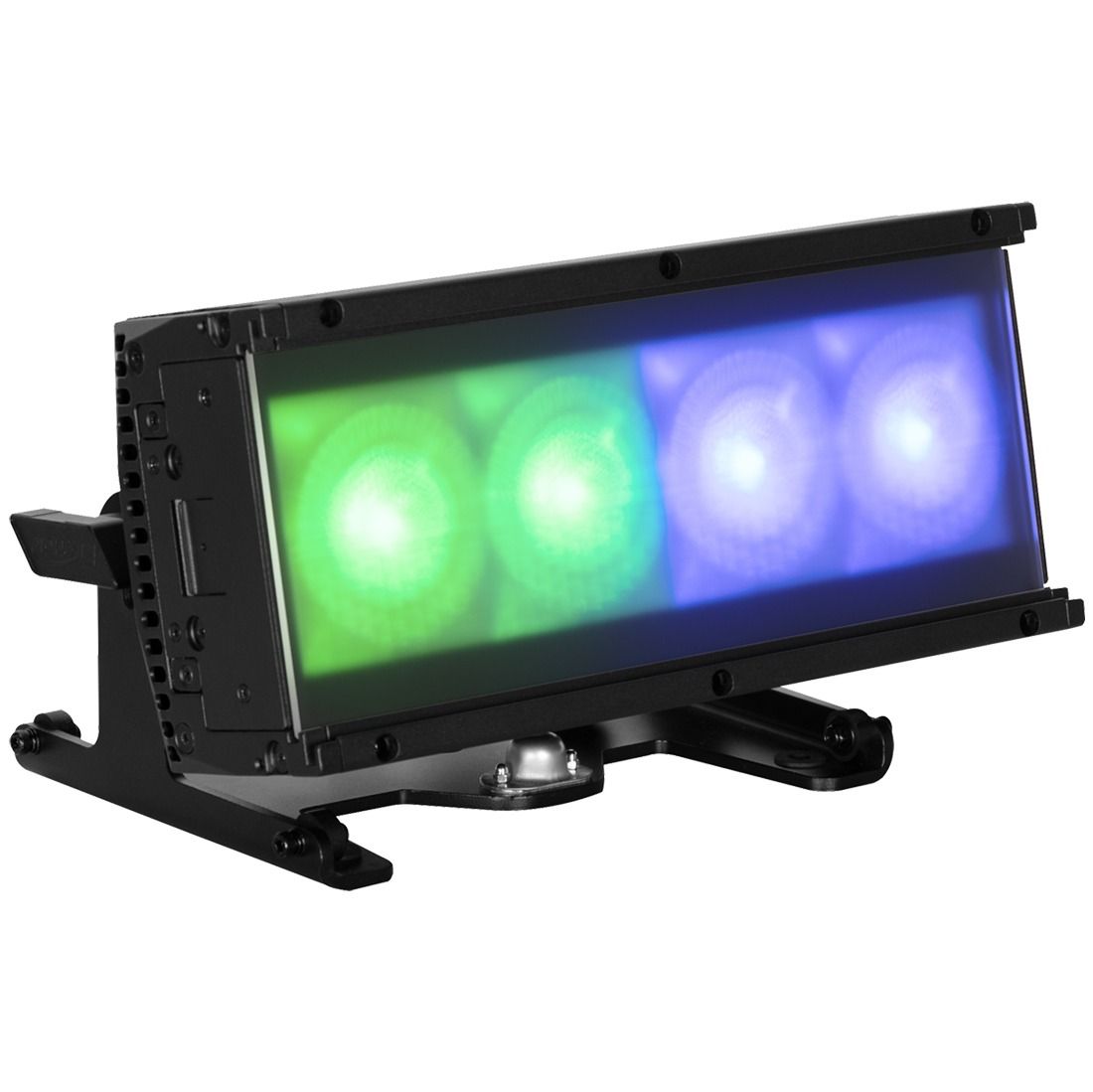

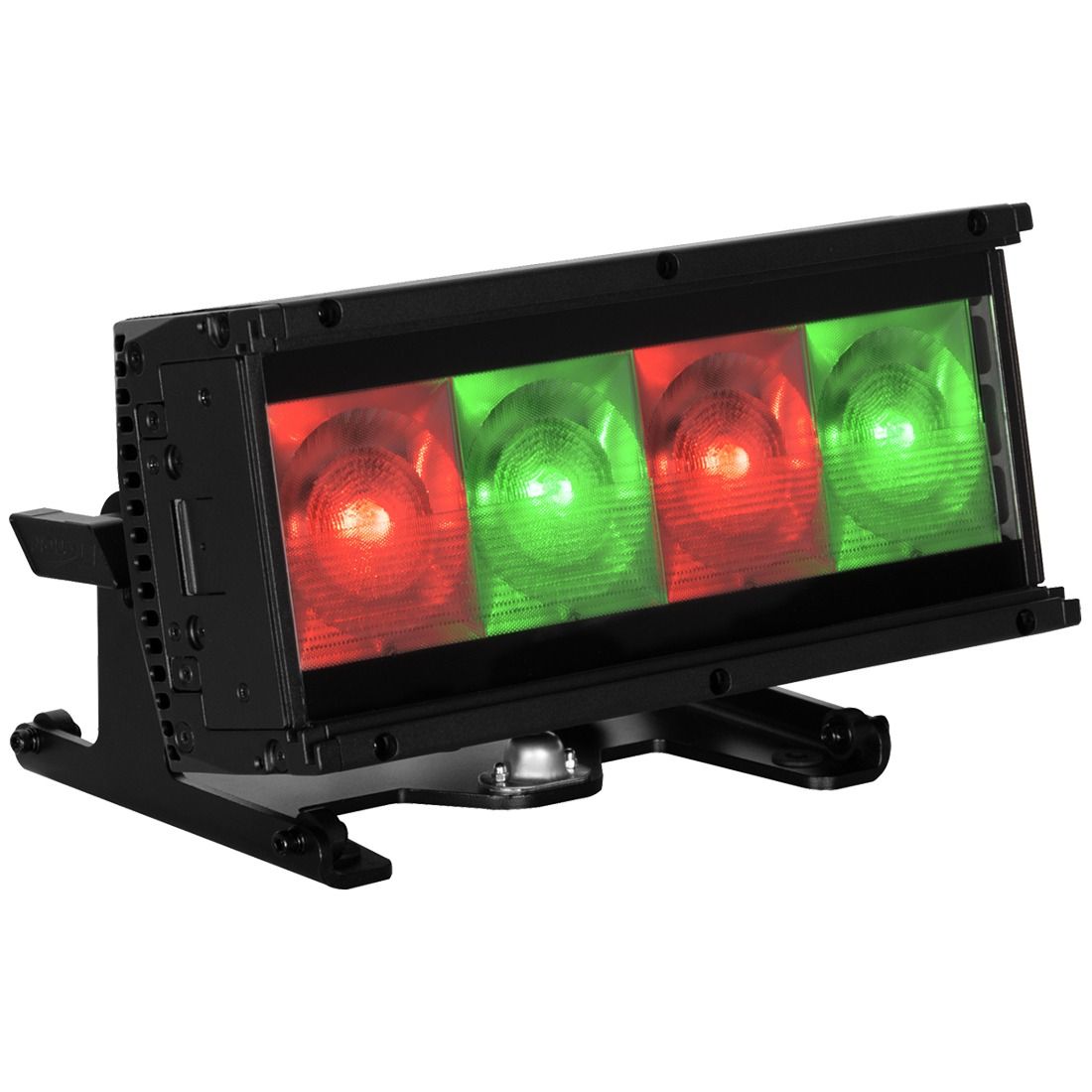

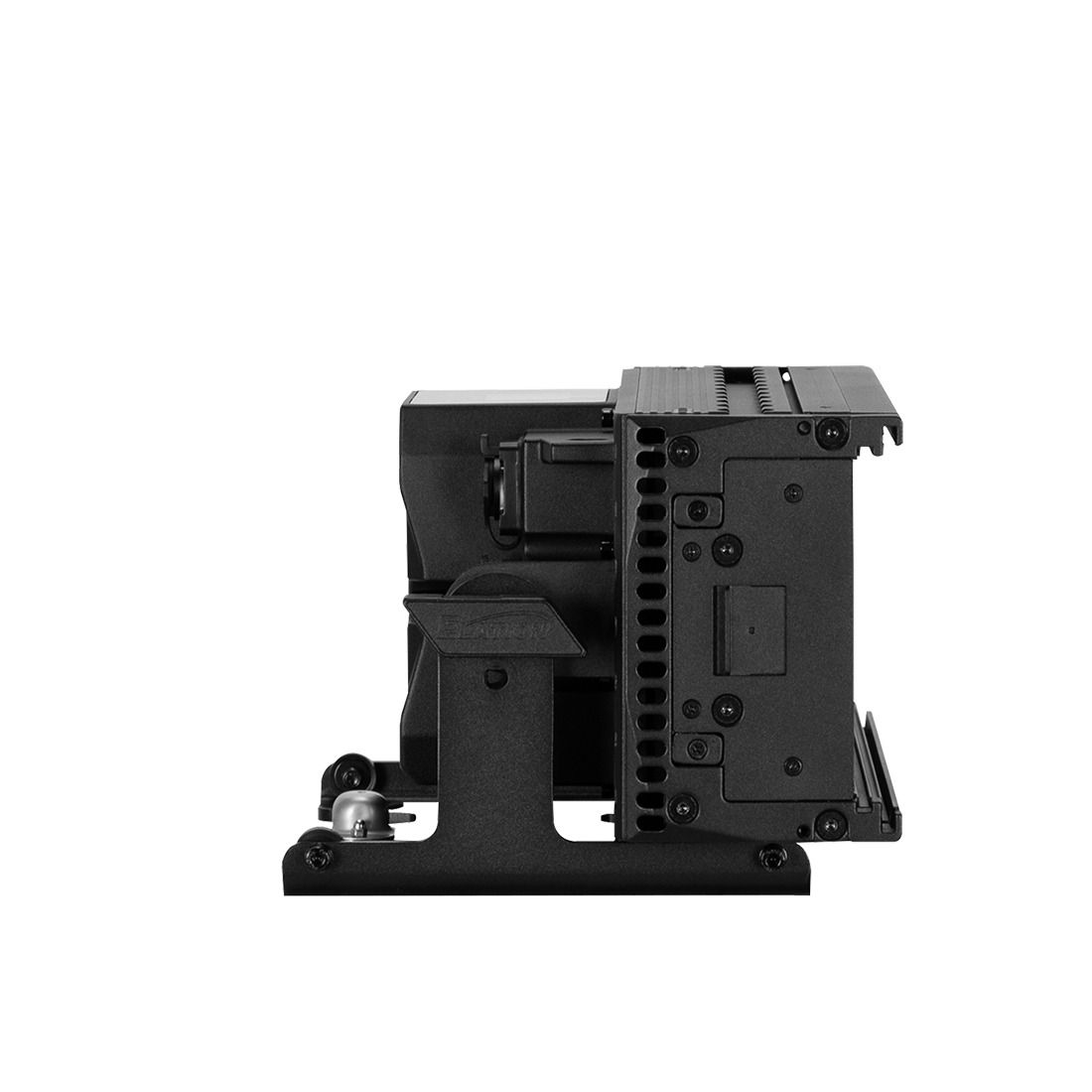

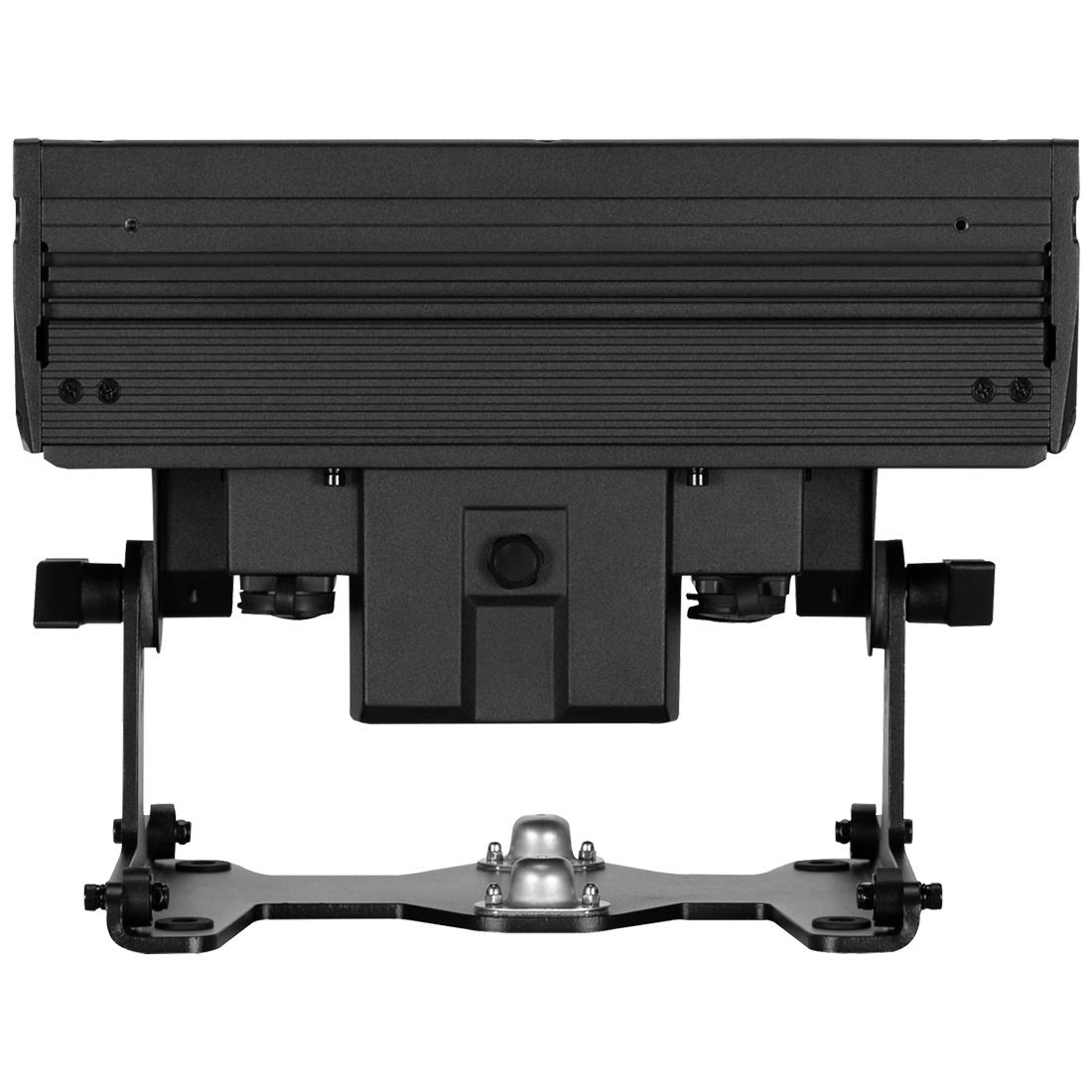

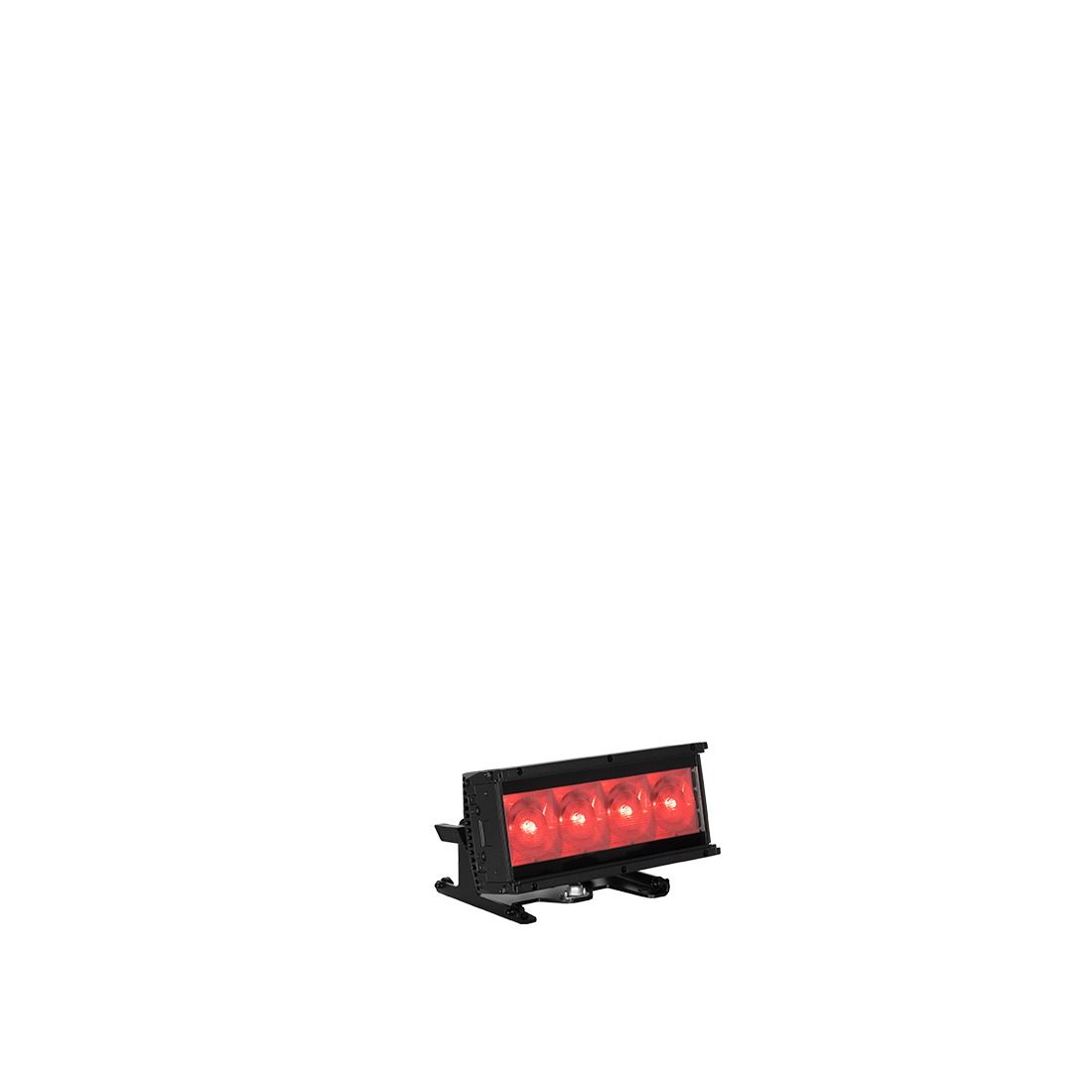

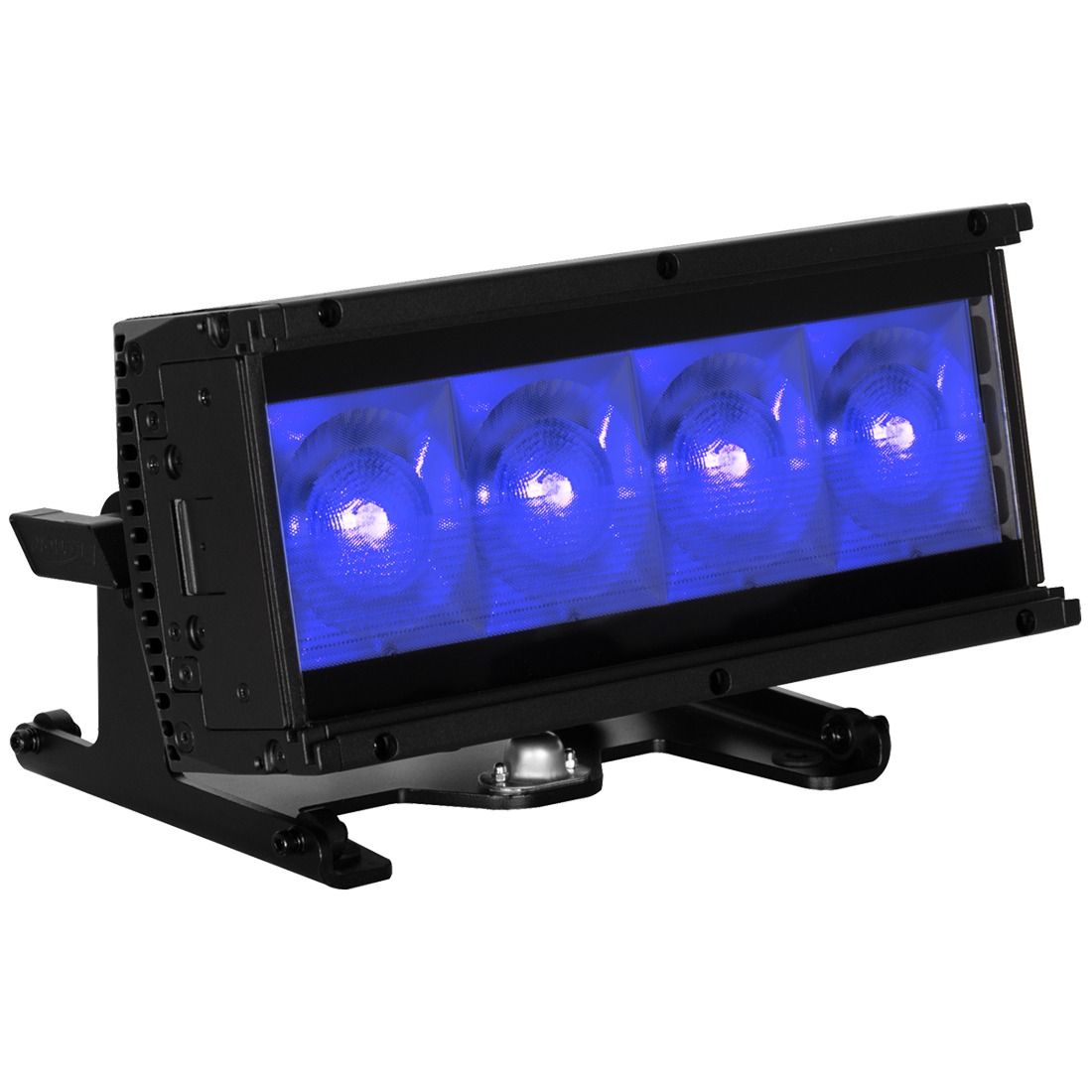

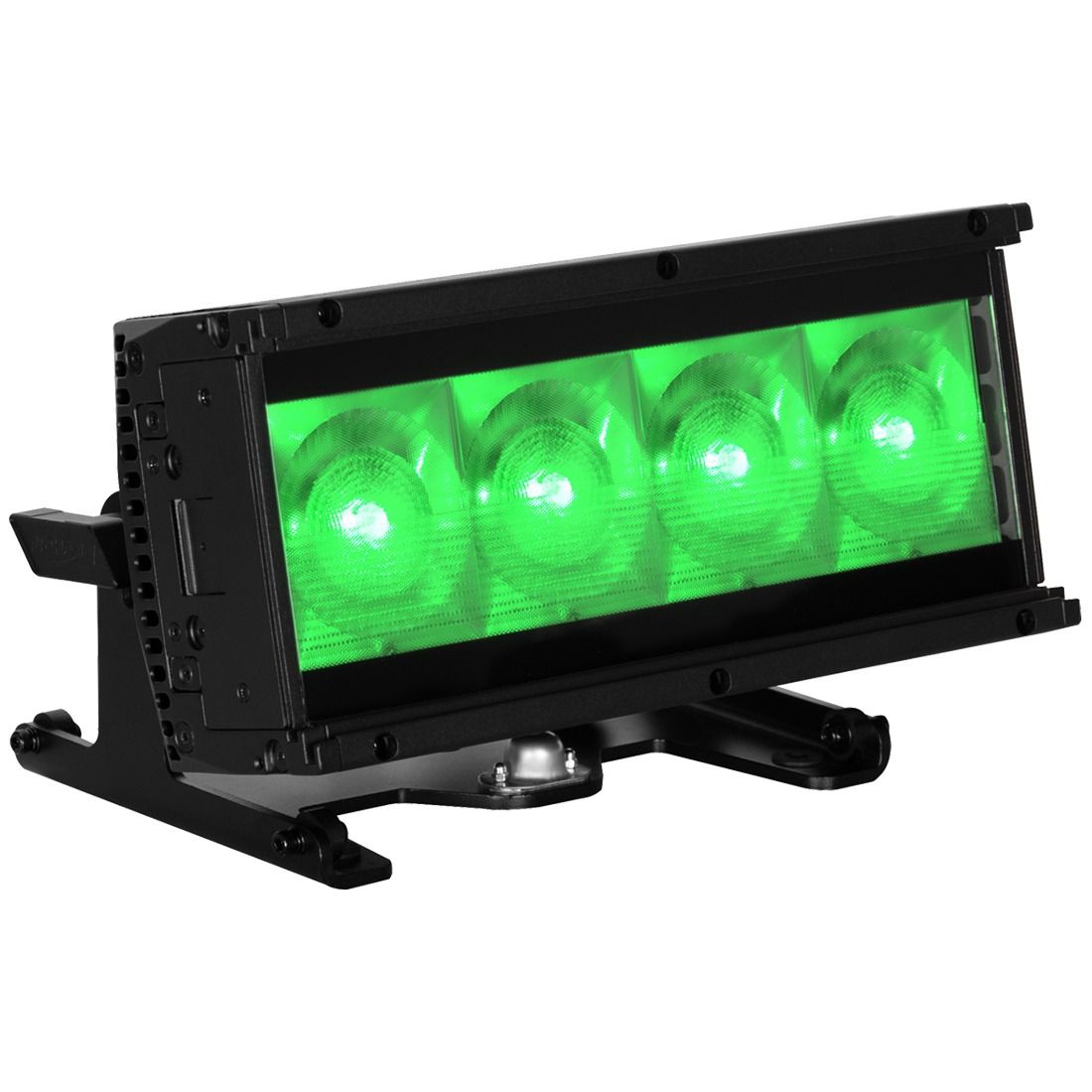

KL Batten 12

Code 1237000408

Delivering rich, full-spectrum color and over 10,300 lumens of output, the KL BATTEN 12 brings natural, full-spectrum light to stages, studios, and the outdoors—all in a compact, durable design. Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field. An IP-65...

Code 1237000408

KL Batten 12

Delivering rich, full-spectrum color and over 10,300 lumens of output, the KL BATTEN 12 brings natural, full-spectrum light to stages, studios, and the outdoors—all in a compact, durable design.

Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field.

An IP-65 rating means it can be used nearly anywhere. Its quiet operation, intuitive control, and flexible mounting options make it a versatile, reliable, and colorful addition to any rig.

Technical Data

FEATURES

(4) 100W RGBMA LED Array
10,300 Total Fixture Lumen Output (Sphere)
Full Pixel Control
Integrated Lens and Accessory Slots
Art-Net & sACN Support

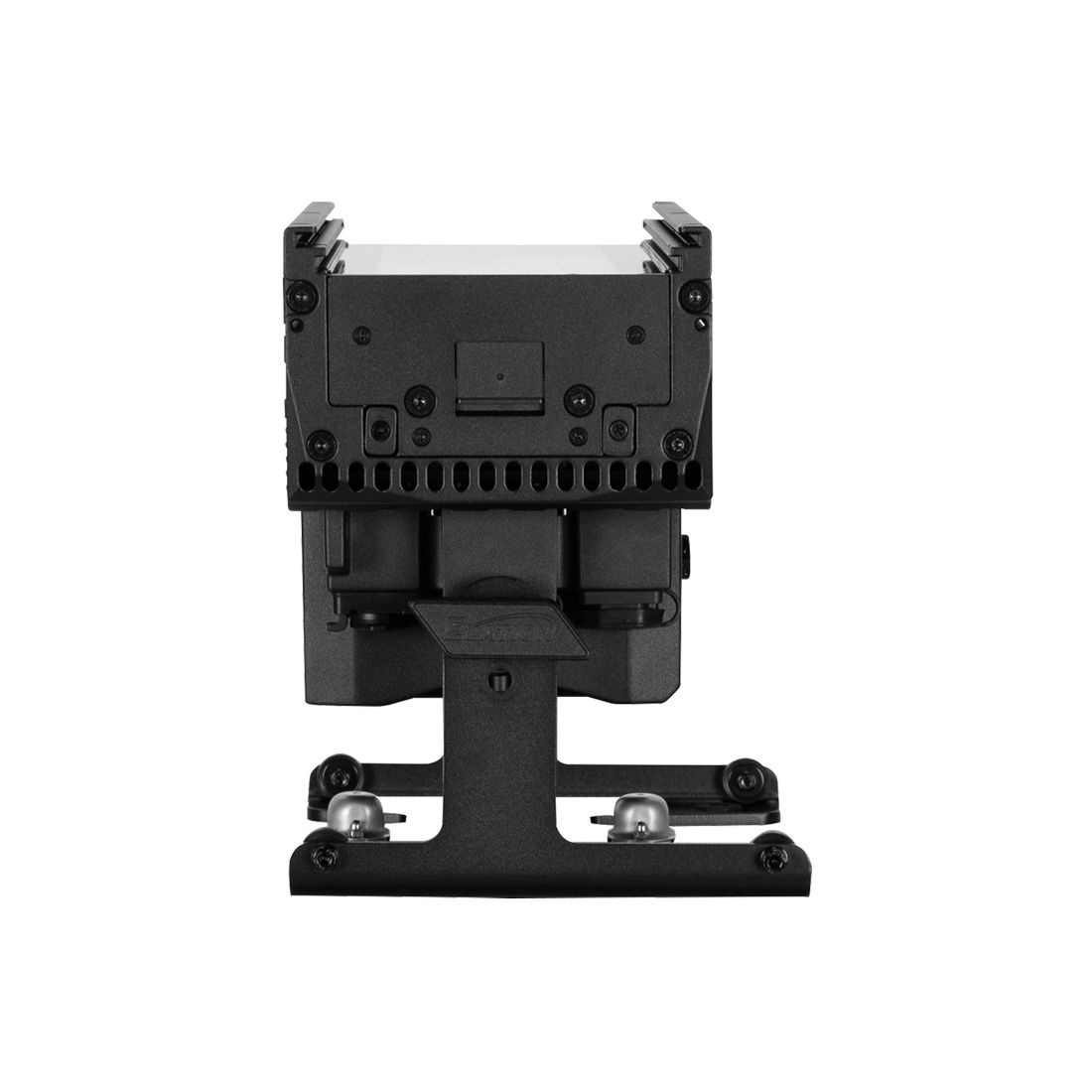

Integrated L Track for Flexible Mounting
End-to-End Magnetic Alignment System
NFC & Aria x2 Wireless Device Management
IP65 Rated

SOURCE

(4) x 100W RGBMA LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
10,300 (Integrating Sphere)
CRI- 94.9
TLCI- 95
Beam Angle: 22° x 20°
Field Angle: 44° x 42°

EFFECTS

Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

22 DMX Channel Modes (1ch, 3ch-A, 4ch-A, 4ch-B, 3ch-B, 6ch-A, 10ch, 14ch, 22ch, 16ch-A, 6ch-B, 8ch, 6ch-C, 20ch-A, 20ch-B, 35ch, 12ch-A, 16ch-B, 12ch-B, 40ch, 32ch, 61ch)

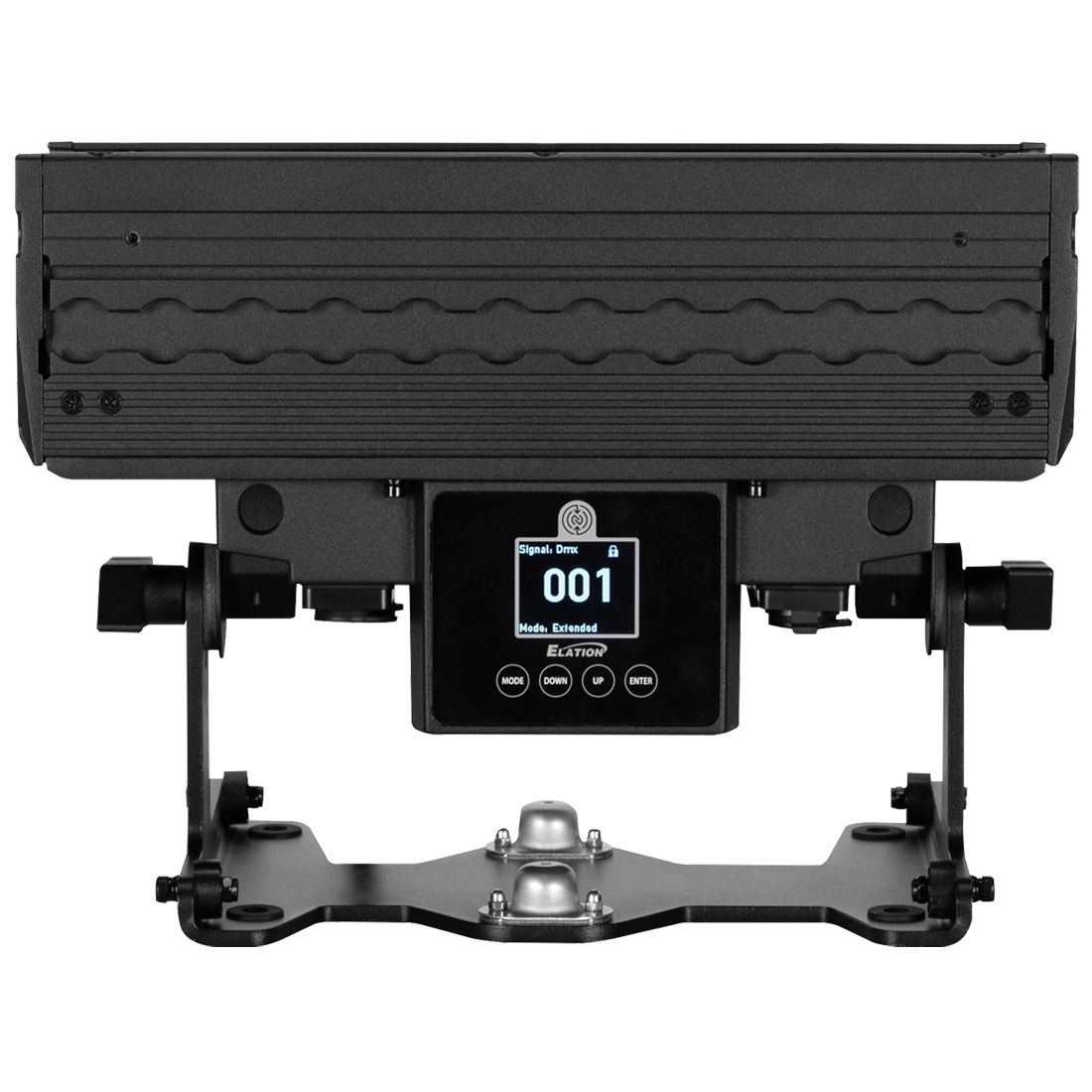

4 Button Control Panel, Color LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net & sACN)
IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 321mm (12.6")
Width: 184mm (7.2")
Vertical Height: 239mm (9.4”)
Vertical Height (Low Clearance): 219mm (8.6")
Weight: 6.7kg (14.7 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
200W Max Power Consumption
Power Thru Capacity: 10A ( 5 units @110V; 14 units @240V)
-40°C to 55°C (-40°F to 131°F)
BTU/hr (+/- 10%) 682

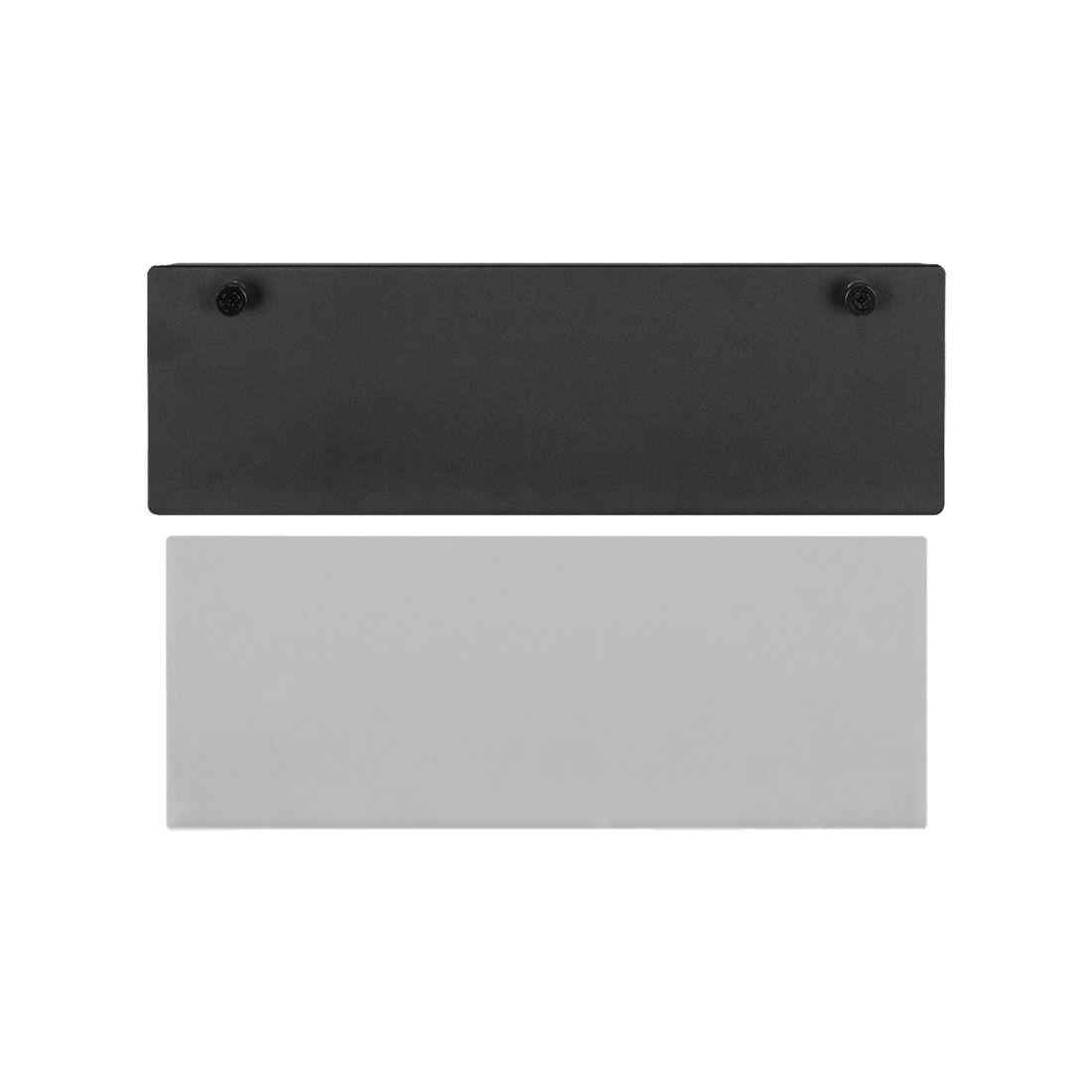

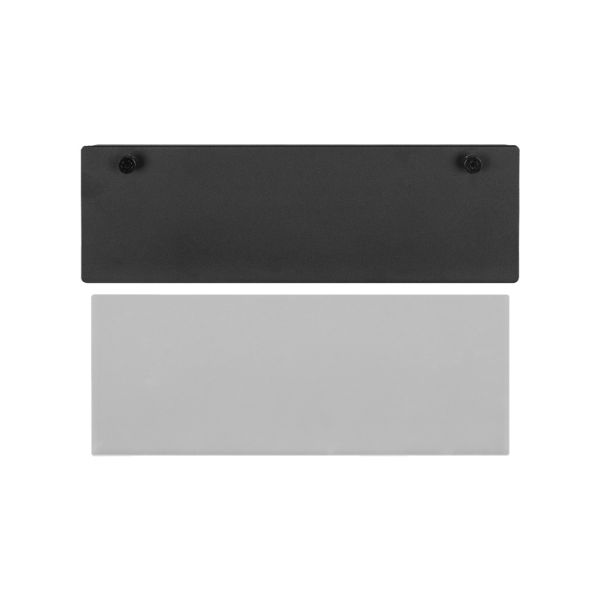

INCLUDED ITEMS

Glare Shield
Border Light Filter
IP65 Locking Power Cable

OPTIONAL ITEMS

90deg Slotted Omega Bracket (Qty 1)
L-Track to M10 Adapter,70mm
L-Track to M10 Adapter, 44.5mm
L Track C-Clamp & Adapter Assembly, 70mm
L Track C-Clamp & Adapter Assembly, 44.5mm
