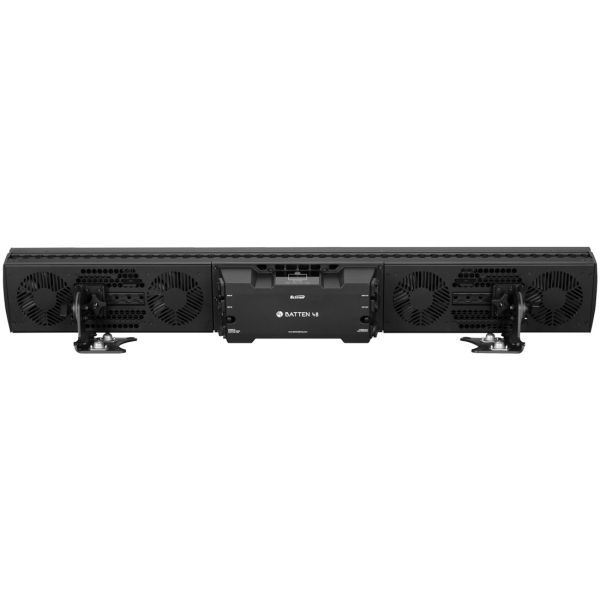

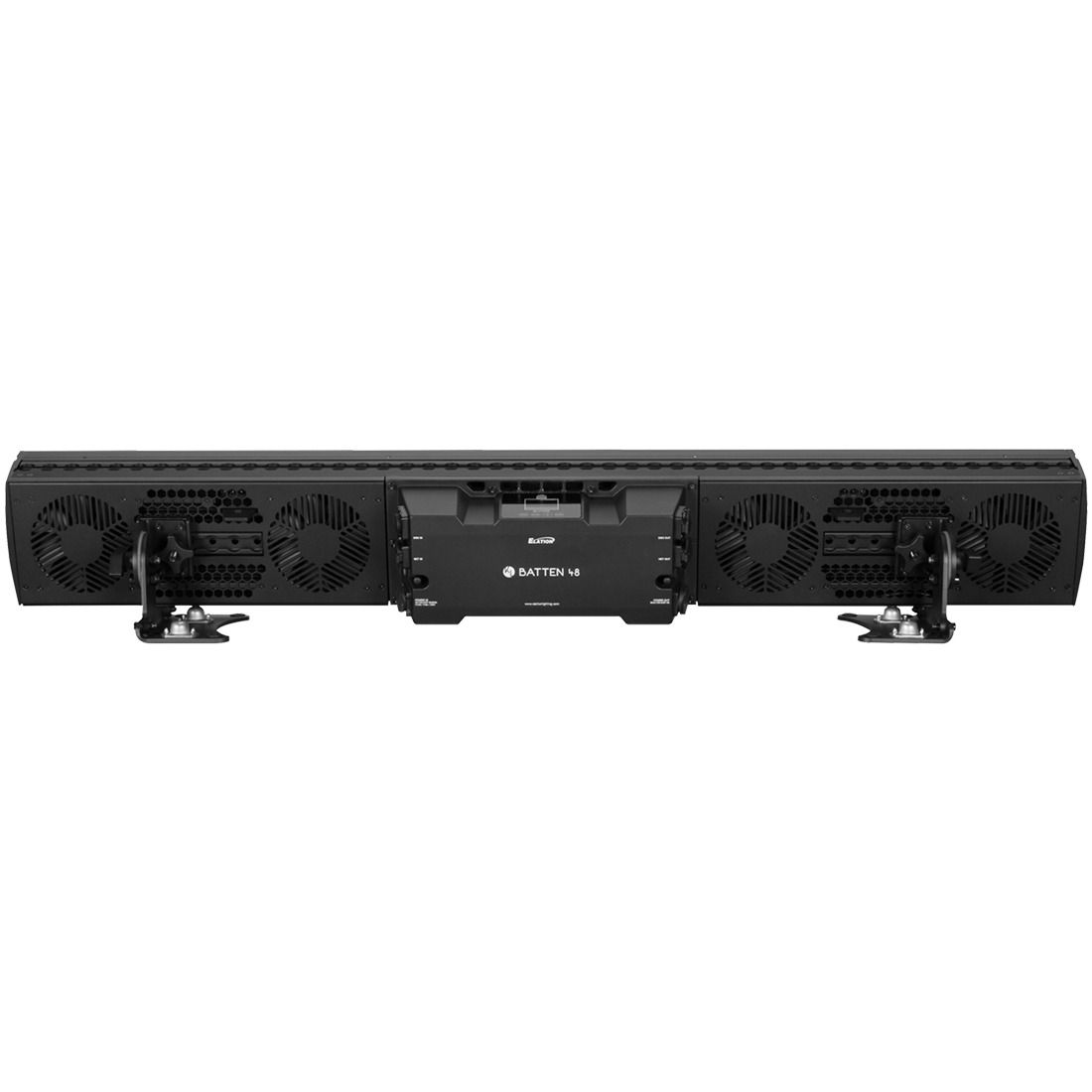

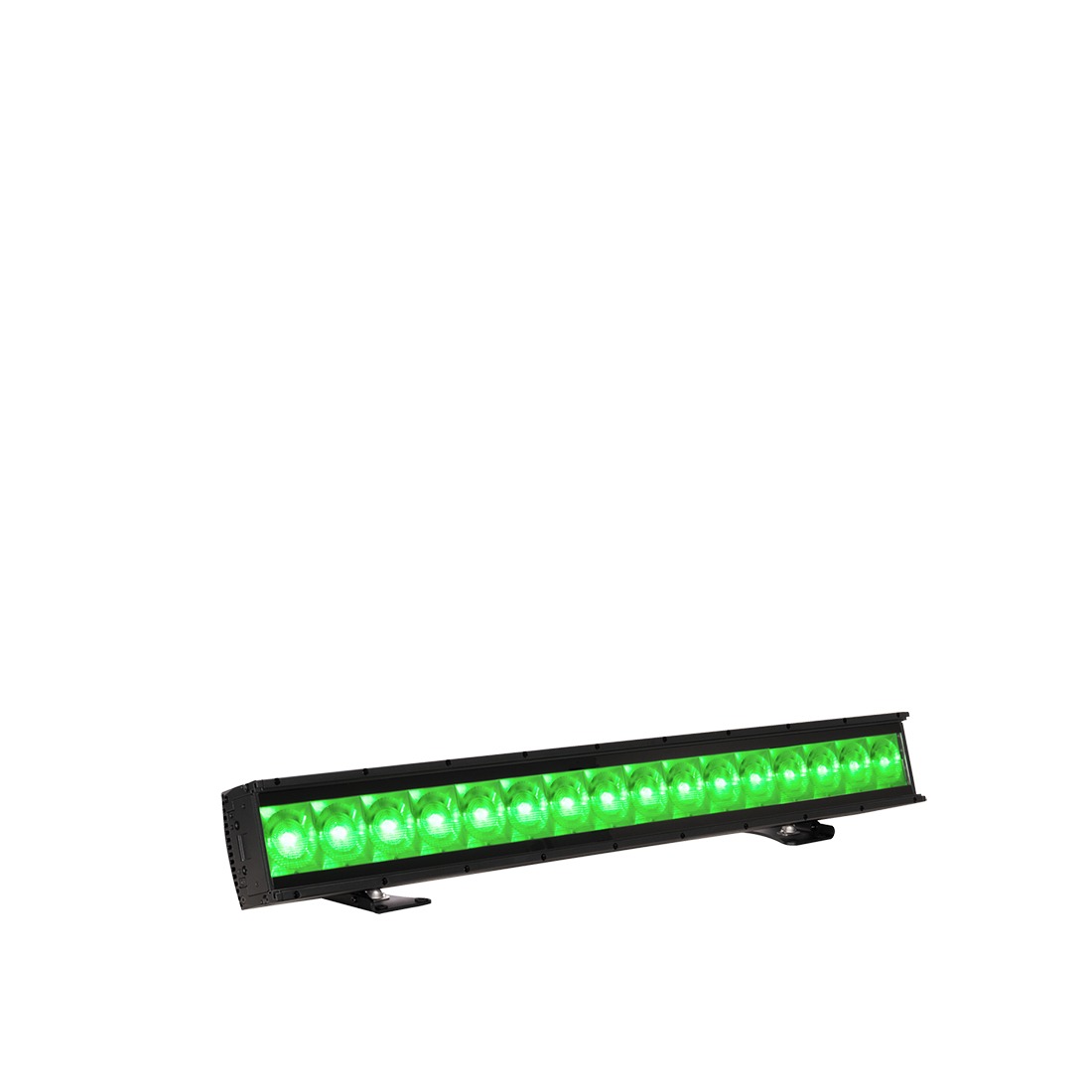

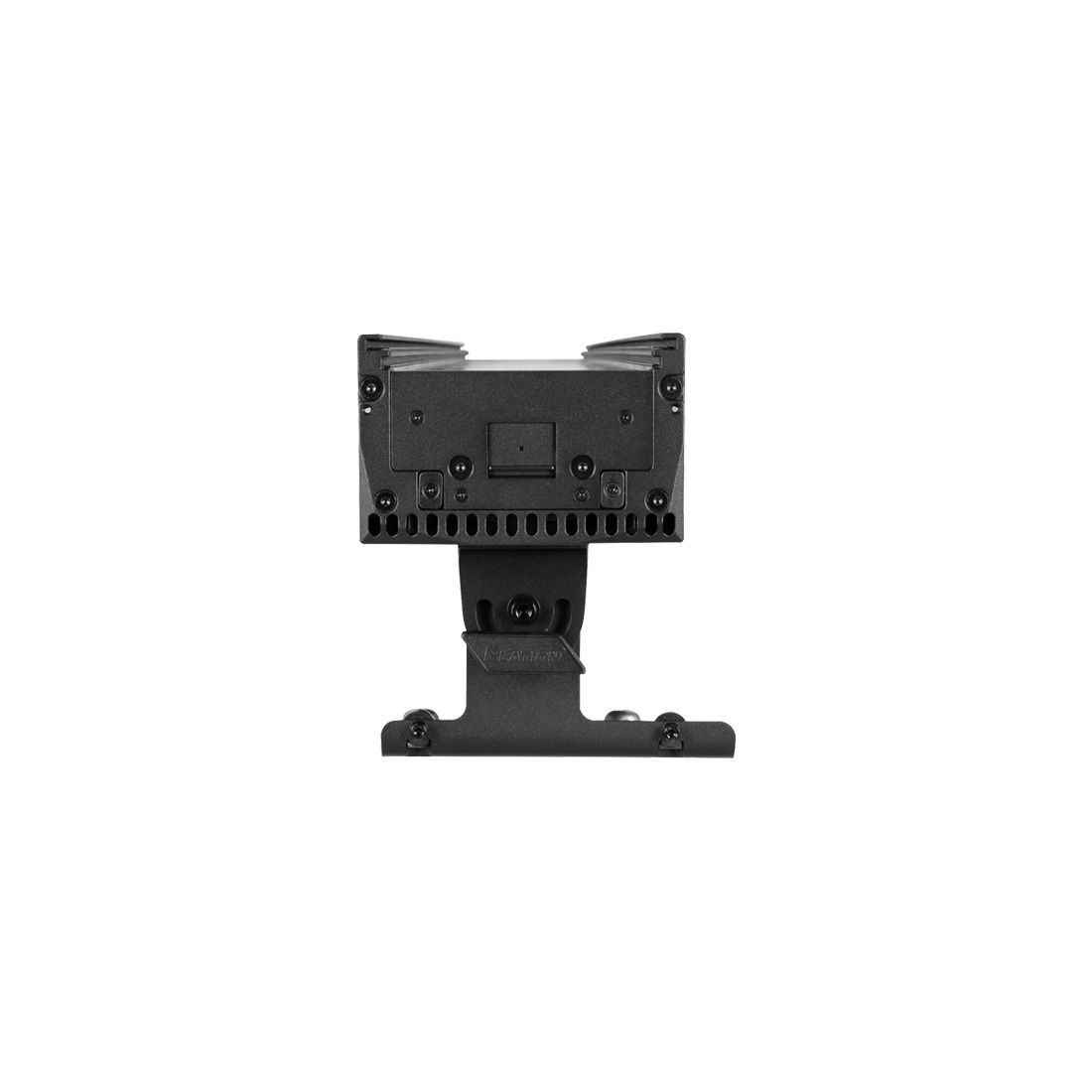

KL Batten 48

Code 1237000409

Perfect for the grandest stage and the great outdoors, the powerful KL BATTEN 48 delivers over 39,400 lumens of smooth, even light. The RGBMA LED engine and its homogeneous beam produces natural, full-spectrum light, with a high CRI that looks good on stage and in the studio. Its adaptable L-Track design makes mounting simple, while seamless control options and quiet cooling ensure professional performance in any environment. Paired with IP-65 protection,...

Code 1237000409

KL Batten 48

Its adaptable L-Track design makes mounting simple, while seamless control options and quiet cooling ensure professional performance in any environment.

Paired with IP-65 protection, it’s the dependable, full-spectrum workhorse that keeps creative intent intact from rehearsal to showtime.

Technical Data

FEATURES

(16) 100W RGBMA LED Array
39,475Total Fixture Lumen Output (Sphere)
Full Pixel Control
Integrated Lens and Accessory Slots
Art-Net & sACN Support
Integrated L Track for Flexible Mounting
End-to-End Magnetic Alignment System
NFC & Aria x2 Wireless Device Management
IP65 Rated

SOURCE

(16) x 100W RGBMA LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
39,475 (Integrating Sphere)
CRI- 94.9
TLCI- 95
Beam Angle: 62° x 21°
Field Angle: 79° x 51°

EFFECTS

Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

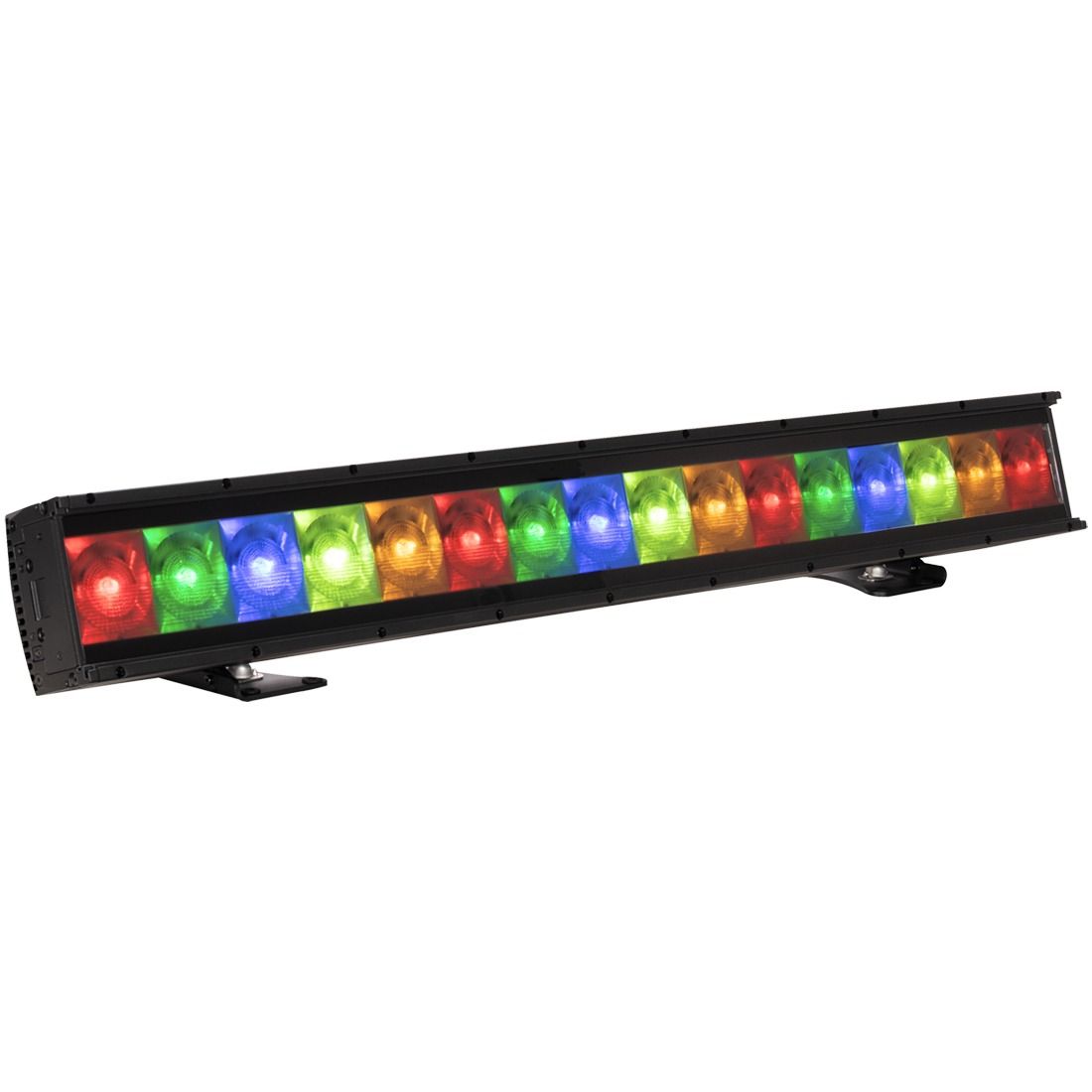

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

34 DMX Channel Modes (1ch, 3ch-A, 4ch-A, 4ch-B, 3ch-B, 6ch-A, 10ch, 14ch, 22ch, 16ch-A, 6ch-B, 8ch, 6ch-C, 20ch-A, 20ch-B, 35ch, 12ch-A, 16ch-B, 12ch-B, 40ch, 32ch-A, 61ch, 24ch-A, 32ch-B, 24ch-B, 80ch, 56ch, 113ch, 48ch-A, 64ch, 48ch-B, 160ch, 104ch, 217ch)

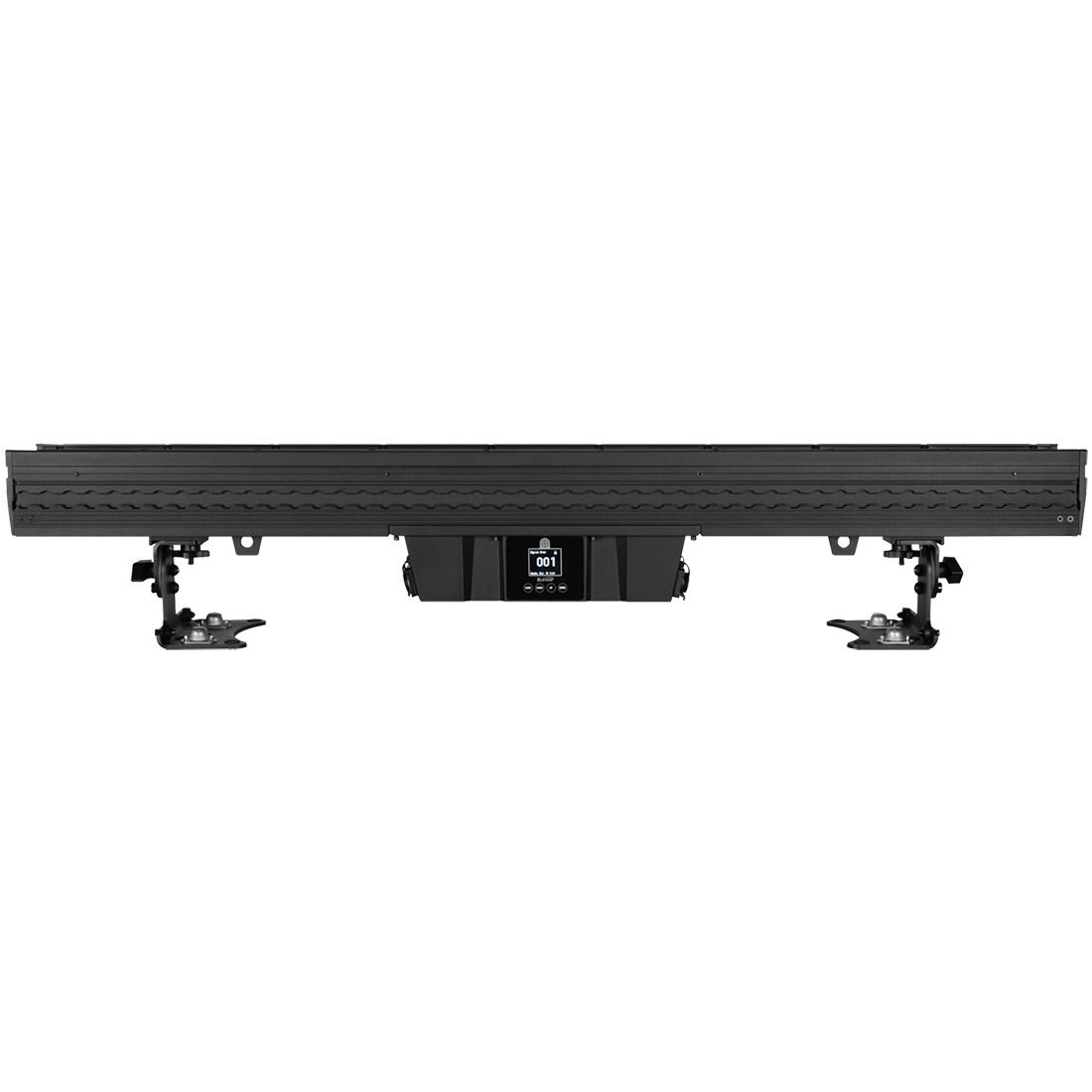

4 Button Control Panel, Color LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net & sACN)
IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 1211mm (47.7")
Width: 184mm (7.2")
Vertical Height: 239mm (9.4”)
Vertical Height (Low Clearance): 219mm (8.6")
Weight: 19.6kg (43.2 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
800W Max Power Consumption
Power Thru Capacity: 4A ( 0 units @110V; 1 unit @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 2,728

INCLUDED ITEMS

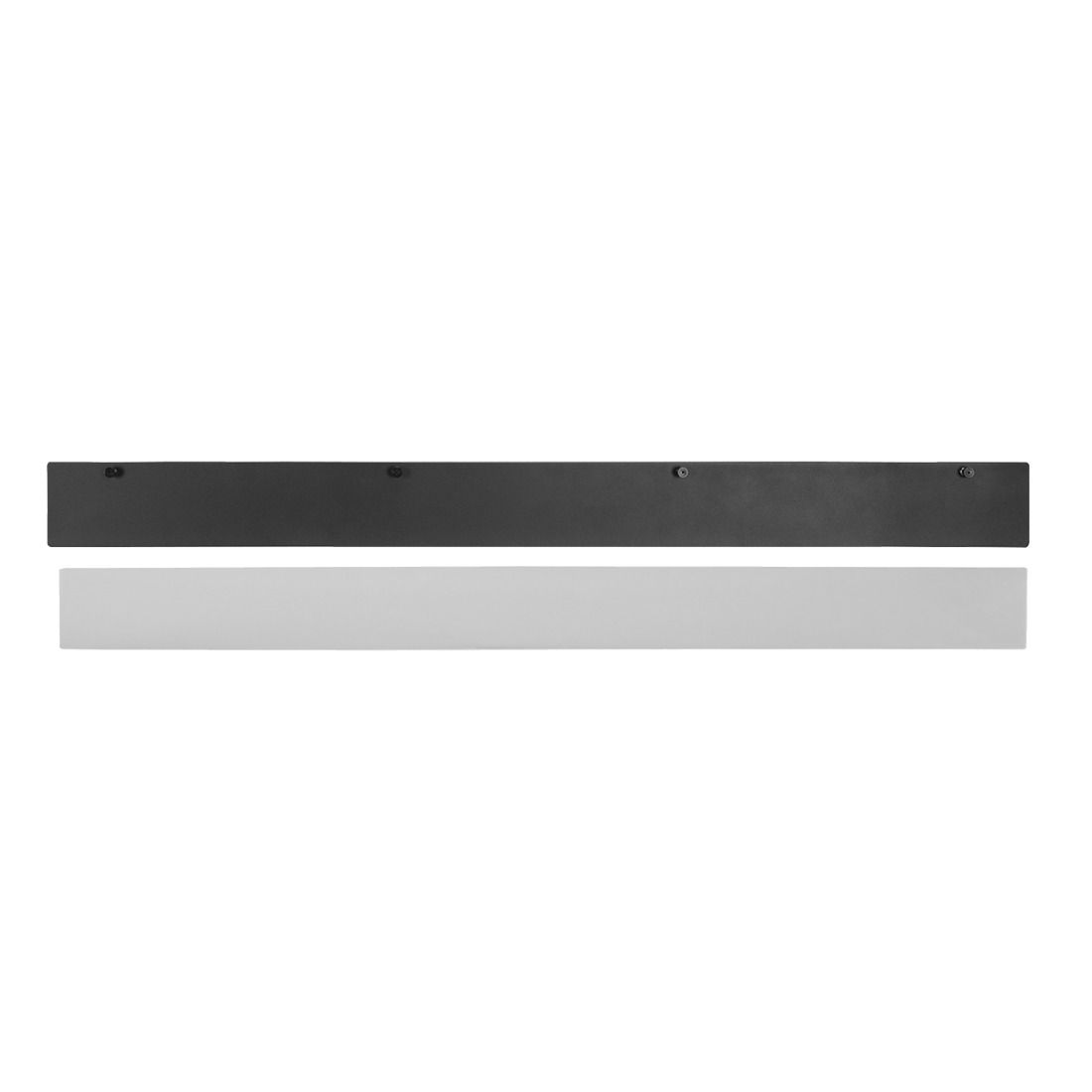

Glare Shield
Border Light Filter
IP65 Locking Power Cable

OPTIONAL ITEMS

Omega Bracket (Qty 2)
L-Track to M10 Adapter,70mm
L-Track to M10 Adapter, 44.5mm
L Track C-Clamp & Adapter Assembly, 70mm
L Track C-Clamp & Adapter Assembly, 44.5mm
