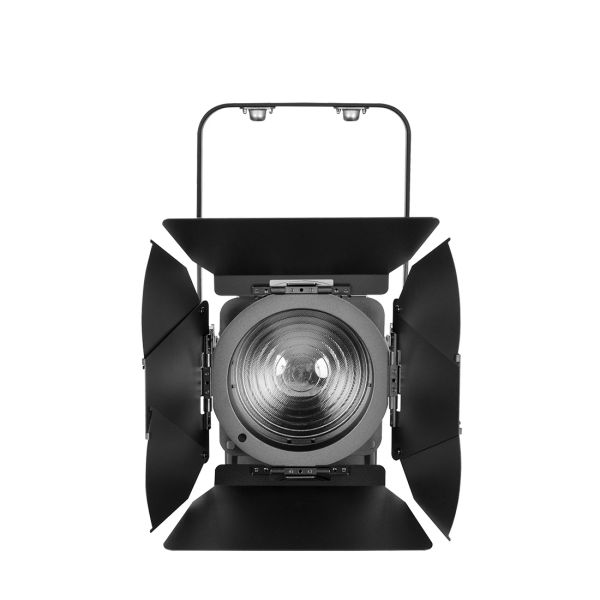

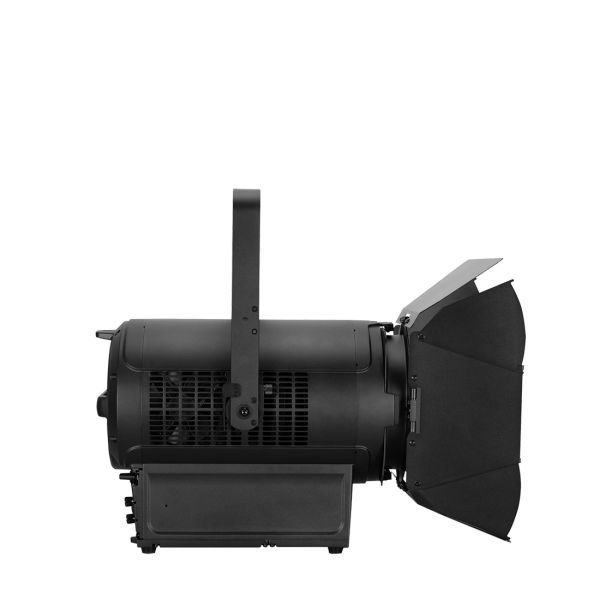

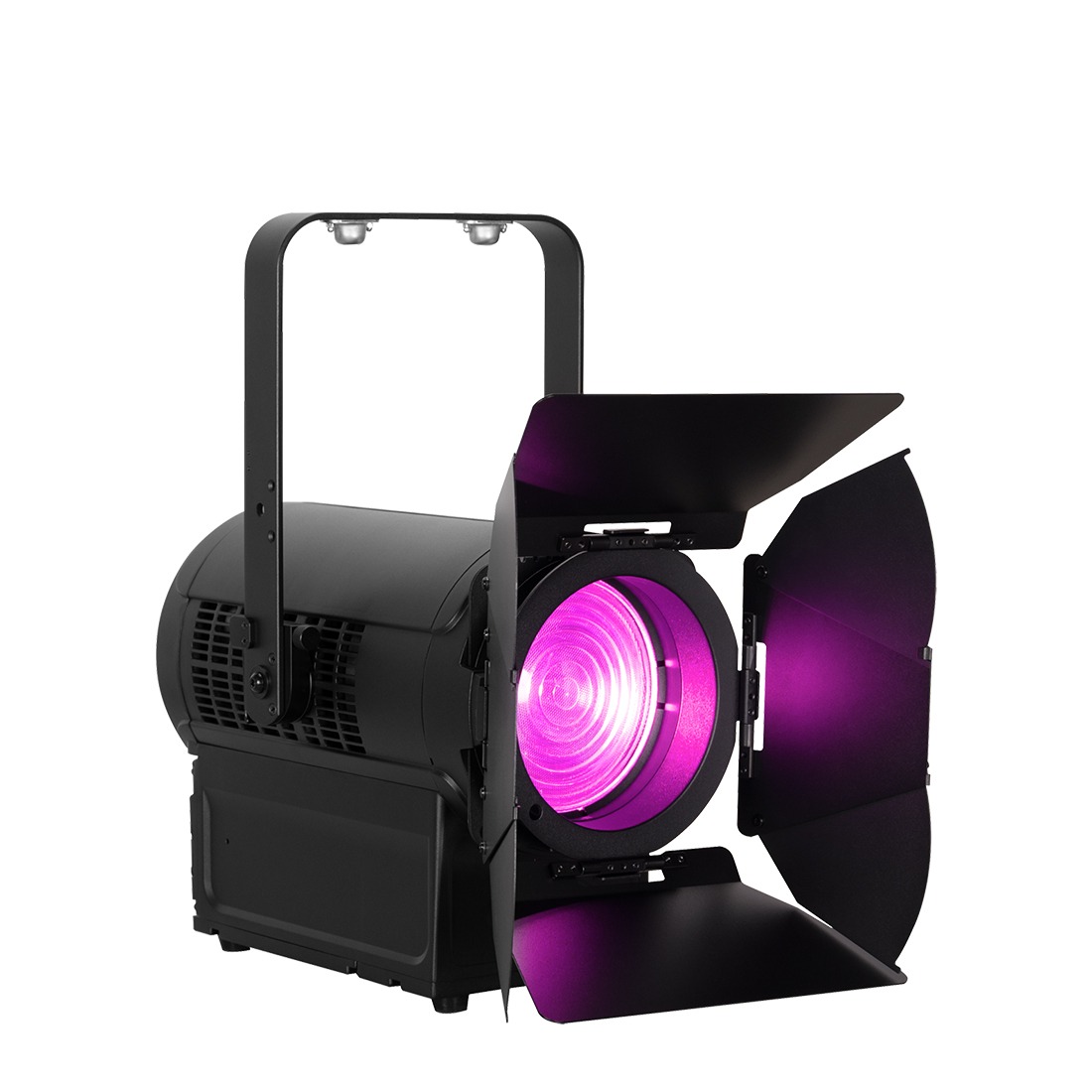

KL FRESNEL 6 IP

The KL Fresnel 6 IP delivers superior light quality in a compact, weather-ready 6-inch design—bringing natural Fresnel character, full-spectrum color, and modern workflow efficiency to any environment.


Its 250W RGBMA engine produces over 6,000 lumens of balanced, full-spectrum output to ensure natural skin tones and accurate color. Variable CCT and magenta/green shift control make it ideal for film and television.


An internal motorized 8°–60° zoom uses a source-moving mechanism to preserve classic Fresnel behavior with a smooth falloff that designers expect in a compact, easy-to-rig form.

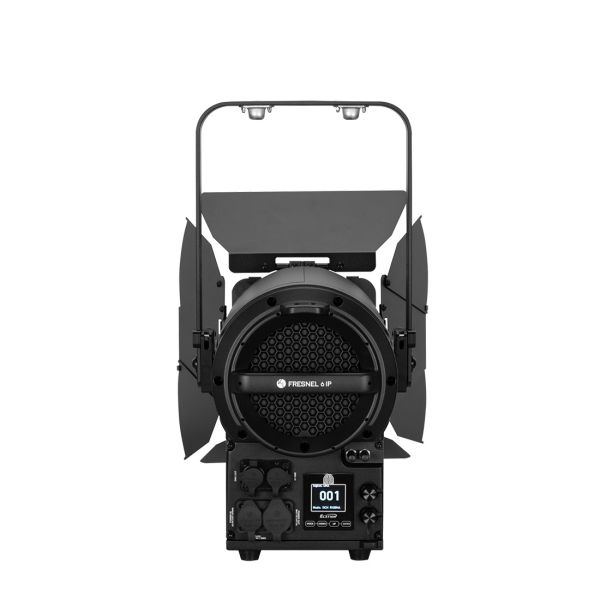

Smart setup tools, including NFC configuration, a rear-facing LCD interface with dual encoders, and Aria X2 wireless DMX, streamline operation from prep to programming.


With its lightweight IP65 housing and five selectable fan modes, the KL Fresnel 6 IP supports everything from outdoor stages to camera-critical studio work while reducing maintenance and downtime—all while maintaining the timeless look and feel of a true Fresnel.

Technical Data

FEATURES

250W RGBMA LED Engine
7,400 Total Fixture Lumen Output (Sphere)
Wide 8° to 60° Motorized Zoom Range
Stand-Alone control with 2 Encoders and LED Display
NFC & Aria x2 Wireless Device Management
IP65 Rated
Gel Frame & 8-leaf Barndoor Included

SOURCE

250W 6000K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
7,400 (Integrating Sphere)
TBA (Goniometer)

CRI 94
TLCI 95
Zoom Range 8° - 60°
Beam Angle 7.5° - 42°
Field Angle 12° - 60°

EFFECTS

Motorized Zoom
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
DMX Controllable LED Refresh Rate (900Hz- 25kHz)

COLOR

RGBMA Color Array
CMY Emulation
x/y Control
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

8 DMX Channel Modes (1, 5, 7, 11, 12, 20, 10, 16, 14)
Manual and DMX Controlled Dimmer. Color & Zoom
4 DMX Controllable Fan Modes for Silent Operation
Dual Rotary Encoders
Full Color 180° Reversible LCD Menu Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 401mm (15.8”)
Length (Yoke 0°): 494mm (19.4”)
Width: 301mm (11.9”)
Height (Fixture Body): 302mm (11.9”)
Height (Yoke 90°): 500mm (19.7”)
Weight: 9.9kg (21.8 lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
268W Max Power Consumption
Power Thru Capacity: 4A (1 unit @115V, 3 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 913.8

INCLUDED ITEMS

Gel Frame
Barndoor
IP65 Locking Power Cable

OPTIONAL ITEMS

Omega Bracket

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
