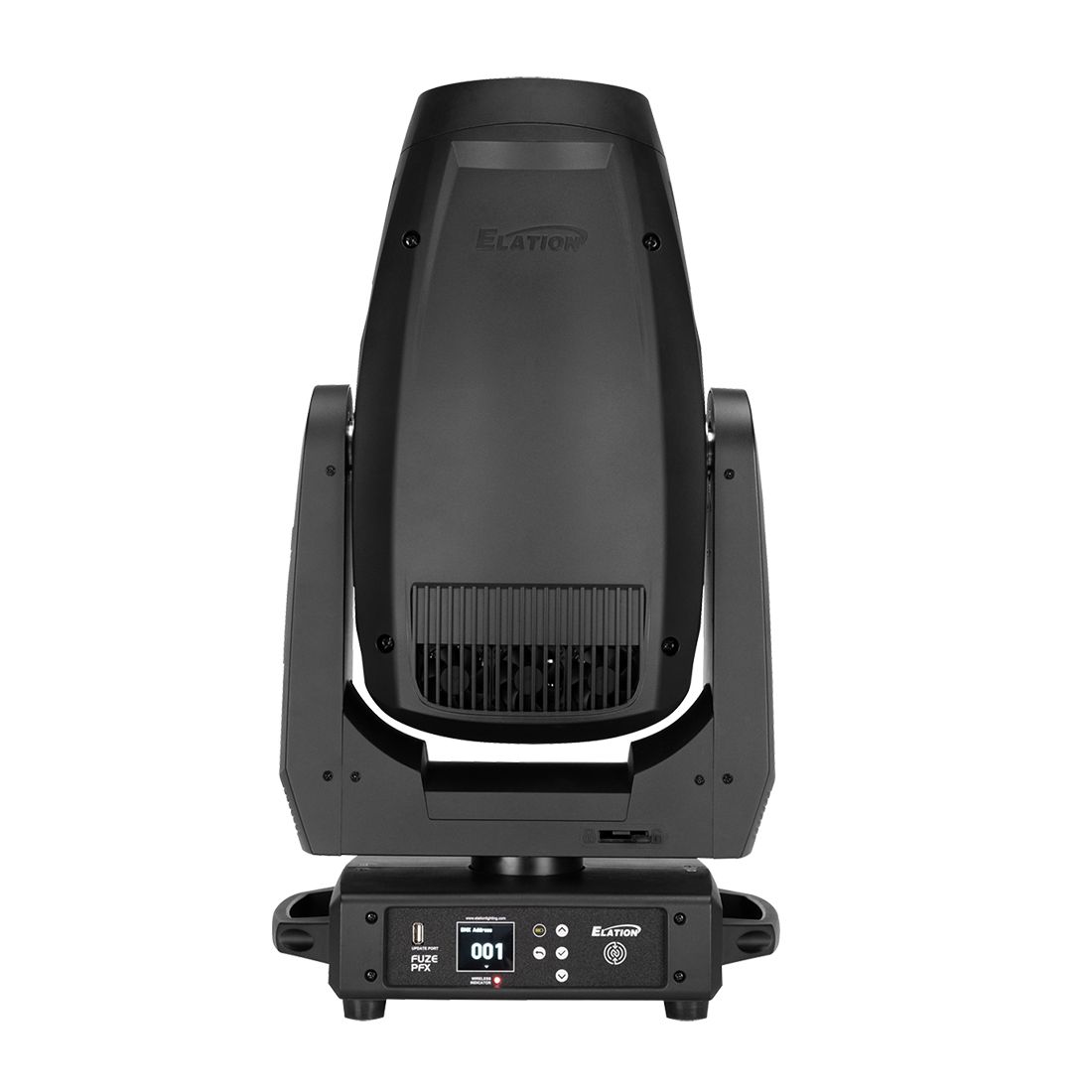

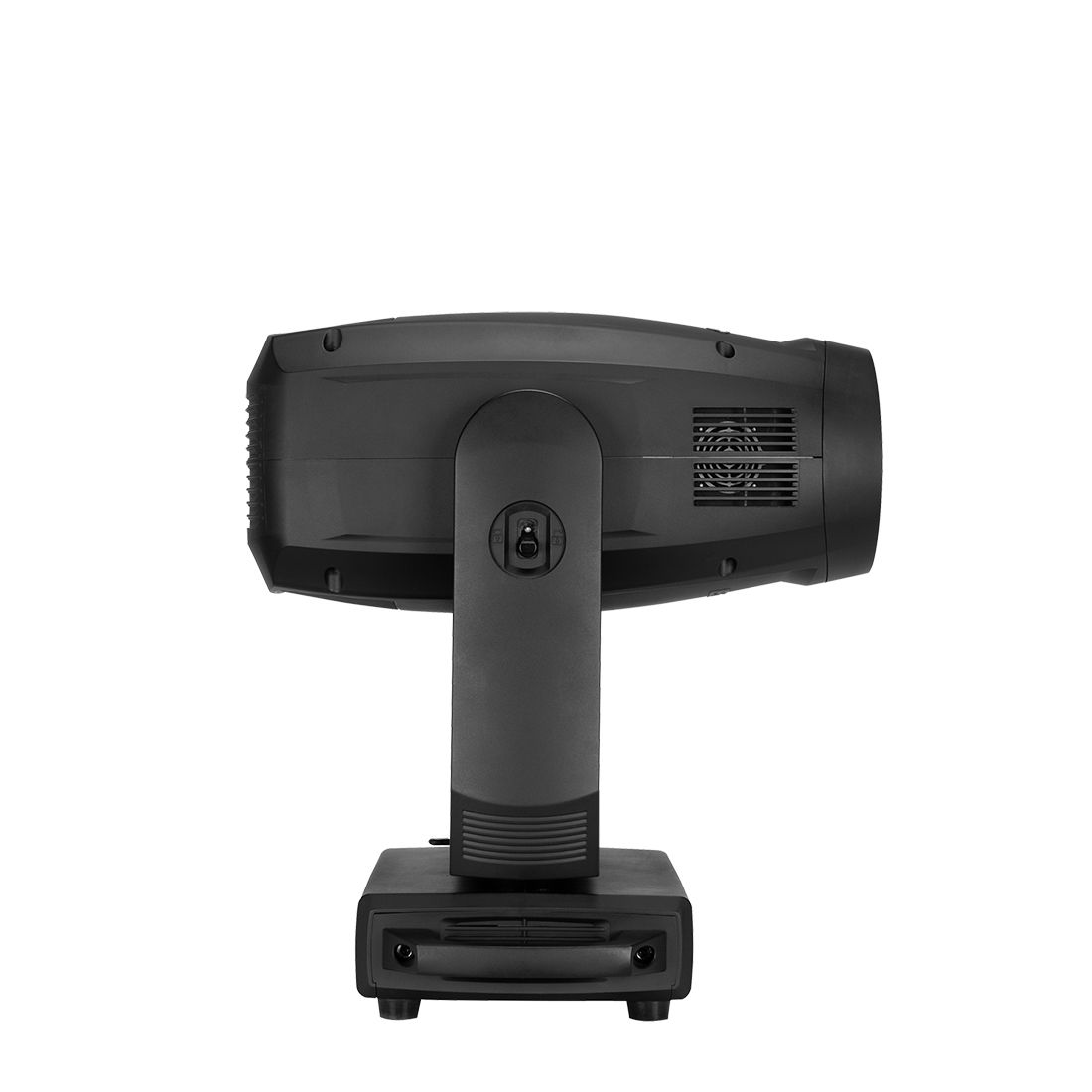

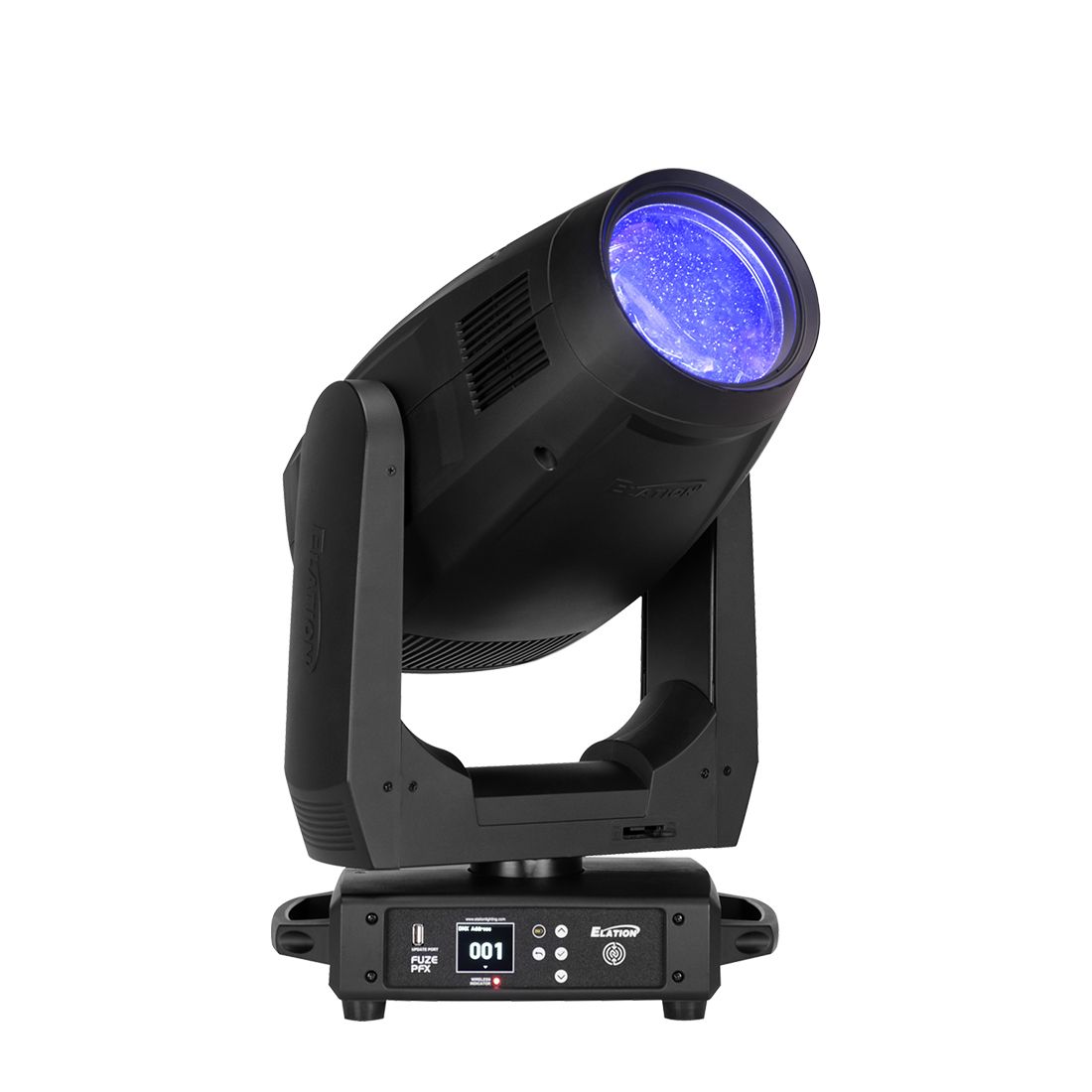

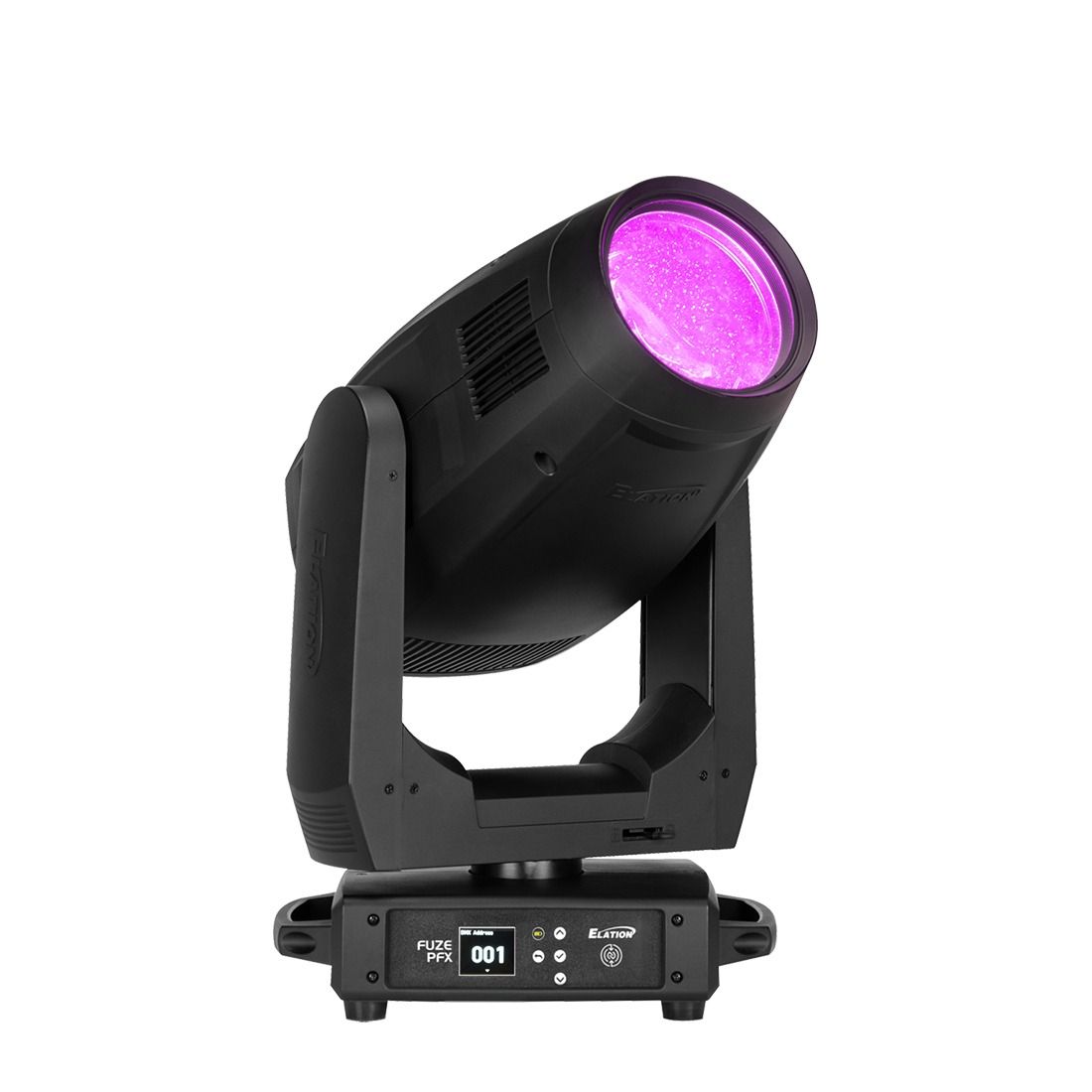

Fuze PFX

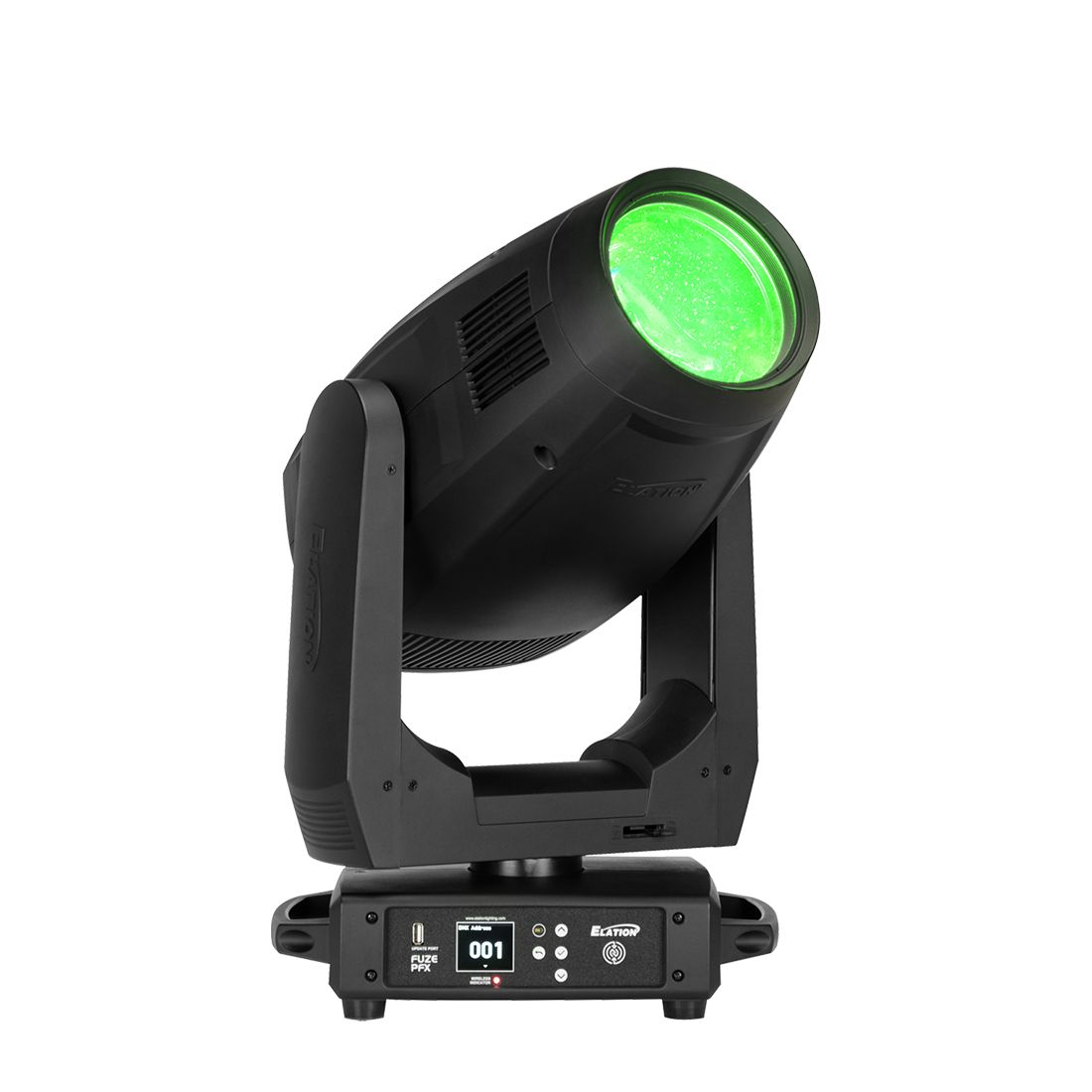

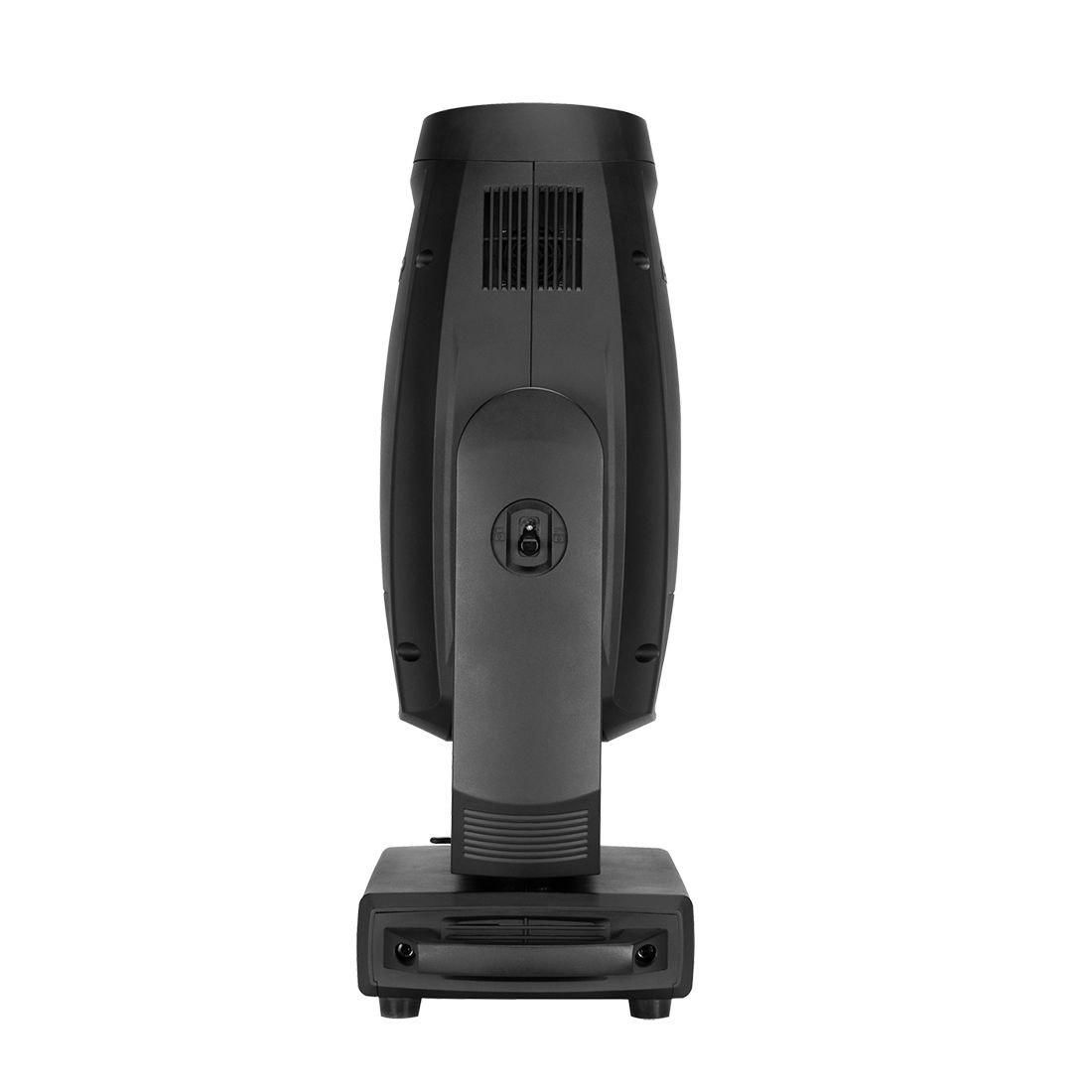

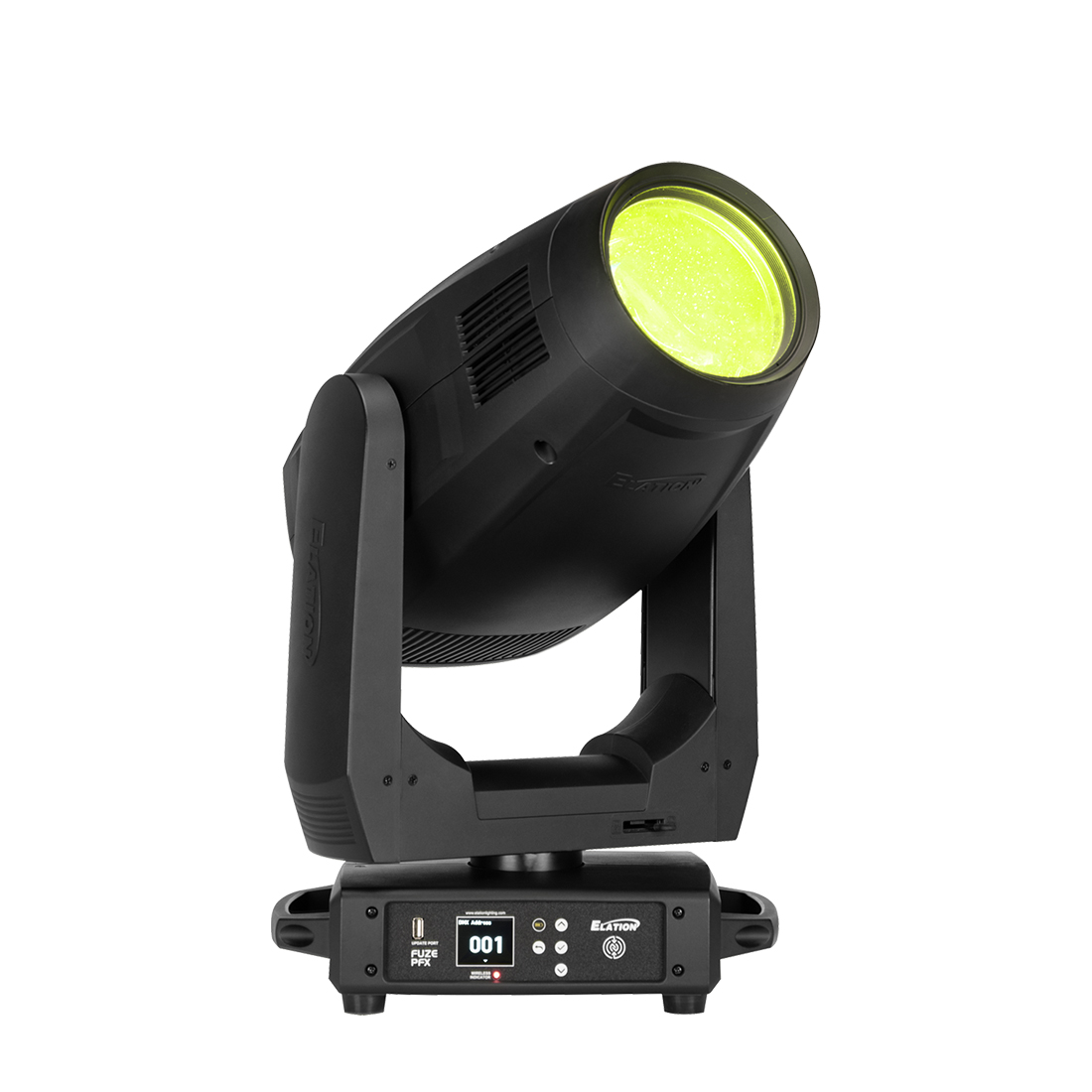

The FUZE PFX™ is a unique LED Framing FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The PFX is capable of projecting tight beams, precise framing and wide washes using a highly efficient optical design while providing over 15000 lumens of output from its 400W white LED engine.
Housing 19 carefully designed gobos and a 3° to 53° zoom, the FUZE PFX can create stunning mid-air FX as easily as precise image projections. The PFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Full blackout framing blades allow shaping of the beam to highlight precise areas on the stage, and function as a creative mid air effect as well. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.
A truly remarkable compact powerhouse for any application, the FUZE PFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.

Technical Data

FEATURES

400W LED 6,600K White LED Engine
15000 Total Lumen Fixture Output
Framing and Effects Fixture
Zoom Range from 3° to 53°
Variable CMY, CTO and 8-Position Color Wheel
Dual High CRI Filters
7 Rotating and 11 Fixed Gobos
Dual Independent Prisms for Layering
Motorized Iris
Soft and Wash Frost Filters

SPECIFICATIONS

SOURCE

400W 6,600K Bright White LED Engine
20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

15000 Total Lumen Output
CRI 72 (Filter CRI 80, CRI 90)
Zoom Range 3° - 53°
Beam Angle
Field Angle

EFFECTS

Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/- 60° Framing Index
2 Variable Frost Filters (Light and Wash)
Dual Independent Prisms (6 Facet linear & 6 Facet round)
Motorized Iris
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
Pan Angle: 540°
Tilt Angle: 270°

COLOR

CMY Color Mixing
Linear CTO Color Correction
7 Dichroic Colors including UV Filter
High CRI Filter 80+90

GOBOS

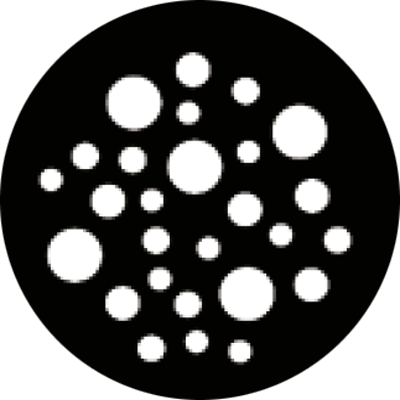

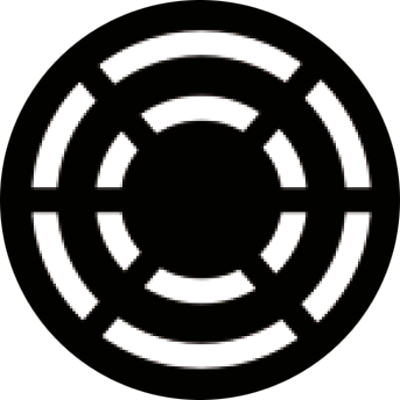

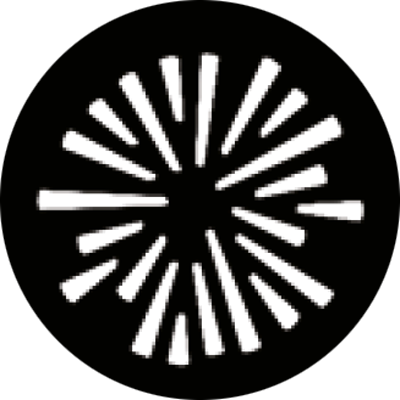

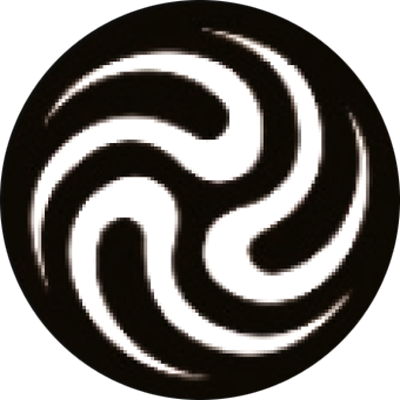

7 Rotating / Indexing Interchangeable Glass Gobos
11 Static Metal Gobos

CONTROL / CONNECTIONS

DMX Channels
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, Art-Net, sACN Protocol Support
RDM (Remote Device Management)
Aria x2 Wireless Device Management
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

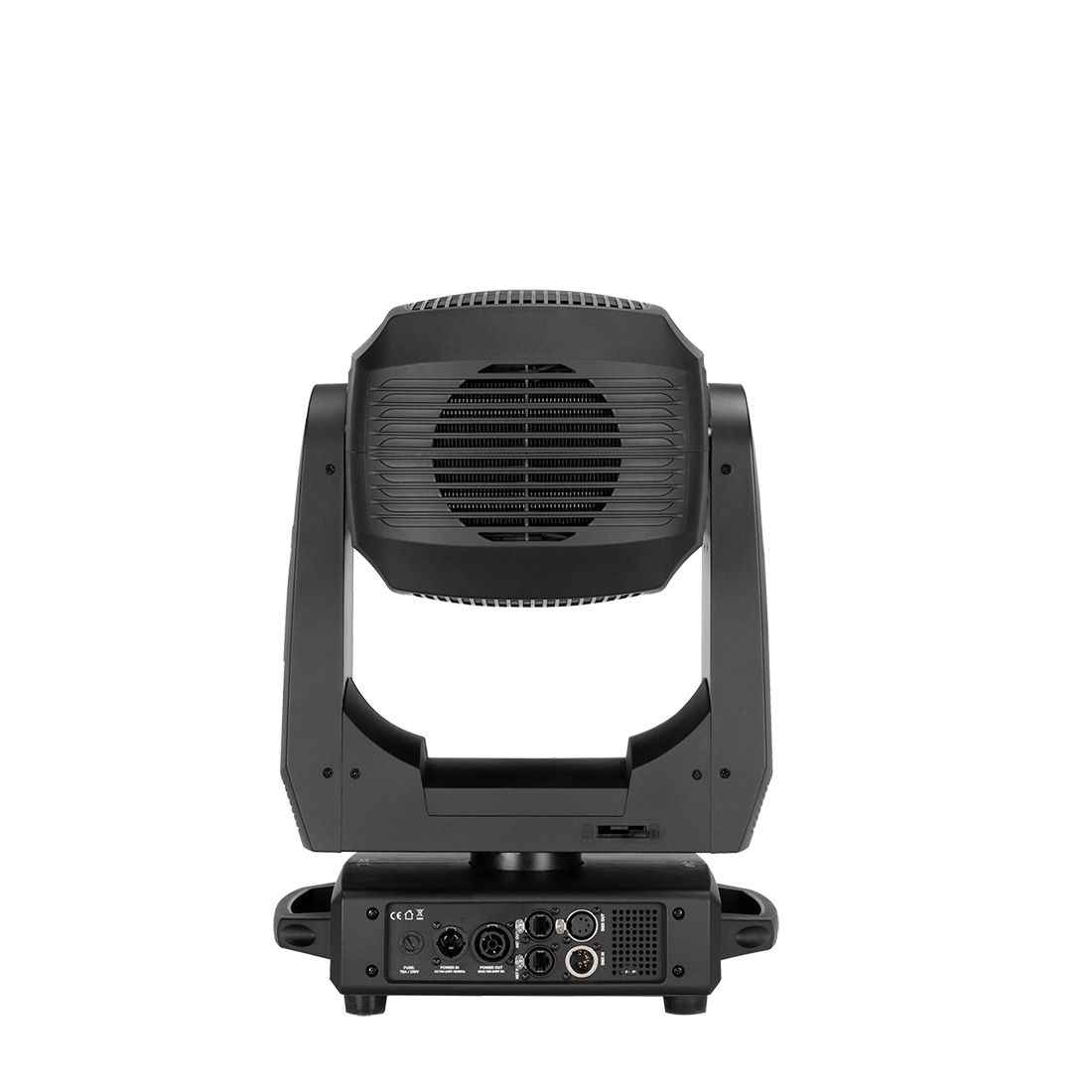

Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In/Out
