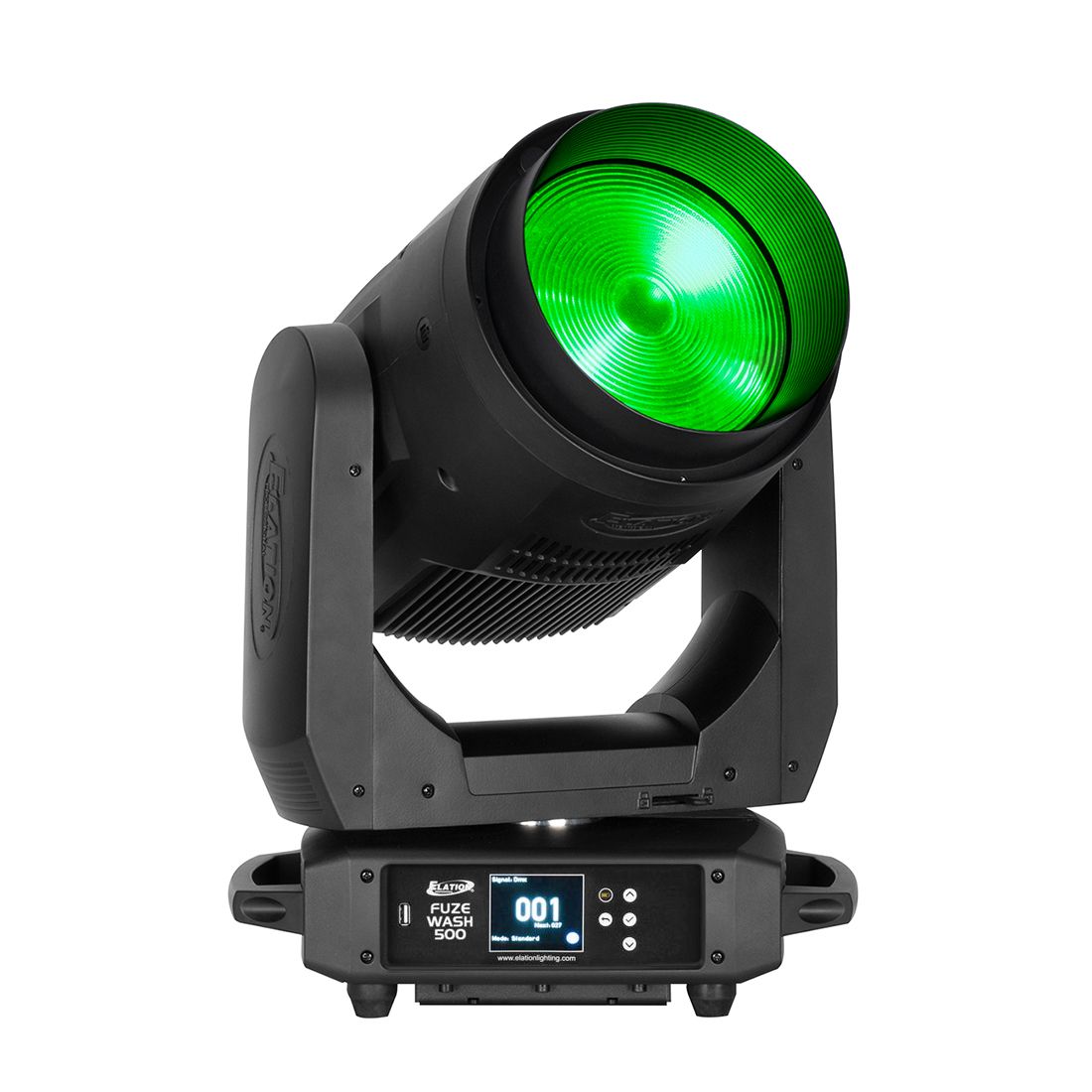

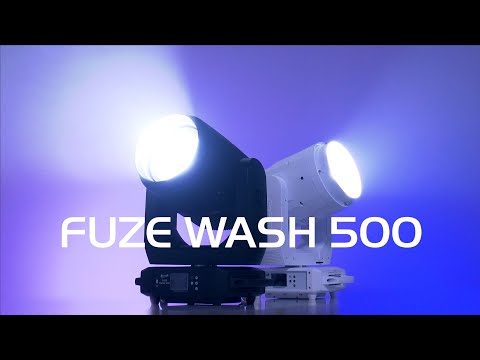

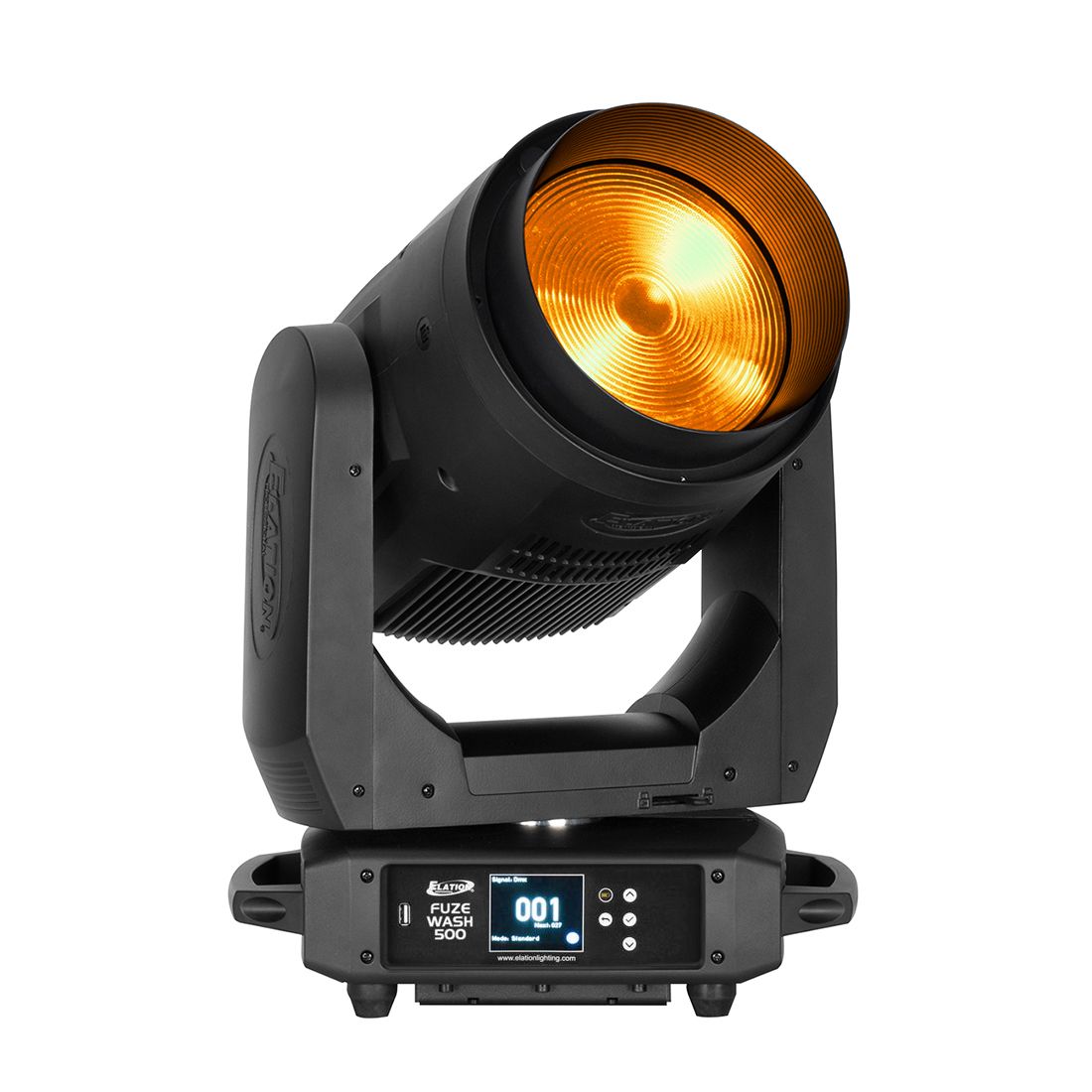

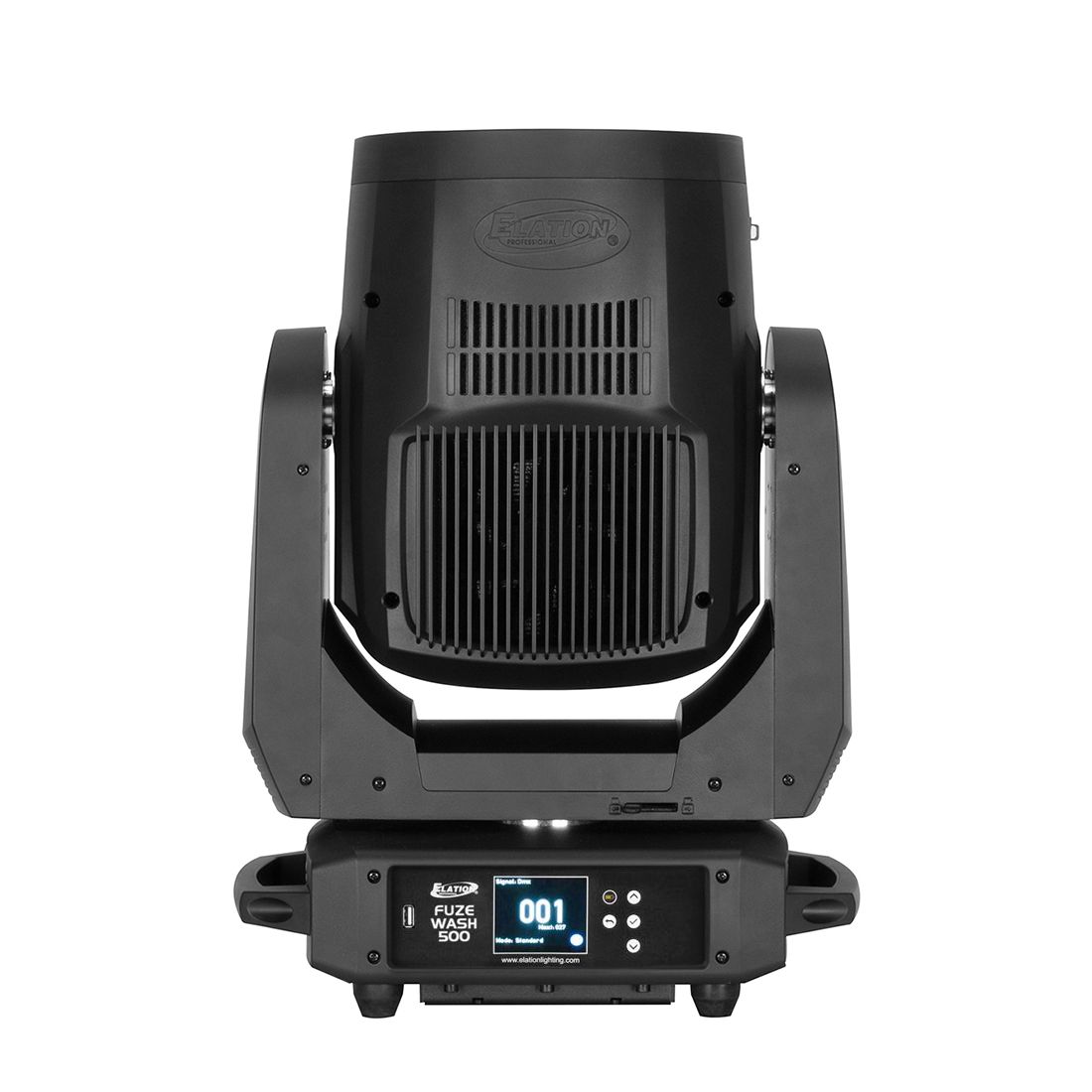

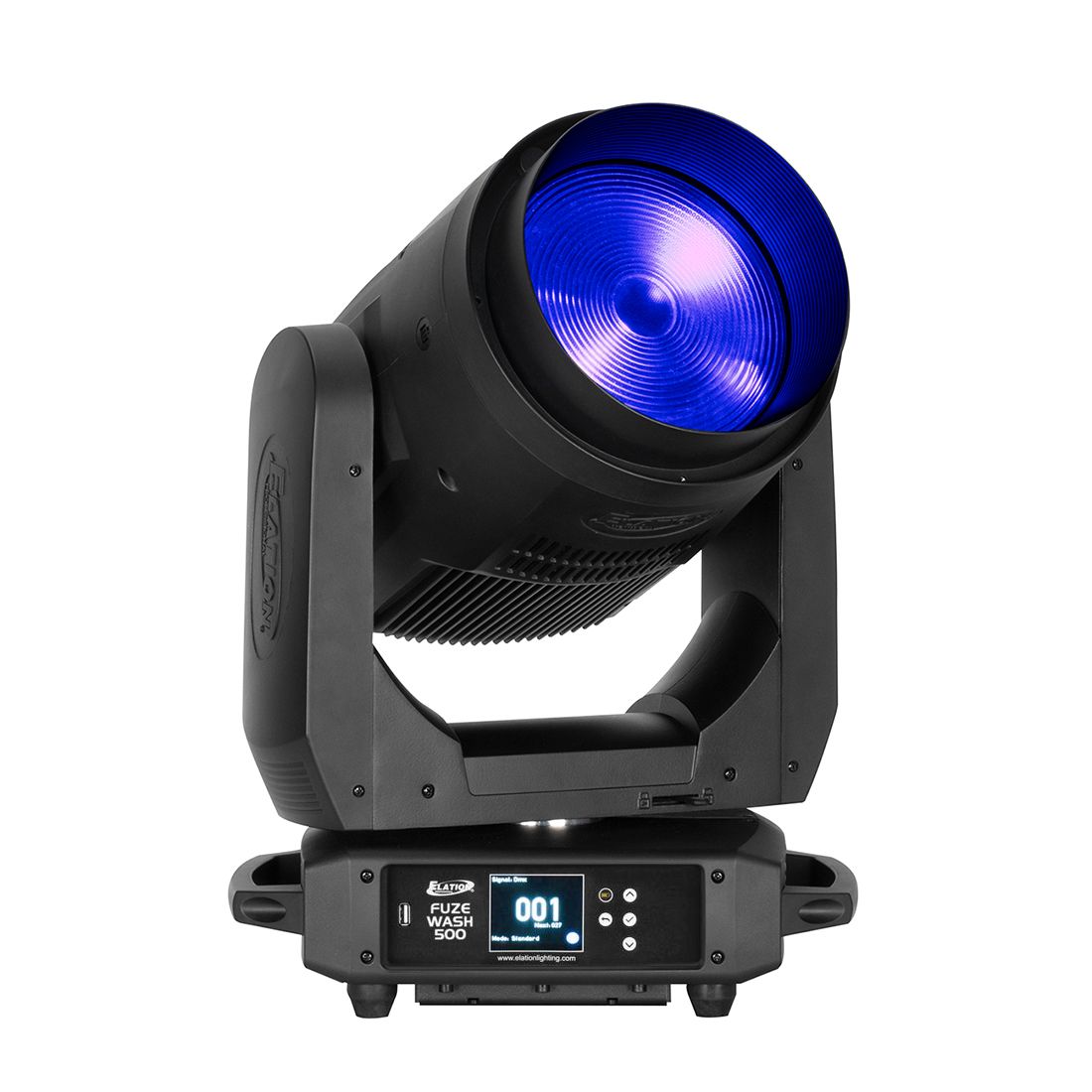

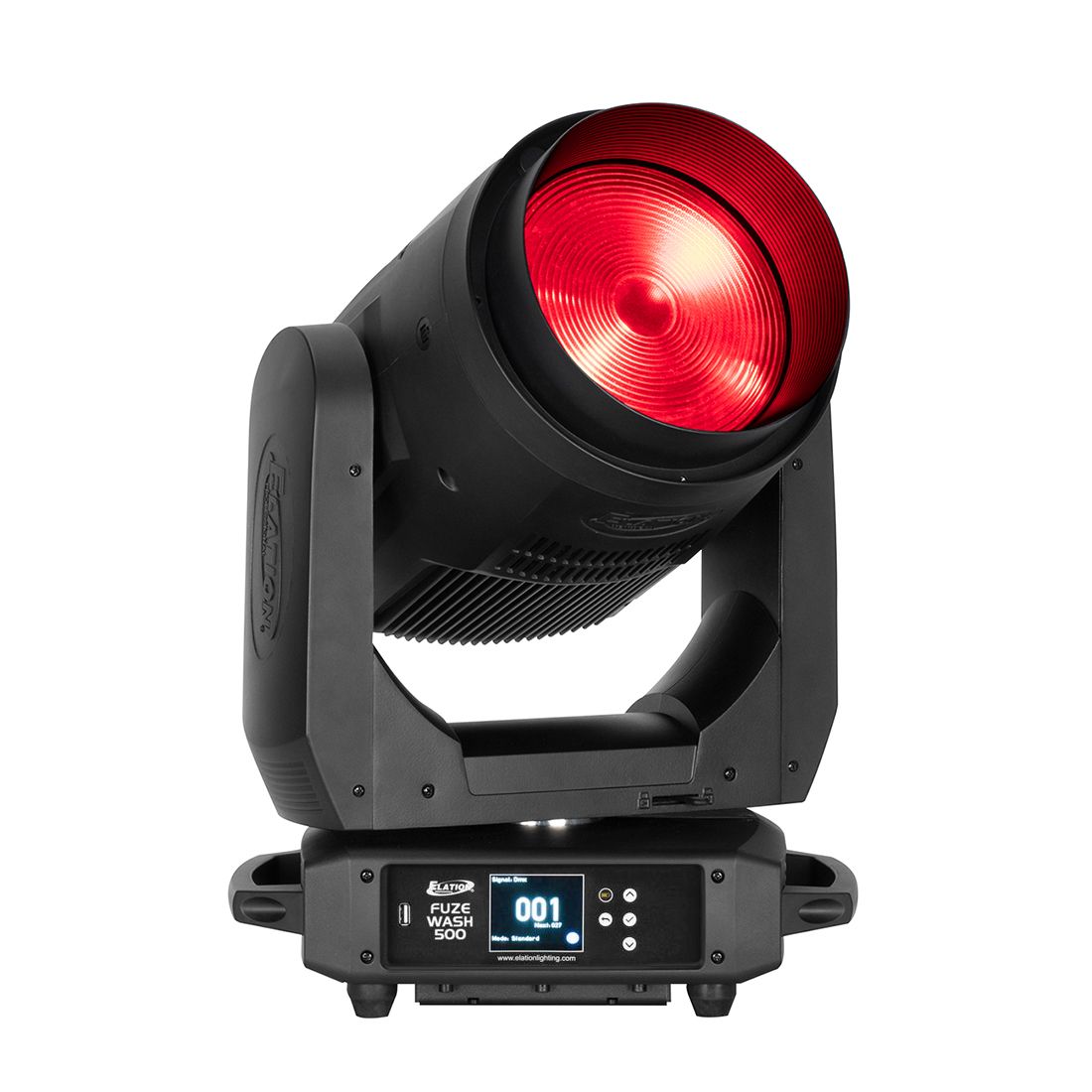

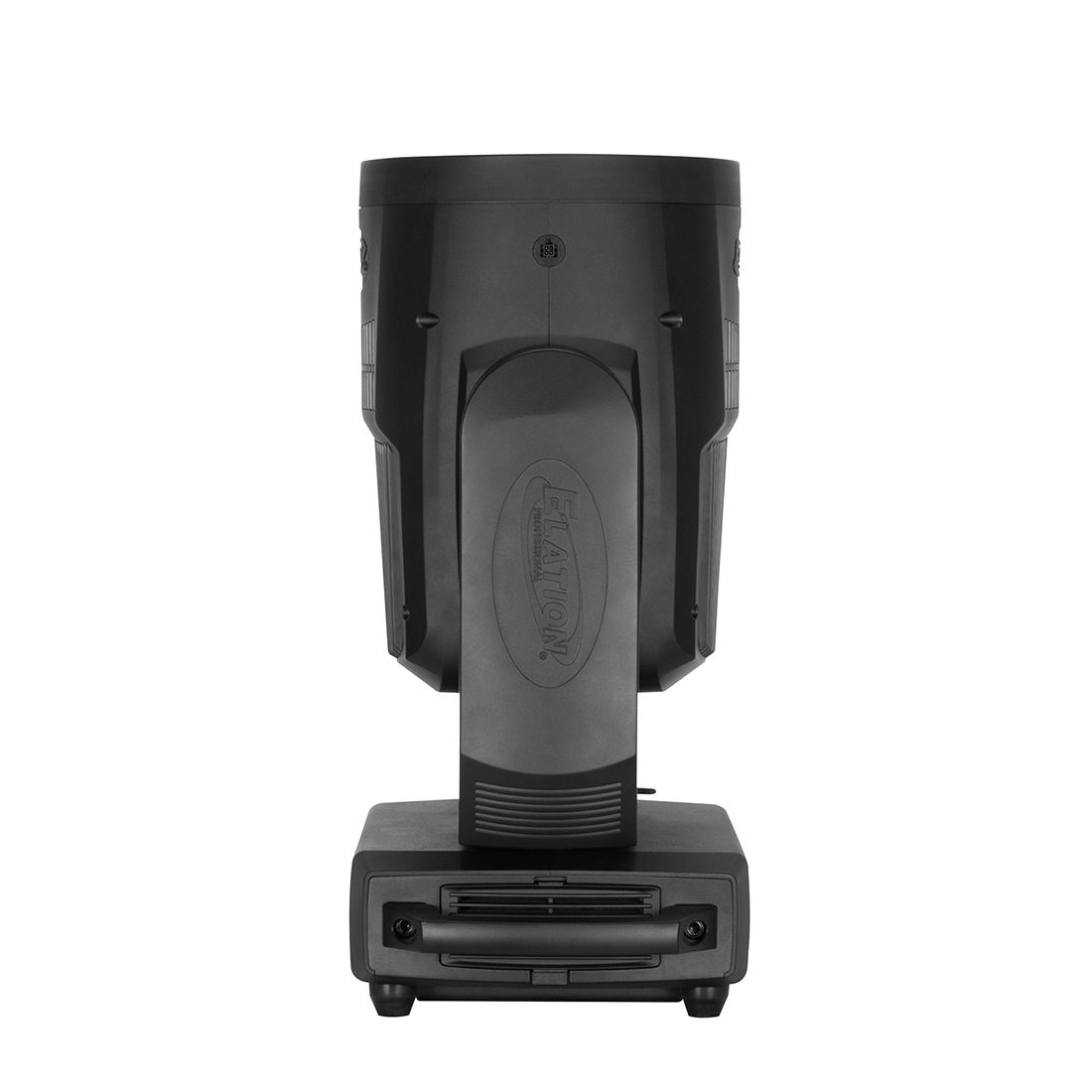

Fuze Wash 500

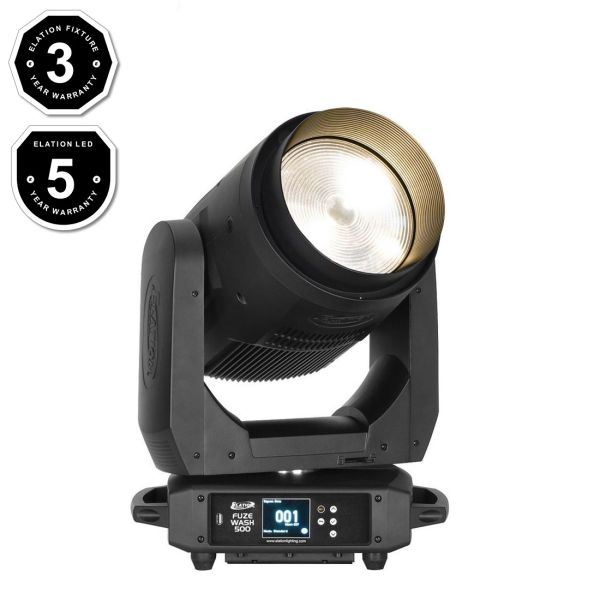

The FUZE WASH 500™ is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 17,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

The FUZE WASH 500 is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field is required. An optional indexable ovalizer lens and a fully automated barn door system is available for additional remote beam control.

Technical Data

FEATURES

500W Full Spectrum RGBMA LED Engine
Up to 17,000 Total Lumen Fixture Output @ 6500K
CRI up to 92
Wide Zoom Range from 6° to 53°
Variable 16-bit Dimming Curve Modes
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book


SOURCE

500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

17,000 Total Lumen Fixture Output
CRI 92
Zoom Range 6° - 53°
Field Angle 12.1° - 63.6°
Beam Angle 6.3° - 53.7°

EFFECTS

Motorized Zoom

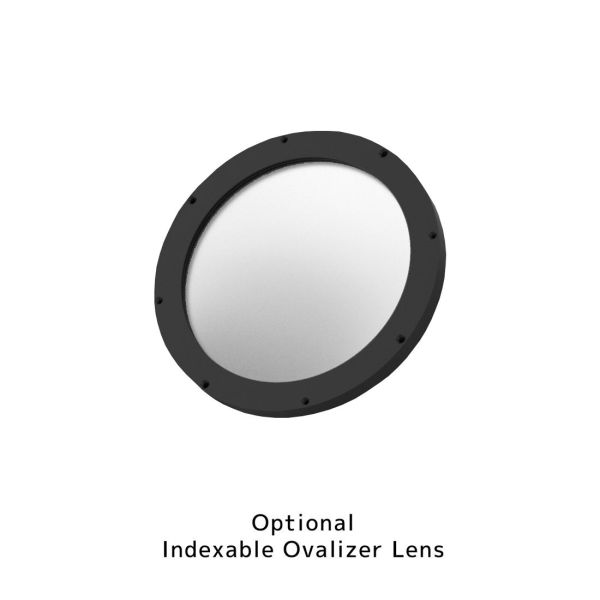

Optional Indexable Ovalizer Lens

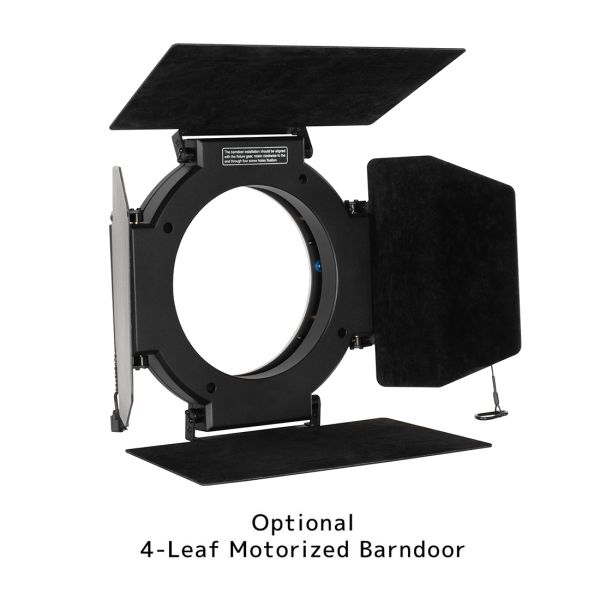

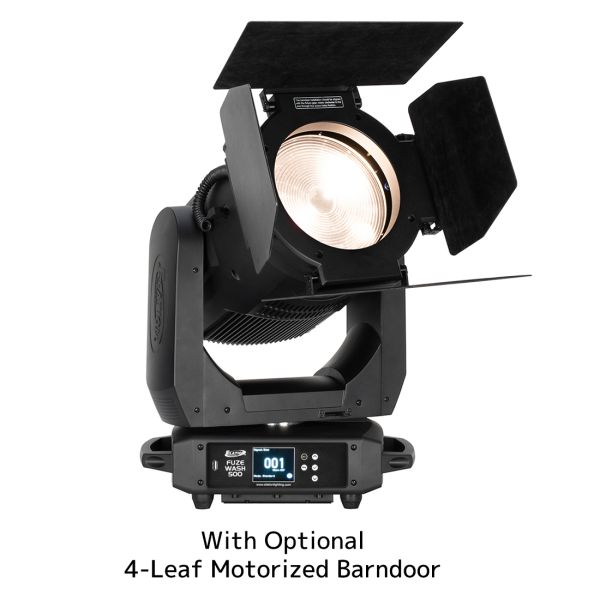

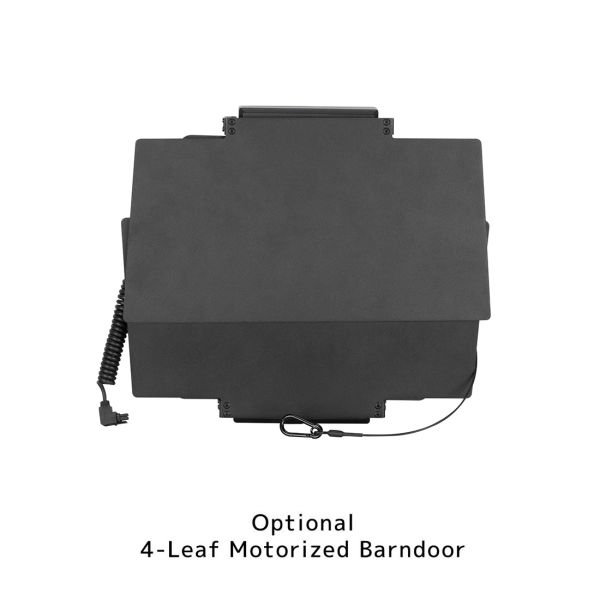

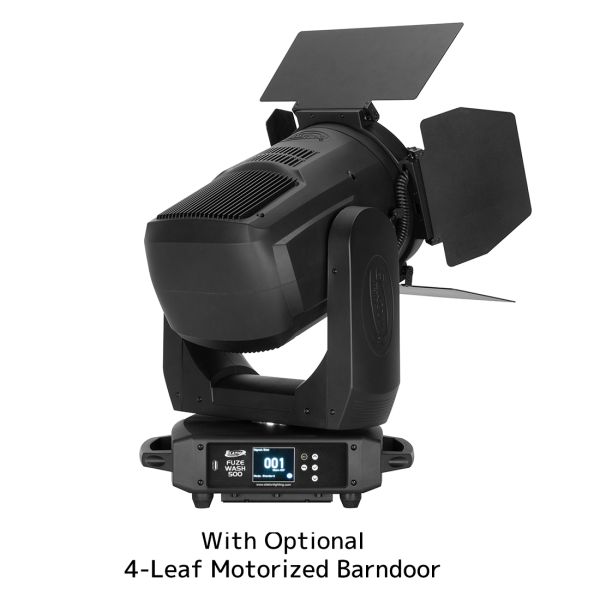

Optional Motorized Barndoors
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe


COLOR

RGBMA Color Array
CMY and RGB Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

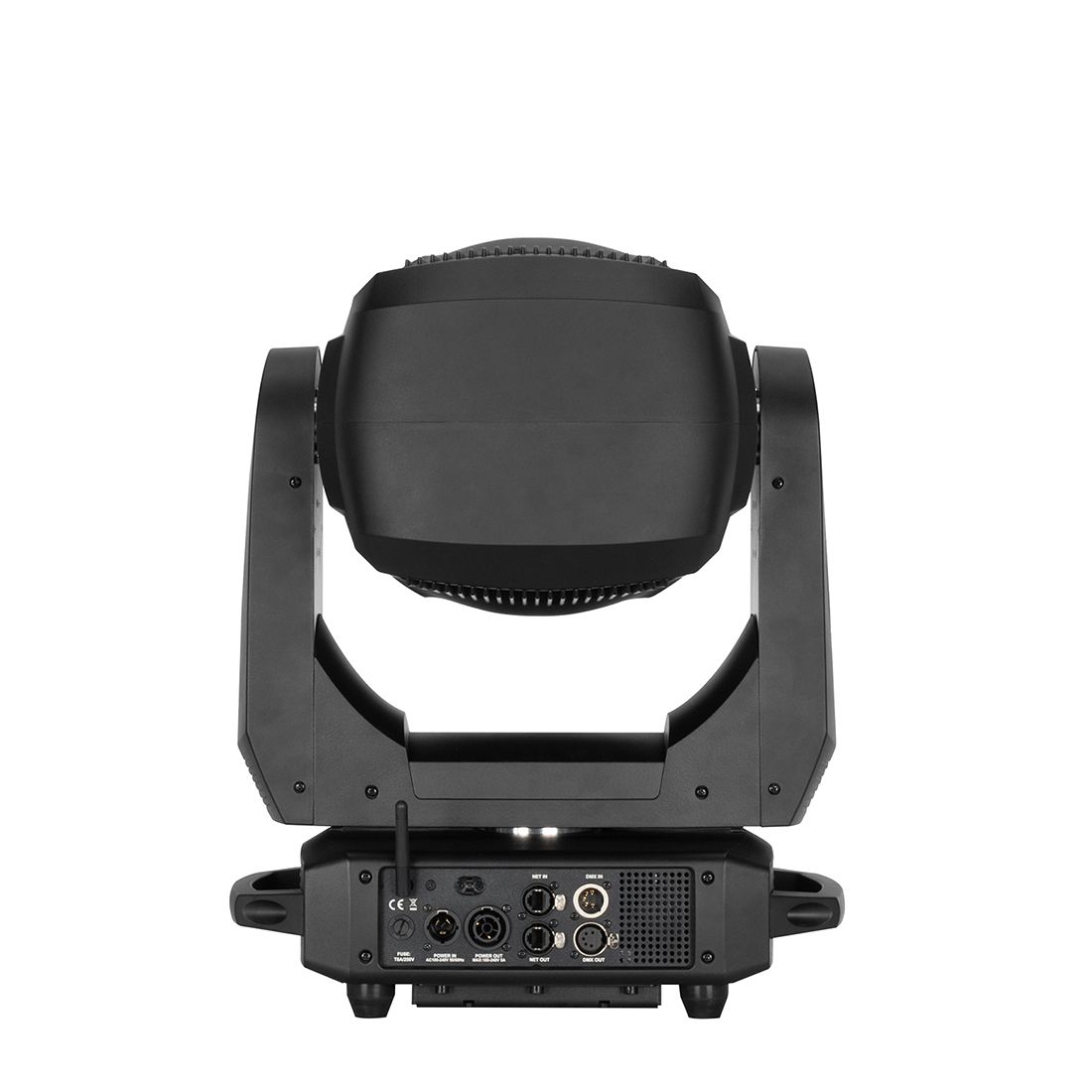

CONTROL / CONNECTIONS

DMX Channel Modes
With Barndoor: 6 Channel modes - 21Ch, 30Ch, 19Ch CMY, 26Ch Ex, 19Ch RGB, 26Ch RGB Ex,
Without Barndoor: 6 Channel modes - 17Ch, 26Ch, 15Ch CMY, 22Ch CMY, 15Ch RGB, 22Ch RGB Ex
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
Locking IP65 Power Connector In/Out
USB Connection (Firmware Updates)


SIZE / WEIGHT

Without Snoot:
Length: 350mm (13.8”)
Width: 407.9mm (16.1”)
Vertical Height: 550.5mm (21.7”)

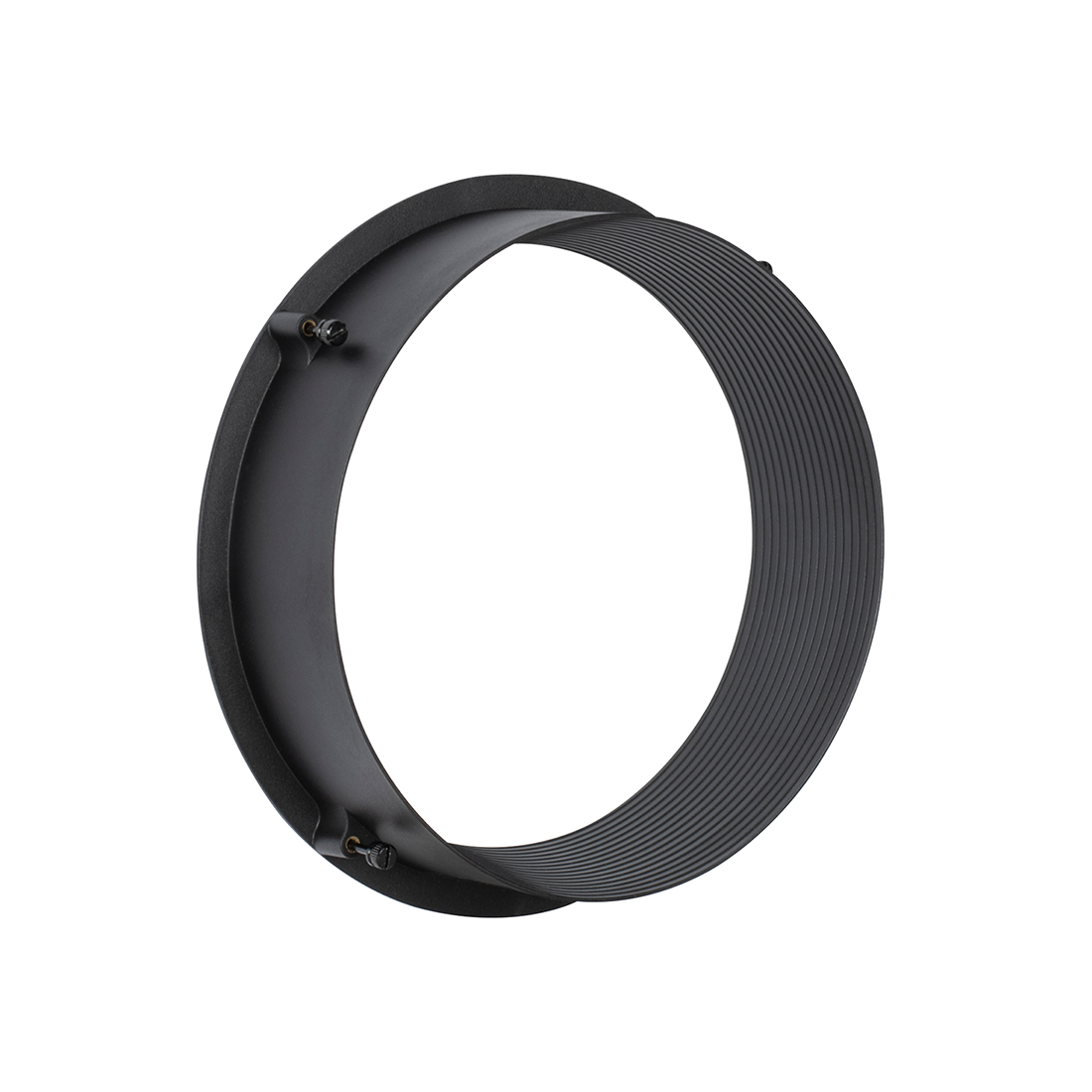

With Snoot:
Length: 389.5mm (15.3”)
Width: 407.9mm (16.1”)
Vertical Height: 590mm (21.7”)
Center Spacing: 600mm (23.6")
Weight: 18.5kg (40.8 lbs.)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
Max Power Consumption 609W
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2151.71


OPTIONAL ITEMS

1521000389 Fuze Wash 500 Ovalizer

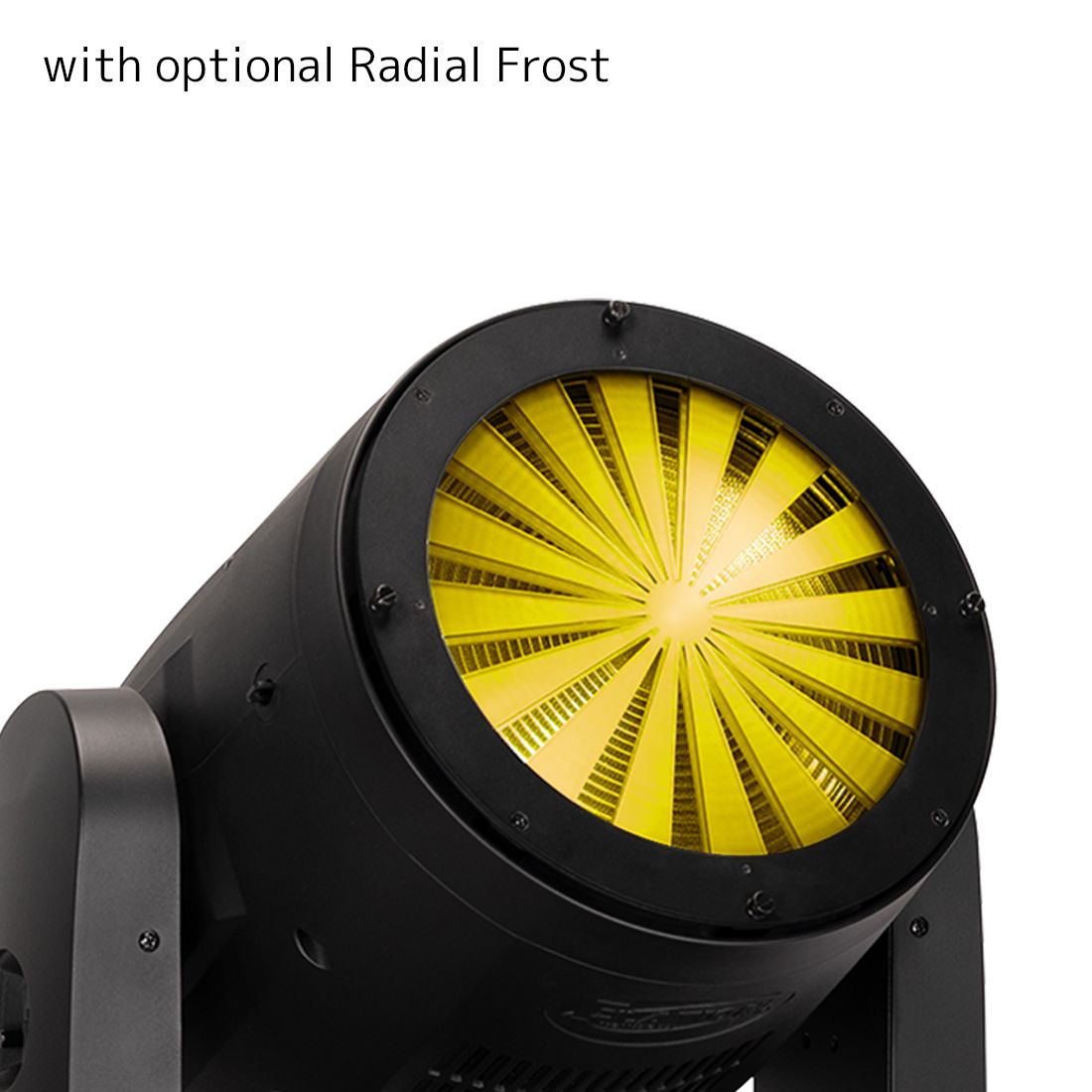

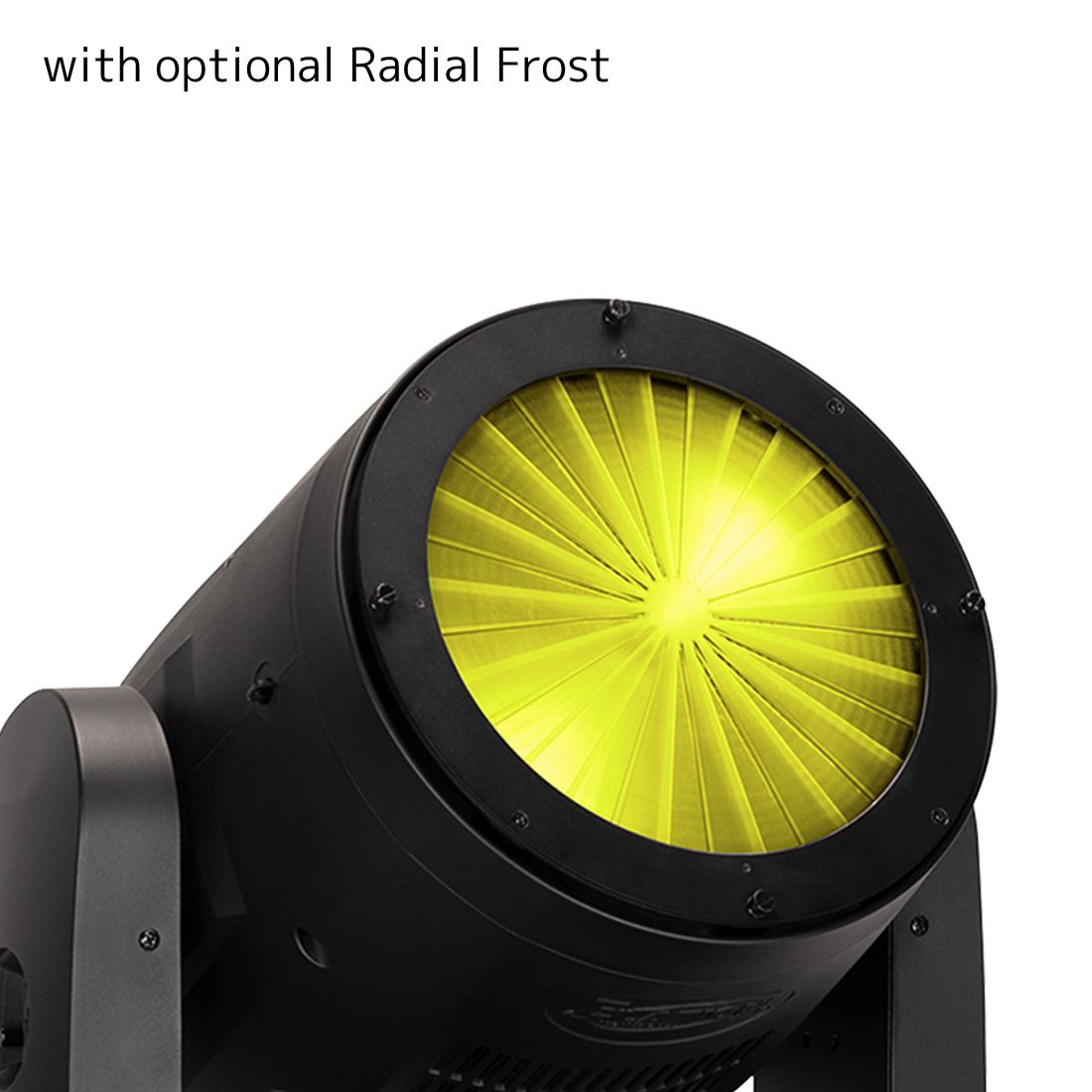

1237000371 Fuze Wash 500 Radial Frost
1521000388 Fuze Wash 500 Motorized Barndoors

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
