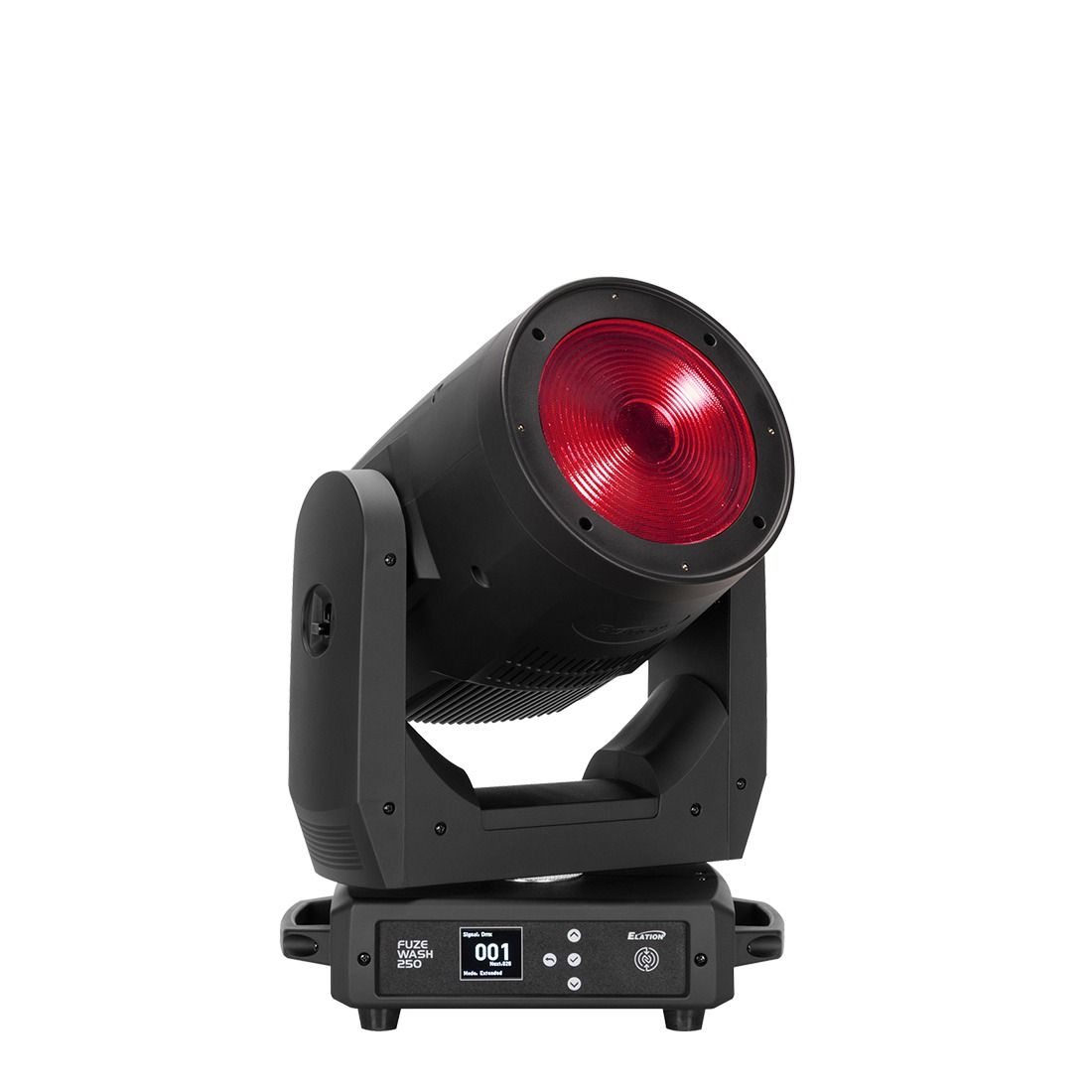

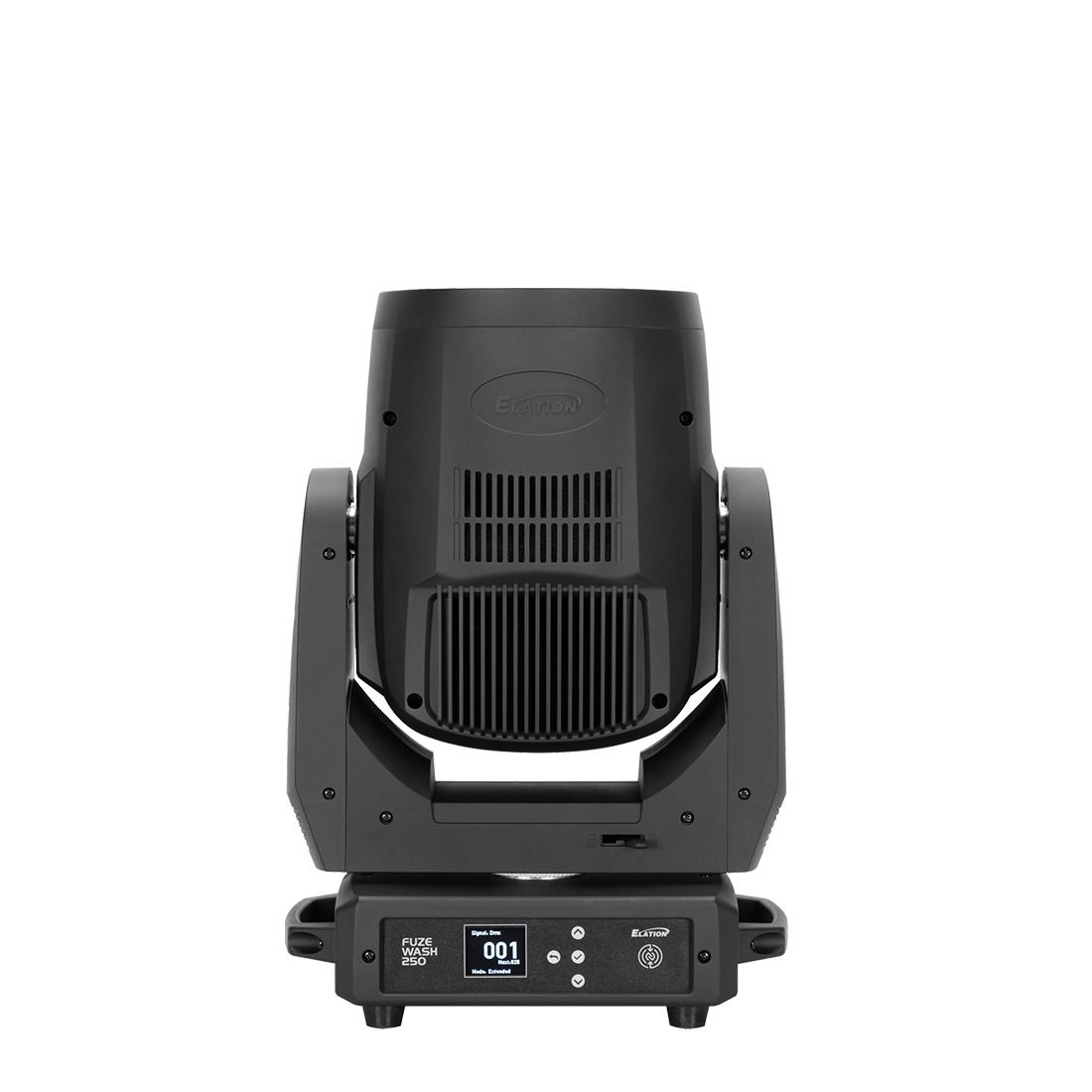

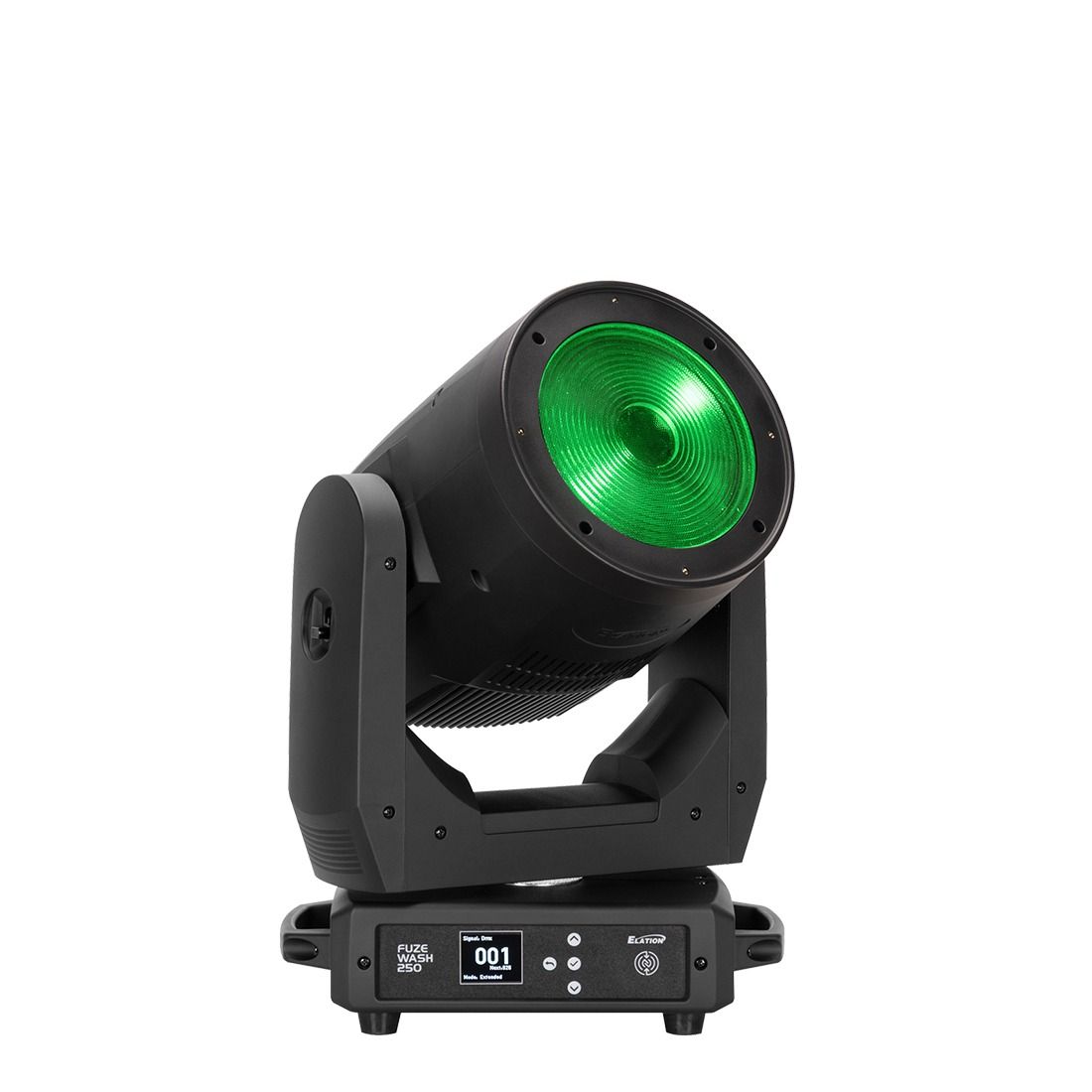

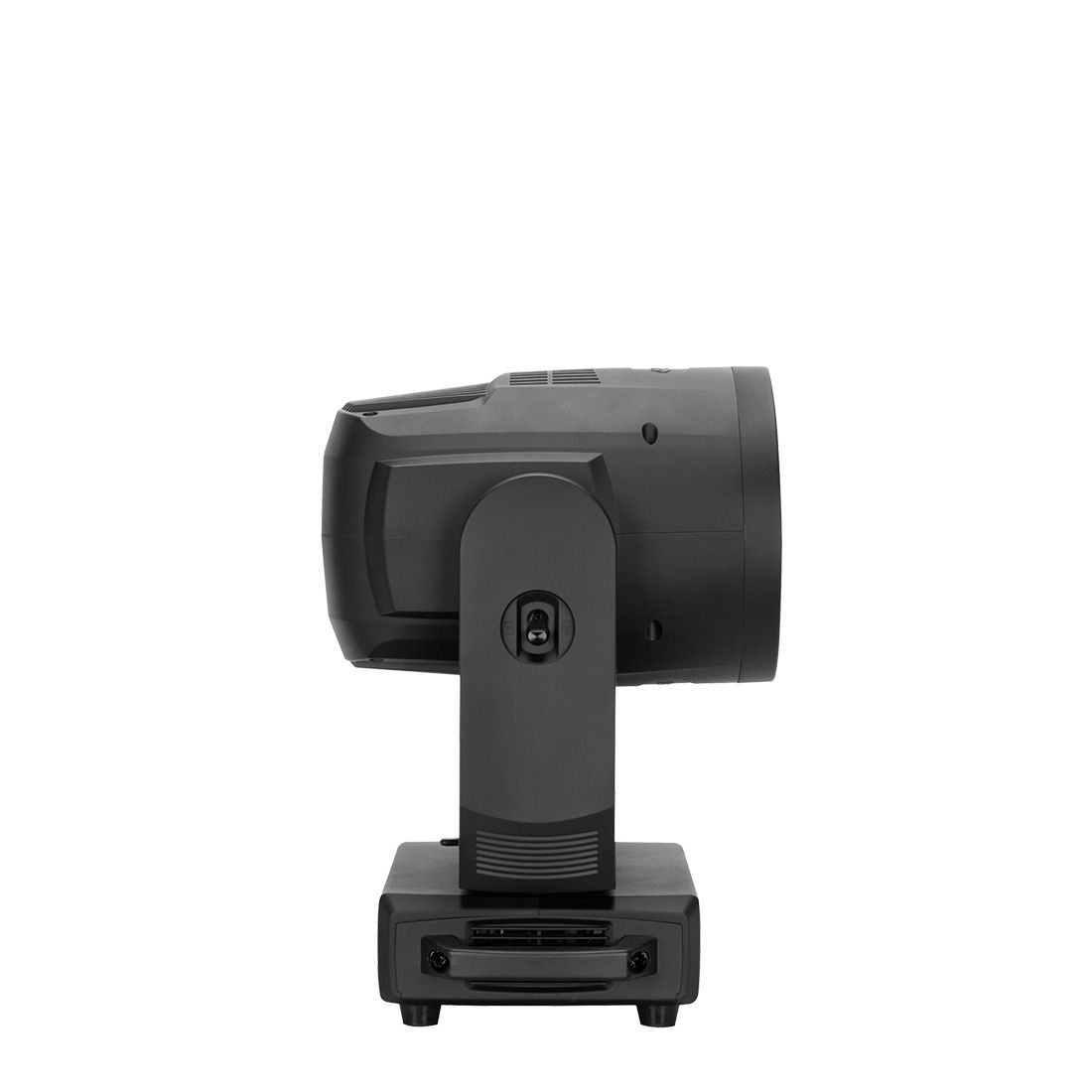

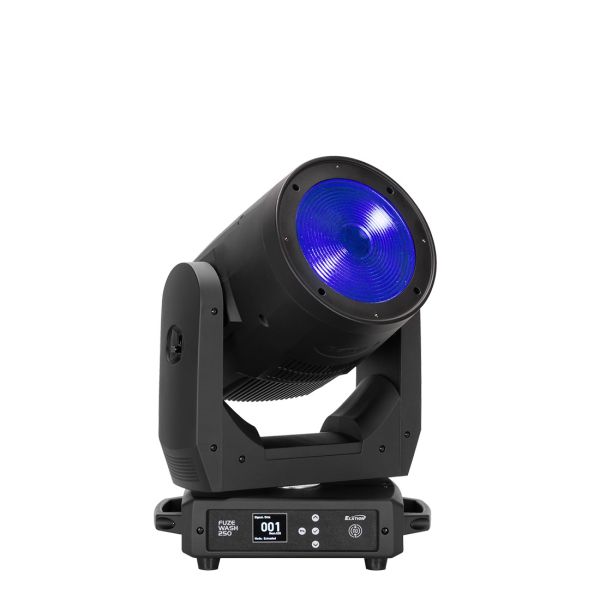

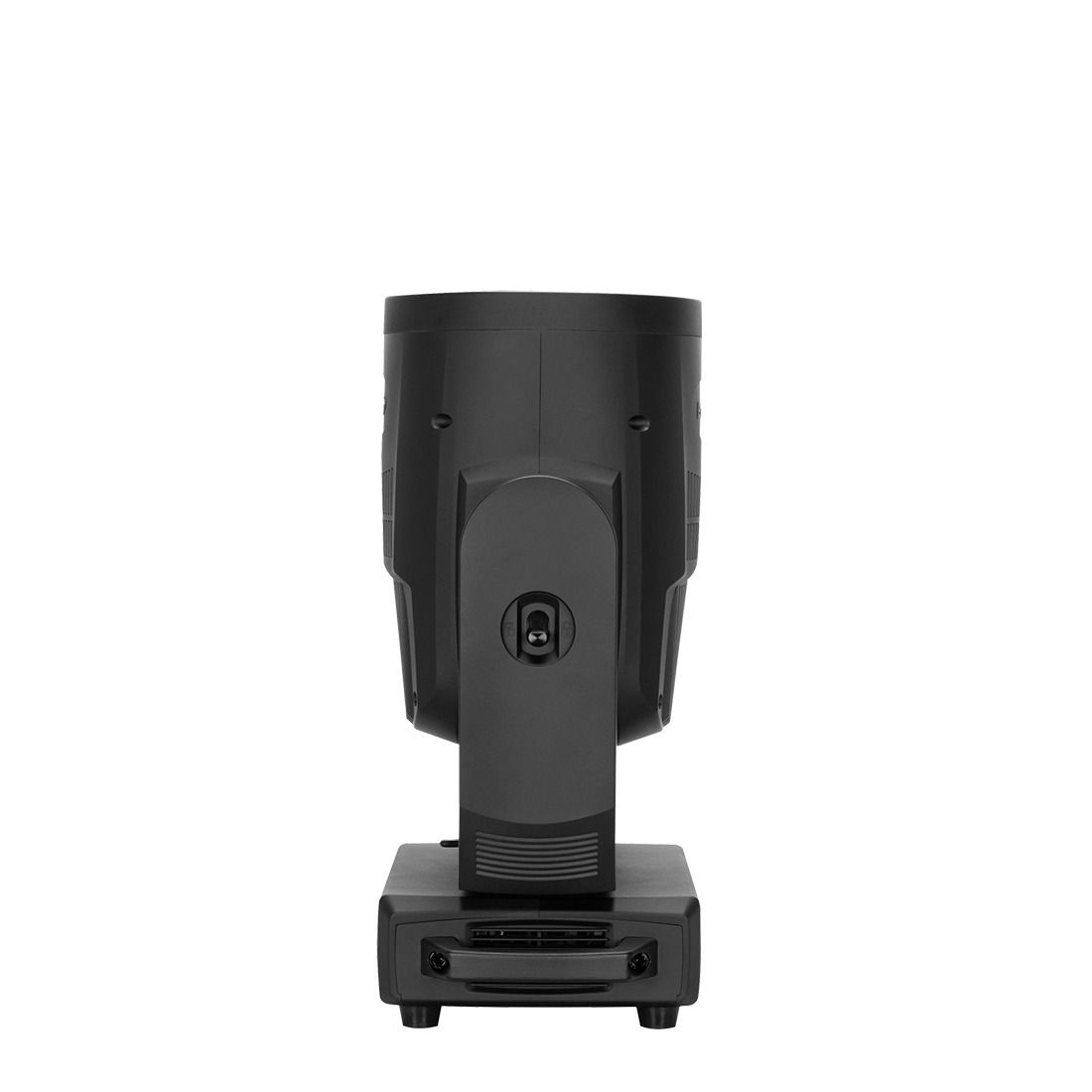

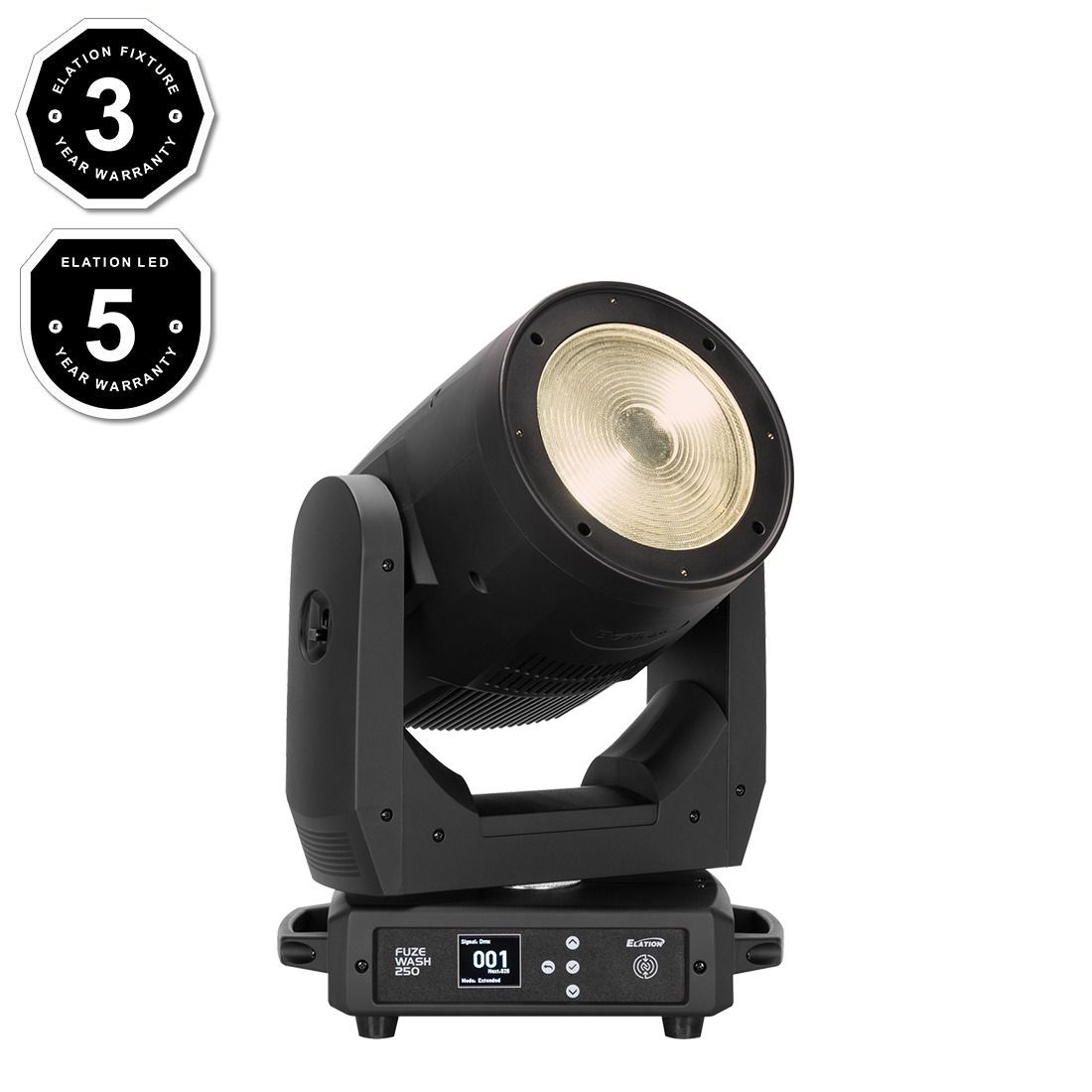

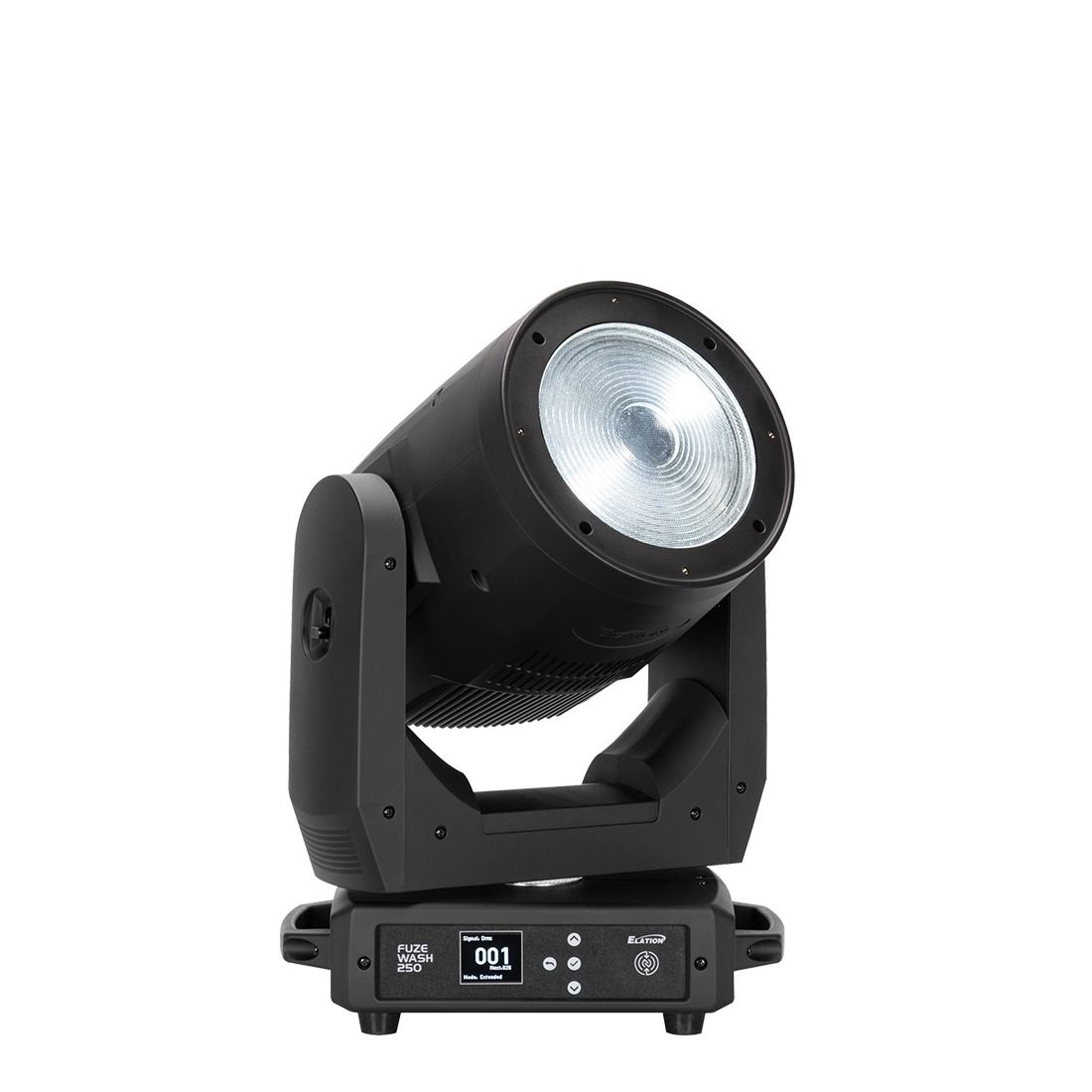

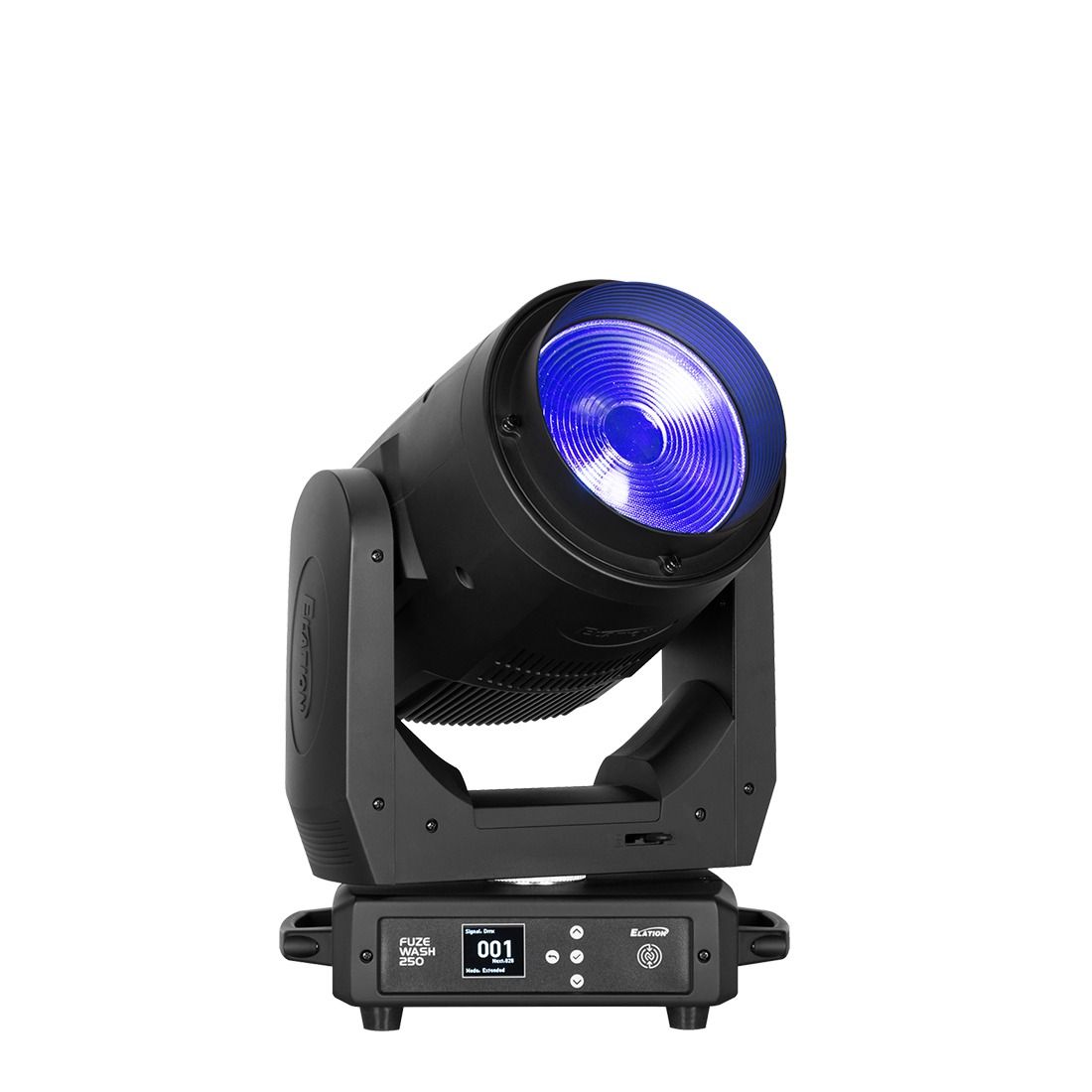

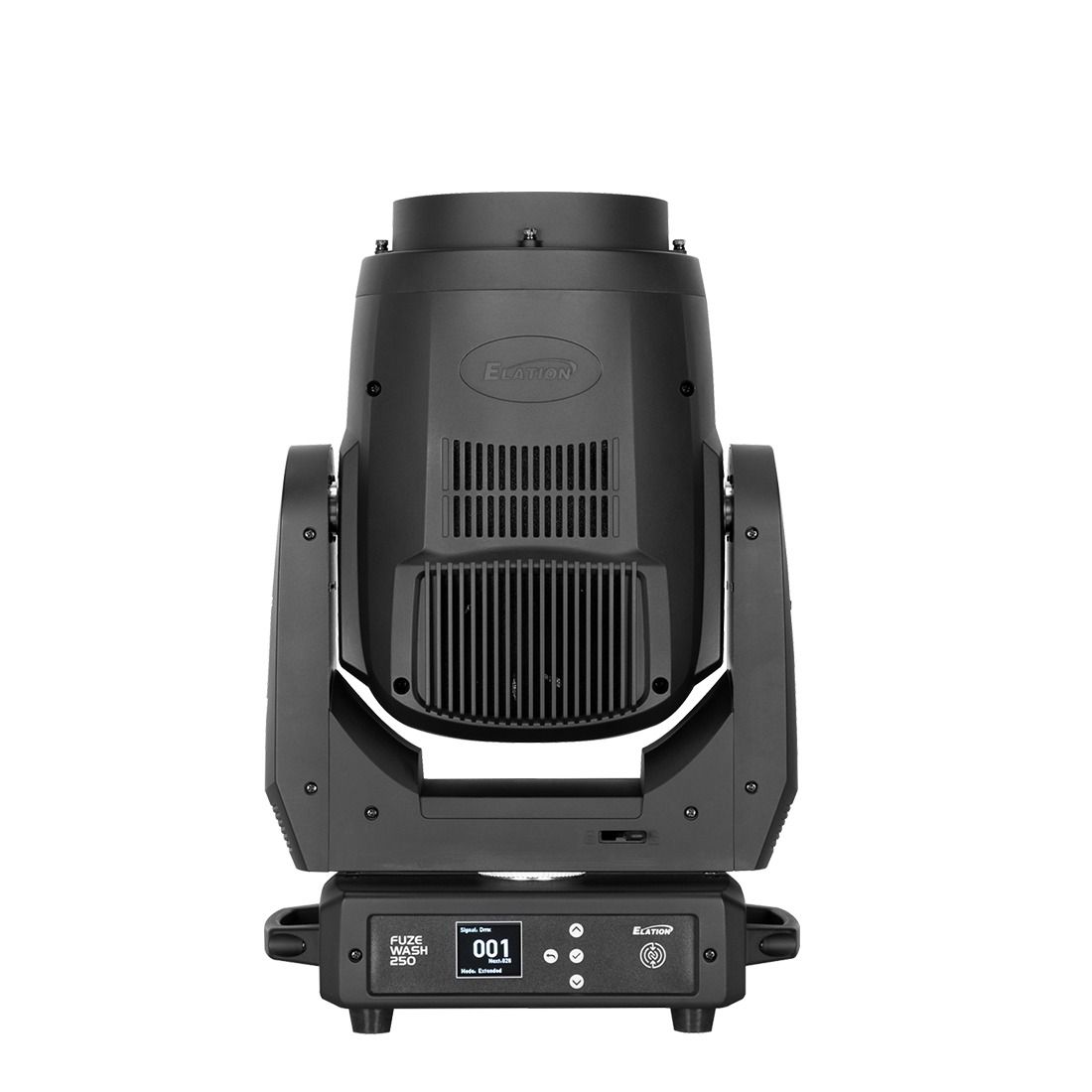

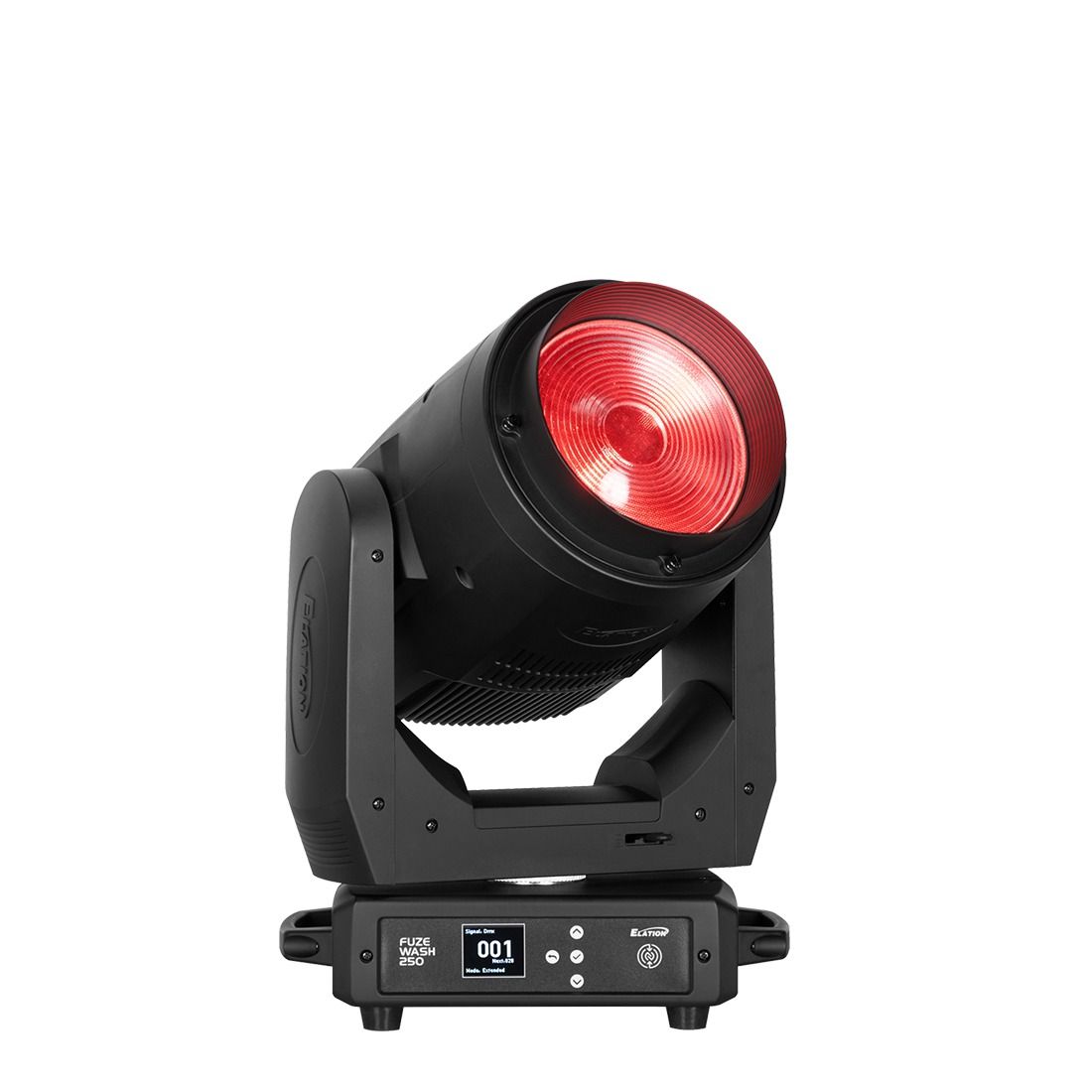

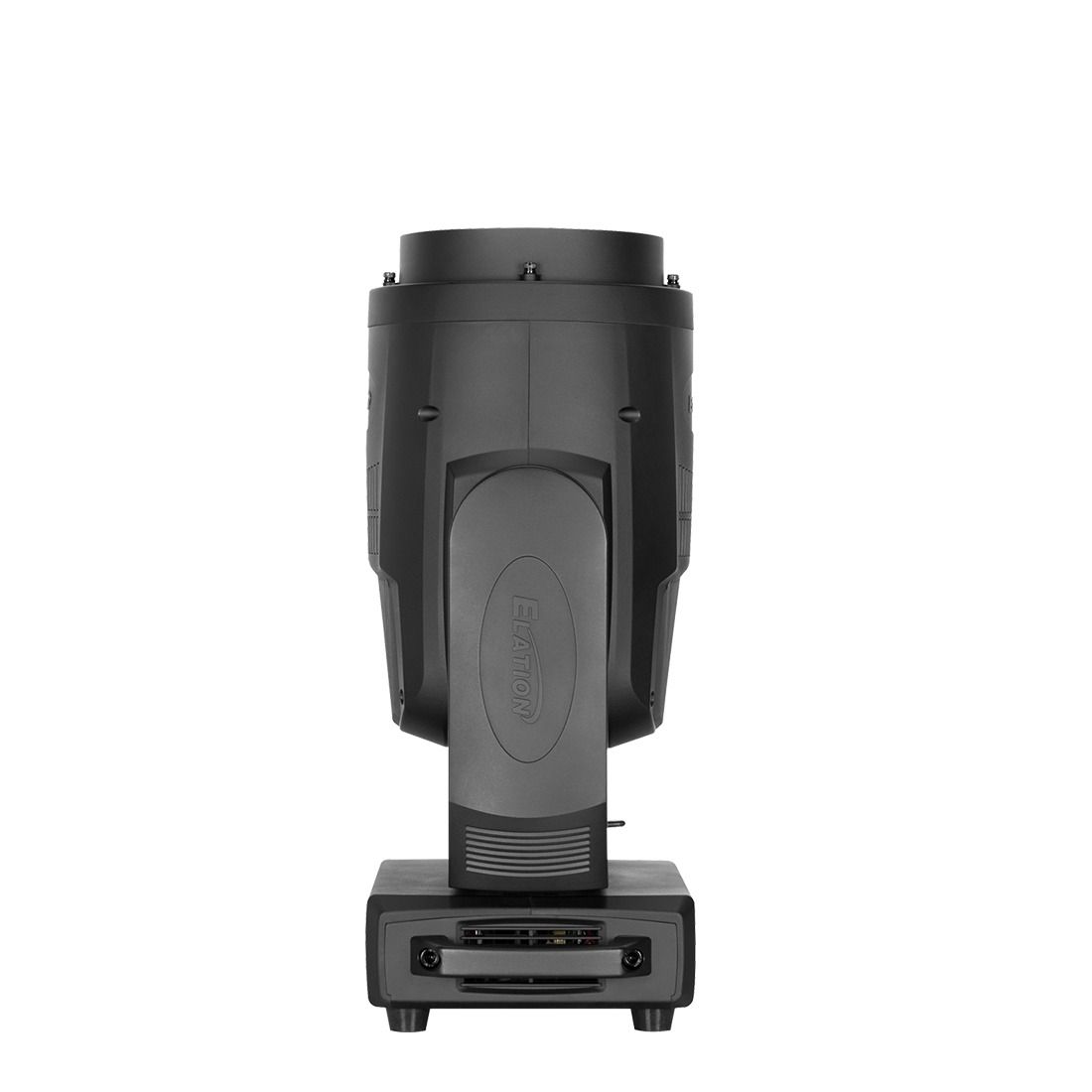

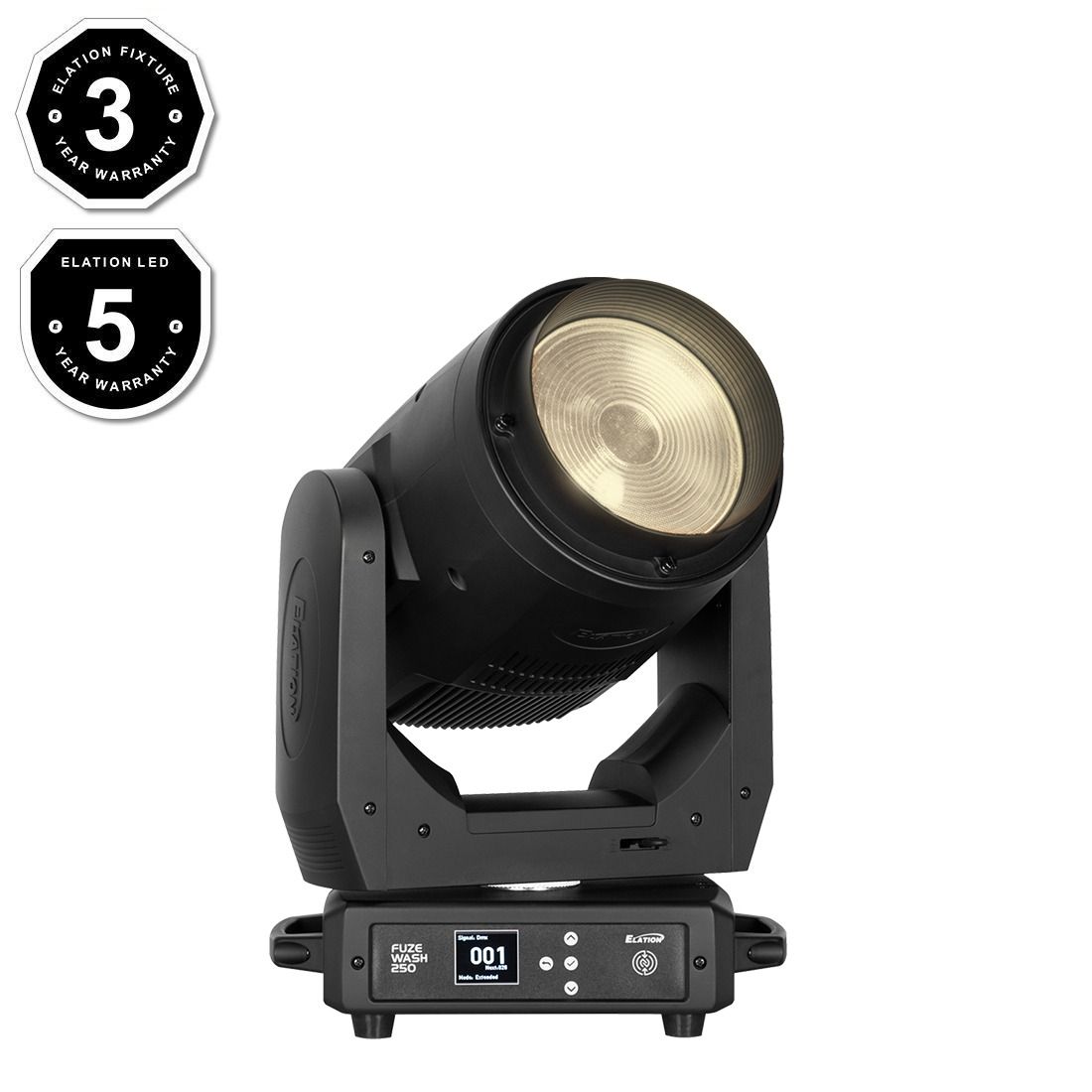

Fuze Wash 250

The FUZE WASH 250™ is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications.

A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 8500 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

The FUZE WASH 250 is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field is required.

Technical Data

FEATURES

250W Full Spectrum RGBMA LED Engine
Up to 8500 Total Lumen Fixture Output (Sphere)
CRI up to 92
Wide Zoom Range from 6° to 50°
Variable 16-bit Dimming Curve Modes
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book


SPECIFICATIONS

SOURCE

250W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
8,500 (Integrating Sphere)
7,883 (Goniometer)
CRI 92
Zoom Range 6° - 50°
Field Angle 11.6° - 51.7°
Beam Angle 6.9° - 43.6°

EFFECTS

Motorized Zoom
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe

COLOR

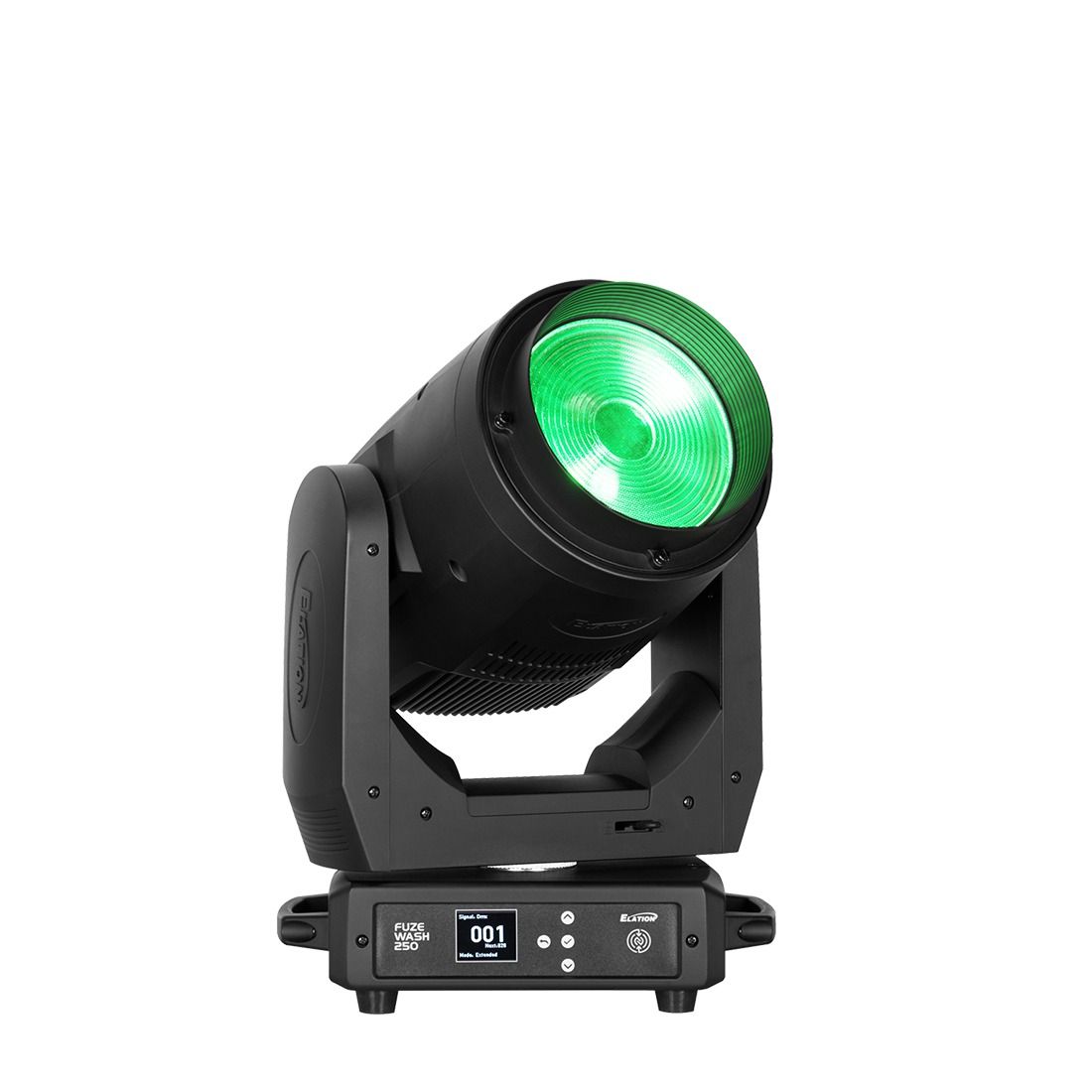

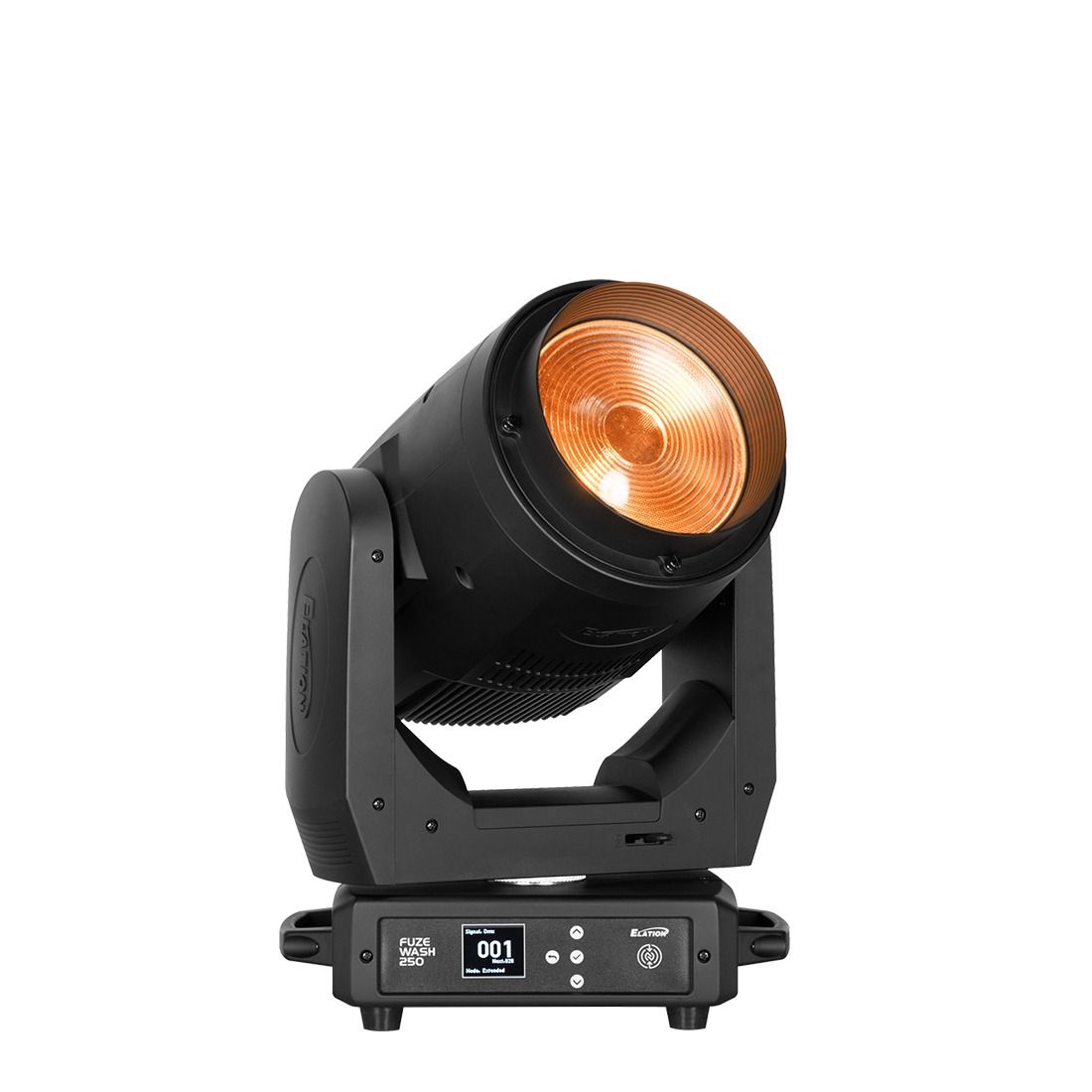

RGBMA Color Array
CMY and RGB Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

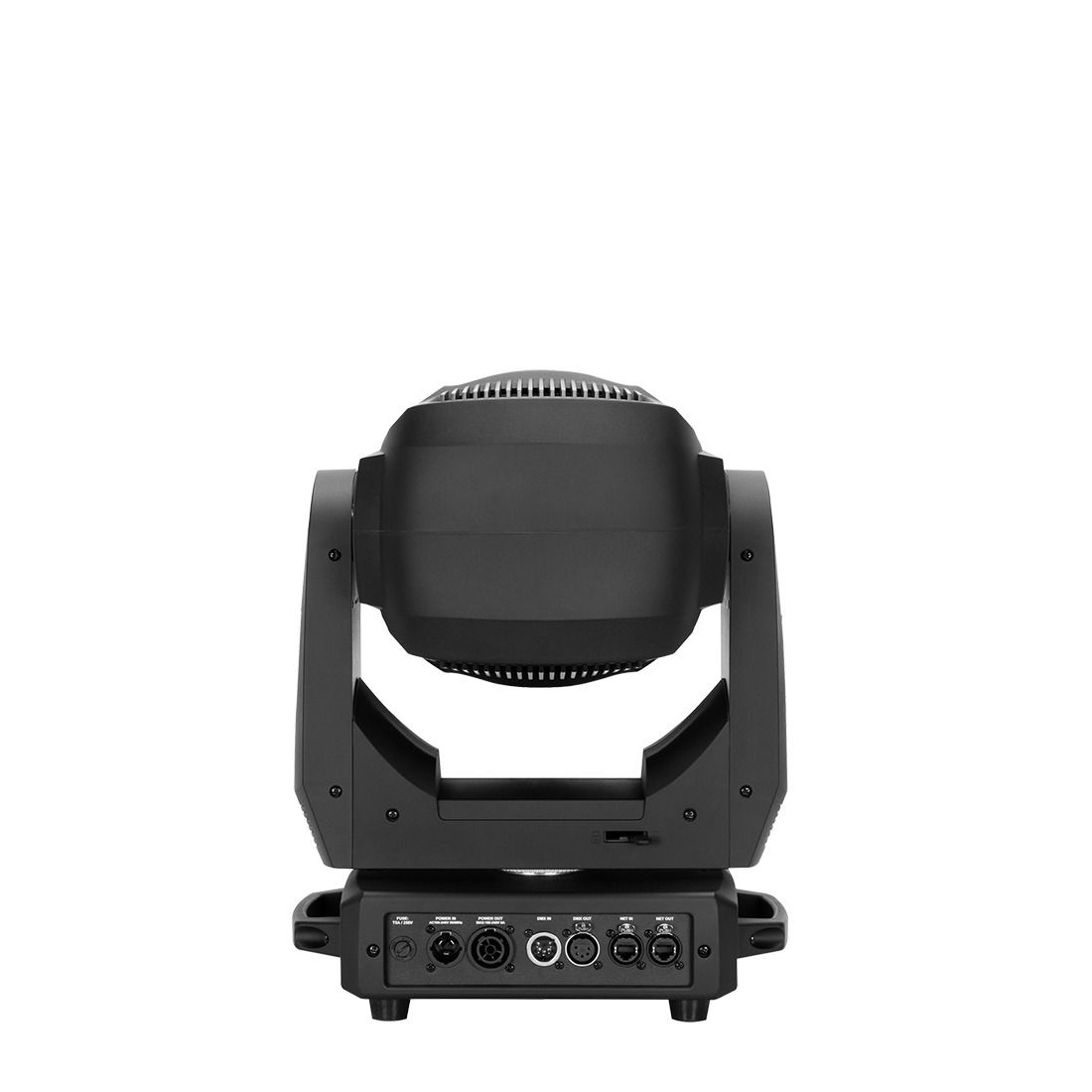

CONTROL / CONNECTIONS

RGBMA, RGB, CMY, DMX Channel Modes (14ch, 14ch, 17ch, 21ch, 21ch & 25ch)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
Aria x2 Wireless Device Management
NFC Configuration

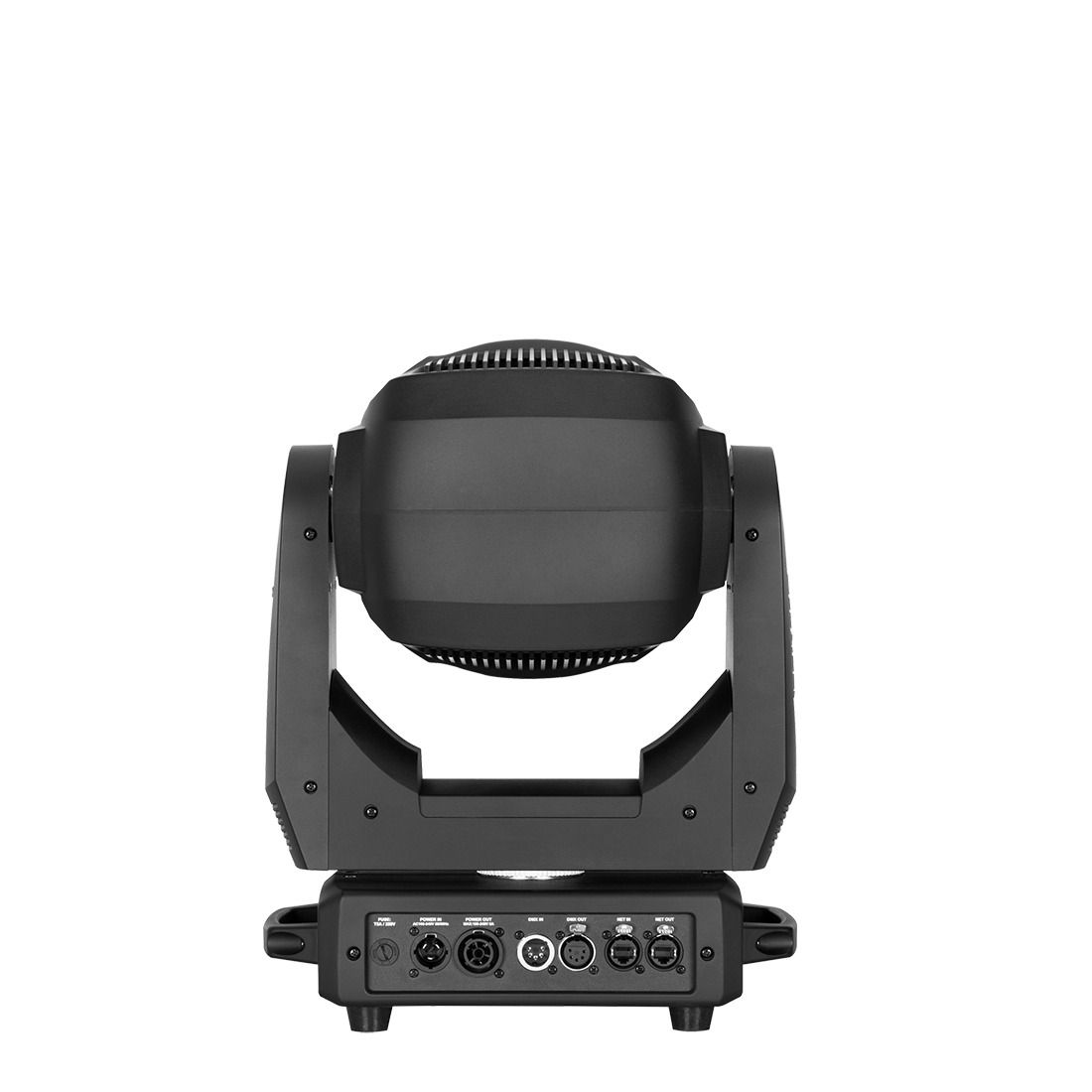

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
RJ45 Ethernet In/Out (Art-Net sACN)

SIZE / WEIGHT

Length: 208mm (8.2”)
Width: 327mm (12.9”)
Vertical Height: 459mm (18.1”)
Vertical Height w/Snoot: 493mm (19.4”)
Weight:  11.3kg (24.8lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
Max Power Consumption 350 W
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS

Snoot

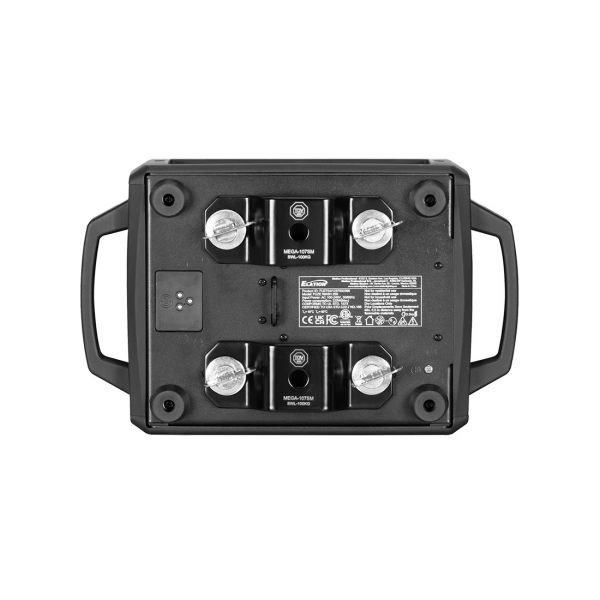

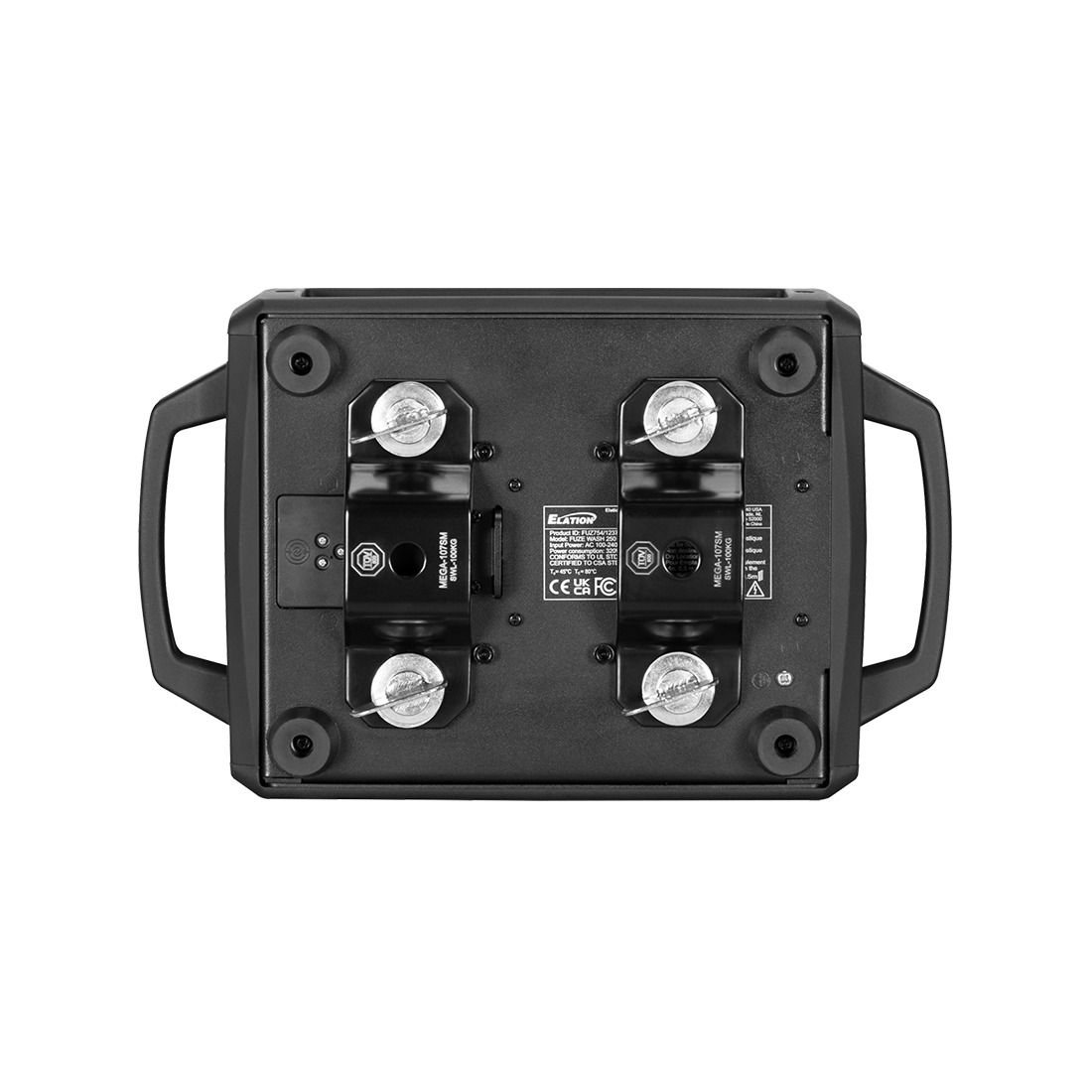

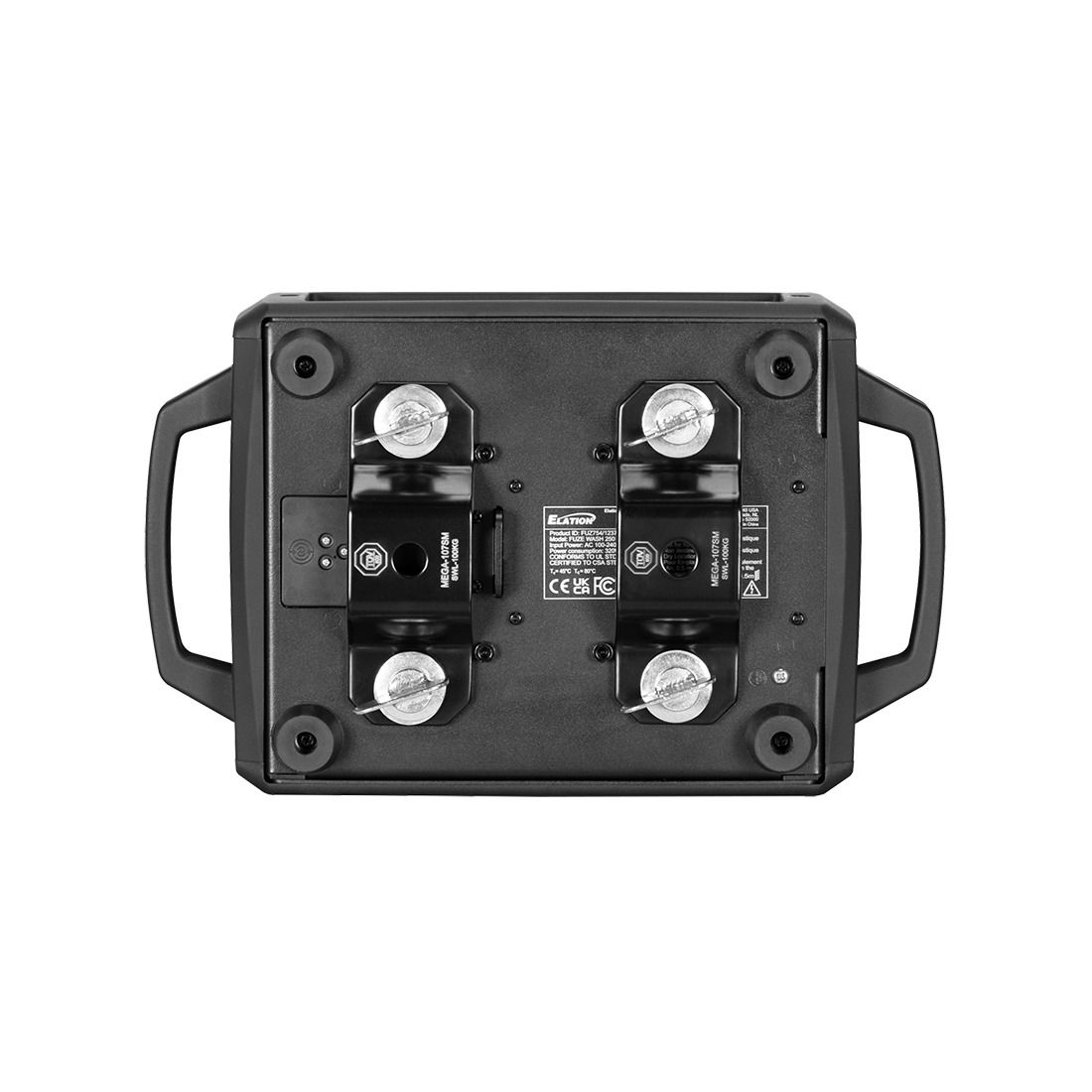

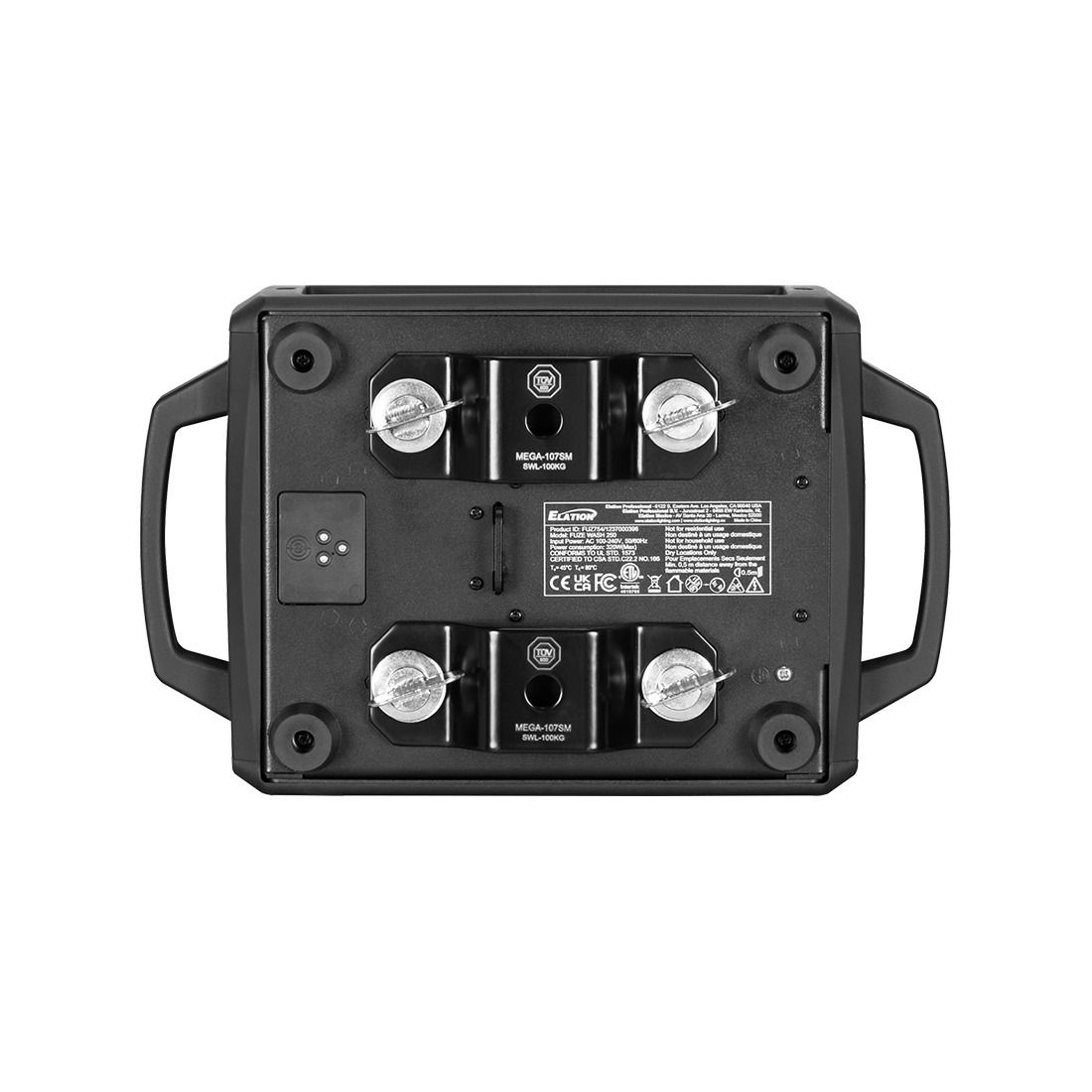

Omega Brackets (x2)
IP65 Rated Locking Power Cable

FIRMWARE UPDATES

Current firmware can be found here (login required)

Specifications and documentation subject to change without notice
