Code
1237000223
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/f/u/fuze-sfx_1_1.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/s/f/sfx.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000223_fuze_sfx_3_1.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/s/f/sfx_top.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000223_fuze_sfx_2_1.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/s/f/sfx_rear.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/o/t/ott.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000223_fuze_sfx_side-up_1.jpg)
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1237000223_fuze_sfx_side_1.jpg)
FEATURES
300W LED 6,600K White LED Engine12135 Total Lumen Fixture Output

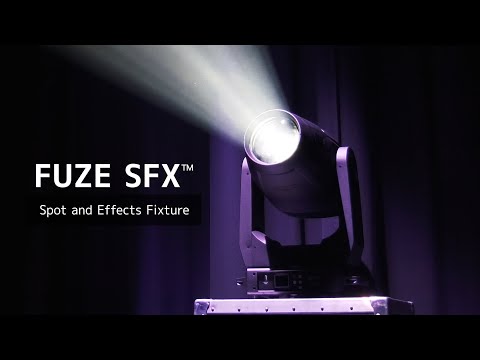

Spot and Effects Fixture
Zoom Range from 4.5° to 38°
Variable CMY and 7-Position Color Wheel
High CRI and CTO filter
8 Rotating and 10 Fixed Gobos
Dual Independent Prisms for Layering
Motorized Iris
Variable Wash Frost Filter
SPECIFICATIONS
SOURCE
300W 6,600K Bright White LED Engine
20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
12135 Total Lumen Output
CRI 68+
Zoom Range 4.5° - 38°
Beam Angle 4.6° - 38.2°
Field Angle 5.6° - 42.2°
EFFECTS
Motorized Zoom
Remote Focus
Variable Frost Filter
Dual Independent Prisms (6 Facet linear & 6 Facet round)
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 270°
COLOR
CMY Variable Color Mix
7 Position Color Wheel
High CRI Filter, CRI 84
CTO Filter (with High CRI Filter), 3200K, CRI 77
GOBOS
2 Gobo Wheels
Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
Wheel #2 with 10 Static Gobos
CONTROL / CONNECTIONS
31 DMX Channels
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 362mm (14.3”)
Width: 233mm (9.2")
Vertical Height: 595mm (23.4")
Weight: 20.8kg (45.9 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
432W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1473.12
FIRMWARE UPDATES
Current firmware can be found here (login required)Specifications and documentation subject to change without notice
COLORS AND GOBOS
Color Flags
![]() |
![]() |
![]() |
Color Wheel
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Gobo Wheel 1
![Gobo 17](/pub/media/gobos/wheel/Gobo17.png)
![Gobo 18](/pub/media/gobos/wheel/Gobo18.png)
![Gobo 19](/pub/media/gobos/wheel/Gobo19.png)
![Gobo 22](/pub/media/gobos/wheel/Gobo22.png)
![Gobo 33](/pub/media/gobos/wheel/Gobo33.png)
![Gobo 104](/pub/media/gobos/wheel/Gobo104.png)
![Gobo 105](/pub/media/gobos/wheel/Gobo105.png)
![Gobo 106](/pub/media/gobos/wheel/Gobo106.png)
Gobo Wheel 2
![Gobo 10](/pub/media/gobos/wheel/Gobo10.png)
![Gobo 40](/pub/media/gobos/wheel/Gobo40.png)
![Gobo 56](/pub/media/gobos/wheel/Gobo56.png)
![Gobo 57](/pub/media/gobos/wheel/Gobo57.png)
![Gobo 62](/pub/media/gobos/wheel/Gobo62.png)
![Gobo 107](/pub/media/gobos/wheel/Gobo107.png)
![Gobo 108](/pub/media/gobos/wheel/Gobo108.png)
![Gobo 109](/pub/media/gobos/wheel/Gobo109.png)
![Gobo 110](/pub/media/gobos/wheel/Gobo110.png)
![Gobo 111](/pub/media/gobos/wheel/Gobo111.png)
Prisms
![Prism 5](/pub/media/prisms/prism_5.png)
![Prism 6](/pub/media/prisms/prism_6.png)
