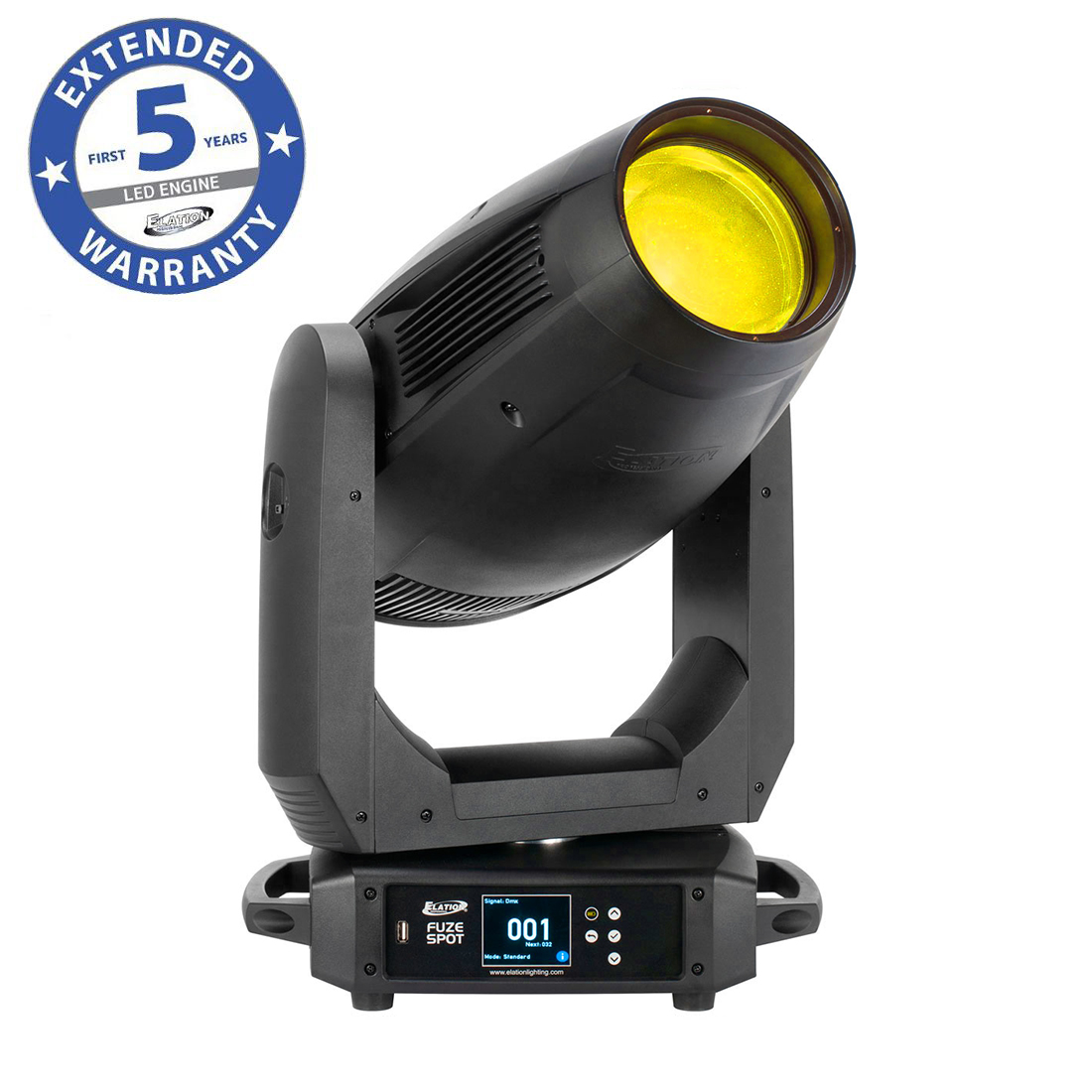

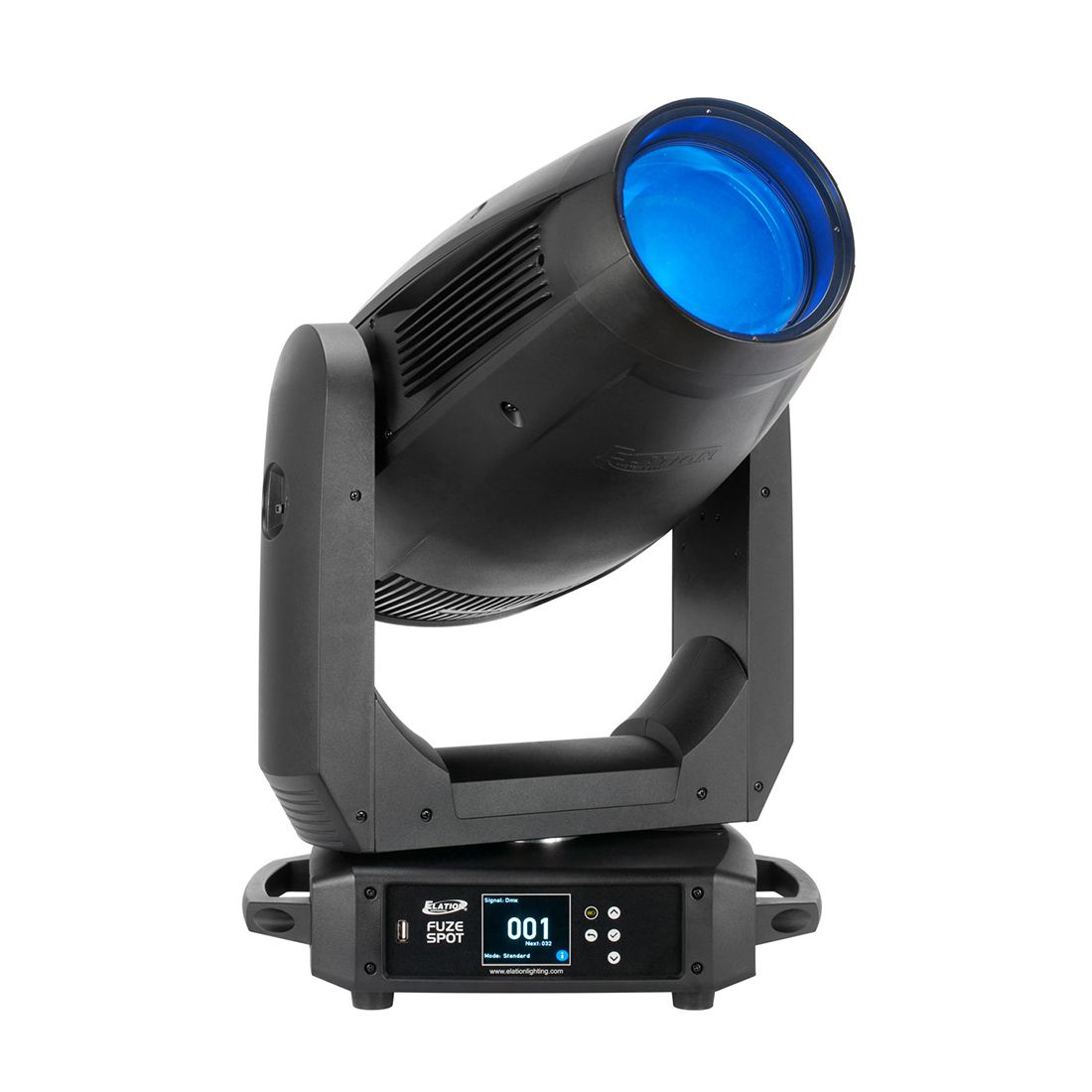

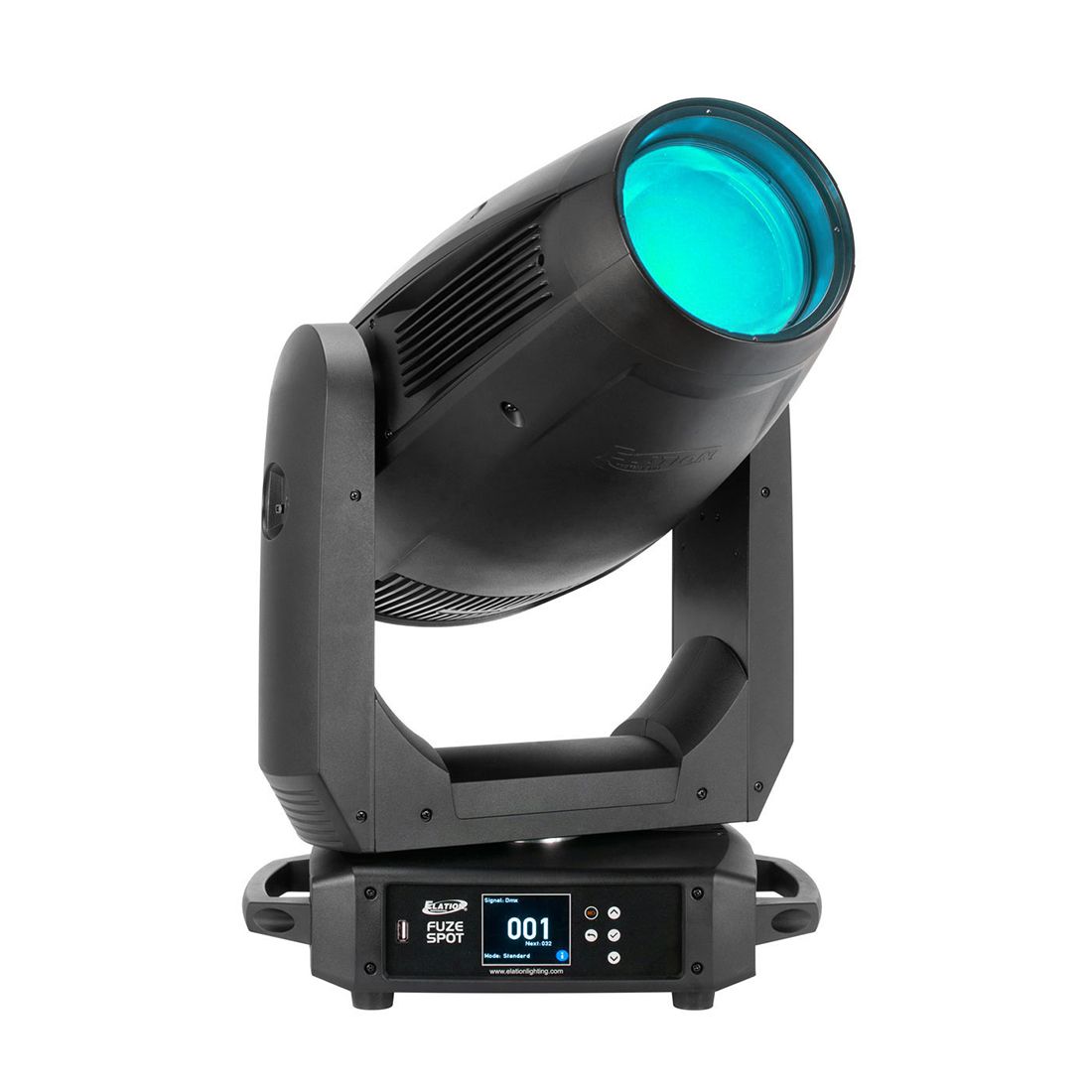

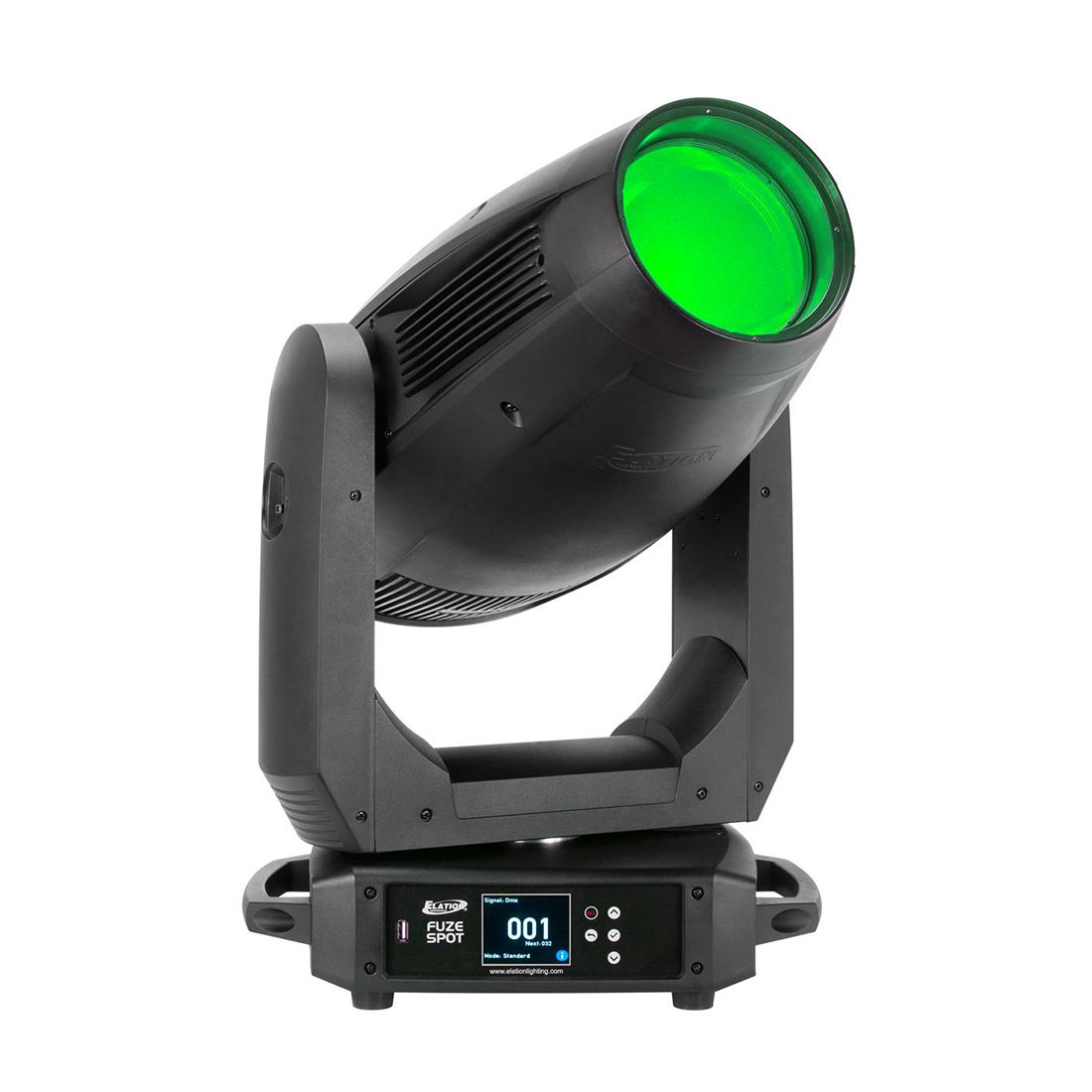

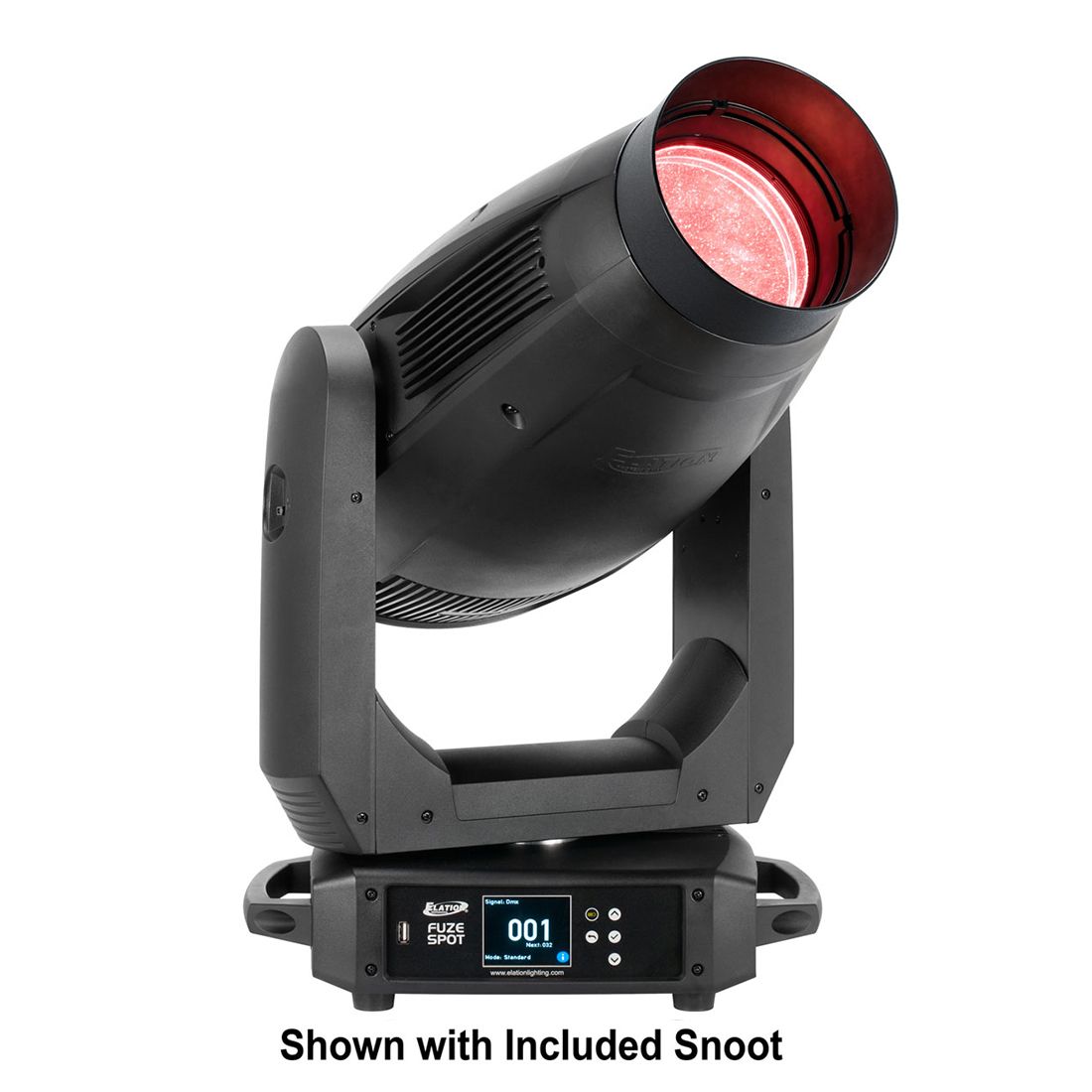

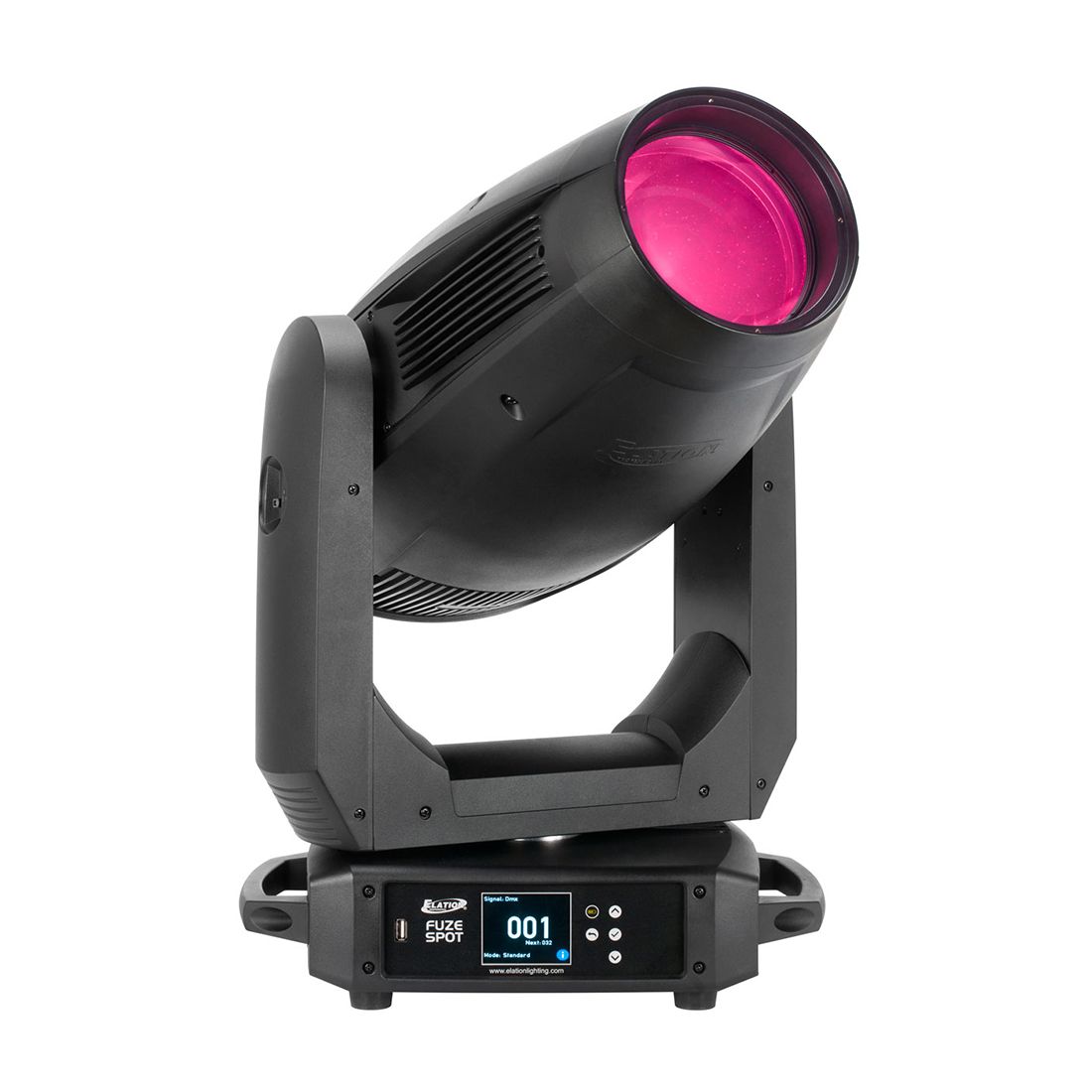

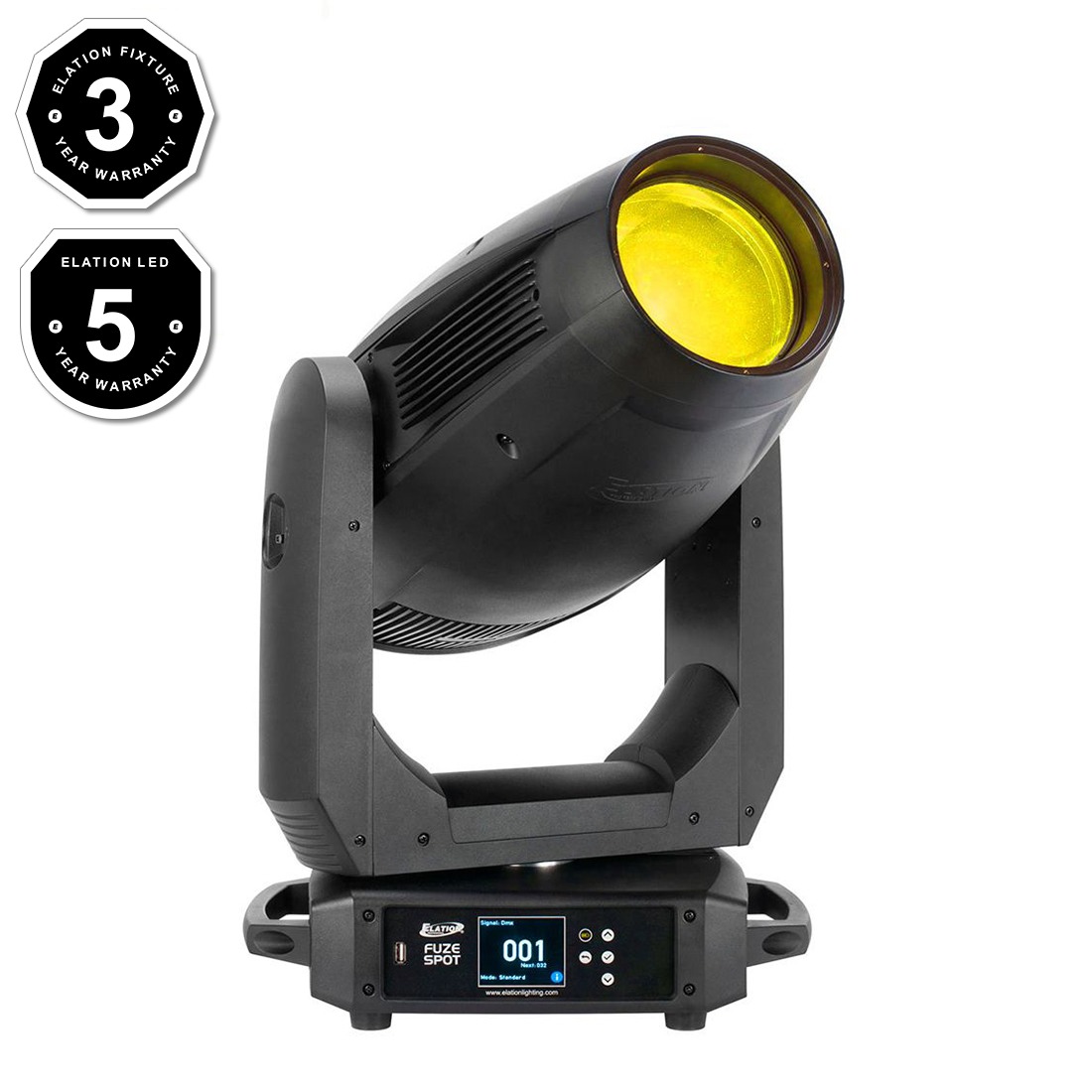

Fuze Spot

The Fuze Spot is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue Mint and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10.000 lumens. Virtual color temperature, magenta / green adjustment plus color gel emulation provide the designer with immediate access to the impressive LED color array. The Fuze Spot is designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required. Dual rotating gobo wheels, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.

Technical Data

FEATURES

Extended color RGBMA LED Engine, 92 CRI
Two rotating Gobo Wheels plus Animation Wheel
Iris, Prism, and Frost
Wide Zoom Range from 7° to 42°

SOURCE

305W 6,500K RGBMA LED Engine, 92 CRI
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

10,000+ Total Lumen Output

EFFECTS

7° - 42° Motorized Zoom
Variable Frost Filter
4 Facet Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe

COLOR

RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book

GOBOS

2x 6 Rotating / Indexing Interchangeable Glass
Animation Wheel

CONTROL / CONNECTIONS

4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

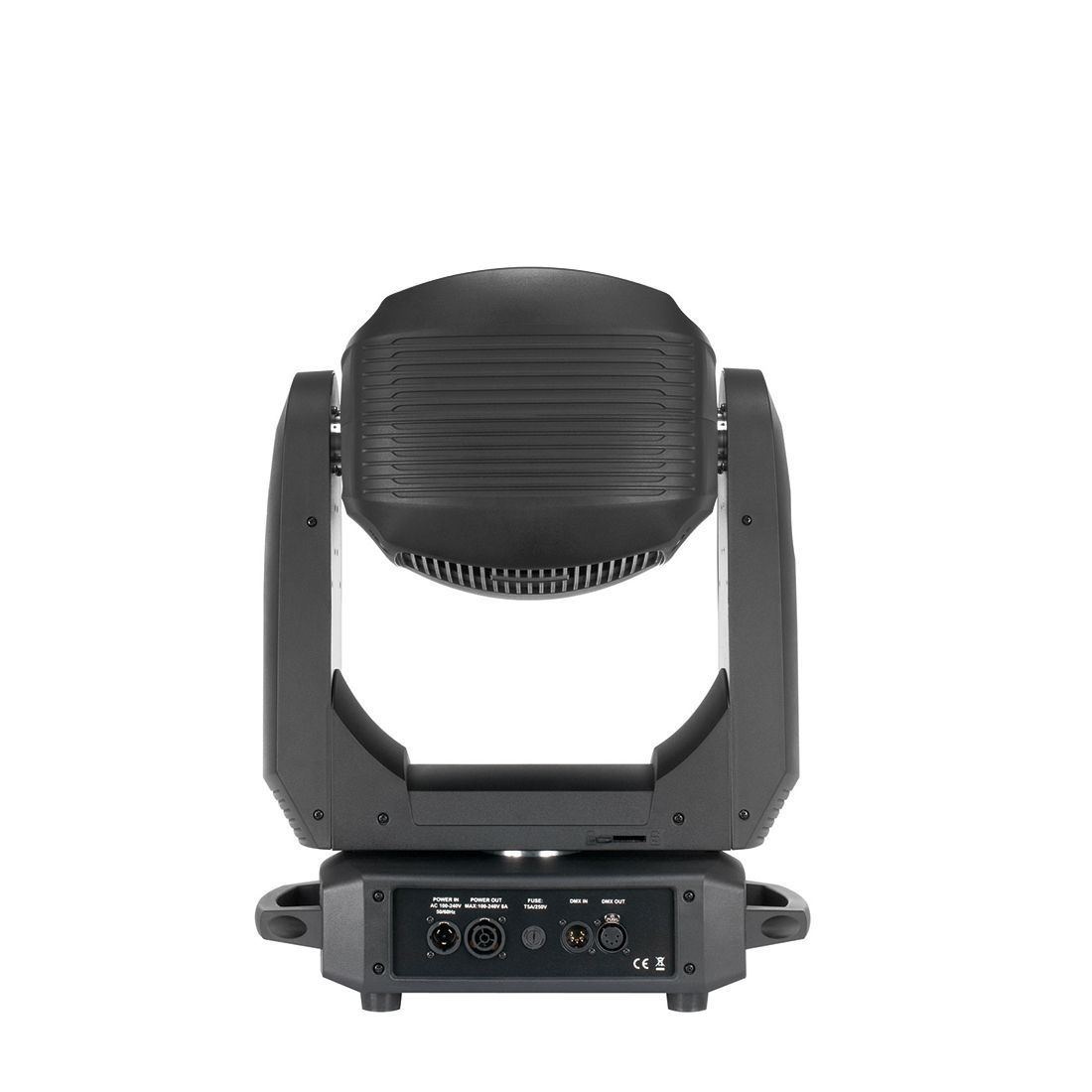

Locking 5pin XLR DMX In/Out
Locking Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 16.0” (407mm)
Width: 10.1” (256mm)
Vertical Height: 27.4” (698mm)
Weight: 46.3 lbs. (21 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
466W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

COLORS AND GOBOS

Gobo Wheel 1
Gobo 17
 Gobo 18
 Gobo 19
 Gobo 22
 Gobo 30
 Gobo 57
Gobo Wheel 2
Gobo 23
 Gobo 24
 Gobo 25
 Gobo 26
 Gobo 27
 Gobo 28
Prisms
Prism 3
