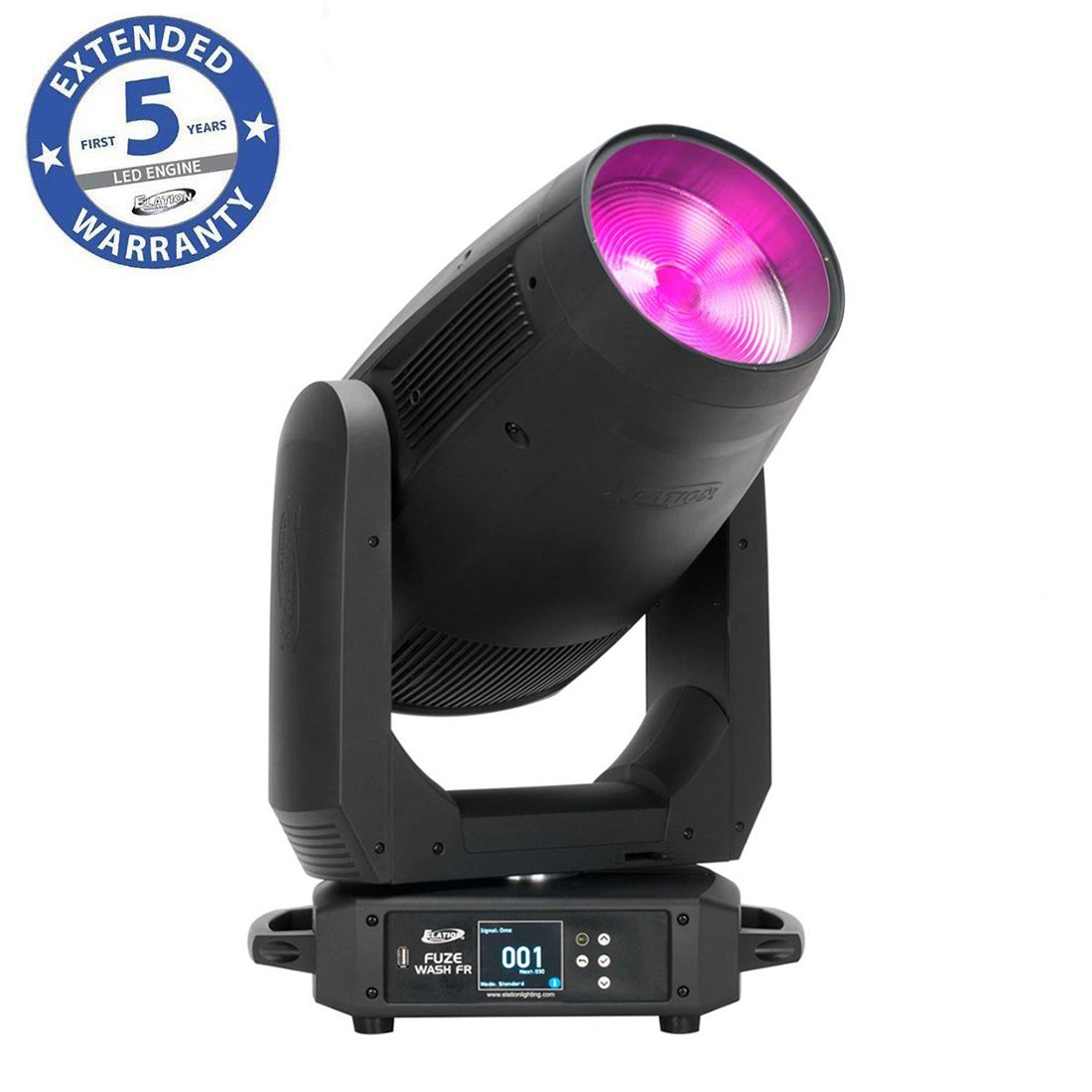

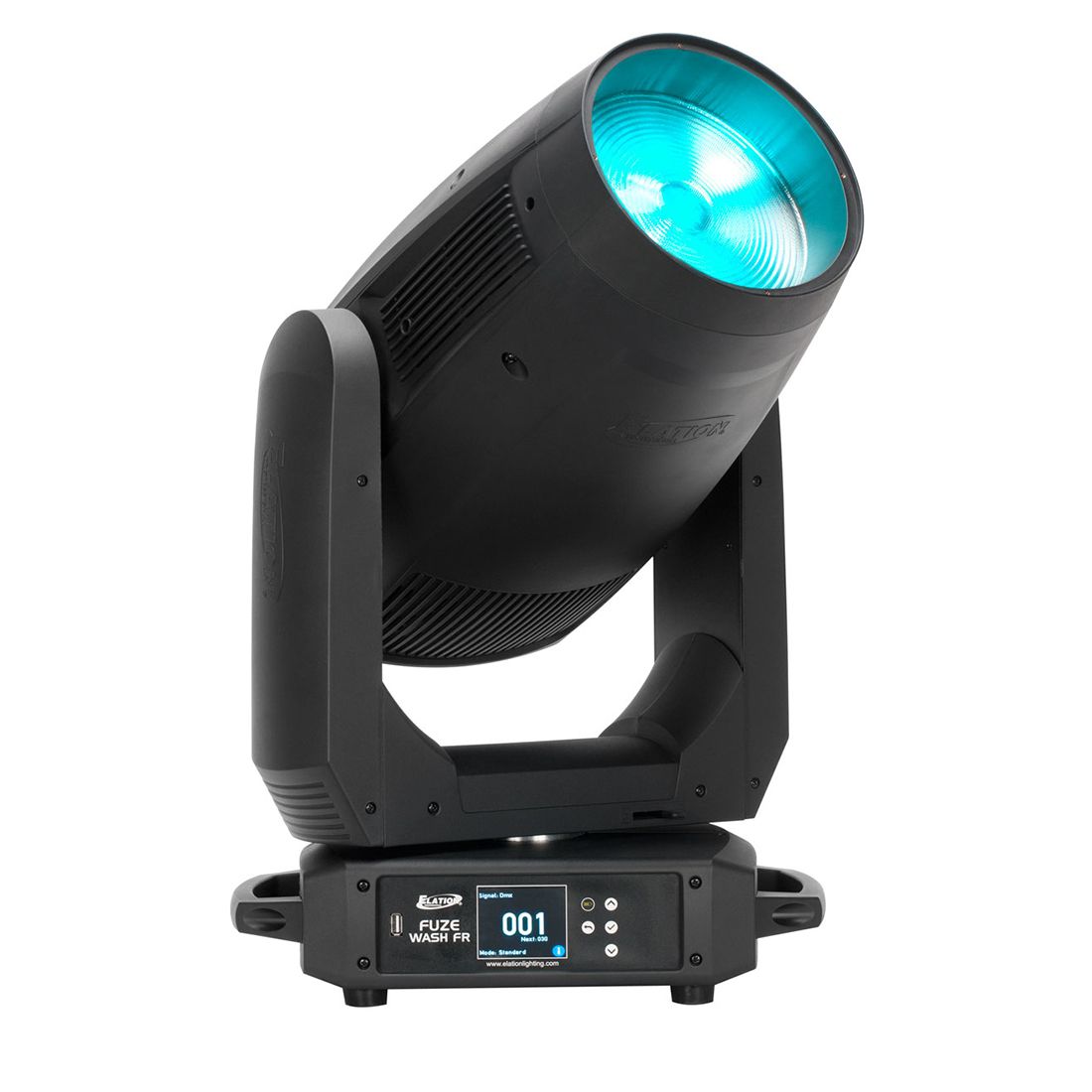

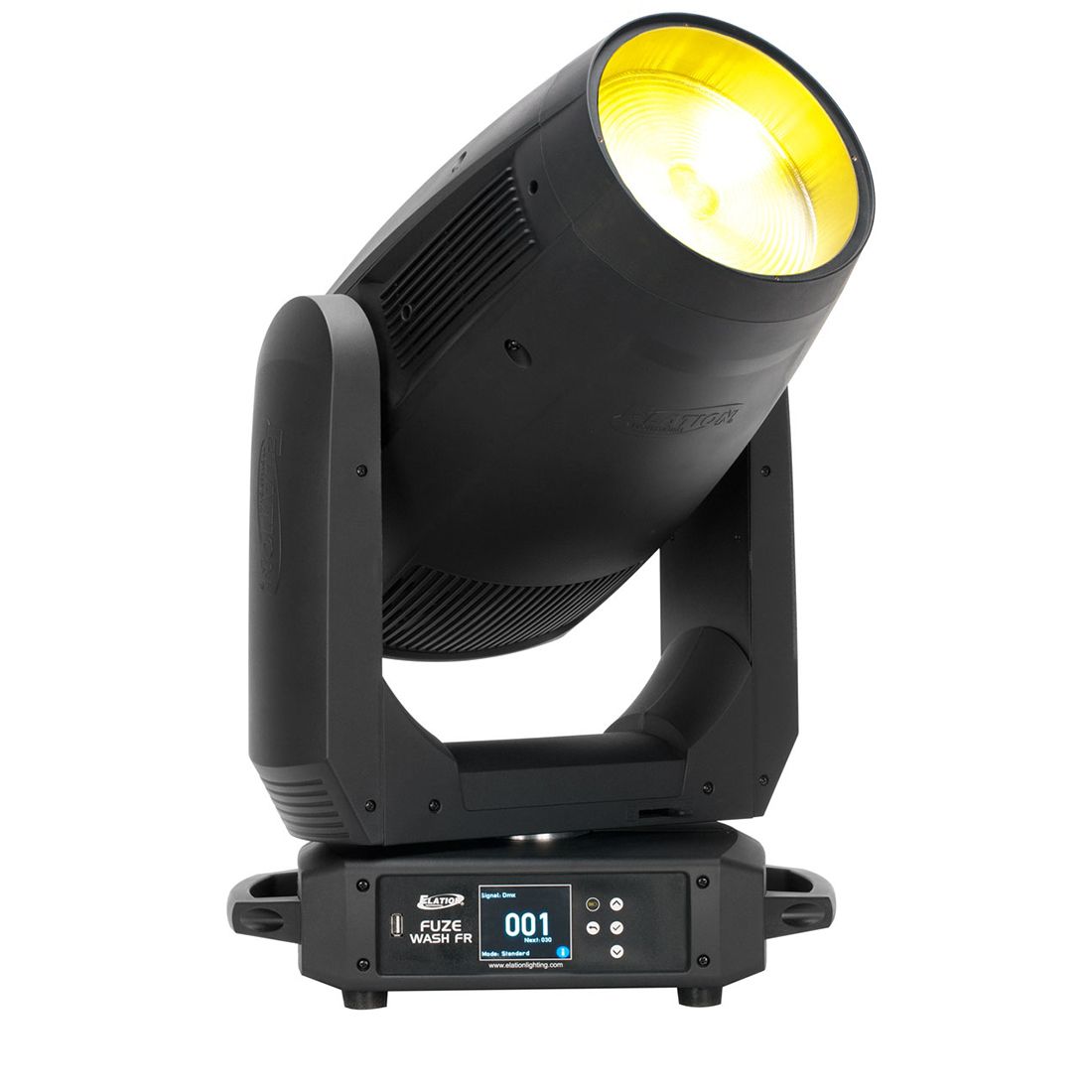

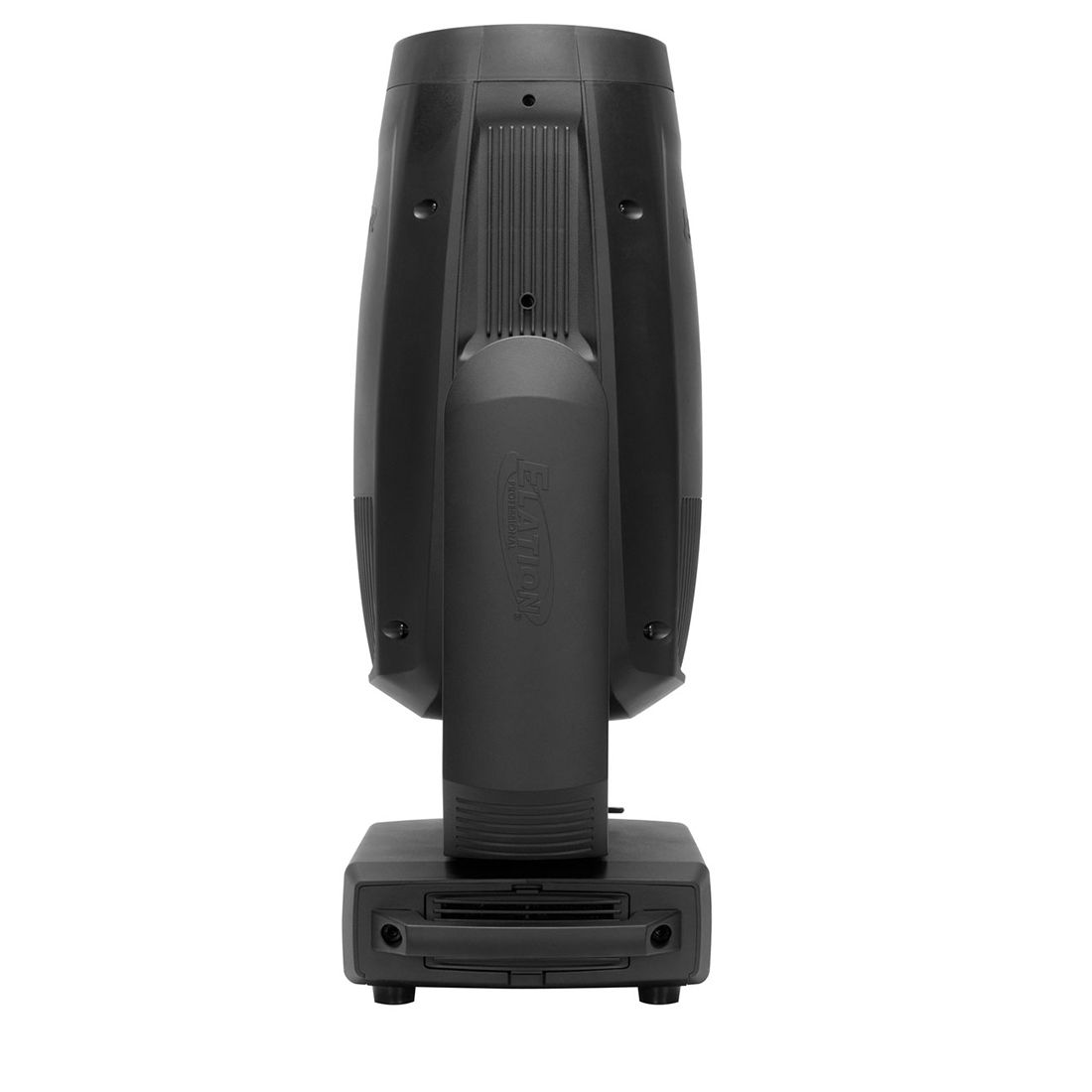

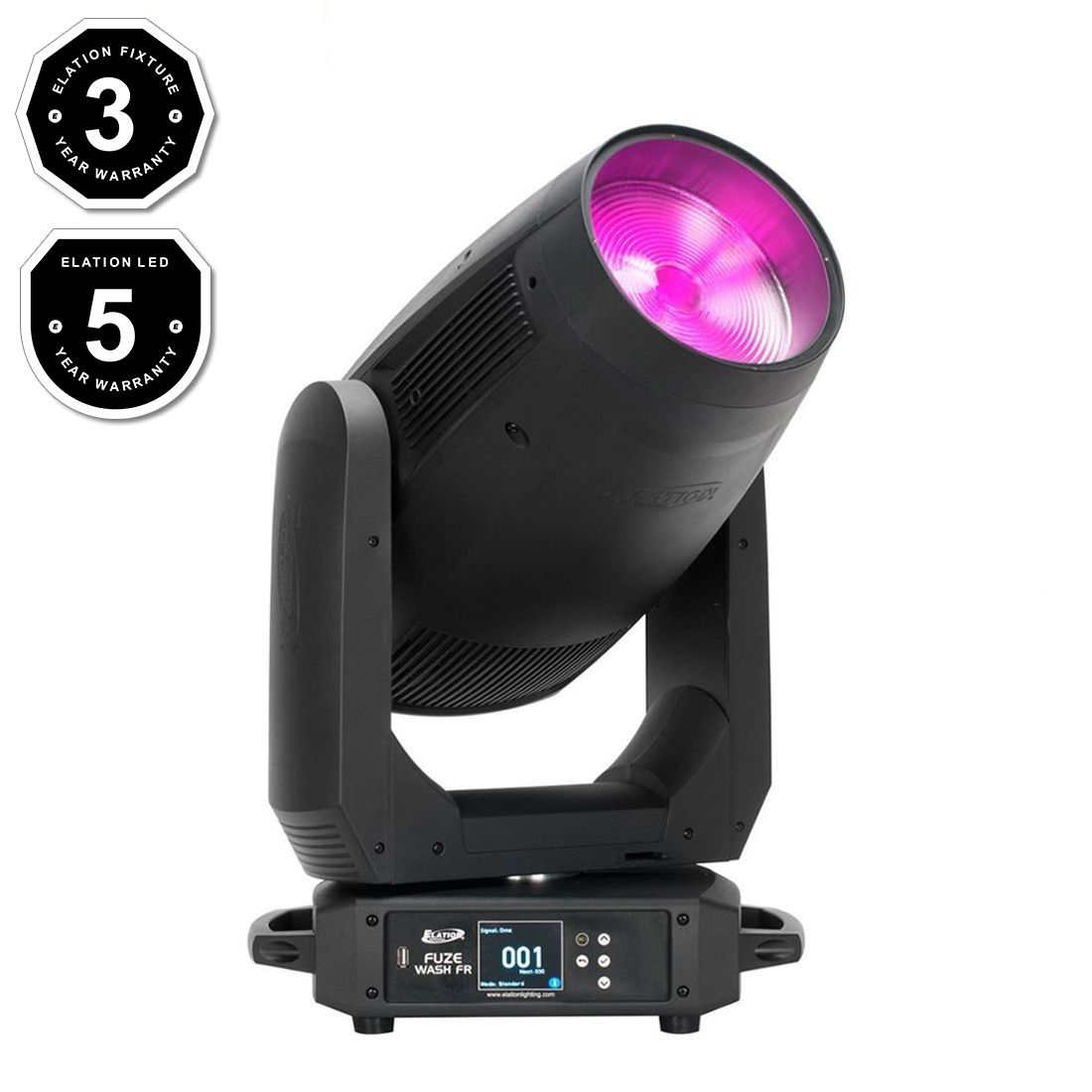

FUZE WASH FR

The FUZE WASH FR™ is an automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 15,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.



The FUZE WASH FR is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and framing beam control with a soft field is required.

Technical Data

FEATURES

480W Full Spectrum RGBMA LED Engine
Up to 15,000 Total Lumen Fixture Output @ 6,500K
CRI up to 92
Internal 4-Blade Framing Module
Variable Frost and Iris for advanced beam control
Wide Zoom Range from 9° to 60°
Variable 16-bit Dimming Curve Modes
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book

SPECIFICATIONS

SOURCE

480W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA

15,000 Total Lumen Fixture Output
CRI 92
Zoom Range 9° - 60°
Beam Angle 8.2° - 50.3°
Field Angle 13° - 62.4°

EFFECTS

Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60 Index
Variable Frost Filter
Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 270°

COLOR

RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

4 DMX Channel Modes (RGBMA 29 / 47) (CMY 27 / 43)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support

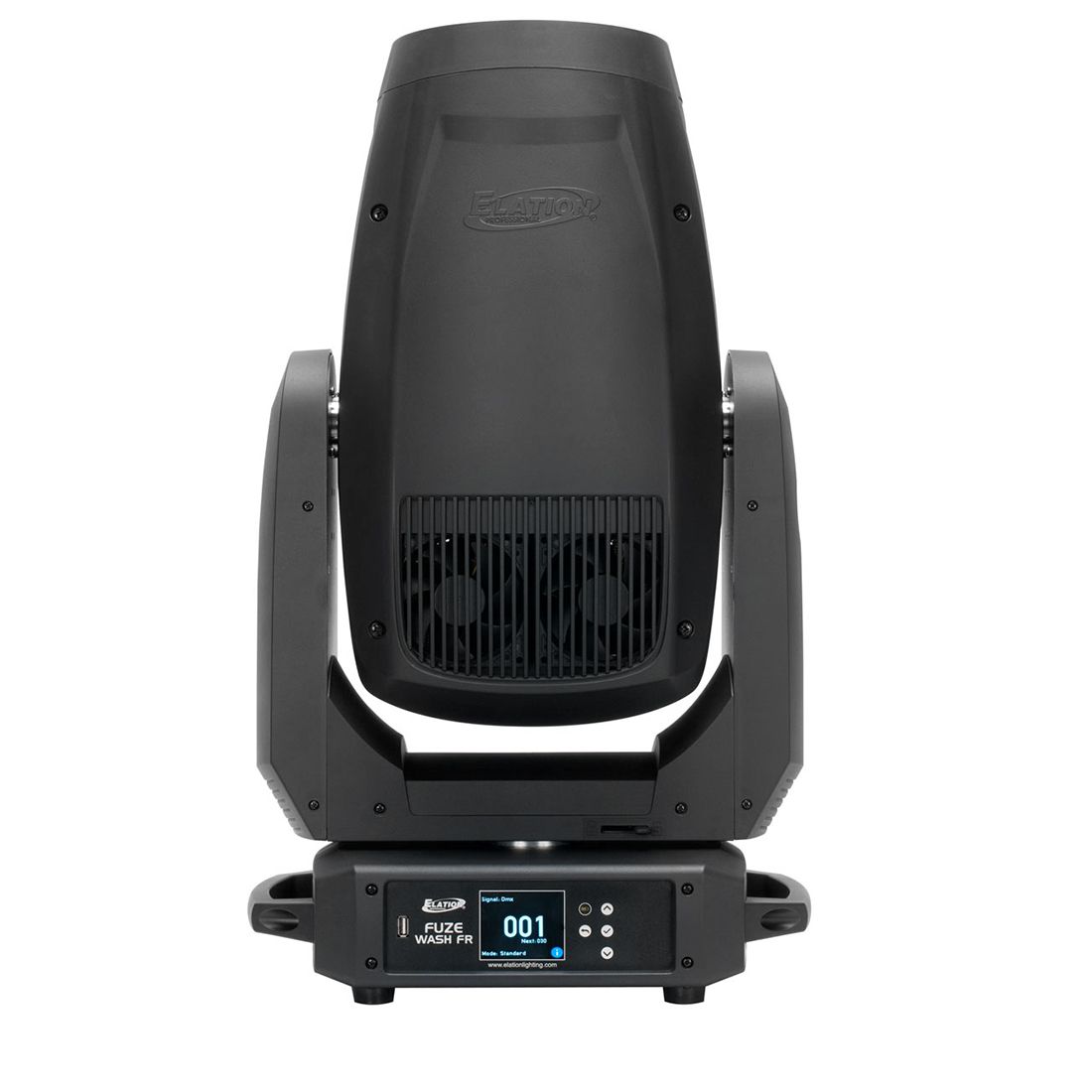

4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

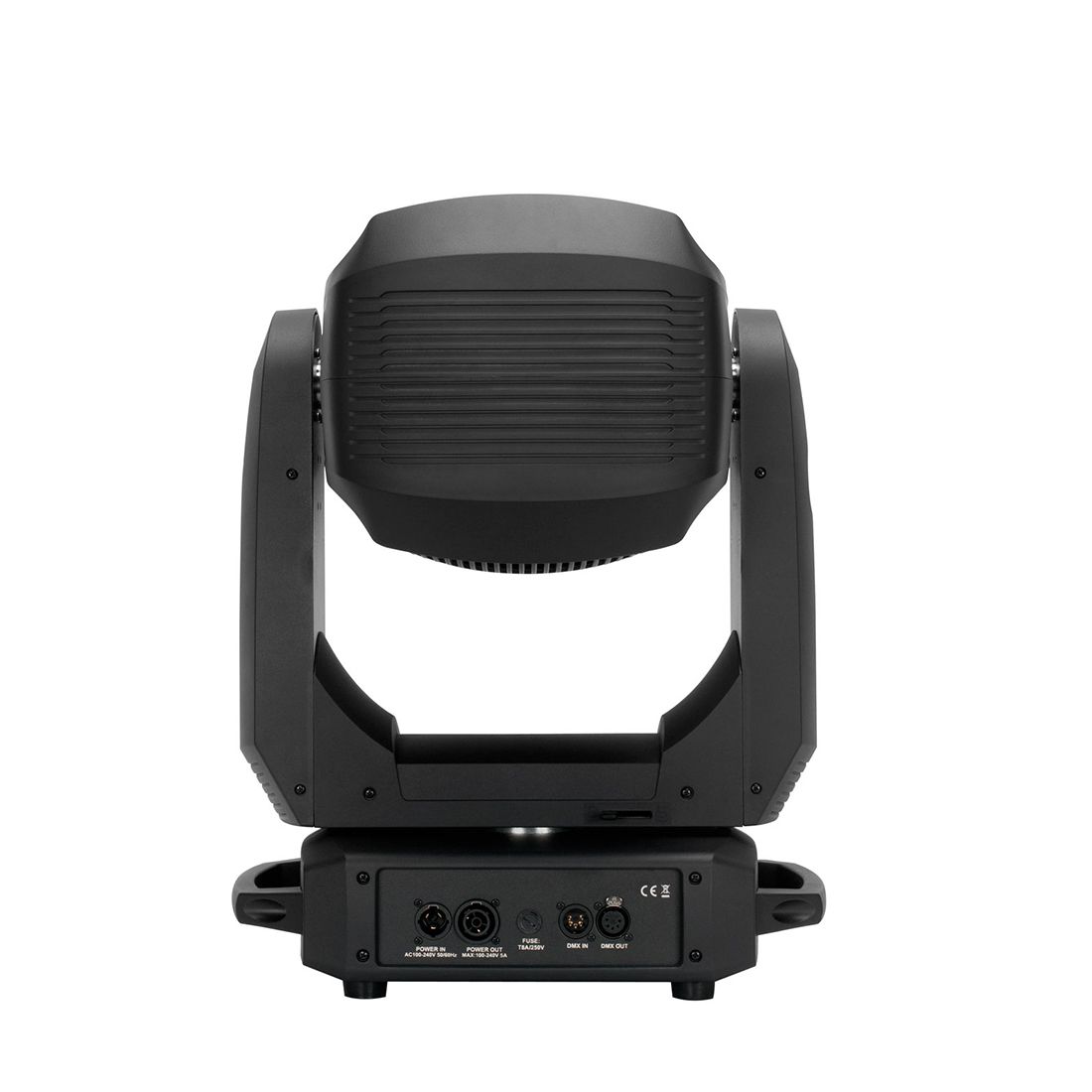

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector Power In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 408mm (16.06")
Width: 256mm (10.08")
Vertical Height: 679mm (26.74")
Weight: 28.1kg (62 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
Max Power Consumption 631W
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2151.71

FIRMWARE UPDATES

Current Firmware can be found here (login required)




Specifications and documentation subject to change without notice

Framing
Endless Rotation

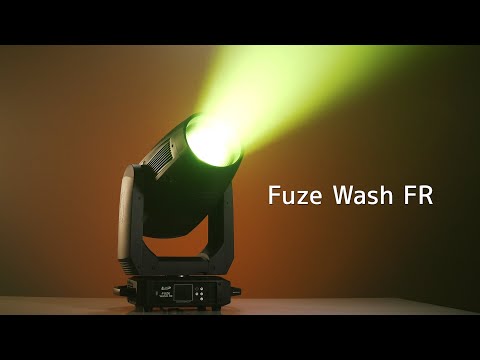

Videos
